GitLab CI/CD系列教程（十一）：Centos安装Gitlab Runner及其配置

1.gitlab-runner 包下载

• arch：amd64, arm, a rm64

# Replace ${arch} with any of the supported architectures, e.g. amd64, arm, a rm64
# A full list of architectures can be found here https://gitlab-runner-downloads.s3.amazonaws .com/ latest/ index，html
curl -LJ0 "https://gitlab-runner-downloads:s3.amazonaws.com/latest/deb/gitlab-runner.${arch}.deb"
# Replace ${arch} with any of the supported architectures, e.g. amd64, arm, arm64
# A full list of architectures can be found here https://gitlab-runner-down loads，s3，amazonaws。
com/ latest/ index. html
curl -LJ0 "https://gitLab-runner-downloads.s3.amazonaws.com/latest/rpm/gitLab-runner_${arch} rpm"
1
2
3
4
5
6
7
8

• 安装

dpkg -i gitlab-runner_<arch>.deb
rpm -i git Lab-runner_<arch>.rpm
1
2

• 为项目注册一个runner
  Setting->CI/CD->Runners


sudo gitltb-runner register \
- -non- interactive \
--url "http://git lab. mczaiyun. top/" \
-- regist ration-token "Hxtkz2LXx6_Vqox9W-mz" \
- executor "shell" \
--docker- image alpine: latest \
-- description "shell-runner" \
--tag-list "shell, 0704" \
-- run-untagged="true" \
--locked="false" \
--access-level="not protected"
1
2
3
4
5
6
7
8
9
10
11

• 注册成功


查看所有的runner：Setting->CI/CD->Runners，点击Expand

• 测试：

job1:
 tags:
  - '0704'
 script: echo 'hello shell'
1
2
3
4

在服务器上可以看到，oGZ8JyjC代表token，0代表任务id；
job执行完毕后，代码会留在服务器上

• 参考：The Shell executor ，gitlab runner 的三种类型，创建以及使用

2.gitlab-runner(shell 执行器)的job并发配置

• The Shell executor

  修改并发数为10


• eg：

job1:
 tags:
  - '0704'
 script: echo 'hello shell'

job2:
 tags:
  - '0704'
 script: echo 'hello shell bash'
1
2
3
4
5
6
7
8
9

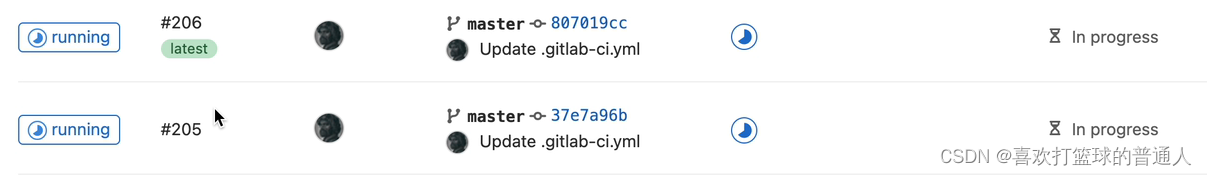

连续触发两次流水线

• 参考：GitLab CI/CD系列教程（十一）：Centos安装Gitlab Runner及其配置，Gitlab CI/CD教程以及实战docker自动部署前端项目（全），新系统Centos 系统 配置前端开发环境
