• SpringMVC之CRUD和文件上传下载

    目录

    一、增删改查环境搭建

    SpringMVC之CRUD

            1）导入pom依赖

            2）框架配置文件

            3）web.xml配置

            4）导入工具类  PageBean、tag助手类、tld文件

            5）开始做开发

    二、增删改查测试

    三、文件上传

    Springmvc上传步骤（重点）：

    导入pom依赖：

    Springmvc.xml配置：

    ClazzController：

    clzUpload:

    四、文件下载

    文件下载步骤（重点）：

    五、Jrebel的使用

    一、增删改查环境搭建

    SpringMVC之CRUD

            1）导入pom依赖

    1. "1.0" encoding="UTF-8"?>
    2.
    3. <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    4.   xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    5.   <modelVersion>4.0.0modelVersion>
    6.
    7.   <groupId>org.examplegroupId>
    8.   <artifactId>ssm2artifactId>
    9.   <version>1.0-SNAPSHOTversion>
    10.   <packaging>warpackaging>
    11.
    12.   <name>ssm2 Maven Webappname>
    13.
    14.   <url>http://www.example.comurl>
    15.
    16.   <properties>
    17.     <project.build.sourceEncoding>UTF-8project.build.sourceEncoding>
    18.     <maven.compiler.source>1.8maven.compiler.source>
    19.     <maven.compiler.target>1.8maven.compiler.target>
    20.     <maven.compiler.plugin.version>3.7.0maven.compiler.plugin.version>
    21.
    22.
    23.
    24.     <spring.version>5.0.2.RELEASEspring.version>
    25.
    26.     <mybatis.version>3.4.5mybatis.version>
    27.
    28.     <mysql.version>5.1.44mysql.version>
    29.
    30.     <pagehelper.version>5.1.2pagehelper.version>
    31.
    32.     <mybatis.spring.version>1.3.1mybatis.spring.version>
    33.
    34.     <commons.dbcp2.version>2.1.1commons.dbcp2.version>
    35.     <commons.pool2.version>2.4.3commons.pool2.version>
    36.
    37.     <log4j2.version>2.9.1log4j2.version>
    38.
    39.     <junit.version>4.12junit.version>
    40.     <servlet.version>4.0.0servlet.version>
    41.     <lombok.version>1.18.2lombok.version>
    42.   properties>
    43.
    44.   <dependencies>
    45.
    46.     <dependency>
    47.       <groupId>org.springframeworkgroupId>
    48.       <artifactId>spring-contextartifactId>
    49.       <version>${spring.version}version>
    50.     dependency>
    51.     <dependency>
    52.       <groupId>org.springframeworkgroupId>
    53.       <artifactId>spring-ormartifactId>
    54.       <version>${spring.version}version>
    55.     dependency>
    56.     <dependency>
    57.       <groupId>org.springframeworkgroupId>
    58.       <artifactId>spring-txartifactId>
    59.       <version>${spring.version}version>
    60.     dependency>
    61.     <dependency>
    62.       <groupId>org.springframeworkgroupId>
    63.       <artifactId>spring-aspectsartifactId>
    64.       <version>${spring.version}version>
    65.     dependency>
    66.     <dependency>
    67.       <groupId>org.springframeworkgroupId>
    68.       <artifactId>spring-webartifactId>
    69.       <version>${spring.version}version>
    70.     dependency>
    71.     <dependency>
    72.       <groupId>org.springframeworkgroupId>
    73.       <artifactId>spring-testartifactId>
    74.       <version>${spring.version}version>
    75.     dependency>
    76.
    77.
    78.     <dependency>
    79.       <groupId>org.mybatisgroupId>
    80.       <artifactId>mybatisartifactId>
    81.       <version>${mybatis.version}version>
    82.     dependency>
    83.
    84.     <dependency>
    85.       <groupId>mysqlgroupId>
    86.       <artifactId>mysql-connector-javaartifactId>
    87.       <version>${mysql.version}version>
    88.     dependency>
    89.
    90.     <dependency>
    91.       <groupId>com.github.pagehelpergroupId>
    92.       <artifactId>pagehelperartifactId>
    93.       <version>${pagehelper.version}version>
    94.     dependency>
    95.
    96.     <dependency>
    97.       <groupId>org.mybatisgroupId>
    98.       <artifactId>mybatis-springartifactId>
    99.       <version>${mybatis.spring.version}version>
    100.     dependency>
    101.
    102.
    103.     <dependency>
    104.       <groupId>org.apache.commonsgroupId>
    105.       <artifactId>commons-dbcp2artifactId>
    106.       <version>${commons.dbcp2.version}version>
    107.     dependency>
    108.     <dependency>
    109.       <groupId>org.apache.commonsgroupId>
    110.       <artifactId>commons-pool2artifactId>
    111.       <version>${commons.pool2.version}version>
    112.     dependency>
    113.
    114.
    115.
    116.     <dependency>
    117.       <groupId>org.apache.logging.log4jgroupId>
    118.       <artifactId>log4j-coreartifactId>
    119.       <version>${log4j2.version}version>
    120.     dependency>
    121.     <dependency>
    122.       <groupId>org.apache.logging.log4jgroupId>
    123.       <artifactId>log4j-apiartifactId>
    124.       <version>${log4j2.version}version>
    125.     dependency>
    126.
    127.     <dependency>
    128.       <groupId>org.apache.logging.log4jgroupId>
    129.       <artifactId>log4j-webartifactId>
    130.       <version>${log4j2.version}version>
    131.     dependency>
    132.
    133.
    134.     <dependency>
    135.       <groupId>junitgroupId>
    136.       <artifactId>junitartifactId>
    137.       <version>${junit.version}version>
    138.       <scope>testscope>
    139.     dependency>
    140.     <dependency>
    141.       <groupId>javax.servletgroupId>
    142.       <artifactId>javax.servlet-apiartifactId>
    143.       <version>${servlet.version}version>
    144.       <scope>providedscope>
    145.     dependency>
    146.     <dependency>
    147.       <groupId>org.projectlombokgroupId>
    148.       <artifactId>lombokartifactId>
    149.       <version>${lombok.version}version>
    150.       <scope>providedscope>
    151.     dependency>
    152.
    153.     <dependency>
    154.       <groupId>org.springframeworkgroupId>
    155.       <artifactId>spring-webmvcartifactId>
    156.       <version>${spring.version}version>
    157.     dependency>
    158.
    159.
    160.     <dependency>
    161.       <groupId>javax.servlet.jspgroupId>
    162.       <artifactId>javax.servlet.jsp-apiartifactId>
    163.       <version>2.3.3version>
    164.     dependency>
    165.     <dependency>
    166.       <groupId>jstlgroupId>
    167.       <artifactId>jstlartifactId>
    168.       <version>1.2version>
    169.     dependency>
    170.     <dependency>
    171.       <groupId>taglibsgroupId>
    172.       <artifactId>standardartifactId>
    173.       <version>1.1.2version>
    174.     dependency>
    175.   dependencies>
    176.
    177.   <build>
    178.     <finalName>ssm2finalName>
    179.     <resources>
    180.
    181.       <resource>
    182.         <directory>src/main/javadirectory>
    183.         <includes>
    184.           <include>**/*.xmlinclude>
    185.         includes>
    186.       resource>
    187.
    188.       <resource>
    189.         <directory>src/main/resourcesdirectory>
    190.         <includes>
    191.           <include>jdbc.propertiesinclude>
    192.           <include>*.xmlinclude>
    193.         includes>
    194.       resource>
    195.     resources>
    196.     <pluginManagement>
    197.       <plugins>
    198.         <plugin>
    199.           <groupId>org.apache.maven.pluginsgroupId>
    200.           <artifactId>maven-compiler-pluginartifactId>
    201.           <version>${maven.compiler.plugin.version}version>
    202.           <configuration>
    203.             <source>${maven.compiler.source}source>
    204.             <target>${maven.compiler.target}target>
    205.             <encoding>${project.build.sourceEncoding}encoding>
    206.           configuration>
    207.         plugin>
    208.         <plugin>
    209.           <groupId>org.mybatis.generatorgroupId>
    210.           <artifactId>mybatis-generator-maven-pluginartifactId>
    211.           <version>1.3.2version>
    212.           <dependencies>
    213.
    214.             <dependency>
    215.               <groupId>mysqlgroupId>
    216.               <artifactId>mysql-connector-javaartifactId>
    217.               <version>${mysql.version}version>
    218.             dependency>
    219.           dependencies>
    220.           <configuration>
    221.             <overwrite>trueoverwrite>
    222.           configuration>
    223.         plugin>
    224.         <plugin>
    225.           <artifactId>maven-clean-pluginartifactId>
    226.           <version>3.1.0version>
    227.         plugin>
    228.
    229.         <plugin>
    230.           <artifactId>maven-resources-pluginartifactId>
    231.           <version>3.0.2version>
    232.         plugin>
    233.         <plugin>
    234.           <artifactId>maven-compiler-pluginartifactId>
    235.           <version>3.8.0version>
    236.         plugin>
    237.         <plugin>
    238.           <artifactId>maven-surefire-pluginartifactId>
    239.           <version>2.22.1version>
    240.         plugin>
    241.         <plugin>
    242.           <artifactId>maven-war-pluginartifactId>
    243.           <version>3.2.2version>
    244.         plugin>
    245.         <plugin>
    246.           <artifactId>maven-install-pluginartifactId>
    247.           <version>2.5.2version>
    248.         plugin>
    249.         <plugin>
    250.           <artifactId>maven-deploy-pluginartifactId>
    251.           <version>2.8.2version>
    252.         plugin>
    253.       plugins>
    254.     pluginManagement>
    255.   build>
    256. project>

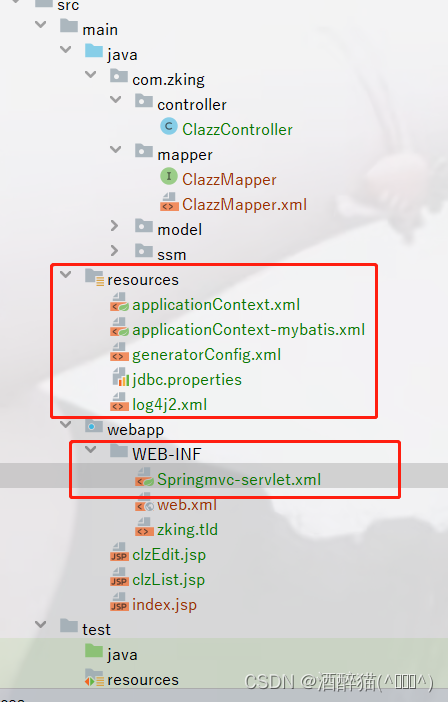

            2）框架配置文件

                    applicationContext.xml：

    1. "1.0" encoding="UTF-8"?>
    2. <beans xmlns="http://www.springframework.org/schema/beans"
    3.        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    4.        xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
    5.        xmlns:aop="http://www.springframework.org/schema/aop"
    6.        xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">
    7.     <import resource="applicationContext-mybatis.xml">import>
    8. beans>

                    applicationContext-mybatis.xml：

    1. "1.0" encoding="UTF-8"?>
    2. <beans xmlns="http://www.springframework.org/schema/beans"
    3.        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    4.        xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
    5.        xmlns:aop="http://www.springframework.org/schema/aop"
    6.        xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">
    7.
    8.
    9.     <context:annotation-config/>
    10.
    11.     <context:component-scan base-package="com.zking"/>
    12.
    13.     <context:property-placeholder location="classpath:jdbc.properties"/>
    14.
    15.     <bean id="dataSource" class="org.apache.commons.dbcp2.BasicDataSource"
    16.           destroy-method="close">
    17.         <property name="driverClassName" value="${jdbc.driver}"/>
    18.         <property name="url" value="${jdbc.url}"/>
    19.         <property name="username" value="${jdbc.username}"/>
    20.         <property name="password" value="${jdbc.password}"/>
    21.
    22.         <property name="initialSize" value="10"/>
    23.
    24.         <property name="maxTotal" value="100"/>
    25.
    26.         <property name="maxIdle" value="50"/>
    27.
    28.         <property name="minIdle" value="10"/>
    29.
    30.
    31.         <property name="maxWaitMillis" value="-1"/>
    32.     bean>
    33.
    34.
    35.
    36.     <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
    37.
    38.         <property name="dataSource" ref="dataSource"/>
    39.
    40.         <property name="mapperLocations" value="classpath*:com/zking/**/*.xml"/>
    41.
    42.         <property name="typeAliasesPackage" value="com/zking/**/model"/>
    43.
    44.         <property name="plugins">
    45.             <array>
    46.                 <bean class="com.github.pagehelper.PageInterceptor">
    47.                     <property name="properties">
    48.                         <value>
    49.                             helperDialect=mysql
    50.                         value>
    51.                     property>
    52.                 bean>
    53.             array>
    54.         property>
    55.     bean>
    56.
    57.
    58.
    59.     <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
    60.
    61.
    62.         <property name="basePackage" value="com/**/mapper"/>
    63.         <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
    64.     bean>
    65.
    66.     <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
    67.         <property name="dataSource" ref="dataSource" />
    68.     bean>
    69.     <aop:aspectj-autoproxy/>
    70.     <tx:annotation-driven transaction-manager="transactionManager" />
    71.
    72. beans>

                     jdbc.properties：

    1. jdbc.driver=com.mysql.jdbc.Driver
    2. jdbc.url=jdbc:mysql://localhost:3306/yjy?useUnicode=true&characterEncoding=UTF-8
    3. jdbc.username=root
    4. jdbc.password=1234

                     generatorConfig.xml：

    1. "1.0" encoding="UTF-8" ?>
    2. DOCTYPE generatorConfiguration PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
    3.         "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd" >
    4. <generatorConfiguration>
    5.
    6.     <properties resource="jdbc.properties"/>
    7.
    8.
    9.     <classPathEntry location="E:\\mvn_repository\\mysql\\mysql-connector-java\\5.1.44\\mysql-connector-java-5.1.44.jar"/>
    10.
    11.
    12.     <context id="infoGuardian">
    13.
    14.         <commentGenerator>
    15.             <property name="suppressAllComments" value="true"/>
    16.             <property name="suppressDate" value="true"/>
    17.         commentGenerator>
    18.
    19.
    20.         <jdbcConnection driverClass="${jdbc.driver}"
    21.                         connectionURL="${jdbc.url}" userId="${jdbc.username}" password="${jdbc.password}"/>
    22.
    23.
    24.         <javaTypeResolver>
    25.
    26.             <property name="forceBigDecimals" value="false"/>
    27.         javaTypeResolver>
    28.
    29.
    30.
    31.
    32.         <javaModelGenerator targetPackage="com.zking.model"
    33.                             targetProject="src/main/java">
    34.
    35.             <property name="enableSubPackages" value="false"/>
    36.
    37.             <property name="constructorBased" value="true"/>
    38.
    39.             <property name="trimStrings" value="false"/>
    40.
    41.             <property name="immutable" value="false"/>
    42.         javaModelGenerator>
    43.
    44.
    45.         <sqlMapGenerator targetPackage="com.zking.mapper"
    46.                          targetProject="src/main/java">
    47.
    48.             <property name="enableSubPackages" value="false"/>
    49.         sqlMapGenerator>
    50.
    51.
    52.
    53.
    54.
    55.         <javaClientGenerator targetPackage="com.zking.mapper"
    56.                              targetProject="src/main/java" type="XMLMAPPER">
    57.
    58.             <property name="enableSubPackages" value="false"/>
    59.         javaClientGenerator>
    60.
    61.
    62.
    63.
    64.
    65.
    66.
    67.
    68.
    69.
    70.
    71.
    72.
    73.
    74.
    75.
    76.         <table schema="" tableName="t_struts_class" domainObjectName="Clazz"
    77.                enableCountByExample="false" enableDeleteByExample="false"
    78.                enableSelectByExample="false" enableUpdateByExample="false">
    79.         table>
    80.
    81.
    82.
    83.     context>
    84. generatorConfiguration>

                     log4j2.xml:

    1. "1.0" encoding="UTF-8"?>
    2.
    4. <Configuration status="WARN" monitorInterval="30">
    5.     <Properties>
    6.
    7.         <Property name="LOG_HOME">/root/workspace/lucenedemo/logsProperty>
    8.         <property name="ERROR_LOG_FILE_NAME">/root/workspace/lucenedemo/logs/errorproperty>
    9.         <property name="WARN_LOG_FILE_NAME">/root/workspace/lucenedemo/logs/warnproperty>
    10.         <property name="PATTERN">%d{yyyy-MM-dd HH:mm:ss.SSS} [%t-%L] %-5level %logger{36} - %msg%nproperty>
    11.     Properties>
    12.
    13.     <Appenders>
    14.
    15.         <Console name="Console" target="SYSTEM_OUT">
    16.
    17.             <ThresholdFilter level="trace" onMatch="ACCEPT"
    18.                              onMismatch="DENY" />
    19.
    20.
    21.             <PatternLayout pattern="${PATTERN}" />
    22.         Console>
    23.
    24.
    25.
    26.         <File name="log" fileName="logs/test.log" append="false">
    27.             <PatternLayout
    28.                     pattern="%d{yyyy-MM-dd HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n" />
    29.         File>
    30.
    31.         <RollingFile name="RollingFileInfo" fileName="${LOG_HOME}/info.log"
    32.                      filePattern="${LOG_HOME}/$${date:yyyy-MM}/info-%d{yyyy-MM-dd}-%i.log">
    33.
    34.             <ThresholdFilter level="info" onMatch="ACCEPT"
    35.                              onMismatch="DENY" />
    36.             <PatternLayout
    37.                     pattern="%d{yyyy-MM-dd HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n" />
    38.             <Policies>
    39.
    40.
    41.
    42.                 <TimeBasedTriggeringPolicy interval="1"
    43.                                            modulate="true" />
    44.
    45.
    46.             Policies>
    47.         RollingFile>
    48.
    49.         <RollingFile name="RollingFileWarn" fileName="${WARN_LOG_FILE_NAME}/warn.log"
    50.                      filePattern="${WARN_LOG_FILE_NAME}/$${date:yyyy-MM}/warn-%d{yyyy-MM-dd}-%i.log">
    51.             <ThresholdFilter level="warn" onMatch="ACCEPT"
    52.                              onMismatch="DENY" />
    53.             <PatternLayout
    54.                     pattern="%d{yyyy-MM-dd HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n" />
    55.             <Policies>
    56.                 <TimeBasedTriggeringPolicy />
    57.                 <SizeBasedTriggeringPolicy size="2 kB" />
    58.             Policies>
    59.
    60.             <DefaultRolloverStrategy max="20" />
    61.         RollingFile>
    62.
    63.         <RollingFile name="RollingFileError" fileName="${ERROR_LOG_FILE_NAME}/error.log"
    64.                      filePattern="${ERROR_LOG_FILE_NAME}/$${date:yyyy-MM}/error-%d{yyyy-MM-dd-HH-mm}-%i.log">
    65.             <ThresholdFilter level="error" onMatch="ACCEPT"
    66.                              onMismatch="DENY" />
    67.             <PatternLayout
    68.                     pattern="%d{yyyy-MM-dd HH:mm:ss.SSS} [%t] %-5level %logger{36} - %msg%n" />
    69.             <Policies>
    70.
    71.                 <TimeBasedTriggeringPolicy interval="1"
    72.                                            modulate="true" />
    73.
    74.             Policies>
    75.         RollingFile>
    76.
    77.     Appenders>
    78.
    79.
    80.     <Loggers>
    81.
    82.         <logger name="org.springframework" level="INFO">logger>
    83.         <logger name="org.mybatis" level="INFO">logger>
    84.
    85.
    86.         <logger name="org.springframework" level="ERROR" />
    87.         <logger name="org.hibernate" level="ERROR" />
    88.         <logger name="org.apache.struts2" level="ERROR" />
    89.         <logger name="com.opensymphony.xwork2" level="ERROR" />
    90.         <logger name="org.jboss" level="ERROR" />
    91.
    92.
    93.
    94.         <root level="all">
    95.             <appender-ref ref="Console" />
    96.             <appender-ref ref="RollingFileInfo" />
    97.             <appender-ref ref="RollingFileWarn" />
    98.             <appender-ref ref="RollingFileError" />
    99.         root>
    100.
    101.     Loggers>
    102.
    103. Configuration>

                    springMVC-servlet.xml:

    1. "1.0" encoding="UTF-8"?>
    2. <beans xmlns="http://www.springframework.org/schema/beans"
    3.        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    4.        xmlns:context="http://www.springframework.org/schema/context"
    5.        xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:aop="http://www.springframework.org/schema/aop"
    6.        xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
    7.       http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">
    8.
    9.
    10.     <aop:aspectj-autoproxy/>
    11.     <context:component-scan base-package="com.zking.controller"/>
    12.
    13.
    14.
    15.
    16.     <mvc:annotation-driven>mvc:annotation-driven>
    17.
    18.
    19.     <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
    20.
    21.         <property name="viewClass"
    22.                   value="org.springframework.web.servlet.view.JstlView">property>
    23.         <property name="prefix" value="/"/>
    24.         <property name="suffix" value=".jsp"/>
    25.     bean>
    26.
    27.
    28.
    29.     <mvc:resources location="/images/" mapping="/images/**"/>
    30.
    31.
    32.
    33. beans>

            3）web.xml配置

                    dispatcherServlet

                    ContextLoadListener

                    Encoding...

    1. "http://xmlns.jcp.org/xml/ns/javaee"
    2.          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    3.          xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
    4.          version="3.1">
    5.   <display-name>Archetype Created Web Applicationdisplay-name>
    6.   <context-param>
    7.     <param-name>contextConfigLocationparam-name>
    8.     <param-value>classpath:applicationContext.xmlparam-value>
    9.   context-param>
    10.
    11.   <listener>
    12.     <listener-class>org.springframework.web.context.ContextLoaderListenerlistener-class>
    13.   listener>
    14.
    15.
    16.   <servlet>
    17.     <servlet-name>SpringMVCservlet-name>
    18.     <servlet-class>org.springframework.web.servlet.DispatcherServletservlet-class>
    19.
    20.     <init-param>
    21.       <param-name>contextConfigLocationparam-name>
    22.       <param-value>/WEB-INF/Springmvc-servlet.xmlparam-value>
    23.     init-param>
    24.     <load-on-startup>1load-on-startup>
    25.
    26.     <async-supported>trueasync-supported>
    27.
    28.   <servlet-mapping>
    29.     <servlet-name>SpringMVCservlet-name>
    30.     <url-pattern>/url-pattern>
    31.   servlet-mapping>
    32.
    33.
    34.   <filter>
    35.     <filter-name>encodingFilterfilter-name>
    36.     <filter-class>org.springframework.web.filter.CharacterEncodingFilterfilter-class>
    37.
    38.     <async-supported>trueasync-supported>
    39.     <init-param>
    40.       <param-name>encodingparam-name>
    41.       <param-value>UTF-8param-value>
    42.     init-param>
    43.   filter>
    44.   <filter-mapping>
    45.     <filter-name>encodingFilterfilter-name>
    46.     <url-pattern>/*url-pattern>
    47.   filter-mapping>
    49.

            4）导入工具类  PageBean、tag助手类、tld文件

    PageBean :

    1. package com.zking.ssm.util;
    2.
    3. import java.util.HashMap;
    4. import java.util.Map;
    5.
    6. import javax.servlet.http.HttpServletRequest;
    7.
    8. /**
    9.  * 分页工具类
    10.  *
    11.  */
    12. public class PageBean {
    13.
    14. 	private int page = 1;// 页码
    15.
    16. 	private int rows = 10;// 页大小
    17.
    18. 	private int total = 0;// 总记录数
    19.
    20. 	private boolean pagination = true;// 是否分页
    21.
    22. 	private String url; //保存上一次请求的URL
    23.
    24. 	private Map<String,String[]> paramMap = new HashMap<>();// 保存上一次请求的参数
    25.
    26. 	/**
    27. 	 * 初始化pagebean的，保存上一次请求的重要参数
    28. 	 * @param req
    29. 	 */
    30. 	public void setRequest(HttpServletRequest req) {
    31. //		1.1	需要保存上一次请求的URL
    32. 		this.setUrl(req.getRequestURL().toString());
    33. //		1.2	需要保存上一次请求的参数	bname、price
    34. 		this.setParamMap(req.getParameterMap());
    35. //		1.3	需要保存上一次请求的分页设置	pagination
    36. 		this.setPagination(req.getParameter("pagination"));
    37. //		1.4	需要保存上一次请求的展示条目数
    38. 		this.setRows(req.getParameter("rows"));
    39. //		1.5  初始化请求的页码	page
    40. 		this.setPage(req.getParameter("page"));
    41. 	}
    42.
    43. 	public void setPage(String page) {
    44. 		if(StringUtils.isNotBlank(page))
    45. 			this.setPage(Integer.valueOf(page));
    46. 	}
    47.
    48. 	public void setRows(String rows) {
    49. 		if(StringUtils.isNotBlank(rows))
    50. 			this.setRows(Integer.valueOf(rows));
    51. 	}
    52.
    53. 	public void setPagination(String pagination) {
    54. //		只有在前台jsp填写了pagination=false，才代表不分页
    55. 		if(StringUtils.isNotBlank(pagination))
    56. 			this.setPagination(!"false".equals(pagination));
    57. 	}
    58.
    59.
    60. 	public String getUrl() {
    61. 		return url;
    62. 	}
    63.
    64. 	public void setUrl(String url) {
    65. 		this.url = url;
    66. 	}
    67.
    68. 	public Map<String, String[]> getParamMap() {
    69. 		return paramMap;
    70. 	}
    71.
    72. 	public void setParamMap(Map<String, String[]> paramMap) {
    73. 		this.paramMap = paramMap;
    74. 	}
    75.
    76.
    77.
    78. 	public PageBean() {
    79. 		super();
    80. 	}
    81.
    82. 	public int getPage() {
    83. 		return page;
    84. 	}
    85.
    86. 	public void setPage(int page) {
    87. 		this.page = page;
    88. 	}
    89.
    90. 	public int getRows() {
    91. 		return rows;
    92. 	}
    93.
    94. 	public void setRows(int rows) {
    95. 		this.rows = rows;
    96. 	}
    97.
    98. 	public int getTotal() {
    99. 		return total;
    100. 	}
    101.
    102. 	public void setTotal(int total) {
    103. 		this.total = total;
    104. 	}
    105.
    106. 	public void setTotal(String total) {
    107. 		this.total = Integer.parseInt(total);
    108. 	}
    109.
    110. 	public boolean isPagination() {
    111. 		return pagination;
    112. 	}
    113.
    114. 	public void setPagination(boolean pagination) {
    115. 		this.pagination = pagination;
    116. 	}
    117.
    118. 	/**
    119. 	 * 获得起始记录的下标
    120. 	 *
    121. 	 * @return
    122. 	 */
    123. 	public int getStartIndex() {
    124. 		return (this.page - 1) * this.rows;
    125. 	}
    126.
    127. 	/**
    128. 	 * 最大页
    129. 	 * @return
    130. 	 */
    131. 	public int maxPage() {
    132. //		total % rows == 0 ? total / rows : total / rows +1
    133. 		return this.total % this.rows == 0 ? this.total / this.rows : this.total / this.rows + 1;
    134. 	}
    135.
    136. 	/**
    137. 	 * 下一页
    138. 	 * @return
    139. 	 */
    140. 	public int nextPage() {
    141. //		如果当前页小于最大页，那就下一页为当前页+1；如果不小于，说明当前页就是最大页，那就无需+1
    142. 		return this.page < this.maxPage() ? this.page + 1 : this.page;
    143. 	}
    144.
    145. 	/**
    146. 	 * 上一页
    147. 	 * @return
    148. 	 */
    149. 	public int previousPage() {
    150. 		return this.page > 1 ? this.page - 1 : this.page;
    151. 	}
    152.
    153. 	@Override
    154. 	public String toString() {
    155. 		return "PageBean [page=" + page + ", rows=" + rows + ", total=" + total + ", pagination=" + pagination + "]";
    156. 	}
    157.
    158. }

    tag助手类(PageTag ):

    1. package com.zking.ssm.tag;
    2.
    3. import java.io.IOException;
    4. import java.util.Map;
    5. import java.util.Map.Entry;
    6. import java.util.Set;
    7.
    8. import javax.servlet.jsp.JspException;
    9. import javax.servlet.jsp.JspWriter;
    10. import javax.servlet.jsp.tagext.BodyTagSupport;
    11.
    12. import com.zking.ssm.util.PageBean;
    13.
    14. public class PageTag extends BodyTagSupport{
    15. 	private PageBean pageBean;// 包含了所有分页相关的元素
    16.
    17. 	public PageBean getPageBean() {
    18. 		return pageBean;
    19. 	}
    20.
    21. 	public void setPageBean(PageBean pageBean) {
    22. 		this.pageBean = pageBean;
    23. 	}
    24.
    25. 	@Override
    26. 	public int doStartTag() throws JspException {
    27. //		没有标签体，要输出内容
    28. 		JspWriter out = pageContext.getOut();
    29. 		try {
    30. 			out.print(toHTML());
    31. 		} catch (IOException e) {
    32. 			e.printStackTrace();
    33. 		}
    34. 		return super.doStartTag();
    35. 	}
    36.
    37. 	private String toHTML() {
    38. 		StringBuffer sb = new StringBuffer();
    39. //		隐藏的form表单---这个就是上一次请求下次重新发的奥义所在
    40. //		上一次请求的URL
    41. 		sb.append("
      ");
    42. 		sb.append("	");
    43. //		上一次请求的参数
    44. 		Map<String, String[]> paramMap = pageBean.getParamMap();
    45. 		if(paramMap != null && paramMap.size() > 0) {
    46. 			Set<Entry<String, String[]>> entrySet = paramMap.entrySet();
    47. 			for (Entry<String, String[]> entry : entrySet) {
    48. //				参数名
    49. 				String key = entry.getKey();
    50. //				参数值
    51. 				for (String value : entry.getValue()) {
    52. //					上一次请求的参数，再一次组装成了新的Form表单
    53. //					注意：page参数每次都会提交，我们需要避免
    54. 					if(!"page".equals(key)) {
    55. 						sb.append("	");
    56. 					}
    57. 				}
    58. 			}
    59. 		}
    60. 		sb.append("");
    61.
    62. //		分页条
    63. 		sb.append("
        ");
    64. 		sb.append("
    65. );
  • sb.append(" href='javascript:gotoPage(1)'>首页
    • ");
  • sb.append("
  • );
  • sb.append(" href='javascript:gotoPage("+pageBean.previousPage()+")'><
    • ");// less than 小于号
  • // sb.append("
  • 1
    • ");
  • // sb.append("
  • 2
    • ");
  • sb.append("
  • "+pageBean.getPage()+"
    • ");
  • sb.append("
  • >
    • ");
  • sb.append("
  • 尾页
    • ");
  • sb.append("
  • 到第);
  • sb.append(" type='text' id='skipPage' name='' />页
    • ");
  • sb.append("
  • );
  • sb.append(" href='javascript:skipPage()'>确定
    • ");
  • sb.append("
  • 共"+pageBean.getTotal()+"条
    • ");
  • sb.append("");
  • // 分页执行的JS代码
  • sb.append("");
  • return sb.toString();
  • }
  • }

    • tld类：

    1. "1.0" encoding="UTF-8" ?>
    2.
    3. <taglib xmlns="http://java.sun.com/xml/ns/j2ee"
    4.     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    5.     xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-jsptaglibrary_2_0.xsd"
    6.     version="2.0">
    7.
    8.   <description>zking 1.1 core librarydescription>
    9.   <display-name>zking coredisplay-name>
    10.   <tlib-version>1.1tlib-version>
    11.   <short-name>zkingshort-name>
    12.   <uri>http://jsp.veryedu.cnuri>
    13.
    14.
    15.   <tag>
    16.     <name>pagename>
    17.     <tag-class>com.zking.ssm.tag.PageTagtag-class>
    18.     <body-content>JSPbody-content>
    19.     <attribute>
    20.         <name>pageBeanname>
    21.         <required>truerequired>
    22.         <rtexprvalue>truertexprvalue>
    23.     attribute>
    24.   tag>
    25.
    26. taglib>

            5）开始做开发

                    model ——> dao ——> service ——> web ——> mvc.xml ——> 前端

    首先我们以 如下表 为例——

    t_struts_class 表:

    Clazz  :

    1. package com.zking.model;
    2.
    3. public class Clazz {
    4.     private Integer cid;
    5.
    6.     private String cname;
    7.
    8.     private String cteacher;
    9.
    10.     private String pic;
    11.
    12.     public Clazz(Integer cid, String cname, String cteacher, String pic) {
    13.         this.cid = cid;
    14.         this.cname = cname;
    15.         this.cteacher = cteacher;
    16.         this.pic = pic;
    17.     }
    18.
    19.     public Clazz() {
    20.         super();
    21.     }
    22.
    23.     public Integer getCid() {
    24.         return cid;
    25.     }
    26.
    27.     public void setCid(Integer cid) {
    28.         this.cid = cid;
    29.     }
    30.
    31.     public String getCname() {
    32.         return cname;
    33.     }
    34.
    35.     public void setCname(String cname) {
    36.         this.cname = cname;
    37.     }
    38.
    39.     public String getCteacher() {
    40.         return cteacher;
    41.     }
    42.
    43.     public void setCteacher(String cteacher) {
    44.         this.cteacher = cteacher;
    45.     }
    46.
    47.     public String getPic() {
    48.         return pic;
    49.     }
    50.
    51.     public void setPic(String pic) {
    52.         this.pic = pic;
    53.     }
    54. }

    ClazzMapper :

    1. package com.zking.mapper;
    2.
    3. import com.zking.model.Clazz;
    4. import org.springframework.stereotype.Repository;
    5.
    6. import java.util.List;
    7.
    8. @Repository
    9. public interface ClazzMapper {
    10.     int deleteByPrimaryKey(Integer cid);
    11.
    12.     int insert(Clazz record);
    13.
    14.     int insertSelective(Clazz record);
    15.
    16.     Clazz selectByPrimaryKey(Integer cid);
    17.
    18.     List <Clazz> listPager(Clazz clazz);
    19.
    20.     int updateByPrimaryKeySelective(Clazz record);
    21.
    22.     int updateByPrimaryKey(Clazz record);
    23. }

    ClazzMapper.xml :

    1. "1.0" encoding="UTF-8" ?>
    2. DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
    3. <mapper namespace="com.zking.mapper.ClazzMapper" >
    4.   <resultMap id="BaseResultMap" type="com.zking.model.Clazz" >
    5.     <constructor >
    6.       <idArg column="cid" jdbcType="INTEGER" javaType="java.lang.Integer" />
    7.       <arg column="cname" jdbcType="VARCHAR" javaType="java.lang.String" />
    8.       <arg column="cteacher" jdbcType="VARCHAR" javaType="java.lang.String" />
    9.       <arg column="pic" jdbcType="VARCHAR" javaType="java.lang.String" />
    10.     constructor>
    11.   resultMap>
    12.   <sql id="Base_Column_List" >
    13.     cid, cname, cteacher, pic
    14.   sql>
    15.   <select id="selectByPrimaryKey" resultMap="BaseResultMap" parameterType="java.lang.Integer" >
    16.   select
    17.   <include refid="Base_Column_List" />
    18.   from t_struts_class
    19.   where cid = #{cid,jdbcType=INTEGER}
    20. select>
    21.
    22.   <select id="listPager" resultType="com.zking.model.Clazz" parameterType="com.zking.model.Clazz" >
    23.     select
    24.     <include refid="Base_Column_List" />
    25.     from t_struts_class
    26.     <where>
    27.       <if test="cname !=null and cname !=''">
    28.         and cname like concat('%')
    29.       if>
    30.       <if test="cid !=null and cid !=''">
    31.         and cid = #{cid}
    32.       if>
    33.     where>
    34.     order by cid desc
    35.   select>
    36.
    37.
    38.   <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer" >
    39.     delete from t_struts_class
    40.     where cid = #{cid,jdbcType=INTEGER}
    41.   delete>
    42.   <insert id="insert" parameterType="com.zking.model.Clazz" >
    43.     insert into t_struts_class (cid, cname, cteacher,
    44.       pic)
    45.     values (#{cid,jdbcType=INTEGER}, #{cname,jdbcType=VARCHAR}, #{cteacher,jdbcType=VARCHAR},
    46.       #{pic,jdbcType=VARCHAR})
    47.   insert>
    48.   <insert id="insertSelective" parameterType="com.zking.model.Clazz" >
    49.     insert into t_struts_class
    50.     <trim prefix="(" suffix=")" suffixOverrides="," >
    51.       <if test="cid != null" >
    52.         cid,
    53.       if>
    54.       <if test="cname != null" >
    55.         cname,
    56.       if>
    57.       <if test="cteacher != null" >
    58.         cteacher,
    59.       if>
    60.       <if test="pic != null" >
    61.         pic,
    62.       if>
    63.     trim>
    64.     <trim prefix="values (" suffix=")" suffixOverrides="," >
    65.       <if test="cid != null" >
    66.         #{cid,jdbcType=INTEGER},
    67.       if>
    68.       <if test="cname != null" >
    69.         #{cname,jdbcType=VARCHAR},
    70.       if>
    71.       <if test="cteacher != null" >
    72.         #{cteacher,jdbcType=VARCHAR},
    73.       if>
    74.       <if test="pic != null" >
    75.         #{pic,jdbcType=VARCHAR},
    76.       if>
    77.     trim>
    78.   insert>
    79.   <update id="updateByPrimaryKeySelective" parameterType="com.zking.model.Clazz" >
    80.     update t_struts_class
    81.     <set >
    82.       <if test="cname != null" >
    83.         cname = #{cname,jdbcType=VARCHAR},
    84.       if>
    85.       <if test="cteacher != null" >
    86.         cteacher = #{cteacher,jdbcType=VARCHAR},
    87.       if>
    88.       <if test="pic != null" >
    89.         pic = #{pic,jdbcType=VARCHAR},
    90.       if>
    91.     set>
    92.     where cid = #{cid,jdbcType=INTEGER}
    93.   update>
    94.   <update id="updateByPrimaryKey" parameterType="com.zking.model.Clazz" >
    95.     update t_struts_class
    96.     set cname = #{cname,jdbcType=VARCHAR},
    97.       cteacher = #{cteacher,jdbcType=VARCHAR},
    98.       pic = #{pic,jdbcType=VARCHAR}
    99.     where cid = #{cid,jdbcType=INTEGER}
    100.   update>
    101. mapper>

    PagerAspect :

    1. package com.zking.ssm.aspect;
    2.
    3. import com.github.pagehelper.PageHelper;
    4. import com.github.pagehelper.PageInfo;
    5. import com.zking.ssm.util.PageBean;
    6. import org.aspectj.lang.ProceedingJoinPoint;
    7. import org.aspectj.lang.annotation.Around;
    8. import org.aspectj.lang.annotation.Aspect;
    9. import org.springframework.stereotype.Component;
    10.
    11. import java.util.List;
    12.
    13. /**
    14.  * @author 杨总
    15.  * @create 2022-08-13 16:11
    16.  * 切面类
    17.  */
    18. @Component
    19. @Aspect
    20. public class PagerAspect {
    21.
    22.     /**
    23.      * *：返回值类型
    24.      * *..：无线包
    25.      * *Service:以Service结尾接口名
    26.      * *Pager:以Pager结尾的方法名
    27.      * 只要同时匹配上诉四个条件，就会被列为目标对象
    28.      * 上诉配置要生效，代理注解 不能少
    29.      * @param args
    30.      * @return
    31.      * @throws Throwable
    32.      */
    33.     @Around("execution(* *..*Biz.*Pager(..))")
    34.     public Object invoke(ProceedingJoinPoint args) throws Throwable {
    35.         Object[] params = args.getArgs();
    36.         PageBean pageBean = null;
    37.         for (Object param : params) {
    38.             if(param instanceof PageBean){
    39.                 pageBean = (PageBean)param;
    40.                 break;
    41.             }
    42.         }
    43.
    44.         if(pageBean != null && pageBean.isPagination())
    45.             PageHelper.startPage(pageBean.getPage(),pageBean.getRows());
    46.
    47. //        执行目标方法
    48.         Object list = args.proceed(params);//获取目标方法返回的结果
    49.
    50.         if(null != pageBean && pageBean.isPagination()){
    51.             PageInfo pageInfo = new PageInfo((List) list);
    52.             pageBean.setTotal(pageInfo.getTotal()+"");
    53.         }
    54.         return list;
    55.     }
    56.
    57. }

    ClazzController :

    1. package com.zking.controller;
    2.
    3. import com.zking.model.Clazz;
    4. import com.zking.ssm.biz.ClazzBiz;
    5. import com.zking.ssm.util.PageBean;
    6. import org.springframework.beans.factory.annotation.Autowired;
    7. import org.springframework.stereotype.Controller;
    8. import org.springframework.web.bind.annotation.RequestMapping;
    9.
    10. import javax.servlet.http.HttpServletRequest;
    11. import java.util.List;
    12.
    13. @Controller
    14. @RequestMapping("/clz")
    15. public class ClazzController {
    16.     @Autowired
    17.     private ClazzBiz clazzBiz;
    18. //    list——>clzlist
    19. //    toList——>重定向list——>"redirect:/clz/list"
    20. //    toEdit——>跳转到编辑界面——>clzEdit
    21. //      Clazz:以前通过模型驱动接口封装，现在是直接在方法中接收参数即可
    22.
    23.     @RequestMapping("/list")
    24.     public String list(Clazz clazz, HttpServletRequest request){
    25.         PageBean pageBean=new PageBean();
    26.         pageBean.setRequest(request);
    27.         List<Clazz> lst = this.clazzBiz.listPager(clazz, pageBean);
    28.        request.setAttribute("lst",lst);
    29.        request.setAttribute("pageBean",pageBean);
    30.         return "clzList";
    31.     }
    32.
    33.     @RequestMapping("/toEdit")
    34.     public String toEdit(Clazz clazz, HttpServletRequest request){
    35.         Integer cid = clazz.getCid();
    36. //传递了的id代表了修改，没传代表新增
    37.         if(cid !=null){
    38.             List<Clazz> lst=this.clazzBiz.listPager(clazz,null);
    39.             request.setAttribute("b",lst.get(0));
    40.         }
    41.         return "clzEdit";
    42.     }
    43.
    44.     @RequestMapping("/add")
    45.     public String add(Clazz clazz){
    46.         this.clazzBiz.insertSelective(clazz);
    47.         return "redirect:/clz/list";
    48.     }
    49.
    50.     @RequestMapping("/edit")
    51.     public String edit(Clazz clazz){
    52.         this.clazzBiz.updateByPrimaryKeySelective(clazz);
    53.         return "redirect:/clz/list";
    54.     }
    55.
    56.     @RequestMapping("/del")
    57.     public String del(Clazz clazz){
    58.         this.clazzBiz.deleteByPrimaryKey(clazz.getCid());
    59.         return "redirect:/clz/list";
    60.     }
    61.
    62. }

    ClazzBiz :

    1. package com.zking.ssm.biz;
    2.
    3. import com.zking.model.Clazz;
    4. import com.zking.ssm.util.PageBean;
    5.
    6. import java.util.List;
    7.
    8. public interface ClazzBiz {
    9.     int deleteByPrimaryKey(Integer cid);
    10.
    11.     int insert(Clazz record);
    12.
    13.     int insertSelective(Clazz record);
    14.
    15.     Clazz selectByPrimaryKey(Integer cid);
    16.
    17.     int updateByPrimaryKeySelective(Clazz record);
    18.
    19.     int updateByPrimaryKey(Clazz record);
    20.
    21.     List<Clazz> listPager(Clazz clazz, PageBean pageBean);
    22. }

    ClazzBizImpl :

    1. package com.zking.ssm.biz.impl;
    2.
    3. import com.zking.mapper.ClazzMapper;
    4. import com.zking.model.Clazz;
    5. import com.zking.ssm.biz.ClazzBiz;
    6. import com.zking.ssm.util.PageBean;
    7. import org.springframework.beans.factory.annotation.Autowired;
    8. import org.springframework.stereotype.Service;
    9. import sun.security.provider.certpath.CertId;
    10.
    11. import java.util.List;
    12.
    13. @Service
    14. public class ClazzBizImpl implements ClazzBiz {
    15.     @Autowired
    16.     private ClazzMapper clazzMapper;
    17.     @Override
    18.     public int deleteByPrimaryKey(Integer cid) {
    19.         return clazzMapper.deleteByPrimaryKey(cid);
    20.     }
    21.
    22.     @Override
    23.     public int insert(Clazz record) {
    24.         return clazzMapper.insert(record);
    25.     }
    26.
    27.     @Override
    28.     public int insertSelective(Clazz record) {
    29.         return clazzMapper.insertSelective(record);
    30.     }
    31.
    32.     @Override
    33.     public Clazz selectByPrimaryKey(Integer cid) {
    34.         return clazzMapper.selectByPrimaryKey(cid);
    35.     }
    36.
    37.     @Override
    38.     public int updateByPrimaryKeySelective(Clazz record) {
    39.         return clazzMapper.updateByPrimaryKeySelective(record);
    40.     }
    41.
    42.     @Override
    43.     public int updateByPrimaryKey(Clazz record) {
    44.         return clazzMapper.updateByPrimaryKey(record);
    45.     }
    46.
    47.     @Override
    48.     public List<Clazz> listPager(Clazz clazz, PageBean pageBean){
    49.         return  clazzMapper.listPager(clazz);
    50.     }
    51. }

    前端页面代码：

    clzList:

    1. <%@ page language="java" contentType="text/html; charset=UTF-8"
    2.          pageEncoding="UTF-8"%>
    3. <%@ taglib uri="http://jsp.veryedu.cn" prefix="z"%>
    4. <%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
    5. html >
    6. <html>
    7. <head>
    8.     <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
    9.     <link
    10.             href="https://cdn.bootcdn.net/ajax/libs/twitter-bootstrap/4.5.0/css/bootstrap.css"
    11.             rel="stylesheet">
    12.     <script
    13.             src="https://cdn.bootcdn.net/ajax/libs/twitter-bootstrap/4.5.0/js/bootstrap.js">script>
    14.     <title>博客列表title>
    15.     <style type="text/css">
    16.         .page-item input {
    17.             padding: 0;
    18.             width: 40px;
    19.             height: 100%;
    20.             text-align: center;
    21.             margin: 0 6px;
    22.         }
    23.
    24.         .page-item input, .page-item b {
    25.             line-height: 38px;
    26.             float: left;
    27.             font-weight: 400;
    28.         }
    29.
    30.         .page-item.go-input {
    31.             margin: 0 10px;
    32.         }
    33.     style>
    34. head>
    35. <body>
    36. <form class="form-inline" action="${pageContext.request.contextPath }/clz/list" method="post">
    37.     <div class="form-group mb-2">
    38.         <input type="text" class="form-control-plaintext" name="cname" placeholder="请输入班级名称"/>
    39.     div>
    40.     <button type="submit" class="btn btn-primary mb-2">查询button>
    41.     <a class="btn btn-primary mb-2" href="${pageContext.request.contextPath }/clz/toEdit?cid=${b.cid}">新增a>
    42. form>
    43.
    44.
    45. <table class='table table-striped ' >
    46.     <thead>
    47.     <tr>
    48.         <th scope="col">IDth>
    49.     <th scope="col">班级名称th>
    50.     <th scope="col">指导老师th>
    51.     <th scope="col">班级相册th>
    52.     <th scope="col">操作th>
    53.     tr>
    54.     thead>
    55.     <tbody>
    56.     <c:forEach  var="b" items="${lst }">
    57.         <tr>
    58.             <td>${b.cid }td>
    59.             <td>${b.cname }td>
    60.             <td>${b.cteacher }td>
    61.             <td>
    62.                 <img src="${pageContext.request.contextPath }${b.pic }" style="height:100px;width:100px"/>
    63.             td>
    64.             <td>
    65.                 <a href="${pageContext.request.contextPath }/clz/toEdit?cid=${b.cid}">修改a>
    66.                 <a href="${pageContext.request.contextPath }/clz/del?cid=${b.cid}">删除a>
    67.                 <a href="${pageContext.request.contextPath }/clzUpload.jsp?cid=${b.cid}">上传图片a>
    68.                 <a href="${pageContext.request.contextPath }/clz/download?cid=${b.cid}">下载图片a>
    69.             td>
    70.         tr>
    71.     c:forEach>
    72.     tbody>
    73.     table>
    74.
    75.     <z:page pageBean="${pageBean }">z:page>
    76.
    77. body>
    78. html>

    clzEdit:

    1. <%@ page language="java" contentType="text/html; charset=UTF-8"
    2.          pageEncoding="UTF-8"%>
    3. html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
    4. <html>
    5. <head>
    6.     <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
    7.     <title>编辑界面title>
    8. head>
    9. <body>
    10. <form action="${pageContext.request.contextPath }/clz/${empty b ? 'add' : 'edit'}" method="post">
    11.     cid:<input type="text" name="cid" value="${b.cid }"><br>
    12.     cname:<input type="text" name="cname" value="${b.cname }"><br>
    13.     cteacher:<input type="text" name="cteacher" value="${b.cteacher }"><br>
    14.     <input type="submit">
    15. form>
    16. body>
    17. html>

    二、增删改查测试

    以上代码已全部编码完成，开始测试：

    查询主界面：

     新增界面：

     点击 提交 之后，查询主界面自动刷新：

    对刚新增的数据进行修改：

    修改界面：

     点击提交：

    查询主界面再次刷新数据:

    对 ID为13的数据进行删除：

     测试完毕！无功能有误

    三、文件上传

    Springmvc上传步骤（重点）：

    1、springmvc.xml中添加多功能解析器配置

    2、前台的页面 添加 多功能表单设置  multipart/form-data

    3、后台要利用multipartFile类进行 文件接收

            注：multipartFile的属性名一定要跟form中的表单属性名一致

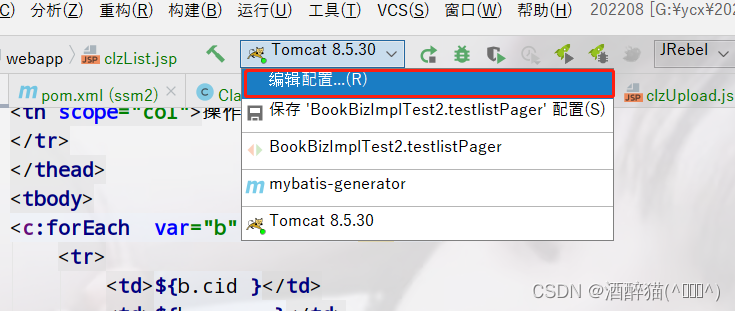

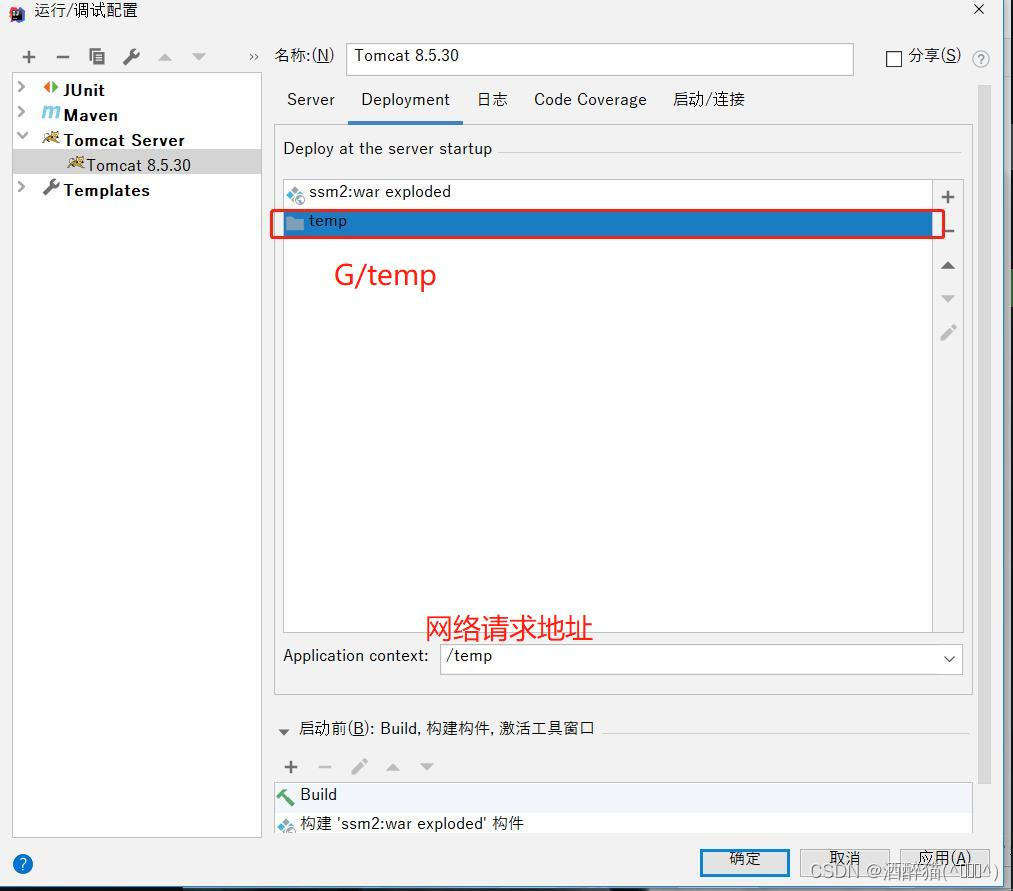

    4、在idea中完成图片请求地址与硬盘中地址的映射关系

    导入pom依赖：

    2.       <groupId>commons-fileuploadgroupId>
    3.       <artifactId>commons-fileuploadartifactId>
    4.       <version>1.3.3version>

    Springmvc.xml配置：

    1.  "multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
    2.
    3.         <property name="defaultEncoding" value="UTF-8">property>
    4.
    5.         <property name="maxUploadSize" value="52428800">property>
    6.
    7.         <property name="resolveLazily" value="true"/>
    8.

    vo：view object

    Dto：接收参数，参数不仅仅存在于实体类Model中。

    ClazzDto ：

    1. package com.zking.model.dto;
    2.
    3. import com.zking.model.Clazz;
    4. import org.springframework.web.multipart.MultipartFile;
    5.
    6. public class ClazzDto extends Clazz {
    7. //  multipartFile的属性名一定要跟form中的表单属性名一致
    8.     private MultipartFile picFile;
    9.
    10.     public MultipartFile getPicFile() {
    11.         return picFile;
    12.     }
    13.
    14.     public void setPicFile(MultipartFile picFile) {
    15.         this.picFile = picFile;
    16.     }
    17.
    18.
    19. }

     Clazz:

    ClazzController：

    1. //    文件上传
    2.     @RequestMapping("/upload")
    3.     public String upload(ClazzDto clazzDto){
    4.     try {
    5.         // 前台上传的文件
    6.         MultipartFile picFile = clazzDto.getPicFile();
    7. //      实际应该配置到resource.properties中
    8.         //String diskPath="E:\\ycx\\2022-mybatis\\ssm2\\src\\main\\webapp\\static\\images\\";//图片存放地址
    9.         String diskPath="E:\\imagesDownload\\";
    10.         //    http://localhost:8080/upload/mvc/...png
    11.         String requestPath="/upload/mvc/";//数据库保存地址，也是访问地址
    12.
    13.         //拿到上传文件的名字
    14.         String filename = picFile.getOriginalFilename();
    15.         FileUtils.copyInputStreamToFile(picFile.getInputStream(),new File(diskPath+filename));
    16.
    17. //       将图片上传图片之后，并且将图片地址更新到数据库中
    18.         Clazz clazz=new Clazz();
    19.         clazz.setCid(clazzDto.getCid());
    20.         clazz.setPic(filename);
    21.         this.clazzBiz.updateByPrimaryKeySelective(clazz);
    22.     }catch (Exception e){
    23.         e.printStackTrace();
    24.     }
    25.         return "redirect:/clz/list";
    26.     }

     记得编辑一下配置：



    clzUpload:

    1. <%--
    2.   Created by IntelliJ IDEA.
    3.   User: T440s
    4.   Date: 2022/8/18
    5.   Time: 15:05
    6.   To change this template use File | Settings | File Templates.
    7. --%>
    8. <%@ page contentType="text/html;charset=UTF-8" language="java" %>
    9. <html>
    10. <head>
    11.     <title>Titletitle>
    12. head>
    13. <body>
    14. <form action="${pathContext.request.contextPath}/clz/upload" method="post" enctype="multipart/form-data">
    15.     <input type="text" value="${param.cid}" name="cid">
    16.     <input type="file" name="picFile">
    17.     <input type="submit">
    18. form>
    19. body>
    20. html>

    运行：





     可进 数据库表 进行 查看 是否 图片上传成功：

    上传成功！

    四、文件下载

    文件下载步骤（重点）：

    1、点击下载传递文件的ID，通过文件的ID查询出文件的路径

    2、通过文件的请求地址，转换成文件存放的硬盘地址

    3、将硬盘中文件下载下来——>固定代码

    ClazzController：

    1. //文件下载
    2.     @RequestMapping("/download")
    3.     public ResponseEntity download(ClazzDto clazzDto,HttpServletRequest request){
    4.         try {
    5. //1、点击下载传递文件的ID，通过文件的ID查询出文件的路径
    6.             Clazz clazz = this.clazzBiz.selectByPrimaryKey(clazzDto.getCid());
    7.             String pic=clazz.getPic();//
    8.
    9. //2、通过文件的请求地址，转换成文件存放的硬盘地址
    10.
    11. // 3、将硬盘中文件下载下来——>固定代码
    12.           //  File file=new File("E:\\ycx\\2022-mybatis\\ssm2\\src\\main\\webapp\\static\\images\\"+pic);
    13.             File file=new File("E:\\imagesDownload\\"+pic);
    14.             HttpHeaders headers = new HttpHeaders();//http头信息
    15.             String downloadFileName = new String(pic.getBytes("UTF-8"),"iso-8859-1");//设置编码
    16.             headers.setContentDispositionFormData("attachment", downloadFileName);
    17.             headers.setContentType(MediaType.APPLICATION_OCTET_STREAM);
    18.             //MediaType:互联网媒介类型  contentType：具体请求中的媒体类型信息
    19.             return new ResponseEntity(FileUtils.readFileToByteArray(file),headers, HttpStatus.OK);
    20.
    21.         }catch (Exception e){
    22.             e.printStackTrace();
    23.         }
    24.         return null;
    25.     }

    运行



    下载成功 ！

    五、Jrebel的使用

     由于小编已经下载完成了，所以各位看官如果没有下载的但是有需要的话可以去进行下载：

    搜索出来之后，点击install，再重启idea，

    因为jrebel需要激活，所以

    先停掉，

    然后必须先打开以下这个接口：

    就跳出一个黑窗口 ：

     然后再去启动：

     再关掉那个打开的黑窗口

    要注意 关 之前这里要设置为work online：

     项目启动成功之后，就可不用再使用那个黑窗口了，以后即使是改了后台代码也不需要再次重启项目了，会自动刷新，这就是关于jreble。

    今日所有知识讲解就到这里结束啦！感谢收看~~

  • 相关阅读:
    【机器学习基础】机器学习的模型评估（评估方法及性能度量原理及主要公式）
    普通人如何获得通信达接口？
    java连接mysql数据库
    业务出海、高效传输、动态加速，尽在云栖大会「CDN与边缘计算」专场
    idea module 重命名
    高创新 | CEEMDAN-VMD-BiLSTM-Attention双重分解+双向长短期记忆神经网络+注意力机制多元时间序列预测
    讲述为什么要学习Adobe XD以及 Adobe XD下载安装
    白鳝：聊聊IvorySQL的Oracle兼容技术细节与实现原理
    【Java刷题进阶】基础入门篇
    Postgresql源码（60）事务系统框架总结
  • 原文地址：https://blog.csdn.net/weixin_65808248/article/details/126391053
