使用EasyPoi导出word并转换为pdf

依赖文件

    cn.afterturn
    easypoi-base
    4.3.0


    cn.afterturn
    easypoi-web
    4.3.0


    cn.afterturn
    easypoi-annotation
    4.3.0



    org.docx4j
    docx4j-export-fo
    6.1.0

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

文件转换工具类

import cn.afterturn.easypoi.word.WordExportUtil;
import org.apache.poi.xwpf.usermodel.XWPFDocument;
import org.docx4j.Docx4J;
import org.docx4j.convert.out.FOSettings;
import org.docx4j.fonts.IdentityPlusMapper;
import org.docx4j.fonts.PhysicalFonts;
import org.docx4j.openpackaging.packages.WordprocessingMLPackage;
import org.docx4j.fonts.Mapper;
import org.springframework.util.Assert;
import java.io.*;
import java.util.Map;

public class FileUtils {
    /**
     *
     * @param templatePath
     * @param saveDir
     * @param fileName
     * @param params
     * @return
     */
    public static String exportWord(String templatePath, String saveDir, String fileName, Map<String, Object> params)  {
        Assert.notNull(templatePath, "模板路径不能为空");
        Assert.notNull(saveDir, "临时文件路径不能为空");
        Assert.notNull(fileName, "导出文件名不能为空");
        Assert.isTrue(fileName.endsWith(".docx"), "word导出请使用docx格式");
        if (!saveDir.endsWith("/")) {
            saveDir = saveDir + File.separator;
        }

        File dir = new File(saveDir);
        if (!dir.exists()) {
            dir.mkdirs();
        }
        String savePath = saveDir + fileName;

        try {
            XWPFDocument doc = WordExportUtil.exportWord07(templatePath, params);
            FileOutputStream fos = new FileOutputStream(savePath);
            doc.write(fos);
            fos.flush();
            fos.close();
        } catch (Exception e) {
            e.printStackTrace();
        }
        return savePath;
    }



    /**
     * @param wordPath word文件路径
     * @param pdfPath  pdf输出路径
     * @return
     */
    public static String convertDocx2Pdf(String wordPath, String pdfPath) {
        OutputStream os = null;
        InputStream is = null;
        if (pdfPath.endsWith("/")) {
            pdfPath = pdfPath + File.separator;
        }
        try {
            is = new FileInputStream(new File(wordPath));
            WordprocessingMLPackage mlPackage = WordprocessingMLPackage.load(is);
            Mapper fontMapper = new IdentityPlusMapper();
            fontMapper.put("隶书", PhysicalFonts.get("LiSu"));
            fontMapper.put("宋体", PhysicalFonts.get("SimSun"));
            fontMapper.put("微软雅黑", PhysicalFonts.get("Microsoft Yahei"));
            fontMapper.put("黑体", PhysicalFonts.get("SimHei"));
            fontMapper.put("楷体", PhysicalFonts.get("KaiTi"));
            fontMapper.put("新宋体", PhysicalFonts.get("NSimSun"));
            fontMapper.put("华文行楷", PhysicalFonts.get("STXingkai"));
            fontMapper.put("华文仿宋", PhysicalFonts.get("STFangsong"));
            fontMapper.put("宋体扩展", PhysicalFonts.get("simsun-extB"));
            fontMapper.put("仿宋", PhysicalFonts.get("FangSong"));
            fontMapper.put("仿宋_GB2312", PhysicalFonts.get("FangSong_GB2312"));
            fontMapper.put("幼圆", PhysicalFonts.get("YouYuan"));
            fontMapper.put("华文宋体", PhysicalFonts.get("STSong"));
            fontMapper.put("华文中宋", PhysicalFonts.get("STZhongsong"));
            mlPackage.setFontMapper(fontMapper);

            os = new java.io.FileOutputStream(pdfPath);

            //docx4j  docx转pdf
            FOSettings foSettings = Docx4J.createFOSettings();
            foSettings.setWmlPackage(mlPackage);
            Docx4J.toFO(foSettings, os, Docx4J.FLAG_EXPORT_PREFER_XSL);

            is.close();//关闭输入流
            os.close();//关闭输出流

            return "";
        } catch (Exception e) {
            e.printStackTrace();
            try {
                if (is != null) {
                    is.close();
                }
                if (os != null) {
                    os.close();
                }
            } catch (Exception ex) {
                ex.printStackTrace();
            }
        } finally {
            File file = new File(wordPath);
            if (file != null && file.isFile() && file.exists()) {
                file.delete();
            }
        }
        return "";
    }


    /**
     * @param path 图片路径
     * @return
     * @throws IOException
     */
    public static byte[] getImageBase64(String path) throws IOException {
        InputStream input = new FileInputStream(path);
        ByteArrayOutputStream output = new ByteArrayOutputStream();
        byte[] buf = new byte[1024];
        int numBytesRead = 0;
        while ((numBytesRead = input.read(buf)) != -1) {
            output.write(buf, 0, numBytesRead);
        }
        byte[] data = output.toByteArray();
        output.close();
        input.close();
        return data;
    }

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135

编写测试接口

package com.cy.springboot.controller;

import cn.afterturn.easypoi.entity.ImageEntity;
import com.cy.springboot.utils.FileUtils;
import org.springframework.stereotype.Controller;
import org.springframework.util.Assert;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

import javax.servlet.http.HttpServletResponse;

import java.io.*;
import java.net.URLEncoder;
import java.util.Calendar;
import java.util.HashMap;
import java.util.Map;


@Controller
@RequestMapping("/poi")
public class PoiController {

    private String filepath = "C:\\upload";

    @RequestMapping(value = "/convertWordToPdf", method = RequestMethod.POST)
    public void convertWordToPdf(HttpServletResponse response) throws Exception {
        File uploadFile = new File(filepath);
        String wordDir = "";
        String pdfDir = "";
        if (!uploadFile.exists()) {
            uploadFile.mkdirs();
        }
        if (!filepath.endsWith("/")) {
            wordDir = filepath + File.separator + "word";
            pdfDir = filepath + File.separator + "pdf";
        }

        File tf = new File(wordDir + File.separator + "word模板案例.docx");
        File tf_pic = new File(wordDir + File.separator + "tx.jpg");
        String pic_url = tf_pic.getCanonicalPath();
        Calendar now = Calendar.getInstance();
        Map<String, Object> params = new HashMap<>();
        params.put("name", "彭于晏");
        params.put("sex", "男");
        params.put("age", "28");
        params.put("address", "中国");
        params.put("description", "彭于晏，1982年3月24日出生于台湾省澎湖县，毕业于不列颠哥伦比亚大学，加拿大华裔男演员、歌手。");

        ImageEntity image = new ImageEntity();
        image.setHeight(200);
        image.setWidth(200);
        image.setUrl(pic_url);
        image.setData(FileUtils.getImageBase64(pic_url));
        params.put("image", image);

        params.put("y", now.get(Calendar.YEAR));
        params.put("m", (now.get(Calendar.MONTH) + 1));
        params.put("d", now.get(Calendar.DAY_OF_MONTH));

        String fileName = "wordExport.docx";
        String word = FileUtils.exportWord(tf.getPath(), wordDir, fileName, params);
        String pdfFileName = "convertDocx2Pdf.pdf";
        String downloadFile = "pdf导出.pdf";

        if (word.equals("")) {
            Assert.notNull(word, "word路径不能为空");
        } else {
            FileUtils.convertDocx2Pdf(word, pdfDir + File.separator + pdfFileName);
            response.setContentType("application/force-download");// 设置强制下载不打开
            response.setHeader("Content-Disposition",
                    "attachment;filename=" + URLEncoder.encode(downloadFile, "UTF-8"));  // 中文名称下载
            byte[] buffer = new byte[1024];
            FileInputStream fis = null;
            BufferedInputStream bis = null;
            OutputStream outputStream = null;
            try {
                fis = new FileInputStream(pdfDir + File.separator + pdfFileName);
                bis = new BufferedInputStream(fis);
                outputStream = response.getOutputStream();
                int i = bis.read(buffer);
                while (i != -1) {
                    outputStream.write(buffer, 0, i);
                    i = bis.read(buffer);
                }
                outputStream.flush();
            } catch (Exception e) {
                e.printStackTrace();
            } finally {
                if (outputStream != null) {
                    try {
                        outputStream.close();
                    } catch (IOException e) {
                        e.printStackTrace();
                    }
                }
                if (bis != null) {
                    try {
                        bis.close();
                    } catch (IOException e) {
                        e.printStackTrace();
                    }
                }
                if (fis != null) {
                    try {
                        fis.close();
                    } catch (IOException e) {
                        e.printStackTrace();
                    }
                }
            }
        }
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114

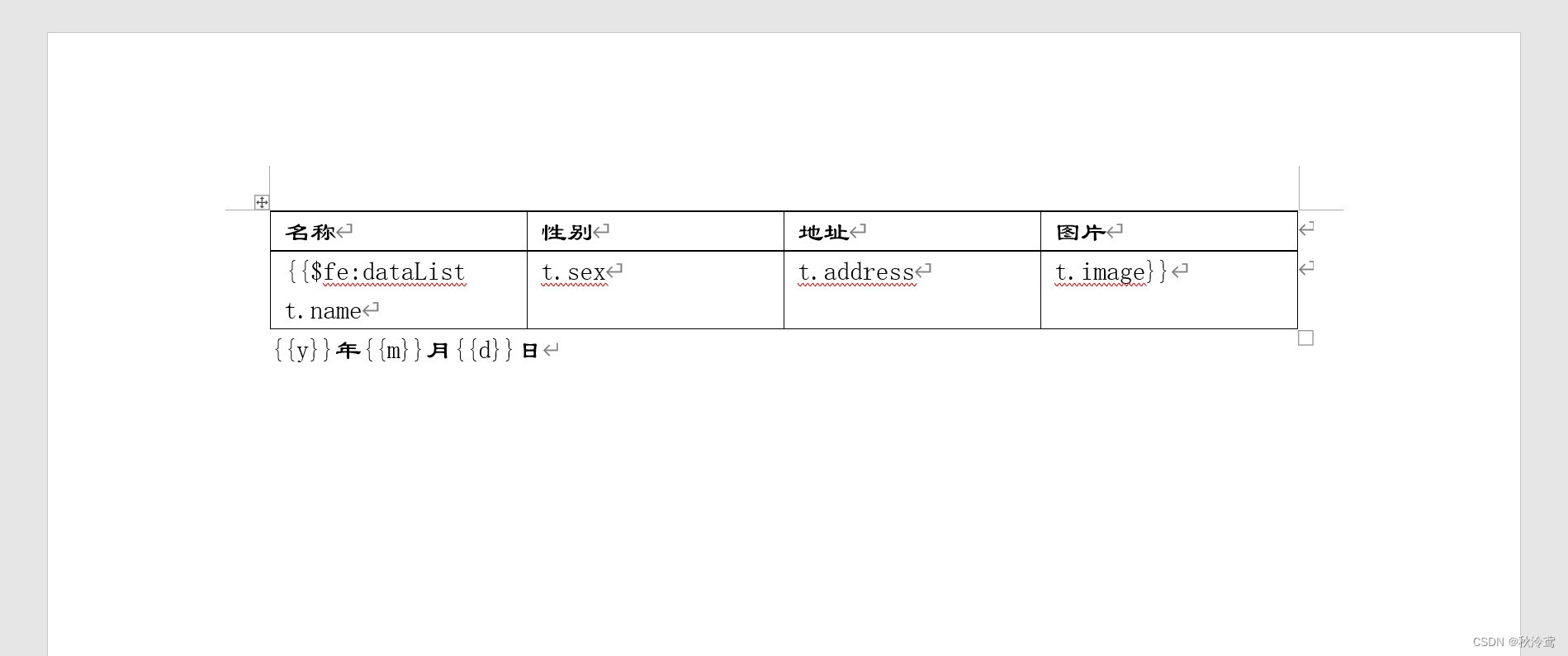

word模板

pdf导出效果
