【原创】基于JavaWeb的医院预约挂号系统（医院挂号管理系统毕业设计）

项目介绍：后端采用Jsp+Servlet。前端使用的是Layui的一个网站模板。开发一个在线的医院预约挂号系统。从角色的划分，包括用户、医生、管理员。功能模块上包括了公告发布、医院信息查看、医院医生信息查看、预约医生、病例记录、挂号审核、图表统计等模块。

项目类型：JavaWeb源码

用户类型：3个角色（管理员+用户+医生）

主要技术：Jsp+Servlet+MySQL+Layui

开发工具：Eclipse/Idea均可使用，有两个不同的版本

数据库：MySQL

数据库表：8张

🍅演示视频在底部🍅

🍅文末获取联系🍅

摘要

随着医疗水平的提高，以及人们对于健康的观念越来越重视，出入医院成了一种常见的现象。而随着看病人数增多，经常出现挂号难的现象。一部分原因时号源有限，挂号人数多；另一方面是绝大多数人都选择线下取号。这就导致了医院当中排队的人数过多。本系统则是基于JavaWeb技术开发的Web应用程序。通过Eclipse进行编程开发。之后通过MySQL构建数据库表。由Tomcat运行访问。人们只需要在网上自行预约，在规定的时间内前往医院就诊，即可实现和线下医院预约取号一样的操作。而系统中的医生角色，则可以直接接受预约就诊的请求。之后在接诊的时候，为患者填写相关的病历单。传统的就诊方式则是纸质病历单，这难以保存，且文字显示不方便。而线上的病历单则可以快速查看数据，且永久保存在MySQL。线上预约就诊在很大程度上方便了人们看病。

系统功能结构图



目录

00完整的程序目录

01管理员端功能介绍

1.0用户登录

1.1用户注册

1.2患者管理

1.3科室管理

1.4医生信息管理

1.5公告管理

1.6医院新闻发布

1.7医生挂号情况统计

02用户功能介绍

2.1 系统首页

2.2在线预约挂号

2.3医院信息介绍

2.4公告动态查看

2.5新闻通知

2.6预约记录管理

2.7个人资料修改

03医生端功能介绍

3.1门诊预约审核

3.2病例录入

3.3病例信息管理

04项目结构

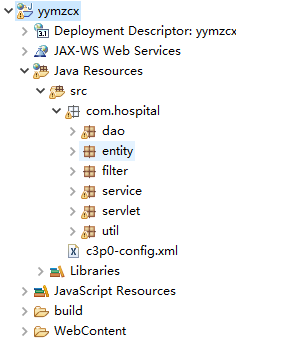

Eclipse版本目录

Idea版本目录

05数据库设计

06系统演示

---

00完整的程序目录

01管理员端功能介绍

1.0用户登录

1.1用户注册

1.2患者管理

1.3科室管理

1.4医生信息管理

1.5公告管理

1.6医院新闻发布

1.7医生挂号情况统计

02用户功能介绍

2.1 系统首页

2.2在线预约挂号

2.3医院信息介绍

2.4公告动态查看

2.5新闻通知

2.6预约记录管理

2.7个人资料修改

03医生端功能介绍

3.1门诊预约审核

3.2病例录入

3.3病例信息管理

04项目结构

Eclipse版本目录

Idea版本目录

05数据库设计

06系统演示

​



-- ----------------------------
-- Table structure for admin
-- ----------------------------
DROP TABLE IF EXISTS `admin`;
CREATE TABLE `admin`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `username` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `password` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 2 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for board
-- ----------------------------
DROP TABLE IF EXISTS `board`;
CREATE TABLE `board`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `title` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `content` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `fbrq` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `fbr` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `see_count` int(11) DEFAULT 0,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 3 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for dept
-- ----------------------------
DROP TABLE IF EXISTS `dept`;
CREATE TABLE `dept`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `k_no` varchar(30) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `detail` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `tp` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 3 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for doctor
-- ----------------------------
DROP TABLE IF EXISTS `doctor`;
CREATE TABLE `doctor`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `phone` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `pwd` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `d_id` int(11) DEFAULT NULL,
  `job` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `note` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `tx` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `create_date` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 14 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for mzgh
-- ----------------------------
DROP TABLE IF EXISTS `mzgh`;
CREATE TABLE `mzgh`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `u_id` int(11) DEFAULT NULL,
  `doctor_id` int(11) DEFAULT NULL,
  `note` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `yyrq` varchar(30) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `detail` varchar(30) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `status` varchar(10) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `create_time` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `uname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `dname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 5 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for news
-- ----------------------------
DROP TABLE IF EXISTS `news`;
CREATE TABLE `news`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `title` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `content` text CHARACTER SET utf8 COLLATE utf8_general_ci,
  `fbsj` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `see_count` int(11) DEFAULT 0,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 3 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for record
-- ----------------------------
DROP TABLE IF EXISTS `record`;
CREATE TABLE `record`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `cno` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `detail` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `dname` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `zdrq` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 5 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user`  (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `phone` varchar(30) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `pwd` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `name` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `sex` varchar(10) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `birthady` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `address` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `cno` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `tx` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  `create_date` varchar(50) CHARACTER SET utf8 COLLATE utf8_general_ci DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 7 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;
