spark on yarn-cluster在生产环境 部署 spark 任务， 同时支持读取外部可配置化文件

Spark Yarn-cluster在生产环境部署， 同时支持参数可配置化方法

在Spark中，有Yarn-Client和Yarn-Cluster两种模式可以运行在Yarn上，通常Yarn-cluster适用于生产环境，而Yarn-Cluster更适用于交互，调试模式

---

提示：前提条件有hadoop集群， 可以在yarn上运行Job

---

Spark Yarn-cluster与Yarn-client

第一步： 下载spark jar包

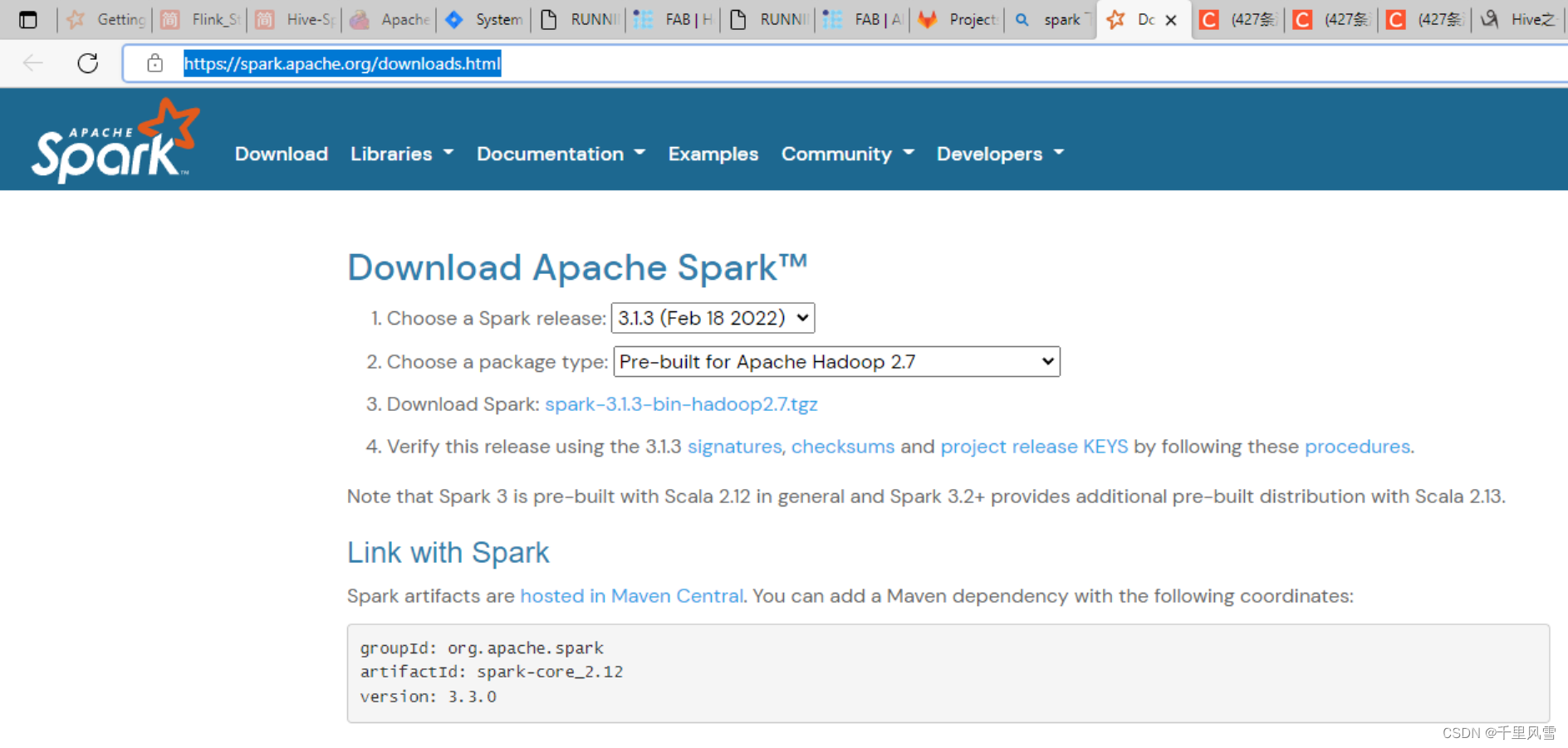

例如：spark下载地址： https://spark.apache.org/downloads.html

---

提示：以下是本篇文章正文内容，下面案例可供参考

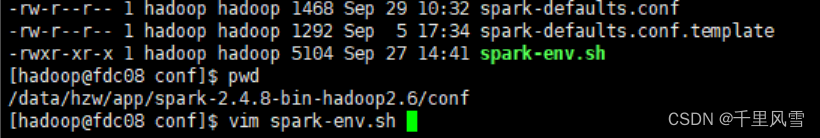

第二步：修改spark-env.sh 文件

添加：

export JAVA_HOME=/usr/java/jdk1.8.0_144
export HADOOP_HOME=/opt/cloudera/parcels/CDH-5.16.2-1.cdh5.16.2.p0.8/lib/hadoop/
export HADOOP_CONF_DIR=${HADOOP_HOME}/etc/hadoop

export SPARK_DAEMON_JAVA_OPTS="-Dspark.deploy.recoveryMode=ZOOKEEPER -Dspark.deploy.zookeeper.url=fdc08:2181,fdc09:2181,fdc10:2181 -Dspark.deploy.zookeeper.dir=/spark"

### Let's run everything with JVM runtime, instead of Scala
export SPARK_LAUNCH_WITH_SCALA=0
#export SPARK_LIBRARY_PATH=${SPARK_HOME}/lib
#export SCALA_LIBRARY_PATH=${SPARK_HOME}/lib
export SPARK_MASTER_WEBUI_PORT=18080
export SPARK_MASTER_PORT=7077
export SPARK_WORKER_PORT=7078
export SPARK_WORKER_WEBUI_PORT=18081
export SPARK_WORKER_DIR=/var/run/spark/work
export SPARK_LOG_DIR=/var/log/spark
export SPARK_PID_DIR='/var/run/spark/'
export SPARK_LOCAL_DIRS=/data/spark/tmp
#export SPARK_WORKER_CORES=7
#export SPARK_WORKER_MEMORY=42g

第三步： spark shell命令

on yarn-cluster 模式运行

/Application/local/spark/bin/spark-submit \
--master yarn \
--name MainFabIndicatorErrorReportService \
--deploy-mode cluster \
--queue root.root \
--driver-cores 1 \
--driver-memory 10G \
--driver-java-options "-XX:PermSize=256M -XX:MaxPermSize=256M" \
--num-executors 15 \
--executor-cores 10 \
--executor-memory 40G \
--conf spark.yarn.maxAppAttempts=1 \
--conf spark.storage.memoryFraction=0.5 \
--conf spark.storage.unrollFraction=0.3 \
--conf spark.cleaner.ttl=-1 \
--conf spark.sql.shuffle.partitions=2000 \
--conf spark.network.timeout=1800s \
--conf spark.yarn.submit.waitAppCompletion=false \
--conf "spark.executor.extraJavaOptions=-XX:PermSize=128m -XX:MaxPermSize=128m  -XX:NewSize=2g -XX:MaxNewSize=2g -XX:+UseConcMarkSweepGC -XX:+UseParNewGC -XX:CMSFullGCsBeforeCompaction=1 -XX:+UseCMSCompactAtFullCollection -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+CMSClassUnloadingEnabled -XX:+DisableExplicitGC -verbose:gc -XX:+PrintGCDetails -XX:+PrintGCTimeStamps" \
--class com.gosun.execute.Analysis \
--files /data/conf/MainFabSparkReport.properties \
--jars ${jars} MainFabSparkReport.properties 2>&1 >/dev/null

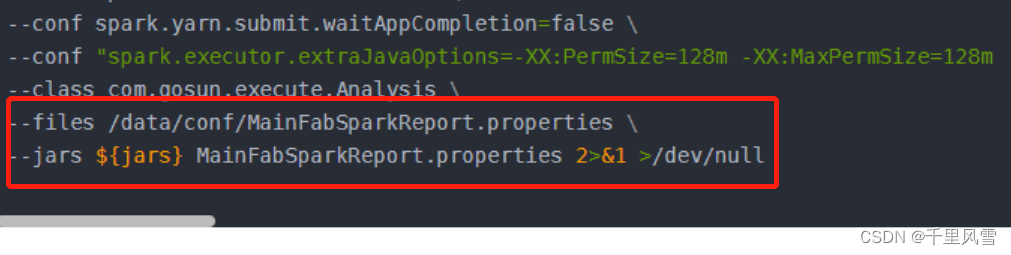

注释： 需要修改
1： --files /data/conf/MainFabSparkReport.properties
2： 添加 MainFabSparkReport.properties参数

on yarn-client 模式

/Application/local/spark/bin/spark-submit \
--master yarn \
--name analysis_${yesterday} \
--deploy-mode client \
--queue root.root \
--driver-cores 1 \
--driver-memory 10G \
--driver-java-options "-XX:PermSize=256M -XX:MaxPermSize=256M" \
--num-executors 15 \
--executor-cores 10 \
--executor-memory 40G \
--conf spark.yarn.maxAppAttempts=1 \
--conf spark.storage.memoryFraction=0.5 \
--conf spark.storage.unrollFraction=0.3 \
--conf spark.cleaner.ttl=-1 \
--conf spark.sql.shuffle.partitions=2000 \
--conf spark.network.timeout=1800s \
--conf spark.yarn.submit.waitAppCompletion=false \
--conf "spark.executor.extraJavaOptions=-XX:PermSize=128m -XX:MaxPermSize=128m  -XX:NewSize=2g -XX:MaxNewSize=2g -XX:+UseConcMarkSweepGC -XX:+UseParNewGC -XX:CMSFullGCsBeforeCompaction=1 -XX:+UseCMSCompactAtFullCollection -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+CMSClassUnloadingEnabled -XX:+DisableExplicitGC -verbose:gc -XX:+PrintGCDetails -XX:+PrintGCTimeStamps" \
--class com.gosun.execute.Analysis \
--files /data/conf/MainFabSparkReport.properties \
--jars ${jars} MainFabSparkReport.properties 2>&1 >/dev/null

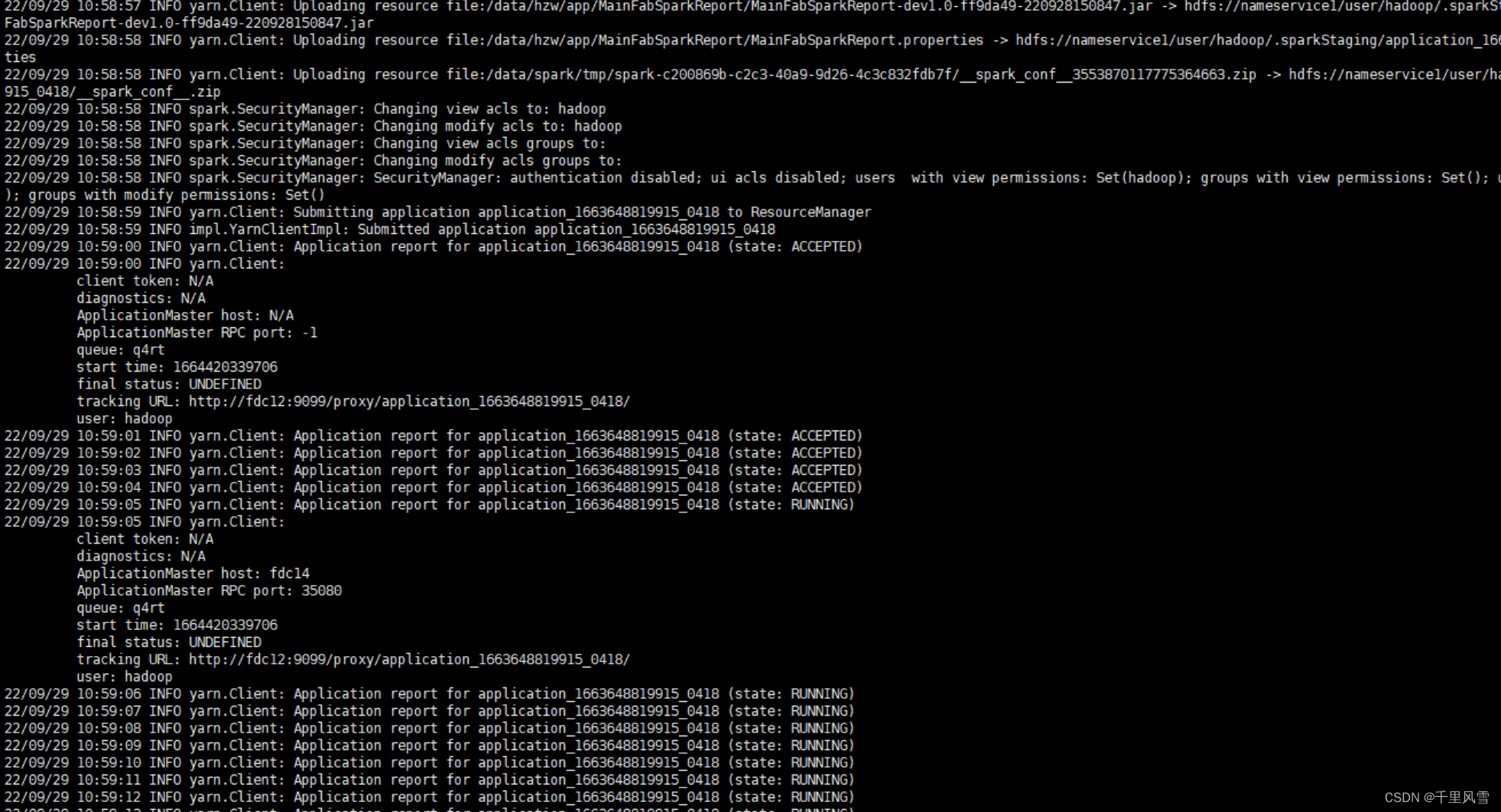

执行shell启动spark命令运行结果：

spark读取外部配置文件，实现可配置化

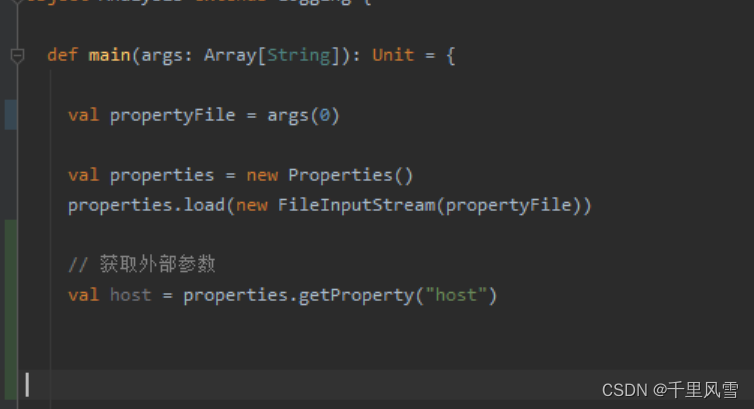

spark代码demo：

shell脚本部署：

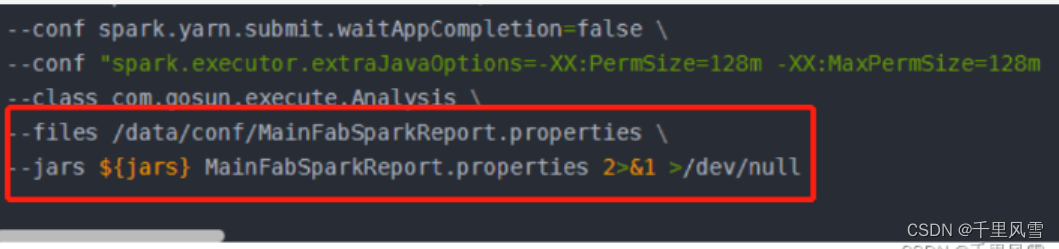

注释： 需要修改
1： --files /data/conf/MainFabSparkReport.properties
2： 添加 MainFabSparkReport.properties参数

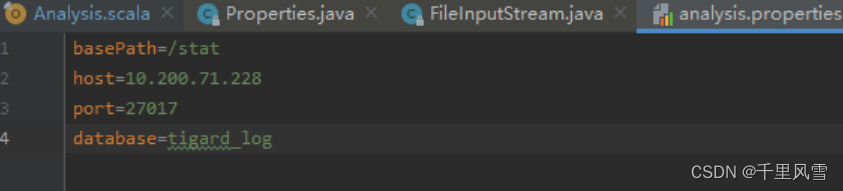

外部可配置文件MainFabSparkReport.properties
