搭建虚拟通道

目录

 一.首先给各个网段划分IP​编辑

 二.在ISP上给每个接口都配上IP

三.R1、R3之间为点到点的GRE

四.整个私有网络基于RIP全网可达

 五.使用PC访问R5环回

---

 一.首先给各个网段划分IP

 二.在ISP上给每个接口都配上IP

[ISP]display ip interface brief
*down: administratively down
^down: standby
(l): loopback
(s): spoofing
The number of interface that is UP in Physical is 6
The number of interface that is DOWN in Physical is 3
The number of interface that is UP in Protocol is 6
The number of interface that is DOWN in Protocol is 3

Interface                         IP Address/Mask      Physical   Protocol
GigabitEthernet0/0/0              3.3.3.2/24           up         up
GigabitEthernet0/0/1              unassigned           down       down
GigabitEthernet0/0/2              unassigned           down       down
LoopBack0                         5.5.5.1/24           up         up(s)
NULL0                             unassigned           up         up(s)
Serial3/0/0                       2.2.2.2/24           up         up
Serial3/0/1                       unassigned           down       down
Serial4/0/0                       1.1.1.2/24           up         up
Serial4/0/1                       4.4.4.2/24           up         up

 1.R1和R5之间使用ppp的pap认证，R5为主认证方

[R1]aaa
[R1-aaa]local-user admin password cipher 123456
[R1-aaa]local-user admin service-type ppp
[R1-aaa]q
[R1]interface Serial 4/0/0
[R1-Serial4/0/0]ppp authentication-mode pap

[ISP]int s4/0/0
[ISP-Serial4/0/0]ppp pap local-user admin password cipher 123456

###PPP会话是一次性会话，会话一旦建立，再配置认证将不生效，再下次会话建立时
才生效，所以下方重启接口了
[ISP-Serial4/0/0]shutdown
[ISP-Serial4/0/0]undo shutdown
[ISP-Serial4/0/0]display this
[V200R003C00]
#
interface Serial4/0/0
 link-protocol ppp
 ppp pap local-user admin password cipher %$%$::i-%`5&4%z^qW-Se5^4,+\*%$%$
 ip address 1.1.1.2 255.255.255.0
#
return

2.R4和R5之间使用ppp的chap认证，R5为主认证方

[R4-Serial4/0/0]ppp chap user admin
[R4-Serial4/0/0]ppp chap password cipher 123456

[ISP]int s4/0/1
[ISP-Serial4/0/1]ppp authentication-mode chap

[ISP-Serial4/0/1]shutdown
[ISP-Serial4/0/1]undo shutdown
[R4-Serial4/0/0]display this
[V200R003C00]
#
interface Serial4/0/0
 link-protocol ppp
 ppp chap user admin
 ppp chap password cipher %$%$Pu^NH.P<BV]0NmQLHzKS,+e~%$%$
 ip address 4.4.4.1 255.255.255.0
#
return

3.R2和R5使用HDLC封装

[R2]int s4/0/0
[R2-Serial4/0/0]link-protocol hdlc
Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]
:y
Sep 17 2022 19:10:50-08:00 R2 %%01IFNET/4/CHANGE_ENCAP(l)[0]:The user performed
the configuration that will change the encapsulation protocol of the link and th
en selected Y.

[ISP-Serial3/0/0]link-protocol hdlc
Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]
:y
Sep 17 2022 19:12:22-08:00 ISP %%01IFNET/4/CHANGE_ENCAP(l)[8]:The user performed
 the configuration that will change the encapsulation protocol of the link and t
hen selected Y.

[ISP-Serial3/0/0]display this
[V200R003C00]
#
interface Serial3/0/0
 link-protocol hdlc
 ip address 2.2.2.2 255.255.255.0
#
return

三.R1、R3之间为点到点的GRE

[R1]interface Tunnel 0/0/0
[R1-Tunnel0/0/0]ip add 192.168.5.1 24
[R1-Tunnel0/0/0]tunnel-protocol gre
[R1-Tunnel0/0/0]source 1.1.1.1
[R1-Tunnel0/0/0]destination 3.3.3.1
Sep 17 2022 19:21:40-08:00 R1 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface Tunnel0/0/0 has entered the UP state.

[R3]interface Tunnel 0/0/0
[R3-Tunnel0/0/0]ip add 192.168.5.2 24
[R3-Tunnel0/0/0]tunnel-protocol gre
[R3-Tunnel0/0/0]source 3.3.3.1
[R3-Tunnel0/0/0]destination 1.1.1.1

  2.R1/R2/R4构建一个MGRE环境，R1为中心站点

[R1]int Tunnel 0/0/1
[R1-Tunnel0/0/1]ip add 192.168.6.1 24
[R1-Tunnel0/0/1]tunnel-protocol gre p2mp
[R1-Tunnel0/0/1]source 1.1.1.1
Sep 17 2022 19:39:34-08:00 R1 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface Tunnel0/0/1 has entered the UP state.
[R1-Tunnel0/0/1]nhrp network-id 100

[R4]int Tunnel 0/0/1
[R4-Tunnel0/0/1]ip add 192.168.6.3 24
[R4-Tunnel0/0/1]tunnel-protocol gre p2mp
[R4-Tunnel0/0/1]source Serial 4/0/0
[R4-Tunnel0/0/1]nhrp network-id 100
[R4-Tunnel0/0/1]nhrp entry 192.168.6.1 1.1.1.1 register

[R2]int Tunnel 0/0/1
[R2-Tunnel0/0/1]ip add 192.168.6.2 24
[R2-Tunnel0/0/1]tunnel-protocol gre p2mp
[R2-Tunnel0/0/1]source Serial 4/0/0
[R2-Tunnel0/0/1]nhrp network-id 100
[R2-Tunnel0/0/1]nhrp entry 192.168.6.1 1.1.1.1 register

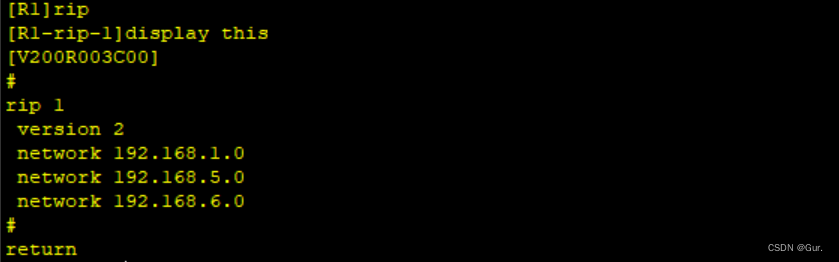

四.整个私有网络基于RIP全网可达

 五.使用PC访问R5环回
