Vcenter6.5扩容存储后无法创建虚机处理方法

Error: "PBM error occurred during PreCreateCheckCallback: Connection refused" while creating protection group

• 占位创建步骤创建保护组失败：
• 您会看到以下错误：

PBM error occurred during PreCreateCheckCallback: Connection refused

• 在 Dr.log 文件中，您会看到类似以下内容的条目：

2018-04-03T09:41:43.453-04:00 verbose vmware-dr[02344] [Originator@6876 sub=ProductionVmManagerImpl opID=5fe36d70] [UpdatePlaceholderVmInfo] Updating PlaceholderVmInfo for protected VM 'protected-vm-24455':
--> (dr.replication.ProtectedVm.PlaceholderVmInfo) {
--> vm = ,
--> folder = ,
--> computeResource = ,
--> resourcePool = ,
--> host = ,
--> datacenter = ,
--> placeholderCreationFault = (vmodl.fault.SystemError) {
--> faultCause = (vmodl.MethodFault) null,
--> faultMessage = ,
--> reason = " PBM error occurred during PreCreateCheckCallback: Connection refused"
--> msg = "A general system error occurred: PBM error occurred during PreCreateCheckCallback: Connection refused"
--> },
--> repairNeeded = true

--> }service-control --status vmware-vpx-workflow

• 在 DR vCenter 上的 vpxd.log 文件中，会看到类似以下的条目：

2018-04-03T09:41:44.034-04:00 info vpxd[7F39FF366700] [Originator@6876 sub=vpxLro opID=251adf5f:cd52-39] [VpxLRO] -- BEGIN task-2862 -- group-v41 -- vim.Folder.createVm -- 52ba72f1-a57c-4a3c-a60f-d30583a1d10f(52d8bf33-59ad-138f-fd78-2d98
f69e3ee9)
2018-04-03T09:41:44.036-04:00 info vpxd[7F39FF366700] [Originator@6876 sub=vpxLro opID=251adf5f:cd52-39-01] [VpxLRO] -- BEGIN lro-245274 --  -- VmprovWorkflow --
2018-04-03T09:41:44.036-04:00 info vpxd[7F39FF366700] [Originator@6876 sub=VmProv opID=251adf5f:cd52-39-01] Execute local action vpx.vmprov.InvokePrechecks (5%)
2018-04-03T09:41:44.036-04:00 info vpxd[7F39FF366700] [Originator@6876 sub=VmProv opID=251adf5f:cd52-39-01] Invoking callback type 0 on CryptoManager
2018-04-03T09:41:44.036-04:00 info vpxd[7F39FF366700] [Originator@6876 sub=VmProv opID=251adf5f:cd52-39-01] Invoking callback type 0 on DVS
2018-04-03T09:41:44.036-04:00 info vpxd[7F39FF366700] [Originator@6876 sub=VmProv opID=251adf5f:cd52-39-01] Invoking callback type 0 on EventEmitter
2018-04-03T09:41:44.036-04:00 info vpxd[7F39FF366700] [Originator@6876 sub=VmProv opID=251adf5f:cd52-39-01] Invoking callback type 0 on FT
2018-04-03T09:41:44.036-04:00 info vpxd[7F39FF366700] [Originator@6876 sub=VmProv opID=251adf5f:cd52-39-01] Invoking callback type 0 on InvtId
2018-04-03T09:41:44.036-04:00 info vpxd[7F39FF366700] [Originator@6876 sub=VmProv opID=251adf5f:cd52-39-01] Invoking callback type 0 on Iofilter
2018-04-03T09:41:44.036-04:00 info vpxd[7F39FF366700] [Originator@6876 sub=VmProv opID=251adf5f:cd52-39-01] Invoking callback type 0 on PbmCallBack
2018-04-03T09:41:44.036-04:00 info vpxd[7F39FF366700] [Originator@6876 sub=pbm opID=251adf5f:cd52-39-01] PBMCallback: PreProvisionProcess: Calling pbm PreProvisionProcess
2018-04-03T09:41:44.036-04:00 warning vpxd[7F39FDC38700] [Originator@6876 sub=Default] Failed to connect socket; , >, e: system:111(Connection refused)
2018-04-03T09:41:44.037-04:00 error vpxd[7F39FF366700] [Originator@6876 sub=pbm opID=251adf5f:cd52-39-01] PBMCallback: HandleInternalFaultMessage:  PBM error occurred during PreCreateCheckCallback: Connection refused
2018-04-03T09:41:44.037-04:00 error vpxd[7F39FF366700] [Originator@6876 sub=VmProv opID=251adf5f:cd52-39-01] Get exception while executing action vpx.vmprov.InvokePrechecks: N5Vmomi5Fault11SystemError9ExceptionE(vmodl.fault.SystemError)
--> [context]zKq7AVECAAAAAEklWwAgdnB4ZAAAeF4rbGlidm1hY29yZS5zbwAAEBcbAMppGAEu0VR2cHhkAAFD01QB3B6rAXauqgGhxcwBX8/MATHfzwEJmNABMtHNAbjzzQEF+c0BS59zAcCUcwFPuHMBon9zAT16yQFGe8kBeKZ4gkNdBgFsaWJ2aW0tdHlwZXMuc28AAfymdAFLn3MBwJRzAU+4cwGAC3QAR6wjAC6vIwA3tysDVHQAbGlicHRocmVhZC5zby4wAAQdjA5saWJjLnNvLjYA[/context]
2018-04-03T09:41:44.040-04:00 info vpxd[7F39FF366700] [Originator@6876 sub=VmProv opID=251adf5f:cd52-39-01] Workflow context:
--> (vpx.vmprov.CreateContext) {
-->    cbData = (vmodl.KeyAnyValue) [
-->       (vmodl.KeyAnyValue) {
-->          key = "pbmPreCheckSkipped",
-->          value = false
-->       }

2018-04-03T09:41:44.043-04:00 error vpxd[7F39FF366700] [Originator@6876 sub=vpxLro opID=251adf5f:cd52-39-01] [VpxLRO] Unexpected Exception: N5Vmomi5Fault11SystemError9ExceptionE(vmodl.fault.SystemError)
--> [context]zKq7AVECAAAAAEklWwAgdnB4ZAAAeF4rbGlidm1hY29yZS5zbwAAEBcbAMppGAEu0VR2cHhkAAFD01QB3B6rAXauqgGhxcwBX8/MATHfzwEJmNABMtHNAbjzzQEF+c0BS59zAcCUcwFPuHMBon9zAT16yQFGe8kBeKZ4gkNdBgFsaWJ2aW0tdHlwZXMuc28AAfymdAFLn3MBwJRzAU+4cwGAC3QAR6wjAC6vIwA3tysDVHQAbGlicHRocmVhZC5zby4wAAQdjA5saWJjLnNvLjYA[/context]
2018-04-03T09:41:44.046-04:00 info vpxd[7F39FF366700] [Originator@6876 sub=vpxLro opID=251adf5f:cd52-39-01] [VpxLRO] -- FINISH lro-245274
2018-04-03T09:41:44.046-04:00 info vpxd[7F39FF366700] [Originator@6876 sub=Default opID=251adf5f:cd52-39-01] [VpxLRO] -- ERROR lro-245274 --  -- VmprovWorkflow: vmodl.fault.SystemError:
--> Result:
--> (vmodl.fault.SystemError) {
-->    faultCause = (vmodl.MethodFault) null,
-->    faultMessage = ,
-->    reason = " PBM error occurred during PreCreateCheckCallback: Connection refused"
-->    msg = ""
--> }
--> Args:

注意：上述日志摘录仅为示例。日期、时间和环境变量可能会因环境而有所不同。

1.扩容LUN空间

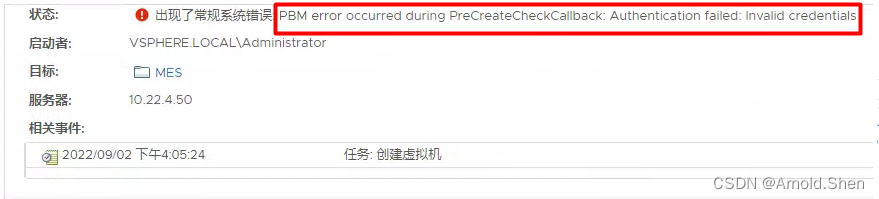

2.创建虚机报如下错误

官方KB： VMware Knowledge Base

官方解决KB：VMware Knowledge Base

3.如果不清楚重启服务的情况下可以重启Vcenter服务（问题修复）

重启Vcenter命令,通过ssh登录Vcenter

输入root

输入shell

输入service-control --stop --all



输入service-control --start --all
