处理华为Framework层中curosr和空指针问题(反编译ROM和Hook动态代理)

最近一直忙着解决公司游戏的Bug，但有些问题是顽固分子，许多个迭代都没解决掉，但不处理总觉有一根刺，在扎着肉。

本篇是记录如何处理手机系统ROM中Framework中报错，可以适用不同的手机厂商。

bugly上的问题：

android.database.CursorWindowAllocationException
Cursor window could not be created from binder.
android.database.CursorWindow.(CursorWindow.java:137)
android.database.CursorWindow.(CursorWindow.java)
android.database.CursorWindow$1.createFromParcel(CursorWindow.java:685)
android.database.CursorWindow$1.createFromParcel(CursorWindow.java:684)
android.database.BulkCursorDescriptor.readFromParcel(BulkCursorDescriptor.java:75)
android.database.BulkCursorDescriptor$1.createFromParcel(BulkCursorDescriptor.java:34)
android.database.BulkCursorDescriptor$1.createFromParcel(BulkCursorDescriptor.java:32)
android.content.ContentProviderProxy.query(ContentProviderNative.java:424)
android.content.ContentResolver.query(ContentResolver.java:541)
android.content.ContentResolver.query(ContentResolver.java:476)
com.huawei.android.hwaps.OperateExperienceLib.isGameInfoExist(OperateExperienceLib.java:497)
com.huawei.android.hwaps.OperateExperienceLib.saveAPSResult(OperateExperienceLib.java:429)
com.huawei.android.hwaps.EventAnalyzed.setAdaptFPS(EventAnalyzed.java:1373)
com.huawei.android.hwaps.EventAnalyzed.processAnalyze(EventAnalyzed.java:1726)
android.view.HwNsdImpl.adaptPowerSave(HwNsdImpl.java:1182)
android.view.ViewRootImpl$EarlyPostImeInputStage.processPointerEvent(ViewRootImpl.java:4648)
android.view.ViewRootImpl$EarlyPostImeInputStage.onProcess(ViewRootImpl.java:4617)
android.view.ViewRootImpl$InputStage.deliver(ViewRootImpl.java:4258)
android.view.ViewRootImpl.deliverInputEvent(ViewRootImpl.java:6690)
android.view.ViewRootImpl.doProcessInputEvents(ViewRootImpl.java:6664)
android.view.ViewRootImpl.enqueueInputEvent(ViewRootImpl.java:6625)
android.view.ViewRootImpl$WindowInputEventReceiver.onInputEvent(ViewRootImpl.java:6819)
android.view.InputEventReceiver.dispatchInputEvent(InputEventReceiver.java:192)
android.os.MessageQueue.nativePollOnce(Native Method)
android.os.MessageQueue.next(MessageQueue.java:356)
android.os.Looper.loop(Looper.java:138)
android.app.ActivityThread.main(ActivityThread.java:6623)
java.lang.reflect.Method.invoke(Native Method)
com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:942)
com.android.internal.os.ZygoteInit.main(ZygoteInit.java:832)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

从代码报错点来看是，cursor 过多未关闭，存在泄漏，产生的原因可能是cursor未关闭或者fd 过多或者是内存不足。

因报错点发生在华为ROM的framework层，因此要先考虑获取到对应的framework.dex， 查看代码调用流程，再来确定解决方案。

设备信息：

1.前期准备：反编译华为Rom系统

可考虑下载华为固件Rom 或者通过adb pull 获取该机型的framework.dex, 详细操作，请阅读Android反编译之各大手机厂商的系统（adb pull和Rom包）

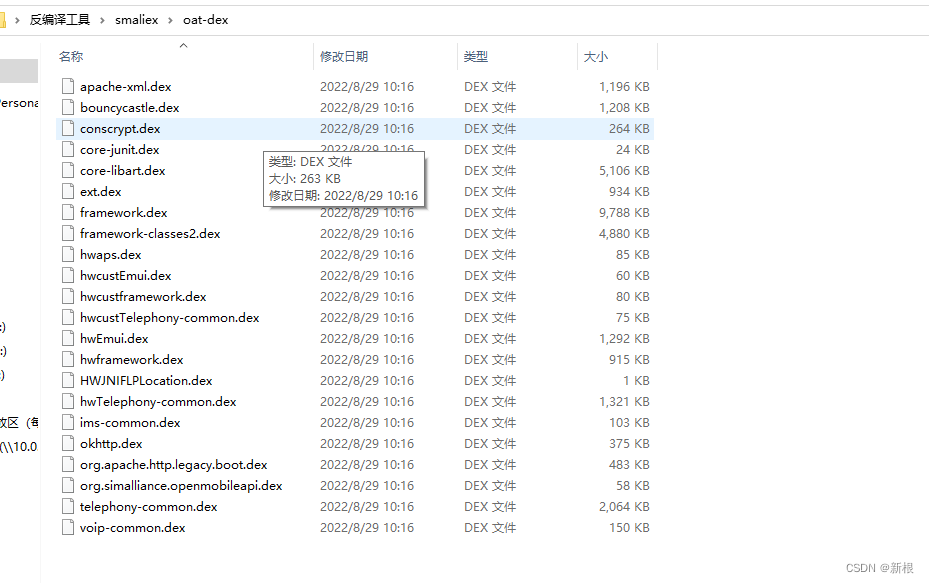

经过一些列操作，获取到framework有关的dex，如下图所示：

2.源码分析定位

通过gui 工具打开华为rom 的framework 层源码。

先从ViewRootImpl#EarlyPostImeInputStage的onProcess()开始入手，追查起。

android/view/ViewRootImpl:

    final class EarlyPostImeInputStage extends InputStage {

        protected int onProcess(QueuedInputEvent q) {
            if (q.mEvent instanceof KeyEvent) {
                return processKeyEvent(q);
            }
            if ((q.mEvent.getSource() & 2) != 0) {
                return processPointerEvent(q);
            }
            return 0;
        }

        private int processPointerEvent(QueuedInputEvent q) {
            MotionEvent event = q.mEvent;
            if (ViewRootImpl.this.mTranslator != null) {
                ViewRootImpl.this.mTranslator.translateEventInScreenToAppWindow(event);
            }
			    //若是rom 支持aps功能和包名和进程名匹配的情况下
            if (HwFrameworkFactory.getHwNsdImpl().isSupportAps() && HwFrameworkFactory.getHwNsdImpl().isGameProcess(ViewRootImpl.this.mContext.getPackageName())) {
                HwFrameworkFactory.getHwNsdImpl().initAPS(ViewRootImpl.this.mView.getContext(), ViewRootImpl.this.mView.getResources().getDisplayMetrics().widthPixels, Process.myPid());
                HwFrameworkFactory.getHwNsdImpl().adaptPowerSave(event);
            }
            int action = event.getAction();
            if (HwFrameworkFactory.getHwViewRootImpl().filterDecorPointerEvent(ViewRootImpl.this.mContext, event, action, ViewRootImpl.this.mWindowAttributes, ViewRootImpl.this.mDisplay)) {
                return 1;
            }
			//...
            return 0;
        }
    }


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

先来看下getHwNsdImpl()获取的对象,才能更好的了解源码调用过程。

android/common/HwFrameworkFactory中：

  public static IHwNsdImpl getHwNsdImpl() {
        Factory obj = getImplObject();
        if (obj != null) {
            return obj.getHwNsdImpl();
        }
        return null;
  }
  private static Factory getImplObject() {
        if (obj != null) {
            return obj;
        }
        synchronized (mLock) {
            try {// 反射获取真正的HwFrameworkFactory实现类
                obj = (Factory) Class.forName("huawei.android.common.HwFrameworkFactoryImpl").newInstance();
            } catch (Exception e) {
                Log.e(TAG, ": reflection exception is " + e);
            }
        }
        //...
        return null;
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

HwFrameworkFactory 是一个封装的api 类，用于静态方法/工厂类方式，间接调用各种api。

接下来，继续看下huawei/android/common/HwFrameworkFactoryImpl类中的getHwNsdImpl()：

    public HwNsdImpl getHwNsdImpl() {
        return HwNsdImpl.getDefault();
    }
1
2
3

接下来看下android/view/HwNsdImpl：

   public static HwNsdImpl getDefault() {
        if (mInstance == null) {
            mInstance = new HwNsdImpl();
        }
        return mInstance;
    }

1
2
3
4
5
6
7

经过一些列的追踪，可以了解到ViewRootImpl对象中调用的是HwNsdImpl中的方法。

接下来看下，isGameProcess()和isSupportAps()和adaptPowerSave()等几个方法。

2.1 华为framework 统计游戏fps 的条件

    public boolean isSupportAps() {
        return SystemProperties.getInt("sys.aps.support", 0) > 0;
    }
1
2
3

从上面代码可知，isSupportAps()是检测系统rom 是否支持aps功能。

接下来看下isGameProcess()：

 private static IEventAnalyzed mEventAnalyzed = null;

    public boolean isGameProcess(String pkgName) {
        createEventAnalyzed();
        if (mEventAnalyzed != null) {
            return mEventAnalyzed.isGameProcess(pkgName);
        }
        return false;
    }
    public synchronized void createEventAnalyzed() {
        if (mEventAnalyzed == null) {
            mEventAnalyzed = HwapsWrapper.getEventAnalyzed();
        }
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14

接下来看下, com/huawei/android/hwaps/HwapsWrapper类中getEventAnalyzed()：

    public static IEventAnalyzed getEventAnalyzed() {
        IHwapsFactory factory = getHwapsFactoryImpl();
        return factory != null ? factory.getEventAnalyzed() : null;
    }

    private static synchronized IHwapsFactory getHwapsFactoryImpl() {
        IHwapsFactory iHwapsFactory;
        synchronized (HwapsWrapper.class) {
            if (mFactory != null) {
                iHwapsFactory = mFactory;
            } else {
                try {
                    mFactory = (IHwapsFactory) Class.forName("com.huawei.android.hwaps.HwapsFactoryImpl").newInstance();
                } catch (ClassNotFoundException e) {
                    Log.e(TAG, "reflection exception is " + e);
                } catch (InstantiationException e2) {
                    Log.e(TAG, "reflection exception is " + e2);
                } catch (IllegalAccessException e3) {
                    Log.e(TAG, "reflection exception is " + e3);
                }
                if (mFactory == null) {
                    Log.e(TAG, "failes to get HwapsFactoryImpl");
                }
                iHwapsFactory = mFactory;
            }
        }
        return iHwapsFactory;
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

从上面代码可知, HwapsWrapper是一个封装api的类, 其真正调用是HwapsFactoryImpl类。

com/huawei/android/hwaps/HwapsFactoryImpl：

public class HwapsFactoryImpl implements IHwapsFactory {

    //...
    public IEventAnalyzed getEventAnalyzed() {
        return new EventAnalyzed();
    }
}
1
2
3
4
5
6
7

经过一些列的波折，最终调用链是ViewRootImpl->IHwNsdImpl->EventAnalyzed类的方法：

com/huawei/android/hwaps/EventAnalyzed

    //检查下是否是原始进程对应的包名
    private boolean isIdentifyProcess(String strPkgName) {
        if (!this.mHasIdentifyProcess) {
            if (SystemProperties.get("debug.aps.process.name", "").equals(strPkgName)) {
                this.mIsGameProcess = true;
            } else {
                this.mIsGameProcess = false;
            }
            this.mHasIdentifyProcess = true;
        }
        return this.mIsGameProcess;
    }

    public boolean isGameProcess(String pkgName) {
        if (this.mHasIdentifyProcess && !this.mIsGameProcess) {
            return this.mIsGameProcess;
        }
        if (isAPSReady()) {
            return isIdentifyProcess(pkgName); // 通常下,app主进程 是返回true
        }
        return false;
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

从上面可见,若pkgName是app 主进程名,是返回true的。

这里注意点, EventAnalyzed 是com/huawei/android/hwaps/IEventAnalyzed接口的实现类，后面会用到。

public interface IEventAnalyzed {

    //......
    boolean isGameProcess(String str);
    void processAnalyze(int i, long j, int i2, int i3, int i4, long j2);
    void setHasOnPaused(boolean z);
}
1
2
3
4
5
6
7

2.2 华为 framework层是如何存储游戏的fps功能

HwNsdImpl#adaptPowerSave()是调用EventAnalyzed#processAnalyze(),因此，接下来看下processAnalyze()：

    public void processAnalyze(int aciton, long eventTime, int x, int y, int pointCount, long downTime) {
       //...
	   else if (CUST_APP_TYPE != mGameType) {
            //...
            setAdaptFPS(gametype, openGLType, this.mLevel);
        }
    }

	public void setAdaptFPS(int gameType, int openGLType, int level) {
            //...
            else if (!this.mHasSetFPS) {
                mGameType = gameType;
                int recommendFPS = computeRecommendFPS(gameType, openGLType, level);
                if (gameType == 8 || gameType == 9) {
                    this.mOperateExLib.saveAPSResult(gameType, recommendFPS, recommendFPS);
                } else {
                    this.mOperateExLib.saveAPSResult(gameType, recommendFPS, mMinFps);
                }
				//.....
            }
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

接下来看下com/huawei/android/hwaps/OperateExperienceLib的 saveAPSResult():

    public void saveAPSResult(int gameType, int maxFPS, int minFPS) {
        this.mGameType = gameType;
        this.mMaxFPS = maxFPS;
        this.mMinFPS = minFPS;
        if (this.mIsExistInDataBase) {
            updateAppInfo();
        } else {
            insertAppInfo();
        }
    }
1
2
3
4
5
6
7
8
9
10

这里发生了一点小变故,可能是同样的手机，同个大编号的系统rom 存在多个小版本，并没有找到isGameInfoExist()方法。

但并不影响，咱们继续分析。看到最后，发现最终是华为系统收集app game 的周期性的fps 信息, 通过广播形式跨进程通信到其他系统app中。

在通信前，会通过cursor查询下该游戏app是否存在，也就是bulgy上的报错点。解决方案，也是基于减少cursor的查询。

3.解决方案 Hook 代理：

3.1 思路分析：

1.通过hook 方式，代理调用EventAnalyzed类调用processAnalyze();
2.经过上面的源码分析，可知HwNsdImpl类中mEventAnalyzed属性时hook 点；
3.因IEventAnalyzed是一个抽象接口，考虑动态代理拦截其中的方法调用。

3.2 编写相应的代码：

  public static void hookHwFrameworkFactory() {
        if (isSafeHookHuawei()) {
            try {
                Class<?> hwNsdImplClass = Class.forName("android.view.HwNsdImpl");
                Method getDefaultMethod = hwNsdImplClass.getDeclaredMethod("getDefault");
                getDefaultMethod.setAccessible(true);
                // 获取HwNsdImpl 类对象
                Object hwNsdImplObject = getDefaultMethod.invoke(null);
                // 调用createEventAnalyzed()，先构建出真正的EventAnalyzed对象
                Method createEventAnalyzedMethod = hwNsdImplClass.getDeclaredMethod("createEventAnalyzed");
                createEventAnalyzedMethod.setAccessible(true);
                createEventAnalyzedMethod.invoke(hwNsdImplObject);
                // 获取真正的EventAnalyzed对象
                Field mEventAnalyzedFiled = hwNsdImplClass.getDeclaredField("mEventAnalyzed");
                mEventAnalyzedFiled.setAccessible(true);
                Object oldFactory = mEventAnalyzedFiled.get(null);
                // 构建IEventAnalyzed的代理对类
                Class<?> iEventAnalyzedClass = Class.forName("com.huawei.android.hwaps.IEventAnalyzed");
                Object proxyFactory = CommonProxy.startHook(oldFactory, iEventAnalyzedClass, new ProxyCallBack() {
                    @Override
                    public Object interrupt(CommonProxy proxy, Method method, Object[] args) throws Throwable {
                        Object result = null;
                        if (method.getName().equals("processAnalyze")) {
                            //处理bugly上的问题：https://bugly.qq.com/v2/crash-reporting/crashes/1105308248/33050435/report?pid=1&crashDataType=undefined
                            if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M && Build.VERSION.SDK_INT <= Build.VERSION_CODES.O_MR1) {
                                //6.0到8.1的版本上屏蔽该方法的调用
                            } else {
                                result = proxy.doRealInvoke(method, args);
                            }
                        } else {
                            result = proxy.doRealInvoke(method, args);
                        }
                        return result;
                    }
                });
                mEventAnalyzedFiled.set(null, proxyFactory);

            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

3.3 云真机验证

在云真机进行验证发现,mEventAnalyzed是非静态，通过静态方式获取直接报错，可能每个Rom中代码又有新的变化:

08-29 19:39:29.633 W/System.err( 5126): java.lang.NullPointerException: null receiver
08-29 19:39:29.635 W/System.err( 5126): 	at java.lang.reflect.Field.get(Native Method)
08-29 19:39:29.635 W/System.err( 5126): 	at com.minitech.miniworld.HuaWeiHook.hookHwFrameworkFactory(HuaWeiHook.java:91)
08-29 19:39:29.635 W/System.err( 5126): 	at org.appplay.lib.GameBaseActivity$7.run(GameBaseActivity.java:625)
08-29 19:39:29.635 W/System.err( 5126): 	at android.os.Handler.handleCallback(Handler.java:761)
08-29 19:39:29.635 W/System.err( 5126): 	at android.os.Handler.dispatchMessage(Handler.java:98)
08-29 19:39:29.635 W/System.err( 5126): 	at android.os.Looper.loop(Looper.java:156)
08-29 19:39:29.635 W/System.err( 5126): 	at android.app.ActivityThread.main(ActivityThread.java:6623)
08-29 19:39:29.635 W/System.err( 5126): 	at java.lang.reflect.Method.invoke(Native Method)
08-29 19:39:29.635 W/System.err( 5126): 	at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:942)
08-29 19:39:29.635 W/System.err( 5126): 	at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:832)
1
2
3
4
5
6
7
8
9
10
11

结合报错的机型，如下：

3.4 完善代码

因此调整代码如下：

public class HuaWeiHook {
    private static final String TAG = "HuaWeiHook";

    /**
     * 是否是华为rom
     *
     * @return
     */
    public static boolean isHuWeiRoom() {
        final String huawei_room_name = "huawei";
        boolean result=false;
        try {
            String brand = Build.BRAND;
            Log.i(TAG," room brand "+brand);
            if (!TextUtils.isEmpty(brand)) {
                brand = brand.toLowerCase();
            }
            result=brand.contains(huawei_room_name);
        } catch (Exception e) {
            e.printStackTrace();
        }
        if (!result){
            try {
                String manufacturer = Build.MANUFACTURER;
                Log.i(TAG," room  manufacturer "+ manufacturer);
                if (!TextUtils.isEmpty(manufacturer)) {
                    manufacturer = manufacturer.toLowerCase();
                }
               result= manufacturer.contains(huawei_room_name);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
        return result;
    }

    /**
     * 是否支持反射framework 层的api，9.0以下
     *
     * @return
     */
    public static boolean isSupportHook() {
        return Build.VERSION.SDK_INT < Build.VERSION_CODES.P;
    }

    /**
     * 检查是否满足华为机型反射调用
     *
     * @return
     */
    public static boolean isSafeHookHuawei() {
        return isHuWeiRoom() && isSupportHook();
    }

    private static AtomicBoolean init = new AtomicBoolean(false);

    public static void hookHwFrameworkFactory() {
        if (init.compareAndSet(false, true)) {
            boolean isSafe = isSafeHookHuawei();
            Log.i(TAG, " room huawei " + isSafe);
            if (isSafe) {// 非华为手机系统，不做处理
                try {
                    Class<?> hwNsdImplClass = Class.forName("android.view.HwNsdImpl");
                    Method getDefaultMethod = hwNsdImplClass.getDeclaredMethod("getDefault");
                    getDefaultMethod.setAccessible(true);
                    // 获取HwNsdImpl 类对象
                    Object hwNsdImplObject = getDefaultMethod.invoke(null);
                    // 调用createEventAnalyzed()，先构建出真正的EventAnalyzed对象
                    Method createEventAnalyzedMethod = hwNsdImplClass.getDeclaredMethod("createEventAnalyzed");
                    createEventAnalyzedMethod.setAccessible(true);
                    createEventAnalyzedMethod.invoke(hwNsdImplObject);
                    // 获取真正的EventAnalyzed对象
                    Field mEventAnalyzedFiled = hwNsdImplClass.getDeclaredField("mEventAnalyzed");
                    mEventAnalyzedFiled.setAccessible(true);
                    //检查是否为静态属性
                    boolean static_access=false;
                    Object oldFactory =null;
                    try {
                        oldFactory=mEventAnalyzedFiled.get(null);
                        static_access=true;
                    }catch (Exception e){
                    }
                    if (oldFactory==null){
                        static_access=false;
                        oldFactory= mEventAnalyzedFiled.get(hwNsdImplObject);
                    }
                    // 构建IEventAnalyzed的代理对类
                    Class<?> iEventAnalyzedClass = Class.forName("com.huawei.android.hwaps.IEventAnalyzed");
                    Object proxyFactory = CommonProxy.startHook(oldFactory, iEventAnalyzedClass, new ProxyCallBack() {
                        @Override
                        public Object interrupt(CommonProxy proxy, Method method, Object[] args) throws Throwable {
                            Object result = null;
                            if (method.getName().equals("processAnalyze")) {
                                if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M && Build.VERSION.SDK_INT <= Build.VERSION_CODES.O_MR1) {
                                    //6.0到8.1的版本上屏蔽该方法的调用
                                    Log.i(TAG, " interrupt huawei processAnalyze method ");
                                } else {
                                    result = proxy.doRealInvoke(method, args);
                                }
                            }
                            //...
							else {
                                result = proxy.doRealInvoke(method, args);
                            }
                            return result;
                        }
                    });
                    if (!static_access){
                        mEventAnalyzedFiled.set(hwNsdImplObject, proxyFactory);
                    }else {
                        mEventAnalyzedFiled.set(null,proxyFactory);
                    }
                } catch (Exception e) {
                    e.printStackTrace();
                }
            }
        }
    }

    /**
     * 构建一个通用的代理类
     */
    public static class CommonProxy implements InvocationHandler {
        protected Object oldObject;
        protected ProxyCallBack callBack;

        private CommonProxy(Object oldFactory, ProxyCallBack callBack) {
            this.oldObject = oldFactory;
            this.callBack = callBack;
        }

        @Override
        public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
            return callBack != null ? callBack.interrupt(this, method, args) : doRealInvoke(method, args);
        }

        /**
         * 调用原本的逻辑，继续走下去
         *
         * @param method
         * @param args
         * @return
         * @throws Throwable
         */
        public Object doRealInvoke(Method method, Object[] args) throws Throwable {
            return method.invoke(oldObject, args);
        }

        public static Object startHook(Object oldFactory, Class<?> interfaceClass, ProxyCallBack callBack) throws Exception {
            return Proxy.newProxyInstance(HuaWeiHook.class.getClassLoader(), new Class[]{interfaceClass}, new CommonProxy(oldFactory, callBack));
        }
    }

    public static interface ProxyCallBack {
        Object interrupt(CommonProxy proxy, Method method, Object[] args) throws Throwable;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157

4.处理华为Framework中的其他问题(空指针)

另外一个问题：

java.lang.NullPointerException
Attempt to invoke interface method 'java.util.Iterator java.util.List.iterator()' on a null object reference
com.huawei.android.hwaps.EventAnalyzed.isBackground(EventAnalyzed.java:1932)
com.huawei.android.hwaps.EventAnalyzed$1.run(EventAnalyzed.java:1956)
android.os.Handler.handleCallback(Handler.java:743)
android.os.Handler.dispatchMessage(Handler.java:95)
android.os.Looper.loop(Looper.java:150)
android.app.ActivityThread.main(ActivityThread.java:5621)
java.lang.reflect.Method.invoke(Native Method)
com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:794)
com.android.internal.os.ZygoteInit.main(ZygoteInit.java:684)
1
2
3
4
5
6
7
8
9
10
11

通过一些列的反向逆推，找到调用链接。调用链接：EventAnalyzed#setHasOnPaused()->EventAnalyzed#checkBackground()->EventAnalyzed#isBackground()。

先来看下, com/huawei/android/hwaps/EventAnalyzed#setHasOnPaused()：

 public void setHasOnPaused(boolean hasOnPaused) {
        boolean haspause = mHasOnPaused;
        mHasOnPaused = hasOnPaused;
        checkBackground();
        if (mApsThermal != null) {
            mApsThermal.stop();
        } else {
            ApsCommon.logI(TAG, "setHasOnPaused-ApsThermal is null");
        }
        if (mApsUserFeedback != null) {
            mApsUserFeedback.stop();
        } else {
            ApsCommon.logI(TAG, "setHasOnPaused-ApsUserFeedback is null");
        }
        //...
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

接下来看下checkBackground()：

    private void checkBackground() {
        new Handler().postDelayed(new Runnable() {// 通过handler 延迟执行
            public void run() {
                if (EventAnalyzed.this.isBackground() && EventAnalyzed.mSdrController != null) {
                    ApsCommon.logI(EventAnalyzed.TAG, "SDR: stop SDR because the package is in background");
                    EventAnalyzed.mSdrController.stopSdrImmediately();
                    EventAnalyzed.this.mHasSetSdr = false;
                }
            }
        }, 0);
    }

1
2
3
4
5
6
7
8
9
10
11
12

接下来看下,isBackground():

    public boolean isBackground() {
        if (mActivityManager == null) {
            return false;
        }
        for (RunningAppProcessInfo appProcess : mActivityManager.getRunningAppProcesses()) {// 报错点,在这里,返回list 为空
            if (appProcess.processName.equals(mPkgName) && appProcess.importance != 100) {
                ApsCommon.logD(TAG, "SDR: The pkg is in Background and pkg: " + mPkgName);
                return true;
            }
        }
        ApsCommon.logD(TAG, "SDR: The pkg is not in Background and pkg: " + mPkgName);
        return false;
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14

解决方法：
也是采用hook 方式,拦截IEventAnalyzed 是一个接口，可以考虑动态代理掉setHasOnPaused().

再结合报错的机型，如下：

关键代码：

        else if (method.getName().equals("setHasOnPaused")) {

                            //EventAnalyzed#setHasOnPaused->EventAnalyzed#checkBackground()->EventAnalyzed#isBackground()
                            if (Build.VERSION_CODES.M == Build.VERSION.SDK_INT) {
                                // 在 华为机型的android 6.0 屏蔽该方法的调用
                            } else {
                                result = proxy.doRealInvoke(method, args);
                            }
        }
1
2
3
4
5
6
7
8
9
