参考论文：Rethinking the Inception Architecture for Computer Vision

作者：Christian Szegedy; Vincent Vanhoucke; Sergey Ioffe; Jon Shlens; Zbigniew Wojna

1、Inception-v2/v3优化策略

  Inception-v2和Inception-v3都是出自同一篇论文《Rethinking the inception architecture for computer vision》，该论文提出了多种基于 Inception-v1 的模型优化 方法，Inception-v2 用了其中的一部分模型优化方法，Inception-v3 用了论文中提到的所有 优化方法。相当于 Inception-v2 只是一个过渡版本，Inception-v3 一般用得更多。

  Inception-v3 最大的优化是模型结构上的优化，在 Inception-v3 中作者对 Inception 结 构中的卷积进行了分解。分解后的好处是增加了网络的层数，也就是增加了网络的特征提取能力。同时作者还对 Inception 结构进行了一些调整，设计了不同的 Inception，用在模型 的不同位置。

  先回忆一下最原始的Inception结构，如下图所示

   图中的 convolutions 表示卷积，filter concatenation 表示滤波器合并，max pooling 表示最大池化，previous layer 表示前一层。

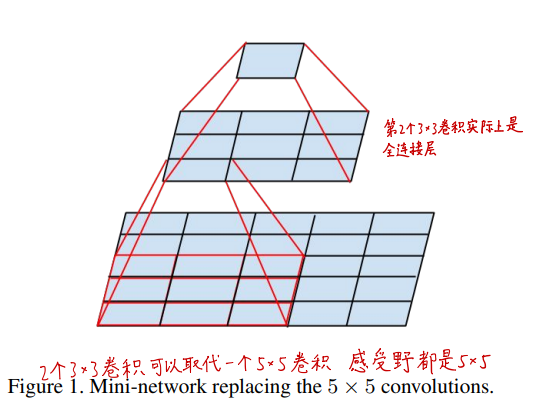

  Inception-v3 中提出了一个新思路，可以使用两个 3×3 卷积来替代原始 Inception 结构 中的 5×5 卷积，如下图所示。

  将 5×5 卷积分解为两层的 3×3 卷积，对于最后得到的特征来说，感受野的大小是相同 的，都是 5×5 的区域。相当于 5×5 卷积对 5×5 区域进行特征提取，得到一个特征值；两层的 3×3 卷积对 5×5 区域进行特征提取，也是得到一个特征值。这两种特征提取的方式类 似，不过最后得到的特征值可能是不同的，两层 3×3 卷积做了两次卷积得到的特征值或许会更好一些。

  沿着这个卷积分解的思路继续思考，作者又提出了一种新的卷积分解，把 3×3 卷积分解 为 1×3 卷积和 3×1 卷积，如下图所示。

  把 3×3 卷积分解为 1×3 卷积和 3×1 卷积，道理跟将 5×5 卷积分解为两层的 3×3 卷积 差不多，对于最后的特征来说，感受野的大小是一样的，并且分解后可以让网络层数变得更 多，增加网络的非线性。理论上 n×n 的卷积都可以分解为 1×n 卷积和 n×1 卷积。

  作者还分析了减小特征图大小时的操作，如下图所示。

  作者认为直接使用窗口大小 2×2，步长为 2 的池化来压缩特征图的大小效果不太好。因 为特征图的数量不变，但是特征图的长宽变成为原来的 1/2，相当于特征值的数量被压缩为 原来的 1/4 了，特征值的数量一下减少太多不利于模型的训练，所以左边的结构不太理想。 右边的结构先用 Inception 来增加特征图数量然后再进行池化减小特征图大小，对于特征的 提取来说没什么问题，就是计算量太大。

  所以设计了新的 Inception 结构，在减小特征图大小的同时可以增加特征图的数量，如下图所示。

   图中 Filter Concat 表示滤波器拼接；stride 表示步长；concat 表示拼接；conv 表示卷 积；pool 表示池化。

  除此之外作者还根据实验分析和建模经验，设计了一些新的 Inception 结构，如下图所示。

2、Inception-v2/v3模型结构

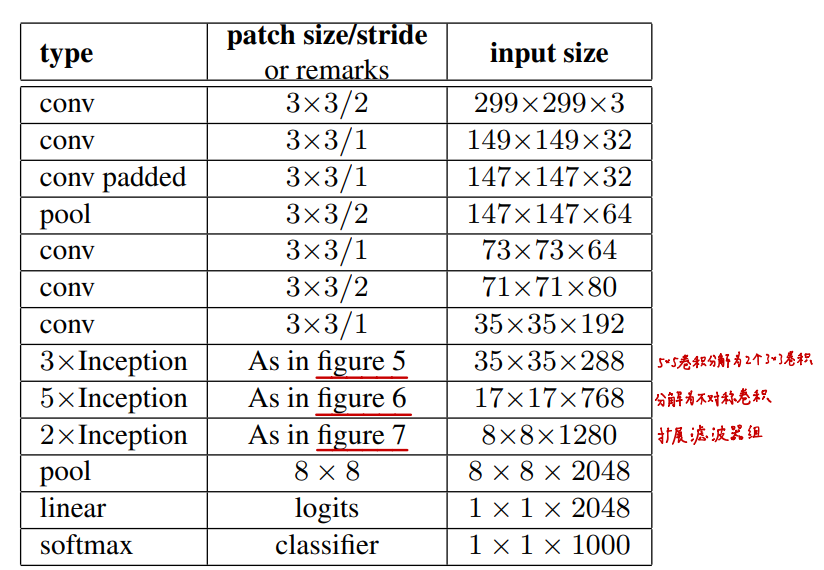

  Inception-v2/v3 模型的结构非常庞大，Inception-v2/v3 论文中给出的模型结构描述也 不是特别清晰，结构如图所示。

   Filter Concat 表示滤波器拼接；Pool 表示池化；type 表 示层的类型；patch size/stride or remarks 表示窗口大小/步长；input size 表示输入大 小；conv 表示卷积；pool 表示池化；linear 表示全连接层。

  figure5:将5*5卷积分解为2个3*3卷积

  figure6:分解为不对称卷积

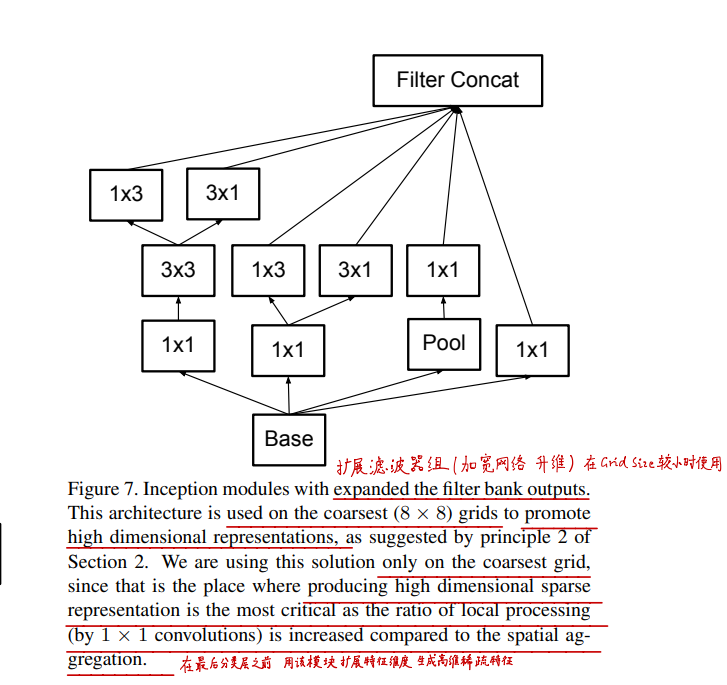

  figure7:扩展滤波器组

3、Inception-v3在ImageNet数据集中的表现

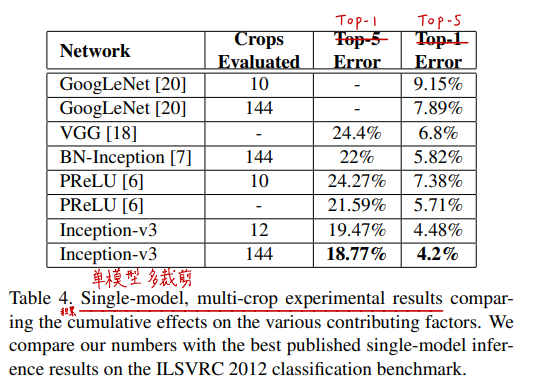

  Inception-v3 单模型测试结果：

   图中 Network 表示网络；Crops Evaluated 表示模型评估时裁剪出多少张图片进行预 测；Top-5 Error 表示 Top5 错误率；Top-1 Error 表示 Top1 错误率。

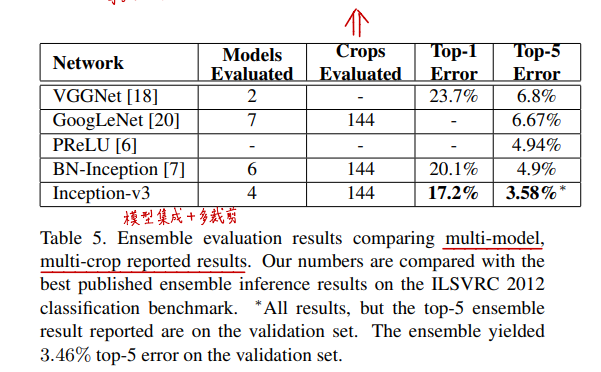

  Inception-v3 模型融合后的测试结果。

  图中 Network 表示网络；Models Evaluated 表示评估时集成了几个模型；Crops Evaluated 表示模型评估时裁剪出多少张图片进行预测；Top-5 Error 表示 Top5 错误率； Top-1 Error 表示 Top1 错误率。

  Inception-v3 模型融合后的 Top5 错误率为 3.58%，这个结果跟 2015 年 ImageNet Challenge 图像识别比赛的冠军 ResNet 已经非常接近，ResNet 的 Top5 错误率为 3.57%。

4、迁移学习复现网络结构

import tensorflow as tf
from tensorflow.keras.layers import *
from tensorflow.keras.applications import InceptionV3
from plot_model import plot_model

model=InceptionV3(
    input_shape=(299,299,3),
    include_top=True,  # 是否包含最后的全连接层
    weights='imagenet',  # 权重默认为ImageNet一千类图像分类
    classes=1000        # 1000个类别
)

model.summary()
plot_model(model,to_file='img/inception-v3.png',show_shapes=True)
1
2
3
4
5
6
7
8
9
10
11
12
13
14

Model: "inception_v3"
__________________________________________________________________________________________________
Layer (type)                    Output Shape         Param #     Connected to
==================================================================================================
input_1 (InputLayer)            [(None, 299, 299, 3) 0
__________________________________________________________________________________________________
conv2d (Conv2D)                 (None, 149, 149, 32) 864         input_1[0][0]
__________________________________________________________________________________________________
batch_normalization (BatchNorma (None, 149, 149, 32) 96          conv2d[0][0]
__________________________________________________________________________________________________
activation (Activation)         (None, 149, 149, 32) 0           batch_normalization[0][0]
__________________________________________________________________________________________________
conv2d_1 (Conv2D)               (None, 147, 147, 32) 9216        activation[0][0]
__________________________________________________________________________________________________
batch_normalization_1 (BatchNor (None, 147, 147, 32) 96          conv2d_1[0][0]
__________________________________________________________________________________________________
activation_1 (Activation)       (None, 147, 147, 32) 0           batch_normalization_1[0][0]
__________________________________________________________________________________________________
conv2d_2 (Conv2D)               (None, 147, 147, 64) 18432       activation_1[0][0]
__________________________________________________________________________________________________
batch_normalization_2 (BatchNor (None, 147, 147, 64) 192         conv2d_2[0][0]
__________________________________________________________________________________________________
activation_2 (Activation)       (None, 147, 147, 64) 0           batch_normalization_2[0][0]
__________________________________________________________________________________________________
max_pooling2d (MaxPooling2D)    (None, 73, 73, 64)   0           activation_2[0][0]
__________________________________________________________________________________________________
conv2d_3 (Conv2D)               (None, 73, 73, 80)   5120        max_pooling2d[0][0]
__________________________________________________________________________________________________
batch_normalization_3 (BatchNor (None, 73, 73, 80)   240         conv2d_3[0][0]
__________________________________________________________________________________________________
activation_3 (Activation)       (None, 73, 73, 80)   0           batch_normalization_3[0][0]
__________________________________________________________________________________________________
conv2d_4 (Conv2D)               (None, 71, 71, 192)  138240      activation_3[0][0]
__________________________________________________________________________________________________
batch_normalization_4 (BatchNor (None, 71, 71, 192)  576         conv2d_4[0][0]
__________________________________________________________________________________________________
activation_4 (Activation)       (None, 71, 71, 192)  0           batch_normalization_4[0][0]
__________________________________________________________________________________________________
max_pooling2d_1 (MaxPooling2D)  (None, 35, 35, 192)  0           activation_4[0][0]
__________________________________________________________________________________________________
conv2d_8 (Conv2D)               (None, 35, 35, 64)   12288       max_pooling2d_1[0][0]
__________________________________________________________________________________________________
batch_normalization_8 (BatchNor (None, 35, 35, 64)   192         conv2d_8[0][0]
__________________________________________________________________________________________________
activation_8 (Activation)       (None, 35, 35, 64)   0           batch_normalization_8[0][0]
__________________________________________________________________________________________________
conv2d_6 (Conv2D)               (None, 35, 35, 48)   9216        max_pooling2d_1[0][0]
__________________________________________________________________________________________________
conv2d_9 (Conv2D)               (None, 35, 35, 96)   55296       activation_8[0][0]
__________________________________________________________________________________________________
batch_normalization_6 (BatchNor (None, 35, 35, 48)   144         conv2d_6[0][0]
__________________________________________________________________________________________________
batch_normalization_9 (BatchNor (None, 35, 35, 96)   288         conv2d_9[0][0]
__________________________________________________________________________________________________
activation_6 (Activation)       (None, 35, 35, 48)   0           batch_normalization_6[0][0]
__________________________________________________________________________________________________
activation_9 (Activation)       (None, 35, 35, 96)   0           batch_normalization_9[0][0]
__________________________________________________________________________________________________
average_pooling2d (AveragePooli (None, 35, 35, 192)  0           max_pooling2d_1[0][0]
__________________________________________________________________________________________________
conv2d_5 (Conv2D)               (None, 35, 35, 64)   12288       max_pooling2d_1[0][0]
__________________________________________________________________________________________________
conv2d_7 (Conv2D)               (None, 35, 35, 64)   76800       activation_6[0][0]
__________________________________________________________________________________________________
conv2d_10 (Conv2D)              (None, 35, 35, 96)   82944       activation_9[0][0]
__________________________________________________________________________________________________
conv2d_11 (Conv2D)              (None, 35, 35, 32)   6144        average_pooling2d[0][0]
__________________________________________________________________________________________________
batch_normalization_5 (BatchNor (None, 35, 35, 64)   192         conv2d_5[0][0]
__________________________________________________________________________________________________
batch_normalization_7 (BatchNor (None, 35, 35, 64)   192         conv2d_7[0][0]
__________________________________________________________________________________________________
batch_normalization_10 (BatchNo (None, 35, 35, 96)   288         conv2d_10[0][0]
__________________________________________________________________________________________________
batch_normalization_11 (BatchNo (None, 35, 35, 32)   96          conv2d_11[0][0]
__________________________________________________________________________________________________
activation_5 (Activation)       (None, 35, 35, 64)   0           batch_normalization_5[0][0]
__________________________________________________________________________________________________
activation_7 (Activation)       (None, 35, 35, 64)   0           batch_normalization_7[0][0]
__________________________________________________________________________________________________
activation_10 (Activation)      (None, 35, 35, 96)   0           batch_normalization_10[0][0]
__________________________________________________________________________________________________
activation_11 (Activation)      (None, 35, 35, 32)   0           batch_normalization_11[0][0]
__________________________________________________________________________________________________
mixed0 (Concatenate)            (None, 35, 35, 256)  0           activation_5[0][0]
                                                                 activation_7[0][0]
                                                                 activation_10[0][0]
                                                                 activation_11[0][0]
__________________________________________________________________________________________________
conv2d_15 (Conv2D)              (None, 35, 35, 64)   16384       mixed0[0][0]
__________________________________________________________________________________________________
batch_normalization_15 (BatchNo (None, 35, 35, 64)   192         conv2d_15[0][0]
__________________________________________________________________________________________________
activation_15 (Activation)      (None, 35, 35, 64)   0           batch_normalization_15[0][0]
__________________________________________________________________________________________________
conv2d_13 (Conv2D)              (None, 35, 35, 48)   12288       mixed0[0][0]
__________________________________________________________________________________________________
conv2d_16 (Conv2D)              (None, 35, 35, 96)   55296       activation_15[0][0]
__________________________________________________________________________________________________
batch_normalization_13 (BatchNo (None, 35, 35, 48)   144         conv2d_13[0][0]
__________________________________________________________________________________________________
batch_normalization_16 (BatchNo (None, 35, 35, 96)   288         conv2d_16[0][0]
__________________________________________________________________________________________________
activation_13 (Activation)      (None, 35, 35, 48)   0           batch_normalization_13[0][0]
__________________________________________________________________________________________________
activation_16 (Activation)      (None, 35, 35, 96)   0           batch_normalization_16[0][0]
__________________________________________________________________________________________________
average_pooling2d_1 (AveragePoo (None, 35, 35, 256)  0           mixed0[0][0]
__________________________________________________________________________________________________
conv2d_12 (Conv2D)              (None, 35, 35, 64)   16384       mixed0[0][0]
__________________________________________________________________________________________________
conv2d_14 (Conv2D)              (None, 35, 35, 64)   76800       activation_13[0][0]
__________________________________________________________________________________________________
conv2d_17 (Conv2D)              (None, 35, 35, 96)   82944       activation_16[0][0]
__________________________________________________________________________________________________
conv2d_18 (Conv2D)              (None, 35, 35, 64)   16384       average_pooling2d_1[0][0]
__________________________________________________________________________________________________
batch_normalization_12 (BatchNo (None, 35, 35, 64)   192         conv2d_12[0][0]
__________________________________________________________________________________________________
batch_normalization_14 (BatchNo (None, 35, 35, 64)   192         conv2d_14[0][0]
__________________________________________________________________________________________________
batch_normalization_17 (BatchNo (None, 35, 35, 96)   288         conv2d_17[0][0]
__________________________________________________________________________________________________
batch_normalization_18 (BatchNo (None, 35, 35, 64)   192         conv2d_18[0][0]
__________________________________________________________________________________________________
activation_12 (Activation)      (None, 35, 35, 64)   0           batch_normalization_12[0][0]
__________________________________________________________________________________________________
activation_14 (Activation)      (None, 35, 35, 64)   0           batch_normalization_14[0][0]
__________________________________________________________________________________________________
activation_17 (Activation)      (None, 35, 35, 96)   0           batch_normalization_17[0][0]
__________________________________________________________________________________________________
activation_18 (Activation)      (None, 35, 35, 64)   0           batch_normalization_18[0][0]
__________________________________________________________________________________________________
mixed1 (Concatenate)            (None, 35, 35, 288)  0           activation_12[0][0]
                                                                 activation_14[0][0]
                                                                 activation_17[0][0]
                                                                 activation_18[0][0]
__________________________________________________________________________________________________
conv2d_22 (Conv2D)              (None, 35, 35, 64)   18432       mixed1[0][0]
__________________________________________________________________________________________________
batch_normalization_22 (BatchNo (None, 35, 35, 64)   192         conv2d_22[0][0]
__________________________________________________________________________________________________
activation_22 (Activation)      (None, 35, 35, 64)   0           batch_normalization_22[0][0]
__________________________________________________________________________________________________
conv2d_20 (Conv2D)              (None, 35, 35, 48)   13824       mixed1[0][0]
__________________________________________________________________________________________________
conv2d_23 (Conv2D)              (None, 35, 35, 96)   55296       activation_22[0][0]
__________________________________________________________________________________________________
batch_normalization_20 (BatchNo (None, 35, 35, 48)   144         conv2d_20[0][0]
__________________________________________________________________________________________________
batch_normalization_23 (BatchNo (None, 35, 35, 96)   288         conv2d_23[0][0]
__________________________________________________________________________________________________
activation_20 (Activation)      (None, 35, 35, 48)   0           batch_normalization_20[0][0]
__________________________________________________________________________________________________
activation_23 (Activation)      (None, 35, 35, 96)   0           batch_normalization_23[0][0]
__________________________________________________________________________________________________
average_pooling2d_2 (AveragePoo (None, 35, 35, 288)  0           mixed1[0][0]
__________________________________________________________________________________________________
conv2d_19 (Conv2D)              (None, 35, 35, 64)   18432       mixed1[0][0]
__________________________________________________________________________________________________
conv2d_21 (Conv2D)              (None, 35, 35, 64)   76800       activation_20[0][0]
__________________________________________________________________________________________________
conv2d_24 (Conv2D)              (None, 35, 35, 96)   82944       activation_23[0][0]
__________________________________________________________________________________________________
conv2d_25 (Conv2D)              (None, 35, 35, 64)   18432       average_pooling2d_2[0][0]
__________________________________________________________________________________________________
batch_normalization_19 (BatchNo (None, 35, 35, 64)   192         conv2d_19[0][0]
__________________________________________________________________________________________________
batch_normalization_21 (BatchNo (None, 35, 35, 64)   192         conv2d_21[0][0]
__________________________________________________________________________________________________
batch_normalization_24 (BatchNo (None, 35, 35, 96)   288         conv2d_24[0][0]
__________________________________________________________________________________________________
batch_normalization_25 (BatchNo (None, 35, 35, 64)   192         conv2d_25[0][0]
__________________________________________________________________________________________________
activation_19 (Activation)      (None, 35, 35, 64)   0           batch_normalization_19[0][0]
__________________________________________________________________________________________________
activation_21 (Activation)      (None, 35, 35, 64)   0           batch_normalization_21[0][0]
__________________________________________________________________________________________________
activation_24 (Activation)      (None, 35, 35, 96)   0           batch_normalization_24[0][0]
__________________________________________________________________________________________________
activation_25 (Activation)      (None, 35, 35, 64)   0           batch_normalization_25[0][0]
__________________________________________________________________________________________________
mixed2 (Concatenate)            (None, 35, 35, 288)  0           activation_19[0][0]
                                                                 activation_21[0][0]
                                                                 activation_24[0][0]
                                                                 activation_25[0][0]
__________________________________________________________________________________________________
conv2d_27 (Conv2D)              (None, 35, 35, 64)   18432       mixed2[0][0]
__________________________________________________________________________________________________
batch_normalization_27 (BatchNo (None, 35, 35, 64)   192         conv2d_27[0][0]
__________________________________________________________________________________________________
activation_27 (Activation)      (None, 35, 35, 64)   0           batch_normalization_27[0][0]
__________________________________________________________________________________________________
conv2d_28 (Conv2D)              (None, 35, 35, 96)   55296       activation_27[0][0]
__________________________________________________________________________________________________
batch_normalization_28 (BatchNo (None, 35, 35, 96)   288         conv2d_28[0][0]
__________________________________________________________________________________________________
activation_28 (Activation)      (None, 35, 35, 96)   0           batch_normalization_28[0][0]
__________________________________________________________________________________________________
conv2d_26 (Conv2D)              (None, 17, 17, 384)  995328      mixed2[0][0]
__________________________________________________________________________________________________
conv2d_29 (Conv2D)              (None, 17, 17, 96)   82944       activation_28[0][0]
__________________________________________________________________________________________________
batch_normalization_26 (BatchNo (None, 17, 17, 384)  1152        conv2d_26[0][0]
__________________________________________________________________________________________________
batch_normalization_29 (BatchNo (None, 17, 17, 96)   288         conv2d_29[0][0]
__________________________________________________________________________________________________
activation_26 (Activation)      (None, 17, 17, 384)  0           batch_normalization_26[0][0]
__________________________________________________________________________________________________
activation_29 (Activation)      (None, 17, 17, 96)   0           batch_normalization_29[0][0]
__________________________________________________________________________________________________
max_pooling2d_2 (MaxPooling2D)  (None, 17, 17, 288)  0           mixed2[0][0]
__________________________________________________________________________________________________
mixed3 (Concatenate)            (None, 17, 17, 768)  0           activation_26[0][0]
                                                                 activation_29[0][0]
                                                                 max_pooling2d_2[0][0]
__________________________________________________________________________________________________
conv2d_34 (Conv2D)              (None, 17, 17, 128)  98304       mixed3[0][0]
__________________________________________________________________________________________________
batch_normalization_34 (BatchNo (None, 17, 17, 128)  384         conv2d_34[0][0]
__________________________________________________________________________________________________
activation_34 (Activation)      (None, 17, 17, 128)  0           batch_normalization_34[0][0]
__________________________________________________________________________________________________
conv2d_35 (Conv2D)              (None, 17, 17, 128)  114688      activation_34[0][0]
__________________________________________________________________________________________________
batch_normalization_35 (BatchNo (None, 17, 17, 128)  384         conv2d_35[0][0]
__________________________________________________________________________________________________
activation_35 (Activation)      (None, 17, 17, 128)  0           batch_normalization_35[0][0]
__________________________________________________________________________________________________
conv2d_31 (Conv2D)              (None, 17, 17, 128)  98304       mixed3[0][0]
__________________________________________________________________________________________________
conv2d_36 (Conv2D)              (None, 17, 17, 128)  114688      activation_35[0][0]
__________________________________________________________________________________________________
batch_normalization_31 (BatchNo (None, 17, 17, 128)  384         conv2d_31[0][0]
__________________________________________________________________________________________________
batch_normalization_36 (BatchNo (None, 17, 17, 128)  384         conv2d_36[0][0]
__________________________________________________________________________________________________
activation_31 (Activation)      (None, 17, 17, 128)  0           batch_normalization_31[0][0]
__________________________________________________________________________________________________
activation_36 (Activation)      (None, 17, 17, 128)  0           batch_normalization_36[0][0]
__________________________________________________________________________________________________
conv2d_32 (Conv2D)              (None, 17, 17, 128)  114688      activation_31[0][0]
__________________________________________________________________________________________________
conv2d_37 (Conv2D)              (None, 17, 17, 128)  114688      activation_36[0][0]
__________________________________________________________________________________________________
batch_normalization_32 (BatchNo (None, 17, 17, 128)  384         conv2d_32[0][0]
__________________________________________________________________________________________________
batch_normalization_37 (BatchNo (None, 17, 17, 128)  384         conv2d_37[0][0]
__________________________________________________________________________________________________
activation_32 (Activation)      (None, 17, 17, 128)  0           batch_normalization_32[0][0]
__________________________________________________________________________________________________
activation_37 (Activation)      (None, 17, 17, 128)  0           batch_normalization_37[0][0]
__________________________________________________________________________________________________
average_pooling2d_3 (AveragePoo (None, 17, 17, 768)  0           mixed3[0][0]
__________________________________________________________________________________________________
conv2d_30 (Conv2D)              (None, 17, 17, 192)  147456      mixed3[0][0]
__________________________________________________________________________________________________
conv2d_33 (Conv2D)              (None, 17, 17, 192)  172032      activation_32[0][0]
__________________________________________________________________________________________________
conv2d_38 (Conv2D)              (None, 17, 17, 192)  172032      activation_37[0][0]
__________________________________________________________________________________________________
conv2d_39 (Conv2D)              (None, 17, 17, 192)  147456      average_pooling2d_3[0][0]
__________________________________________________________________________________________________
batch_normalization_30 (BatchNo (None, 17, 17, 192)  576         conv2d_30[0][0]
__________________________________________________________________________________________________
batch_normalization_33 (BatchNo (None, 17, 17, 192)  576         conv2d_33[0][0]
__________________________________________________________________________________________________
batch_normalization_38 (BatchNo (None, 17, 17, 192)  576         conv2d_38[0][0]
__________________________________________________________________________________________________
batch_normalization_39 (BatchNo (None, 17, 17, 192)  576         conv2d_39[0][0]
__________________________________________________________________________________________________
activation_30 (Activation)      (None, 17, 17, 192)  0           batch_normalization_30[0][0]
__________________________________________________________________________________________________
activation_33 (Activation)      (None, 17, 17, 192)  0           batch_normalization_33[0][0]
__________________________________________________________________________________________________
activation_38 (Activation)      (None, 17, 17, 192)  0           batch_normalization_38[0][0]
__________________________________________________________________________________________________
activation_39 (Activation)      (None, 17, 17, 192)  0           batch_normalization_39[0][0]
__________________________________________________________________________________________________
mixed4 (Concatenate)            (None, 17, 17, 768)  0           activation_30[0][0]
                                                                 activation_33[0][0]
                                                                 activation_38[0][0]
                                                                 activation_39[0][0]
__________________________________________________________________________________________________
conv2d_44 (Conv2D)              (None, 17, 17, 160)  122880      mixed4[0][0]
__________________________________________________________________________________________________
batch_normalization_44 (BatchNo (None, 17, 17, 160)  480         conv2d_44[0][0]
__________________________________________________________________________________________________
activation_44 (Activation)      (None, 17, 17, 160)  0           batch_normalization_44[0][0]
__________________________________________________________________________________________________
conv2d_45 (Conv2D)              (None, 17, 17, 160)  179200      activation_44[0][0]
__________________________________________________________________________________________________
batch_normalization_45 (BatchNo (None, 17, 17, 160)  480         conv2d_45[0][0]
__________________________________________________________________________________________________
activation_45 (Activation)      (None, 17, 17, 160)  0           batch_normalization_45[0][0]
__________________________________________________________________________________________________
conv2d_41 (Conv2D)              (None, 17, 17, 160)  122880      mixed4[0][0]
__________________________________________________________________________________________________
conv2d_46 (Conv2D)              (None, 17, 17, 160)  179200      activation_45[0][0]
__________________________________________________________________________________________________
batch_normalization_41 (BatchNo (None, 17, 17, 160)  480         conv2d_41[0][0]
__________________________________________________________________________________________________
batch_normalization_46 (BatchNo (None, 17, 17, 160)  480         conv2d_46[0][0]
__________________________________________________________________________________________________
activation_41 (Activation)      (None, 17, 17, 160)  0           batch_normalization_41[0][0]
__________________________________________________________________________________________________
activation_46 (Activation)      (None, 17, 17, 160)  0           batch_normalization_46[0][0]
__________________________________________________________________________________________________
conv2d_42 (Conv2D)              (None, 17, 17, 160)  179200      activation_41[0][0]
__________________________________________________________________________________________________
conv2d_47 (Conv2D)              (None, 17, 17, 160)  179200      activation_46[0][0]
__________________________________________________________________________________________________
batch_normalization_42 (BatchNo (None, 17, 17, 160)  480         conv2d_42[0][0]
__________________________________________________________________________________________________
batch_normalization_47 (BatchNo (None, 17, 17, 160)  480         conv2d_47[0][0]
__________________________________________________________________________________________________
activation_42 (Activation)      (None, 17, 17, 160)  0           batch_normalization_42[0][0]
__________________________________________________________________________________________________
activation_47 (Activation)      (None, 17, 17, 160)  0           batch_normalization_47[0][0]
__________________________________________________________________________________________________
average_pooling2d_4 (AveragePoo (None, 17, 17, 768)  0           mixed4[0][0]
__________________________________________________________________________________________________
conv2d_40 (Conv2D)              (None, 17, 17, 192)  147456      mixed4[0][0]
__________________________________________________________________________________________________
conv2d_43 (Conv2D)              (None, 17, 17, 192)  215040      activation_42[0][0]
__________________________________________________________________________________________________
conv2d_48 (Conv2D)              (None, 17, 17, 192)  215040      activation_47[0][0]
__________________________________________________________________________________________________
conv2d_49 (Conv2D)              (None, 17, 17, 192)  147456      average_pooling2d_4[0][0]
__________________________________________________________________________________________________
batch_normalization_40 (BatchNo (None, 17, 17, 192)  576         conv2d_40[0][0]
__________________________________________________________________________________________________
batch_normalization_43 (BatchNo (None, 17, 17, 192)  576         conv2d_43[0][0]
__________________________________________________________________________________________________
batch_normalization_48 (BatchNo (None, 17, 17, 192)  576         conv2d_48[0][0]
__________________________________________________________________________________________________
batch_normalization_49 (BatchNo (None, 17, 17, 192)  576         conv2d_49[0][0]
__________________________________________________________________________________________________
activation_40 (Activation)      (None, 17, 17, 192)  0           batch_normalization_40[0][0]
__________________________________________________________________________________________________
activation_43 (Activation)      (None, 17, 17, 192)  0           batch_normalization_43[0][0]
__________________________________________________________________________________________________
activation_48 (Activation)      (None, 17, 17, 192)  0           batch_normalization_48[0][0]
__________________________________________________________________________________________________
activation_49 (Activation)      (None, 17, 17, 192)  0           batch_normalization_49[0][0]
__________________________________________________________________________________________________
mixed5 (Concatenate)            (None, 17, 17, 768)  0           activation_40[0][0]
                                                                 activation_43[0][0]
                                                                 activation_48[0][0]
                                                                 activation_49[0][0]
__________________________________________________________________________________________________
conv2d_54 (Conv2D)              (None, 17, 17, 160)  122880      mixed5[0][0]
__________________________________________________________________________________________________
batch_normalization_54 (BatchNo (None, 17, 17, 160)  480         conv2d_54[0][0]
__________________________________________________________________________________________________
activation_54 (Activation)      (None, 17, 17, 160)  0           batch_normalization_54[0][0]
__________________________________________________________________________________________________
conv2d_55 (Conv2D)              (None, 17, 17, 160)  179200      activation_54[0][0]
__________________________________________________________________________________________________
batch_normalization_55 (BatchNo (None, 17, 17, 160)  480         conv2d_55[0][0]
__________________________________________________________________________________________________
activation_55 (Activation)      (None, 17, 17, 160)  0           batch_normalization_55[0][0]
__________________________________________________________________________________________________
conv2d_51 (Conv2D)              (None, 17, 17, 160)  122880      mixed5[0][0]
__________________________________________________________________________________________________
conv2d_56 (Conv2D)              (None, 17, 17, 160)  179200      activation_55[0][0]
__________________________________________________________________________________________________
batch_normalization_51 (BatchNo (None, 17, 17, 160)  480         conv2d_51[0][0]
__________________________________________________________________________________________________
batch_normalization_56 (BatchNo (None, 17, 17, 160)  480         conv2d_56[0][0]
__________________________________________________________________________________________________
activation_51 (Activation)      (None, 17, 17, 160)  0           batch_normalization_51[0][0]
__________________________________________________________________________________________________
activation_56 (Activation)      (None, 17, 17, 160)  0           batch_normalization_56[0][0]
__________________________________________________________________________________________________
conv2d_52 (Conv2D)              (None, 17, 17, 160)  179200      activation_51[0][0]
__________________________________________________________________________________________________
conv2d_57 (Conv2D)              (None, 17, 17, 160)  179200      activation_56[0][0]
__________________________________________________________________________________________________
batch_normalization_52 (BatchNo (None, 17, 17, 160)  480         conv2d_52[0][0]
__________________________________________________________________________________________________
batch_normalization_57 (BatchNo (None, 17, 17, 160)  480         conv2d_57[0][0]
__________________________________________________________________________________________________
activation_52 (Activation)      (None, 17, 17, 160)  0           batch_normalization_52[0][0]
__________________________________________________________________________________________________
activation_57 (Activation)      (None, 17, 17, 160)  0           batch_normalization_57[0][0]
__________________________________________________________________________________________________
average_pooling2d_5 (AveragePoo (None, 17, 17, 768)  0           mixed5[0][0]
__________________________________________________________________________________________________
conv2d_50 (Conv2D)              (None, 17, 17, 192)  147456      mixed5[0][0]
__________________________________________________________________________________________________
conv2d_53 (Conv2D)              (None, 17, 17, 192)  215040      activation_52[0][0]
__________________________________________________________________________________________________
conv2d_58 (Conv2D)              (None, 17, 17, 192)  215040      activation_57[0][0]
__________________________________________________________________________________________________
conv2d_59 (Conv2D)              (None, 17, 17, 192)  147456      average_pooling2d_5[0][0]
__________________________________________________________________________________________________
batch_normalization_50 (BatchNo (None, 17, 17, 192)  576         conv2d_50[0][0]
__________________________________________________________________________________________________
batch_normalization_53 (BatchNo (None, 17, 17, 192)  576         conv2d_53[0][0]
__________________________________________________________________________________________________
batch_normalization_58 (BatchNo (None, 17, 17, 192)  576         conv2d_58[0][0]
__________________________________________________________________________________________________
batch_normalization_59 (BatchNo (None, 17, 17, 192)  576         conv2d_59[0][0]
__________________________________________________________________________________________________
activation_50 (Activation)      (None, 17, 17, 192)  0           batch_normalization_50[0][0]
__________________________________________________________________________________________________
activation_53 (Activation)      (None, 17, 17, 192)  0           batch_normalization_53[0][0]
__________________________________________________________________________________________________
activation_58 (Activation)      (None, 17, 17, 192)  0           batch_normalization_58[0][0]
__________________________________________________________________________________________________
activation_59 (Activation)      (None, 17, 17, 192)  0           batch_normalization_59[0][0]
__________________________________________________________________________________________________
mixed6 (Concatenate)            (None, 17, 17, 768)  0           activation_50[0][0]
                                                                 activation_53[0][0]
                                                                 activation_58[0][0]
                                                                 activation_59[0][0]
__________________________________________________________________________________________________
conv2d_64 (Conv2D)              (None, 17, 17, 192)  147456      mixed6[0][0]
__________________________________________________________________________________________________
batch_normalization_64 (BatchNo (None, 17, 17, 192)  576         conv2d_64[0][0]
__________________________________________________________________________________________________
activation_64 (Activation)      (None, 17, 17, 192)  0           batch_normalization_64[0][0]
__________________________________________________________________________________________________
conv2d_65 (Conv2D)              (None, 17, 17, 192)  258048      activation_64[0][0]
__________________________________________________________________________________________________
batch_normalization_65 (BatchNo (None, 17, 17, 192)  576         conv2d_65[0][0]
__________________________________________________________________________________________________
activation_65 (Activation)      (None, 17, 17, 192)  0           batch_normalization_65[0][0]
__________________________________________________________________________________________________
conv2d_61 (Conv2D)              (None, 17, 17, 192)  147456      mixed6[0][0]
__________________________________________________________________________________________________
conv2d_66 (Conv2D)              (None, 17, 17, 192)  258048      activation_65[0][0]
__________________________________________________________________________________________________
batch_normalization_61 (BatchNo (None, 17, 17, 192)  576         conv2d_61[0][0]
__________________________________________________________________________________________________
batch_normalization_66 (BatchNo (None, 17, 17, 192)  576         conv2d_66[0][0]
__________________________________________________________________________________________________
activation_61 (Activation)      (None, 17, 17, 192)  0           batch_normalization_61[0][0]
__________________________________________________________________________________________________
activation_66 (Activation)      (None, 17, 17, 192)  0           batch_normalization_66[0][0]
__________________________________________________________________________________________________
conv2d_62 (Conv2D)              (None, 17, 17, 192)  258048      activation_61[0][0]
__________________________________________________________________________________________________
conv2d_67 (Conv2D)              (None, 17, 17, 192)  258048      activation_66[0][0]
__________________________________________________________________________________________________
batch_normalization_62 (BatchNo (None, 17, 17, 192)  576         conv2d_62[0][0]
__________________________________________________________________________________________________
batch_normalization_67 (BatchNo (None, 17, 17, 192)  576         conv2d_67[0][0]
__________________________________________________________________________________________________
activation_62 (Activation)      (None, 17, 17, 192)  0           batch_normalization_62[0][0]
__________________________________________________________________________________________________
activation_67 (Activation)      (None, 17, 17, 192)  0           batch_normalization_67[0][0]
__________________________________________________________________________________________________
average_pooling2d_6 (AveragePoo (None, 17, 17, 768)  0           mixed6[0][0]
__________________________________________________________________________________________________
conv2d_60 (Conv2D)              (None, 17, 17, 192)  147456      mixed6[0][0]
__________________________________________________________________________________________________
conv2d_63 (Conv2D)              (None, 17, 17, 192)  258048      activation_62[0][0]
__________________________________________________________________________________________________
conv2d_68 (Conv2D)              (None, 17, 17, 192)  258048      activation_67[0][0]
__________________________________________________________________________________________________
conv2d_69 (Conv2D)              (None, 17, 17, 192)  147456      average_pooling2d_6[0][0]
__________________________________________________________________________________________________
batch_normalization_60 (BatchNo (None, 17, 17, 192)  576         conv2d_60[0][0]
__________________________________________________________________________________________________
batch_normalization_63 (BatchNo (None, 17, 17, 192)  576         conv2d_63[0][0]
__________________________________________________________________________________________________
batch_normalization_68 (BatchNo (None, 17, 17, 192)  576         conv2d_68[0][0]
__________________________________________________________________________________________________
batch_normalization_69 (BatchNo (None, 17, 17, 192)  576         conv2d_69[0][0]
__________________________________________________________________________________________________
activation_60 (Activation)      (None, 17, 17, 192)  0           batch_normalization_60[0][0]
__________________________________________________________________________________________________
activation_63 (Activation)      (None, 17, 17, 192)  0           batch_normalization_63[0][0]
__________________________________________________________________________________________________
activation_68 (Activation)      (None, 17, 17, 192)  0           batch_normalization_68[0][0]
__________________________________________________________________________________________________
activation_69 (Activation)      (None, 17, 17, 192)  0           batch_normalization_69[0][0]
__________________________________________________________________________________________________
mixed7 (Concatenate)            (None, 17, 17, 768)  0           activation_60[0][0]
                                                                 activation_63[0][0]
                                                                 activation_68[0][0]
                                                                 activation_69[0][0]
__________________________________________________________________________________________________
conv2d_72 (Conv2D)              (None, 17, 17, 192)  147456      mixed7[0][0]
__________________________________________________________________________________________________
batch_normalization_72 (BatchNo (None, 17, 17, 192)  576         conv2d_72[0][0]
__________________________________________________________________________________________________
activation_72 (Activation)      (None, 17, 17, 192)  0           batch_normalization_72[0][0]
__________________________________________________________________________________________________
conv2d_73 (Conv2D)              (None, 17, 17, 192)  258048      activation_72[0][0]
__________________________________________________________________________________________________
batch_normalization_73 (BatchNo (None, 17, 17, 192)  576         conv2d_73[0][0]
__________________________________________________________________________________________________
activation_73 (Activation)      (None, 17, 17, 192)  0           batch_normalization_73[0][0]
__________________________________________________________________________________________________
conv2d_70 (Conv2D)              (None, 17, 17, 192)  147456      mixed7[0][0]
__________________________________________________________________________________________________
conv2d_74 (Conv2D)              (None, 17, 17, 192)  258048      activation_73[0][0]
__________________________________________________________________________________________________
batch_normalization_70 (BatchNo (None, 17, 17, 192)  576         conv2d_70[0][0]
__________________________________________________________________________________________________
batch_normalization_74 (BatchNo (None, 17, 17, 192)  576         conv2d_74[0][0]
__________________________________________________________________________________________________
activation_70 (Activation)      (None, 17, 17, 192)  0           batch_normalization_70[0][0]
__________________________________________________________________________________________________
activation_74 (Activation)      (None, 17, 17, 192)  0           batch_normalization_74[0][0]
__________________________________________________________________________________________________
conv2d_71 (Conv2D)              (None, 8, 8, 320)    552960      activation_70[0][0]
__________________________________________________________________________________________________
conv2d_75 (Conv2D)              (None, 8, 8, 192)    331776      activation_74[0][0]
__________________________________________________________________________________________________
batch_normalization_71 (BatchNo (None, 8, 8, 320)    960         conv2d_71[0][0]
__________________________________________________________________________________________________
batch_normalization_75 (BatchNo (None, 8, 8, 192)    576         conv2d_75[0][0]
__________________________________________________________________________________________________
activation_71 (Activation)      (None, 8, 8, 320)    0           batch_normalization_71[0][0]
__________________________________________________________________________________________________
activation_75 (Activation)      (None, 8, 8, 192)    0           batch_normalization_75[0][0]
__________________________________________________________________________________________________
max_pooling2d_3 (MaxPooling2D)  (None, 8, 8, 768)    0           mixed7[0][0]
__________________________________________________________________________________________________
mixed8 (Concatenate)            (None, 8, 8, 1280)   0           activation_71[0][0]
                                                                 activation_75[0][0]
                                                                 max_pooling2d_3[0][0]
__________________________________________________________________________________________________
conv2d_80 (Conv2D)              (None, 8, 8, 448)    573440      mixed8[0][0]
__________________________________________________________________________________________________
batch_normalization_80 (BatchNo (None, 8, 8, 448)    1344        conv2d_80[0][0]
__________________________________________________________________________________________________
activation_80 (Activation)      (None, 8, 8, 448)    0           batch_normalization_80[0][0]
__________________________________________________________________________________________________
conv2d_77 (Conv2D)              (None, 8, 8, 384)    491520      mixed8[0][0]
__________________________________________________________________________________________________
conv2d_81 (Conv2D)              (None, 8, 8, 384)    1548288     activation_80[0][0]
__________________________________________________________________________________________________
batch_normalization_77 (BatchNo (None, 8, 8, 384)    1152        conv2d_77[0][0]
__________________________________________________________________________________________________
batch_normalization_81 (BatchNo (None, 8, 8, 384)    1152        conv2d_81[0][0]
__________________________________________________________________________________________________
activation_77 (Activation)      (None, 8, 8, 384)    0           batch_normalization_77[0][0]
__________________________________________________________________________________________________
activation_81 (Activation)      (None, 8, 8, 384)    0           batch_normalization_81[0][0]
__________________________________________________________________________________________________
conv2d_78 (Conv2D)              (None, 8, 8, 384)    442368      activation_77[0][0]
__________________________________________________________________________________________________
conv2d_79 (Conv2D)              (None, 8, 8, 384)    442368      activation_77[0][0]
__________________________________________________________________________________________________
conv2d_82 (Conv2D)              (None, 8, 8, 384)    442368      activation_81[0][0]
__________________________________________________________________________________________________
conv2d_83 (Conv2D)              (None, 8, 8, 384)    442368      activation_81[0][0]
__________________________________________________________________________________________________
average_pooling2d_7 (AveragePoo (None, 8, 8, 1280)   0           mixed8[0][0]
__________________________________________________________________________________________________
conv2d_76 (Conv2D)              (None, 8, 8, 320)    409600      mixed8[0][0]
__________________________________________________________________________________________________
batch_normalization_78 (BatchNo (None, 8, 8, 384)    1152        conv2d_78[0][0]
__________________________________________________________________________________________________
batch_normalization_79 (BatchNo (None, 8, 8, 384)    1152        conv2d_79[0][0]
__________________________________________________________________________________________________
batch_normalization_82 (BatchNo (None, 8, 8, 384)    1152        conv2d_82[0][0]
__________________________________________________________________________________________________
batch_normalization_83 (BatchNo (None, 8, 8, 384)    1152        conv2d_83[0][0]
__________________________________________________________________________________________________
conv2d_84 (Conv2D)              (None, 8, 8, 192)    245760      average_pooling2d_7[0][0]
__________________________________________________________________________________________________
batch_normalization_76 (BatchNo (None, 8, 8, 320)    960         conv2d_76[0][0]
__________________________________________________________________________________________________
activation_78 (Activation)      (None, 8, 8, 384)    0           batch_normalization_78[0][0]
__________________________________________________________________________________________________
activation_79 (Activation)      (None, 8, 8, 384)    0           batch_normalization_79[0][0]
__________________________________________________________________________________________________
activation_82 (Activation)      (None, 8, 8, 384)    0           batch_normalization_82[0][0]
__________________________________________________________________________________________________
activation_83 (Activation)      (None, 8, 8, 384)    0           batch_normalization_83[0][0]
__________________________________________________________________________________________________
batch_normalization_84 (BatchNo (None, 8, 8, 192)    576         conv2d_84[0][0]
__________________________________________________________________________________________________
activation_76 (Activation)      (None, 8, 8, 320)    0           batch_normalization_76[0][0]
__________________________________________________________________________________________________
mixed9_0 (Concatenate)          (None, 8, 8, 768)    0           activation_78[0][0]
                                                                 activation_79[0][0]
__________________________________________________________________________________________________
concatenate (Concatenate)       (None, 8, 8, 768)    0           activation_82[0][0]
                                                                 activation_83[0][0]
__________________________________________________________________________________________________
activation_84 (Activation)      (None, 8, 8, 192)    0           batch_normalization_84[0][0]
__________________________________________________________________________________________________
mixed9 (Concatenate)            (None, 8, 8, 2048)   0           activation_76[0][0]
                                                                 mixed9_0[0][0]
                                                                 concatenate[0][0]
                                                                 activation_84[0][0]
__________________________________________________________________________________________________
conv2d_89 (Conv2D)              (None, 8, 8, 448)    917504      mixed9[0][0]
__________________________________________________________________________________________________
batch_normalization_89 (BatchNo (None, 8, 8, 448)    1344        conv2d_89[0][0]
__________________________________________________________________________________________________
activation_89 (Activation)      (None, 8, 8, 448)    0           batch_normalization_89[0][0]
__________________________________________________________________________________________________
conv2d_86 (Conv2D)              (None, 8, 8, 384)    786432      mixed9[0][0]
__________________________________________________________________________________________________
conv2d_90 (Conv2D)              (None, 8, 8, 384)    1548288     activation_89[0][0]
__________________________________________________________________________________________________
batch_normalization_86 (BatchNo (None, 8, 8, 384)    1152        conv2d_86[0][0]
__________________________________________________________________________________________________
batch_normalization_90 (BatchNo (None, 8, 8, 384)    1152        conv2d_90[0][0]
__________________________________________________________________________________________________
activation_86 (Activation)      (None, 8, 8, 384)    0           batch_normalization_86[0][0]
__________________________________________________________________________________________________
activation_90 (Activation)      (None, 8, 8, 384)    0           batch_normalization_90[0][0]
__________________________________________________________________________________________________
conv2d_87 (Conv2D)              (None, 8, 8, 384)    442368      activation_86[0][0]
__________________________________________________________________________________________________
conv2d_88 (Conv2D)              (None, 8, 8, 384)    442368      activation_86[0][0]
__________________________________________________________________________________________________
conv2d_91 (Conv2D)              (None, 8, 8, 384)    442368      activation_90[0][0]
__________________________________________________________________________________________________
conv2d_92 (Conv2D)              (None, 8, 8, 384)    442368      activation_90[0][0]
__________________________________________________________________________________________________
average_pooling2d_8 (AveragePoo (None, 8, 8, 2048)   0           mixed9[0][0]
__________________________________________________________________________________________________
conv2d_85 (Conv2D)              (None, 8, 8, 320)    655360      mixed9[0][0]
__________________________________________________________________________________________________
batch_normalization_87 (BatchNo (None, 8, 8, 384)    1152        conv2d_87[0][0]
__________________________________________________________________________________________________
batch_normalization_88 (BatchNo (None, 8, 8, 384)    1152        conv2d_88[0][0]
__________________________________________________________________________________________________
batch_normalization_91 (BatchNo (None, 8, 8, 384)    1152        conv2d_91[0][0]
__________________________________________________________________________________________________
batch_normalization_92 (BatchNo (None, 8, 8, 384)    1152        conv2d_92[0][0]
__________________________________________________________________________________________________
conv2d_93 (Conv2D)              (None, 8, 8, 192)    393216      average_pooling2d_8[0][0]
__________________________________________________________________________________________________
batch_normalization_85 (BatchNo (None, 8, 8, 320)    960         conv2d_85[0][0]
__________________________________________________________________________________________________
activation_87 (Activation)      (None, 8, 8, 384)    0           batch_normalization_87[0][0]
__________________________________________________________________________________________________
activation_88 (Activation)      (None, 8, 8, 384)    0           batch_normalization_88[0][0]
__________________________________________________________________________________________________
activation_91 (Activation)      (None, 8, 8, 384)    0           batch_normalization_91[0][0]
__________________________________________________________________________________________________
activation_92 (Activation)      (None, 8, 8, 384)    0           batch_normalization_92[0][0]
__________________________________________________________________________________________________
batch_normalization_93 (BatchNo (None, 8, 8, 192)    576         conv2d_93[0][0]
__________________________________________________________________________________________________
activation_85 (Activation)      (None, 8, 8, 320)    0           batch_normalization_85[0][0]
__________________________________________________________________________________________________
mixed9_1 (Concatenate)          (None, 8, 8, 768)    0           activation_87[0][0]
                                                                 activation_88[0][0]
__________________________________________________________________________________________________
concatenate_1 (Concatenate)     (None, 8, 8, 768)    0           activation_91[0][0]
                                                                 activation_92[0][0]
__________________________________________________________________________________________________
activation_93 (Activation)      (None, 8, 8, 192)    0           batch_normalization_93[0][0]
__________________________________________________________________________________________________
mixed10 (Concatenate)           (None, 8, 8, 2048)   0           activation_85[0][0]
                                                                 mixed9_1[0][0]
                                                                 concatenate_1[0][0]
                                                                 activation_93[0][0]
__________________________________________________________________________________________________
avg_pool (GlobalAveragePooling2 (None, 2048)         0           mixed10[0][0]
__________________________________________________________________________________________________
predictions (Dense)             (None, 1000)         2049000     avg_pool[0][0]
==================================================================================================
Total params: 23,851,784
Trainable params: 23,817,352
Non-trainable params: 34,432
_________________________________________________________
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669

References

   Christian Szegedy, Vincent Vanhoucke, Sergey Ioffe, Jonathon Shlens, & Zbigniew Wojna (2016). Rethinking the Inception Architecture for Computer Vision computer vision and pattern recognition.

  精读人工智能经典论文
