    HCIP（DSVPN）实验

    一，实验要求：

    1、r5为isp，只能进行ip地址的配置，其所有ip地址均为共有ip地址
    2、r1和r5使用ppp的PAP认证，r5为主认证方
    r2和r5之间使用ppp的chap认证，r5为主认证方
    r3和r5之间使用HDLC封装
    3、r1 r2 r3构建一个MGRE环境，r1为中心站点，r1 r4间为点到点的gre
    4、整个私有网络基于rip全网可达
    5、所有pc设置私有ip为源ip，可以访问r5环回

    二，拓扑图

    请添加图片描述

    三，需求分析

    给各个路由器配置地址。配置缺省路由。开启R1/R5间PPP的CHAP协议。对R3/R4/R5进行HDLC封装。R1/R2/R3构造mgre环境。配置R1/R4之间GRE。

    四，配置

    • R1

      [r1]int g 0/0/0
[r1-GigabitEthernet0/0/0]ip address 192.168.1.1 24
[r1-GigabitEthernet0/0/0]Q
[r1]int g 0/0/1
[r1-GigabitEthernet0/0/1]ip address 15.0.0.1 24

[r1]ip route-static 0.0.0.0 0 15.0.0.2

[r1]int G 0/0/1
[r1-GigabitEthernet0/0/1]ppp pap local-user huawei1 password cipher 123456

[r1]int Tunnel 0/0/0
[r1-Tunnel0/0/0]ip address 192.168.5.1 24
[r1-Tunnel0/0/0]tunnel-protocol gre p2mp
[r1-Tunnel0/0/0]source 15.0.0.1

开启shoutcut模式下的重定向
[r1-Tunnel0/0/0]nhrp redirect
在中心开启伪广播功能
[r1-Tunnel0/0/0]nhrp entry multicast dynamic

[r1]int Tunnel 0/0/1
[r1-Tunnel0/0/1]ip address 192.168.6.1 24
[r1-Tunnel0/0/1]tunnel-protocol gre
[r1-Tunnel0/0/1]source 15.0.0.1
[r1-Tunnel0/0/1]destination 45.0.0.1

[r1]rip 1
[r1-rip-1]version 2
[r1-rip-1]network 192.168.1.0
[r1-rip-1]network 192.168.5.0
[r1-rip-1]network 192.168.6.0
[r1-rip-1]q
[r1]int Tunnel 0/0/0
[r1-Tunnel0/0/0]rip summary-address 192.168.0.0 255.255.0.0

[r1]acl 2000
[r1-acl-basic-2000]rule permit source 192.168.1.0 0.0.0.255
[r1-acl-basic-2000]q
[r1]int G 0/0/1
[r1-GigabitEthernet0/0/1]nat outbound 2000

      • 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
      • 11
      • 12
      • 13
      • 14
      • 15
      • 16
      • 17
      • 18
      • 19
      • 20
      • 21
      • 22
      • 23
      • 24
      • 25
      • 26
      • 27
      • 28
      • 29
      • 30
      • 31
      • 32
      • 33
      • 34
      • 35
      • 36
      • 37
      • 38
      • 39
      • 40
      • 41

    • R2

      [r2]int g 0/0/0
[r2-GigabitEthernet0/0/0]ip address 192.168.2.1 24
[r2-GigabitEthernet0/0/0]q
[r2]int g 0/0/1
[r2-GigabitEthernet0/0/1]ip address 25.0.0.1 24

[r2]ip route-static 0.0.0.0 0 25.0.0.2

[r2]int g 0/0/1
[r2-GigabitEthernet0/0/1]ppp chap user huawei2
[r2-GigabitEthernet0/0/1]ppp chap password cipher 123456

[r2]int Tunnel 0/0/0
[r2-Tunnel0/0/0]ip address 192.168.5.2 24
[r2-Tunnel0/0/0]tunnel-protocol gre p2mp

响应shortcut，重定向
[r2-Tunnel0/0/0]nhrp shortcut

[r2]rip 1
[r2-rip-1]version 2
[r2-rip-1]network 192.168.2.0
[r2-rip-1]network 192.168.5.0

[r2]acl 2000
[r2-acl-basic-2000]rule permit source 192.168.2.0 0.0.0.255
[r2-acl-basic-2000]int g 0/0/1
[r2-GigabitEthernet0/0/1]nat outbound 2000


      • 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
      • 11
      • 12
      • 13
      • 14
      • 15
      • 16
      • 17
      • 18
      • 19
      • 20
      • 21
      • 22
      • 23
      • 24
      • 25
      • 26
      • 27
      • 28
      • 29

    • R3

      [r3]int g0/0/0
[r3-GigabitEthernet0/0/0]ip address 192.168.3.1 24
[r3]int g 0/0/1
[r3-GigabitEthernet0/0/1]ip address 35.0.0.1 24

[r3]ip route-static 0.0.0.0 0 35.0.0.2

[r3]int g 0/0/1
[r3-GigabitEthernet0/0/1]link-protocol hdlc

[r3]int Tunnel 0/0/0
[r3-Tunnel0/0/0]ip address 192.168.5.3 24
[r3-Tunnel0/0/0]tunnel-protocol gre p2mp

相应shortcut，开启重定向
[r3-Tunnel0/0/0]nhrp shortcut

[r3]rip 1
[r3-rip-1]version 2
[r3-rip-1]network 192.168.3.0
[r3-rip-1]network 192.168.5.0



[r3]acl 2000
[r3-acl-basic-2000]rule permit source 192.168.3.0 0.0.0.255
[r3]int g 0/0/1
[r3-GigabitEthernet0/0/1]nat outbound 2000



      • 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
      • 11
      • 12
      • 13
      • 14
      • 15
      • 16
      • 17
      • 18
      • 19
      • 20
      • 21
      • 22
      • 23
      • 24
      • 25
      • 26
      • 27
      • 28
      • 29
      • 30

    • R4

      [r4]int g0/0/0
[r4-GigabitEthernet0/0/0]ip address 192.168.4.1 24
[r4-GigabitEthernet0/0/0]q
[r4] int g 0/0/1
[r4-GigabitEthernet0/0/1]ip address 45.0.0.1 24

[r4]ip route-static 0.0.0.0 0 45.0.0.2

[r4]int Tunnel 0/0/1
[r4-Tunnel0/0/1]ip address 192.168.6.4 24
[r4-Tunnel0/0/1]tunnel-protocol gre
[r4-Tunnel0/0/1]source 45.0.0.1
[r4-Tunnel0/0/1]destination 15.0.0.1

[r4]rip 1
[r4-rip-1]version 2
[r4-rip-1]network 192.168.4.0
[r4-rip-1]network 192.168.6.0
[r4-rip-1]q

[r4]acl 2000
[r4-acl-basic-2000]rule permit source 192.168.4.0 0.0.0.255
[r4-acl-basic-2000]q
[r4]int g0/0/1
[r4-GigabitEthernet0/0/1]nat outbound 2000


      • 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
      • 11
      • 12
      • 13
      • 14
      • 15
      • 16
      • 17
      • 18
      • 19
      • 20
      • 21
      • 22
      • 23
      • 24
      • 25
      • 26

    • R5

      [r5]int g0/0/0
[r5-GigabitEthernet0/0/0]ip address 45.0.0.2 24
[r5-GigabitEthernet0/0/0]q
[r5]int g 4/0/0
[r5-GigabitEthernet4/0/0]ip address 15.0.0.2 24
[r5-GigabitEthernet4/0/0]q
[r5]int g 0/0/2
[r5-GigabitEthernet0/0/2]ip address 25.0.0.2 24
[r5-GigabitEthernet0/0/2]q
[r5]int g 0/0/1
[r5-GigabitEthernet0/0/1]ip address 35.0.0.2 24
[r5-LoopBack0]ip add
[r5-LoopBack0]ip address 5.5.5.5 24

[r5]aaa
[r5-aaa]local-user huawei1 password cipher 123456
Info: Add a new user.
[r5-aaa]local-user huawei1 service-type ppp
[r5-aaa]int g 4/0/0
[r5-GigabitEthernet4/0/0]ppp authentication-mode pap

[r5]aaa
[r5-aaa]local-user huawei2 password cipher 1234567
Info: Add a new user.
[r5-aaa]local-user huawei2 service-type ppp
[r5-aaa]int g 0/0/2
[r5-GigabitEthernet0/0/2]ppp authentication-mode chap

[r5]int g 0/0/1
[r5-GigabitEthernet0/0/1]link-protocol hdlc

      • 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
      • 11
      • 12
      • 13
      • 14
      • 15
      • 16
      • 17
      • 18
      • 19
      • 20
      • 21
      • 22
      • 23
      • 24
      • 25
      • 26
      • 27
      • 28
      • 29
      • 30

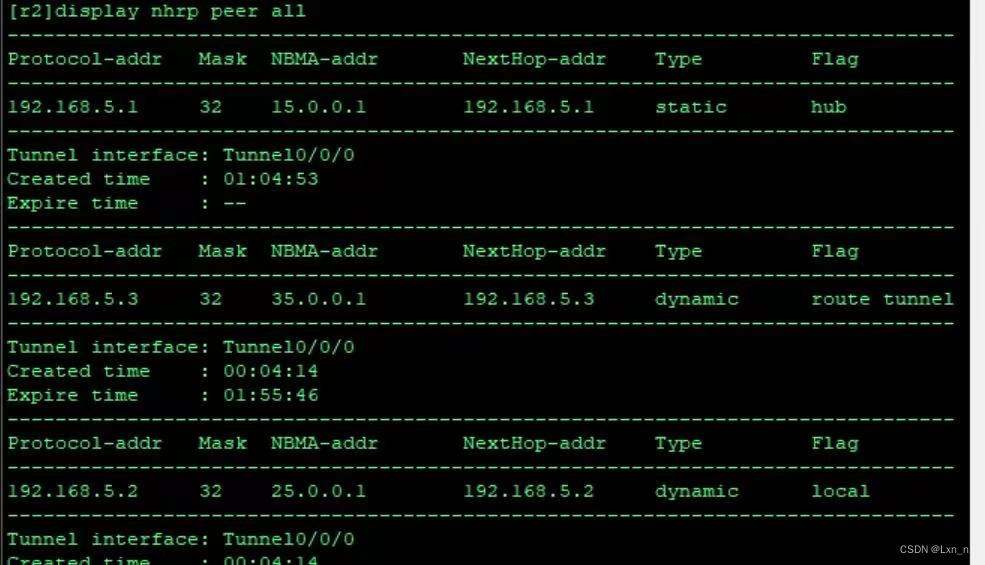

      四，测试
      请添加图片描述
      在这里插入图片描述在这里插入图片描述
