Window部署Jaeger

参考：windows安装使用jaeger链路追踪_windows安装jaeger-CSDN博客

下载：Releases · jaegertracing/jaeger · GitHub

Jaeger – Download Jaeger

目录

1、安装nssm

2、安装运行 elasticsearch

3、安装运行

3.1部署JaegerAgent

3.2部署JaegerCollector

3.3部署JaegerUI

3.4运行 Jaeger

---

1、安装nssm

下载 https://nssm.cc/download

E:\***\备忘\软件\nssm-2.24\win64 目录添加到 Path 环境变量

2、安装运行 elasticsearch

 参考文章：Window部署ElasticSearch-CSDN博客

3、安装运行

压缩包解压缩后目录结构

管理员模式运行cmd命令：部署Jaeger为window服务

说明：

es.username 为 elasticsearch用户名，默认为 elastic

es.password 为 elasticsearch用户密码，默认为 changeme

D:\WebSite\jaeger\jaeger-1.54.0-windows-amd64 为我本机Jaeger目录

3.1部署JaegerAgent

nssm install JaegerAgent D:\WebSite\jaeger\jaeger-1.54.0-windows-amd64\jaeger-agent.exe --reporter.grpc.host-port=localhost:14250
nssm set JaegerAgent AppStdout D:\WebSite\jaeger\jaeger-1.54.0-windows-amd64\jaeger-agent.out.log
nssm set JaegerAgent AppStderr D:\WebSite\jaeger\jaeger-1.54.0-windows-amd64\jaeger-agent.err.log
nssm set JaegerAgent Description Jaeger Agent service

nssm start JaegerAgent

3.2部署JaegerCollector

nssm install JaegerCollector D:\WebSite\jaeger\jaeger-1.54.0-windows-amd64\jaeger-collector.exe --es.server-urls=http://localhost:9200 --es.username=elastic --es.password=changme

nssm set JaegerCollector AppStdout D:\WebSite\jaeger\jaeger-1.54.0-windows-amd64\jaeger-collector.out.log
nssm set JaegerCollector AppStderr D:\WebSite\jaeger\jaeger-1.54.0-windows-amd64\jaeger-collector.err.log
nssm set JaegerCollector Description Jaeger Collector service
nssm set JaegerCollector AppEnvironmentExtra SPAN_STORAGE_TYPE=elasticsearch

nssm start JaegerCollector

3.3部署JaegerUI

nssm install JaegerUI D:\WebSite\jaeger\jaeger-1.54.0-windows-amd64\jaeger-query.exe --es.server-urls=http://localhost:9200 --es.username=elastic --es.password=changme

nssm set JaegerUI AppStdout D:\WebSite\jaeger\jaeger-1.54.0-windows-amd64\jaeger-ui.out.log
nssm set JaegerUI AppStderr D:\WebSite\jaeger\jaeger-1.54.0-windows-amd64\jaeger-ui.err.log
nssm set JaegerUI Description Jaeger Query service
nssm set JaegerUI AppEnvironmentExtra SPAN_STORAGE_TYPE=elasticsearch

nssm start JaegerUI



3.4运行 Jaeger

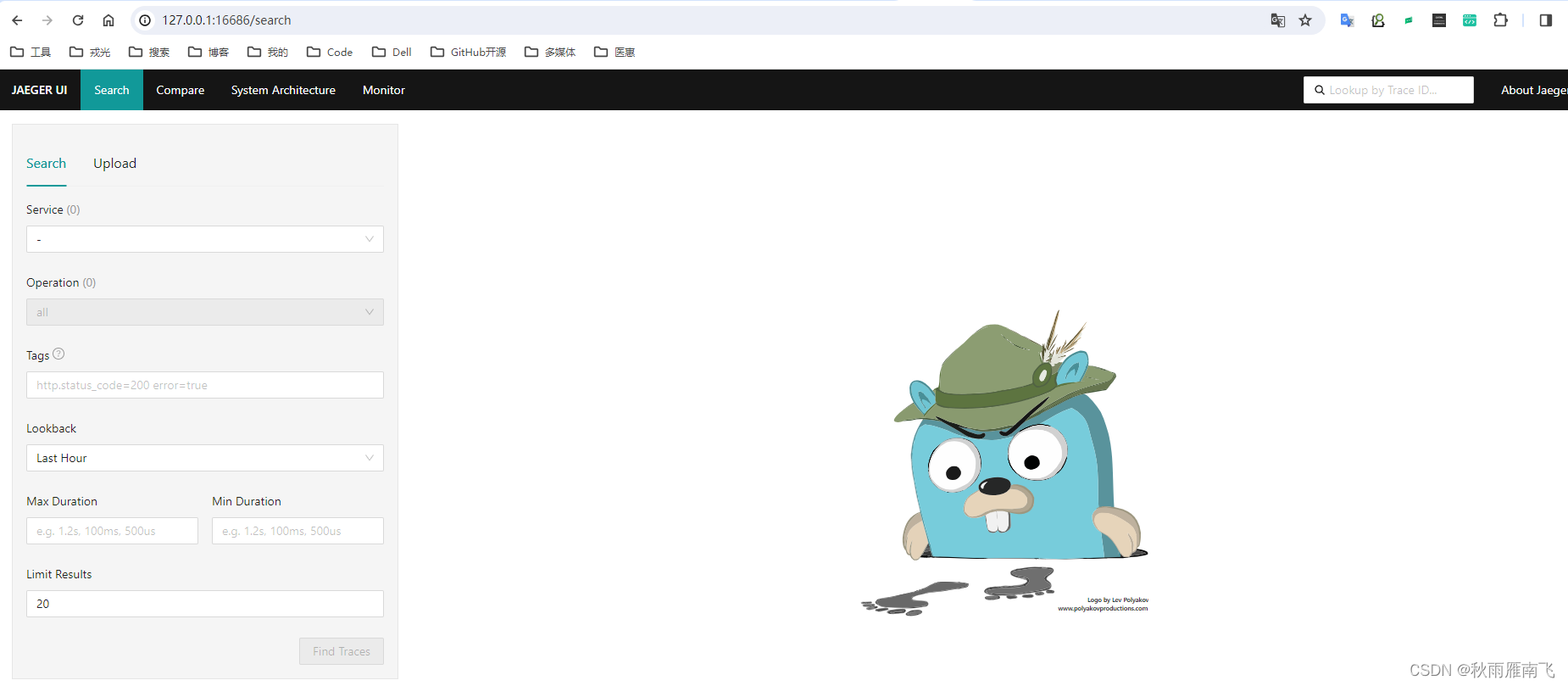

打开 http://127.0.0.1:16686/
