qt使用AES加密、解密字符串

一、AES算法

          AES (Advanced Encryption Standard) 是一种对称加密算法，是目前被广泛使用的数据加密标准之一。该算法旨在取代DES (Data Encryption Standard) 算法。AES最初由比利时密码学家 Joan Daemen 和 Vincent Rijmen 提出，经过多年的演化、改进和公开评估，于2001年被美国国家标准技术研究所 (NIST) 正式采纳并公布，其密钥长度为128、192或256位，分别对应 AES-128、AES-192 和 AES-256。该算法的安全性和性能被广泛认可，已经成为密码学中最受信任和最常用的加密算法之一。

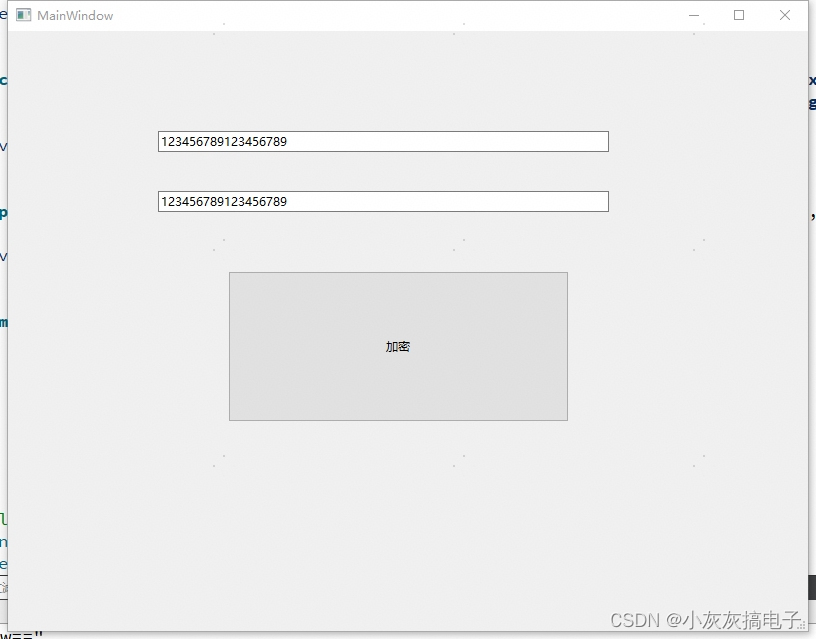

二、效果预览

三、源码分享

aesEncryption.h

#ifndef QAESENCRYPTION_H
#define QAESENCRYPTION_H

#ifdef QtAES_EXPORTS
#include "qtaes_export.h"
#else
#define QTAESSHARED_EXPORT
#endif

#include
#include

#ifdef __linux__
#ifndef __LP64__
#define do_rdtsc _do_rdtsc
#endif
#endif

class QTAESSHARED_EXPORT AESEncryption : public QObject
{
    Q_OBJECT
public:
    enum Aes {
        AES_128,
        AES_192,
        AES_256
    };

    enum Mode {
        ECB,
        CBC,
        CFB,
        OFB
    };

    enum Padding {
      ZERO,
      PKCS7,
      ISO
    };

    /*!
     * \brief static method call to encrypt data given by rawText
     * \param level:    AES::Aes level
     * \param mode:     AES::Mode mode
     * \param rawText:  input text
     * \param key:      user-key (key.size either 128, 192, 256 bits depending on AES::Aes)
     * \param iv:       initialisation-vector (iv.size is 128 bits (16 Bytes))
     * \param padding:  AES::Padding standard
     * \return encrypted cipher
     */
    static QByteArray Crypt(AESEncryption::Aes level, AESEncryption::Mode mode, const QByteArray &rawText, const QByteArray &key,
                            const QByteArray &iv = QByteArray(), AESEncryption::Padding padding = AESEncryption::ISO);
    /*!
     * \brief static method call to decrypt data given by rawText
     * \param level:    AES::Aes level
     * \param mode:     AES::Mode mode
     * \param rawText:  input text
     * \param key:      user-key (key.size either 128, 192, 256 bits depending on AES::Aes)
     * \param iv:       initialisation-vector (iv.size is 128 bits (16 Bytes))
     * \param padding:  AES::Padding standard
     * \return decrypted cipher with padding
     */
    static QByteArray Decrypt(AESEncryption::Aes level, AESEncryption::Mode mode, const QByteArray &rawText, const QByteArray &key,
                              const QByteArray &iv = QByteArray(), AESEncryption::Padding padding = AESEncryption::ISO);
    /*!
     * \brief static method call to expand the user key to fit the encrypting/decrypting algorithm
     * \param level:            AES::Aes level
     * \param mode:             AES::Mode mode
     * \param key:              user-key (key.size either 128, 192, 256 bits depending on AES::Aes)
     * \param expKey:           output expanded key
     * \param isEncryptionKey:    always 'true' || only 'false' when DECRYPTING in CBC or EBC mode with aesni (check if supported)
     * \return AES-ready key
     */
    static QByteArray ExpandKey(AESEncryption::Aes level, AESEncryption::Mode mode, const QByteArray &key, bool isEncryptionKey);

    /*!
     * \brief static method call to remove padding from decrypted cipher given by rawText
     * \param rawText:  inputText
     * \param padding:  AES::Padding standard
     * \return decrypted cipher with padding removed
     */
    static QByteArray RemovePadding(const QByteArray &rawText, AESEncryption::Padding padding = AESEncryption::ISO);

    AESEncryption(AESEncryption::Aes level, AESEncryption::Mode mode,
                   AESEncryption::Padding padding = AESEncryption::ISO);



    /*!
     * \brief object method call to encrypt data given by rawText
     * \param rawText:  input text
     * \param key:      user-key (key.size either 128, 192, 256 bits depending on AES::Aes)
     * \param iv:       initialisation-vector (iv.size is 128 bits (16 Bytes))
     * \return encrypted cipher
     */
    QByteArray encode(const QByteArray &rawText, const QByteArray &key, const QByteArray &iv = QByteArray());

    /*!
     * \brief object method call to decrypt data given by rawText
     * \param rawText:  input text
     * \param key:      user-key (key.size either 128, 192, 256 bits depending on AES::Aes)
     * \param iv:       initialisation-vector (iv.size is 128 bits (16 Bytes))
     * \param padding:  AES::Padding standard
     * \return decrypted cipher with padding
     */
    QByteArray decode(const QByteArray &rawText, const QByteArray &key, const QByteArray &iv = QByteArray());

    /*!
     * \brief object method call to expand the user key to fit the encrypting/decrypting algorithm
     * \param key:              user-key (key.size either 128, 192, 256 bits depending on AES::Aes)
     * \param isEncryptionKey:    always 'true' || only 'false' when DECRYPTING in CBC or EBC mode with aesni (check if supported)
     * \return AES-ready key
     */
    QByteArray expandKey(const QByteArray &key, bool isEncryptionKey);

    /*!
     * \brief object method call to remove padding from decrypted cipher given by rawText
     * \param rawText:  inputText
     * \return decrypted cipher with padding removed
     */
    QByteArray removePadding(const QByteArray &rawText);

    QByteArray printArray(uchar *arr, int size);
Q_SIGNALS:

public Q_SLOTS:

private:
    int m_nb;
    int m_blocklen;
    int m_level;
    int m_mode;
    int m_nk;
    int m_keyLen;
    int m_nr;
    int m_expandedKey;
    int m_padding;
    bool m_aesNIAvailable;
    QByteArray* m_state;

    struct AES256{
        int nk = 8;
        int keylen = 32;
        int nr = 14;
        int expandedKey = 240;
        int userKeySize = 256;
    };

    struct AES192{
        int nk = 6;
        int keylen = 24;
        int nr = 12;
        int expandedKey = 209;
        int userKeySize = 192;
    };

    struct AES128{
        int nk = 4;
        int keylen = 16;
        int nr = 10;
        int expandedKey = 176;
        int userKeySize = 128;
    };

    quint8 getSBoxValue(quint8 num){return sbox[num];}
    quint8 getSBoxInvert(quint8 num){return rsbox[num];}

    void addRoundKey(const quint8 round, const QByteArray &expKey);
    void subBytes();
    void shiftRows();
    void mixColumns();
    void invMixColumns();
    void invSubBytes();
    void invShiftRows();
    QByteArray getPadding(int currSize, int alignment);
    QByteArray cipher(const QByteArray &expKey, const QByteArray &in);
    QByteArray invCipher(const QByteArray &expKey, const QByteArray &in);
    QByteArray byteXor(const QByteArray &a, const QByteArray &b);

    const quint8 sbox[256] = {
      //0     1    2      3     4    5     6     7      8    9     A      B    C     D     E     F
      0x63, 0x7c, 0x77, 0x7b, 0xf2, 0x6b, 0x6f, 0xc5, 0x30, 0x01, 0x67, 0x2b, 0xfe, 0xd7, 0xab, 0x76,
      0xca, 0x82, 0xc9, 0x7d, 0xfa, 0x59, 0x47, 0xf0, 0xad, 0xd4, 0xa2, 0xaf, 0x9c, 0xa4, 0x72, 0xc0,
      0xb7, 0xfd, 0x93, 0x26, 0x36, 0x3f, 0xf7, 0xcc, 0x34, 0xa5, 0xe5, 0xf1, 0x71, 0xd8, 0x31, 0x15,
      0x04, 0xc7, 0x23, 0xc3, 0x18, 0x96, 0x05, 0x9a, 0x07, 0x12, 0x80, 0xe2, 0xeb, 0x27, 0xb2, 0x75,
      0x09, 0x83, 0x2c, 0x1a, 0x1b, 0x6e, 0x5a, 0xa0, 0x52, 0x3b, 0xd6, 0xb3, 0x29, 0xe3, 0x2f, 0x84,
      0x53, 0xd1, 0x00, 0xed, 0x20, 0xfc, 0xb1, 0x5b, 0x6a, 0xcb, 0xbe, 0x39, 0x4a, 0x4c, 0x58, 0xcf,
      0xd0, 0xef, 0xaa, 0xfb, 0x43, 0x4d, 0x33, 0x85, 0x45, 0xf9, 0x02, 0x7f, 0x50, 0x3c, 0x9f, 0xa8,
      0x51, 0xa3, 0x40, 0x8f, 0x92, 0x9d, 0x38, 0xf5, 0xbc, 0xb6, 0xda, 0x21, 0x10, 0xff, 0xf3, 0xd2,
      0xcd, 0x0c, 0x13, 0xec, 0x5f, 0x97, 0x44, 0x17, 0xc4, 0xa7, 0x7e, 0x3d, 0x64, 0x5d, 0x19, 0x73,
      0x60, 0x81, 0x4f, 0xdc, 0x22, 0x2a, 0x90, 0x88, 0x46, 0xee, 0xb8, 0x14, 0xde, 0x5e, 0x0b, 0xdb,
      0xe0, 0x32, 0x3a, 0x0a, 0x49, 0x06, 0x24, 0x5c, 0xc2, 0xd3, 0xac, 0x62, 0x91, 0x95, 0xe4, 0x79,
      0xe7, 0xc8, 0x37, 0x6d, 0x8d, 0xd5, 0x4e, 0xa9, 0x6c, 0x56, 0xf4, 0xea, 0x65, 0x7a, 0xae, 0x08,
      0xba, 0x78, 0x25, 0x2e, 0x1c, 0xa6, 0xb4, 0xc6, 0xe8, 0xdd, 0x74, 0x1f, 0x4b, 0xbd, 0x8b, 0x8a,
      0x70, 0x3e, 0xb5, 0x66, 0x48, 0x03, 0xf6, 0x0e, 0x61, 0x35, 0x57, 0xb9, 0x86, 0xc1, 0x1d, 0x9e,
      0xe1, 0xf8, 0x98, 0x11, 0x69, 0xd9, 0x8e, 0x94, 0x9b, 0x1e, 0x87, 0xe9, 0xce, 0x55, 0x28, 0xdf,
      0x8c, 0xa1, 0x89, 0x0d, 0xbf, 0xe6, 0x42, 0x68, 0x41, 0x99, 0x2d, 0x0f, 0xb0, 0x54, 0xbb, 0x16 };

    const quint8 rsbox[256] = {
      0x52, 0x09, 0x6a, 0xd5, 0x30, 0x36, 0xa5, 0x38, 0xbf, 0x40, 0xa3, 0x9e, 0x81, 0xf3, 0xd7, 0xfb,
      0x7c, 0xe3, 0x39, 0x82, 0x9b, 0x2f, 0xff, 0x87, 0x34, 0x8e, 0x43, 0x44, 0xc4, 0xde, 0xe9, 0xcb,
      0x54, 0x7b, 0x94, 0x32, 0xa6, 0xc2, 0x23, 0x3d, 0xee, 0x4c, 0x95, 0x0b, 0x42, 0xfa, 0xc3, 0x4e,
      0x08, 0x2e, 0xa1, 0x66, 0x28, 0xd9, 0x24, 0xb2, 0x76, 0x5b, 0xa2, 0x49, 0x6d, 0x8b, 0xd1, 0x25,
      0x72, 0xf8, 0xf6, 0x64, 0x86, 0x68, 0x98, 0x16, 0xd4, 0xa4, 0x5c, 0xcc, 0x5d, 0x65, 0xb6, 0x92,
      0x6c, 0x70, 0x48, 0x50, 0xfd, 0xed, 0xb9, 0xda, 0x5e, 0x15, 0x46, 0x57, 0xa7, 0x8d, 0x9d, 0x84,
      0x90, 0xd8, 0xab, 0x00, 0x8c, 0xbc, 0xd3, 0x0a, 0xf7, 0xe4, 0x58, 0x05, 0xb8, 0xb3, 0x45, 0x06,
      0xd0, 0x2c, 0x1e, 0x8f, 0xca, 0x3f, 0x0f, 0x02, 0xc1, 0xaf, 0xbd, 0x03, 0x01, 0x13, 0x8a, 0x6b,
      0x3a, 0x91, 0x11, 0x41, 0x4f, 0x67, 0xdc, 0xea, 0x97, 0xf2, 0xcf, 0xce, 0xf0, 0xb4, 0xe6, 0x73,
      0x96, 0xac, 0x74, 0x22, 0xe7, 0xad, 0x35, 0x85, 0xe2, 0xf9, 0x37, 0xe8, 0x1c, 0x75, 0xdf, 0x6e,
      0x47, 0xf1, 0x1a, 0x71, 0x1d, 0x29, 0xc5, 0x89, 0x6f, 0xb7, 0x62, 0x0e, 0xaa, 0x18, 0xbe, 0x1b,
      0xfc, 0x56, 0x3e, 0x4b, 0xc6, 0xd2, 0x79, 0x20, 0x9a, 0xdb, 0xc0, 0xfe, 0x78, 0xcd, 0x5a, 0xf4,
      0x1f, 0xdd, 0xa8, 0x33, 0x88, 0x07, 0xc7, 0x31, 0xb1, 0x12, 0x10, 0x59, 0x27, 0x80, 0xec, 0x5f,
      0x60, 0x51, 0x7f, 0xa9, 0x19, 0xb5, 0x4a, 0x0d, 0x2d, 0xe5, 0x7a, 0x9f, 0x93, 0xc9, 0x9c, 0xef,
      0xa0, 0xe0, 0x3b, 0x4d, 0xae, 0x2a, 0xf5, 0xb0, 0xc8, 0xeb, 0xbb, 0x3c, 0x83, 0x53, 0x99, 0x61,
      0x17, 0x2b, 0x04, 0x7e, 0xba, 0x77, 0xd6, 0x26, 0xe1, 0x69, 0x14, 0x63, 0x55, 0x21, 0x0c, 0x7d };

    // The round constant word array, Rcon[i], contains the values given by
    // x to th e power (i-1) being powers of x (x is denoted as {02}) in the field GF(2^8)
    // Only the first 14 elements are needed
    const quint8 Rcon[14] = {
        0x8d, 0x01, 0x02, 0x04, 0x08, 0x10, 0x20, 0x40, 0x80, 0x1b, 0x36, 0x6c, 0xd8, 0xab};
};

#endif // QAESENCRYPTION_H

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226

aesEncryption.cpp

#include "aesEncryption.h"

QByteArray AESEncryption::Crypt(AESEncryption::Aes level, AESEncryption::Mode mode, const QByteArray &rawText,
                                 const QByteArray &key, const QByteArray &iv, AESEncryption::Padding padding)
{
    return AESEncryption(level, mode, padding).encode(rawText, key, iv);
}

QByteArray AESEncryption::Decrypt(AESEncryption::Aes level, AESEncryption::Mode mode, const QByteArray &rawText,
                                   const QByteArray &key, const QByteArray &iv, AESEncryption::Padding padding)
{
     return AESEncryption(level, mode, padding).decode(rawText, key, iv);
}

QByteArray AESEncryption::ExpandKey(AESEncryption::Aes level, AESEncryption::Mode mode, const QByteArray &key, bool isEncryptionKey)
{
     return AESEncryption(level, mode).expandKey(key, isEncryptionKey);
}

QByteArray AESEncryption::RemovePadding(const QByteArray &rawText, AESEncryption::Padding padding)
{
    if (rawText.isEmpty())
        return rawText;

    QByteArray ret(rawText);
    switch (padding)
    {
    case Padding::ZERO:
        //Works only if the last byte of the decoded array is not zero
        while (ret.at(ret.length()-1) == 0x00)
            ret.remove(ret.length()-1, 1);
        break;
    case Padding::PKCS7:
#if QT_VERSION >= QT_VERSION_CHECK(5, 10, 0)
        ret.remove(ret.length() - ret.back(), ret.back());
#else
        ret.remove(ret.length() - ret.at(ret.length() - 1), ret.at(ret.length() - 1));
#endif
        break;
    case Padding::ISO:
    {
        // Find the last byte which is not zero
        int marker_index = ret.length() - 1;
        for (; marker_index >= 0; --marker_index)
        {
            if (ret.at(marker_index) != 0x00)
            {
                break;
            }
        }

        // And check if it's the byte for marking padding
        if (ret.at(marker_index) == '\x80')
        {
            ret.truncate(marker_index);
        }
        break;
    }
    default:
        //do nothing
        break;
    }
    return ret;
}
/*
 * End Static function declarations
 * */

/*
 * Local Functions
 * */

namespace {

quint8 xTime(quint8 x)
{
    return ((x<<1) ^ (((x>>7) & 1) * 0x1b));
}

quint8 multiply(quint8 x, quint8 y)
{
    return (((y & 1) * x) ^ ((y>>1 & 1) * xTime(x)) ^ ((y>>2 & 1) * xTime(xTime(x))) ^ ((y>>3 & 1)
            * xTime(xTime(xTime(x)))) ^ ((y>>4 & 1) * xTime(xTime(xTime(xTime(x))))));
}

}

/*
 * End Local functions
 * */

AESEncryption::AESEncryption(Aes level, Mode mode,
                               Padding padding)
    : m_nb(4), m_blocklen(16), m_level(level), m_mode(mode), m_padding(padding)
    , m_aesNIAvailable(false), m_state(nullptr)
{
    switch (level)
    {
    case AES_128: {
        AES128 aes;
        m_nk = aes.nk;
        m_keyLen = aes.keylen;
        m_nr = aes.nr;
        m_expandedKey = aes.expandedKey;
        }
        break;
    case AES_192: {
        AES192 aes;
        m_nk = aes.nk;
        m_keyLen = aes.keylen;
        m_nr = aes.nr;
        m_expandedKey = aes.expandedKey;
        }
        break;
    case AES_256: {
        AES256 aes;
        m_nk = aes.nk;
        m_keyLen = aes.keylen;
        m_nr = aes.nr;
        m_expandedKey = aes.expandedKey;
        }
        break;
    default: {
        AES128 aes;
        m_nk = aes.nk;
        m_keyLen = aes.keylen;
        m_nr = aes.nr;
        m_expandedKey = aes.expandedKey;
        }
        break;
    }

}
QByteArray AESEncryption::getPadding(int currSize, int alignment)
{
    int size = (alignment - currSize % alignment) % alignment;
    switch(m_padding)
    {
    case Padding::ZERO:
        return QByteArray(size, 0x00);
        break;
    case Padding::PKCS7:
        if (size == 0)
            size = alignment;
        return QByteArray(size, size);
        break;
    case Padding::ISO:
        if (size > 0)
            return QByteArray (size - 1, 0x00).prepend('\x80');
        break;
    default:
        return QByteArray(size, 0x00);
        break;
    }
    return QByteArray();
}

QByteArray AESEncryption::expandKey(const QByteArray &key, bool isEncryptionKey)
{
    Q_UNUSED(isEncryptionKey)
    int i, k;
    quint8 tempa[4]; // Used for the column/row operations
    QByteArray roundKey(key); // The first round key is the key itself.

    // All other round keys are found from the previous round keys.
    //i == Nk
    for(i = m_nk; i < m_nb * (m_nr + 1); i++)
    {
    tempa[0] = (quint8) roundKey.at((i-1) * 4 + 0);
    tempa[1] = (quint8) roundKey.at((i-1) * 4 + 1);
    tempa[2] = (quint8) roundKey.at((i-1) * 4 + 2);
    tempa[3] = (quint8) roundKey.at((i-1) * 4 + 3);

    if (i % m_nk == 0)
    {
        // This function shifts the 4 bytes in a word to the left once.
        // [a0,a1,a2,a3] becomes [a1,a2,a3,a0]

        // Function RotWord()
        k = tempa[0];
        tempa[0] = tempa[1];
        tempa[1] = tempa[2];
        tempa[2] = tempa[3];
        tempa[3] = k;

        // Function Subword()
        tempa[0] = getSBoxValue(tempa[0]);
        tempa[1] = getSBoxValue(tempa[1]);
        tempa[2] = getSBoxValue(tempa[2]);
        tempa[3] = getSBoxValue(tempa[3]);

        tempa[0] =  tempa[0] ^ Rcon[i/m_nk];
    }

    if (m_level == AES_256 && i % m_nk == 4)
    {
        // Function Subword()
        tempa[0] = getSBoxValue(tempa[0]);
        tempa[1] = getSBoxValue(tempa[1]);
        tempa[2] = getSBoxValue(tempa[2]);
        tempa[3] = getSBoxValue(tempa[3]);
    }
    roundKey.insert(i * 4 + 0, (quint8) roundKey.at((i - m_nk) * 4 + 0) ^ tempa[0]);
    roundKey.insert(i * 4 + 1, (quint8) roundKey.at((i - m_nk) * 4 + 1) ^ tempa[1]);
    roundKey.insert(i * 4 + 2, (quint8) roundKey.at((i - m_nk) * 4 + 2) ^ tempa[2]);
    roundKey.insert(i * 4 + 3, (quint8) roundKey.at((i - m_nk) * 4 + 3) ^ tempa[3]);
    }
    return roundKey;
}

// This function adds the round key to state.
// The round key is added to the state by an XOR function.
void AESEncryption::addRoundKey(const quint8 round, const QByteArray &expKey)
{
  QByteArray::iterator it = m_state->begin();
  for(int i=0; i < 16; ++i)
      it[i] = (quint8) it[i] ^ (quint8) expKey.at(round * m_nb * 4 + (i/4) * m_nb + (i%4));
}

// The SubBytes Function Substitutes the values in the
// state matrix with values in an S-box.
void AESEncryption::subBytes()
{
  QByteArray::iterator it = m_state->begin();
  for(int i = 0; i < 16; i++)
    it[i] = getSBoxValue((quint8) it[i]);
}

// The ShiftRows() function shifts the rows in the state to the left.
// Each row is shifted with different offset.
// Offset = Row number. So the first row is not shifted.
void AESEncryption::shiftRows()
{
    QByteArray::iterator it = m_state->begin();
    quint8 temp;
    //Keep in mind that QByteArray is column-driven!!

     //Shift 1 to left
    temp   = (quint8)it[1];
    it[1]  = (quint8)it[5];
    it[5]  = (quint8)it[9];
    it[9]  = (quint8)it[13];
    it[13] = (quint8)temp;

    //Shift 2 to left
    temp   = (quint8)it[2];
    it[2]  = (quint8)it[10];
    it[10] = (quint8)temp;
    temp   = (quint8)it[6];
    it[6]  = (quint8)it[14];
    it[14] = (quint8)temp;

    //Shift 3 to left
    temp   = (quint8)it[3];
    it[3]  = (quint8)it[15];
    it[15] = (quint8)it[11];
    it[11] = (quint8)it[7];
    it[7]  = (quint8)temp;
}

// MixColumns function mixes the columns of the state matrix
//optimized!!
void AESEncryption::mixColumns()
{
  QByteArray::iterator it = m_state->begin();
  quint8 tmp, tm, t;

  for(int i = 0; i < 16; i += 4){
    t       = (quint8)it[i];
    tmp     =  (quint8)it[i] ^ (quint8)it[i+1] ^ (quint8)it[i+2] ^ (quint8)it[i+3] ;

    tm      = xTime( (quint8)it[i] ^ (quint8)it[i+1] );
    it[i]   = (quint8)it[i] ^ (quint8)tm ^ (quint8)tmp;

    tm      = xTime( (quint8)it[i+1] ^ (quint8)it[i+2]);
    it[i+1] = (quint8)it[i+1] ^ (quint8)tm ^ (quint8)tmp;

    tm      = xTime( (quint8)it[i+2] ^ (quint8)it[i+3]);
    it[i+2] =(quint8)it[i+2] ^ (quint8)tm ^ (quint8)tmp;

    tm      = xTime((quint8)it[i+3] ^ (quint8)t);
    it[i+3] =(quint8)it[i+3] ^ (quint8)tm ^ (quint8)tmp;
  }
}

// MixColumns function mixes the columns of the state matrix.
// The method used to multiply may be difficult to understand for the inexperienced.
// Please use the references to gain more information.
void AESEncryption::invMixColumns()
{
  QByteArray::iterator it = m_state->begin();
  quint8 a,b,c,d;
  for(int i = 0; i < 16; i+=4){
    a = (quint8) it[i];
    b = (quint8) it[i+1];
    c = (quint8) it[i+2];
    d = (quint8) it[i+3];

    it[i]   = (quint8) (multiply(a, 0x0e) ^ multiply(b, 0x0b) ^ multiply(c, 0x0d) ^ multiply(d, 0x09));
    it[i+1] = (quint8) (multiply(a, 0x09) ^ multiply(b, 0x0e) ^ multiply(c, 0x0b) ^ multiply(d, 0x0d));
    it[i+2] = (quint8) (multiply(a, 0x0d) ^ multiply(b, 0x09) ^ multiply(c, 0x0e) ^ multiply(d, 0x0b));
    it[i+3] = (quint8) (multiply(a, 0x0b) ^ multiply(b, 0x0d) ^ multiply(c, 0x09) ^ multiply(d, 0x0e));
  }
}

// The SubBytes Function Substitutes the values in the
// state matrix with values in an S-box.
void AESEncryption::invSubBytes()
{
    QByteArray::iterator it = m_state->begin();
    for(int i = 0; i < 16; ++i)
        it[i] = getSBoxInvert((quint8) it[i]);
}

void AESEncryption::invShiftRows()
{
    QByteArray::iterator it = m_state->begin();
    uint8_t temp;

    //Keep in mind that QByteArray is column-driven!!

    //Shift 1 to right
    temp   = (quint8)it[13];
    it[13] = (quint8)it[9];
    it[9]  = (quint8)it[5];
    it[5]  = (quint8)it[1];
    it[1]  = (quint8)temp;

    //Shift 2
    temp   = (quint8)it[10];
    it[10] = (quint8)it[2];
    it[2]  = (quint8)temp;
    temp   = (quint8)it[14];
    it[14] = (quint8)it[6];
    it[6]  = (quint8)temp;

    //Shift 3
    temp   = (quint8)it[7];
    it[7]  = (quint8)it[11];
    it[11] = (quint8)it[15];
    it[15] = (quint8)it[3];
    it[3]  = (quint8)temp;
}

QByteArray AESEncryption::byteXor(const QByteArray &a, const QByteArray &b)
{
  QByteArray::const_iterator it_a = a.begin();
  QByteArray::const_iterator it_b = b.begin();
  QByteArray ret;

  //for(int i = 0; i < m_blocklen; i++)
  for(int i = 0; i < std::min(a.size(), b.size()); i++)
      ret.insert(i,it_a[i] ^ it_b[i]);

  return ret;
}

// Cipher is the main function that encrypts the PlainText.
QByteArray AESEncryption::cipher(const QByteArray &expKey, const QByteArray &in)
{

  //m_state is the input buffer...
  QByteArray output(in);
  m_state = &output;

  // Add the First round key to the state before starting the rounds.
  addRoundKey(0, expKey);

  // There will be Nr rounds.
  // The first Nr-1 rounds are identical.
  // These Nr-1 rounds are executed in the loop below.
  for(quint8 round = 1; round < m_nr; ++round){
    subBytes();
    shiftRows();
    mixColumns();
    addRoundKey(round, expKey);
  }

  // The last round is given below.
  // The MixColumns function is not here in the last round.
  subBytes();
  shiftRows();
  addRoundKey(m_nr, expKey);

  return output;
}

QByteArray AESEncryption::invCipher(const QByteArray &expKey, const QByteArray &in)
{
    //m_state is the input buffer.... handle it!
    QByteArray output(in);
    m_state = &output;

    // Add the First round key to the state before starting the rounds.
    addRoundKey(m_nr, expKey);

    // There will be Nr rounds.
    // The first Nr-1 rounds are identical.
    // These Nr-1 rounds are executed in the loop below.
    for(quint8 round=m_nr-1; round>0 ; round--){
        invShiftRows();
        invSubBytes();
        addRoundKey(round, expKey);
        invMixColumns();
    }

    // The last round is given below.
    // The MixColumns function is not here in the last round.
    invShiftRows();
    invSubBytes();
    addRoundKey(0, expKey);

    return output;
}

QByteArray AESEncryption::printArray(uchar* arr, int size)
{
    QByteArray print("");
    for(int i=0; i<size; i++)
        print.append(arr[i]);

    return print.toHex();
}

QByteArray AESEncryption::encode(const QByteArray &rawText, const QByteArray &key, const QByteArray &iv)
{
    if ((m_mode >= CBC && (iv.isEmpty() || iv.size() != m_blocklen)) || key.size() != m_keyLen)
           return QByteArray();

        QByteArray expandedKey = expandKey(key, true);
        QByteArray alignedText(rawText);

        //Fill array with padding
        alignedText.append(getPadding(rawText.size(), m_blocklen));

    switch(m_mode)
    {
    case ECB: {
        QByteArray ret;
        for(int i=0; i < alignedText.size(); i+= m_blocklen)
            ret.append(cipher(expandedKey, alignedText.mid(i, m_blocklen)));
        return ret;
    }
    break;
    case CBC: {
        QByteArray ret;
        QByteArray ivTemp(iv);
        for(int i=0; i < alignedText.size(); i+= m_blocklen) {
            alignedText.replace(i, m_blocklen, byteXor(alignedText.mid(i, m_blocklen),ivTemp));
            ret.append(cipher(expandedKey, alignedText.mid(i, m_blocklen)));
            ivTemp = ret.mid(i, m_blocklen);
        }
        return ret;
    }
    break;
    case CFB: {
        QByteArray ret;
        ret.append(byteXor(alignedText.left(m_blocklen), cipher(expandedKey, iv)));
        for(int i=0; i < alignedText.size(); i+= m_blocklen) {
            if (i+m_blocklen < alignedText.size())
                ret.append(byteXor(alignedText.mid(i+m_blocklen, m_blocklen),
                                   cipher(expandedKey, ret.mid(i, m_blocklen))));
        }
        return ret;
    }
    break;
    case OFB: {
    QByteArray ret;
        QByteArray ofbTemp;
        ofbTemp.append(cipher(expandedKey, iv));
        for (int i=m_blocklen; i < alignedText.size(); i += m_blocklen){
            ofbTemp.append(cipher(expandedKey, ofbTemp.right(m_blocklen)));
        }
        ret.append(byteXor(alignedText, ofbTemp));
        return ret;
    }
    break;
    default: break;
    }
    return QByteArray();
}

QByteArray AESEncryption::decode(const QByteArray &rawText, const QByteArray &key, const QByteArray &iv)
{
    if ((m_mode >= CBC && (iv.isEmpty() || iv.size() != m_blocklen)) || key.size() != m_keyLen)
           return QByteArray();

        QByteArray ret;
        QByteArray expandedKey;


        expandedKey = expandKey(key, true);

        //false or true here is very important
        //the expandedKeys aren't the same for !aes-ni! ENcryption and DEcryption (only CBC and EBC)
        //but if you are !NOT! using aes-ni then the expandedKeys for encryption and decryption are the SAME!!!


    switch(m_mode)
    {
    case ECB:
        for(int i=0; i < rawText.size(); i+= m_blocklen)
            ret.append(invCipher(expandedKey, rawText.mid(i, m_blocklen)));
        break;
    case CBC:
        {
            QByteArray ivTemp(iv);
            for(int i=0; i < rawText.size(); i+= m_blocklen){
                ret.append(invCipher(expandedKey, rawText.mid(i, m_blocklen)));
                ret.replace(i, m_blocklen, byteXor(ret.mid(i, m_blocklen),ivTemp));
                ivTemp = rawText.mid(i, m_blocklen);
            }
        }
        break;
    case CFB: {
            ret.append(byteXor(rawText.mid(0, m_blocklen), cipher(expandedKey, iv)));
            for(int i=0; i < rawText.size(); i+= m_blocklen){
                if (i+m_blocklen < rawText.size()) {
                    ret.append(byteXor(rawText.mid(i+m_blocklen, m_blocklen),
                                       cipher(expandedKey, rawText.mid(i, m_blocklen))));
                }
            }
        }
        break;
    case OFB: {
        QByteArray ofbTemp;
        ofbTemp.append(cipher(expandedKey, iv));
        for (int i=m_blocklen; i < rawText.size(); i += m_blocklen){
            ofbTemp.append(cipher(expandedKey, ofbTemp.right(m_blocklen)));
        }
        ret.append(byteXor(rawText, ofbTemp));
    }
        break;
    default:
        //do nothing
        break;
    }
    return ret;
}

QByteArray AESEncryption::removePadding(const QByteArray &rawText)
{
    return RemovePadding(rawText, (Padding) m_padding);
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545

passwordHelper.h

#ifndef PASSWORDHELPER_H
#define PASSWORDHELPER_H

#include
#include "aesEncryption.h"
class PasswordHelper : public QObject
{
    Q_OBJECT
public:
    explicit PasswordHelper(QObject *parent = nullptr);

    static QString aesEncryption(const QString val,const QString key,const QString iv);
    static QString aesDecryption(const QString val,const QString key,const QString iv);

};

#endif // PASSWORDHELPER_H

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

passwordHelper.cpp

#include "passwordHelper.h"

PasswordHelper::PasswordHelper(QObject *parent)
    : QObject{parent}
{

}
QString PasswordHelper::aesEncryption(const QString val,const QString key,const QString iv)
{
    AESEncryption encryption(AESEncryption::AES_128, AESEncryption::ECB, AESEncryption::PKCS7);
    QByteArray enBA = encryption.encode(val.toUtf8(), key.toUtf8(),iv.toUtf8());
    return QString::fromLatin1(enBA.toBase64()); //以便网络传输，或保存在 txt型文件中
}

QString PasswordHelper::aesDecryption(const QString val,const QString key,const QString iv)
{
    AESEncryption encryption(AESEncryption::AES_128, AESEncryption::ECB, AESEncryption::PKCS7);
    QByteArray  enBA = QByteArray::fromBase64(val.toUtf8());
    QByteArray deBA = encryption.decode(enBA, key.toUtf8(),iv.toUtf8());
    return QString::fromLatin1(AESEncryption::RemovePadding(deBA, AESEncryption::PKCS7));
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

四、加解密使用方法

QString val = "123456789";
QString key = "1234567812345678";
QString iv = "1234567812345678";

void MainWindow::on_btnEncryption_clicked()
{
    val = this->ui->lineEditEncrypt->text();
    qDebug()<<"val = "<<val;
    QString encrypt = PasswordHelper::aesEncryption(val,key,iv);
    qDebug()<<"encrypt = "<<encrypt;
    QString decryptr = PasswordHelper::aesDecryption(encrypt,key,iv);
    qDebug()<<"decryptr = "<<decryptr;
    this->ui->lineEditDecypt->setText(decryptr);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14

需要注意的是key和iv的长度要为16才行。

五、源码分享

点击下载
