    STM32存储左右互搏 I2C总线FATS读写FRAM MB85RC1M

    在较低容量存储领域，除了EEPROM的使用，还有铁电存储器FRAM的使用，相对于EEPROM, 同样是非易失性存储单元，FRAM支持更高的访问速度， 其主要优点为没有EEPROM持续写操作跨页地址需要变换的要求，没有写之后的延时等待要求。MB85RC1M是128K Byte（1M bit）的FRAM，能够按字节进行写入且没有写入等待时间。其管脚功能兼容相应容量的EEPOM：
    在这里插入图片描述
    这里介绍STM32 通过文件系统FATS访问FRAM MB85RC1M的例程。采用STM32CUBEIDE开发平台，以STM32F401CCU6芯片为例，通过STM32 I2C硬件电路实现读写操作，通过USB虚拟串口进行控制。

    STM32工程配置

    首先建立基本工程并设置时钟：
    在这里插入图片描述
    在这里插入图片描述
    在这里插入图片描述
    配置硬件I2C接口，STM32F401CCU6的I2C快速模式只支持400KHz速率：
    在这里插入图片描述
    在这里插入图片描述
    然后配置USB虚拟串口：
    在这里插入图片描述
    在这里插入图片描述
    在这里插入图片描述
    对FATS文件系统进行配置:
    在这里插入图片描述
    在这里插入图片描述
    在这里插入图片描述
    保存并生成初始工程代码：
    在这里插入图片描述

    STM32工程代码

    USB虚拟串口的使用参考：STM32 USB VCOM和HID的区别，配置及Echo功能实现（HAL）

    代码里用到的微秒延时函数参考： STM32 HAL us delay（微秒延时）的指令延时实现方式及优化

    MB85RC1M的设备默认访问地址为0xA0， MB85RC1M的存储单元地址访问略为特殊，17位地址分为两部分，最高位的1位放置于I2C设备默认访问地址的第1位，I2C设备默认访问地址第0位仍然为读写控制位，由于采用硬件I2C控制，库函数自行通过识别调用的是发送还是接收函数对第0位进行发送前设置，因此，不管是调用库函数的I2C写操作还是读操作，提供的地址相同。17位地址的低16位通过在发送设备地址后的作为跟随的第一，二个字节发送。

    建立MB85RC1M.h库头文件

    #ifndef INC_MB85RC1M_H_
#define INC_MB85RC1M_H_

#include "main.h"

void MB85RC1M_Write(uint32_t addr, uint8_t * data, uint32_t len);
void MB85RC1M_Read(uint32_t addr, uint8_t * data, uint32_t len);

#endif


    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10

    建立MB85RC1M.c库源文件：


#include "MB85RC1M.h"
#include

extern I2C_HandleTypeDef hi2c1;
extern uint8_t MB85RC1M_Default_I2C_Addr ;
void MB85RC1M_Write(uint32_t addr, uint8_t * data, uint32_t len)
{
	uint8_t MB85RC1M_I2C_Addr;

	MB85RC1M_I2C_Addr = MB85RC1M_Default_I2C_Addr | ((addr>>16)<<1); //highest 1-bit access address placed into I2C address

	uint8_t TD[len+2];
	TD[0] = (addr & 0xFF00)>>8; //high 8-bit access address placed into I2C first data
	TD[1] =addr & 0x00FF; //low 8-bit access address placed into I2C first data
	memcpy(TD+2, data, len);
	HAL_I2C_Master_Transmit(&hi2c1, MB85RC1M_I2C_Addr, TD, len+2, 2700);  //Write data
}


void MB85RC1M_Read(uint32_t addr, uint8_t * data, uint32_t len)
{
	uint8_t MB85RC1M_I2C_Addr;

	MB85RC1M_I2C_Addr = MB85RC1M_Default_I2C_Addr | ((addr>>16)<<1); //highest 1-bit access address placed into I2C address

	uint8_t RA[2];
	RA[0] = (addr & 0xFF00)>>8; //high 8-bit access address placed into I2C first data
	RA[1] =addr & 0x00FF; //low 8-bit access address placed into I2C first data

	HAL_I2C_Master_Transmit(&hi2c1, MB85RC1M_I2C_Addr, &RA[0], 2, 2700); //Write address for read
	HAL_I2C_Master_Receive(&hi2c1, MB85RC1M_I2C_Addr, data, len, 2700); //Read data

}


    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35

    USB接收命令的代码：
    在这里插入图片描述

    static int8_t CDC_Receive_FS(uint8_t* Buf, uint32_t *Len)
{
  /* USER CODE BEGIN 6 */
	extern uint8_t cmd;
	cmd = Buf[0];

  USBD_CDC_SetRxBuffer(&hUsbDeviceFS, &Buf[0]);
  USBD_CDC_ReceivePacket(&hUsbDeviceFS);
  return (USBD_OK);
  /* USER CODE END 6 */
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11

    对ffconf.h添加包含信息：
    在这里插入图片描述

    #include "main.h"
#include "stm32f4xx_hal.h"
#include "MB85RC1M.h"

    • 1
    • 2
    • 3

    修改user_diskio.c，对文件操作函数与底层I2C读写提供连接：

    /* USER CODE BEGIN Header */
/**
 ******************************************************************************
  * @file    user_diskio.c
  * @brief   This file includes a diskio driver skeleton to be completed by the user.
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2023 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
 /* USER CODE END Header */

#ifdef USE_OBSOLETE_USER_CODE_SECTION_0
/*
 * Warning: the user section 0 is no more in use (starting from CubeMx version 4.16.0)
 * To be suppressed in the future.
 * Kept to ensure backward compatibility with previous CubeMx versions when
 * migrating projects.
 * User code previously added there should be copied in the new user sections before
 * the section contents can be deleted.
 */
/* USER CODE BEGIN 0 */
/* USER CODE END 0 */
#endif

/* USER CODE BEGIN DECL */

/* Includes ------------------------------------------------------------------*/
#include
#include "ff_gen_drv.h"

/* Private typedef -----------------------------------------------------------*/
/* Private define ------------------------------------------------------------*/

/* Private variables ---------------------------------------------------------*/
/* Disk status */
static volatile DSTATUS Stat = STA_NOINIT;

/* USER CODE END DECL */

/* Private function prototypes -----------------------------------------------*/
DSTATUS USER_initialize (BYTE pdrv);
DSTATUS USER_status (BYTE pdrv);
DRESULT USER_read (BYTE pdrv, BYTE *buff, DWORD sector, UINT count);
#if _USE_WRITE == 1
  DRESULT USER_write (BYTE pdrv, const BYTE *buff, DWORD sector, UINT count);
#endif /* _USE_WRITE == 1 */
#if _USE_IOCTL == 1
  DRESULT USER_ioctl (BYTE pdrv, BYTE cmd, void *buff);
#endif /* _USE_IOCTL == 1 */

Diskio_drvTypeDef  USER_Driver =
{
  USER_initialize,
  USER_status,
  USER_read,
#if  _USE_WRITE
  USER_write,
#endif  /* _USE_WRITE == 1 */
#if  _USE_IOCTL == 1
  USER_ioctl,
#endif /* _USE_IOCTL == 1 */
};

/* Private functions ---------------------------------------------------------*/

/**
  * @brief  Initializes a Drive
  * @param  pdrv: Physical drive number (0..)
  * @retval DSTATUS: Operation status
  */
DSTATUS USER_initialize (
	BYTE pdrv           /* Physical drive nmuber to identify the drive */
)
{
  /* USER CODE BEGIN INIT */
	/**************************SELF DEFINITION PART************/
	 extern uint8_t MB85RC1M_Default_I2C_Addr ;
	 MB85RC1M_Default_I2C_Addr =  0xA0; //Pin A2=A1=0
     return RES_OK;
	/**********************************************************/
	/*
    Stat = STA_NOINIT;
    return Stat;
    */
  /* USER CODE END INIT */
}

/**
  * @brief  Gets Disk Status
  * @param  pdrv: Physical drive number (0..)
  * @retval DSTATUS: Operation status
  */
DSTATUS USER_status (
	BYTE pdrv       /* Physical drive number to identify the drive */
)
{
  /* USER CODE BEGIN STATUS */
	/**************************SELF DEFINITION PART************/
		switch (pdrv)
			{
				case 0 :
					return RES_OK;
				case 1 :
					return RES_OK;
				case 2 :
					return RES_OK;
				default:
					return STA_NOINIT;
			}
	/**********************************************************/
    /*
    Stat = STA_NOINIT;
    return Stat;
    */
  /* USER CODE END STATUS */
}

/**
  * @brief  Reads Sector(s)
  * @param  pdrv: Physical drive number (0..)
  * @param  *buff: Data buffer to store read data
  * @param  sector: Sector address (LBA)
  * @param  count: Number of sectors to read (1..128)
  * @retval DRESULT: Operation result
  */
DRESULT USER_read (
	BYTE pdrv,      /* Physical drive nmuber to identify the drive */
	BYTE *buff,     /* Data buffer to store read data */
	DWORD sector,   /* Sector address in LBA */
	UINT count      /* Number of sectors to read */
)
{
  /* USER CODE BEGIN READ */
	/**************************SELF DEFINITION PART************/
		    uint16_t len;
			if( !count )
			{
				return RES_PARERR;  /* count不能等于0，否则返回参数错�?*/
			}
			switch (pdrv)
			{
				case 0:
					sector <<= 9; //Convert sector number to byte address
				    len = count*512;
				    MB85RC1M_Read(sector, buff, len);
				    return RES_OK;
				default:
					return RES_ERROR;
			}
	/**********************************************************/
	/*
    return RES_OK;
    */
  /* USER CODE END READ */
}

/**
  * @brief  Writes Sector(s)
  * @param  pdrv: Physical drive number (0..)
  * @param  *buff: Data to be written
  * @param  sector: Sector address (LBA)
  * @param  count: Number of sectors to write (1..128)
  * @retval DRESULT: Operation result
  */
#if _USE_WRITE == 1
DRESULT USER_write (
	BYTE pdrv,          /* Physical drive nmuber to identify the drive */
	const BYTE *buff,   /* Data to be written */
	DWORD sector,       /* Sector address in LBA */
	UINT count          /* Number of sectors to write */
)
{
  /* USER CODE BEGIN WRITE */
  /* USER CODE HERE */
	/**************************SELF DEFINITION PART************/
		    uint16_t len;
			if( !count )
			{
				return RES_PARERR;  /* count不能等于0，否则返回参数错�?*/
			}
			switch (pdrv)
			{
				case 0:
					sector <<= 9; //Convert sector number to byte address
				    len = count*512;
				    MB85RC1M_Write(sector, (uint8_t *)buff,len);
				    return RES_OK;
				default:
					return RES_ERROR;
			}
	/*********************************************************/

	/*
    return RES_OK;
    */
  /* USER CODE END WRITE */
}
#endif /* _USE_WRITE == 1 */

/**
  * @brief  I/O control operation
  * @param  pdrv: Physical drive number (0..)
  * @param  cmd: Control code
  * @param  *buff: Buffer to send/receive control data
  * @retval DRESULT: Operation result
  */
#if _USE_IOCTL == 1
DRESULT USER_ioctl (
	BYTE pdrv,      /* Physical drive nmuber (0..) */
	BYTE cmd,       /* Control code */
	void *buff      /* Buffer to send/receive control data */
)
{
  /* USER CODE BEGIN IOCTL */
	/**************************SELF DEFINITION PART************/
             #define user_sector_byte_size 512
		     DRESULT res;
			 switch(cmd)
			    {
				    case CTRL_SYNC:
								res=RES_OK;
				        break;
				    case GET_SECTOR_SIZE:
				        *(WORD*)buff = user_sector_byte_size;
				        res = RES_OK;
				        break;
				    case GET_BLOCK_SIZE:
				        *(WORD*)buff = 4096/user_sector_byte_size;
				        res = RES_OK;
				        break;
				    case GET_SECTOR_COUNT:
				    	*(DWORD*)buff = (128*1024/512);
				        res = RES_OK;
				        break;
				    default:
				        res = RES_PARERR;
				        break;
			    }
				return res;
	/**********************************************************/
	/*
    DRESULT res = RES_ERROR;
    return res;
    */
  /* USER CODE END IOCTL */
}
#endif /* _USE_IOCTL == 1 */



    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94
    • 95
    • 96
    • 97
    • 98
    • 99
    • 100
    • 101
    • 102
    • 103
    • 104
    • 105
    • 106
    • 107
    • 108
    • 109
    • 110
    • 111
    • 112
    • 113
    • 114
    • 115
    • 116
    • 117
    • 118
    • 119
    • 120
    • 121
    • 122
    • 123
    • 124
    • 125
    • 126
    • 127
    • 128
    • 129
    • 130
    • 131
    • 132
    • 133
    • 134
    • 135
    • 136
    • 137
    • 138
    • 139
    • 140
    • 141
    • 142
    • 143
    • 144
    • 145
    • 146
    • 147
    • 148
    • 149
    • 150
    • 151
    • 152
    • 153
    • 154
    • 155
    • 156
    • 157
    • 158
    • 159
    • 160
    • 161
    • 162
    • 163
    • 164
    • 165
    • 166
    • 167
    • 168
    • 169
    • 170
    • 171
    • 172
    • 173
    • 174
    • 175
    • 176
    • 177
    • 178
    • 179
    • 180
    • 181
    • 182
    • 183
    • 184
    • 185
    • 186
    • 187
    • 188
    • 189
    • 190
    • 191
    • 192
    • 193
    • 194
    • 195
    • 196
    • 197
    • 198
    • 199
    • 200
    • 201
    • 202
    • 203
    • 204
    • 205
    • 206
    • 207
    • 208
    • 209
    • 210
    • 211
    • 212
    • 213
    • 214
    • 215
    • 216
    • 217
    • 218
    • 219
    • 220
    • 221
    • 222
    • 223
    • 224
    • 225
    • 226
    • 227
    • 228
    • 229
    • 230
    • 231
    • 232
    • 233
    • 234
    • 235
    • 236
    • 237
    • 238
    • 239
    • 240
    • 241
    • 242
    • 243
    • 244
    • 245
    • 246
    • 247
    • 248
    • 249
    • 250
    • 251
    • 252
    • 253
    • 254
    • 255
    • 256
    • 257

    然后在main.c里根据串口输入命令（16进制单字节）实现如下功能：

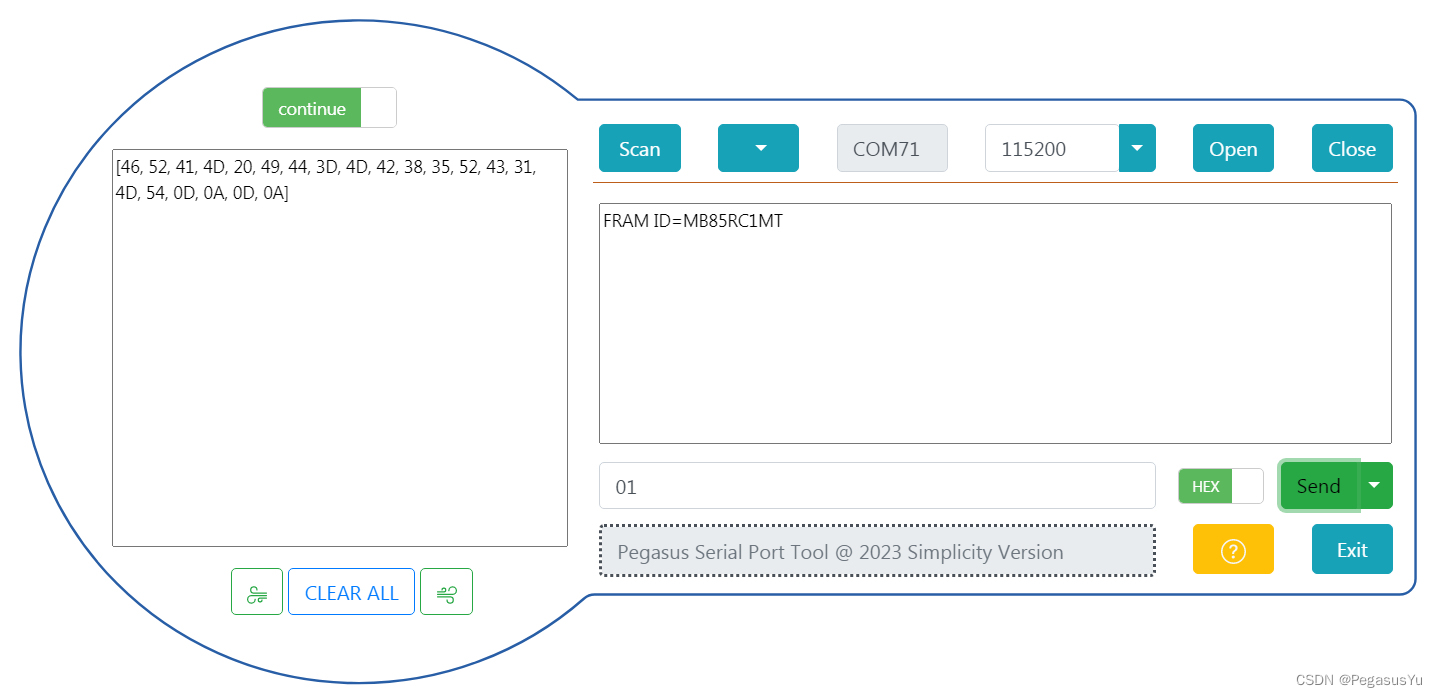

    0x01. 读取FRAM ID
    0x02. 装载FATS文件系统
    0x03: 创建/打开文件并从头位置写入数据
    0x04: 打开文件并从头位置读入数据
    0x05: 创建/打开文件并从特定位置写入数据
    0x06: 打开文件并从特定位置读入数据
    完整的代码实现如下：

    /* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2023 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
//Written by Pegasus Yu in 2023
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "fatfs.h"
#include "usb_device.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "MB85RC1M.h"
#include
/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */
uint8_t CDC_Transmit_FS(uint8_t* Buf, uint16_t Len);
/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
__IO float usDelayBase;
void PY_usDelayTest(void)
{
  __IO uint32_t firstms, secondms;
  __IO uint32_t counter = 0;

  firstms = HAL_GetTick()+1;
  secondms = firstms+1;

  while(uwTick!=firstms) ;

  while(uwTick!=secondms) counter++;

  usDelayBase = ((float)counter)/1000;
}

void PY_Delay_us_t(uint32_t Delay)
{
  __IO uint32_t delayReg;
  __IO uint32_t usNum = (uint32_t)(Delay*usDelayBase);

  delayReg = 0;
  while(delayReg!=usNum) delayReg++;
}

void PY_usDelayOptimize(void)
{
  __IO uint32_t firstms, secondms;
  __IO float coe = 1.0;

  firstms = HAL_GetTick();
  PY_Delay_us_t(1000000) ;
  secondms = HAL_GetTick();

  coe = ((float)1000)/(secondms-firstms);
  usDelayBase = coe*usDelayBase;
}


void PY_Delay_us(uint32_t Delay)
{
  __IO uint32_t delayReg;

  __IO uint32_t msNum = Delay/1000;
  __IO uint32_t usNum = (uint32_t)((Delay%1000)*usDelayBase);

  if(msNum>0) HAL_Delay(msNum);

  delayReg = 0;
  while(delayReg!=usNum) delayReg++;
}

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/
I2C_HandleTypeDef hi2c1;

/* USER CODE BEGIN PV */

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
static void MX_GPIO_Init(void);
static void MX_I2C1_Init(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
uint8_t cmd=0;          //for status control

uint8_t MB85RC1M_Default_I2C_Addr =  0xA0; //Pin A2=A1=0
uint32_t MB85RC1M_Access_Addr = 0;   //FRAM MB85RC1M access address (17-bit)

uint8_t FRAM_mount_status = 0; //FRAM fats mount status indication (0: unmount; 1: mount)
uint8_t FATS_Buff[_MAX_SS]; //Buffer for f_mkfs() operation

FRESULT retFRAM;
FIL file;
FATFS *fs;

UINT bytesread;
UINT byteswritten;
uint8_t rBuffer[20];      //Buffer for read
uint8_t WBuffer[20] ={1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20}; //Buffer for write

#define user_sector_byte_size 512
uint8_t frambuffer[user_sector_byte_size];

extern char USERPath[4];

char * console;
/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
  /* USER CODE BEGIN 1 */
	FRAM_mount_status = 0;
	uint32_t FRAM_Read_Size;

    extern char USERPath[4];

    char * dpath = "0:"; //Disk Path
	for(uint8_t i=0; i<4; i++)
	{
		USERPath[i] = *(dpath+i);
	}

	const TCHAR* filepath = "0:test.txt";

	char cchar[256];
	console = cchar;

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_I2C1_Init();
  MX_USB_DEVICE_Init();
  MX_FATFS_Init();
  /* USER CODE BEGIN 2 */
  PY_usDelayTest();
  PY_usDelayOptimize();


  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {
	     if(cmd==1) //Read ID
	     {
	    	 cmd = 0;
	    	 sprintf(console, "FRAM ID=MB85RC1MT\r\n\r\n");
	    	 while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);

	     }
	     else if(cmd==2) //FRAM File System Mount
	     {
	    	 cmd = 0;

	    	 retFRAM=f_mount(&USERFatFS, (TCHAR const*)USERPath, 1);
	    	    		 if (retFRAM != FR_OK)
	    	    		 {
	    	  	    	   sprintf(console, "File system mount failure: %d\r\n", retFRAM);
	    	  	    	   while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);

	    	    		   if(retFRAM==FR_NO_FILESYSTEM)
	    	    		   {
	    	    		       sprintf(console, "No file system. Now to format......\r\n");
	    	    		       while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);

	    	    			   retFRAM = f_mkfs((TCHAR const*)USERPath, FM_FAT, 1024, FATS_Buff, sizeof(FATS_Buff)); //FRAM formatting
	    	    			   if(retFRAM == FR_OK)
	    	    			   {
	    	         	    	  sprintf(console, "FRAM formatting success!\r\n");
	    	         	    	  while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
	    	    			   }
	    	    				else
	    	    			   {
	    	    			      sprintf(console, "FRAM formatting failure!\r\n");
	    	    			      while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
	    	    			   }

	    	    		   }
	    	    		 }
	    	    		 else
	    	    		 {
	    	    			 FRAM_mount_status = 1;
	    	    	    	 sprintf(console, "File system mount success\r\n");
	    	    	    	 while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
	    	    		 }
	     }

		 else if(cmd==3) //File creation and write
		 {
				  cmd = 0;

				  if(FRAM_mount_status==0)
				  {
				    	 sprintf(console, "\r\nFRAM File system not mounted: %d\r\n",retFRAM);
				    	 while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
				  }
				  else
				  {
						retFRAM = f_open( &file, filepath, FA_CREATE_ALWAYS | FA_WRITE );  //Open or create file
						if(retFRAM == FR_OK)
						{
					    	sprintf(console, "\r\nFile open or creation successful\r\n");
					    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);

							retFRAM = f_write( &file, (const void *)WBuffer, sizeof(WBuffer), &byteswritten); //Write data

							if(retFRAM == FR_OK)
							{
						    	 sprintf(console, "\r\nFile write successful\r\n");
						    	 while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
							}
							else
							{
						    	 sprintf(console, "\r\nFile write error: %d\r\n",retFRAM);
						    	 while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
							}

							f_close(&file);   //Close file
						}
						else
						{
					    	 sprintf(console, "\r\nFile open or creation error %d\r\n",retFRAM);
					    	 while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
						}
				   }

	    }

	    else if(cmd==4) //File read
	    {
				  cmd = 0;

				  if(FRAM_mount_status==0)
				  {
				    	 sprintf(console, "\r\nFRAM File system not mounted: %d\r\n",retFRAM);
				    	 while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
				  }
				  else
				  {
						retFRAM = f_open( &file, filepath, FA_OPEN_EXISTING | FA_READ); //Open file
						if(retFRAM == FR_OK)
						{
					    	 sprintf(console, "\r\nFile open successful\r\n");
					    	 while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);

							retFRAM = f_read( &file, (void *)rBuffer, sizeof(rBuffer), &bytesread); //Read data

							if(retFRAM == FR_OK)
							{
						    	sprintf(console, "\r\nFile read successful\r\n");
						    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);

								PY_Delay_us_t(200000);

								FRAM_Read_Size = sizeof(rBuffer);
								for(uint16_t i = 0;i < FRAM_Read_Size;i++)
								{
							    	sprintf(console, "%d ", rBuffer[i]);
							    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
								}
						    	sprintf(console, "\r\n");
						    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
							}
							else
							{
						    	sprintf(console, "\r\nFile read error: %d\r\n", retFRAM);
						    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
							}
							f_close(&file); //Close file
						}
						else
						{
					    	sprintf(console, "\r\nFile open error: %d\r\n", retFRAM);
					    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
						}
				  }

		}

		else if(cmd==5) //File locating write
	    {
				  cmd = 0;

				  if(FRAM_mount_status==0)
				  {
				    	 sprintf(console, "\r\nFRAM File system not mounted: %d\r\n",retFRAM);
				    	 while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
				  }
				  else
				  {
						retFRAM = f_open( &file, filepath, FA_CREATE_ALWAYS | FA_WRITE);  //Open or create file
						if(retFRAM == FR_OK)
						{
					    	sprintf(console, "\r\nFile open or creation successful\r\n");
					    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);

							retFRAM=f_lseek( &file, f_tell(&file) + sizeof(WBuffer) ); //move file operation pointer, f_tell(&file) gets file head locating

							if(retFRAM == FR_OK)
							{

								retFRAM = f_write( &file, (const void *)WBuffer, sizeof(WBuffer), &byteswritten);
								if(retFRAM == FR_OK)
								{
							    	sprintf(console, "\r\nFile locating write successful\r\n");
							    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
								}
								else
								{
							    	sprintf(console, "\r\nFile locating write error: %d\r\n", retFRAM);
							    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
								}

							}
							else
							{
						    	sprintf(console, "\r\nFile pointer error: %d\r\n",retFRAM);
						    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
							}

							f_close(&file);   //Close file
						}
						else
						{
					    	sprintf(console, "\r\nFile open or creation error %d\r\n",retFRAM);
					    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
						}
				  }
		}

	    else if(cmd==6) //File locating read
		{
				  cmd = 0;

				  if(FRAM_mount_status==0)
				  {
				    	sprintf(console, "\r\nFRAM File system not mounted: %d\r\n",retFRAM);
				    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);

				  }
				  else
				  {
						retFRAM = f_open(&file, filepath, FA_OPEN_EXISTING | FA_READ); //Open file
						if(retFRAM == FR_OK)
						{

					    	sprintf(console, "\r\nFile open successful\r\n");
					    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);

							retFRAM =  f_lseek(&file,f_tell(&file)+ sizeof(WBuffer)/2); //move file operation pointer, f_tell(&file) gets file head locating

							if(retFRAM == FR_OK)
							{
								retFRAM = f_read( &file, (void *)rBuffer, sizeof(rBuffer), &bytesread);
								if(retFRAM == FR_OK)
								{
							    	sprintf(console, "\r\nFile locating read successful\r\n");
							    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
									PY_Delay_us_t(200000);

									FRAM_Read_Size = sizeof(rBuffer);
									for(uint16_t i = 0;i < FRAM_Read_Size;i++)
									{
								    	sprintf(console, "%d ",rBuffer[i]);
								    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
									}

							    	sprintf(console, "\r\n");
							    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
								}
								else
								{
							    	sprintf(console, "\r\nFile locating read error: %d\r\n",retFRAM);
							    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
								}
							}
							else
							{
						    	sprintf(console, "\r\nFile pointer error: %d\r\n",retFRAM);
						    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
							}
							f_close(&file);
						}
						else
						{
					    	sprintf(console, "\r\nFile open error: %d\r\n",retFRAM);
					    	while( CDC_Transmit_FS((uint8_t*)console, strlen(console)) == USBD_BUSY ) PY_Delay_us_t(1);
						}
				  }
	     }

	     PY_Delay_us_t(100);
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /** Configure the main internal regulator output voltage
  */
  __HAL_RCC_PWR_CLK_ENABLE();
  __HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE2);

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLM = 25;
  RCC_OscInitStruct.PLL.PLLN = 336;
  RCC_OscInitStruct.PLL.PLLP = RCC_PLLP_DIV4;
  RCC_OscInitStruct.PLL.PLLQ = 7;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }

  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
  {
    Error_Handler();
  }
}

/**
  * @brief I2C1 Initialization Function
  * @param None
  * @retval None
  */
static void MX_I2C1_Init(void)
{

  /* USER CODE BEGIN I2C1_Init 0 */

  /* USER CODE END I2C1_Init 0 */

  /* USER CODE BEGIN I2C1_Init 1 */

  /* USER CODE END I2C1_Init 1 */
  hi2c1.Instance = I2C1;
  hi2c1.Init.ClockSpeed = 400000;
  hi2c1.Init.DutyCycle = I2C_DUTYCYCLE_2;
  hi2c1.Init.OwnAddress1 = 0;
  hi2c1.Init.AddressingMode = I2C_ADDRESSINGMODE_7BIT;
  hi2c1.Init.DualAddressMode = I2C_DUALADDRESS_DISABLE;
  hi2c1.Init.OwnAddress2 = 0;
  hi2c1.Init.GeneralCallMode = I2C_GENERALCALL_DISABLE;
  hi2c1.Init.NoStretchMode = I2C_NOSTRETCH_DISABLE;
  if (HAL_I2C_Init(&hi2c1) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN I2C1_Init 2 */

  /* USER CODE END I2C1_Init 2 */

}

/**
  * @brief GPIO Initialization Function
  * @param None
  * @retval None
  */
static void MX_GPIO_Init(void)
{
/* USER CODE BEGIN MX_GPIO_Init_1 */
/* USER CODE END MX_GPIO_Init_1 */

  /* GPIO Ports Clock Enable */
  __HAL_RCC_GPIOH_CLK_ENABLE();
  __HAL_RCC_GPIOA_CLK_ENABLE();
  __HAL_RCC_GPIOB_CLK_ENABLE();

/* USER CODE BEGIN MX_GPIO_Init_2 */
/* USER CODE END MX_GPIO_Init_2 */
}

/* USER CODE BEGIN 4 */

/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */


    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91
    • 92
    • 93
    • 94
    • 95
    • 96
    • 97
    • 98
    • 99
    • 100
    • 101
    • 102
    • 103
    • 104
    • 105
    • 106
    • 107
    • 108
    • 109
    • 110
    • 111
    • 112
    • 113
    • 114
    • 115
    • 116
    • 117
    • 118
    • 119
    • 120
    • 121
    • 122
    • 123
    • 124
    • 125
    • 126
    • 127
    • 128
    • 129
    • 130
    • 131
    • 132
    • 133
    • 134
    • 135
    • 136
    • 137
    • 138
    • 139
    • 140
    • 141
    • 142
    • 143
    • 144
    • 145
    • 146
    • 147
    • 148
    • 149
    • 150
    • 151
    • 152
    • 153
    • 154
    • 155
    • 156
    • 157
    • 158
    • 159
    • 160
    • 161
    • 162
    • 163
    • 164
    • 165
    • 166
    • 167
    • 168
    • 169
    • 170
    • 171
    • 172
    • 173
    • 174
    • 175
    • 176
    • 177
    • 178
    • 179
    • 180
    • 181
    • 182
    • 183
    • 184
    • 185
    • 186
    • 187
    • 188
    • 189
    • 190
    • 191
    • 192
    • 193
    • 194
    • 195
    • 196
    • 197
    • 198
    • 199
    • 200
    • 201
    • 202
    • 203
    • 204
    • 205
    • 206
    • 207
    • 208
    • 209
    • 210
    • 211
    • 212
    • 213
    • 214
    • 215
    • 216
    • 217
    • 218
    • 219
    • 220
    • 221
    • 222
    • 223
    • 224
    • 225
    • 226
    • 227
    • 228
    • 229
    • 230
    • 231
    • 232
    • 233
    • 234
    • 235
    • 236
    • 237
    • 238
    • 239
    • 240
    • 241
    • 242
    • 243
    • 244
    • 245
    • 246
    • 247
    • 248
    • 249
    • 250
    • 251
    • 252
    • 253
    • 254
    • 255
    • 256
    • 257
    • 258
    • 259
    • 260
    • 261
    • 262
    • 263
    • 264
    • 265
    • 266
    • 267
    • 268
    • 269
    • 270
    • 271
    • 272
    • 273
    • 274
    • 275
    • 276
    • 277
    • 278
    • 279
    • 280
    • 281
    • 282
    • 283
    • 284
    • 285
    • 286
    • 287
    • 288
    • 289
    • 290
    • 291
    • 292
    • 293
    • 294
    • 295
    • 296
    • 297
    • 298
    • 299
    • 300
    • 301
    • 302
    • 303
    • 304
    • 305
    • 306
    • 307
    • 308
    • 309
    • 310
    • 311
    • 312
    • 313
    • 314
    • 315
    • 316
    • 317
    • 318
    • 319
    • 320
    • 321
    • 322
    • 323
    • 324
    • 325
    • 326
    • 327
    • 328
    • 329
    • 330
    • 331
    • 332
    • 333
    • 334
    • 335
    • 336
    • 337
    • 338
    • 339
    • 340
    • 341
    • 342
    • 343
    • 344
    • 345
    • 346
    • 347
    • 348
    • 349
    • 350
    • 351
    • 352
    • 353
    • 354
    • 355
    • 356
    • 357
    • 358
    • 359
    • 360
    • 361
    • 362
    • 363
    • 364
    • 365
    • 366
    • 367
    • 368
    • 369
    • 370
    • 371
    • 372
    • 373
    • 374
    • 375
    • 376
    • 377
    • 378
    • 379
    • 380
    • 381
    • 382
    • 383
    • 384
    • 385
    • 386
    • 387
    • 388
    • 389
    • 390
    • 391
    • 392
    • 393
    • 394
    • 395
    • 396
    • 397
    • 398
    • 399
    • 400
    • 401
    • 402
    • 403
    • 404
    • 405
    • 406
    • 407
    • 408
    • 409
    • 410
    • 411
    • 412
    • 413
    • 414
    • 415
    • 416
    • 417
    • 418
    • 419
    • 420
    • 421
    • 422
    • 423
    • 424
    • 425
    • 426
    • 427
    • 428
    • 429
    • 430
    • 431
    • 432
    • 433
    • 434
    • 435
    • 436
    • 437
    • 438
    • 439
    • 440
    • 441
    • 442
    • 443
    • 444
    • 445
    • 446
    • 447
    • 448
    • 449
    • 450
    • 451
    • 452
    • 453
    • 454
    • 455
    • 456
    • 457
    • 458
    • 459
    • 460
    • 461
    • 462
    • 463
    • 464
    • 465
    • 466
    • 467
    • 468
    • 469
    • 470
    • 471
    • 472
    • 473
    • 474
    • 475
    • 476
    • 477
    • 478
    • 479
    • 480
    • 481
    • 482
    • 483
    • 484
    • 485
    • 486
    • 487
    • 488
    • 489
    • 490
    • 491
    • 492
    • 493
    • 494
    • 495
    • 496
    • 497
    • 498
    • 499
    • 500
    • 501
    • 502
    • 503
    • 504
    • 505
    • 506
    • 507
    • 508
    • 509
    • 510
    • 511
    • 512
    • 513
    • 514
    • 515
    • 516
    • 517
    • 518
    • 519
    • 520
    • 521
    • 522
    • 523
    • 524
    • 525
    • 526
    • 527
    • 528
    • 529
    • 530
    • 531
    • 532
    • 533
    • 534
    • 535
    • 536
    • 537
    • 538
    • 539
    • 540
    • 541
    • 542
    • 543
    • 544
    • 545
    • 546
    • 547
    • 548
    • 549
    • 550
    • 551
    • 552
    • 553
    • 554
    • 555
    • 556
    • 557
    • 558
    • 559
    • 560
    • 561
    • 562
    • 563
    • 564
    • 565
    • 566
    • 567
    • 568
    • 569
    • 570
    • 571
    • 572
    • 573
    • 574
    • 575
    • 576
    • 577
    • 578
    • 579
    • 580
    • 581
    • 582
    • 583
    • 584
    • 585

    STM32例程测试

    串口指令0x01测试效果如下：在这里插入图片描述

    串口指令0x02测试效果如下：

    在这里插入图片描述
    串口指令0x03测试效果如下：
    在这里插入图片描述
    串口指令0x04测试效果如下：
    在这里插入图片描述

    串口指令0x05测试效果如下：
    在这里插入图片描述
    串口指令0x06测试效果如下：
    在这里插入图片描述

    STM32例程下载

    STM32F401CCU6 I2C总线FATS读写FRAM MB85RC1M例程下载

    –End–

  • 相关阅读:
    SaaSBase：什么是小店宝？
    易仓科技×OceanBase：打造跨境行业全生态链的新零售SaaS
    torch版本对应的torch_geometric与torch-sprse/cluster/scatter库的正确安装
    PixiJS源码分析系列：第二章 渲染在哪里开始？
    分类预测 | MATLAB实现PCA-GRU(主成分门控循环单元)分类预测
    测试进阶知识之零日攻击的发现和防御
    【Java实战】工作中并发处理规范
    8、Docker-compose容器编排
    Servlet入门
    java基于springboot医院预约挂号管理系统附代码段
  • 原文地址：https://blog.csdn.net/hwytree/article/details/131280761
