一：背景
1. 讲故事
有很多朋友跟我说，在 Windows 上看过你文章知道了怎么抓 Crash, CPU爆高，内存暴涨 等各种Dump，为什么你没有写在 Docker 中如何抓的相关文章呢？瞧不上吗？
哈哈，在DUMP的分析旅程中，跑在 Docker 中的 .NET 占比真的不多，大概10个dump有 1-2 个是 docker 中的，市场决定了我的研究方向，为了弥补这一块的空洞，决定写一篇文章来分享下这三大异常下的捕获吧。
二：Docker 下的三大异常捕获
1. crash dump 捕获
前不久我写了一篇 Linux 上的 .NET 崩溃了怎么抓 Dump （https://www.cnblogs.com/huangxincheng/p/17440153.html） 的文章，使用了微软推荐的环境变量方式，其实这在 Docker 中是一样适用的。
为了让 webapi 崩溃退出，我故意造一个栈溢出异常，参考代码如下：
public class Program
{
public static void Main(string[] args)
{
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddAuthorization();
var app = builder.Build();
app.UseAuthorization();
//1. crash
Task.Factory.StartNew(() =>
{
Test("a");
});
app.Run();
}
public static string Test(string a)
{
return Test("a" + a.Length);
}
}
有了代码之后，接下来写一个 Dockerfile，主要就是把三个环境变量塞进去。
FROM mcr.microsoft.com/dotnet/aspnet:6.0 AS runtime
WORKDIR /app
COPY ./ ./
# 1. 使用中科大镜像源
RUN sed -i 's/deb.debian.org/mirrors.ustc.edu.cn/g' /etc/apt/sources.list
ENV COMPlus_DbgMiniDumpType 4
ENV COMPlus_DbgMiniDumpName /dumps/%p-%e-%h-%t.dmp
ENV COMPlus_DbgEnableMiniDump 1
ENTRYPOINT ["dotnet", "AspNetWebApi.dll"]
这里有一个细节，为了能够让 Docker 中的 webapi 能够访问到，将 localhost 设置为 * ，修改 appsettings.json 如下：
{
"urls": "http://*:5001",
"Logging": {
"LogLevel": {
"Default": "Information",
"Microsoft.AspNetCore": "Warning"
}
},
"AllowedHosts": "*"
}
有了这些基础最后就是 docker build & docker run 啦。
[root@localhost data]# docker build -t aspnetapp .
[+] Building 0.3s (9/9) FINISHED
=> [internal] load build definition from Dockerfile 0.0s
=> => transferring dockerfile: 447B 0.0s
=> [internal] load .dockerignore 0.0s
=> => transferring context: 2B 0.0s
=> [internal] load metadata for mcr.microsoft.com/dotnet/aspnet:6.0 0.3s
=> [1/4] FROM mcr.microsoft.com/dotnet/aspnet:6.0@sha256:a2a04325fdb2a871e964c89318921f82f6435b54 0.0s
=> [internal] load build context 0.0s
=> => transferring context: 860B 0.0s
=> CACHED [2/4] WORKDIR /app 0.0s
=> CACHED [3/4] COPY ./ ./ 0.0s
=> CACHED [4/4] RUN sed -i 's/deb.debian.org/mirrors.ustc.edu.cn/g' /etc/apt/sources.list 0.0s
=> exporting to image 0.0s
=> => exporting layers 0.0s
=> => writing image sha256:be69203995c0e5423b2af913549e618d7ee8306fff3961118ff403b1359ae571 0.0s
=> => naming to docker.io/library/aspnetapp 0.0s
[root@localhost data]# docker run -itd -p 5001:5001 --privileged -v /data2:/dumps --name aspnetcore_sample aspnetapp
ca34c9274d998096f8562cbef3a43a7cbd9aa5ff2923e0f3e702b159e0b2f447
[root@localhost data]# docker ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
ca34c9274d99 aspnetapp "dotnet AspNetWebApi…" 20 seconds ago Exited (139) 9 seconds ago aspnetcore_sample
[root@localhost data]# docker logs ca34c9274d99
...
at AspNetWebApi.Program.Test(System.String)
at AspNetWebApi.Program.Test(System.String)
at AspNetWebApi.Program.Test(System.String)
at AspNetWebApi.Program.Test(System.String)
at AspNetWebApi.Program+<>c.b__0_0()
at System.Threading.Tasks.Task.InnerInvoke()
at System.Threading.Tasks.Task+<>c.<.cctor>b__272_0(System.Object)
at System.Threading.ExecutionContext.RunFromThreadPoolDispatchLoop(System.Threading.Thread, System.Threading.ExecutionContext, System.Threading.ContextCallback, System.Object)
at System.Threading.Tasks.Task.ExecuteWithThreadLocal(System.Threading.Tasks.Task ByRef, System.Threading.Thread)
at System.Threading.Tasks.Task.ExecuteEntryUnsafe(System.Threading.Thread)
at System.Threading.ThreadPoolWorkQueue.Dispatch()
at System.Threading.PortableThreadPool+WorkerThread.WorkerThreadStart()
at System.Threading.Thread.StartCallback()
[createdump] Gathering state for process 1 dotnet
[createdump] Crashing thread 0017 signal 6 (0006)
[createdump] Writing full dump to file /dumps/1-dotnet-ca34c9274d99-1687746929.dmp
[createdump] Written 261320704 bytes (63799 pages) to core file
[createdump] Target process is alive
[createdump] Dump successfully written
[root@localhost data2]# cd /data2
[root@localhost data2]# ls -ln
total 255288
-rw-------. 1 0 0 261414912 Jun 26 10:35 1-dotnet-ca34c9274d99-1687746929.dmp
上面的脚本已经写的非常清楚了，这里有几个注意点提一下：
- --privileged
一定要加上特殊权限，否则生成 dump 的时候会提示无权限。
- -v /data2:/dumps
防止dump丢失，记得挂载到宿主机目录 或者 共享容器 中。
2. 内存暴涨 dump 捕获

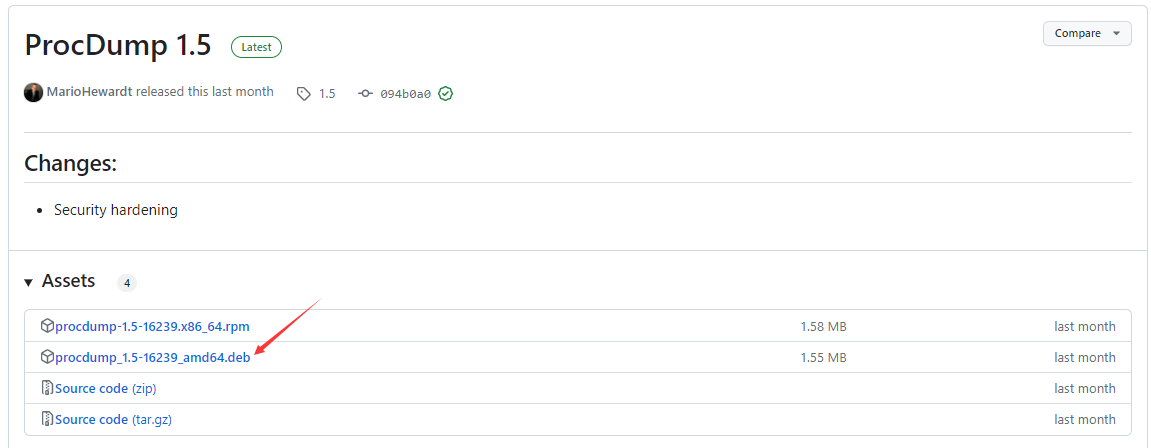

要想对 docker 中的 .NET 程序内存 进行监控，我一直都是极力推荐 procdump，目前最新的是版本是 1.5， github官网地址： https://github.com/Sysinternals/ProcDump-for-Linux 鉴于现在访问 github 太慢，大家可以把 procdump_1.5-16239_amd64.deb 下载到本地，为什么下载它，是因为容器中是 debain 系统。
下载好了之后放到项目中，使用默认代码骨架：
public class Program
{
public static void Main(string[] args)
{
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddAuthorization();
var app = builder.Build();
app.UseAuthorization();
app.Run();
}
}
接下来就是写 dockerfile 了，这里有一个细节，就是如何在 Docker 中开启多进程，这里用 start.sh 脚本的方式开启，参考代码如下：
FROM mcr.microsoft.com/dotnet/aspnet:6.0 AS runtime
WORKDIR /app
COPY ./ ./
# 1. 使用中科大镜像源
RUN sed -i 's/deb.debian.org/mirrors.ustc.edu.cn/g' /etc/apt/sources.list
# 2. 安装 gdb & procdump
RUN apt-get update && apt-get install -y gdb
RUN dpkg -i procdump.deb
RUN echo "#!/bin/bash \n\
procdump -m 30 -w dotnet /dumps & \n\
dotnet \$1 \n\
" > ./start.sh
RUN chmod +x ./start.sh
ENTRYPOINT ["./start.sh", "AspNetWebApi.dll"]
有了这些设置后，接下来就是 publish 代码用 docker 构建啦，为了方便演示，这里就用 前台模式 开启了哈。
[root@localhost data]# docker build -t aspnetapp .
[+] Building 11.5s (13/13) FINISHED
[root@localhost data]# docker rm -f aspnetcore_sample
aspnetcore_sample
[root@localhost data]# docker run -it --rm -p 5001:5001 --privileged -v /data2:/dumps --name aspnetcore_sample aspnetapp
ProcDump v1.5 - Sysinternals process dump utility
Copyright (C) 2023 Microsoft Corporation. All rights reserved. Licensed under the MIT license.
Mark Russinovich, Mario Hewardt, John Salem, Javid Habibi
Sysinternals - www.sysinternals.com
Monitors one or more processes and writes a core dump file when the processes exceeds the
specified criteria.
[02:57:34 - INFO]: Waiting for processes 'dotnet' to launch
[02:57:34 - INFO]: Press Ctrl-C to end monitoring without terminating the process(es).
Process Name: dotnet
CPU Threshold: n/a
Commit Threshold: >=30 MB
Thread Threshold: n/a
File Descriptor Threshold: n/a
Signal: n/a
Exception monitor Off
Polling Interval (ms): 1000
Threshold (s): 10
Number of Dumps: 1
Output directory: /dumps
[02:57:34 - INFO]: Starting monitor for process dotnet (9)
info: Microsoft.Hosting.Lifetime[14]
Now listening on: http://[::]:5001
info: Microsoft.Hosting.Lifetime[0]
Application started. Press Ctrl+C to shut down.
info: Microsoft.Hosting.Lifetime[0]
Hosting environment: Production
info: Microsoft.Hosting.Lifetime[0]
Content root path: /app/
[02:57:35 - INFO]: Trigger: Commit usage:48MB on process ID: 9
[createdump] Gathering state for process 9 dotnet
[createdump] Writing full dump to file /dumps/dotnet_commit_2023-06-26_02:57:35.9
[createdump] Written 254459904 bytes (62124 pages) to core file
[createdump] Target process is alive
[createdump] Dump successfully written
[02:57:35 - INFO]: Core dump 0 generated: /dumps/dotnet_commit_2023-06-26_02:57:35.9
[02:57:36 - INFO]: Stopping monitors for process: dotnet (9)
[root@localhost data2]# ls -lh
total 243M
-rw-------. 1 root root 243M Jun 26 10:57 dotnet_commit_2023-06-26_02:57:35.9
从脚本信息看，当内存到了 48MB 的时候触发的 dump 生成，也成功的进入了 /dumps 目录中，太棒了。
3. cpu爆高 dump 捕获
抓 cpu 爆高的dump最好的方式就是多抓几个，比如说：当 CPU >20% 连续超过 5s 抓 2个dump，这种方式抓的dump很容易就能找到真凶，为了方便演示，让两个 cpu 直接打满，参考代码如下：
public static void Main(string[] args)
{
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddAuthorization();
var app = builder.Build();
app.UseAuthorization();
//3. cpu
app.MapGet("/cpu", (HttpContext httpContext) =>
{
Task.Factory.StartNew(() => { bool b = true; while (true) { b = !b; } });
Task.Factory.StartNew(() => { bool b = true; while (true) { b = !b; } });
return new WeatherForecast();
});
app.Run();
}
接下来就是修改 dockerfile，因为我的虚拟机是 8 核心，如果两个核心被打满，那应该会占用大概 24% 的 cpu 利用率，所以脚本中就设置 20% 吧。
FROM mcr.microsoft.com/dotnet/aspnet:6.0 AS runtime
WORKDIR /app
COPY ./ ./
# 1. 使用中科大镜像源
RUN sed -i 's/deb.debian.org/mirrors.ustc.edu.cn/g' /etc/apt/sources.list
# 2. 安装 wget
RUN apt-get update && apt-get install -y gdb
RUN dpkg -i procdump.deb
RUN echo "#!/bin/bash \n\
procdump -c 20 -n 2 -s 5 -w dotnet /dumps & \n\
dotnet \$1 \n\
" > ./start.sh
RUN chmod +x ./start.sh
ENTRYPOINT ["./start.sh", "AspNetWebApi.dll"]
最后就是 docker 构建。
[root@localhost data]# docker build -t aspnetapp .
[+] Building 0.4s (13/13) FINISHED
[root@localhost data]# docker run -it --rm -p 5001:5001 --privileged -v /data2:/dumps --name aspnetcore_sample aspnetapp
ProcDump v1.5 - Sysinternals process dump utility
Copyright (C) 2023 Microsoft Corporation. All rights reserved. Licensed under the MIT license.
Mark Russinovich, Mario Hewardt, John Salem, Javid Habibi
Sysinternals - www.sysinternals.com
Monitors one or more processes and writes a core dump file when the processes exceeds the
specified criteria.
[03:35:56 - INFO]: Waiting for processes 'dotnet' to launch
[03:35:56 - INFO]: Press Ctrl-C to end monitoring without terminating the process(es).
Process Name: dotnet
CPU Threshold: >= 20%
Commit Threshold: n/a
Thread Threshold: n/a
File Descriptor Threshold: n/a
Signal: n/a
Exception monitor Off
Polling Interval (ms): 1000
Threshold (s): 5
Number of Dumps: 2
Output directory: /dumps
[03:35:56 - INFO]: Starting monitor for process dotnet (8)
info: Microsoft.Hosting.Lifetime[14]
Now listening on: http://[::]:5001
info: Microsoft.Hosting.Lifetime[0]
Application started. Press Ctrl+C to shut down.
info: Microsoft.Hosting.Lifetime[0]
Hosting environment: Production
info: Microsoft.Hosting.Lifetime[0]
Content root path: /app/
看输出是正在监控，接下来我们访问下网址： http://192.168.17.129:5001/cpu ，
稍等片刻之后就会生成两个dump 文件。
三：总结
虽然Docker中的 .NET 程序占比较少，但把经验总结出来还是很值得的，以后有人问怎么抓，可以把这篇文章直接丢过去啦！
