小学生python游戏编程arcade----烟花粒子

前言

接上篇文章继续解绍arcade游戏编程的基本知识。粒子系统

烟花粒子

1、Vector向量类

1.1 arcade中的向量类

RGB = Union[Tuple[int, int, int], List[int]]
RGBA = Union[Tuple[int, int, int, int], List[int]]
Color = Union[RGB, RGBA]
Point = Union[Tuple[float, float], List[float]]
NamedPoint = namedtuple(“NamedPoint”, [“x”, “y”])

Vector = Point

1.2 应用

def __init__(
        self,
        filename_or_texture: arcade.FilenameOrTexture,
        change_xy: Vector,
1
2
3
4

2、绘制粒子所有纹理图片

2.1 给定直径和颜色的圆的纹理

SPARK_textures = [arcade.make_circle_texture(6, clr) for clr in Color_list]

2.2 arcade.make_circle_texture函数原码

def make_circle_texture(diameter: int, color: Color, name: str = None) -> Texture:
    """
    返回具有给定直径和颜色的圆的纹理
    """

    name = name or _build_cache_name("circle_texture", diameter, color[0], color[1], color[2])

    bg_color = (0, 0, 0, 0)  # fully transparent
    img = PIL.Image.new("RGBA", (diameter, diameter), bg_color)
    draw = PIL.ImageDraw.Draw(img)
    draw.ellipse((0, 0, diameter - 1, diameter - 1), fill=color)
    return Texture(name, img)
1
2
3
4
5
6
7
8
9
10
11
12

2.3 make_soft_circle_texture 函数原码

def make_soft_circle_texture(diameter: int, color: Color, center_alpha: int = 255, outer_alpha: int = 0,
                             name: str = None) -> Texture:
    """
    Return a :class:`Texture` of a circle with the given diameter and color, fading out at its edges.

    :param int diameter: Diameter of the circle and dimensions of the square :class:`Texture` returned.
    :param Color color: Color of the circle.
    :param int center_alpha: Alpha value of the circle at its center.
    :param int outer_alpha: Alpha value of the circle at its edges.
    :param str name: Custom or pre-chosen name for this texture

    :returns: New :class:`Texture` object.
    :rtype: arcade.Texture
    """
    # TODO: create a rectangle and circle (and triangle? and arbitrary poly where client passes
    # in list of points?) particle?
    name = name or _build_cache_name("soft_circle_texture", diameter, color[0], color[1], color[2], center_alpha,
                                     outer_alpha)  # name must be unique for caching

    bg_color = (0, 0, 0, 0)  # fully transparent
    img = PIL.Image.new("RGBA", (diameter, diameter), bg_color)
    draw = PIL.ImageDraw.Draw(img)
    max_radius = int(diameter // 2)
    center = max_radius  # for readability
    for radius in range(max_radius, 0, -1):
        alpha = int(lerp(center_alpha, outer_alpha, radius / max_radius))
        clr = (color[0], color[1], color[2], alpha)
        draw.ellipse((center - radius, center - radius, center + radius - 1, center + radius - 1), fill=clr)

    return Texture(name, img)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

2.4 公共纹理代码

Color_list = (  # rainbon 彩虹
    arcade.color.ELECTRIC_CRIMSON,
    arcade.color.FLUORESCENT_ORANGE,
    arcade.color.ELECTRIC_YELLOW,
    arcade.color.ELECTRIC_GREEN,
    arcade.color.ELECTRIC_CYAN,
    arcade.color.MEDIUM_ELECTRIC_BLUE,
    arcade.color.ELECTRIC_INDIGO,
    arcade.color.ELECTRIC_PURPLE,
)

SPARK_textures = [arcade.make_circle_texture(6, clr) for clr in Color_list]
# 火花_对
SPARK_list = [
    [SPARK_textures[0], SPARK_textures[3]],
    [SPARK_textures[1], SPARK_textures[5]],
    [SPARK_textures[7], SPARK_textures[2]],
]
ROCKET_smoke_texture = arcade.make_soft_circle_texture(15, arcade.color.GRAY)
PUFF_texture = arcade.make_soft_circle_texture(80, (40, 40, 40))
FLASH_texture = arcade.make_soft_circle_texture(70, (128, 128, 90))
# 云 纹理
CLOUD_textures = [
    arcade.make_soft_circle_texture(50, arcade.color.WHITE),
    arcade.make_soft_circle_texture(50, arcade.color.LIGHT_GRAY),
    arcade.make_soft_circle_texture(50, arcade.color.LIGHT_BLUE),
]
# 星星 纹理
STAR_textures = [
    arcade.make_soft_circle_texture(8, arcade.color.WHITE),
    arcade.make_soft_circle_texture(8, arcade.color.PASTEL_YELLOW),
]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

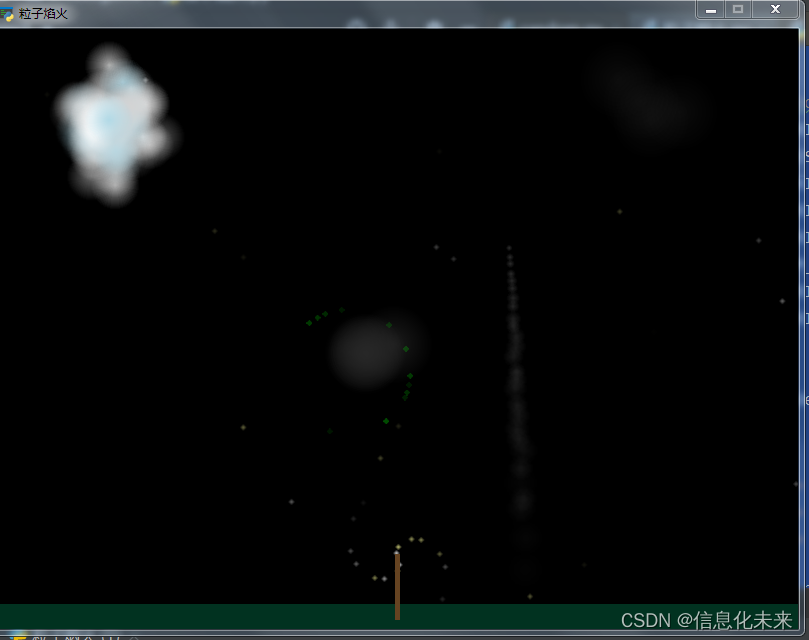

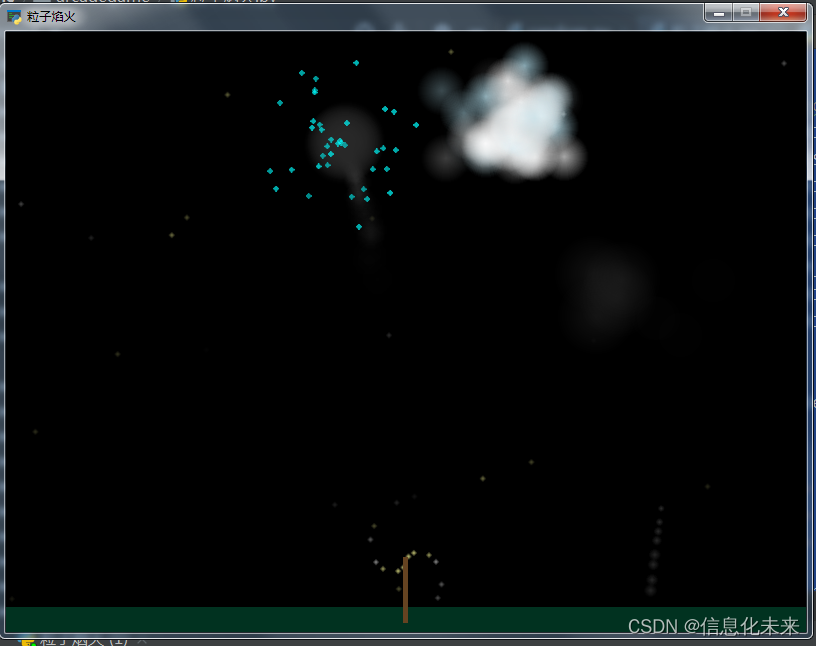

3 效果图

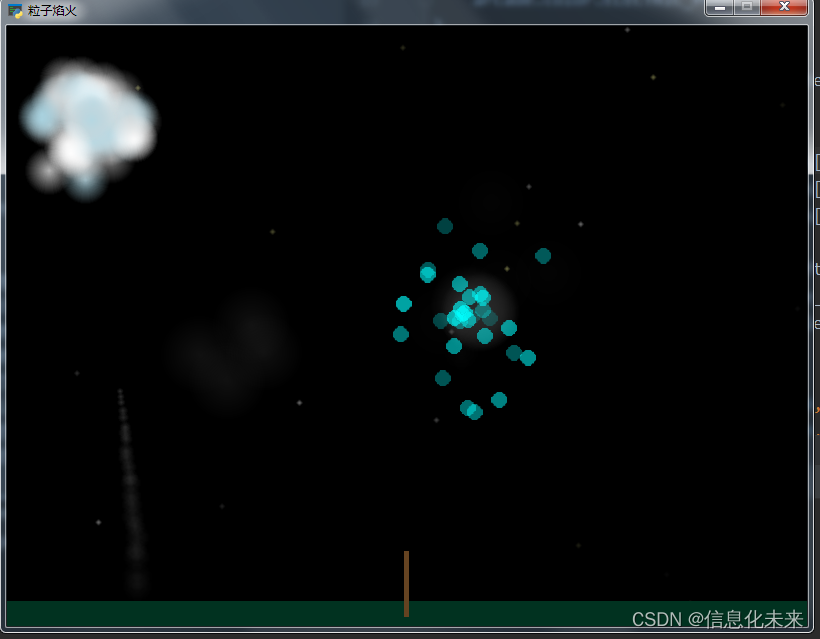

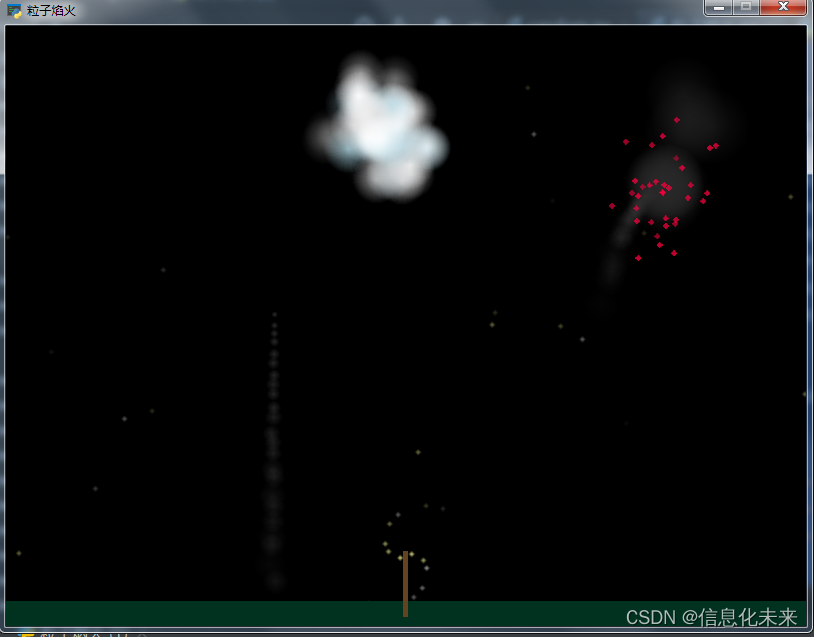

粒子大小改大后

4 代码

"""
粒子焰花
使用焰火展示演示发射器和粒子的“真实世界”用途
"""
import arcade
from arcade import Point, Vector
from arcade.utils import _Vec2  # bring in "private" class
import os
import random
import pyglet

SCREEN_width = 800
SCREEN_height = 600

Color_list = (  # rainbon 彩虹
    arcade.color.ELECTRIC_CRIMSON,
    arcade.color.FLUORESCENT_ORANGE,
    arcade.color.ELECTRIC_YELLOW,
    arcade.color.ELECTRIC_GREEN,
    arcade.color.ELECTRIC_CYAN,
    arcade.color.MEDIUM_ELECTRIC_BLUE,
    arcade.color.ELECTRIC_INDIGO,
    arcade.color.ELECTRIC_PURPLE,
)

SPARK_textures = [arcade.make_circle_texture(6, clr) for clr in Color_list]
# 火花_对
SPARK_list = [
    [SPARK_textures[0], SPARK_textures[3]],
    [SPARK_textures[1], SPARK_textures[5]],
    [SPARK_textures[7], SPARK_textures[2]],
]
ROCKET_smoke_texture = arcade.make_soft_circle_texture(15, arcade.color.GRAY)
PUFF_texture = arcade.make_soft_circle_texture(80, (40, 40, 40))
FLASH_texture = arcade.make_soft_circle_texture(70, (128, 128, 90))
# 云 纹理
CLOUD_textures = [
    arcade.make_soft_circle_texture(50, arcade.color.WHITE),
    arcade.make_soft_circle_texture(50, arcade.color.LIGHT_GRAY),
    arcade.make_soft_circle_texture(50, arcade.color.LIGHT_BLUE),
]
# 星星 纹理
STAR_textures = [
    arcade.make_soft_circle_texture(8, arcade.color.WHITE),
    arcade.make_soft_circle_texture(8, arcade.color.PASTEL_YELLOW),
]
# 旋转器 高
SPINNER_height = 75

# 旋转器  emitter 发射器
def make_spinner():
    spinner = arcade.Emitter(
        center_xy=(SCREEN_width / 2, SPINNER_height - 5),
        emit_controller=arcade.EmitterIntervalWithTime(0.025, 2.0),
        particle_factory=lambda emitter: arcade.FadeParticle(
            filename_or_texture=random.choice(STAR_textures),
            change_xy=(0, 6.0),
            lifetime=0.2
        )
    )
    spinner.change_angle = 16.28
    return spinner


def make_rocket(emit_done_cb):
    """当烟花炮弹升入天空时显示烟雾轨迹的发射器"""
    rocket = RocketEmitter(
        center_xy=(random.uniform(100, SCREEN_width - 100), 25),
        emit_controller=arcade.EmitterIntervalWithTime(0.04, 2.0),
        particle_factory=lambda emitter: arcade.FadeParticle(
            filename_or_texture=ROCKET_smoke_texture,
            change_xy=arcade.rand_in_circle((0.0, 0.0), 0.08),
            scale=0.5,
            lifetime=random.uniform(1.0, 1.5),
            start_alpha=100,
            end_alpha=0,
            mutation_callback=rocket_smoke_mutator
        ),
        emit_done_cb=emit_done_cb
    )
    rocket.change_x = random.uniform(-1.0, 1.0) #
    rocket.change_y = random.uniform(5.0, 7.25)
    return rocket


def make_flash(prev_emitter):
    """当烟花炮弹爆炸时显示短暂闪光的返回发射器"""
    return arcade.Emitter(
        center_xy=prev_emitter.get_pos(),
        emit_controller=arcade.EmitBurst(3),
        particle_factory=lambda emitter: arcade.FadeParticle(
            filename_or_texture=FLASH_texture,
            change_xy=arcade.rand_in_circle((0.0, 0.0), 3.5),
            lifetime=0.15
        )
    )


def make_puff(prev_emitter):
    """返回发射器，用于生成烟花炮弹爆炸后留下的细微烟雾云"""
    return arcade.Emitter(
        center_xy=prev_emitter.get_pos(),
        emit_controller=arcade.EmitBurst(4),
        particle_factory=lambda emitter: arcade.FadeParticle(
            filename_or_texture=PUFF_texture,
            change_xy=(_Vec2(arcade.rand_in_circle((0.0, 0.0), 0.4)) + _Vec2(0.3, 0.0)).as_tuple(),
            lifetime=4.0
        )
    )


class AnimatedAlphaParticle(arcade.LifetimeParticle):
    """在三个不同的alpha级别之间设置动画的自定义粒子"""

    def __init__(
            self,
            filename_or_texture: arcade.FilenameOrTexture,
            change_xy: Vector,
            start_alpha: int = 0,
            duration1: float = 1.0,
            mid_alpha: int = 255,
            duration2: float = 1.0,
            end_alpha: int = 0,
            center_xy: Point = (0.0, 0.0),
            angle: float = 0,
            change_angle: float = 0,
            scale: float = 1.0,
            mutation_callback=None,
    ):
        super().__init__(filename_or_texture,
                         change_xy,
                         duration1 + duration2,
                         center_xy,
                         angle,
                         change_angle,
                         scale,
                         start_alpha,
                         mutation_callback)
        self.start_alpha = start_alpha
        self.in_duration = duration1
        self.mid_alpha = mid_alpha
        self.out_duration = duration2
        self.end_alpha = end_alpha

    def update(self):
        super().update()
        if self.lifetime_elapsed <= self.in_duration:
            u = self.lifetime_elapsed / self.in_duration
            self.alpha = arcade.clamp(arcade.lerp(self.start_alpha, self.mid_alpha, u), 0, 255)
        else:
            u = (self.lifetime_elapsed - self.in_duration) / self.out_duration
            self.alpha = arcade.clamp(arcade.lerp(self.mid_alpha, self.end_alpha, u), 0, 255)


class RocketEmitter(arcade.Emitter):
    """自定义发射器类，向发射器添加重力以表示烟花外壳上的重力"""

    def update(self):
        super().update()
        # 重力
        self.change_y += -0.05


class Game(arcade.Window):
    def __init__(self):
        super().__init__(SCREEN_width, SCREEN_height, '粒子焰火')

        file_path = os.path.dirname(os.path.abspath(__file__))
        os.chdir(file_path)

        arcade.set_background_color(arcade.color.BLACK)
        self.emitters = []

        self.launch_firework(0)
        arcade.schedule(self.launch_spinner, 4.0)

        stars = arcade.Emitter(
            center_xy=(0.0, 0.0),
            emit_controller=arcade.EmitMaintainCount(20),
            particle_factory=lambda emitter: AnimatedAlphaParticle(
                filename_or_texture=random.choice(STAR_textures),
                change_xy=(0.0, 0.0),
                start_alpha=0,
                duration1=random.uniform(2.0, 6.0),
                mid_alpha=128,
                duration2=random.uniform(2.0, 6.0),
                end_alpha=0,
                center_xy=arcade.rand_in_rect((0.0, 0.0), SCREEN_width, SCREEN_height)
            )
        )
        self.emitters.append(stars)

        self.cloud = arcade.Emitter(
            center_xy=(50, 500),
            change_xy=(0.15, 0),
            emit_controller=arcade.EmitMaintainCount(60),
            particle_factory=lambda emitter: AnimatedAlphaParticle(
                filename_or_texture=random.choice(CLOUD_textures),
                change_xy=(_Vec2(arcade.rand_in_circle((0.0, 0.0), 0.04)) + _Vec2(0.1, 0)).as_tuple(),
                start_alpha=0,
                duration1=random.uniform(5.0, 10.0),
                mid_alpha=255,
                duration2=random.uniform(5.0, 10.0),
                end_alpha=0,
                center_xy=arcade.rand_in_circle((0.0, 0.0), 50)
            )
        )
        self.emitters.append(self.cloud)

    def launch_firework(self, delta_time):
        launchers = (
            self.launch_random_firework,
            self.launch_ringed_firework,
            self.launch_sparkle_firework,
        )
        random.choice(launchers)(delta_time)
        pyglet.clock.schedule_once(self.launch_firework, random.uniform(1.5, 2.5))

    def launch_random_firework(self, _delta_time):
        """以随机颜色爆炸的简单烟花"""
        rocket = make_rocket(self.explode_firework)
        self.emitters.append(rocket)

    def launch_ringed_firework(self, _delta_time):
        """"具有基本爆炸和不同颜色圆环形烟花"""
        rocket = make_rocket(self.explode_ringed_firework)
        self.emitters.append(rocket)

    def launch_sparkle_firework(self, _delta_time):
        """火花闪烁的烟花"""
        rocket = make_rocket(self.explode_sparkle_firework)
        self.emitters.append(rocket)

    def launch_spinner(self, _delta_time):
        """启动喷射火花的旋转器"""
        spinner1 = make_spinner()
        spinner2 = make_spinner()
        spinner2.angle = 180
        self.emitters.append(spinner1)
        self.emitters.append(spinner2)

    def explode_firework(self, prev_emitter):
        """烟花炮弹爆炸时发生的动作，生成典型的烟花"""
        self.emitters.append(make_puff(prev_emitter))
        self.emitters.append(make_flash(prev_emitter))

        spark_texture = random.choice(SPARK_textures)
        sparks = arcade.Emitter(
            center_xy=prev_emitter.get_pos(),
            emit_controller=arcade.EmitBurst(random.randint(30, 40)),
            particle_factory=lambda emitter: arcade.FadeParticle(
                filename_or_texture=spark_texture,
                change_xy=arcade.rand_in_circle((0.0, 0.0), 9.0),
                lifetime=random.uniform(0.5, 1.2),
                mutation_callback=firework_spark_mutator
            )
        )
        self.emitters.append(sparks)

    def explode_ringed_firework(self, prev_emitter):
        """当烟花炮弹爆炸时发生的动作，产生环形烟花"""
        self.emitters.append(make_puff(prev_emitter))
        self.emitters.append(make_flash(prev_emitter))

        spark_texture, ring_texture = random.choice(SPARK_list)
        sparks = arcade.Emitter(
            center_xy=prev_emitter.get_pos(),
            emit_controller=arcade.EmitBurst(25),
            particle_factory=lambda emitter: arcade.FadeParticle(
                filename_or_texture=spark_texture,
                change_xy=arcade.rand_in_circle((0.0, 0.0), 8.0),
                lifetime=random.uniform(0.55, 0.8),
                mutation_callback=firework_spark_mutator
            )
        )
        self.emitters.append(sparks)

        ring = arcade.Emitter(
            center_xy=prev_emitter.get_pos(),
            emit_controller=arcade.EmitBurst(20),
            particle_factory=lambda emitter: arcade.FadeParticle(
                filename_or_texture=ring_texture,
                change_xy=arcade.rand_on_circle((0.0, 0.0), 5.0) + arcade.rand_in_circle((0.0, 0.0), 0.25),
                lifetime=random.uniform(1.0, 1.6),
                mutation_callback=firework_spark_mutator
            )
        )
        self.emitters.append(ring)

    def explode_sparkle_firework(self, prev_emitter):
        """烟花炮弹爆炸时发生的动作，产生闪闪发光的烟花"""
        self.emitters.append(make_puff(prev_emitter))
        self.emitters.append(make_flash(prev_emitter))

        spark_texture = random.choice(SPARK_textures)
        sparks = arcade.Emitter(
            center_xy=prev_emitter.get_pos(),
            emit_controller=arcade.EmitBurst(random.randint(30, 40)),
            particle_factory=lambda emitter: AnimatedAlphaParticle(
                filename_or_texture=spark_texture,
                change_xy=arcade.rand_in_circle((0.0, 0.0), 9.0),
                start_alpha=255,
                duration1=random.uniform(0.6, 1.0),
                mid_alpha=0,
                duration2=random.uniform(0.1, 0.2),
                end_alpha=255,
                mutation_callback=firework_spark_mutator
            )
        )
        self.emitters.append(sparks)

    def update(self, delta_time):
        # 在遍历列表时，防止列表发生变化（通常是通过回调）
        emitters_to_update = self.emitters.copy()
        # 更新云
        if self.cloud.center_x > SCREEN_width:
            self.cloud.center_x = 0
        # 更新
        for e in emitters_to_update:
            e.update()
        # 清除
        to_del = [e for e in emitters_to_update if e.can_reap()]
        for e in to_del:
            self.emitters.remove(e)

    def on_draw(self):
        self.clear()
        for e in self.emitters:
            e.draw()
        # 画距形，left, right, top, and bottom
        arcade.draw_lrtb_rectangle_filled(0, SCREEN_width, 25, 0, arcade.color.DARK_GREEN)
        mid = SCREEN_width / 2
        arcade.draw_lrtb_rectangle_filled(mid - 2, mid + 2, SPINNER_height, 10, arcade.color.DARK_BROWN)

    def on_key_press(self, key, modifiers):
        if key == arcade.key.ESCAPE:
            arcade.close_window()


def firework_spark_mutator(particle: arcade.FadeParticle):
    """所有焰火火花共享的mutation_callback"""
    # 重力
    particle.change_y += -0.03
    # drag
    particle.change_x *= 0.92
    particle.change_y *= 0.92


def rocket_smoke_mutator(particle: arcade.LifetimeParticle):
    particle.scale = arcade.lerp(0.5, 3.0, particle.lifetime_elapsed / particle.lifetime_original)


if __name__ == "__main__":
    app = Game()
    arcade.run()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356

源码获取

可关注博主后，私聊博主免费获取
需要技术指导，育娃新思考，企业软件合作等更多服务请联系博主

今天是以此模板持续更新此育儿专栏的第 33/50次。
可以关注我，点赞我、评论我、收藏我啦。
