使用seata实现分布式事务

安装seata

我这里下载的是windows0.9 GA版本，此版本适用于中小型企业，业务并发量不大服务可以自己搭建并且seata不支持集群模式，如果大型企业使用需要使用1.0.0的集群版本，也可以使用阿里云的现成服务GTS，本次搭建的模式为AT模式，下载地址参考seata github下载地址，seata官网请访问这里

下载后解压文件，删除conf目录下的file.conf文件，将file.conf.example文件复制一份为file.conf，修改文件的service和存储模块，自定义事务分组名称、事务日志存储模式为db+数据库连接信息

修改参数名称vgroup_mapping.my_test_tx_group="default"的值为自定义事务分组名称

注意自定义分组名称，否则可能会导致启动项目的时候无法连接

修改事务日志存储模式为db，另外配置MySQL数据库的账号和密码，需要初始化seata数据库名称
修改mode为db以及mysql的连接账号密码

初始化数据库，新建seata数据库，执行conf目录下的db_store.sql文件创建数据库，分别是分支、全局、锁的三张表，对应seata的TC (Transaction Coordinator) - 事务协调者、TM (Transaction Manager) - 事务管理器、RM (Resource Manager) - 资源管理器

初始化回滚日志表，前面的表是在seat对应存储数据库中，这边是在每个微服务下创建对应的表，执行conf目录下的db_undo_log.sql文件，创建对应的表，用于发生事务回滚时日志记录

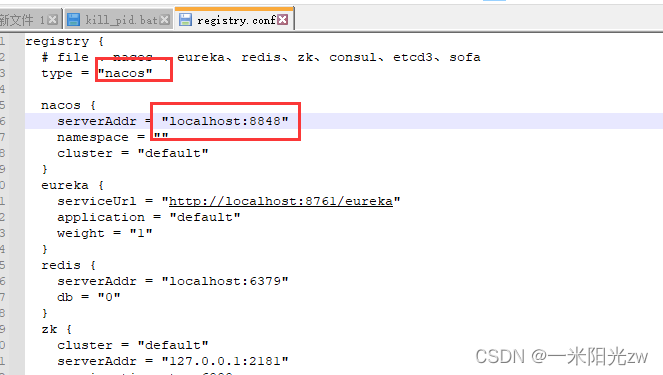

修改seata所需要注册的注册中心以及地址，修改conf目录下的register.conf文件
修改为注册到nacos，type修改为nacos，另外配置连接地址

最后等待nacos启动完成，启动seata

---

springcloud整合seata实现分布式事务管理

本次分布式事务的演示架构图，以订单作为入口，驱动库存和余额的变更

仓储服务:对给定的商品扣除仓储数量。
订单服务:根据采购需求创建订单。
帐户服务:从用户帐户中扣除余额。

对应的数据库也是三个数据库

Order Module

1.pom文件添加依赖

<!--nacos-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <!--seata-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
            <exclusions>
                <exclusion>
                    <artifactId>seata-all</artifactId>
                    <groupId>io.seata</groupId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>io.seata</groupId>
            <artifactId>seata-all</artifactId>
            <version>0.9.0</version>
        </dependency>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

需要注意的是seata依赖自带seata-all，由于版本不一致所以需要排除seata-all单独应用，本次使用的seata版本为0.9.0，所以seata-all也是对应版本，根据自身情况选择版本

2.application.yml中添加seata的相关配置，安装seata时自定义的事务分组名称

spring:
  cloud:
    alibaba:
      seata:
        #自定义事务组名称需要与seata-server中的对应
        tx-service-group: fsp_tx_group
1
2
3
4
5
6

3.resource下新增file.conf文件，文件内容与seata的file.conf内容一致

transport {
    # tcp udt unix-domain-socket
    type = "TCP"
    #NIO NATIVE
    server = "NIO"
    #enable heartbeat
    heartbeat = true
    #thread factory for netty
    thread-factory {
        boss-thread-prefix = "NettyBoss"
        worker-thread-prefix = "NettyServerNIOWorker"
        server-executor-thread-prefix = "NettyServerBizHandler"
        share-boss-worker = false
        client-selector-thread-prefix = "NettyClientSelector"
        client-selector-thread-size = 1
        client-worker-thread-prefix = "NettyClientWorkerThread"
        # netty boss thread size,will not be used for UDT
        boss-thread-size = 1
        #auto default pin or 8
        worker-thread-size = 8
    }
    shutdown {
        # when destroy server, wait seconds
        wait = 3
    }
    serialization = "seata"
    compressor = "none"
}
service {
    #transaction service group mapping
    vgroup_mapping.my_test_tx_group = "fsp_tx_group"
    #only support when registry.type=file, please don't set multiple addresses
    default.grouplist = "127.0.0.1:8091"
    #degrade, current not support
    enableDegrade = false
    #disable seata
    disableGlobalTransaction = false
}

client {
    rm {
        async.commit.buffer.limit = 10000
        lock {
            retry.internal = 10
            retry.times = 30
            retry.policy.branch-rollback-on-conflict = true
        }
        report.retry.count = 5
        table.meta.check.enable = false
        report.success.enable = true
    }
    tm {
        commit.retry.count = 5
        rollback.retry.count = 5
    }
    undo {
        data.validation = true
        log.serialization = "jackson"
        log.table = "undo_log"
    }
    log {
        exceptionRate = 100
    }
    support {
        # auto proxy the DataSource bean
        spring.datasource.autoproxy = false
    }
}

## transaction log store
store {
    ## store mode: file、db
    mode = "db"
    ## file store property
    file {
        ## store location dir
        dir = "sessionStore"
        # branch session size , if exceeded first try compress lockkey, still exceeded throws exceptions
        max-branch-session-size = 16384
        # globe session size , if exceeded throws exceptions
        max-global-session-size = 512
        # file buffer size , if exceeded allocate new buffer
        file-write-buffer-cache-size = 16384
        # when recover batch read size
        session.reload.read_size = 100
        # async, sync
        flush-disk-mode = async
    }

    ## database store property
    db {
        ## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp) etc.
        datasource = "dbcp"
        ## mysql/oracle/h2/oceanbase etc.
        db-type = "mysql"
        driver-class-name = "com.mysql.jdbc.Driver"
        url = "jdbc:mysql://192.168.17.22:3307/seata"
        user = "root"
        password = "yourPwd"
        min-conn = 1
        max-conn = 10
        global.table = "global_table"
        branch.table = "branch_table"
        lock-table = "lock_table"
        query-limit = 100
    }
}
server {
    recovery {
        #schedule committing retry period in milliseconds
        committing-retry-period = 1000
        #schedule asyn committing retry period in milliseconds
        asyn-committing-retry-period = 1000
        #schedule rollbacking retry period in milliseconds
        rollbacking-retry-period = 1000
        #schedule timeout retry period in milliseconds
        timeout-retry-period = 1000
    }
    undo {
        log.save.days = 7
        #schedule delete expired undo_log in milliseconds
        log.delete.period = 86400000
    }
    #unit ms,s,m,h,d represents milliseconds, seconds, minutes, hours, days, default permanent
    max.commit.retry.timeout = "-1"
    max.rollback.retry.timeout = "-1"
}

## metrics settings
metrics {
    enabled = false
    registry-type = "compact"
    # multi exporters use comma divided
    exporter-list = "prometheus"
    exporter-prometheus-port = 9898
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136

4.resource下新增register.conf文件，同样也与seata的配置相同

registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  type = "nacos"

  nacos {
    serverAddr = "localhost:8848"
    namespace = ""
    cluster = "default"
  }
  eureka {
    serviceUrl = "http://localhost:8761/eureka"
    application = "default"
    weight = "1"
  }
  redis {
    serverAddr = "localhost:6379"
    db = "0"
  }
  zk {
    cluster = "default"
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
  }
  consul {
    cluster = "default"
    serverAddr = "127.0.0.1:8500"
  }
  etcd3 {
    cluster = "default"
    serverAddr = "http://localhost:2379"
  }
  sofa {
    serverAddr = "127.0.0.1:9603"
    application = "default"
    region = "DEFAULT_ZONE"
    datacenter = "DefaultDataCenter"
    cluster = "default"
    group = "SEATA_GROUP"
    addressWaitTime = "3000"
  }
  file {
    name = "file.conf"
  }
}

config {
  # file、nacos 、apollo、zk、consul、etcd3
  type = "file"

  nacos {
    serverAddr = "localhost"
    namespace = ""
  }
  consul {
    serverAddr = "127.0.0.1:8500"
  }
  apollo {
    app.id = "seata-server"
    apollo.meta = "http://192.168.1.204:8801"
  }
  zk {
    serverAddr = "127.0.0.1:2181"
    session.timeout = 6000
    connect.timeout = 2000
  }
  etcd3 {
    serverAddr = "http://localhost:2379"
  }
  file {
    name = "file.conf"
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74

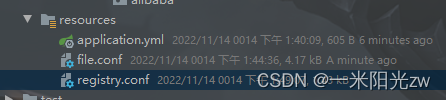

项目中的目录结构

5.修改MySQL的数据库源，自定义项目conf目录下新增DataSourceProxyConfig类创建相关的Bean对象

package com.atguigu.springcloud.alibaba.config;

import com.alibaba.druid.pool.DruidDataSource;
import io.seata.rm.datasource.DataSourceProxy;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.transaction.SpringManagedTransactionFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;

import javax.sql.DataSource;

/**
 * @auther Czw
 * @create 2021-11-14 13:58
 * 使用Seata对数据源进行代理
 */
@Configuration
public class DataSourceProxyConfig {

    @Value("${mybatis.mapperLocations}")
    private String mapperLocations;

    @Bean
    @ConfigurationProperties(prefix = "spring.datasource")
    public DataSource druidDataSource() {
        return new DruidDataSource();
    }

    @Bean
    public DataSourceProxy dataSourceProxy(DataSource dataSource) {
        return new DataSourceProxy(dataSource);
    }

    @Bean
    public SqlSessionFactory sqlSessionFactoryBean(DataSourceProxy dataSourceProxy) throws Exception {
        SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
        sqlSessionFactoryBean.setDataSource(dataSourceProxy);
        sqlSessionFactoryBean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources(mapperLocations));
        sqlSessionFactoryBean.setTransactionFactory(new SpringManagedTransactionFactory());
        return sqlSessionFactoryBean.getObject();
    }

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

6.项目启动类上排除自带的数据源

@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)//取消数据源的自动创建
1

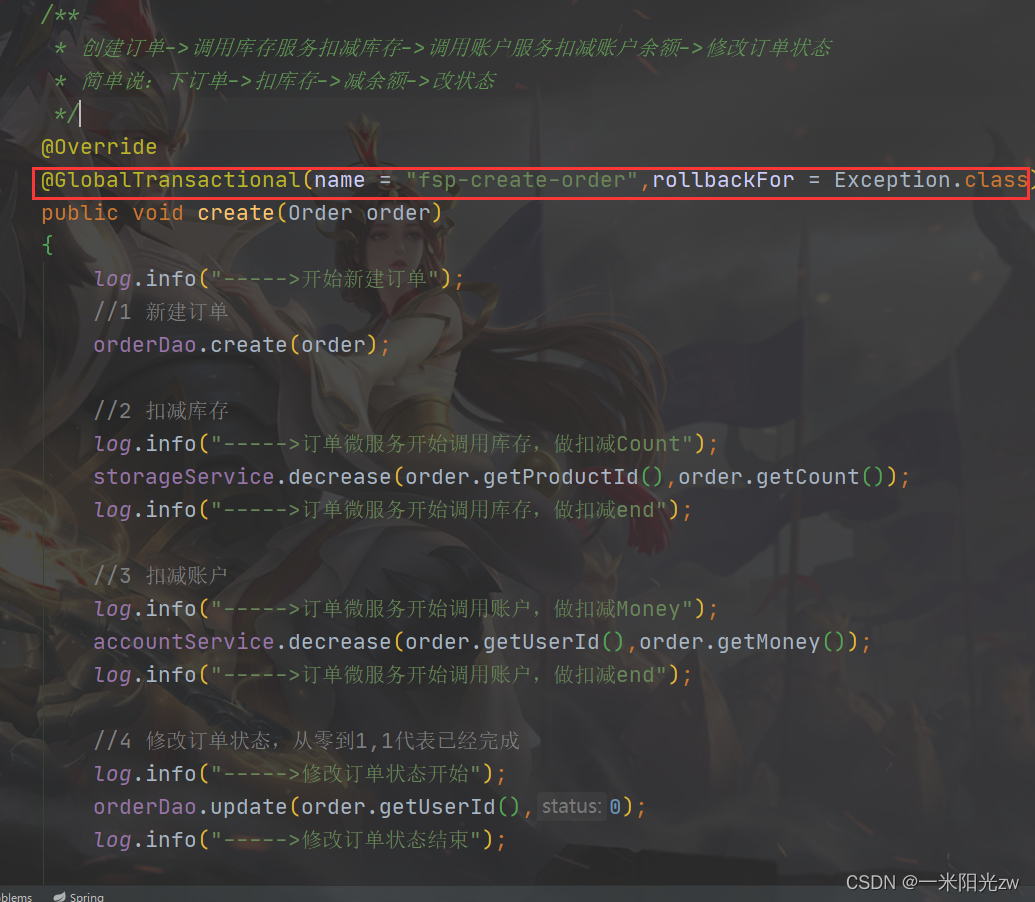

7.在业务逻辑serviceImpl中添加全局事务注解 @GlobalTransactional(name = “fsp-create-order”,rollbackFor = Exception.class)

Storage Module & Account Module

前面1-6的操作与Order Module步骤一致，注意修改数据库名称参数,第七步不需要在这两个模块中操作

为了模拟事务回滚，在Account的serviceImpl模块加入线程睡眠代码用于测试异常事务回滚

		//模拟超时异常，全局事务回滚
        //暂停几秒钟线程
        try {
            TimeUnit.SECONDS.sleep(20);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }

		//扣减金额业务.....
1
2
3
4
5
6
7
8
9
