SpringBoot+Vue实现的高校图书馆管理系统 附带详细运行指导视频

一、项目演示

项目演示地址： 视频地址

二、项目介绍

项目描述：这是一个基于SpringBoot+Vue框架开发的高校图书馆管理系统。首先，这是一个前后端分离的项目，代码简洁规范，注释说明详细，易于理解和学习。其次，这项目功能丰富，具有一个高校图书馆管理系统该有的所有功能。

项目功能：此项目分为两个角色：学生和管理员。学生有登录注册、管理个人信息、浏览座位信息、预约选座、浏览图书信息、借阅图书、浏览借阅信息、管理预约信息等等功能。管理员有管理所有用户新息、管理所有座位信息、管理所有时刻信息、管理所有信誉积分信息、管理所有图书信息、管理所有预约选座、借阅信息等等功能。

应用技术：SpringBoot + Vue + MySQL + MyBatis + Redis + ElementUI

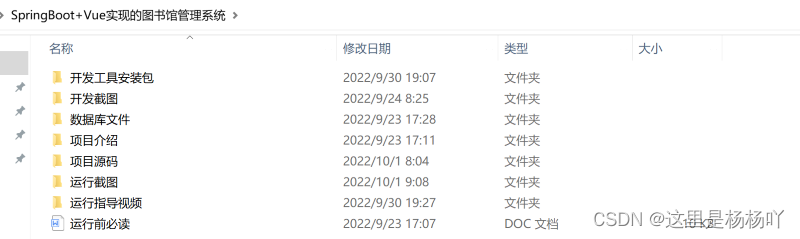

运行环境：IntelliJ IDEA2019.3.5 + MySQL5.7（项目压缩包中自带) + Redis5.0.5（项目压缩包中自带） + JDK1.8 + Gradle5.6.4（项目压缩包中自带）+ Node14.16.1（项目压缩包中自带）

三、项目运行截图

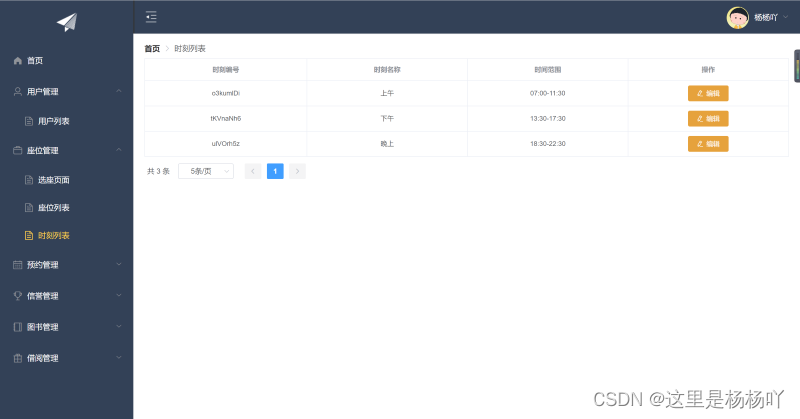

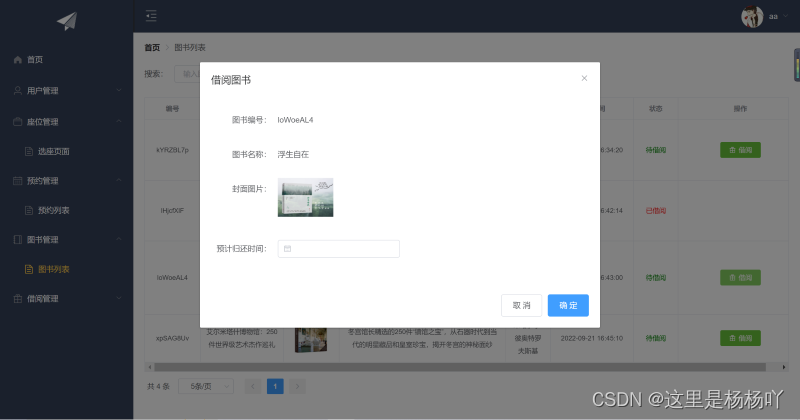

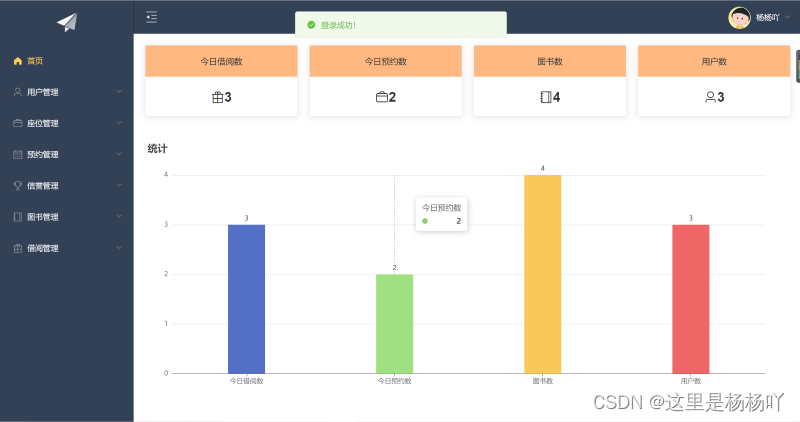

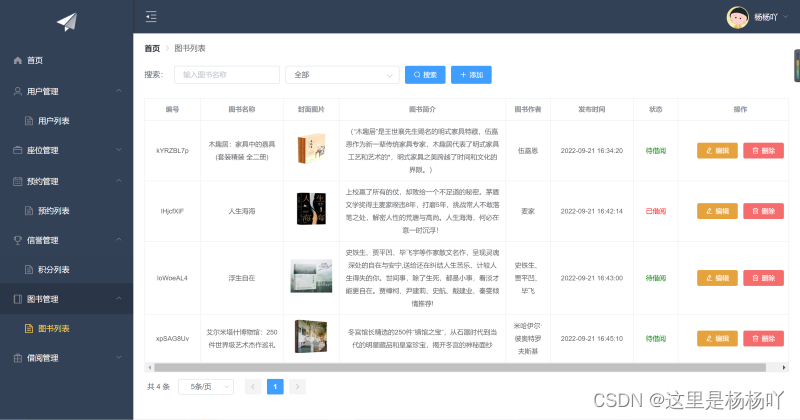

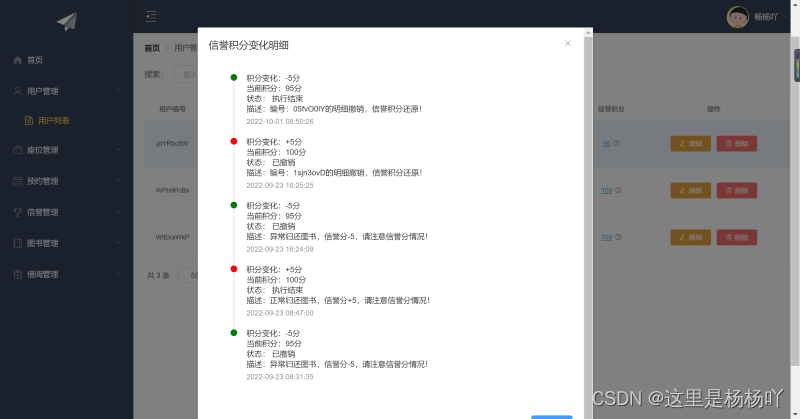

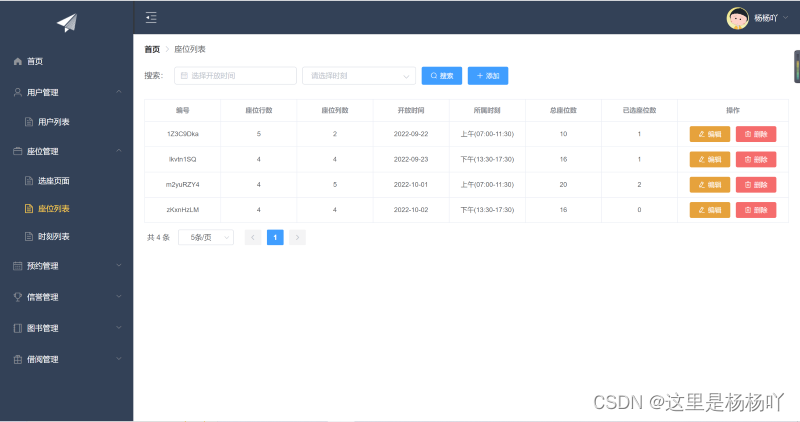

项目运行截图：

四、主要代码

1.前端预约选座页面代码：

<template>
    <div>

        <el-breadcrumb separator-class="el-icon-arrow-right">
            <el-breadcrumb-item :to="{ path: '/home/dash-board' }">首页el-breadcrumb-item>
            <el-breadcrumb-item>选座页面el-breadcrumb-item>
        el-breadcrumb>

        <el-form :inline="true" :model="searchParams" class="user-search">
            <el-form-item label="搜索：">
                <el-date-picker
                        value-format="yyyy-MM-dd"
                        format="yyyy-MM-dd"
                        size="small"
                        v-model="searchParams.openTime"
                        type="date"
                        :picker-options="pickerOptions"
                        :clearable="false"
                        :editable="false">
                el-date-picker>
            el-form-item>
            <el-form-item>
                <el-select v-model="searchParams.scheduleId" size="small" placeholder="请选择时刻">
                    <el-option v-for="(item, index) in scheduleList" :key="index" :label="item.name + '(' + item.rangeTime + ')'" :value="item.id">el-option>
                el-select>
            el-form-item>
            <el-form-item>
                <el-button size="small" type="primary" icon="el-icon-search" @click="searchByTime">搜索el-button>
                <el-button size="small" v-if="loginUser.roleId === 1" type="primary" icon="el-icon-date" @click="pickOrderSeat">预约el-button>
            el-form-item>
        el-form>
        <el-table :key="index" v-if="seat.row !== 0 && seat.col !== 0" size="small" :data="tableData" v-loading="loading" border element-loading-text="拼命加载中" style="width: 100%;">
            <el-table-column width="55">
                <template slot-scope="scope">
                    <span style="color: #909399; font-weight: bold;">第{{scope.$index + 1}}行span>
                template>
            el-table-column>
            <el-table-column :width="seat.col > 9 ? 150 : ''" v-for="n in seat.col" :key="n"  align="center" :label="'第' + n + '列'" >
                <template slot-scope="scope">

                    <el-badge v-if="scope.row.picked[n-1] === 0" type="danger" value="占座" style="margin-top: 10px">
                        <img style="width: 30px; height: 30px; margin-top: 10px"
                             src="../../assets/img/sold_seat.jpg" />
                        <div>第{{scope.$index + 1}}行第{{n}}列div>
                    el-badge>
                    <el-badge v-else-if="scope.row.picked[n-1] === 1" type="primary" value="可选" style="margin-top: 10px">
                        <div @click="pickSeat(scope.$index, n-1)">
                            <img style="width: 30px; height: 30px; margin-top: 10px"
                                 src="../../assets/img/selectable_seat.jpg" />
                            <div>第{{scope.$index + 1}}行第{{n}}列div>
                        div>
                    el-badge>
                    <el-badge v-else-if="scope.row.picked[n-1] === 2" type="success" value="选中" style="margin-top: 10px">
                        <div @click="cancelSeat(scope.$index + 1, n)">
                            <img style="width: 30px; height: 30px; margin-top: 10px"
                                 src="../../assets/img/selected_seat.jpg" />
                            <div>第{{scope.$index + 1}}行第{{n}}列div>
                        div>
                    el-badge>
                template>
            el-table-column>
        el-table>

        <el-empty v-else :image-size="200">el-empty>
    div>
template>

<script>
    export default {
        name: 'PickList',
        data() {
            return {
                pickerOptions: {
                    disabledDate: (time) => {
                        return time.getTime() < Date.now() - 8.64e7
                    }
                },
                searchParams: {
                    openTime: '',
                    scheduleId: ''
                },
                seat: {
                    row: 0,
                    col: 0
                },
                scheduleList: [],
                loading: false,
                tableData: [],
                pickSeatList: [],
                seatItemList: [],
                index: 0,
                loginUser: {}
            }
        },
        created() {
            this.searchParams.openTime = this.getNowDay();
            this.getLoginUser();
            this.getAllScheduleList();
        },
        methods: {
            getNowDay() {
                let date = new Date();
                let y = date.getFullYear();
                let m = date.getMonth() + 1;
                m = m < 10 ? ('0' + m) : m;
                let d = date.getDate();
                d = d < 10 ? ('0' + d) : d;
                return  y + '-' + m + '-' + d;
            },
            getLoginUser() {
                this.$ajax.post("/user/getLoginUser", {token: Tool.getLoginUser()}).then((response)=>{
                    let resp = response.data;
                    if(resp.code === 0){
                        if(resp.data) {
                            this.loginUser = resp.data;
                        } else {
                            this.$message.error(resp.msg);
                            this.$router.push("/login");
                        }
                    }
                });
            },
            pickSeat(row, col) {
                if(this.pickSeatList.length >= 1) {
                    this.$message.warning("一次最多只能选1个座位！");
                    return false;
                }
                this.tableData[row].picked[col] = 2;
                // 动态刷新表格
                this.index = this.index + 1;
                this.pickSeatList.push({row: row + 1, col: col + 1});
            },
            cancelSeat(row, col) {
                this.tableData[row-1].picked[col-1] = 1;
                // 动态刷新表格
                this.index = this.index + 1;
                let nowSeatList = [];
                this.pickSeatList.forEach(item => {
                    if(item.col !== col || item.row !== row) {
                        nowSeatList.push(item);
                    }
                });
                this.pickSeatList = nowSeatList;
            },
            getSeatBySearch() {
                this.loading = true;
                this.$ajax.post("/seat/getByTime", this.searchParams).then((response)=>{
                    let resp = response.data;
                    if(resp.code === 0){
                        if(resp.data) {
                            this.seat = resp.data;
                            this.getSeatItem();
                        } else {
                            this.seat = {row: 0, col: 0};
                        }
                    }
                });
            },
            initSeatDetailList() {
                this.tableData = [];
                for(let i=1; i<=this.seat.row; i++) {
                    let item = {picked: []};
                    for(let j=1; j<=this.seat.col; j++) {
                        item.picked.push(this.isPicked(i, j));
                    }
                    this.tableData.push(item);
                }
                this.loading = false;
            },
            isPicked(row, col) {
                let result = 1;
                this.seatItemList.forEach(item => {
                    if(item.row === row && item.col === col) {
                        result =  0; // 已被占座
                    }
                });
                return result; // 未被占座
            },
            getSeatItem() {
                this.$ajax.post("/seat/getItemBySeatId", {id: this.seat.id}).then((response)=>{
                    let resp = response.data;
                    if(resp.code === 0){
                        this.seatItemList = resp.data;
                        this.initSeatDetailList();
                    } else {
                        this.$message.error(resp.msg);
                    }
                });
            },
            pickOrderSeat() {
                 if(this.pickSeatList.length === 0) {
                     this.$message.warning("请至少选择一个座位！");
                     return false;
                 }
                 let seat = this.pickSeatList[0];
                 this.$confirm('确定要预约第'+ seat.row +'行第'+ seat.col +'列的座位？', '提示', {
                    confirmButtonText: '确定',
                    cancelButtonText: '取消',
                    type: 'warning'
                 }).then(() => {
                     this.$ajax.post("/seat/pick", {...seat, seatId: this.seat.id, userId: this.loginUser.id}).then((response)=>{
                         let resp = response.data;
                         if(resp.code === 0){
                             this.$message.success(resp.msg);
                             this.getSeatBySearch();
                             this.pickSeatList = [];
                         } else {
                             this.$message.error(resp.msg);
                         }
                     });
                 });
            },
            searchByTime() {
                this.$confirm('搜索将导致当前选中的记录丢失，确认继续此操作？', '提示', {
                    confirmButtonText: '确定',
                    cancelButtonText: '取消',
                    type: 'warning'
                }).then(() => {
                    this.pickSeatList = [];
                    this.getSeatBySearch();
                });
            },
            getAllScheduleList() {
                this.$ajax.post("/schedule/all").then((response)=>{
                    let resp = response.data;
                    if(resp.code === 0){
                        this.scheduleList = resp.data;
                        this.searchParams.scheduleId = this.scheduleList[0] ? this.scheduleList[0].id : '';
                        this.getSeatBySearch();
                    }
                });
            }
        }
    }
script>

<style scoped>
    .user-search {
        margin-top: 20px;
    }
    /deep/ .el-table tbody tr:hover>td {
        background-color:unset !important
    }
style>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244

2.借阅图书业务逻辑代码：

	/**
     * 借阅图书操作
     * @param rentalItemDTO
     * @return
     */
    @Override
    public ResponseDTO<Boolean> rentalBook(RentalItemDTO rentalItemDTO) {
        // 进行统一表单验证
        CodeMsg validate = ValidateEntityUtil.validate(rentalItemDTO);
        if(!validate.getCode().equals(CodeMsg.SUCCESS.getCode())){
            return ResponseDTO.errorByMsg(validate);
        }
        User user = userMapper.selectByPrimaryKey(rentalItemDTO.getUserId());
        if(user == null) {
            return ResponseDTO.errorByMsg(CodeMsg.USER_NOT_EXIST);
        }
        if (user.getCreditRate() < 80) {
            return ResponseDTO.errorByMsg(CodeMsg.CREDIT_RENTAL_ERROR);
        }
        Book book = bookMapper.selectByPrimaryKey(rentalItemDTO.getBookId());
        if(book == null) {
            return ResponseDTO.errorByMsg(CodeMsg.BOOK_NOT_EXIST);
        }
        if(CommonUtil.differentDaysByMillisecond(new Date(), rentalItemDTO.getPredictTime()) > 180) {
            return  ResponseDTO.errorByMsg(CodeMsg.BOOK_RENTAL_TIME_OVER);
        }
        // 修改图书状态 乐观锁控制
        BookExample bookExample = new BookExample();
        bookExample.createCriteria().andIdEqualTo(book.getId()).andVersionEqualTo(book.getVersion());
        book.setState(BookStateEnum.RENTAL.getCode());
        book.setVersion(book.getVersion() + 1);
        if(bookMapper.updateByExampleSelective(book, bookExample) == 0) {
            return ResponseDTO.errorByMsg(CodeMsg.BOOK_EDIT_ERROR);
        }
        // 写入借阅详情信息
        RentalItem rentalItem = CopyUtil.copy(rentalItemDTO, RentalItem.class);
        rentalItem.setId(UuidUtil.getShortUuid());
        rentalItem.setCreateTime(new Date());
        rentalItem.setBookName(book.getName());
        rentalItem.setBookPhoto(book.getPhoto());
        rentalItem.setState(RentalItemStateEnum.RENTAL.getCode());
        if(rentalItemMapper.insertSelective(rentalItem) == 0) {
            throw new RuntimeException(CodeMsg.BOOK_RENTAL_ERROR.getMsg());
        }
        return ResponseDTO.successByMsg(true, "借阅成功！");
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

3.用户登录业务逻辑代码：

 	/**
     * 用户登录操作
     * @param userDTO
     * @return
     */
    @Override
    public ResponseDTO<UserDTO> login(UserDTO userDTO) {
        // 进行是否为空判断
        if(CommonUtil.isEmpty(userDTO.getUsername())){
            return ResponseDTO.errorByMsg(CodeMsg.USERNAME_EMPTY);
        }
        if(CommonUtil.isEmpty(userDTO.getPassword())){
            return ResponseDTO.errorByMsg(CodeMsg.PASSWORD_EMPTY);
        }
        if(CommonUtil.isEmpty(userDTO.getCaptcha())){
            return ResponseDTO.errorByMsg(CodeMsg.CAPTCHA_EMPTY);
        }
        if(CommonUtil.isEmpty(userDTO.getCorrectCaptcha())){
            return ResponseDTO.errorByMsg(CodeMsg.CAPTCHA_EXPIRED);
        }
        // 比对验证码是否正确
        String value = stringRedisTemplate.opsForValue().get((userDTO.getCorrectCaptcha()));
        if(CommonUtil.isEmpty(value)){
            return ResponseDTO.errorByMsg(CodeMsg.CAPTCHA_EXPIRED);
        }
        if(!value.toLowerCase().equals(userDTO.getCaptcha().toLowerCase())){
            return ResponseDTO.errorByMsg(CodeMsg.CAPTCHA_ERROR);
        }
        // 对比昵称和密码是否正确
        UserExample userExample = new UserExample();
        // select * from user where username = ? and password = ?
        userExample.createCriteria().andUsernameEqualTo(userDTO.getUsername()).andPasswordEqualTo(userDTO.getPassword());
        List<User> userList = userMapper.selectByExample(userExample);
        if(userList == null || userList.size() != 1){
            return ResponseDTO.errorByMsg(CodeMsg.USERNAME_PASSWORD_ERROR);
        }
        // 生成登录token并存入Redis中
        UserDTO selectedUserDto = CopyUtil.copy(userList.get(0), UserDTO.class);
        String token = UuidUtil.getShortUuid();
        selectedUserDto.setToken(token);
        //把token存入redis中 有效期1小时
        stringRedisTemplate.opsForValue().set("USER_" + token, JSON.toJSONString(selectedUserDto), 3600, TimeUnit.SECONDS);
        return ResponseDTO.successByMsg(selectedUserDto, "登录成功！");
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
