Index Files and B+ Tree Refinements(听课笔记)

General characteristics of an index : An Outline

Issue to consider in any index structure(not just B+-trees)

• Query support : what class of queries does the index allow?
• Choice of Search Key(Affects the queries for which we can use an index)
• Data Entry Storage(Affects performance of the index)
• Variable -length key tricks (Affects performance of the index)

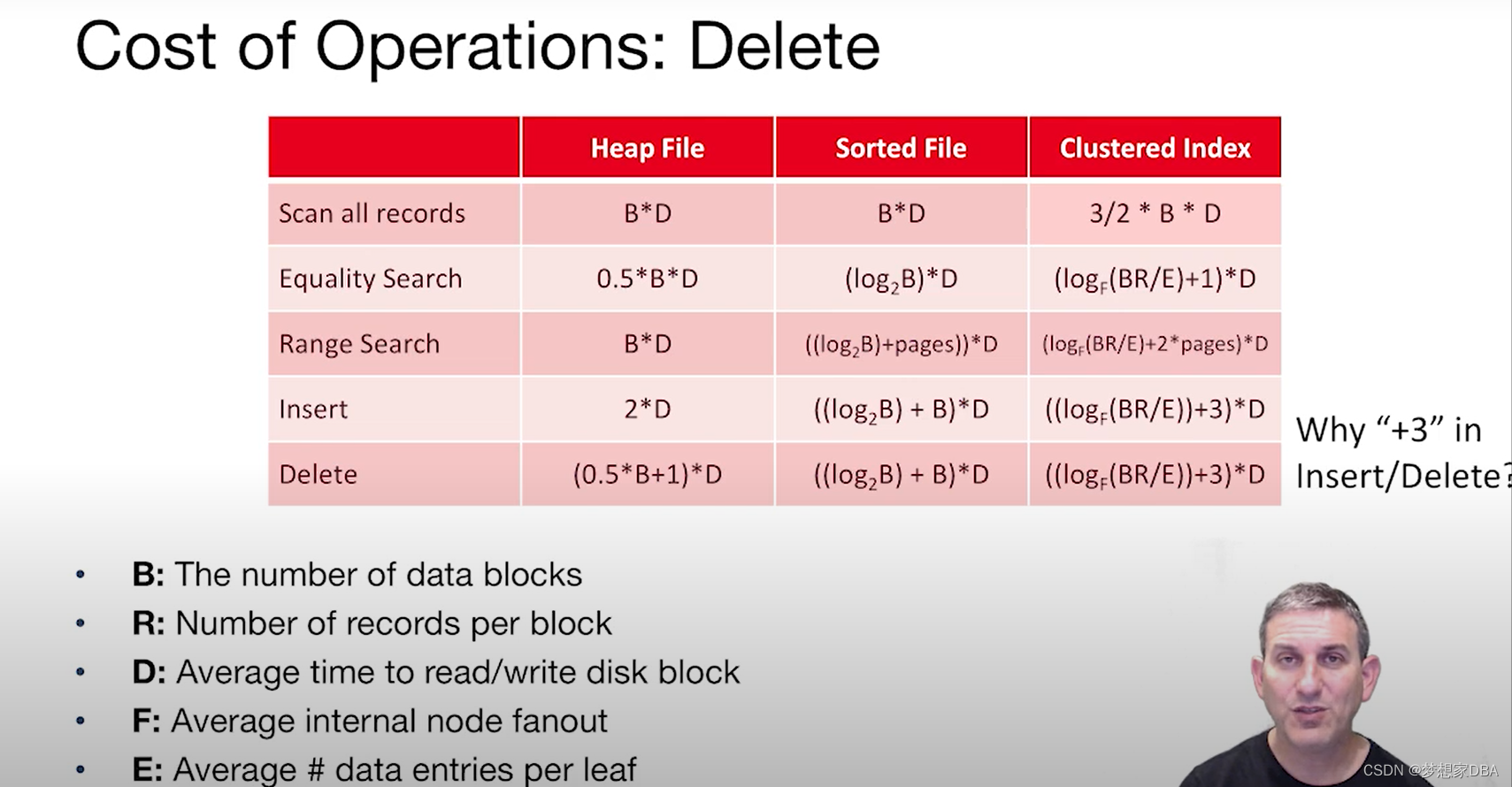

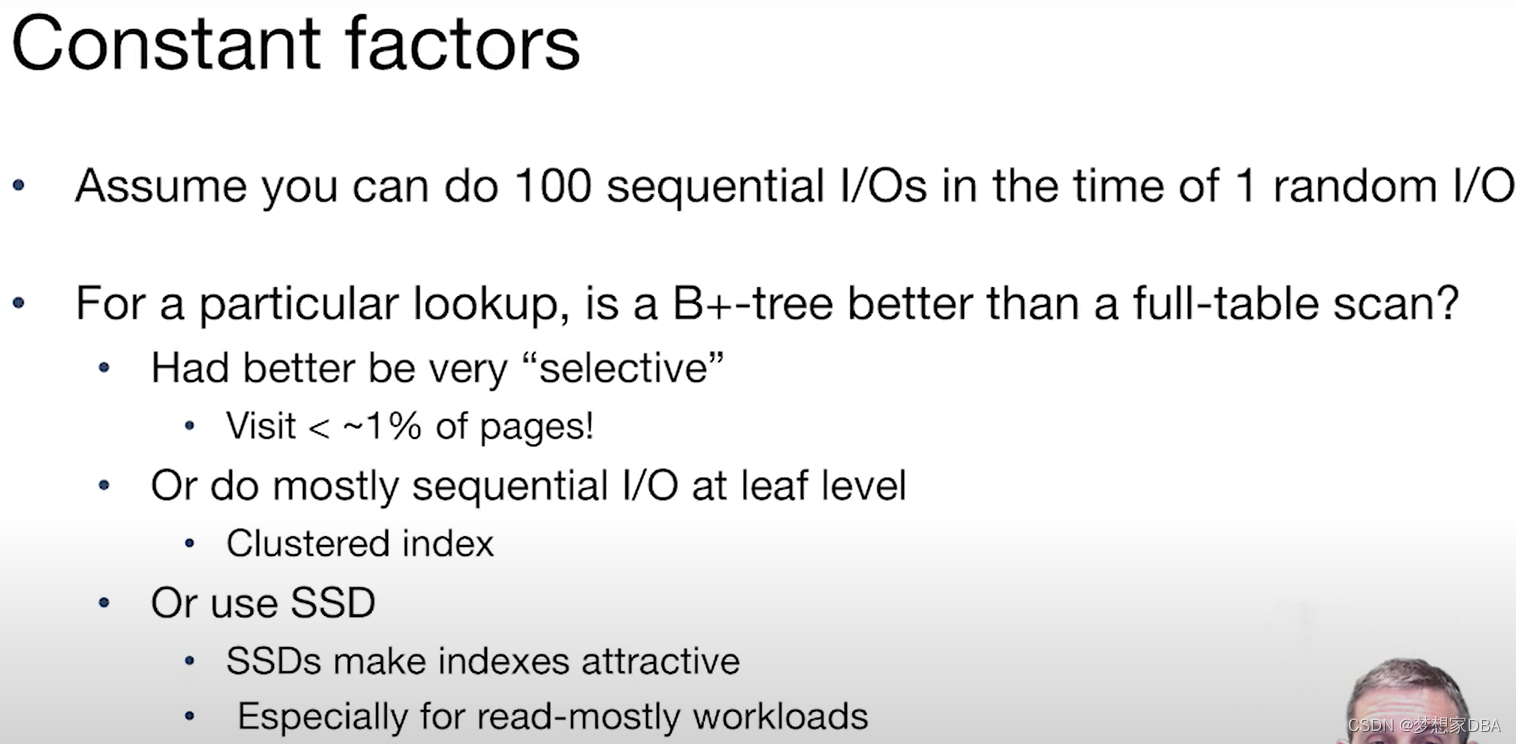

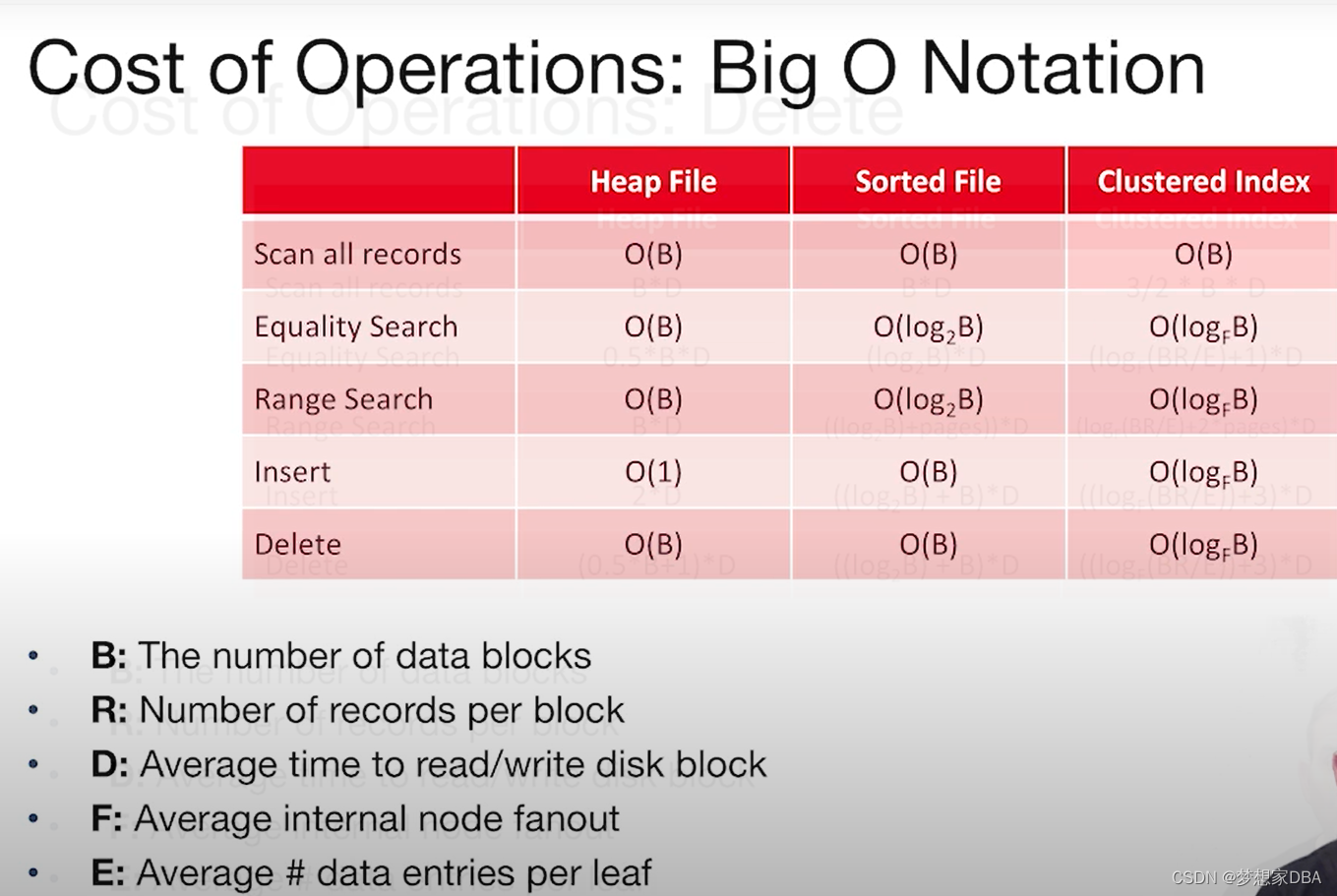

• Cost Model for Index vs Heap vs Stored File

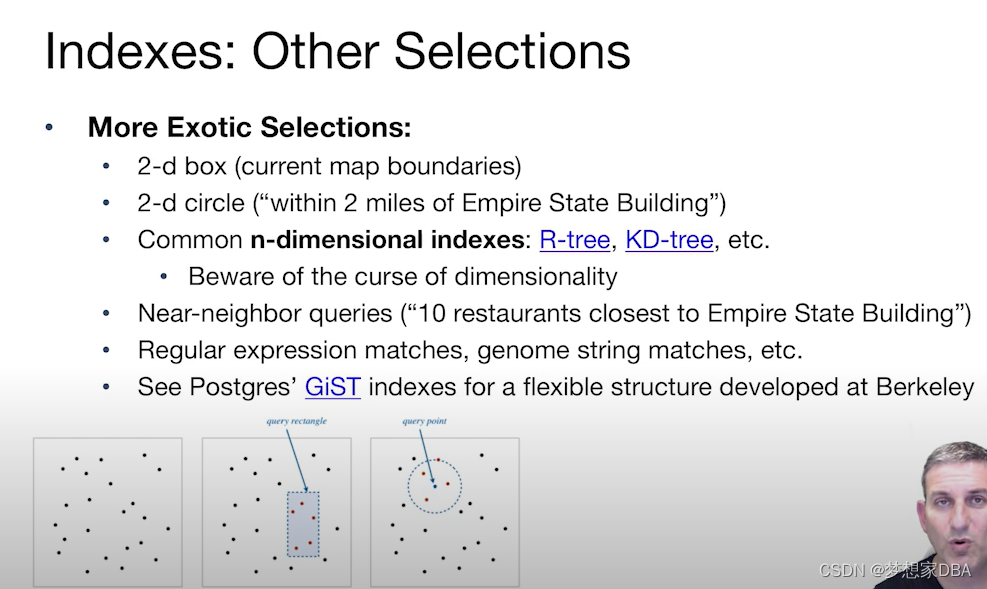

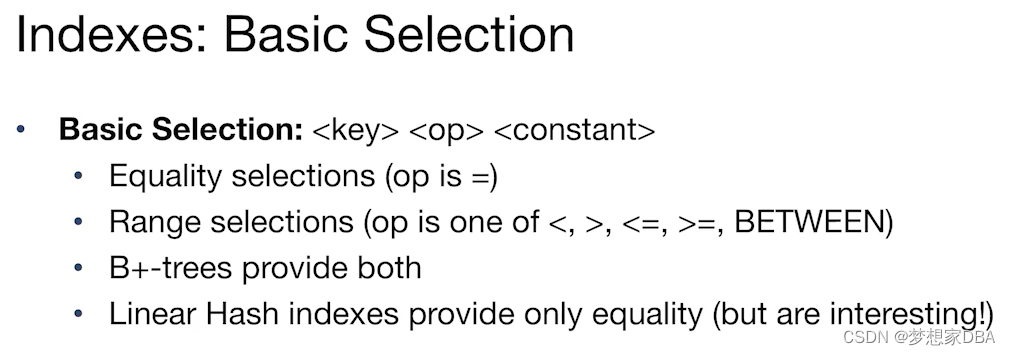

Query support

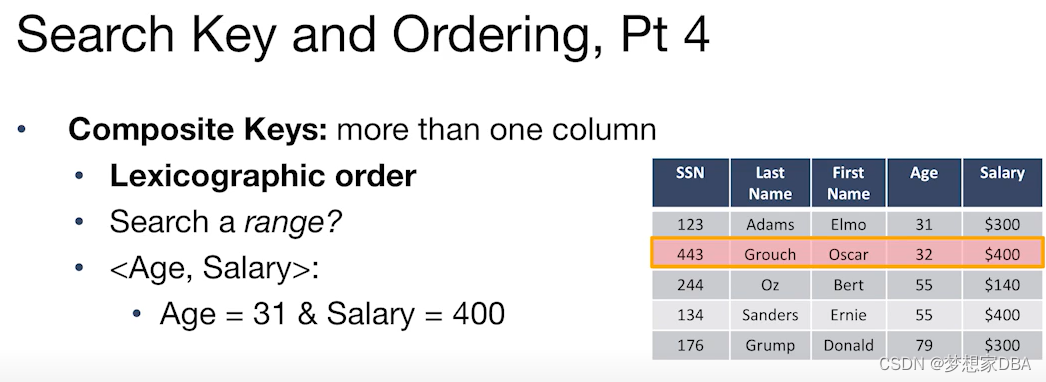

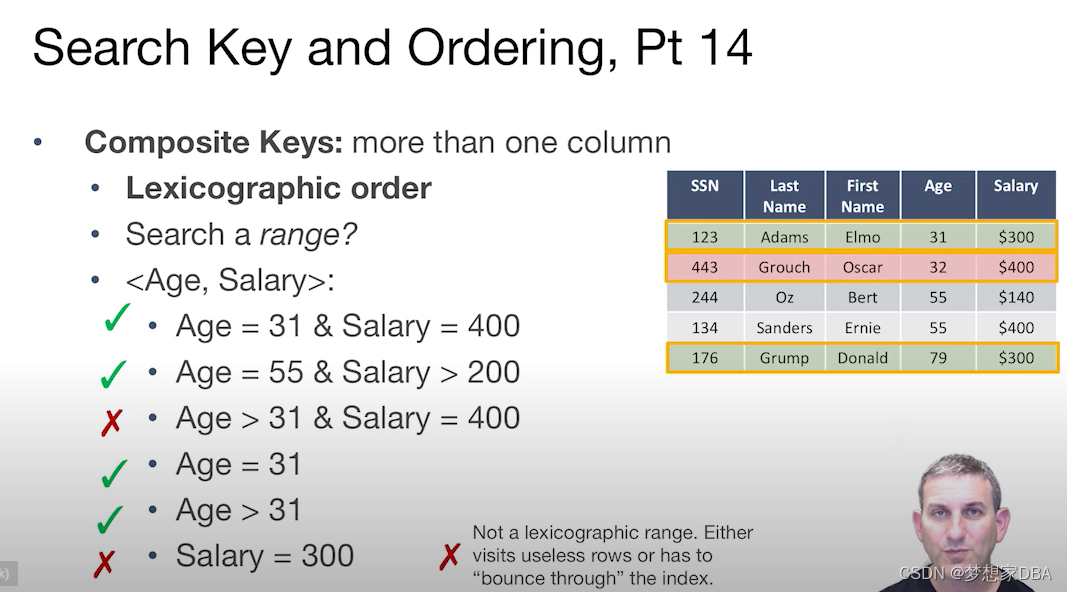

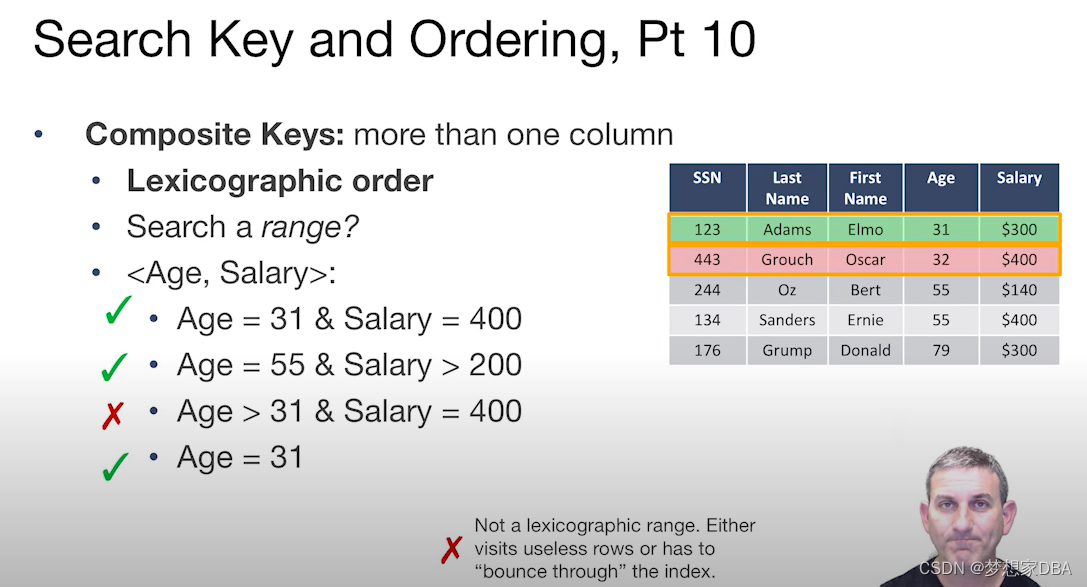

Part 3 Composite Search Keys in One Dimension

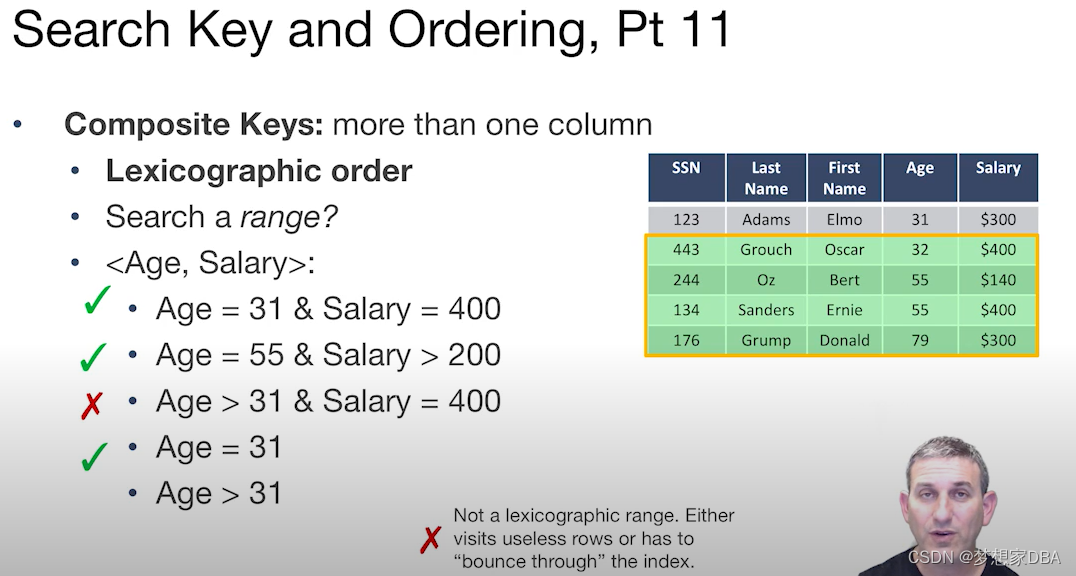

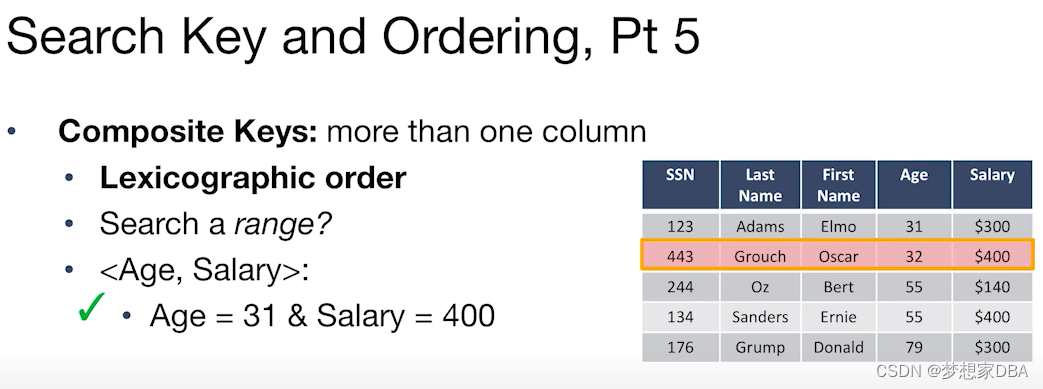

Search Key and Ordering

















 Data Entry Storage Intro

• What is the representation of data in the index?(Actual data or pointer to the data)
• How is the data stored in the data file?(Clustered or unclustered with respect to the index)
• Big Impact on Performance

 Three basic alternatives for data entries in any index

• Three basic alternatives for data entries in any index

1. Alternative 1: By Value
2. Alternative 2: By Reference
3. Alternative 3: By List of references

Alternative 1 Index (B+ Tree)

Record content are stored in the index file

No need to follow pointers

Alternative 2 Index

Alternative 2: By Reference ,

We used in slides above.

Alternative  3 Index

Alternative 3: By List of references ,

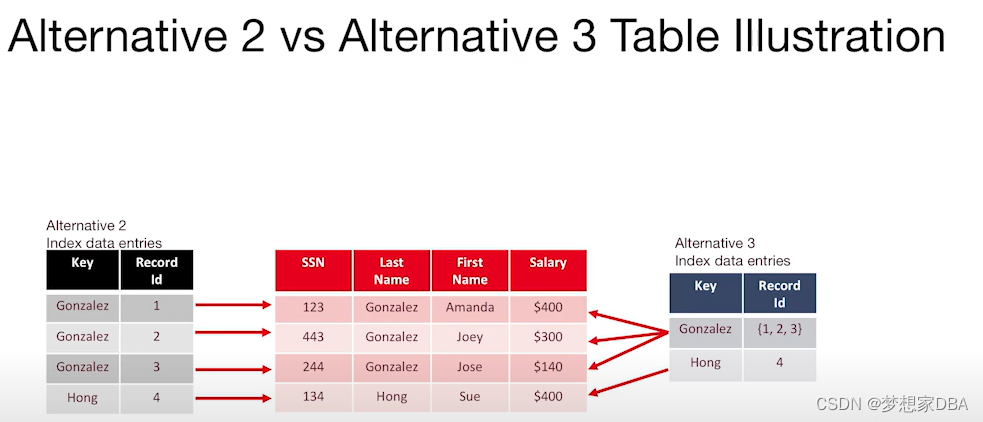

Alternative 3 more compact than alternative 2

For very large rid lists ,single data entry spans multiples blocks.

Indexing By Reference

Both Alternative 2 and Alternative 3 index data by reference

By-reference is required to support multiple indexes per table

Otherwise we would be replicating entire tuples

Replicating data leads to complexity when we're doing updates ,so it's something we want to avoid.

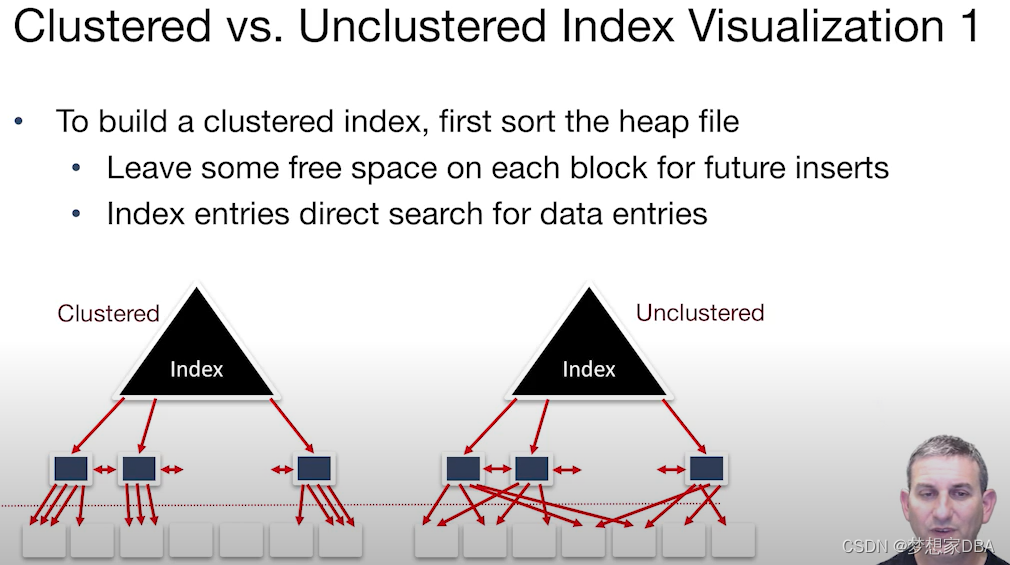

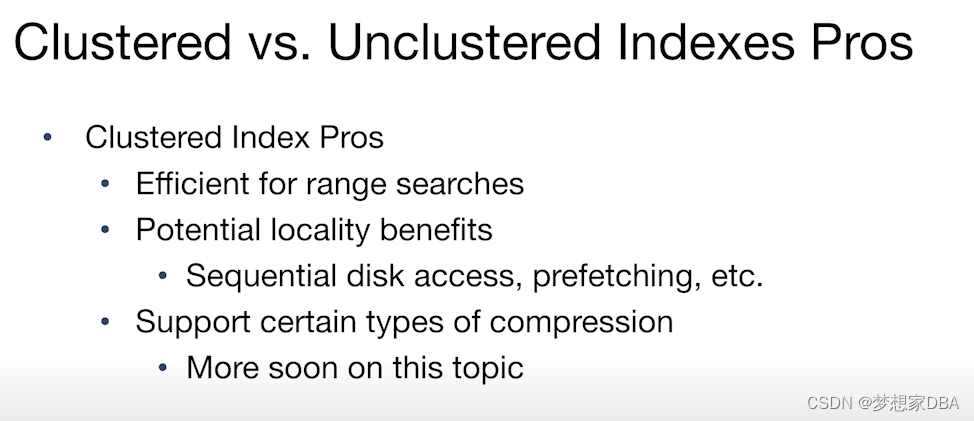

 Part 5 Clustered vs Unclustered Indexes

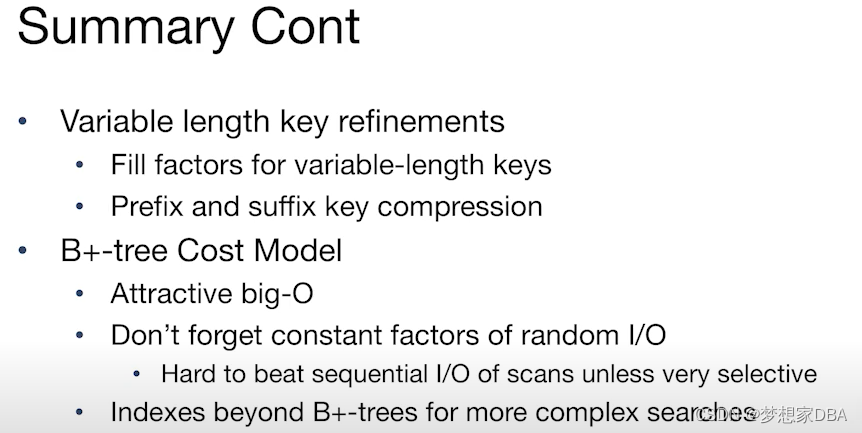

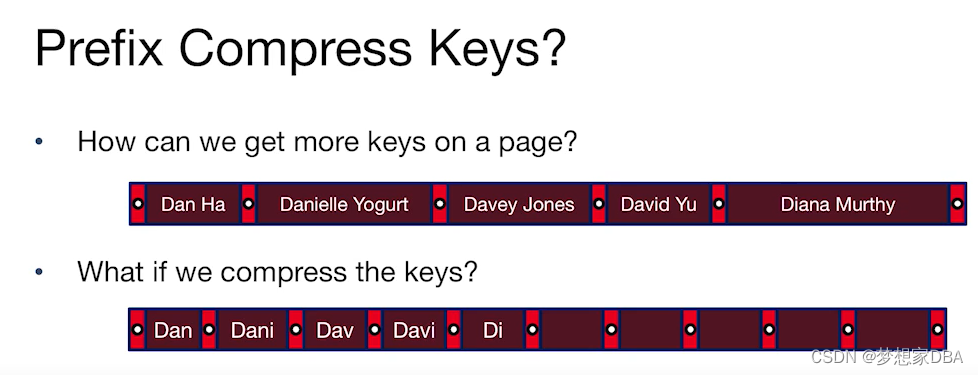

 Part6 Variable Length Keys : Occupancy and Compression

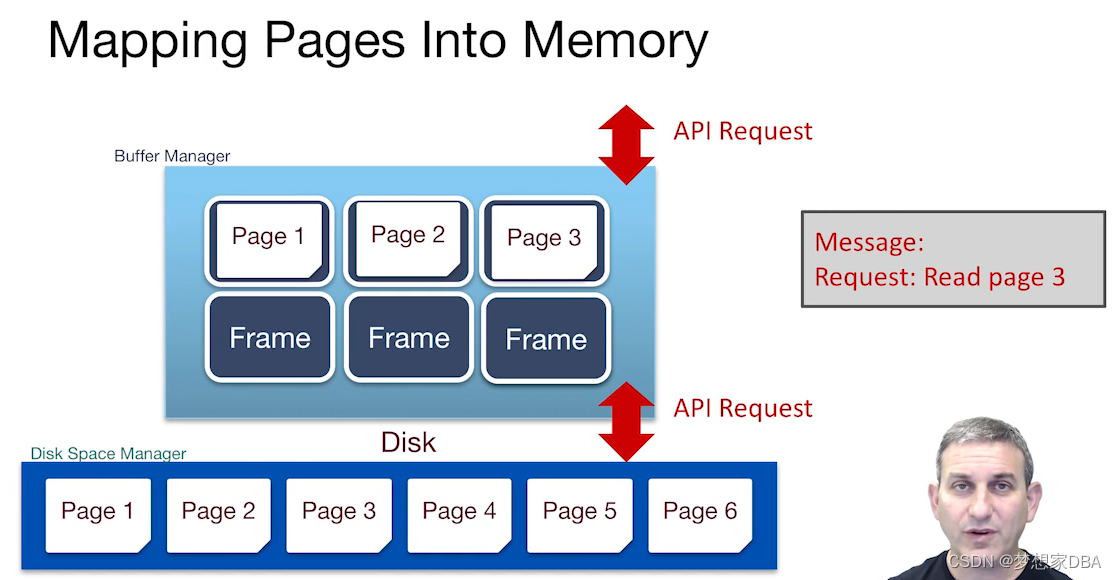

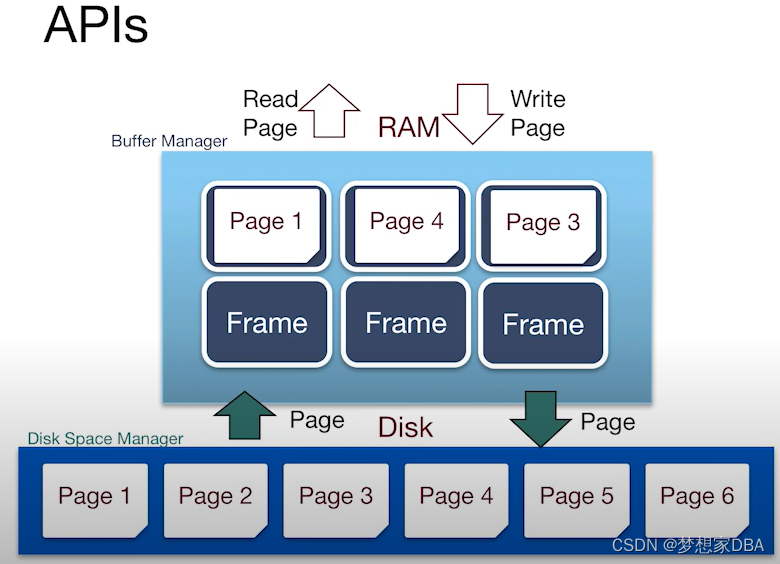

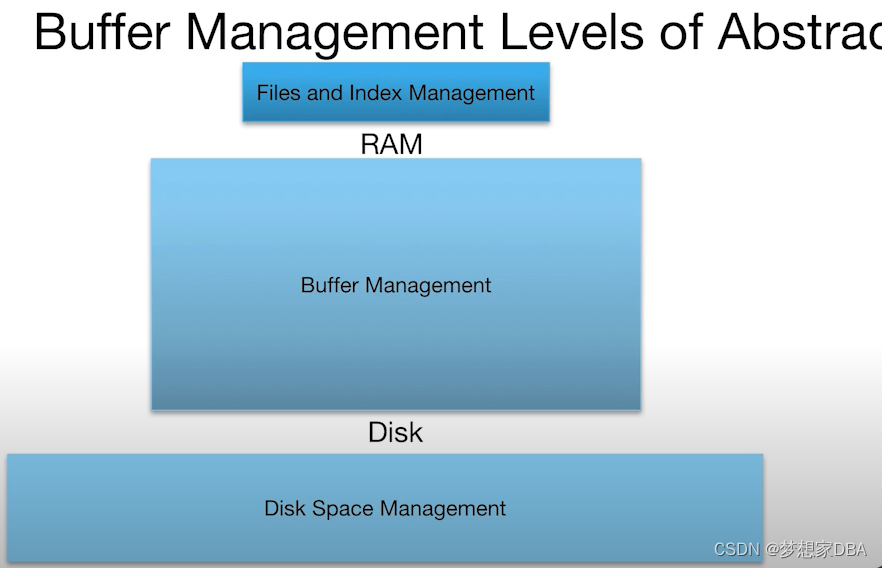

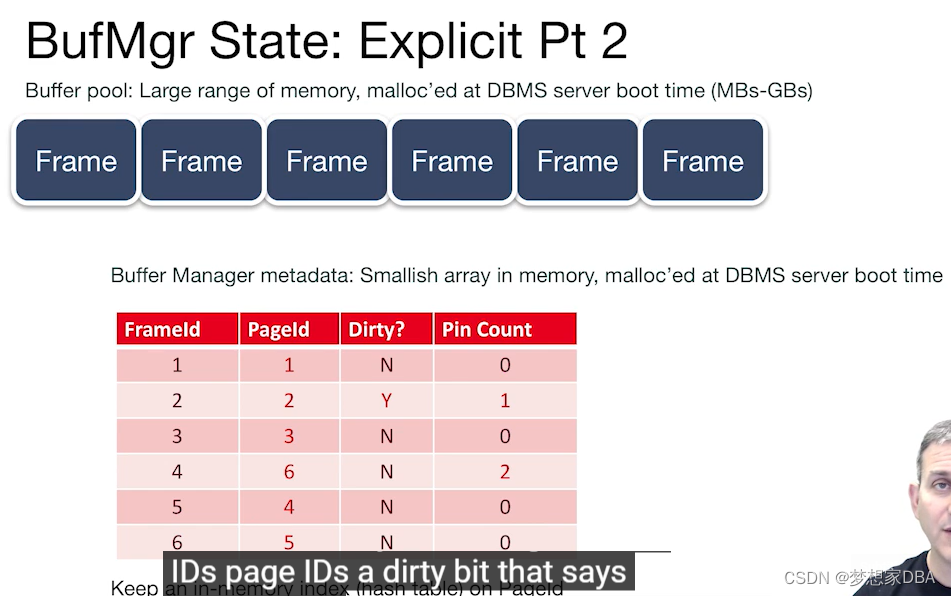

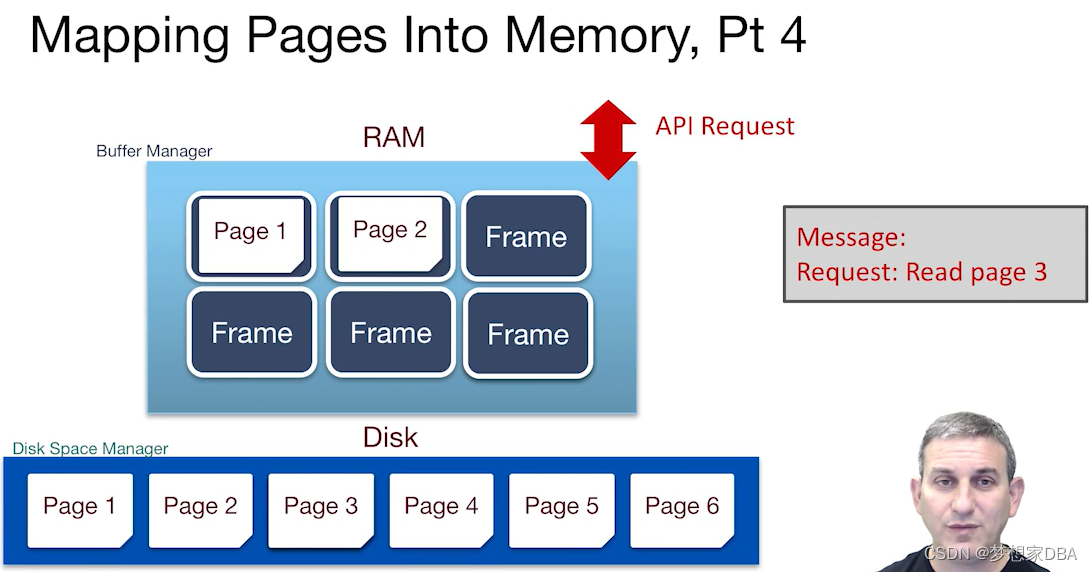

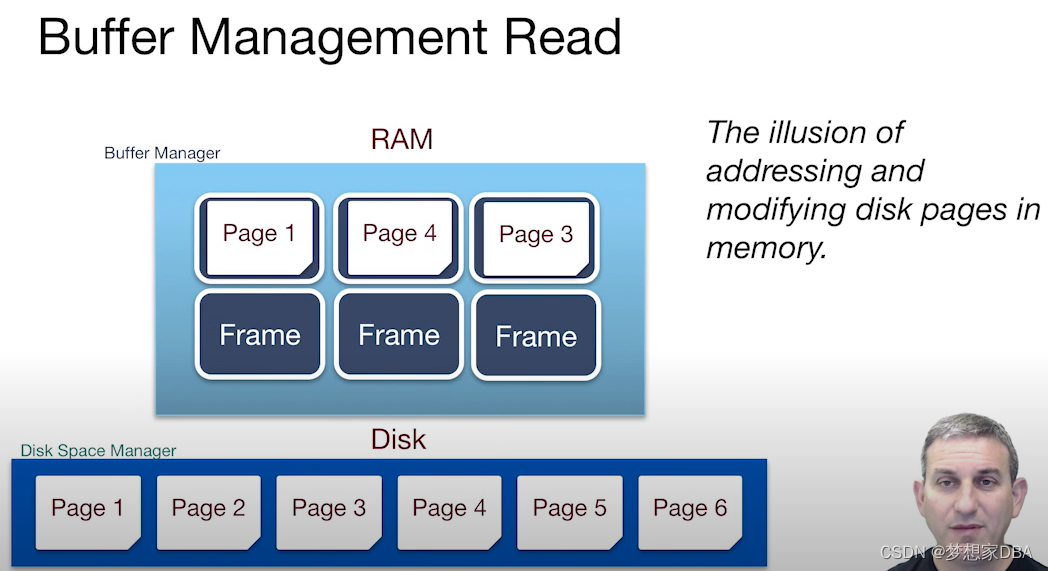

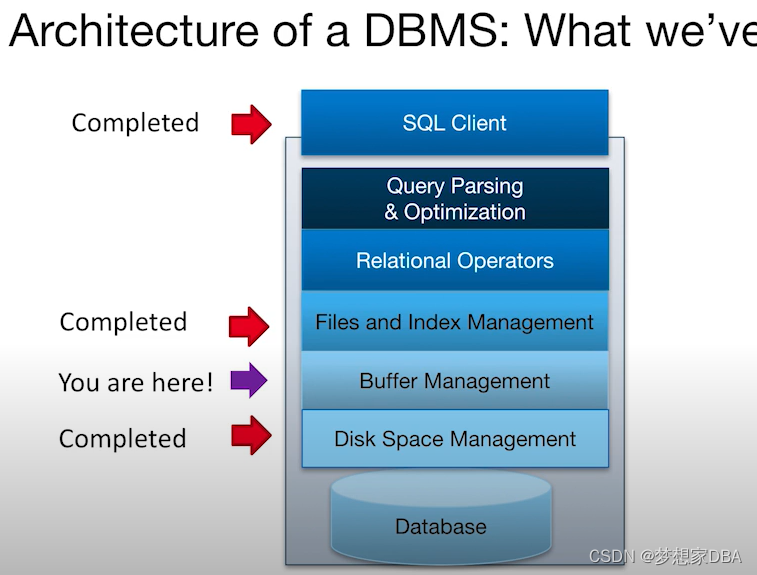

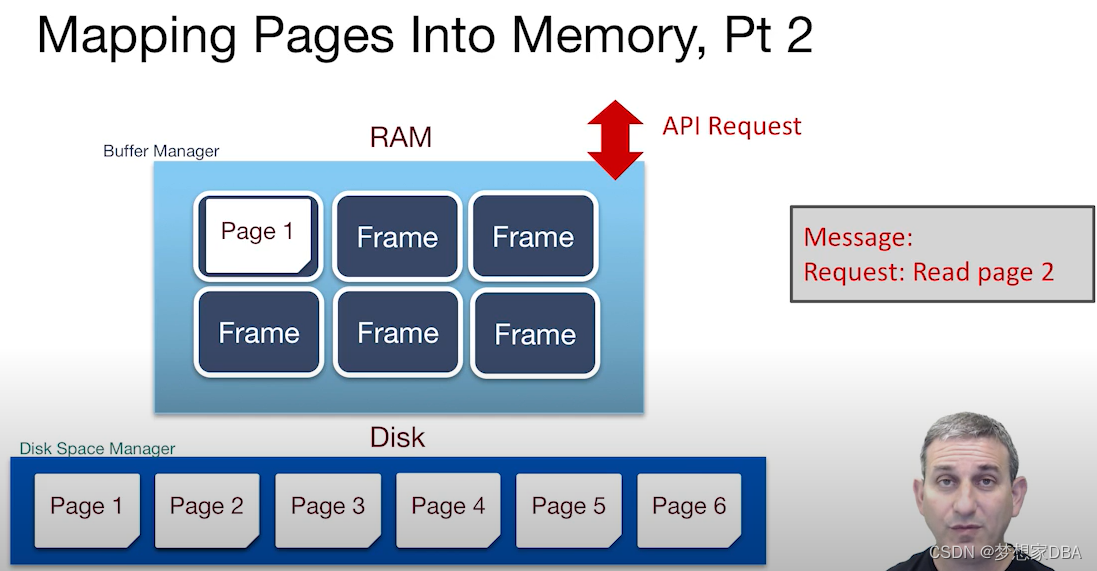

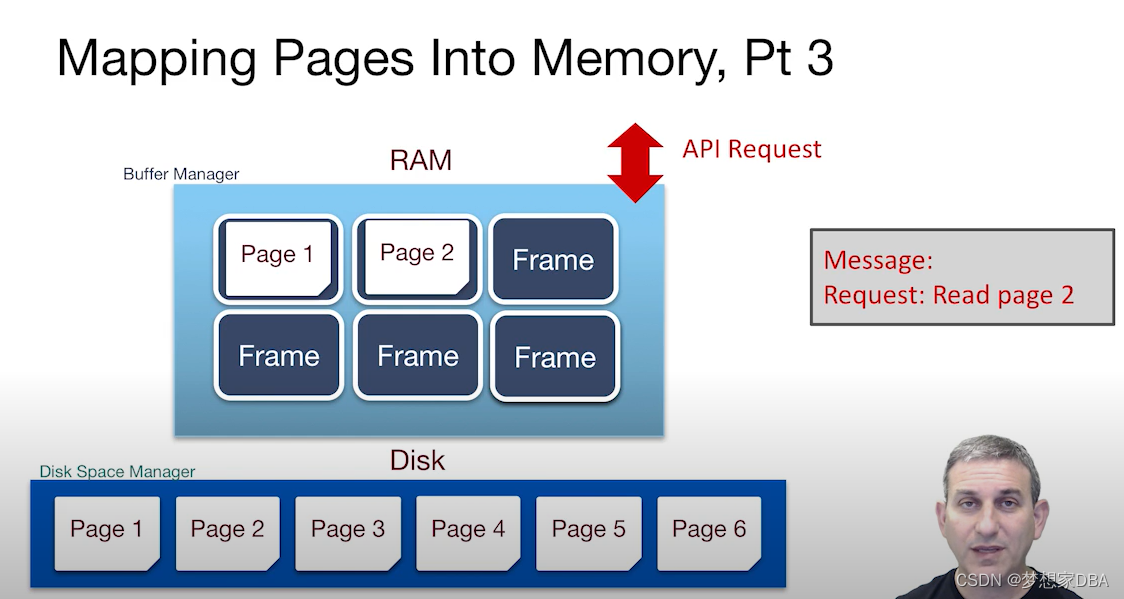

Lec8 Part1 Intro to Buffer Management
