CICD—Jenkins Gitlab自动化打包.net到K8S

温馨提示：环境搭建：Jenkins、gitlab、两者之间打通；钉钉机器人创建都已省略自己问度娘文章很多（整个打包过程全自动，开发人员只需要提交代码就可以自动构建）。

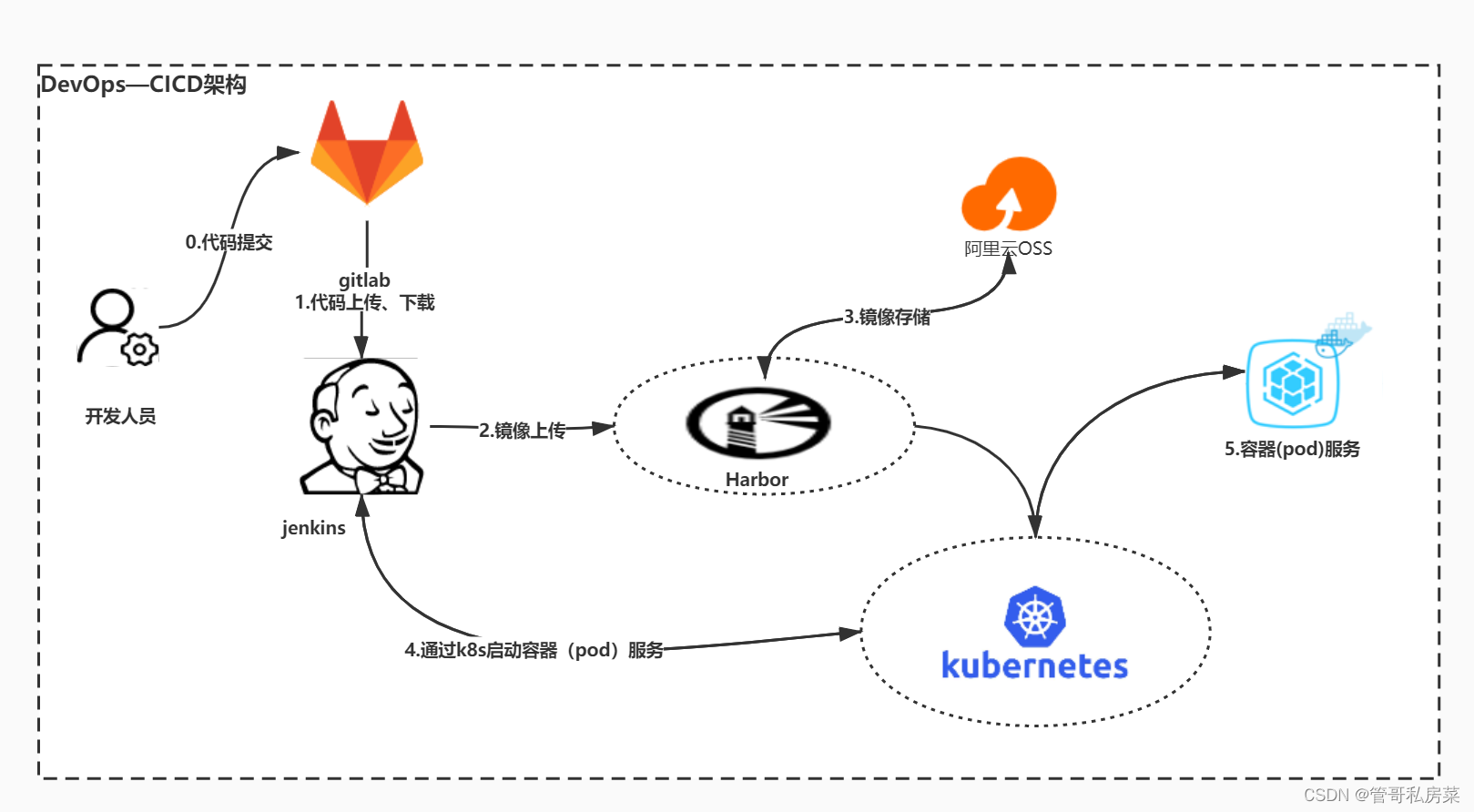

架构图：

效果图：

构建完成发布消息到钉钉

第一步、安装依赖环境 （kubectl、dotnet-sdk-6.0）

安装.net 6

官方网址

https://docs.x.x.x.xsoft.com/zh-tw/dotnet/core/install/linux-ubuntu

wget https://packages.x.x.x.xsoft.com/config/ubuntu/20.04/packages-x.x.x.xsoft-prod.deb -O packages-x.x.x.xsoft-prod.deb sudo dpkg -i packages-x.x.x.xsoft-prod.deb

安装SDK

sudo apt-get update; \   sudo apt-get install -y apt-transport-https && \   sudo apt-get update && \   sudo apt-get install -y dotnet-sdk-6.0

手动安装dotnet-6.0

wget https://download.visualstudio.x.x.x.xsoft.com/download/pr/807f9d72-4940-4b1a-aa4a-8dbb0f73f5d7/cb666c22a87bf9413f29615e0ba94500/dotnet-sdk-6.0.200-linux-x64.tar.gz

mkdir -p $HOME/dotnet && tar zxf dotnet-sdk-6.0.200-linux-x64.tar.gz -C $HOME/dotnet #dotnet-6.0

source /etc/profile

export DOTNET_ROOT=$HOME/dotnet

export PATH=$HOME/dotnet:$PATH

第二步、配置Jenkins任务

触发器

流水线配置

gitlab配置：

gitlab钩子设置

第三步：编写构建脚本，所有分支、环境都用一套脚本打包简化重复工作。

#!groovy

pipeline {

    //代理

agent any

    //环境变量

    environment {

        REPOSITORY="git@xxxxxxxxxxxxxxxxxxxxxxxxxx.git"                           //git地址

        PROJECT_NAME = "xxxxx"                                                  //服务名

        BRANCH_DEV= "xxxx"                                                                //开发分支名

        BRANCH_TEST = "xxxxx"                                                             //测试分支

        BRANCH_PRE = "xxxxx"                                                           //演示分支

        BRANCH_PROD = "xxxxx"                                                           //生产分支

        NAMESPACE_DEV = "xxxxx"                                                               //开发命名空间

        NAMESPACE_TEST = "xxxxx"                                                              //测试命名空间

        NAMESPACE_PRE = "xxxxx"                                                               //演示命名空间

        NAMESPACE_PROD = "xxxxx"                                                              //生产命名空间

        IMAGE_TAG = "${sh(script:'date +%Y%m%d%H%M%S', returnStdout: true).trim()}"      //镜像的tag值

        IMAGE_REGISTRY = "xxxxx"                                                   //镜像仓库地址

        IMAGE_PROJECT = "xxxx"                                                     //镜像项目地址

        IMAGE_NAME = "${IMAGE_REGISTRY}/${IMAGE_PROJECT}/${PROJECT_NAME}:${IMAGE_TAG}"   //镜像名称

        JENKINSURL = "http://xxxxxxxxxxxxxxxxxxxx /job/"                         //jenkins任务回调地址

        BRANCH_NAME = "${params.gitbranch}"                                              //判断变量

        SCRIPT_PATH="${WORKSPACE}/deploy/"                                              //依赖包存放地址

    }

    //参数化构建

    parameters {

        gitParameter    branch: '',

                        branchFilter: 'origin/(.*)',

                        defaultValue: 'XXXX',

                        description: '请选择git分支',

                        name: 'gitbranch',

                        quickFilterEnabled: false,

                        selectedValue: 'NONE',

                        sortMode: 'DESCENDING_SMART',

                        tagFilter: '*',

                        type: 'PT_BRANCH',

                        useRepository: 'git@xxxxxxxxxxxxxxxxxxxxxxxxxx.git'

    }

    stages {

        stage('拉取代码') {

            parallel {

                //手动构建

                stage('手动构建') {

                    when {

                        not{

                            environment name: 'BRANCH_NAME', value: 'XXXX'

                        }

                    }

                    environment {

                        BRANCH_NAME = "${params.gitbranch}"                                                 //项目的命名空间

                    }

                    steps {

                        echo "从代码仓库${REPOSITORY}拉取代码，分支是：${BRANCH_NAME}"

                        deleteDir()

                        checkout([$class: 'GitSCM',

                        branches: [[name: "${BRANCH_NAME}"]],

                        extensions: [],

                        userRemoteConfigs: [[credentialsId: 'xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx', url: "${REPOSITORY}"]]

                ])

                    }

                }

                //自动构建

                stage('自动构建') {

                    when {



                            environment name: 'BRANCH_NAME', value: 'XXXX'



                    }

                    environment {

                        BRANCH_NAME = "${gitlabBranch}"                                                 //项目的命名空间

                    }

                    steps {

                        echo "从代码仓库${REPOSITORY}拉取代码，分支是：${BRANCH_NAME}"

                        deleteDir()

                        checkout([$class: 'GitSCM',

                        branches: [[name: "${BRANCH_NAME}"]],

                        extensions: [],

                        userRemoteConfigs: [[credentialsId: 'xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx', url: "${REPOSITORY}"]]

                ])

                    }

                }

            }

        }

        stage('编译代码') {

            steps {

                    sh '''

                    #dotnet-6.0

                    export DOTNET_ROOT=$HOME/dotnet

                    export PATH=$HOME/dotnet:$PATH

                    cd ${WORKSPACE}/x.x.x.x.xxxx

                    dotnet add package xxxx.ApiUtil --version x.x.x.x -s https://xxxxxxxxxxxxxxxx/v3/index.json

                   dotnet add package xxxx.Code --version x.x.x.x -s https://xxxxxxxxxxxxxxxx/v3/index.json

                   dotnet add package xxxx.Util --version x.x.x.x -s https://xxxxxxxxxxxxxxxx/v3/index.json

                   dotnet add package xxxx.Util.MyCache --version x.x.x.x -s https://xxxxxxxxxxxxxxxx/v3/index.json

                   dotnet add package xxxx.Util.MyData --version x.x.x.x -s https://xxxxxxxxxxxxxxxx/v3/index.json

                    dotnet restore

                    dotnet publish -c release -o ./app

                   '''

                echo "编译代码成功"

            }

        }

        stage('构建并推送镜像') {

            steps {

                sh '''

                cd ${WORKSPACE}/x.x.x.x.yhzx

                     docker build -t ${IMAGE_NAME} .

                docker push ${IMAGE_NAME}

                '''

                echo "构建并推送镜像成功"

            }

        }

        stage('部署应用') {

            parallel {

                //手动

                stage('手动部署应用') {

                    when {

                        not{

                            environment name: 'BRANCH_NAME', value: 'XXXX'

                        }

                    }

                    environment {

                        BRANCH_NAME = "${params.gitbranch}"                                                 //项目的命名空间

                    }

                    steps{

                        script {

                            if(BRANCH_NAME==BRANCH_DEV){

                                env.NAMESPACE = "${NAMESPACE_DEV}"

                                env.KUBECONFIG = "/root/.kube/config"

                                sh "kubectl --kubeconfig=${KUBECONFIG} set image deploy/${PROJECT_NAME} ${PROJECT_NAME}=${IMAGE_NAME} -n ${NAMESPACE}"

                            }

                            if(BRANCH_NAME==BRANCH_TEST){

                                env.NAMESPACE = "${NAMESPACE_TEST}"

                                env.KUBECONFIG = "/root/.kube/config"

                                sh "kubectl --kubeconfig=${KUBECONFIG} set image deploy/${PROJECT_NAME} ${PROJECT_NAME}=${IMAGE_NAME} -n ${NAMESPACE}"

                            }

                            if(BRANCH_NAME==BRANCH_PRE){

                                env.NAMESPACE = "${NAMESPACE_PRE}"

                                env.KUBECONFIG = "/root/.kube/config.pre"

                                sh "kubectl --kubeconfig=${KUBECONFIG} set image deploy/${PROJECT_NAME} ${PROJECT_NAME}=${IMAGE_NAME} -n ${NAMESPACE}"

                            }

                            if(BRANCH_NAME==BRANCH_PROD){

                                echo "请手动拷贝镜像名:${IMAGE_NAME} 更新部署到生产环境K8S！"

                            }

                        }

                    }

                    post {

                        success {

                            dingtalk (

                                robot:'xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx',

                                type:'LINK',

                                title: '本次构建成功，详情请点此次！！！',

                                text: ["- ${PROJECT_NAME}项目构建成功!!!\n- 构建分支为: ${BRANCH_NAME}\n- 持续时间:${currentBuild.durationString}\n- 任务:${BUILD_ID}"],

                                messageUrl:'${JENKINSURL}${JOB_NAME}/${BUILD_NUMBER}/console',

                                picUrl:'http://kmzsccfile.kmzscc.com/upload/2020/success.jpg'

                            )

                        }

                        failure {

                            dingtalk (

                                robot:'xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx',

                                type:'LINK',

                                title: '本次构建失败，详情请点此次！！！',

                                text: ["- ${PROJECT_NAME}项目构建失败!!!\n- 构建分支为:${BRANCH_NAME}\n- 持续时间:${currentBuild.durationString}\n- 任务:${BUILD_ID}"],

                                messageUrl:'${JENKINSURL}${JOB_NAME}/${BUILD_NUMBER}/console',

                                picUrl:'http://kmzsccfile.kmzscc.com/upload/2020/error.jpg',

                            )

                        }

                    }

                }

                //自动部署应用

                stage('自动部署应用') {

                    when {



                            environment name: 'BRANCH_NAME', value: 'XXXX'



                    }

                    environment {

                        BRANCH_NAME = "${gitlabBranch}"                                                 //项目的命名空间

                    }

                    steps{

                        script {

                            if(gitlabBranch==BRANCH_DEV){

                                env.NAMESPACE = "${NAMESPACE_DEV}"

                                env.KUBECONFIG = "/root/.kube/config"

                                sh "kubectl --kubeconfig=${KUBECONFIG} set image deploy/${PROJECT_NAME} ${PROJECT_NAME}=${IMAGE_NAME} -n ${NAMESPACE}"

                            }

                                if(BRANCH_NAME==BRANCH_TEST){

                                env.NAMESPACE = "${NAMESPACE_TEST}"

                                env.KUBECONFIG = "/root/.kube/config"

                                sh "kubectl --kubeconfig=${KUBECONFIG} set image deploy/${PROJECT_NAME} ${PROJECT_NAME}=${IMAGE_NAME} -n ${NAMESPACE}"

                            }

                            if(gitlabBranch==BRANCH_PRE){

                                env.NAMESPACE = "${NAMESPACE_PRE}"

                                env.KUBECONFIG = "/root/.kube/config.pre"

                                sh "kubectl --kubeconfig=${KUBECONFIG} set image deploy/${PROJECT_NAME} ${PROJECT_NAME}=${IMAGE_NAME} -n ${NAMESPACE}"

                            }

                            if(gitlabBranch==BRANCH_PROD){

                                echo "请手动拷贝镜像名:${IMAGE_NAME} 更新部署到生产环境K8S！"

                            }

                        }

                    }

                    post {

                        success {

                            dingtalk (

                                robot:'xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx',

                                type:'LINK',

                                title: '本次构建成功，详情请点此次！！！',

                                text: ["- ${PROJECT_NAME}项目构建成功!!!\n- 构建分支为: ${gitlabBranch}\n- 持续时间:${currentBuild.durationString}\n- 任务:${BUILD_ID}"],

                                messageUrl:'${JENKINSURL}${JOB_NAME}/${BUILD_NUMBER}/console',

                                picUrl:'http://kmzsccfile.kmzscc.com/upload/2020/success.jpg'

                            )

                        }

                        failure {

                            dingtalk (

                                robot:'xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx',

                                type:'LINK',

                                title: '本次构建失败，详情请点此次！！！',

                                text: ["- ${PROJECT_NAME}项目构建失败!!!\n- 构建分支为:${gitlabBranch}\n- 持续时间:${currentBuild.durationString}\n- 任务:${BUILD_ID}"],

                                messageUrl:'${JENKINSURL}${JOB_NAME}/${BUILD_NUMBER}/console',

                                picUrl:'http://kmzsccfile.kmzscc.com/upload/2020/error.jpg',

                            )

                        }

                    }

                }

            }

        }

    }

}
