6. 毕业设计温湿度监控系统（ESP8266 + DHT11 +OLED 实时上传温湿度数据给公网服务器并在OLED显示屏上显示实时温湿度）

硬件环境

1. ESP8266开发板一块；
2. DHT11温湿度传感器一个；
3. OLED 128*64分辨率显示屏幕一个；

硬件连线图入下所示：

软件环境

1. WiFi联网和HttpPost配置

参照我的另一篇博文，该博文中展示了如何建立PostHttpClient工程，修改后上传数据到公网服务器的Web服务器，
《5. ESP8266使用PostHttpClient例程上传数据给Web服务器后台》。

2. DHT11温湿度读取和OLED显示配置

参照我的另一篇博文，该博文中展示了如何使用ESP8266 NodeMCU开发板获取DHT11温湿度传感器并将数据显示在OLED显示屏上，《4. ESP8266通过OLED实时显示DHT11温湿度参数》。

3. Web服务器配置（用于接收HTTP数据请求）

• 如果服务器系统为windos，可以参照之前博文《树莓派+传感器+公网服务器 组件自己的物联网平台（三）WEB服务器配置》；

• 如果服务器系统是Ubuntu，可以根据本人的B站视频同步搭建，B站ID为张三编程分享，地址为：https://space.bilibili.com/243861879，该账号会实时更新服务器配置过程。

Web服务器环境搭建过程最为复杂，如果是小白可以根据B站视频的内容一步步来搭建。
代码的git将Web服务器的代码下载到本地，命令如下：

git clone git://116.198.42.221/ESP8266_IOT.git
1

Use_Mysql目录下的代码就是Django工程的所有代码，下载后在服务器中运行，需要修改其中的mysql数据库相关信息

实验过程

1. ESP8266 NodeMCU完整代码

将下面代码编程上传到ESP8266 NodeMCU中，代码中只需要修改服务器地址和WiFi相关信息即可

#include <SPI.h>
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#include <DHT.h>                         // Include DHT library code

//begin********http head and define***************
#include <ESP8266WiFi.h>
#include <ESP8266HTTPClient.h>

#define SERVER_IP "116.198.42.221"  //这里是我的公网服务器的IP地址，这个需要修改

#ifndef STASSID
#define STASSID "WiFi name"
#define STAPSK  "WiFi password"
#endif
//end********http head and define***************
#define DHTPIN  14                    // DHT11 data pin is connected to ESP8266 GPIO14 (NodeMCU D5)
#define DHTTYPE DHT11                 // DHT11 sensor is used
DHT dht(DHTPIN, DHTTYPE);             // Configure DHT library

char temperature[] = "00.0";
char humidity[]    = "00.0";

// OLED FeatherWing buttons map to different pins depending on board.
// The I2C (Wire) bus may also be different.
#if defined(ESP8266)
  #define BUTTON_A  0
  #define BUTTON_B 16
  #define BUTTON_C  2
  #define WIRE Wire
#elif defined(ESP32)
  #define BUTTON_A 15
  #define BUTTON_B 32
  #define BUTTON_C 14
  #define WIRE Wire
#elif defined(ARDUINO_STM32_FEATHER)
  #define BUTTON_A PA15
  #define BUTTON_B PC7
  #define BUTTON_C PC5
  #define WIRE Wire
#elif defined(TEENSYDUINO)
  #define BUTTON_A  4
  #define BUTTON_B  3
  #define BUTTON_C  8
  #define WIRE Wire
#elif defined(ARDUINO_FEATHER52832)
  #define BUTTON_A 31
  #define BUTTON_B 30
  #define BUTTON_C 27
  #define WIRE Wire
#elif defined(ARDUINO_ADAFRUIT_FEATHER_RP2040)
  #define BUTTON_A  9
  #define BUTTON_B  8
  #define BUTTON_C  7
  #define WIRE Wire1
#else // 32u4, M0, M4, nrf52840 and 328p
  #define BUTTON_A  9
  #define BUTTON_B  6
  #define BUTTON_C  5
  #define WIRE Wire
#endif

Adafruit_SSD1306 display = Adafruit_SSD1306(128, 64, &WIRE);

void setup() {
  Serial.begin(9600);

  Serial.println("OLED FeatherWing test");
  // SSD1306_SWITCHCAPVCC = generate display voltage from 3.3V internally
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C); // Address 0x3C for 128x32
  //display.begin(SSD1306_SWITCHCAPVCC, 0x3D);  // initialize with the I2C addr 0x3D (for the 128x64)

  Serial.println("OLED begun");

  // Show image buffer on the display hardware.
  // Since the buffer is intialized with an Adafruit splashscreen
  // internally, this will display the splashscreen.
  display.display();
  delay(1000);

  // Clear the buffer.
  display.clearDisplay();
  display.display();

  Serial.println("IO test");

  pinMode(BUTTON_A, INPUT_PULLUP);
  pinMode(BUTTON_B, INPUT_PULLUP);
  pinMode(BUTTON_C, INPUT_PULLUP);

  // text display tests
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);


  dht.begin();                // Initialize the DHT library
  // Clear the display buffer.
  display.clearDisplay();


  display.setTextSize(1);
  display.setTextColor(WHITE, BLACK);
  display.setCursor(10, 5);
  display.print("DHT11 TEMPERATURE:");
  display.setCursor(19, 37);
  display.print("DHT11 HUMIDITY:");
  display.display();

  //begin************WiFi Setup*****************
  WiFi.begin(STASSID, STAPSK);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.print("Connected! IP address: ");
  Serial.println(WiFi.localIP());
  //end************WiFi Setup*****************
}

void loop() {

  // Read humidity
  byte RH = dht.readHumidity();
  //Read temperature in degree Celsius
  byte Temp = dht.readTemperature();

  temperature[0] = Temp / 10 + '0';
  temperature[1] = Temp % 10 + '0';
  humidity[0]    = RH / 10   + '0';
  humidity[1]    = RH % 10   + '0';

  // print data on serial monitor
  Serial.printf("Temperature = %02u°C\r\n", Temp);
  Serial.printf("Humidity    = %02u %%\r\n\r\n", RH);

  // Clear the display buffer.
  display.clearDisplay();
  // print data on the SSD1306 display
  display.setTextSize(1);
  display.setTextColor(WHITE, BLACK);
  display.setCursor(10, 5);
  display.print("DHT11 TEMPERATURE:");
  display.setCursor(19, 37);
  display.print("DHT11 HUMIDITY:");
  display.display();
  display.setCursor(46, 20);
  display.print(temperature);
  display.setCursor(46, 52);
  display.print(humidity);
  display.drawRect(71, 20, 3, 3, WHITE);     // Put degree symbol ( ° )
  display.display();

  //begin********HttpPost wait for WiFi connection
  if ((WiFi.status() == WL_CONNECTED)) {

    WiFiClient client;
    HTTPClient http;

    Serial.print("[HTTP] begin...\n");
    // configure traged server and url
    http.begin(client, "http://" SERVER_IP "/IOT/add_environments"); //HTTP
    http.addHeader("Content-Type", "application/x-www-form-urlencoded");

    Serial.print("[HTTP] POST...\n");
    // start connection and send HTTP header and body
    String content = "temperatures=";
    String str2 = temperature;
    String str3 = "&humidity=";
    String str4 = humidity;
    String str5 = "&pressure=111";
    content.concat(str2);
    content.concat(str3);
    content.concat(str4);
    content.concat(str5);

    //const String content = "temperatures=" + temperature + "&humidity=" + humidity +"&pressure=111";
    int httpCode = http.POST(content);

    // httpCode will be negative on error
    if (httpCode > 0) {
      // HTTP header has been send and Server response header has been handled
      Serial.printf("[HTTP] POST... code: %d\n", httpCode);

      // file found at server
      if (httpCode == HTTP_CODE_OK) {
        const String& payload = http.getString();
        Serial.println("received payload:\n<<");
        Serial.println(payload);
        Serial.println(">>");
      }
    } else {
      Serial.printf("[HTTP] POST... failed, error: %s\n", http.errorToString(httpCode).c_str());
    }

    http.end();
  }
  //end********HttpPost wait for WiFi connection
  delay(5000);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203

2. 服务器Web后台代码运行

使用git将代码下载到本地，修改一下settings.py文件中的数据库配置信息，进入Use_Mysql目录，运行如下命令：

cd Use_Mysql/
sudo python3 manage.py runserver 0.0.0.0:80
1
2

数据库中增加的环境数据：

Web服务器接收到的来自ESP8266的HttpPost请求：

前端的get_environments请求：

3. 实验效果展示

通过前端地址访问：http://116.198.42.221/IOT/get_environments/
前端展示效果：

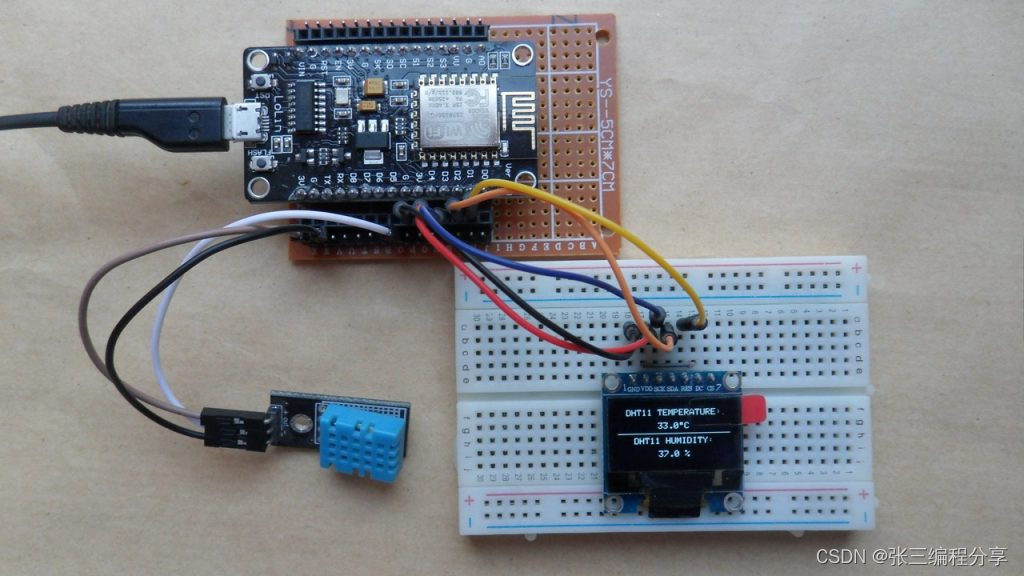

ESP8266 + DHT11 + OLED 展示效果：

整体效果图：

视频展示：
