广工电工与电子技术实验报告-8路彩灯循环控制电路

实验代码

module LED_water (clk,led);
    input           clk;
    output  [7:0]   led;
    reg     [7:0]   led;
    integer         p;

    reg clk_1Hz;
    reg [7:0]   current_state, next_state;

    always @(posedge clk) begin
        if(p==25000000-1)begin
            p=0;
            clk_1Hz=~clk_1Hz;
        end
        else begin
            p=p+1;
        end
    end

    parameter S0 = 8'b00000000;
    parameter S1 = 8'b00000001;
    parameter S2 = 8'b00000010;
    parameter S3 = 8'b00000100;
    parameter S4 = 8'b00001000;
    parameter S5 = 8'b00010000;
    parameter S6 = 8'b00100000;
    parameter S7 = 8'b01000000;
    parameter S8 = 8'b10000000;

always @(posedge clk_1Hz) begin
    current_state<=next_state;
end

always @(current_state) begin
    case (current_state)
        S0: next_state<=S1;
        S1: next_state<=S2;
        S2: next_state<=S3;
        S3: next_state<=S4;
        S4: next_state<=S5;
        S5: next_state<=S6;
        S6: next_state<=S7;
        S7: next_state<=S8;
        S8: next_state<=S0;
        default: next_state<=S0;
    endcase
end
    always @(current_state) begin
        case (current_state)
                S0: led<=S0;
                S1: led<=S1;
                S2: led<=S2;
                S3: led<=S3;
                S4: led<=S4;
                S5: led<=S5;
                S6: led<=S6;
                S7: led<=S7;
                S8: led<=S8;
            default: led<=S0;
        endcase
    end
endmodule

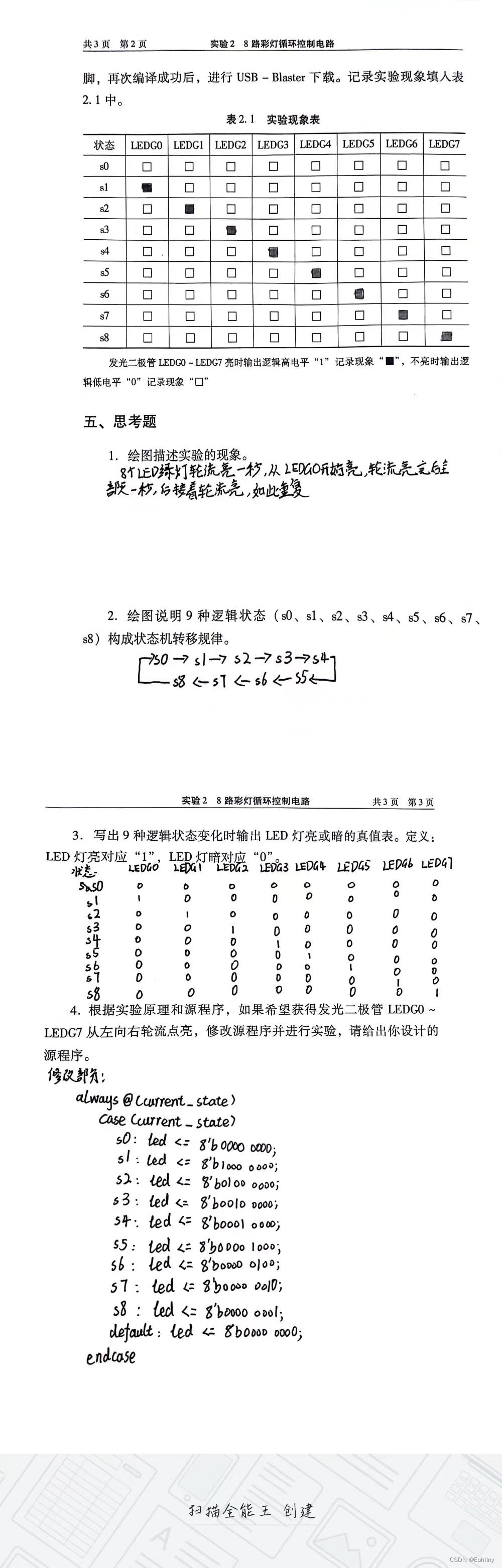

实验报告
