【数据挖掘】实验8：分类与预测建模
实验8：分类与预测建模
一：实验目的与要求
1：学习和掌握回归分析、决策树、人工神经网络、KNN算法、朴素贝叶斯分类等机器学习算法在R语言中的应用。
2：了解其他分类与预测算法函数。
3：学习和掌握分类与预测算法的评价。
二：实验内容
【回归分析】
Eg.1：
attach(women)
fit<-lm(weight ~ height)
plot(height,weight)
abline(fit,col="red")
detach(women)
【线性回归模型】
Eg.1：利用数据集women建立简单线性回归模型
data(women)
lm.model <- lm( weight ~ height - 1, data = women) # 建立线性回归模型
summary(lm.model) # 输出模型的统计信息
coefficients(lm.model) # 输出参数估计值
confint(lm.model, parm = "speed", level = 0.95) # parm缺省则计算所有参数的置信区间
fitted(lm.model) # 列出拟合模型的预测值
anova(lm.model) # 生成一个拟合模型的方差分析表
vcov(lm.model) # 列出模型参数的协方差矩阵
residuals(lm.model) # 列出模型的残差
AIC(lm.model) # 输出AIC值
par(mfrow = c(2, 2))
plot(lm.model) # 生成评价拟合模型的诊断图
【逻辑回归模型】
Eg.1：结婚时间、教育、宗教等其它变量对出轨次数的影响
install.packages("AER")
library(AER)
data(Affairs, package = "AER")
# 由于变量affairs为正整数，为了进行Logistic回归先要将其转化为二元变量。
Affairs$ynaffair[Affairs$affairs > 0] <- 1
Affairs$ynaffair[Affairs$affairs == 0] <- 0
Affairs$ynaffair <- factor(Affairs$ynaffair, levels = c(0, 1),
labels = c("No", "Yes"))
# 建立Logistic回归模型
model.L <- glm(ynaffair ~ age + yearsmarried + religiousness + rating,
data = Affairs, family = binomial (link = logit))
summary(model.L) # 展示拟合模型的详细结果
predictdata <- data.frame(Affairs[, c("age", "yearsmarried", "religiousness", "rating")])
# 由于拟合结果是给每个观测值一个概率值，下面以0.4作为分类界限
predictdata$y <- (predict(model.L, predictdata, type = "response") > 0.4)
predictdata$y[which(predictdata$y == FALSE)] = "No" # 把预测结果转换成原先的值(Yes或No)
predictdata$y[which(predictdata$y == TRUE)] = "Yes"
confusion <- table(actual = Affairs$ynaffair, predictedclass = predictdata$y) # 混淆矩阵
confusion
(sum(confusion) - sum(diag(confusion))) / sum(confusion) # 计算错判率
【Bonferroni离群点检验】
Eg.1：对美国妇女的平均身高和体重数据进行Bonferroni离群点检验
install.packages("car")
library(car)
fit <- lm(weight ~ height, data = women) # 建立线性模型
outlierTest(fit) # Bonferroni离群点检验
women[10, ] <- c(70, 200) # 将第10个观测的数据该成height = 70，weight = 200
fit <- lm(weight ~ height, data = women)
outlierTest(fit) # Bonferroni离群点检验
【检验误差项的自相关性】
Eg.1：对模型lm.model的误差做自相关性检验
durbinWatsonTest(lm.model)
【自变量选择】
Eg.1：使用数据集freeny建立逻辑回归模型，并进行自变量选择
Data <- freeny
lm <- lm(y ~ ., data = Data) # logistic回归模型
summary(lm)
lm.step <- step(lm, direction = "both") # 一切子集回归
summary(lm.step)
lm.step <- step(lm, direction = "forward") # 前进法
summary(lm.step)

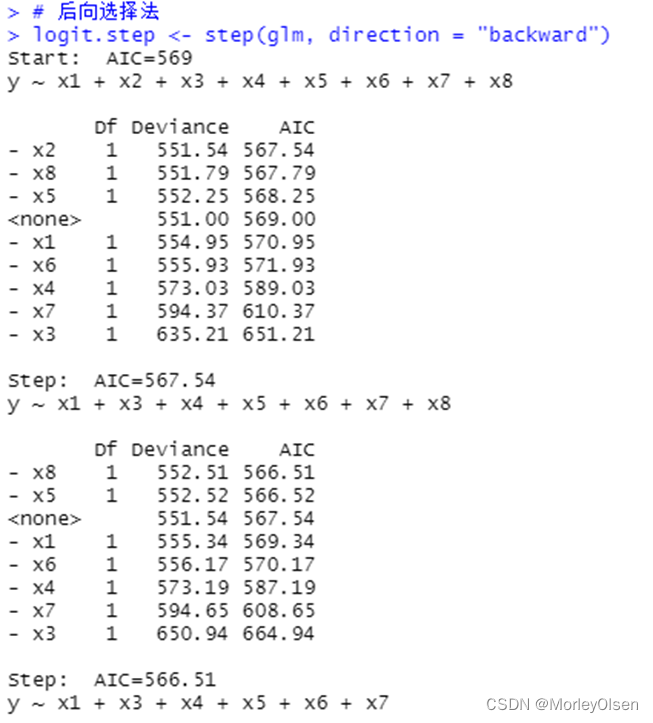

lm.step <- step(lm, direction = "backward") # 后退法
summary(lm.step)
【C4.5决策树】
Eg.1：C4.5决策树预测客户是否流失
Data <- read.csv("Telephone.csv",fileEncoding = "GB2312") # 读入数据
Data[, "流失"] <- as.factor(Data[, "流失"]) # 将目标变量转换成因子型
set.seed(1234) # 设置随机种子
# 数据集随机抽70%定义为训练数据集，30%为测试数据集
ind <- sample(2, nrow(Data), replace = TRUE, prob = c(0.7, 0.3))
traindata <- Data[ind == 1, ]
testdata <- Data[ind == 2, ]
# 建立决策树模型预测客户是否流失
install.packages("matrixStats")
install.packages("party")
library(party) # 加载决策树的包
ctree.model <- ctree(流失 ~ ., data = traindata) # 建立C4.5决策树模型
plot(ctree.model, type = "simple") # 输出决策树图
# 预测结果
train_predict <- predict(ctree.model) # 训练数据集
test_predict <- predict(ctree.model, newdata = testdata) # 测试数据集
# 输出训练数据的分类结果
# 输出训练数据的分类结果
train_predictdata <- cbind(traindata, predictedclass = train_predict)
#输出训练数据的混淆矩阵
(train_confusion <- table(actual = traindata$流失, predictedclass = train_predict) )
# 输出测试数据的分类结果
test_predictdata <- cbind(testdata, predictedclass = test_predict)
# 输出测试数据的混淆矩阵
(test_confusion <- table(actual = testdata$流失, predictedclass = test_predict))
【CART决策树】
Eg.1：CART决策树预测客户是否流失
Data <- read.csv("telephone.csv",fileEncoding = "GB2312") # 读入数据
Data[, "流失"] <- as.factor(Data[, "流失"]) # 将目标变量转换成因子型
set.seed(1234) # 设置随机种子
# 数据集随机抽70%定义为训练数据集，30%为测试数据集
ind <- sample(2, nrow(Data), replace = TRUE, prob = c(0.7, 0.3))
traindata <- Data[ind == 1, ]
testdata <- Data[ind == 2, ]
# 建立决策树模型预测客户是否流失
install.packages("tree")
library(tree) # 加载决策树的包
tree.model <- tree(流失 ~ ., data = traindata) # 建立CART决策树模型
plot(tree.model, type = "uniform") # 输出决策树图
text(tree.model)
# 预测结果
train_predict <- predict(tree.model, type = "class") # 训练数据集
test_predict <- predict(tree.model, newdata = testdata, type = "class") # 测试数据集
# 输出训练数据的分类结果
train_predictdata <- cbind(traindata, predictedclass = train_predict)
# 输出训练数据的混淆矩阵
(train_confusion <- table(actual = traindata$流失, predictedclass = train_predict))
# 输出测试数据的分类结果
test_predictdata <- cbind(testdata, predictedclass = test_predict)
# 输出测试数据的混淆矩阵
(test_confusion <- table(actual = testdata$流失, predictedclass = test_predict))
【C5.0决策树】
Eg.1：C5.0决策树预测客户是否流失
Data <- read.csv("telephone.csv",fileEncoding = "GB2312") # 读入数据
Data[, "流失"] <- as.factor(Data[, "流失"]) # 将目标变量转换成因子型
set.seed(1234) # 设置随机种子
# 数据集随机抽70%定义为训练数据集，30%为测试数据集
ind <- sample(2, nrow(Data), replace = TRUE, prob = c(0.7, 0.3))
traindata <- Data[ind == 1, ]
testdata <- Data[ind == 2, ]
# 建立决策树模型预测客户是否流失
install.packages("C50")
library(C50) # 加载决策树的包
c50.model <- C5.0(流失 ~ ., data = traindata) # 建立C5.0决策树模型
plot(c50.model) # 输出决策树图
# 预测结果
train_predict <- predict(c50.model, newdata = traindata, type = "class") # 训练数据集
test_predict <- predict(c50.model, newdata = testdata, type = "class") # 测试数据集
# 输出训练数据的分类结果
train_predictdata <- cbind(traindata, predictedclass = train_predict)
# 输出训练数据的混淆矩阵
(train_confusion <- table(actual = traindata$流失, predictedclass = train_predict))
# 输出测试数据的分类结果
test_predictdata <- cbind(testdata, predictedclass = test_predict)
# 输出测试数据的混淆矩阵
(test_confusion <- table(actual = testdata$流失, predictedclass = test_predict))
【BP神经网络】
Eg.1：BP神经网络算法预测客户是否流失
Data[, "流失"] <- as.factor(Data[, "流失"]) # 将目标变量转换成因子型
set.seed(1234) # 设置随机种子
# 数据集随机抽70%定义为训练数据集，30%为测试数据集
ind <- sample(2, nrow(Data), replace = TRUE, prob = c(0.7, 0.3))
traindata <- Data[ind == 1, ]
testdata <- Data[ind == 2, ]
# BP神经网络建模
library(nnet) #加载nnet包
# 设置参数
size <- 10 # 隐层节点数为10
decay <- 0.05 # 权值的衰减参数为0.05
nnet.model <- nnet(流失 ~ ., traindata, size = size, decay = decay) # 建立BP神经网络模型
summary(nnet.model) # 输出模型概要
# 预测结果
train_predict <- predict(nnet.model, newdata = traindata, type = "class") # 训练数据集
test_predict <- predict(nnet.model, newdata = testdata, type = "class") # 测试数据集
# 输出训练数据的分类结果
train_predictdata <- cbind(traindata, predictedclass = train_predict)
# 输出训练数据的混淆矩阵
(train_confusion <- table(actual = traindata$流失, predictedclass = train_predict))
# 输出测试数据的分类结果
test_predictdata <- cbind(testdata, predictedclass = test_predict)
# 输出测试数据的混淆矩阵
(test_confusion <- table(actual = testdata$流失, predictedclass = test_predict))
【KNN算法】
Eg.1：KNN算法预测客户是否流失
Data[, "流失"] <- as.factor(Data[, "流失"]) # 将目标变量转换成因子型
set.seed(1234) # 设置随机种子
# 数据集随机抽70%定义为训练数据集，30%为测试数据集
ind <- sample(2, nrow(Data), replace = TRUE, prob = c(0.7, 0.3))
traindata <- Data[ind == 1, ]
testdata <- Data[ind == 2, ]
# 使用kknn函数建立knn分类模型
install.packages("kknn")
library(kknn) # 加载kknn包
# knn分类模型
kknn.model <- kknn(流失 ~ ., train = traindata, test = traindata, k = 5) # 训练数据
kknn.model2 <- kknn(流失 ~ ., train = traindata, test = testdata, k = 5) # 测试数据
summary(kknn.model) # 输出模型概要
# 预测结果
train_predict <- predict(kknn.model) # 训练数据
test_predict <- predict(kknn.model2) # 测试数据
# 输出训练数据的混淆矩阵
(train_confusion <- table(actual = traindata$流失, predictedclass = train_predict))
# 输出测试数据的混淆矩阵
(test_confusion <- table(actual = testdata$流失, predictedclass = test_predict))
# 使用knn函数建立knn分类模型
library(class) # 加载class包
# 建立knn分类模型
knn.model <- knn(traindata, testdata, cl = traindata[, "流失"])
# 输出测试数据的混淆矩阵
(test_confusion = table(actual = testdata$流失, predictedclass = knn.model))
# 使用train函数建立knn分类模型
install.packages("caret")
library(caret) # 加载caret包
# 建立knn分类模型
train.model <- train(traindata, traindata[, "流失"], method = "knn")
# 预测结果
train_predict <- predict(train.model, newdata = traindata) #训练数据集
test_predict <- predict(train.model, newdata = testdata) #测试数据集
# 输出训练数据的混淆矩阵
(train_confusion <- table(actual = traindata$流失, predictedclass = train_predict))
# 输出测试数据的混淆矩阵
(test_confusion <- table(actual = testdata$流失, predictedclass = test_predict))
运行结果：
模型概要输出
Call:
kknn(formula = 流失 ~ ., train = traindata, test = traindata, k = 5)
Response: "nominal"
fit prob.0 prob.1
1 1 0.33609798 0.66390202
2 1 0.25597771 0.74402229
3 0 0.97569952 0.02430048
4 0 0.51243637 0.48756363
5 0 1.00000000 0.00000000
6 1 0.17633839 0.82366161
7 0 0.59198438 0.40801562
8 0 1.00000000 0.00000000
9 0 1.00000000 0.00000000
10 1 0.36039846 0.63960154
11 0 0.74402229 0.25597771
12 0 0.84796209 0.15203791
13 0 0.89557925 0.10442075
14 0 1.00000000 0.00000000
15 0 1.00000000 0.00000000
16 0 0.74402229 0.25597771
17 1 0.02430048 0.97569952
18 1 0.15203791 0.84796209
19 0 1.00000000 0.00000000
20 0 0.97569952 0.02430048
21 0 0.97569952 0.02430048
22 0 1.00000000 0.00000000
23 0 0.76784183 0.23215817
24 0 0.74354135 0.25645865
25 0 0.74402229 0.25597771
26 0 1.00000000 0.00000000
27 0 1.00000000 0.00000000
28 0 0.51186411 0.48813589
29 0 1.00000000 0.00000000
30 0 0.97569952 0.02430048
31 0 1.00000000 0.00000000
32 0 0.56768390 0.43231610
33 0 0.84796209 0.15203791
34 0 0.66390202 0.33609798
35 1 0.00000000 1.00000000
36 0 1.00000000 0.00000000
37 0 1.00000000 0.00000000
38 0 0.84796209 0.15203791
39 1 0.25597771 0.74402229
40 1 0.48813589 0.51186411
41 1 0.36039846 0.63960154
42 0 0.97569952 0.02430048
43 0 0.89557925 0.10442075
44 0 1.00000000 0.00000000
45 0 0.51243637 0.48756363
46 0 0.66390202 0.33609798
47 0 0.74402229 0.25597771
48 0 1.00000000 0.00000000
49 0 1.00000000 0.00000000
50 0 1.00000000 0.00000000
51 1 0.36039846 0.63960154
52 0 0.91987973 0.08012027
53 0 1.00000000 0.00000000
54 0 0.91987973 0.08012027
55 1 0.25597771 0.74402229
56 0 0.89557925 0.10442075
57 0 0.91987973 0.08012027
58 0 1.00000000 0.00000000
59 0 0.56768390 0.43231610
60 1 0.48813589 0.51186411
61 0 1.00000000 0.00000000
62 0 1.00000000 0.00000000
63 1 0.48756363 0.51243637
64 0 0.51243637 0.48756363
65 0 0.51243637 0.48756363
66 0 0.84796209 0.15203791
67 0 0.84796209 0.15203791
68 0 0.76784183 0.23215817
69 1 0.02430048 0.97569952
70 1 0.00000000 1.00000000
71 0 0.84796209 0.15203791
72 0 0.76784183 0.23215817
73 0 0.76784183 0.23215817
74 1 0.15203791 0.84796209
75 1 0.02430048 0.97569952
76 0 1.00000000 0.00000000
77 0 0.51243637 0.48756363
78 1 0.36039846 0.63960154
79 0 0.71972181 0.28027819
80 0 0.82366161 0.17633839
81 1 0.36039846 0.63960154
82 1 0.23215817 0.76784183
83 0 0.76784183 0.23215817
84 1 0.00000000 1.00000000
85 0 1.00000000 0.00000000
86 0 0.66390202 0.33609798
87 0 1.00000000 0.00000000
88 0 0.91987973 0.08012027
89 1 0.23215817 0.76784183
90 0 1.00000000 0.00000000
91 0 0.91987973 0.08012027
92 0 1.00000000 0.00000000
93 0 1.00000000 0.00000000
94 1 0.10442075 0.89557925
95 0 0.91987973 0.08012027
96 0 0.74354135 0.25645865
97 1 0.25645865 0.74354135
98 1 0.33609798 0.66390202
99 0 0.91987973 0.08012027
100 1 0.25645865 0.74354135
101 0 1.00000000 0.00000000
102 1 0.28027819 0.71972181
103 0 0.66390202 0.33609798
104 0 0.51186411 0.48813589
105 0 0.56768390 0.43231610
106 0 0.84796209 0.15203791
107 0 0.76784183 0.23215817
108 0 1.00000000 0.00000000
109 0 0.76784183 0.23215817
110 0 0.91987973 0.08012027
111 1 0.43231610 0.56768390
112 0 1.00000000 0.00000000
113 0 0.97569952 0.02430048
114 0 1.00000000 0.00000000
115 0 0.76784183 0.23215817
116 0 0.63960154 0.36039846
117 0 0.97569952 0.02430048
118 1 0.15203791 0.84796209
119 0 0.74402229 0.25597771
120 0 1.00000000 0.00000000
121 0 1.00000000 0.00000000
122 0 0.91987973 0.08012027
123 0 1.00000000 0.00000000
124 0 0.74354135 0.25645865
125 0 1.00000000 0.00000000
126 1 0.43231610 0.56768390
127 0 0.71972181 0.28027819
128 1 0.08012027 0.91987973
129 0 0.91987973 0.08012027
130 1 0.10442075 0.89557925
131 0 1.00000000 0.00000000
132 0 0.91987973 0.08012027
133 0 0.51243637 0.48756363
134 0 0.66390202 0.33609798
135 1 0.02430048 0.97569952
136 0 1.00000000 0.00000000
137 0 0.74354135 0.25645865
138 0 0.97569952 0.02430048
139 0 1.00000000 0.00000000
140 0 1.00000000 0.00000000
141 1 0.25597771 0.74402229
142 0 1.00000000 0.00000000
143 0 1.00000000 0.00000000
144 1 0.36039846 0.63960154
145 0 1.00000000 0.00000000
146 0 0.74402229 0.25597771
147 0 0.84796209 0.15203791
148 0 0.91987973 0.08012027
149 0 0.51243637 0.48756363
150 0 1.00000000 0.00000000
151 1 0.28027819 0.71972181
152 0 1.00000000 0.00000000
153 0 0.59198438 0.40801562
154 0 0.51243637 0.48756363
155 1 0.33609798 0.66390202
156 0 0.97569952 0.02430048
157 0 1.00000000 0.00000000
158 0 1.00000000 0.00000000
159 0 0.59198438 0.40801562
160 1 0.48756363 0.51243637
161 0 1.00000000 0.00000000
162 0 0.97569952 0.02430048
163 1 0.25645865 0.74354135
164 1 0.33609798 0.66390202
165 0 0.51186411 0.48813589
166 1 0.43231610 0.56768390
167 0 1.00000000 0.00000000
168 0 1.00000000 0.00000000
169 0 1.00000000 0.00000000
170 0 1.00000000 0.00000000
171 0 1.00000000 0.00000000
172 0 0.76784183 0.23215817
173 0 0.56768390 0.43231610
174 0 0.76784183 0.23215817
175 0 0.84796209 0.15203791
176 0 1.00000000 0.00000000
177 0 0.51243637 0.48756363
178 0 0.51243637 0.48756363
179 0 0.63960154 0.36039846
180 0 0.74402229 0.25597771
181 0 1.00000000 0.00000000
182 1 0.15203791 0.84796209
183 0 0.66390202 0.33609798
184 1 0.02430048 0.97569952
185 0 0.97569952 0.02430048
186 1 0.23215817 0.76784183
187 0 0.97569952 0.02430048
188 0 0.51186411 0.48813589
189 1 0.25597771 0.74402229
190 0 1.00000000 0.00000000
191 0 1.00000000 0.00000000
192 0 1.00000000 0.00000000
193 0 1.00000000 0.00000000
194 0 1.00000000 0.00000000
195 0 0.91987973 0.08012027
196 0 1.00000000 0.00000000
197 0 0.91987973 0.08012027
198 0 0.74402229 0.25597771
199 0 1.00000000 0.00000000
200 0 1.00000000 0.00000000
201 0 1.00000000 0.00000000
202 0 1.00000000 0.00000000
203 0 0.97569952 0.02430048
204 0 0.84796209 0.15203791
205 1 0.00000000 1.00000000
206 0 0.89557925 0.10442075
207 0 1.00000000 0.00000000
208 0 1.00000000 0.00000000
209 0 0.91987973 0.08012027
210 0 0.84796209 0.15203791
211 0 1.00000000 0.00000000
212 0 0.74402229 0.25597771
213 0 0.74402229 0.25597771
214 0 0.66390202 0.33609798
215 0 1.00000000 0.00000000
216 0 0.91987973 0.08012027
217 0 1.00000000 0.00000000
218 0 1.00000000 0.00000000
219 0 0.51186411 0.48813589
220 0 1.00000000 0.00000000
221 1 0.00000000 1.00000000
222 1 0.15203791 0.84796209
223 0 0.51243637 0.48756363
224 1 0.28027819 0.71972181
225 1 0.08012027 0.91987973
226 0 1.00000000 0.00000000
227 0 1.00000000 0.00000000
228 1 0.25597771 0.74402229
229 1 0.15203791 0.84796209
230 1 0.15203791 0.84796209
231 0 0.51243637 0.48756363
232 1 0.08012027 0.91987973
233 1 0.28027819 0.71972181
234 1 0.40801562 0.59198438
235 0 0.51186411 0.48813589
236 0 1.00000000 0.00000000
237 1 0.43231610 0.56768390
238 0 0.89557925 0.10442075
239 1 0.33609798 0.66390202
240 0 0.74354135 0.25645865
241 0 0.97569952 0.02430048
242 0 1.00000000 0.00000000
243 0 0.97569952 0.02430048
244 0 0.89557925 0.10442075
245 0 0.74402229 0.25597771
246 0 1.00000000 0.00000000
247 0 1.00000000 0.00000000
248 0 0.84796209 0.15203791
249 1 0.36039846 0.63960154
250 0 0.84796209 0.15203791
251 1 0.48813589 0.51186411
252 0 1.00000000 0.00000000
253 0 1.00000000 0.00000000
254 0 0.91987973 0.08012027
255 0 0.56768390 0.43231610
256 0 1.00000000 0.00000000
257 0 0.84796209 0.15203791
258 1 0.33609798 0.66390202
259 0 0.76784183 0.23215817
260 0 1.00000000 0.00000000
261 1 0.36039846 0.63960154
262 0 1.00000000 0.00000000
263 0 1.00000000 0.00000000
264 1 0.48756363 0.51243637
265 1 0.48756363 0.51243637
266 0 0.89557925 0.10442075
267 0 1.00000000 0.00000000
268 0 0.66390202 0.33609798
269 0 0.56768390 0.43231610
270 0 0.74402229 0.25597771
271 1 0.25597771 0.74402229
272 0 1.00000000 0.00000000
273 0 0.66390202 0.33609798
274 0 1.00000000 0.00000000
275 0 1.00000000 0.00000000
276 0 0.89557925 0.10442075
277 0 1.00000000 0.00000000
278 0 0.51243637 0.48756363
279 0 0.84796209 0.15203791
280 0 1.00000000 0.00000000
281 0 0.84796209 0.15203791
282 0 0.91987973 0.08012027
283 0 1.00000000 0.00000000
284 0 1.00000000 0.00000000
285 0 0.97569952 0.02430048
286 0 1.00000000 0.00000000
287 0 1.00000000 0.00000000
288 0 1.00000000 0.00000000
289 0 1.00000000 0.00000000
290 0 0.91987973 0.08012027
291 0 1.00000000 0.00000000
292 0 1.00000000 0.00000000
293 0 0.91987973 0.08012027
294 0 0.76784183 0.23215817
295 1 0.17633839 0.82366161
296 1 0.10442075 0.89557925
297 0 0.84796209 0.15203791
298 0 0.97569952 0.02430048
299 1 0.36039846 0.63960154
300 0 1.00000000 0.00000000
301 0 0.84796209 0.15203791
302 0 0.91987973 0.08012027
303 0 0.89557925 0.10442075
304 0 0.97569952 0.02430048
305 0 1.00000000 0.00000000
306 1 0.02430048 0.97569952
307 1 0.15203791 0.84796209
308 1 0.40801562 0.59198438
309 0 0.84796209 0.15203791
310 1 0.00000000 1.00000000
311 0 0.89557925 0.10442075
312 0 1.00000000 0.00000000
313 0 1.00000000 0.00000000
314 1 0.48756363 0.51243637
315 0 0.51243637 0.48756363
316 0 0.97569952 0.02430048
317 0 1.00000000 0.00000000
318 0 0.97569952 0.02430048
319 1 0.25645865 0.74354135
320 0 1.00000000 0.00000000
321 1 0.08012027 0.91987973
322 1 0.33609798 0.66390202
323 0 0.91987973 0.08012027
324 0 0.89557925 0.10442075
325 0 0.91987973 0.08012027
326 0 1.00000000 0.00000000
327 1 0.25597771 0.74402229
328 0 1.00000000 0.00000000
329 0 1.00000000 0.00000000
330 1 0.43231610 0.56768390
331 0 0.84796209 0.15203791
332 0 0.51243637 0.48756363
333 1 0.33609798 0.66390202
[ reached 'max' / getOption("max.print") -- omitted 365 rows ]
【朴素贝叶斯分类算法】
Eg.1：朴素贝叶斯算法预测客户是否流失
Data[, "流失"] <- as.factor(Data[, "流失"]) # 将目标变量转换成因子型
set.seed(1234) # 设置随机种子
# 数据集随机抽70%定义为训练数据集，30%为测试数据集
ind <- sample(2, nrow(Data), replace = TRUE, prob = c(0.7, 0.3))
traindata <- Data[ind == 1, ]
testdata <- Data[ind == 2, ]
# 使用naiveBayes函数建立朴素贝叶斯分类模型
library(e1071) # 加载e1071包
naiveBayes.model <- naiveBayes(流失 ~ ., data = traindata) # 建立朴素贝叶斯分类模型
# 预测结果
train_predict <- predict(naiveBayes.model, newdata = traindata) # 训练数据集
test_predict <- predict(naiveBayes.model, newdata = testdata) # 测试数据集
# 输出训练数据的分类结果
train_predictdata <- cbind(traindata, predictedclass = train_predict)
# 输出训练数据的混淆矩阵
(train_confusion <- table(actual = traindata$流失, predictedclass = train_predict))
# 输出测试数据的分类结果
test_predictdata <- cbind(testdata, predictedclass = test_predict)
# 输出测试数据的混淆矩阵
(test_confusion <- table(actual = testdata$流失, predictedclass = test_predict))
# 使用NaiveBayes函数建立朴素贝叶斯分类模型
install.packages("klaR")
library(klaR) # 加载klaR包
NaiveBayes.model <- NaiveBayes(流失 ~ ., data = traindata) # 建立朴素贝叶斯分类模型
# 预测结果
train_predict <- predict(NaiveBayes.model) # 训练数据集
test_predict <- predict(NaiveBayes.model, newdata = testdata) # 测试数据集
# 输出训练数据的分类结果
train_predictdata <- cbind(traindata, predictedclass = train_predict$class)
# 输出训练数据的混淆矩阵
(train_confusion <- table(actual = traindata$流失, predictedclass = train_predict$class))
# 输出测试数据的分类结果
test_predictdata <- cbind(testdata, predictedclass = test_predict$class)
# 输出测试数据的混淆矩阵
(test_confusion <- table(actual = testdata$流失, predictedclass = test_predict$class))
【lda模型】
Eg.1：建立lda模型并进行分类预测
Data[, "流失"] <- as.factor(Data[, "流失"]) #将目标变量转换成因子型
set.seed(1234) # 设置随机种子
# 数据集随机抽70%定义为训练数据集，30%为测试数据集
ind <- sample(2, nrow(Data), replace = TRUE, prob = c(0.7, 0.3))
traindata <- Data[ind == 1, ]
testdata <- Data[ind == 2, ]
# 建立lda分类模型
install.packages("MASS")
library(MASS)
lda.model <- lda(流失 ~ ., data = traindata)
# 预测结果
train_predict <- predict(lda.model, newdata = traindata) # 训练数据集
test_predict <- predict(lda.model, newdata = testdata) # 测试数据集
# 输出训练数据的分类结果
train_predictdata <- cbind(traindata, predictedclass = train_predict$class)
# 输出训练数据的混淆矩阵
(train_confusion <- table(actual = traindata$流失, predictedclass = train_predict$class))
# 输出测试数据的分类结果
test_predictdata <- cbind(testdata, predictedclass = test_predict$class)
# 输出测试数据的混淆矩阵
(test_confusion <- table(actual = testdata$流失, predictedclass = test_predict$class))
【rpart模型】
Eg.1：构建rpart模型并进行分类预测
Data[, "流失"] <- as.factor(Data[, "流失"]) # 将目标变量转换成因子型
set.seed(1234) # 设置随机种子
# 数据集随机抽70%定义为训练数据集，30%为测试数据集
ind <- sample(2, nrow(Data), replace = TRUE, prob = c(0.7, 0.3))
traindata <- Data[ind == 1, ]
testdata <- Data[ind == 2, ]
# 建立rpart分类模型
library(rpart)
install.packages("rpart.plot")
library(rpart.plot)
rpart.model <- rpart(流失 ~ ., data = traindata, method = "class", cp = 0.03) # cp为复杂的参数
# 输出决策树图
rpart.plot(rpart.model, branch = 1, branch.type = 2, type = 1, extra = 102,
border.col = "blue", split.col = "red",
split.cex = 1, main = "客户流失决策树")
# 预测结果
train_predict <- predict(rpart.model, newdata = traindata, type = "class") # 训练数据集
test_predict <- predict(rpart.model, newdata = testdata, type = "class") # 测试数据集
# 输出训练数据的分类结果
train_predictdata <- cbind(traindata, predictedclass = train_predict)
# 输出训练数据的混淆矩阵
(train_confusion <- table(actual = traindata$流失, predictedclass = train_predict))
# 输出测试数据的分类结果
test_predictdata <- cbind(testdata, predictedclass = test_predict)
# 输出测试数据的混淆矩阵
(test_confusion <- table(actual = testdata$流失, predictedclass = test_predict))
【bagging模型】
Eg.1：构建bagging模型并进行分类预测
Data[, "流失"] <- as.factor(Data[, "流失"]) # 将目标变量转换成因子型
set.seed(1234) # 设置随机种子
# 数据集随机抽70%定义为训练数据集，30%为测试数据集
ind <- sample(2, nrow(Data), replace = TRUE, prob = c(0.7, 0.3))
traindata <- Data[ind == 1, ]
testdata <- Data[ind == 2, ]
# 建立bagging分类模型
install.packages("adabag")
library(adabag)
bagging.model <- bagging(流失 ~ ., data = traindata)
# 预测结果
train_predict <- predict(bagging.model, newdata = traindata) # 训练数据集
test_predict <- predict(bagging.model, newdata = testdata) # 测试数据集
# 输出训练数据的分类结果
train_predictdata <- cbind(traindata, predictedclass = train_predict$class)
# 输出训练数据的混淆矩阵
(train_confusion <- table(actual = traindata$流失, predictedclass = train_predict$class))
# 输出测试数据的分类结果
test_predictdata <- cbind(testdata, predictedclass = test_predict$class)
# 输出测试数据的混淆矩阵
(test_confusion <- table(actual = testdata$流失, predictedclass = test_predict$class))
【randomForest模型】
Eg.1：构建randomForest模型并进行分类预测
Data[, "流失"] <- as.factor(Data[, "流失"]) # 将目标变量转换成因子型
set.seed(1234) # 设置随机种子
# 数据集随机抽70%定义为训练数据集，30%为测试数据集
ind <- sample(2, nrow(Data), replace = TRUE, prob = c(0.7, 0.3))
traindata <- Data[ind == 1, ]
testdata <- Data[ind == 2, ]
# 建立randomForest模型
install.packages("randomForest")
library(randomForest)
randomForest.model <- randomForest(流失 ~ ., data = traindata)
# 预测结果
test_predict <- predict(randomForest.model, newdata = testdata) # 测试数据集
# 输出训练数据的混淆矩阵
(train_confusion <- randomForest.model$confusion)
# 输出测试数据的混淆矩阵
(test_confusion <- table(actual = testdata$流失, predictedclass = test_predict))
【svm模型】
Eg.1：构建svm模型并进行分类预测
Data[, "流失"] = as.factor(Data[, "流失"]) # 将目标变量转换成因子型
set.seed(1234) # 设置随机种子
# 数据集随机抽70%定义为训练数据集，30%为测试数据集
ind <- sample(2, nrow(Data), replace = TRUE, prob = c(0.7, 0.3))
traindata <- Data[ind == 1, ]
testdata <- Data[ind == 2, ]
# 建立svm模型
install.packages("e1071")
library(e1071)
svm.model <- svm(流失 ~ ., data = traindata)
# 预测结果
train_predict <- predict(svm.model, newdata = traindata) # 训练数据集
test_predict <- predict(svm.model, newdata = testdata) # 测试数据集
# 输出训练数据的分类结果
train_predictdata <- cbind(traindata, predictedclass = train_predict)
# 输出训练数据的混淆矩阵
(train_confusion <- table(actual = traindata$流失, predictedclass = train_predict))
# 输出测试数据的分类结果
test_predictdata <- cbind(testdata, predictedclass = test_predict)
# 输出测试数据的混淆矩阵
(test_confusion <- table(actual = testdata$流失, predictedclass = test_predict))
【ROC曲线和PR曲线】
Eg.1：ROC曲线和PR曲线图代码
install.packages("ROCR")
library(ROCR)
library(gplots)
# 预测结果
train_predict <- predict(lda.model, newdata = traindata) # 训练数据集
test_predict <- predict(lda.model, newdata = testdata) # 测试数据集
par(mfrow = c(1, 2))
# ROC曲线
# 训练集
predi <- prediction(train_predict$posterior[, 2], traindata$流失)
perfor <- performance(predi, "tpr", "fpr")
plot(perfor, col = "red", type = "l", main = "ROC曲线", lty = 1) # 训练集的ROC曲线
# 测试集
predi2 <- prediction(test_predict$posterior[, 2], testdata$流失)
perfor2 <- performance(predi2, "tpr", "fpr")
par(new = T)
plot(perfor2, col = "blue", type = "l", pch = 2, lty = 2) # 测试集的ROC曲线
abline(0, 1)
legend("bottomright", legend = c("训练集", "测试集"), bty = "n",
lty = c(1, 2), col = c("red", "blue")) # 图例
# PR曲线
# 训练集
perfor <- performance(predi, "prec", "rec")
plot(perfor, col = "red", type = "l", main = "PR曲线", xlim = c(0, 1),
ylim = c(0, 1), lty = 1) # 训练集的PR曲线
# 测试集
perfor2 <- performance(predi2, "prec", "rec")
par(new = T)
plot(perfor2, col = "blue", type = "l", pch = 2, xlim = c(0, 1),
ylim = c(0, 1), lty = 2) # 测试集的PR曲线
abline(1, -1)
legend("bottomleft", legend = c("训练集", "测试集"), bty = "n",
lty = c(1, 2), col = c("red", "blue")) # 图例
【BIC图和一阶差分】
Eg.1：
install.packages("TSA")
library(TSA)
Data <- read.csv("arima_data.csv", header = T,fileEncoding = "GB2312")[, 2]
sales <- ts(Data)
plot.ts(sales, xlab = "时间", ylab = "销量 / 元")
# 一阶差分
difsales <- diff(sales)
# BIC图
res <- armasubsets(y = difsales, nar = 5, nma = 5, y.name = 'test',
ar.method = 'ols')
plot(res)
【逻辑回归】
Eg.1：
Data <- read.csv("bankloan.csv",fileEncoding = "GB2312")[2:701, ]
# 数据命名
colnames(Data) <- c("x1", "x2", "x3", "x4", "x5", "x6", "x7", "x8", "y")
# logistic回归模型
glm <- glm(y ~ x1 + x2 + x3 + x4 + x5 + x6 + x7 + x8,
family = binomial(link = logit), data = Data)
summary(glm)
# 逐步寻优法
logit.step <- step(glm, direction = "both")
summary(logit.step)
# 前向选择法
logit.step <- step(glm, direction = "forward")
summary(logit.step)
# 后向选择法
logit.step <- step(glm, direction = "backward")
summary(logit.step)
【ID3_decision_tree】
Eg.1：
data <- read.csv("sales_data.csv",fileEncoding = "GB2312")[, 2:5]
# 数据命名
colnames(data) <- c("x1", "x2", "x3", "result")
# 计算一列数据的信息熵
calculateEntropy <- function(data) {
t <- table(data)
sum <- sum(t)
t <- t[t != 0]
entropy <- -sum(log2(t / sum) * (t / sum))
return(entropy)
}
# 计算两列数据的信息熵
calculateEntropy2 <- function(data) {
var <- table(data[1])
p <- var/sum(var)
varnames <- names(var)
array <- c()
for (name in varnames) {
array <- append(array, calculateEntropy(subset(data, data[1] == name,
select = 2)))
}
return(sum(array * p))
}
buildTree <- function(data) {
if (length(unique(data$result)) == 1) {
cat(data$result[1])
return()
}
if (length(names(data)) == 1) {
cat("...")
return()
}
entropy <- calculateEntropy(data$result)
labels <- names(data)
label <- ""
temp <- Inf
subentropy <- c()
for (i in 1:(length(data) - 1)) {
temp2 <- calculateEntropy2(data[c(i, length(labels))])
if (temp2 < temp) {
temp <- temp2
label <- labels[i]
}
subentropy <- append(subentropy,temp2)
}
cat(label)
cat("[")
nextLabels <- labels[labels != label]
for (value in unlist(unique(data[label]))) {
cat(value,":")
buildTree(subset(data,data[label] == value, select = nextLabels))
cat(";")
}
cat("]")
}
# 构建分类树
buildTree(data)
【bp_neural_network】
Eg.1：
Data <- read.csv("sales_data.csv",fileEncoding = "GB2312")[, 2:5]
# 数据命名
library(nnet)
colnames(Data) <- c("x1", "x2", "x3", "y")
print(names(Data))
print(class(Data$y))
Data$y <- as.factor(Data$y)
print(class(Data$y))
# 最终模型
model1 <- nnet(y ~ ., data = Data, size = 6, decay = 5e-4, maxit = 1000)
pred <- predict(model1, Data[, 1:3], type = "class")
(P <- sum(as.numeric(pred == Data$y)) / nrow(Data))
table(Data$y, pred)
prop.table(table(Data$y, pred), 1)
-
相关阅读:
真正的测试 =“半个产品+半个开发”？
改变工作目录和根目录
Jmeter 多实例压测
基于EPICS stream模块的直流电源的IOC控制程序实例
淘宝大数据揭秘
win11家庭版docker和milvus
百度飞浆OCR识别表格入门python实践
交换机和工业级4G路由器的区别
css3 2d转换transform详细解析与代码实例transform
【动手学深度学习PyTorch版】2 线性回归
- 原文地址：https://blog.csdn.net/m0_65787507/article/details/137885445
