大数据基础设施搭建 - Spark

一、解压压缩包

[hadoop@hadoop102 software]$ tar -zxvf spark-3.0.0-bin-hadoop3.2.tgz -C /opt/module
1

二、修改配置文件conf/spark-env.sh

cd /opt/module/spark-3.0.0-bin-hadoop3.2/conf
[hadoop@hadoop102 conf]$ cp spark-env.sh.template spark-env.sh
[hadoop@hadoop102 conf]$ vim spark-env.sh
1
2
3

内容：

export JAVA_HOME=/opt/module/jdk1.8.0_291
YARN_CONF_DIR=/opt/module/hadoop-3.1.3/etc/hadoop
1
2

三、测试提交Spark任务

[hadoop@hadoop102 ~]$ cd /opt/module/spark-3.0.0-bin-hadoop3.2/
[hadoop@hadoop102 spark-3.0.0-bin-hadoop3.2]$ bin/spark-submit \
> --class org.apache.spark.examples.SparkPi \
> --master yarn \
> --deploy-mode cluster \
> ./examples/jars/spark-examples_2.12-3.0.0.jar \
> 10
1
2
3
4
5
6
7

到YARN WEB页面查看任务提交情况

四、Spark on Hive配置

4.1 创建hive-site.xml（spark/conf目录）

[hadoop@hadoop102 conf]$ cd /opt/module/spark-3.0.0-bin-hadoop3.2/conf/
[hadoop@hadoop102 conf]$ vim hive-site.xml
1
2

内容：

<configuration>

    <property>
      <name>hive.metastore.warehouse.dirname>
      <value>/warehousevalue>
    property>

    <property>
      <name>hive.metastore.localname>
      <value>falsevalue>
    property>

    <property>
      <name>hive.metastore.urisname>
      <value>thrift://hadoop102:9083value>
    property>

configuration>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

4.2 查看hive的hive-site.xml配置与3.1配置的是否一致

cd /opt/module/apache-hive-3.1.2-bin/conf
vim hive-site.xml
1
2

4.3 测试SparkSQL

4.3.1 启动SparkSQL客户端（Yarn方式）

[hadoop@hadoop102 spark-3.0.0-bin-hadoop3.2]$ bin/spark-sql --master yarn
1

spark-sql> show databases;
spark-sql> select count(1)
         > from dw_ods.ods_activity_info_full
         > where dt='2023-12-07';
1
2
3
4

4.3.2 启动Hive客户端

[hadoop@hadoop102 apache-hive-3.1.2-bin]$ bin/hive
1

hive> show databases;
hive> select count(1)
    > from dw_ods.ods_activity_info_full
    > where dt='2023-12-07';
1
2
3
4

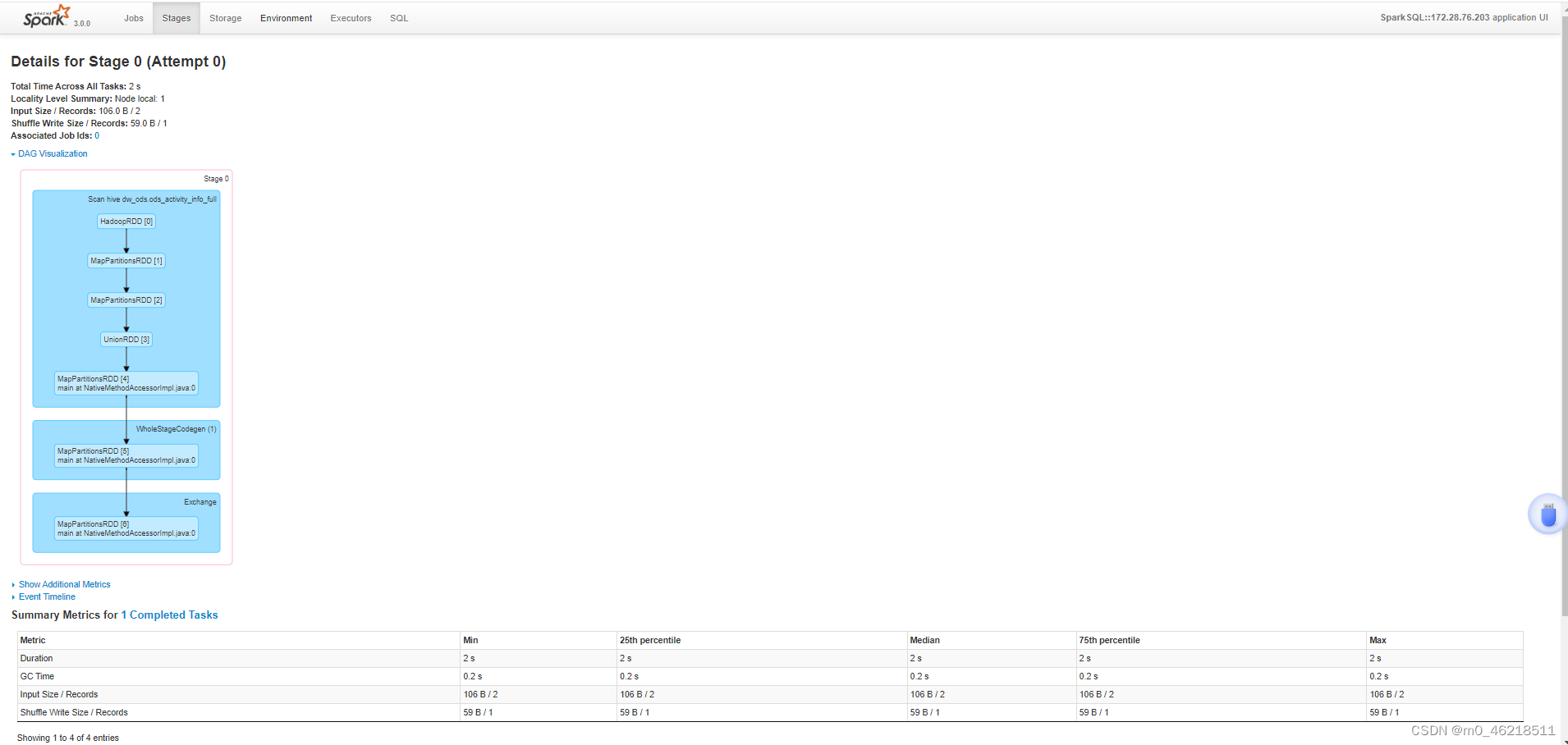

五、通过Spark Web-UI分析SQL执行过程（TODO）

六、集群化（TODO）

优势在哪里？？
