TVRNet网络PyTorch实现

文章地址

• An End-to-End Traffic Visibility Regression Algorithm
• 文章通过训练搜集得到的真实道路图像数据集（Actual Road dense image Dataset, ARD），通过专业的能见度计和多人标注，获得可靠的能见度标签数据集。构建网络，进行训练，获得了较好的能见度识别网络。网络包括特征提取​、多尺度映射​、特征融合​、非线性输出（回归范围为[0,1]，需要经过(0,0),(1,1)改用修改的sigmoid函数，相较于ReLU更好）。结构如下​

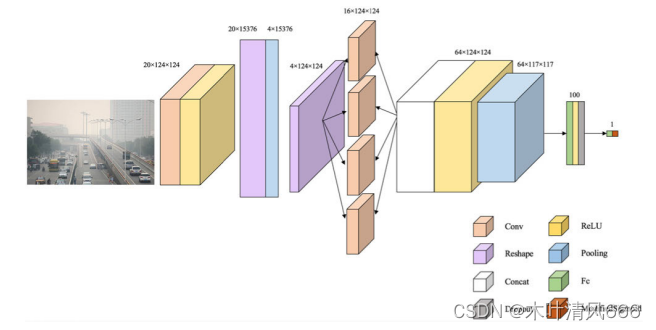

网络各层结构

• 我认为红框位置与之相应的参数不匹配，在Feature Extraction部分Reshape之后得到的特征图大小为4124124。紧接着接了一个卷积层Conv，显示输入是3128128
• 第二处红框，MaxPool的kernel设置为88,特征图没有进行padding，到全连接层的输入变为64117*117，参数不对应


代码实现

"""
    Based on the ideas of the below paper, using PyTorch to build TVRNet.
    Reference: Qin H, Qin H. An end-to-end traffic visibility regression algorithm[J]. IEEE Access, 2021, 10: 25448-25454.​
    @muyeqingfeng
"""

import torch
from torch import nn
import math


class Inception(nn.Module):
    def __init__(self, in_planes, out_planes):
        super(Inception, self).__init__()
        self.conv1 = nn.Conv2d(in_planes, out_planes, kernel_size=1, padding=0)
        self.conv3 = nn.Conv2d(in_planes, out_planes, kernel_size=3, padding=1)
        self.conv5 = nn.Conv2d(in_planes, out_planes, kernel_size=5, padding=2)
        self.conv7 = nn.Conv2d(in_planes, out_planes, kernel_size=7, padding=3)

    def forward(self, x):
        out_1 = self.conv1(x)
        out_3 = self.conv3(x)
        out_5 = self.conv5(x)
        out_7 = self.conv7(x)

        out = torch.cat((out_1, out_3, out_5, out_7), dim=1)
        return out

def modify_sigmoid(x):
    return 1 / (1 + torch.exp(-10*(x-0.5)))

class TVRNet(nn.Module):
    def __init__(self, in_planes, out_planes):
        super(TVRNet, self).__init__()
        # (B, 3, 224, 224)  ——>  (B, 3, 220, 220)
        self.FeatureExtraction_onestep = nn.Sequential(nn.Conv2d(in_planes, 20, kernel_size=5, padding=0),
                                                       nn.ReLU(inplace=True),)
        self.FeatureExtraction_maxpool = nn.MaxPool2d((5, 1))

        self.MultiScaleMapping = nn.Sequential(Inception(4, 16),
                                               nn.ReLU(inplace=True),
                                               nn.MaxPool2d(kernel_size=8))

        self.FeatureIntegration = nn.Sequential(nn.Linear(46656, 100),
                                                nn.ReLU(inplace=True),
                                                nn.Dropout(0.4),
                                                nn.Linear(100, out_planes))

        self.NonLinearRegression = modify_sigmoid


    def forward(self, x):
        x = self.FeatureExtraction_onestep(x)
        x = x.view((x.shape[0], 1, x.shape[1], -1))
        x = self.FeatureExtraction_maxpool(x)
        x = x.view(x.shape[0], x.shape[2], int(math.sqrt(x.shape[3])), int(math.sqrt(x.shape[3])))
        # print(x.shape)

        x = self.MultiScaleMapping(x)
        # print(x.shape)
        x = x.view(x.shape[0], -1)

        x = self.FeatureIntegration(x)
        out = self.NonLinearRegression(x)

        return out


if __name__ == '__main__':
    a = torch.randn(1,3,224,224)
    net = TVRNet(3,3)
    b = net(a)
    print(b.shape)
