• 51单片机用IIc控制OLED显示数组内容

    为了能够看到51单片机接收到的串口数据，我选择了用oled显示收到的数据，特此花重金买了一块oled屏128X64的屏幕大概10来块钱吧！首先要达成的小目标就是能够显示数组的内容，建立一个字符数组，用来接收串口收到的数据，今天就研究怎么把数组的内容显示出来。

    下面就是程序了，先来个截图，防止有些小伙伴搞不明白，我是这么走过来的，知道有朋友找到我的文章后需要的是什么？我看到的文章都不是很全，差点东西就要搞半天，我来个一次性的解决问题！

    下面就是这四个文件的原码了，可以复制粘贴后直接使用！

    串口_OLED.C文件，也是需要你自己来完成的文件。当然复制我的也可以实验。

    1. #include"oled.h"
    2. #define uc unsigned char
    3. char str[]={0x41,0x42,0x43,0x44};  //  定义一个char类型的数组，里面放的是ABCD的十六进制数
    4.
    5. int main()
    6. {
    7. 	uc *p = str;     //用unsigned char类型的指针接收数组的地址
    8. 	OLED_Init();			//初始化OLED
    9.
    10. 	OLED_Clear(); 		//清屏函数
    11.
    12. 	while(1)
    13. 	{
    14. 		// 显示数组的值
    15. 		OLED_ShowString(1,2,p,16);//第一个形参表示第六行，第二个形参表示排，第三个表示写入的字符，第四个表示字体大小
    16. 	}
    17. }

    oled.c文件，关于oled中所需要的函数尽数在这里：

    1. #include "oled.h"

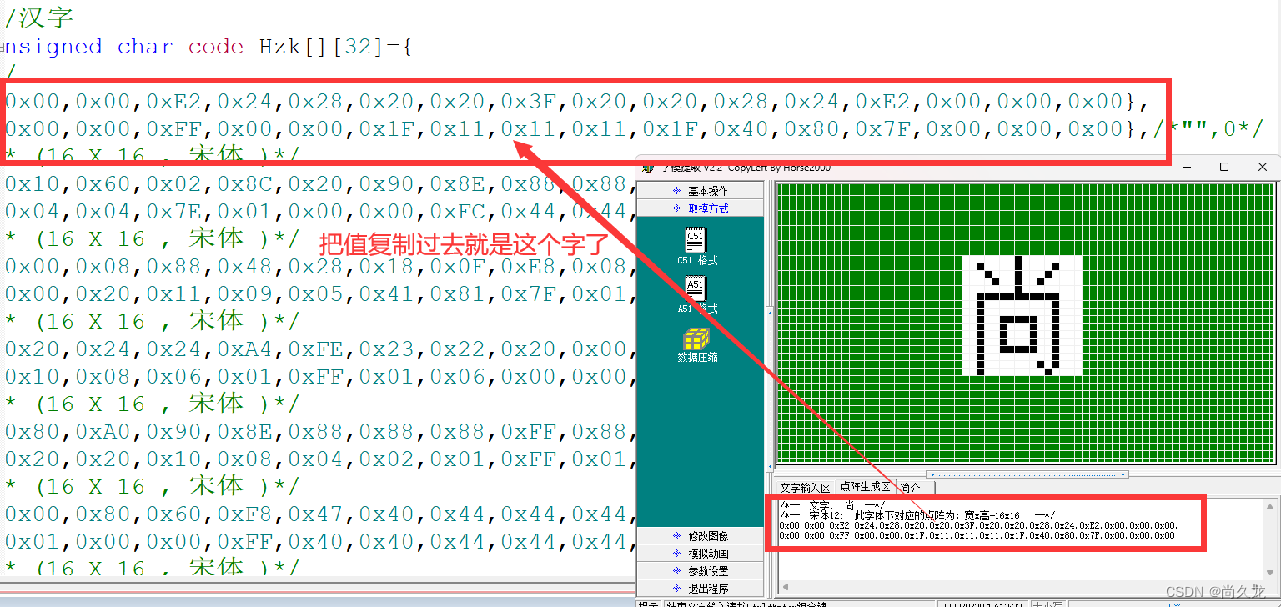

    2. #include "oledfont.h"  	//取模的中文库
    3.
    4. void delay_ms(unsigned int ms)
    5. {
    6. 	unsigned int a;
    7. 	while(ms)
    8. 	{
    9. 		a=1800;
    10. 		while(a--);
    11. 		ms--;
    12. 	}
    13. }
    14. /**********************************************
    15. //IIC Start
    16. **********************************************/
    17. void IIC_Start()
    18. {
    19.
    20. 	OLED_SCLK_Set() ;
    21. 	OLED_SDIN_Set();
    22. 	OLED_SDIN_Clr();
    23. 	OLED_SCLK_Clr();
    24. }
    25.
    26. /**********************************************
    27. //IIC Stop
    28. **********************************************/
    29. void IIC_Stop()
    30. {
    31. OLED_SCLK_Set() ;
    32. //	OLED_SCLK_Clr();
    33. 	OLED_SDIN_Clr();
    34. 	OLED_SDIN_Set();
    35.
    36. }
    37.
    38. void IIC_Wait_Ack()
    39. {
    40.
    41. 	//GPIOB->CRH &= 0XFFF0FFFF;	//设置PB12为上拉输入模式
    42. 	//GPIOB->CRH |= 0x00080000;
    43. //	OLED_SDA = 1;
    44. //	delay_us(1);
    45. 	//OLED_SCL = 1;
    46. 	//delay_us(50000);
    47. /*	while(1)
    48. 	{
    49. 		if(!OLED_SDA)				//判断是否接收到OLED 应答信号
    50. 		{
    51. 			//GPIOB->CRH &= 0XFFF0FFFF;	//设置PB12为通用推免输出模式
    52. 			//GPIOB->CRH |= 0x00030000;
    53. 			return;
    54. 		}
    55. 	}
    56. */
    57. 	OLED_SCLK_Set() ;
    58. 	OLED_SCLK_Clr();
    59. }
    60. /**********************************************
    61. // IIC Write byte
    62. **********************************************/
    63.
    64. void Write_IIC_Byte(unsigned char IIC_Byte)
    65. {
    66. 	unsigned char i;
    67. 	unsigned char m,da;
    68. 	da=IIC_Byte;
    69. 	OLED_SCLK_Clr();
    70. 	for(i=0;i<8;i++)
    71. 	{
    72. 			m=da;
    73. 		//	OLED_SCLK_Clr();
    74. 		m=m&0x80;
    75. 		if(m==0x80)
    76. 		{OLED_SDIN_Set();}
    77. 		else OLED_SDIN_Clr();
    78. 			da=da<<1;
    79. 		OLED_SCLK_Set();
    80. 		OLED_SCLK_Clr();
    81. 		}
    82. }
    83. /**********************************************
    84. // IIC Write Command
    85. **********************************************/
    86. void Write_IIC_Command(unsigned char IIC_Command)
    87. {
    88.    IIC_Start();
    89.    Write_IIC_Byte(0x78);            //Slave address,SA0=0
    90. 	IIC_Wait_Ack();
    91.    Write_IIC_Byte(0x00);			//write command
    92. 	IIC_Wait_Ack();
    93.    Write_IIC_Byte(IIC_Command);
    94. 	IIC_Wait_Ack();
    95.    IIC_Stop();
    96. }
    97. /**********************************************
    98. // IIC Write Data
    99. **********************************************/
    100. void Write_IIC_Data(unsigned char IIC_Data)
    101. {
    102.    IIC_Start();
    103.    Write_IIC_Byte(0x78);			//D/C#=0; R/W#=0
    104. 	IIC_Wait_Ack();
    105.    Write_IIC_Byte(0x40);			//write data
    106. 	IIC_Wait_Ack();
    107.    Write_IIC_Byte(IIC_Data);
    108. 	IIC_Wait_Ack();
    109.    IIC_Stop();
    110. }
    111. void OLED_WR_Byte(unsigned dat,unsigned cmd)
    112. {
    113. 	if(cmd)
    114. 	{
    115. 			Write_IIC_Data(dat);
    116. 	}
    117. 	else
    118. 		{
    119. 			Write_IIC_Command(dat);
    120. 		}
    121. }
    122.
    123. /********************************************
    124. // fill_Picture
    125. ********************************************/
    126. void fill_picture(unsigned char fill_Data)
    127. {
    128. 	unsigned char m,n;
    129. 	for(m=0;m<8;m++)
    130. 	{
    131. 		OLED_WR_Byte(0xb0+m,0);		//page0-page1
    132. 		OLED_WR_Byte(0x00,0);		//low column start address
    133. 		OLED_WR_Byte(0x10,0);		//high column start address
    134. 		for(n=0;n<128;n++)
    135. 			{
    136. 				OLED_WR_Byte(fill_Data,1);
    137. 			}
    138. 	}
    139. }
    140.
    141.
    142. /***********************Delay****************************************/
    143. void Delay_50ms(unsigned int Del_50ms)
    144. {
    145. 	unsigned int m;
    146. 	for(;Del_50ms>0;Del_50ms--)
    147. 		for(m=6245;m>0;m--);
    148. }
    149.
    150. void Delay_1ms(unsigned int Del_1ms)
    151. {
    152. 	unsigned char j;
    153. 	while(Del_1ms--)
    154. 	{
    155. 		for(j=0;j<123;j++);
    156. 	}
    157. }
    158.
    159. //坐标设置
    160.
    161. void OLED_Set_Pos(unsigned char x, unsigned char y)
    162. { 	OLED_WR_Byte(0xb0+y,OLED_CMD);
    163. 	OLED_WR_Byte(((x&0xf0)>>4)|0x10,OLED_CMD);
    164. 	OLED_WR_Byte((x&0x0f),OLED_CMD);
    165. }
    166. //开启OLED显示
    167. void OLED_Display_On(void)
    168. {
    169. 	OLED_WR_Byte(0X8D,OLED_CMD);  //SET DCDC命令
    170. 	OLED_WR_Byte(0X14,OLED_CMD);  //DCDC ON
    171. 	OLED_WR_Byte(0XAF,OLED_CMD);  //DISPLAY ON
    172. }
    173. //关闭OLED显示
    174. void OLED_Display_Off(void)
    175. {
    176. 	OLED_WR_Byte(0X8D,OLED_CMD);  //SET DCDC命令
    177. 	OLED_WR_Byte(0X10,OLED_CMD);  //DCDC OFF
    178. 	OLED_WR_Byte(0XAE,OLED_CMD);  //DISPLAY OFF
    179. }
    180. //清屏函数,清完屏,整个屏幕是黑色的!和没点亮一样!!!
    181. void OLED_Clear(void)
    182. {
    183. 	u8 i,n;
    184. 	for(i=0;i<8;i++)
    185. 	{
    186. 		OLED_WR_Byte (0xb0+i,OLED_CMD);    //设置页地址（0~7）
    187. 		OLED_WR_Byte (0x00,OLED_CMD);      //设置显示位置—列低地址
    188. 		OLED_WR_Byte (0x10,OLED_CMD);      //设置显示位置—列高地址
    189. 		for(n=0;n<128;n++)OLED_WR_Byte(0,OLED_DATA);
    190. 	} //更新显示
    191. }
    192. void OLED_On(void)
    193. {
    194. 	u8 i,n;
    195. 	for(i=0;i<8;i++)
    196. 	{
    197. 		OLED_WR_Byte (0xb0+i,OLED_CMD);    //设置页地址（0~7）
    198. 		OLED_WR_Byte (0x00,OLED_CMD);      //设置显示位置—列低地址
    199. 		OLED_WR_Byte (0x10,OLED_CMD);      //设置显示位置—列高地址
    200. 		for(n=0;n<128;n++)OLED_WR_Byte(1,OLED_DATA);
    201. 	} //更新显示
    202. }
    203. //在指定位置显示一个字符,包括部分字符
    204. //x:0~127
    205. //y:0~63
    206. //mode:0,反白显示;1,正常显示
    207. //size:选择字体 16/12
    208. void OLED_ShowChar(u8 x,u8 y,u8 chr,u8 Char_Size)
    209. {
    210. 	unsigned char c=0,i=0;
    211. 		c=chr-' ';//得到偏移后的值
    212. 		if(x>Max_Column-1){x=0;y=y+2;}
    213. 		if(Char_Size ==16)
    214. 			{
    215. 			OLED_Set_Pos(x,y);
    216. 			for(i=0;i<8;i++)
    217. 			OLED_WR_Byte(F8X16[c*16+i],OLED_DATA);
    218. 			OLED_Set_Pos(x,y+1);
    219. 			for(i=0;i<8;i++)
    220. 			OLED_WR_Byte(F8X16[c*16+i+8],OLED_DATA);
    221. 			}
    222. 			else {
    223. 				OLED_Set_Pos(x,y);
    224. 				for(i=0;i<6;i++)
    225. 				OLED_WR_Byte(F6x8[c][i],OLED_DATA);
    226.
    227. 			}
    228. }
    229. //m^n函数
    230. u32 oled_pow(u8 m,u8 n)
    231. {
    232. 	u32 result=1;
    233. 	while(n--)result*=m;
    234. 	return result;
    235. }
    236. //显示2个数字
    237. //x,y :起点坐标
    238. //len :数字的位数
    239. //size:字体大小
    240. //mode:模式	0,填充模式;1,叠加模式
    241. //num:数值(0~4294967295);
    242. void OLED_ShowNum(u8 x,u8 y,u32 num,u8 len,u8 size2)
    243. {
    244. 	u8 t,temp;
    245. 	u8 enshow=0;
    246. 	for(t=0;t
    247. 	{
    248. 		temp=(num/oled_pow(10,len-t-1))%10;
    249. 		if(enshow==0&&t<(len-1))
    250. 		{
    251. 			if(temp==0)
    252. 			{
    253. 				OLED_ShowChar(x+(size2/2)*t,y,' ',size2);
    254. 				continue;
    255. 			}else enshow=1;
    256.
    257. 		}
    258. 	 	OLED_ShowChar(x+(size2/2)*t,y,temp+'0',size2);
    259. 	}
    260. }
    261. //显示一个字符号串
    262. void OLED_ShowString(u8 x,u8 y,u8 *chr,u8 Char_Size)
    263. {
    264. 	unsigned char j=0;
    265. 	while (chr[j]!='\0')
    266. 	{		OLED_ShowChar(x,y,chr[j],Char_Size);
    267. 			x+=8;
    268. 		if(x>120){x=0;y+=2;}
    269. 			j++;
    270. 	}
    271. }
    272. //显示汉字
    273. void OLED_ShowCHinese(u8 x,u8 y,u8 no)
    274. {
    275. 	u8 t,adder=0;
    276. 	OLED_Set_Pos(x,y);
    277.     for(t=0;t<16;t++)
    278. 		{
    279. 				OLED_WR_Byte(Hzk[2*no][t],OLED_DATA);
    280. 				adder+=1;
    281.      }
    282. 		OLED_Set_Pos(x,y+1);
    283.     for(t=0;t<16;t++)
    284. 			{
    285. 				OLED_WR_Byte(Hzk[2*no+1][t],OLED_DATA);
    286. 				adder+=1;
    287.       }
    288. }
    289. /***********功能描述：显示显示BMP图片128×64起始点坐标(x,y),x的范围0～127，y为页的范围0～7*****************/
    290. void OLED_DrawBMP(unsigned char x0, unsigned char y0,unsigned char x1, unsigned char y1,unsigned char BMP[])
    291. {
    292.  unsigned int j=0;
    293.  unsigned char x,y;
    294.
    295.   if(y1%8==0) y=y1/8;
    296.   else y=y1/8+1;
    297. 	for(y=y0;y
    298. 	{
    299. 		OLED_Set_Pos(x0,y);
    300.     for(x=x0;x
    301. 	    {
    302. 	    	OLED_WR_Byte(BMP[j++],OLED_DATA);
    303. 	    }
    304. 	}
    305. }
    306.
    307. //初始化SSD1306
    308. void OLED_Init(void)
    309. {
    310.
    311. 	OLED_WR_Byte(0xAE,OLED_CMD);//--display off
    312. 	OLED_WR_Byte(0x00,OLED_CMD);//---set low column address
    313. 	OLED_WR_Byte(0x10,OLED_CMD);//---set high column address
    314. 	OLED_WR_Byte(0x40,OLED_CMD);//--set start line address
    315. 	OLED_WR_Byte(0xB0,OLED_CMD);//--set page address
    316. 	OLED_WR_Byte(0x81,OLED_CMD); // contract control
    317. 	OLED_WR_Byte(0xFF,OLED_CMD);//--128
    318. 	OLED_WR_Byte(0xA1,OLED_CMD);//set segment remap
    319. 	OLED_WR_Byte(0xA6,OLED_CMD);//--normal / reverse
    320. 	OLED_WR_Byte(0xA8,OLED_CMD);//--set multiplex ratio(1 to 64)
    321. 	OLED_WR_Byte(0x3F,OLED_CMD);//--1/32 duty
    322. 	OLED_WR_Byte(0xC8,OLED_CMD);//Com scan direction
    323. 	OLED_WR_Byte(0xD3,OLED_CMD);//-set display offset
    324. 	OLED_WR_Byte(0x00,OLED_CMD);//
    325.
    326. 	OLED_WR_Byte(0xD5,OLED_CMD);//set osc division
    327. 	OLED_WR_Byte(0x80,OLED_CMD);//
    328.
    329. 	OLED_WR_Byte(0xD8,OLED_CMD);//set area color mode off
    330. 	OLED_WR_Byte(0x05,OLED_CMD);//
    331.
    332. 	OLED_WR_Byte(0xD9,OLED_CMD);//Set Pre-Charge Period
    333. 	OLED_WR_Byte(0xF1,OLED_CMD);//
    334.
    335. 	OLED_WR_Byte(0xDA,OLED_CMD);//set com pin configuartion
    336. 	OLED_WR_Byte(0x12,OLED_CMD);//
    337.
    338. 	OLED_WR_Byte(0xDB,OLED_CMD);//set Vcomh
    339. 	OLED_WR_Byte(0x30,OLED_CMD);//
    340.
    341. 	OLED_WR_Byte(0x8D,OLED_CMD);//set charge pump enable
    342. 	OLED_WR_Byte(0x14,OLED_CMD);//
    343.
    344. 	OLED_WR_Byte(0xAF,OLED_CMD);//--turn on oled panel
    345. }

    现在是oled.h文件，也就是这些函数的头文件，此文件内更改oled屏幕和51的连接接口。

    1. #include "reg52.h"
    2.
    3.
    4. #ifndef __OLED_H
    5. #define __OLED_H
    6.
    7. #define  u8 unsigned char
    8. #define  u32 unsigned int
    9.
    10. #define OLED_CMD  0	//写命令
    11. #define OLED_DATA 1	//写数据
    12. #define OLED_MODE 0
    13.
    14.
    15. sbit OLED_SCL=P3^2;					//时钟线
    16. sbit OLED_SDIN=P3^3;				//数据线
    17.
    18. #define OLED_CS_Clr()  OLED_CS=0
    19. #define OLED_CS_Set()  OLED_CS=1
    20.
    21. #define OLED_RST_Clr() OLED_RST=0
    22. #define OLED_RST_Set() OLED_RST=1
    23.
    24. #define OLED_DC_Clr() OLED_DC=0
    25. #define OLED_DC_Set() OLED_DC=1
    26.
    27. #define OLED_SCLK_Clr() OLED_SCL=0
    28. #define OLED_SCLK_Set() OLED_SCL=1
    29.
    30. #define OLED_SDIN_Clr() OLED_SDIN=0
    31. #define OLED_SDIN_Set() OLED_SDIN=1
    32.
    33. //OLED模式设置
    34. //0:4线串行模式
    35. //1:并行8080模式
    36.
    37. #define SIZE 16
    38. #define XLevelL		0x02
    39. #define XLevelH		0x10
    40. #define Max_Column	128
    41. #define Max_Row		64
    42. #define	Brightness	0xFF
    43. #define X_WIDTH 	128
    44. #define Y_WIDTH 	64
    45. //-----------------OLED端口定义----------------
    46.
    47. void delay_ms(unsigned int ms);
    48.
    49.
    50. //OLED控制用函数
    51. void OLED_WR_Byte(unsigned dat,unsigned cmd);
    52. void OLED_Display_On(void);
    53. void OLED_Display_Off(void);
    54. void OLED_Init(void);
    55. void OLED_Clear(void);
    56. void OLED_DrawPoint(u8 x,u8 y,u8 t);
    57. void OLED_Fill(u8 x1,u8 y1,u8 x2,u8 y2,u8 dot);
    58. void OLED_ShowChar(u8 x,u8 y,u8 chr,u8 Char_Size);
    59. void OLED_ShowNum(u8 x,u8 y,u32 num,u8 len,u8 size);
    60. void OLED_ShowString(u8 x,u8 y, u8 *p,u8 Char_Size);
    61. void OLED_Set_Pos(unsigned char x, unsigned char y);
    62. void OLED_ShowCHinese(u8 x,u8 y,u8 no);
    63. void OLED_DrawBMP(unsigned char x0, unsigned char y0,unsigned char x1, unsigned char y1,unsigned char BMP[]);
    64. void Delay_50ms(unsigned int Del_50ms);
    65. void Delay_1ms(unsigned int Del_1ms);
    66. void fill_picture(unsigned char fill_Data);
    67. void Picture();
    68. void IIC_Start();
    69. void IIC_Stop();
    70. void Write_IIC_Command(unsigned char IIC_Command);
    71. void Write_IIC_Data(unsigned char IIC_Data);
    72. void Write_IIC_Byte(unsigned char IIC_Byte);
    73. void IIC_Wait_Ack();
    74.
    75. #endif
    76.

    现在是字体库，ASCII码中的字符，都在这个文件中，还有中文的显示，后面教大家怎么改汉字。

    1. #ifndef __OLEDFONT_H
    2. #define __OLEDFONT_H
    3. //常用ASCII表
    4. //偏移量32
    5. //ASCII字符集
    6. //偏移量32
    7. //大小:12*6
    8. /************************************6*8的点阵************************************/
    9. const unsigned char code F6x8[][6] =
    10. {
    11. 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,// sp
    12. 0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !
    13. 0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "
    14. 0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #
    15. 0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $
    16. 0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %
    17. 0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &
    18. 0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '
    19. 0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (
    20. 0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )
    21. 0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *
    22. 0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +
    23. 0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,
    24. 0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -
    25. 0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .
    26. 0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /
    27. 0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 0
    28. 0x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 1
    29. 0x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 2
    30. 0x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 3
    31. 0x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 4
    32. 0x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 5
    33. 0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 6
    34. 0x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 7
    35. 0x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 8
    36. 0x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 9
    37. 0x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :
    38. 0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;
    39. 0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// <
    40. 0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =
    41. 0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// >
    42. 0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?
    43. 0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @
    44. 0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A
    45. 0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B
    46. 0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C
    47. 0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D
    48. 0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E
    49. 0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F
    50. 0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G
    51. 0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H
    52. 0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I
    53. 0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J
    54. 0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K
    55. 0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L
    56. 0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M
    57. 0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N
    58. 0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O
    59. 0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P
    60. 0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q
    61. 0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R
    62. 0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S
    63. 0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T
    64. 0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U
    65. 0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V
    66. 0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W
    67. 0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X
    68. 0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y
    69. 0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z
    70. 0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [
    71. 0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// 55
    72. 0x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]
    73. 0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^
    74. 0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _
    75. 0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '
    76. 0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a
    77. 0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b
    78. 0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c
    79. 0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d
    80. 0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e
    81. 0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f
    82. 0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g
    83. 0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h
    84. 0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i
    85. 0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j
    86. 0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k
    87. 0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l
    88. 0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m
    89. 0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n
    90. 0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o
    91. 0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p
    92. 0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q
    93. 0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r
    94. 0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s
    95. 0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t
    96. 0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u
    97. 0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v
    98. 0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w
    99. 0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x
    100. 0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y
    101. 0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z
    102. 0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// horiz lines
    103. };
    104. /****************************************8*16的点阵************************************/
    105. const unsigned char code F8X16[]=
    106. {
    107.   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,// 0
    108.   0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! 1
    109.   0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" 2
    110.   0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# 3
    111.   0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ 4
    112.   0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% 5
    113.   0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& 6
    114.   0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' 7
    115.   0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( 8
    116.   0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) 9
    117.   0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* 10
    118.   0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ 11
    119.   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, 12
    120.   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- 13
    121.   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. 14
    122.   0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// 15
    123.   0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 16
    124.   0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 17
    125.   0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 18
    126.   0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 19
    127.   0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 20
    128.   0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 21
    129.   0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 22
    130.   0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 23
    131.   0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 24
    132.   0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 25
    133.   0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: 26
    134.   0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; 27
    135.   0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< 28
    136.   0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= 29
    137.   0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> 30
    138.   0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? 31
    139.   0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ 32
    140.   0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A 33
    141.   0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B 34
    142.   0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C 35
    143.   0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D 36
    144.   0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E 37
    145.   0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F 38
    146.   0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G 39
    147.   0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H 40
    148.   0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I 41
    149.   0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J 42
    150.   0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K 43
    151.   0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L 44
    152.   0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M 45
    153.   0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N 46
    154.   0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O 47
    155.   0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P 48
    156.   0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q 49
    157.   0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R 50
    158.   0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S 51
    159.   0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T 52
    160.   0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U 53
    161.   0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V 54
    162.   0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W 55
    163.   0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X 56
    164.   0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y 57
    165.   0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z 58
    166.   0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ 59
    167.   0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ 60
    168.   0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] 61
    169.   0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ 62
    170.   0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ 63
    171.   0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` 64
    172.   0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a 65
    173.   0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b 66
    174.   0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c 67
    175.   0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d 68
    176.   0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e 69
    177.   0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f 70
    178.   0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g 71
    179.   0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h 72
    180.   0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i 73
    181.   0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j 74
    182.   0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k 75
    183.   0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l 76
    184.   0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m 77
    185.   0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n 78
    186.   0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o 79
    187.   0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p 80
    188.   0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q 81
    189.   0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r 82
    190.   0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s 83
    191.   0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t 84
    192.   0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u 85
    193.   0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v 86
    194.   0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w 87
    195.   0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x 88
    196.   0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y 89
    197.   0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z 90
    198.   0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ 91
    199.   0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//| 92
    200.   0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} 93
    201.   0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~ 94
    202. };
    203. //汉字
    204. unsigned char code Hzk[][32]={
    205. //
    206. {0x00,0x00,0xE2,0x24,0x28,0x20,0x20,0x3F,0x20,0x20,0x28,0x24,0xE2,0x00,0x00,0x00},
    207. {0x00,0x00,0xFF,0x00,0x00,0x1F,0x11,0x11,0x11,0x1F,0x40,0x80,0x7F,0x00,0x00,0x00},/*"尚",0*/
    208. /* (16 X 16 , 宋体 )*/
    209. {0x00,0x00,0xFE,0x92,0x92,0x92,0x92,0xFE,0x92,0x92,0x92,0x92,0xFE,0x00,0x00,0x00},
    210. {0x40,0x38,0x01,0x00,0x3C,0x40,0x40,0x42,0x4C,0x40,0x40,0x70,0x05,0x08,0x30,0x00},/*"思",1*/
    211. /* (16 X 16 , 宋体 )*/
    212. {0x20,0xC2,0x0C,0x80,0x08,0x48,0x48,0x48,0x48,0x7F,0x48,0x48,0x48,0x48,0x08,0x00},
    213. {0x04,0x04,0x7E,0x01,0x00,0x00,0xFE,0x42,0x42,0x42,0x42,0x42,0xFE,0x00,0x00,0x00},/*"洁",2*/
    214. /* (16 X 16 , 宋体 )*/
    215. {0x20,0x24,0x24,0xA4,0xFE,0x23,0x22,0x20,0x00,0xF8,0x08,0x08,0x08,0xF8,0x00,0x00},
    216. {0x10,0x08,0x06,0x01,0xFF,0x01,0x06,0x00,0x00,0x3F,0x10,0x10,0x10,0x3F,0x00,0x00},/*"和",3*/
    217. /* (16 X 16 , 宋体 )*/
    218. {0x00,0x00,0xE2,0x24,0x28,0x20,0x20,0x3F,0x20,0x20,0x28,0x24,0xE2,0x00,0x00,0x00},
    219. {0x00,0x00,0xFF,0x00,0x00,0x1F,0x11,0x11,0x11,0x1F,0x40,0x80,0x7F,0x00,0x00,0x00},/*"尚",0*/
    220. /* (16 X 16 , 宋体 )*/
    221. {0x00,0x00,0xFE,0x92,0x92,0x92,0x92,0xFE,0x92,0x92,0x92,0x92,0xFE,0x00,0x00,0x00},
    222. {0x40,0x38,0x01,0x00,0x3C,0x40,0x40,0x42,0x4C,0x40,0x40,0x70,0x05,0x08,0x30,0x00},/*"思",1*/
    223. /* (16 X 16 , 宋体 )*/
    224. {0x10,0x0C,0x24,0x24,0x24,0x24,0x25,0xE6,0x24,0x24,0x24,0x24,0x24,0x14,0x0C,0x00},
    225. {0x02,0x02,0x02,0x02,0x02,0x42,0x82,0x7F,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x00},/*"宇",6*/
    226. /* (16 X 16 , 宋体 )*/
    227. };
    228.
    229. #endif
    230.

    好了，到此4个文件齐全了，就可以显示主函数中定义的数组char str[]={0x41,0x42,0x43,0x44};

    这个数组正好是ABCD4个字符，也是我屏幕上显示的字符。

    下面写怎么更改中文的数组：用字模提取软件，自己去搜索吧，不想搜索的可以关注我评论中要，给你下载链接。

    最后是怎么显示中文和数字的函数使用方法，绝的帮助到你了给个免费的爱心在走吧！

    1. //这个函数显示中文
    2. 		OLED_ShowCHinese(0,0,0);//尚		//第一个形参是列，第二个是行，第三个是显示哪个中文，这里一个字占16宽
    3. 		OLED_ShowCHinese(18,0,1);//思
    4. 		OLED_ShowCHinese(36,0,2);//洁
    5. 		OLED_ShowCHinese(54,0,3);//和
    6. 		OLED_ShowCHinese(72,0,4);//尚
    7. 		OLED_ShowCHinese(90,0,5);//思
    8. 		OLED_ShowCHinese(108,0,6);//宇
    9. 		//这个函数显示字符
    10. 		OLED_ShowString(6,3,"shangjiulong520",16);//第一个形参表示第六行，第二个形参表示排，第三个表示写入的字符，第四个表示字体大小
    11. 		OLED_ShowString(0,6,"SJL",16);
    12. 		OLED_ShowString(63,6,"CODE",18);
    13. 		//显示数字变量
    14. 		OLED_ShowNum(83,6,t,1,16);		//第一个参数表示列，第二个参数表示行，第三个参数表示变量数字

    明天就用这堆东西来测试串口收发数据了，之前老是看不到单片机里面的数组到底是个什么样子，这下就有了参考了。

  • 相关阅读:
    文件包含漏洞利用的几种方法
    Android学习笔记 58. 探索基本Activity架构
    如何识别图片中的文字？三种方法轻松搞定
    第一次搭建接口自动化测试框架有什么要注意的吗？
    微分方程和线性代数（先理解一阶微分形式不变性）
    【ArcGIS】利用高程进行坡度分析：区域面/河道坡度
    JAVA-GUI工具的编写-----简易框架篇
    # 磁盘引导方式相关知识之BIOS、msdos、MBR、UEFI、gpt、esp、csm
    QFileInfo 类【官翻】
    Kafka 单机部署搭建及其基本使用
  • 原文地址：https://blog.csdn.net/xingyuncao520025/article/details/133412631
