BUUCTF Reverse/[GWCTF 2019]re3

main函数代码，这里改写了内存空间的属性，还是自解密

void __fastcall __noreturn main(int a1, char **a2, char **a3)
{
  int i; // [rsp+8h] [rbp-48h]
  char s[40]; // [rsp+20h] [rbp-30h] BYREF
  unsigned __int64 v5; // [rsp+48h] [rbp-8h]

  v5 = __readfsqword(0x28u);
  __isoc99_scanf("%39s", s);
  if ( (unsigned int)strlen(s) != 32 )
  {
    puts("Wrong!");
    exit(0);
  }
  mprotect(&dword_400000, 0xF000uLL, 7);
  for ( i = 0; i <= 223; ++i )
    *((_BYTE *)sub_402219 + i) ^= 0x99u;
  sub_40207B(&unk_603170);
  sub_402219(s);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

这里一坨数字，盲猜这里就是自解密的地方

整个idc脚本，运行完后选中这段数字，按c强制转换为代码，再将所有标红的部分选中按p，就能正常f5了

#include

static main()
{
    auto addr = 0x0040221A;   //这里填入要解密字节串的起始地址
    auto i = 0;
    for(i=0;i<=223;i++)   //循环结束的条件为字节串的结束地址
    {
        PatchByte(addr+i,Byte(addr+i)^0x99);   //异或的数字根据情况修改
    }
}
1
2
3
4
5
6
7
8
9
10
11

反汇编出的伪代码

__int64 __fastcall sub_40221A(__int64 a1)
{
  unsigned int v2; // [rsp+18h] [rbp-D8h]
  int i; // [rsp+1Ch] [rbp-D4h]
  char v4[200]; // [rsp+20h] [rbp-D0h] BYREF
  unsigned __int64 v5; // [rsp+E8h] [rbp-8h]

  v5 = __readfsqword(0x28u);
  sub_400A71(v4, &unk_603170);
  sub_40196E(v4, a1);
  sub_40196E(v4, a1 + 16);
  v2 = 1;
  for ( i = 0; i <= 31; ++i )
  {
    if ( *(_BYTE *)(i + a1) != byte_6030A0[i] )
      v2 = 0;
  }
  return v2;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

明显byte_6030A0中就是最后变换的flag，可以shift+e提取出来

看了下sub_40196E(v4, a1); 中的加密算法，有点复杂不太想看，还是直接动调吧

__int64 __fastcall sub_401828(__int64 a1, __int64 flag)
{
  unsigned __int8 i; // [rsp+1Fh] [rbp-1h]

  sub_400B0A(0LL, a1, flag);
  for ( i = 1; i <= 9u; ++i )
  {
    sub_400BAC(a1);
    sub_400C1F(a1);
    sub_400D27(a1);
    sub_400B0A(i, a1, flag);
  }
  sub_400BAC(a1);
  sub_400C1F(a1);
  return sub_400B0A(10LL, a1, flag);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

方法参考：IDA动调ELF文件 ， IDA远程动态调试(linux & Windows)

添加权限

看下当前路径

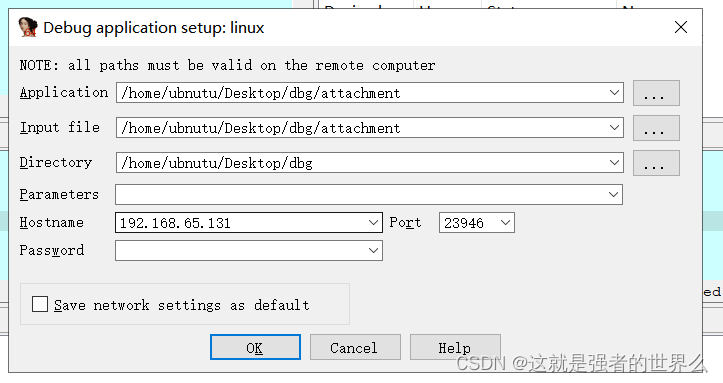

填写对应信息

开始dbg，下断点输入32位字符

跟进 sub_401828,这里我把变量名改了下，方便看

这里就对flag进行了一波变换

看汇编代码，edi中存的就是输入flag的值，eax中存储的就是上面代码异或的值，打个断点，依次将eax的值记录下来

查看v4的值

直接跳转

因为v4 的大小最大为200，就将7FFEA43B22E0到00007FFEA43B238A的数据提取出来

还是得写脚本来逆。。。

试了下把 sub_40196E() 逆出来，，

from z3 import *
import numpy as np
v4 = [
  0xCB, 0x8D, 0x49, 0x35, 0x21, 0xB4, 0x7A, 0x4C, 0xC1, 0xAE,
  0x7E, 0x62, 0x22, 0x92, 0x66, 0xCE, 0x85, 0xBE, 0xC2, 0xA6,
  0xA4, 0x0A, 0xB8, 0xEA, 0x65, 0xA4, 0xC6, 0x88, 0x47, 0x36,
  0xA0, 0x46, 0x82, 0x5E, 0x98, 0x06, 0x26, 0x54, 0x20, 0xEC,
  0x43, 0xF0, 0xE6, 0x64, 0x04, 0xC6, 0x46, 0x22, 0x32, 0x04,
  0x0B, 0xF4, 0x14, 0x50, 0x2B, 0x18, 0x57, 0xA0, 0xCD, 0x7C,
  0x53, 0x66, 0x8B, 0x5E, 0x09, 0x39, 0x53, 0x19, 0x1D, 0x69,
  0x78, 0x01, 0x4A, 0xC9, 0xB5, 0x7D, 0x19, 0xAF, 0x3E, 0x23,
  0x60, 0x8B, 0x75, 0xCD, 0x7D, 0xE2, 0x0D, 0xCC, 0x37, 0x2B,
  0xB8, 0xB1, 0x2E, 0x84, 0x86, 0x92, 0x1F, 0xCF, 0x3A, 0xFC,
  0x62, 0x2D, 0x37, 0x30, 0x55, 0x06, 0x8F, 0x81, 0x7B, 0x82,
  0x09, 0x13, 0x4C, 0xCE, 0x47, 0xDD, 0x2E, 0xE3, 0x70, 0xED,
  0x7B, 0xE5, 0xFF, 0x6C, 0x00, 0x67, 0xF6, 0x7F, 0x49, 0x8C,
  0x95, 0xBE, 0x67, 0x6F, 0xE5, 0x53, 0x1C, 0x8A, 0x1A, 0x3F,
  0x1C, 0xED, 0xEC, 0x40, 0x07, 0x42, 0x9C, 0x22, 0x60, 0x2D,
  0x79, 0x71, 0x7C, 0xA7, 0x63, 0x4E, 0x60, 0x4A, 0x8F, 0x0E,
  0xE7, 0x31, 0x37, 0xF2, 0x87, 0x1C, 0x4E, 0x83, 0xFB, 0xBB,
  0x2D, 0xCD, 0x9B, 0xF1, 0xA2, 0xC3, 0x7A, 0xC5, 0xFB, 0xAC,
  0x91, 0x1F, 0x3B, 0x36, 0x78, 0x41, 0xF8, 0xDC, 0xEC, 0xC9,
  0xDB, 0x46, 0x00, 0x23, 0x40
]
byte_4023A0 = [
  0x63, 0x7C, 0x77, 0x7B, 0xF2, 0x6B, 0x6F, 0xC5, 0x30, 0x01,
  0x67, 0x2B, 0xFE, 0xD7, 0xAB, 0x76, 0xCA, 0x82, 0xC9, 0x7D,
  0xFA, 0x59, 0x47, 0xF0, 0xAD, 0xD4, 0xA2, 0xAF, 0x9C, 0xA4,
  0x72, 0xC0, 0xB7, 0xFD, 0x93, 0x26, 0x36, 0x3F, 0xF7, 0xCC,
  0x34, 0xA5, 0xE5, 0xF1, 0x71, 0xD8, 0x31, 0x15, 0x04, 0xC7,
  0x23, 0xC3, 0x18, 0x96, 0x05, 0x9A, 0x07, 0x12, 0x80, 0xE2,
  0xEB, 0x27, 0xB2, 0x75, 0x09, 0x83, 0x2C, 0x1A, 0x1B, 0x6E,
  0x5A, 0xA0, 0x52, 0x3B, 0xD6, 0xB3, 0x29, 0xE3, 0x2F, 0x84,
  0x53, 0xD1, 0x00, 0xED, 0x20, 0xFC, 0xB1, 0x5B, 0x6A, 0xCB,
  0xBE, 0x39, 0x4A, 0x4C, 0x58, 0xCF, 0xD0, 0xEF, 0xAA, 0xFB,
  0x43, 0x4D, 0x33, 0x85, 0x45, 0xF9, 0x02, 0x7F, 0x50, 0x3C,
  0x9F, 0xA8, 0x51, 0xA3, 0x40, 0x8F, 0x92, 0x9D, 0x38, 0xF5,
  0xBC, 0xB6, 0xDA, 0x21, 0x10, 0xFF, 0xF3, 0xD2, 0xCD, 0x0C,
  0x13, 0xEC, 0x5F, 0x97, 0x44, 0x17, 0xC4, 0xA7, 0x7E, 0x3D,
  0x64, 0x5D, 0x19, 0x73, 0x60, 0x81, 0x4F, 0xDC, 0x22, 0x2A,
  0x90, 0x88, 0x46, 0xEE, 0xB8, 0x14, 0xDE, 0x5E, 0x0B, 0xDB,
  0xE0, 0x32, 0x3A, 0x0A, 0x49, 0x06, 0x24, 0x5C, 0xC2, 0xD3,
  0xAC, 0x62, 0x91, 0x95, 0xE4, 0x79, 0xE7, 0xC8, 0x37, 0x6D,
  0x8D, 0xD5, 0x4E, 0xA9, 0x6C, 0x56, 0xF4, 0xEA, 0x65, 0x7A,
  0xAE, 0x08, 0xBA, 0x78, 0x25, 0x2E, 0x1C, 0xA6, 0xB4, 0xC6,
  0xE8, 0xDD, 0x74, 0x1F, 0x4B, 0xBD, 0x8B, 0x8A, 0x70, 0x3E,
  0xB5, 0x66, 0x48, 0x03, 0xF6, 0x0E, 0x61, 0x35, 0x57, 0xB9,
  0x86, 0xC1, 0x1D, 0x9E, 0xE1, 0xF8, 0x98, 0x11, 0x69, 0xD9,
  0x8E, 0x94, 0x9B, 0x1E, 0x87, 0xE9, 0xCE, 0x55, 0x28, 0xDF,
  0x8C, 0xA1, 0x89, 0x0D, 0xBF, 0xE6, 0x42, 0x68, 0x41, 0x99,
  0x2D, 0x0F, 0xB0, 0x54, 0xBB, 0x16
]
def sub_400B0A(a1,flag):
    for i in range(4):
        for j in range(4):
            #print(i + 4 * j,"  " , 4 * (4 * a1 + i) + j)
            flag[i * 4 + j] ^= v4[4 * (4 * a1 + i) + j]
            flag[i * 4 + j] %= 256


def sub_400BAC(flag):
    for i in range(4):
        for j in range(4):
            #print(flag[i + 4 * j])
            flag[i + 4 * j] = byte_4023A0[flag[i + 4 * j]]
def sub_400BAC_reverse(flag):
     for i in range(4):
        for j in range(4):
            flag[i + 4 * j] = byte_4023A0.index(flag[i + 4 * j])

def sub_400C1F(flag):
    v2 = flag[1]
    flag[1] = flag[5]
    flag[5] = flag[9]
    flag[9] = flag[13]
    flag[13] = v2
    v3 = flag[2]
    flag[2] = flag[10]
    flag[10] = v3
    v4 = flag[6]
    flag[6] = flag[14]
    flag[14] = v4
    v5 = flag[3]
    flag[3] = flag[15]
    flag[15] = flag[11]
    flag[11] = flag[7]
    flag[7] = v5
#flag移位
def sub_400C1F_reverse(flag):
    v5 = flag[7]
    flag[7] = flag[11]
    flag[11] = flag[15]
    flag[15] = flag[3]
    flag[3] = v5
    v4 = flag[14]
    flag[14] = flag[6]
    flag[6] = v4
    v3 = flag[10]
    flag[10] = flag[2]
    flag[2] = v3
    v2 = flag[13]
    flag[13] = flag[9]
    flag[9] = flag[5]
    flag[5] = flag[1]
    flag[1] = v2

def sub_400CFA(temp):
    return (2 * temp) ^ (27 * (temp // (2**7)))

def sub_400D27(flag):
    for i in range(4):
        v2 = flag[4 * i]
        v3 = (flag[4 * i + 2] ^ flag[4 * i + 1] ^ v2 ^ flag[4 * i + 3]) % 256
        flag[4 * i] = (v3 ^ sub_400CFA(v2 ^ flag[4 * i + 1]) ^ v2) %256
        flag[4 * i + 1] ^= v3 ^ sub_400CFA(flag[4 * i + 1] ^ flag[4 * i + 2])
        flag[4 * i + 1] %= 256
        flag[4 * i + 2] ^= v3 ^ sub_400CFA(flag[4 * i + 2] ^ flag[4 * i + 3])
        flag[4 * i + 2] %= 256
        flag[4 * i + 3] ^= v3 ^ sub_400CFA(v2 ^ flag[4 * i + 3])
        flag[4 * i + 3] %= 256

# 之前试的爆破脚本。。。超级慢
def sub_400D27_reverse(flag):
    f = []
    for i in range(0,4):
        for j0 in range(33,128):
            for j1 in range(33,128):
                for j2 in range(33,128):
                    for j3 in range(33,128):
                        temp = [j0,j1,j2,j3]
                        print(temp)
                        v2 = temp[0]
                        v3 = (temp[ 2] ^ temp[ 1] ^ v2 ^ temp[ 3]) % 256
                        temp[0] = (v3 ^ sub_400CFA(v2 ^ temp[ 1]) ^ v2) %256
                        temp[ 1] ^= v3 ^ sub_400CFA(temp[ 1] ^ temp[ 2])
                        temp[ 1] %= 256
                        temp[ 2] ^= v3 ^ sub_400CFA(temp[  2] ^ temp[ 3])
                        temp[ 2] %= 256
                        temp[3] ^= v3 ^ sub_400CFA(v2 ^ temp[  3])
                        temp[ 3] %= 256
                        if temp == flag[i:i+4]:
                            f.append(j0)
                            f.append(j1)
                            f.append(j2)
                            f.append(j3)
                            break
                else:
                    continue
                break
            else:
                continue
            break
    flag = f[:]
    print(flag)

#这里用了z3去解，，，但是中间有些解不出来
def sub_400D27_reverse_2(flag):
    print(flag)
    f = []
    for i in range(4):
        print("flag",flag[4 * i:4*i + 4])
        s = Solver()
        t_0,t_1,t_2,t_3 = BitVecs('t_0 t_1 t_2 t_3',8)
        #t = [BitVecs(('t%d'% i),8) for i in range(4) ]
        '''
        for j in t:
            s.add(j>0)
            s.add(j<255)

        s.add(flag[4 * i] == t[0] ^ t[0] ^ t[1] ^ t[2] ^ t[3] ^ ( 2 * (t[0] ^ t[1]) ^ (27 * (t[0] ^ t[1]) >> 7)) )
        s.add(flag[4 * i + 1] == t[1] ^ t[0] ^ t[1] ^ t[2] ^ t[3] ^ ( ( 2 * (t[1] ^ t[2])) ^ (27 * (t[1] ^ t[2]) >> 7)) )
        s.add(flag[4 * i + 2] == t[2] ^ t[0] ^ t[1] ^ t[2] ^ t[3] ^ ( ( 2 * (t[2] ^ t[3])) ^ (27 * (t[2] ^ t[3]) >> 7)))
        s.add(flag[4 * i + 3] == t[3] ^ t[0] ^ t[1] ^ t[2] ^ t[3] ^  ( ( 2 * (t[0] ^ t[3])) ^ (27 * (t[0] ^ t[3]) >> 7)))
        '''
        s.add(flag[4 * i] == (t_0 ^ t_0 ^ t_1 ^ t_2 ^ t_3 ^ (( 2 * (t_0 ^ t_1) ^ (27 * (t_0 ^ t_1) >> 7)) % 256 )) % 256)
        s.add(flag[4 * i + 1] == (t_1 ^ t_0 ^ t_1 ^ t_2 ^ t_3 ^ ( (( 2 * (t_1 ^ t_2)) ^ (27 * (t_1 ^ t_2) >> 7)) % 256 )) % 256)
        s.add(flag[4 * i + 2] == (t_2 ^ t_0 ^ t_1 ^ t_2 ^ t_3 ^ ( (( 2 * (t_2 ^ t_3)) ^ (27 * (t_2 ^ t_3) >> 7)) % 256) ) % 256)
        s.add(flag[4 * i + 3] == (t_3 ^ t_0 ^ t_1 ^ t_2 ^ t_3 ^ ( ( ( 2 * (t_0 ^ t_3)) ^ (27 * (t_0 ^ t_3) >> 7)) % 256)) % 256)
        s.check()
        m = s.model()
        print(m)
        '''
        t_0,t_1,t_2,t_3 = BitVecs('t_0 t_1 t_2 t_3',8)
        v3 = t_0 ^ t_1 ^ t_2 ^ t_3
        s.add(flag[4 * i] == t_0 ^ t_1 ^ t_2 ^ t_3 ^ (2 * (t_0 ^ t_1)) ^ t_0)
        '''
    flag = f[:]
    print(f)

def sub_401828(flag):
    print(flag)
    sub_400B0A(0,flag)
    for i in range(1,10):
        sub_400BAC(flag)
        sub_400C1F(flag)
        sub_400D27(flag)
        sub_400B0A(i,flag)
    sub_400BAC(flag)
    sub_400C1F(flag)
    sub_400B0A(0xA,flag)
    return flag

def sub_401828_reverse(flag):
    print("flag1",flag)
    sub_400B0A(0xA,flag)   #异或
    print("flag2",flag)
    sub_400C1F_reverse(flag)  #交换
    print("flag3",flag)
    sub_400BAC_reverse(flag)  #取值
    print("flag4",flag)
    for i in range(9,0,-1):
        sub_400B0A(i,flag)   #异或
        sub_400D27_reverse_2(flag)  #加密
        sub_400C1F_reverse(flag)
        sub_400BAC_reverse(flag)
    sub_400B0A(0,flag)
    return flag



if __name__ == "__main__":
    flag = [0xBC, 0x0A, 0xAD, 0xC0, 0x14, 0x7C, 0x5E, 0xCC, 0xE0, 0xB1,
  0x40, 0xBC, 0x9C, 0x51, 0xD5, 0x2B, 0x46, 0xB2, 0xB9, 0x43,
  0x4D, 0xE5, 0x32, 0x4B, 0xAD, 0x7F, 0xB4, 0xB3, 0x9C, 0xDB,
  0x4B, 0x5B]
    f = []
    f += sub_401828_reverse(flag[0:16])
    f += sub_401828_reverse(flag[16:])


    print(f)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232

但是失败了，，，，估计中间步骤哪有问题。。。。翻了下别的大佬的wp，sub_40196E()是AES加密，，，白浪费时间写脚本了，寄

下断点运行到这里可以获得unk_603170的值 ：CB8D493521B47A4CC1AE7E62229266CE ，这个是作为AES的初始秘钥

byte_6030A0的值也可以提出来：BC0AADC0147C5ECCE0B140BC9C51D52B46B2B9434DE5324BAD7FB4B39CDB4B5B

直接AES解密就行

    flag = binascii.unhexlify('BC0AADC0147C5ECCE0B140BC9C51D52B46B2B9434DE5324BAD7FB4B39CDB4B5B')
    key = binascii.unhexlify('CB8D493521B47A4CC1AE7E62229266CE')
    mode = AES.MODE_ECB
    aes = AES.new(key,mode)
    text = aes.decrypt(flag)
    print(text)

1
2
3
4
5
6
7

最终flag： flag{924a9ab2163d390410d0a1f670}
