轻量化网络 Mobilenet V1/V2/V3 学习记录

参考视频

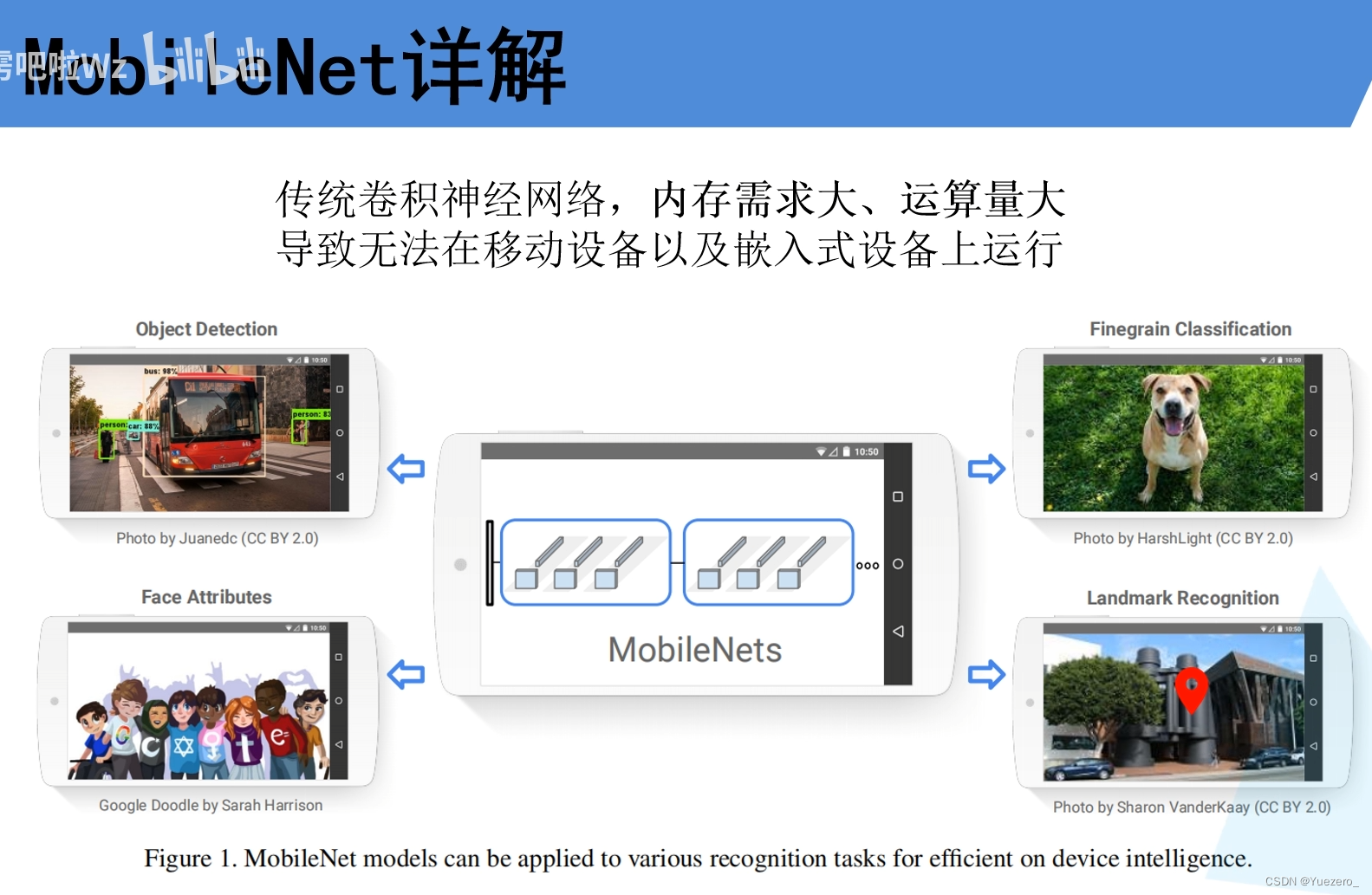

2016年直至现在，业内提出了SqueezeNet、ShuffleNet、NasNet、MnasNet以及MobileNet等轻量级网络模型。这些模型使移动终端、嵌入式设备运行神经网络模型成为可能。

V1(DW卷积)->V2(逆残差)->V3(SEattention)

1. 传统卷积

• 输入特征in_channel=卷积核的channel
• 输出特征图的out_channnel=卷积核的个数

  计算量 与 图像大小HW、卷积核大小有关



2. Mobilenet V1

2个亮点：

• DepthWise Separable卷积（深度可分离卷积）大大减少运算量：DW卷积+PW卷积
• 增加超参数alpha(控制卷积核个数)和beta(控制输入图像大小WH)

2.1 DepthWise Separable卷积

$$DW卷积(增大感受野，缩小特征图WH)+PW卷积(缩放特征图通道数C)$$
Step1：逐通道独立卷积（DepthWise卷积）：
一个卷积核负责一个通道

• 卷积核个数 = 输入特征图的in_channel = 输出特征图的out_channel
• 卷积核的channnel = 1



Step2：逐点卷积（Pointwise卷积）
卷积核1x1的普通卷积，省参数，N个卷积核得到N个特征图

Step3：串联DW卷积和PW卷积
两步走的Separable卷积效果与普通卷积相似，但计算量大大减小

深度可分离卷积 VS 普通卷积：

2.2 整体结构

mobilenet v1一路卷积到底(单分支DW卷积块串行)，但训练后DW卷积核很多参数为0，效果不理想。

3. Mobilenet V2

3.1 逆残差

• DW卷积:不改变通道数，但可缩小特征图WH
• 1x1卷积:不改变特征图WH，但可缩放通道数C

• 原始残差：先降维，后升维。两边厚，中间薄。
• 逆残差：先升维，后降维。两部薄，中间厚。

激活函数使用ReLU6：对ReLU设置max(6)

3.2 Relu干了坏事

Relu使 低维特征 损失信息

逆残差块输出的是低位特征图(通道维度小)，所以在输出时需要使用线性linear激活函数，避免信息损失，而在逆残差块其他部分，仍然使用ReLU6激活函数。

3.3 整体结构

此处的bottleneck就是逆残差块，单分支一路卷积到底，bottleneck内部可能有shortcut。

4. Mobilenet V3

亮点：

• 更新bottleneck：引入SE attention，非线性激活函数NL将swish改为h-swish，用于替代relu6
• 使用NAS搜索参数（Neural Architecture Search）
• 重新设置耗时层(对搜索出来的网络逐层分析优化)

4.1 更新bottleneck

①SE Attention：

Step1:求每个通道的权重值（1x1xc）（全局平均池化）

Step2:使用两个全连接层计算权重值的回归值sc（1x1xc），然后完成加权操作(每个通道权重回归值sc x 每个通道原始特征图uc)

②Switch激活函数：
基于Switch提出h-Switch激活函数，用于替代mobilenetV2中的relu6。
$$Switch(x)=x\ast sigmoid(x)$$

$$h-sigmoid(x)=relu6(x+3)/6$$

$$h-Switch(x)=x\ast h-sigmoid(x)=x\ast relu6(x+3)/6$$

4.2 重新设置耗时层

因为实验发现第一个卷积操作和最后的卷积操作才是耗时性能瓶颈，所以减少了第一个卷积层的output channel从32到16，且减少最后两层卷积层数量。

4.3 整体结构

5. Mobilenet V3 代码

import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.nn import init



class hswish(nn.Module):
    def forward(self, x):
        out = x * F.relu6(x + 3, inplace=True) / 6
        return out


class hsigmoid(nn.Module):
    def forward(self, x):
        out = F.relu6(x + 3, inplace=True) / 6
        return out


class SeModule(nn.Module):
    def __init__(self, in_size, reduction=4):
        super(SeModule, self).__init__()
        self.se = nn.Sequential(
            nn.AdaptiveAvgPool2d(1),
            nn.Conv2d(in_size, in_size // reduction, kernel_size=1, stride=1, padding=0, bias=False),
            nn.BatchNorm2d(in_size // reduction),
            nn.ReLU(inplace=True),
            nn.Conv2d(in_size // reduction, in_size, kernel_size=1, stride=1, padding=0, bias=False),
            nn.BatchNorm2d(in_size),
            hsigmoid()
        )

    def forward(self, x):
        return x * self.se(x)


class Block(nn.Module):
    '''expand + depthwise + pointwise'''
    def __init__(self, kernel_size, in_size, expand_size, out_size, nolinear, semodule, stride):
        super(Block, self).__init__()
        self.stride = stride
        self.se = semodule

        self.conv1 = nn.Conv2d(in_size, expand_size, kernel_size=1, stride=1, padding=0, bias=False)
        self.bn1 = nn.BatchNorm2d(expand_size)
        self.nolinear1 = nolinear
        self.conv2 = nn.Conv2d(expand_size, expand_size, kernel_size=kernel_size, stride=stride, padding=kernel_size//2, groups=expand_size, bias=False)
        self.bn2 = nn.BatchNorm2d(expand_size)
        self.nolinear2 = nolinear
        self.conv3 = nn.Conv2d(expand_size, out_size, kernel_size=1, stride=1, padding=0, bias=False)
        self.bn3 = nn.BatchNorm2d(out_size)

        self.shortcut = nn.Sequential()
        if stride == 1 and in_size != out_size:
            self.shortcut = nn.Sequential(
                nn.Conv2d(in_size, out_size, kernel_size=1, stride=1, padding=0, bias=False),
                nn.BatchNorm2d(out_size),
            )

    def forward(self, x):
        out = self.nolinear1(self.bn1(self.conv1(x)))
        out = self.nolinear2(self.bn2(self.conv2(out)))
        out = self.bn3(self.conv3(out))
        if self.se != None:
            out = self.se(out)
        out = out + self.shortcut(x) if self.stride==1 else out
        return out


class MobileNetV3_Large(nn.Module):
    def __init__(self, num_classes=1000):
        super(MobileNetV3_Large, self).__init__()
        self.conv1 = nn.Conv2d(3, 16, kernel_size=3, stride=2, padding=1, bias=False)
        self.bn1 = nn.BatchNorm2d(16)
        self.hs1 = hswish()

        self.bneck = nn.Sequential(
            Block(3, 16, 16, 16, nn.ReLU(inplace=True), None, 1),
            Block(3, 16, 64, 24, nn.ReLU(inplace=True), None, 2),
            Block(3, 24, 72, 24, nn.ReLU(inplace=True), None, 1),
            Block(5, 24, 72, 40, nn.ReLU(inplace=True), SeModule(40), 2),
            Block(5, 40, 120, 40, nn.ReLU(inplace=True), SeModule(40), 1),
            Block(5, 40, 120, 40, nn.ReLU(inplace=True), SeModule(40), 1),
            Block(3, 40, 240, 80, hswish(), None, 2),
            Block(3, 80, 200, 80, hswish(), None, 1),
            Block(3, 80, 184, 80, hswish(), None, 1),
            Block(3, 80, 184, 80, hswish(), None, 1),
            Block(3, 80, 480, 112, hswish(), SeModule(112), 1),
            Block(3, 112, 672, 112, hswish(), SeModule(112), 1),
            Block(5, 112, 672, 160, hswish(), SeModule(160), 1),
            Block(5, 160, 672, 160, hswish(), SeModule(160), 2),
            Block(5, 160, 960, 160, hswish(), SeModule(160), 1),
        )


        self.conv2 = nn.Conv2d(160, 960, kernel_size=1, stride=1, padding=0, bias=False)
        self.bn2 = nn.BatchNorm2d(960)
        self.hs2 = hswish()
        self.linear3 = nn.Linear(960, 1280)
        self.bn3 = nn.BatchNorm1d(1280)
        self.hs3 = hswish()
        self.linear4 = nn.Linear(1280, num_classes)
        self.init_params()

    def init_params(self):
        for m in self.modules():
            if isinstance(m, nn.Conv2d):
                init.kaiming_normal_(m.weight, mode='fan_out')
                if m.bias is not None:
                    init.constant_(m.bias, 0)
            elif isinstance(m, nn.BatchNorm2d):
                init.constant_(m.weight, 1)
                init.constant_(m.bias, 0)
            elif isinstance(m, nn.Linear):
                init.normal_(m.weight, std=0.001)
                if m.bias is not None:
                    init.constant_(m.bias, 0)

    def forward(self, x):
        out = self.hs1(self.bn1(self.conv1(x)))
        out = self.bneck(out)
        out = self.hs2(self.bn2(self.conv2(out)))
        out = F.avg_pool2d(out, 7)
        out = out.view(out.size(0), -1)
        out = self.hs3(self.bn3(self.linear3(out)))
        out = self.linear4(out)
        return out



class MobileNetV3_Small(nn.Module):
    def __init__(self, num_classes=1000):
        super(MobileNetV3_Small, self).__init__()
        self.conv1 = nn.Conv2d(3, 16, kernel_size=3, stride=2, padding=1, bias=False)
        self.bn1 = nn.BatchNorm2d(16)
        self.hs1 = hswish()

        self.bneck = nn.Sequential(
            Block(3, 16, 16, 16, nn.ReLU(inplace=True), SeModule(16), 2),
            Block(3, 16, 72, 24, nn.ReLU(inplace=True), None, 2),
            Block(3, 24, 88, 24, nn.ReLU(inplace=True), None, 1),
            Block(5, 24, 96, 40, hswish(), SeModule(40), 2),
            Block(5, 40, 240, 40, hswish(), SeModule(40), 1),
            Block(5, 40, 240, 40, hswish(), SeModule(40), 1),
            Block(5, 40, 120, 48, hswish(), SeModule(48), 1),
            Block(5, 48, 144, 48, hswish(), SeModule(48), 1),
            Block(5, 48, 288, 96, hswish(), SeModule(96), 2),
            Block(5, 96, 576, 96, hswish(), SeModule(96), 1),
            Block(5, 96, 576, 96, hswish(), SeModule(96), 1),
        )


        self.conv2 = nn.Conv2d(96, 576, kernel_size=1, stride=1, padding=0, bias=False)
        self.bn2 = nn.BatchNorm2d(576)
        self.hs2 = hswish()
        self.linear3 = nn.Linear(576, 1280)
        self.bn3 = nn.BatchNorm1d(1280)
        self.hs3 = hswish()
        self.linear4 = nn.Linear(1280, num_classes)
        self.init_params()

    def init_params(self):
        for m in self.modules():
            if isinstance(m, nn.Conv2d):
                init.kaiming_normal_(m.weight, mode='fan_out')
                if m.bias is not None:
                    init.constant_(m.bias, 0)
            elif isinstance(m, nn.BatchNorm2d):
                init.constant_(m.weight, 1)
                init.constant_(m.bias, 0)
            elif isinstance(m, nn.Linear):
                init.normal_(m.weight, std=0.001)
                if m.bias is not None:
                    init.constant_(m.bias, 0)

    def forward(self, x):
        out = self.hs1(self.bn1(self.conv1(x)))
        out = self.bneck(out)
        out = self.hs2(self.bn2(self.conv2(out)))
        out = F.avg_pool2d(out, 7)
        out = out.view(out.size(0), -1)
        out = self.hs3(self.bn3(self.linear3(out)))
        out = self.linear4(out)
        return out



def test():
    net = MobileNetV3_Small()
    x = torch.randn(2,3,224,224)
    y = net(x)
    print(y.size())

test()
