• 13.4 GAS与攻击

    目录

    1. 由GA砍出的第一刀

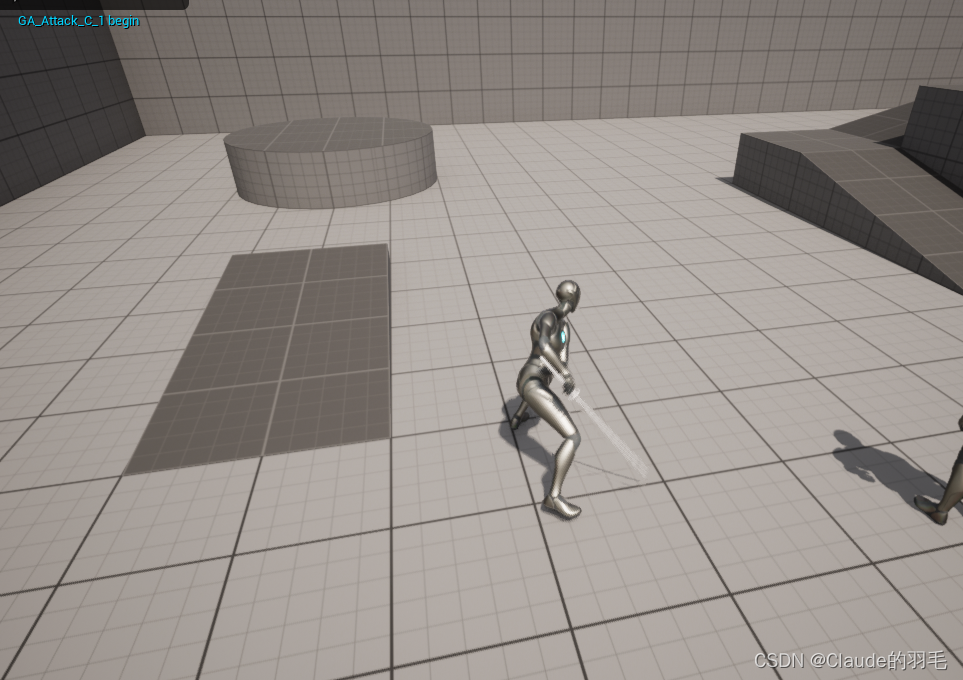

    有了前面章节的经验，我们可以很容易创建一个专用于攻击的GA：

    在这里插入图片描述

    其中PlayMontageAndWait任务节点负责攻击动画及相应回调的绑定。

    在这里插入图片描述
    但是仅仅这样并不足以支撑整个技能，因为缺少伤害的触发和判定。比如说技能触发，砍中一的一刻，应该要有伤害GE的触发，可以使用射线检测进行砍中事件的检测，然后发送相应事件。所以最优先的，需要扩展技能任务PlayMontageAndWait的功能，使其支持更多类型的回调（扩展为PlayMontageAndWaitForEvent，使其具备监听特定事件的特性）。

    参照GASDocumentation的PlayMontageAndWaitForEvent的写法：

    #pragma once

#include "CoreMinimal.h"
#include "Abilities/Tasks/AbilityTask.h"
#include "AT_PlayMontageAndWaitForEvent.generated.h"

DECLARE_DYNAMIC_MULTICAST_DELEGATE_TwoParams(FPlayMontageAndWaitForEventDelegate, FGameplayTag, EventTag, FGameplayEventData, EventData);

/**
 *
 */
UCLASS()
class INSIDEGAS_API UAT_PlayMontageAndWaitForEvent : public UAbilityTask
{
	GENERATED_BODY()

	public:
	UAT_PlayMontageAndWaitForEvent(const FObjectInitializer& ObjectInitializer);

	virtual void Activate() override;
	virtual void ExternalCancel() override;
	virtual FString GetDebugString() const override;
	virtual void OnDestroy(bool AbilityEnded) override;

	UPROPERTY(BlueprintAssignable)
	FPlayMontageAndWaitForEventDelegate OnCompleted;

	UPROPERTY(BlueprintAssignable)
	FPlayMontageAndWaitForEventDelegate OnBlendOut;

	UPROPERTY(BlueprintAssignable)
	FPlayMontageAndWaitForEventDelegate OnInterrupted;

	UPROPERTY(BlueprintAssignable)
	FPlayMontageAndWaitForEventDelegate OnCancelled;

	UPROPERTY(BlueprintAssignable)
	FPlayMontageAndWaitForEventDelegate EventReceived;

	UFUNCTION(BlueprintCallable, Category = "Ability|Tasks", meta = (HidePin = "OwningAbility", DefaultToSelf = "OwningAbility", BlueprintInternalUseOnly = "TRUE"))
	static UAT_PlayMontageAndWaitForEvent* PlayMontageAndWaitForEvent(
			UGameplayAbility* OwningAbility,
			FName TaskInstanceName,
			UAnimMontage* MontageToPlay,
			FGameplayTagContainer EventTags,
			float Rate = 1.f,
			FName StartSection = NAME_None,
			bool bStopWhenAbilityEnds = true,
			float AnimRootMotionTranslationScale = 1.f);

private:
	UPROPERTY()
	UAnimMontage* MontageToPlay;

	UPROPERTY()
	FGameplayTagContainer EventTags;

	UPROPERTY()
	float Rate;

	UPROPERTY()
	FName StartSection;

	UPROPERTY()
	float AnimRootMotionTranslationScale;

	UPROPERTY()
	bool bStopWhenAbilityEnds;

	bool StopPlayingMontage();

	UAbilitySystemComponent* GetTargetASC();

	void OnMontageBlendingOut(UAnimMontage* Montage, bool bInterrupted);
	void OnAbilityCancelled();
	void OnMontageEnded(UAnimMontage* Montage, bool bInterrupted);
	void OnGameplayEvent(FGameplayTag EventTag, const FGameplayEventData* Payload);

	FOnMontageBlendingOutStarted BlendingOutDelegate;
	FOnMontageEnded MontageEndedDelegate;
	FDelegateHandle CancelledHandle;
	FDelegateHandle EventHandle;
};

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83

    相应的cpp文件：

    #include "AT_PlayMontageAndWaitForEvent.h"

#include "AbilitySystemComponent.h"
#include "AbilitySystemGlobals.h"
#include "GameFramework/Character.h"


UAT_PlayMontageAndWaitForEvent::UAT_PlayMontageAndWaitForEvent(const FObjectInitializer& ObjectInitializer)
	: Super(ObjectInitializer)
{
	Rate = 1.f;
	bStopWhenAbilityEnds = true;
}

UAbilitySystemComponent* UAT_PlayMontageAndWaitForEvent::GetTargetASC()
{
	return Cast<UAbilitySystemComponent>(AbilitySystemComponent);
}

void UAT_PlayMontageAndWaitForEvent::OnMontageBlendingOut(UAnimMontage* Montage, bool bInterrupted)
{
	if (Ability && Ability->GetCurrentMontage() == MontageToPlay)
	{
		if (Montage == MontageToPlay)
		{
			AbilitySystemComponent->ClearAnimatingAbility(Ability);

			// Reset AnimRootMotionTranslationScale
			ACharacter* Character = Cast<ACharacter>(GetAvatarActor());
			if (Character && (Character->GetLocalRole() == ROLE_Authority ||
				(Character->GetLocalRole() == ROLE_AutonomousProxy && Ability->GetNetExecutionPolicy() == EGameplayAbilityNetExecutionPolicy::LocalPredicted)))
			{
				Character->SetAnimRootMotionTranslationScale(1.f);
			}

		}
	}

	if (bInterrupted)
	{
		if (ShouldBroadcastAbilityTaskDelegates())
		{
			OnInterrupted.Broadcast(FGameplayTag(), FGameplayEventData());
		}
	}
	else
	{
		if (ShouldBroadcastAbilityTaskDelegates())
		{
			OnBlendOut.Broadcast(FGameplayTag(), FGameplayEventData());
		}
	}
}

void UAT_PlayMontageAndWaitForEvent::OnAbilityCancelled()
{

	if (StopPlayingMontage())
	{
		// Let the BP handle the interrupt as well
		if (ShouldBroadcastAbilityTaskDelegates())
		{
			OnCancelled.Broadcast(FGameplayTag(), FGameplayEventData());
		}
	}
}

void UAT_PlayMontageAndWaitForEvent::OnMontageEnded(UAnimMontage* Montage, bool bInterrupted)
{
	if (!bInterrupted)
	{
		if (ShouldBroadcastAbilityTaskDelegates())
		{
			OnCompleted.Broadcast(FGameplayTag(), FGameplayEventData());
		}
	}

	EndTask();
}

void UAT_PlayMontageAndWaitForEvent::OnGameplayEvent(FGameplayTag EventTag, const FGameplayEventData* Payload)
{
	if (ShouldBroadcastAbilityTaskDelegates())
	{
		FGameplayEventData TempData = *Payload;
		TempData.EventTag = EventTag;

		EventReceived.Broadcast(EventTag, TempData);
	}
}

UAT_PlayMontageAndWaitForEvent* UAT_PlayMontageAndWaitForEvent::PlayMontageAndWaitForEvent(UGameplayAbility* OwningAbility,
	FName TaskInstanceName, UAnimMontage* MontageToPlay, FGameplayTagContainer EventTags, float Rate, FName StartSection, bool bStopWhenAbilityEnds, float AnimRootMotionTranslationScale)
{
	UAbilitySystemGlobals::NonShipping_ApplyGlobalAbilityScaler_Rate(Rate);

	UAT_PlayMontageAndWaitForEvent* MyObj = NewAbilityTask<UAT_PlayMontageAndWaitForEvent>(OwningAbility, TaskInstanceName);
	MyObj->MontageToPlay = MontageToPlay;
	MyObj->EventTags = EventTags;
	MyObj->Rate = Rate;
	MyObj->StartSection = StartSection;
	MyObj->AnimRootMotionTranslationScale = AnimRootMotionTranslationScale;
	MyObj->bStopWhenAbilityEnds = bStopWhenAbilityEnds;

	return MyObj;
}

void UAT_PlayMontageAndWaitForEvent::Activate()
{
	if (Ability == nullptr)
	{
		return;
	}

	bool bPlayedMontage = false;
	UAbilitySystemComponent* GDAbilitySystemComponent = GetTargetASC();

	if (GDAbilitySystemComponent)
	{
		const FGameplayAbilityActorInfo* ActorInfo = Ability->GetCurrentActorInfo();
		UAnimInstance* AnimInstance = ActorInfo->GetAnimInstance();
		if (AnimInstance != nullptr)
		{
			// Bind to event callback
			EventHandle = GDAbilitySystemComponent->AddGameplayEventTagContainerDelegate(EventTags, FGameplayEventTagMulticastDelegate::FDelegate::CreateUObject(this, &UAT_PlayMontageAndWaitForEvent::OnGameplayEvent));

			if (GDAbilitySystemComponent->PlayMontage(Ability, Ability->GetCurrentActivationInfo(), MontageToPlay, Rate, StartSection) > 0.f)
			{
				// Playing a montage could potentially fire off a callback into game code which could kill this ability! Early out if we are  pending kill.
				if (ShouldBroadcastAbilityTaskDelegates() == false)
				{
					return;
				}

				CancelledHandle = Ability->OnGameplayAbilityCancelled.AddUObject(this, &UAT_PlayMontageAndWaitForEvent::OnAbilityCancelled);

				BlendingOutDelegate.BindUObject(this, &UAT_PlayMontageAndWaitForEvent::OnMontageBlendingOut);
				AnimInstance->Montage_SetBlendingOutDelegate(BlendingOutDelegate, MontageToPlay);

				MontageEndedDelegate.BindUObject(this, &UAT_PlayMontageAndWaitForEvent::OnMontageEnded);
				AnimInstance->Montage_SetEndDelegate(MontageEndedDelegate, MontageToPlay);

				ACharacter* Character = Cast<ACharacter>(GetAvatarActor());
				if (Character && (Character->GetLocalRole() == ROLE_Authority ||
					(Character->GetLocalRole() == ROLE_AutonomousProxy && Ability->GetNetExecutionPolicy() == EGameplayAbilityNetExecutionPolicy::LocalPredicted)))
				{
					Character->SetAnimRootMotionTranslationScale(AnimRootMotionTranslationScale);
				}

				bPlayedMontage = true;
			}
		}
		else
		{
			UE_LOG(LogTemp, Warning, TEXT("UGDAbilityTask_PlayMontageAndWaitForEvent call to PlayMontage failed!"));
		}
	}
	else
	{
		UE_LOG(LogTemp, Warning, TEXT("UGDAbilityTask_PlayMontageAndWaitForEvent called on invalid AbilitySystemComponent"));
	}

	if (!bPlayedMontage)
	{
		UE_LOG(LogTemp, Warning, TEXT("UGDAbilityTask_PlayMontageAndWaitForEvent called in Ability %s failed to play montage %s; Task Instance Name %s."), *Ability->GetName(), *GetNameSafe(MontageToPlay), *InstanceName.ToString());
		if (ShouldBroadcastAbilityTaskDelegates())
		{
			//ABILITY_LOG(Display, TEXT("%s: OnCancelled"), *GetName());
			OnCancelled.Broadcast(FGameplayTag(), FGameplayEventData());
		}
	}

	SetWaitingOnAvatar();
}

void UAT_PlayMontageAndWaitForEvent::ExternalCancel()
{
	check(AbilitySystemComponent);

	OnAbilityCancelled();

	Super::ExternalCancel();
}

void UAT_PlayMontageAndWaitForEvent::OnDestroy(bool AbilityEnded)
{
	// Note: Clearing montage end delegate isn't necessary since its not a multicast and will be cleared when the next montage plays.
	// (If we are destroyed, it will detect this and not do anything)

	// This delegate, however, should be cleared as it is a multicast
	if (Ability)
	{
		Ability->OnGameplayAbilityCancelled.Remove(CancelledHandle);
		if (AbilityEnded && bStopWhenAbilityEnds)
		{
			StopPlayingMontage();
		}
	}

	UAbilitySystemComponent* GDAbilitySystemComponent = GetTargetASC();
	if (GDAbilitySystemComponent)
	{
		GDAbilitySystemComponent->RemoveGameplayEventTagContainerDelegate(EventTags, EventHandle);
	}

	Super::OnDestroy(AbilityEnded);

}

bool UAT_PlayMontageAndWaitForEvent::StopPlayingMontage()
{
	const FGameplayAbilityActorInfo* ActorInfo = Ability->GetCurrentActorInfo();
	if (!ActorInfo)
	{
		return false;
	}

	UAnimInstance* AnimInstance = ActorInfo->GetAnimInstance();
	if (AnimInstance == nullptr)
	{
		return false;
	}

	// Check if the montage is still playing
	// The ability would have been interrupted, in which case we should automatically stop the montage
	if (AbilitySystemComponent && Ability)
	{
		if (AbilitySystemComponent->GetAnimatingAbility() == Ability
			&& AbilitySystemComponent->GetCurrentMontage() == MontageToPlay)
		{
			// Unbind delegates so they don't get called as well
			FAnimMontageInstance* MontageInstance = AnimInstance->GetActiveInstanceForMontage(MontageToPlay);
			if (MontageInstance)
			{
				MontageInstance->OnMontageBlendingOutStarted.Unbind();
				MontageInstance->OnMontageEnded.Unbind();
			}

			AbilitySystemComponent->CurrentMontageStop();
			return true;
		}
	}

	return false;
}

FString UAT_PlayMontageAndWaitForEvent::GetDebugString() const
{
	UAnimMontage* PlayingMontage = nullptr;
	if (Ability)
	{
		const FGameplayAbilityActorInfo* ActorInfo = Ability->GetCurrentActorInfo();
		UAnimInstance* AnimInstance = ActorInfo->GetAnimInstance();

		if (AnimInstance != nullptr)
		{
			PlayingMontage = AnimInstance->Montage_IsActive(MontageToPlay) ? MontageToPlay : AnimInstance->GetCurrentActiveMontage();
		}
	}

	return FString::Printf(TEXT("PlayMontageAndWaitForEvent. MontageToPlay: %s  (Currently Playing): %s"), *GetNameSafe(MontageToPlay), *GetNameSafe(PlayingMontage));
}
