CVT代码及修改

CVT代码
看一下整体框架的编写，删除掉了初始化等操作，精简代码。

from functools import partial
from itertools import repeat
from torch._six import container_abcs

import logging
import os
from collections import OrderedDict

import numpy as np
import scipy
import torch
import torch.nn as nn
import torch.nn.functional as F
from einops import rearrange
from einops.layers.torch import Rearrange

from timm.models.layers import DropPath, trunc_normal_

from .registry import register_model

class LayerNorm(nn.LayerNorm):
    """Subclass torch's LayerNorm to handle fp16."""

    def forward(self, x: torch.Tensor):
        orig_type = x.dtype
        ret = super().forward(x.type(torch.float32))
        return ret.type(orig_type)


class QuickGELU(nn.Module):
    def forward(self, x: torch.Tensor):
        return x * torch.sigmoid(1.702 * x)


class Mlp(nn.Module):
    def __init__(self,
                 in_features,
                 hidden_features=None,
                 out_features=None,
                 act_layer=nn.GELU,
                 drop=0.):
        super().__init__()
        out_features = out_features or in_features
        hidden_features = hidden_features or in_features
        self.fc1 = nn.Linear(in_features, hidden_features)
        self.act = act_layer()
        self.fc2 = nn.Linear(hidden_features, out_features)
        self.drop = nn.Dropout(drop)

    def forward(self, x):
        x = self.fc1(x)
        x = self.act(x)
        x = self.drop(x)
        x = self.fc2(x)
        x = self.drop(x)
        return x


class Attention(nn.Module):
    def __init__(self,
                 dim_in,
                 dim_out,
                 num_heads,
                 qkv_bias=False,
                 attn_drop=0.,
                 proj_drop=0.,
                 method='dw_bn',
                 kernel_size=3,
                 stride_kv=1,
                 stride_q=1,
                 padding_kv=1,
                 padding_q=1,
                 with_cls_token=True,
                 **kwargs
                 ):
        super().__init__()
        self.stride_kv = stride_kv
        self.stride_q = stride_q
        self.dim = dim_out
        self.num_heads = num_heads
        # head_dim = self.qkv_dim // num_heads
        self.scale = dim_out ** -0.5
        self.with_cls_token = with_cls_token

        self.conv_proj_q = self._build_projection(
            dim_in, dim_out, kernel_size, padding_q,
            stride_q, 'linear' if method == 'avg' else method
        )
        self.conv_proj_k = self._build_projection(
            dim_in, dim_out, kernel_size, padding_kv,
            stride_kv, method
        )
        self.conv_proj_v = self._build_projection(
            dim_in, dim_out, kernel_size, padding_kv,
            stride_kv, method
        )

        self.proj_q = nn.Linear(dim_in, dim_out, bias=qkv_bias)
        self.proj_k = nn.Linear(dim_in, dim_out, bias=qkv_bias)
        self.proj_v = nn.Linear(dim_in, dim_out, bias=qkv_bias)

        self.attn_drop = nn.Dropout(attn_drop)
        self.proj = nn.Linear(dim_out, dim_out)
        self.proj_drop = nn.Dropout(proj_drop)

    def _build_projection(self,
                          dim_in,
                          dim_out,
                          kernel_size,
                          padding,
                          stride,
                          method):
        if method == 'dw_bn':
            proj = nn.Sequential(OrderedDict([
                ('conv', nn.Conv2d(
                    dim_in,
                    dim_in,
                    kernel_size=kernel_size,
                    padding=padding,
                    stride=stride,
                    bias=False,
                    groups=dim_in
                )),
                ('bn', nn.BatchNorm2d(dim_in)),
                ('rearrage', Rearrange('b c h w -> b (h w) c')),
            ]))
        elif method == 'avg':
            proj = nn.Sequential(OrderedDict([
                ('avg', nn.AvgPool2d(
                    kernel_size=kernel_size,
                    padding=padding,
                    stride=stride,
                    ceil_mode=True
                )),
                ('rearrage', Rearrange('b c h w -> b (h w) c')),
            ]))
        elif method == 'linear':
            proj = None
        else:
            raise ValueError('Unknown method ({})'.format(method))

        return proj

    def forward_conv(self, x, h, w):
        if self.with_cls_token:
            cls_token, x = torch.split(x, [1, h*w], 1)

        x = rearrange(x, 'b (h w) c -> b c h w', h=h, w=w)

        if self.conv_proj_q is not None:
            q = self.conv_proj_q(x)
        else:
            q = rearrange(x, 'b c h w -> b (h w) c')

        if self.conv_proj_k is not None:
            k = self.conv_proj_k(x)
        else:
            k = rearrange(x, 'b c h w -> b (h w) c')

        if self.conv_proj_v is not None:
            v = self.conv_proj_v(x)
        else:
            v = rearrange(x, 'b c h w -> b (h w) c')

        if self.with_cls_token:
            q = torch.cat((cls_token, q), dim=1)
            k = torch.cat((cls_token, k), dim=1)
            v = torch.cat((cls_token, v), dim=1)

        return q, k, v

    def forward(self, x, h, w):
        if (
            self.conv_proj_q is not None
            or self.conv_proj_k is not None
            or self.conv_proj_v is not None
        ):
            q, k, v = self.forward_conv(x, h, w)

        q = rearrange(self.proj_q(q), 'b t (h d) -> b h t d', h=self.num_heads)
        k = rearrange(self.proj_k(k), 'b t (h d) -> b h t d', h=self.num_heads)
        v = rearrange(self.proj_v(v), 'b t (h d) -> b h t d', h=self.num_heads)

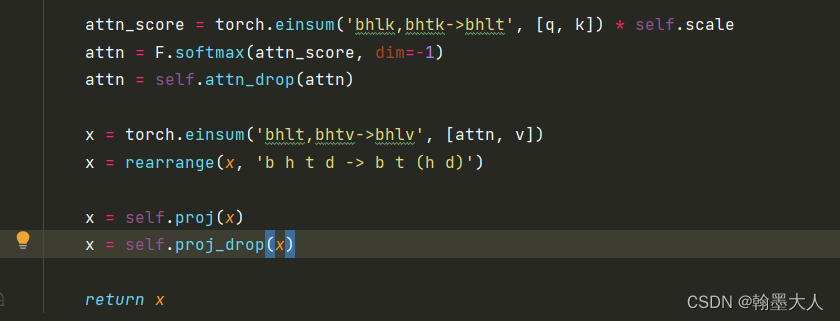

        attn_score = torch.einsum('bhlk,bhtk->bhlt', [q, k]) * self.scale
        attn = F.softmax(attn_score, dim=-1)
        attn = self.attn_drop(attn)

        x = torch.einsum('bhlt,bhtv->bhlv', [attn, v])
        x = rearrange(x, 'b h t d -> b t (h d)')

        x = self.proj(x)
        x = self.proj_drop(x)

        return x

class Block(nn.Module):

    def __init__(self,
                 dim_in,
                 dim_out,
                 num_heads,
                 mlp_ratio=4.,
                 qkv_bias=False,
                 drop=0.,
                 attn_drop=0.,
                 drop_path=0.,
                 act_layer=nn.GELU,
                 norm_layer=nn.LayerNorm,
                 **kwargs):
        super().__init__()

        self.with_cls_token = kwargs['with_cls_token']

        self.norm1 = norm_layer(dim_in)
        self.attn = Attention(
            dim_in, dim_out, num_heads, qkv_bias, attn_drop, drop,
            **kwargs
        )

        self.drop_path = DropPath(drop_path) \
            if drop_path > 0. else nn.Identity()
        self.norm2 = norm_layer(dim_out)

        dim_mlp_hidden = int(dim_out * mlp_ratio)
        self.mlp = Mlp(
            in_features=dim_out,
            hidden_features=dim_mlp_hidden,
            act_layer=act_layer,
            drop=drop
        )

    def forward(self, x, h, w):
        res = x

        x = self.norm1(x)
        attn = self.attn(x, h, w)
        x = res + self.drop_path(attn)
        x = x + self.drop_path(self.mlp(self.norm2(x)))

        return x


class ConvEmbed(nn.Module):
    """ Image to Conv Embedding

    """

    def __init__(self,
                 patch_size=7,
                 in_chans=3,
                 embed_dim=64,
                 stride=4,
                 padding=2,
                 norm_layer=None):
        super().__init__()
        patch_size = to_2tuple(patch_size)
        self.patch_size = patch_size

        self.proj = nn.Conv2d(
            in_chans, embed_dim,
            kernel_size=patch_size,
            stride=stride,
            padding=padding
        )
        self.norm = norm_layer(embed_dim) if norm_layer else None

    def forward(self, x):
        x = self.proj(x)

        B, C, H, W = x.shape
        x = rearrange(x, 'b c h w -> b (h w) c')
        if self.norm:
            x = self.norm(x)
        x = rearrange(x, 'b (h w) c -> b c h w', h=H, w=W)

        return x


class VisionTransformer(nn.Module):
    """ Vision Transformer with support for patch or hybrid CNN input stage
    """
    def __init__(self,
                 patch_size=16,
                 patch_stride=16,
                 patch_padding=0,
                 in_chans=3,
                 embed_dim=768,
                 depth=12,
                 num_heads=12,
                 mlp_ratio=4.,
                 qkv_bias=False,
                 drop_rate=0.,
                 attn_drop_rate=0.,
                 drop_path_rate=0.,
                 act_layer=nn.GELU,
                 norm_layer=nn.LayerNorm,
                 init='trunc_norm',
                 **kwargs):
        super().__init__()
        self.num_features = self.embed_dim = embed_dim  # num_features for consistency with other models

        self.rearrage = None

        self.patch_embed = ConvEmbed(
            # img_size=img_size,
            patch_size=patch_size,
            in_chans=in_chans,
            stride=patch_stride,
            padding=patch_padding,
            embed_dim=embed_dim,
            norm_layer=norm_layer
        )

        with_cls_token = kwargs['with_cls_token']
        if with_cls_token:
            self.cls_token = nn.Parameter(
                torch.zeros(1, 1, embed_dim)
            )
        else:
            self.cls_token = None

        self.pos_drop = nn.Dropout(p=drop_rate)
        dpr = [x.item() for x in torch.linspace(0, drop_path_rate, depth)]  # stochastic depth decay rule

        blocks = []
        for j in range(depth):
            blocks.append(
                Block(
                    dim_in=embed_dim,
                    dim_out=embed_dim,
                    num_heads=num_heads,
                    mlp_ratio=mlp_ratio,
                    qkv_bias=qkv_bias,
                    drop=drop_rate,
                    attn_drop=attn_drop_rate,
                    drop_path=dpr[j],
                    act_layer=act_layer,
                    norm_layer=norm_layer,
                    **kwargs
                )
            )
        self.blocks = nn.ModuleList(blocks)

    def forward(self, x):
        x = self.patch_embed(x)
        B, C, H, W = x.size()

        x = rearrange(x, 'b c h w -> b (h w) c')

        cls_tokens = None
        if self.cls_token is not None:
            # stole cls_tokens impl from Phil Wang, thanks
            cls_tokens = self.cls_token.expand(B, -1, -1)
            x = torch.cat((cls_tokens, x), dim=1)

        x = self.pos_drop(x)

        for i, blk in enumerate(self.blocks):
            x = blk(x, H, W)

        if self.cls_token is not None:
            cls_tokens, x = torch.split(x, [1, H*W], 1)
        x = rearrange(x, 'b (h w) c -> b c h w', h=H, w=W)

        return x, cls_tokens


class ConvolutionalVisionTransformer(nn.Module):
    def __init__(self,
                 in_chans=3,
                 num_classes=1000,
                 act_layer=nn.GELU,
                 norm_layer=nn.LayerNorm,
                 init='trunc_norm',
                 spec=None):
        super().__init__()
        self.num_classes = num_classes

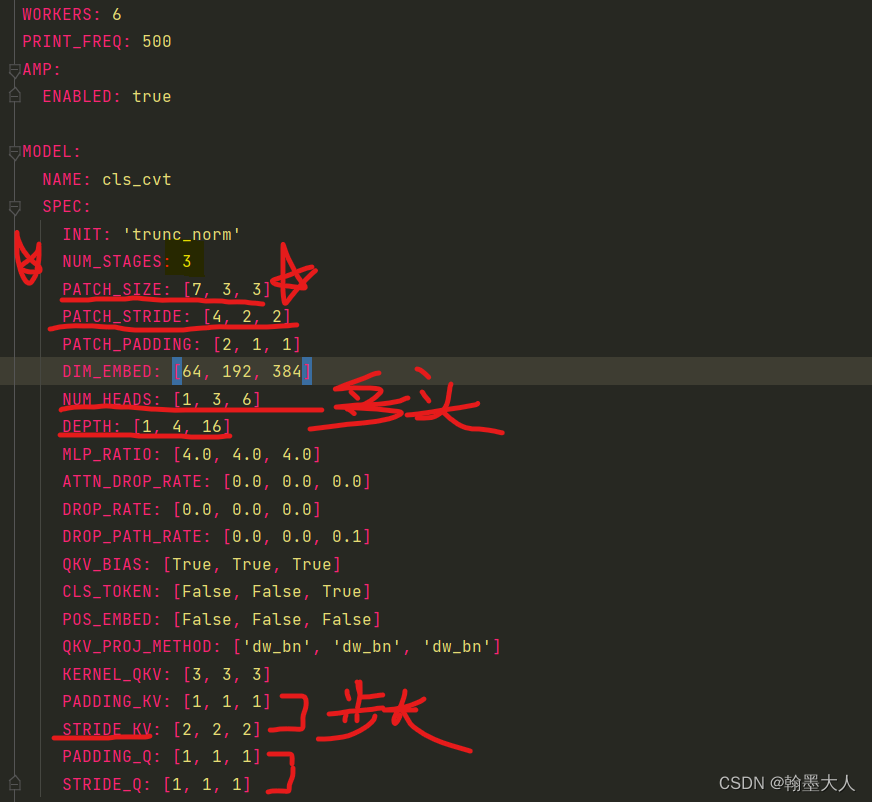

        self.num_stages = spec['NUM_STAGES'] #3
        for i in range(self.num_stages):
            kwargs = {
                'patch_size': spec['PATCH_SIZE'][i],
                'patch_stride': spec['PATCH_STRIDE'][i],
                'patch_padding': spec['PATCH_PADDING'][i],
                'embed_dim': spec['DIM_EMBED'][i],
                'depth': spec['DEPTH'][i],
                'num_heads': spec['NUM_HEADS'][i],
                'mlp_ratio': spec['MLP_RATIO'][i],
                'qkv_bias': spec['QKV_BIAS'][i],
                'drop_rate': spec['DROP_RATE'][i],
                'attn_drop_rate': spec['ATTN_DROP_RATE'][i],
                'drop_path_rate': spec['DROP_PATH_RATE'][i],
                'with_cls_token': spec['CLS_TOKEN'][i],
                'method': spec['QKV_PROJ_METHOD'][i],
                'kernel_size': spec['KERNEL_QKV'][i],
                'padding_q': spec['PADDING_Q'][i],
                'padding_kv': spec['PADDING_KV'][i],
                'stride_kv': spec['STRIDE_KV'][i],
                'stride_q': spec['STRIDE_Q'][i],
            }

            stage = VisionTransformer(
                in_chans=in_chans,
                init=init,
                act_layer=act_layer,
                norm_layer=norm_layer,
                **kwargs
            )
            setattr(self, f'stage{i}', stage)#用于设置属性值

            in_chans = spec['DIM_EMBED'][i]

        dim_embed = spec['DIM_EMBED'][-1]
        self.norm = norm_layer(dim_embed)
        self.cls_token = spec['CLS_TOKEN'][-1]

        # Classifier head
        self.head = nn.Linear(dim_embed, num_classes) if num_classes > 0 else nn.Identity()
        trunc_normal_(self.head.weight, std=0.02)

    @torch.jit.ignore
    def no_weight_decay(self):
        layers = set()
        for i in range(self.num_stages):
            layers.add(f'stage{i}.pos_embed')
            layers.add(f'stage{i}.cls_token')

        return layers

    def forward_features(self, x):
        for i in range(self.num_stages):
            x, cls_tokens = getattr(self, f'stage{i}')(x) #getattr返回一个对象 属性对应的值
           #x,cls_tokens = getattr(self,stage(i))(x)

        if self.cls_token:
            x = self.norm(cls_tokens)
            x = torch.squeeze(x)
        else:
            x = rearrange(x, 'b c h w -> b (h w) c')
            x = self.norm(x)
            x = torch.mean(x, dim=1)

        return x

    def forward(self, x):
        x = self.forward_features(x)
        x = self.head(x)

        return x


@register_model
def get_cls_model(config, **kwargs):
    msvit_spec = config.MODEL.SPEC
    msvit = ConvolutionalVisionTransformer(
        in_chans=3,
        num_classes=config.MODEL.NUM_CLASSES,
        act_layer=QuickGELU,
        norm_layer=partial(LayerNorm, eps=1e-5),
        init=getattr(msvit_spec, 'INIT', 'trunc_norm'),
        spec=msvit_spec
    )

    if config.MODEL.INIT_WEIGHTS:
        msvit.init_weights(
            config.MODEL.PRETRAINED,
            config.MODEL.PRETRAINED_LAYERS,
            config.VERBOSE
        )

    return msvit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472

模型的细节配置在yaml文件中：

1：我们进入ConvolutionalVisionTransformer类的forward中，numstage=3，这里有个getattr函数。

getattr：返回对象属性值。返回对象a的bar属性对应的值为1。

在代码中：x, cls_tokens = getattr(self, f'stage{i}')(x) 返回self对象stage{i}对应的属性值。
其中self即对ConvolutionalVisionTransformer实例化的对象，stage属性对应的为VisionTransformer。即相当于x经过VisionTransformer。

2：在VisionTransformer中。

2.1：首先进行patchembed。我们的参数为yaml中对应的参数而非默认的参数。

class ConvEmbed(nn.Module):
    """ Image to Conv Embedding

    """

    def __init__(self,
                 patch_size=7,
                 in_chans=3,
                 embed_dim=64,
                 stride=4,
                 padding=2,
                 norm_layer=None):
        super().__init__()
        patch_size = to_2tuple(patch_size)
        self.patch_size = patch_size

        self.proj = nn.Conv2d(
            in_chans, embed_dim,
            kernel_size=patch_size,
            stride=stride,
            padding=padding
        )
        self.norm = norm_layer(embed_dim) if norm_layer else None

    def forward(self, x):
        x = self.proj(x)

        B, C, H, W = x.shape
        x = rearrange(x, 'b c h w -> b (h w) c')
        if self.norm:
            x = self.norm(x)
        x = rearrange(x, 'b (h w) c -> b c h w', h=H, w=W)

        return x
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

我们x的大小为(1,3,224,224)，进过一个输出为64，kernel=7，stride=4，padding=2的卷积，大小变为（1,64,56,56）。然后reshape为（1,3136,64）。然后对第三维度进行layernorm。再将序列reshape回原图片(1,64,56,56)。
接着再将图片reshape为(1,3136,64),进行dropout。然后遍历block。

        for i, blk in enumerate(self.blocks):
            x = blk(x, H, W)
1
2
3

我们跳到block中，首先是depth，在第一个阶段是1，第二个为4，第三个为16。

        for j in range(depth):
            blocks.append(
                Block(
                    dim_in=embed_dim, #64
                    dim_out=embed_dim,#64
                    num_heads=num_heads,#1
                    mlp_ratio=mlp_ratio,#4
                    qkv_bias=qkv_bias,#true
                    drop=drop_rate,#0
                    attn_drop=attn_drop_rate,#0
                    drop_path=dpr[j],#0
                    act_layer=act_layer,#gelu
                    norm_layer=norm_layer,#ln
                    **kwargs
                )
            )
        self.blocks = nn.ModuleList(blocks)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

我们到block中，H,W为x进过patchemb之后的大小(56,56)。x接着经过attention模块。

class Attention(nn.Module):
    def __init__(self,
                 dim_in,
                 dim_out,
                 num_heads,
                 qkv_bias=False,
                 attn_drop=0.,
                 proj_drop=0.,
                 method='dw_bn',
                 kernel_size=3,
                 stride_kv=1,
                 stride_q=1,
                 padding_kv=1,
                 padding_q=1,
                 with_cls_token=True,
                 **kwargs
                 ):
        super().__init__()
        self.stride_kv = stride_kv
        self.stride_q = stride_q
        self.dim = dim_out
        self.num_heads = num_heads
        # head_dim = self.qkv_dim // num_heads
        self.scale = dim_out ** -0.5
        self.with_cls_token = with_cls_token

        self.conv_proj_q = self._build_projection(
            dim_in, dim_out, kernel_size, padding_q,
            stride_q, 'linear' if method == 'avg' else method
        )
        self.conv_proj_k = self._build_projection(
            dim_in, dim_out, kernel_size, padding_kv,
            stride_kv, method
        )
        self.conv_proj_v = self._build_projection(
            dim_in, dim_out, kernel_size, padding_kv,
            stride_kv, method
        )

        self.proj_q = nn.Linear(dim_in, dim_out, bias=qkv_bias)
        self.proj_k = nn.Linear(dim_in, dim_out, bias=qkv_bias)
        self.proj_v = nn.Linear(dim_in, dim_out, bias=qkv_bias)

        self.attn_drop = nn.Dropout(attn_drop)
        self.proj = nn.Linear(dim_out, dim_out)
        self.proj_drop = nn.Dropout(proj_drop)

    def _build_projection(self,
                          dim_in,
                          dim_out,
                          kernel_size,
                          padding,
                          stride,
                          method):
        if method == 'dw_bn':
            proj = nn.Sequential(OrderedDict([
                ('conv', nn.Conv2d(
                    dim_in,
                    dim_in,
                    kernel_size=kernel_size,
                    padding=padding,
                    stride=stride,
                    bias=False,
                    groups=dim_in
                )),
                ('bn', nn.BatchNorm2d(dim_in)),
                ('rearrage', Rearrange('b c h w -> b (h w) c')),
            ]))
        elif method == 'avg':
            proj = nn.Sequential(OrderedDict([
                ('avg', nn.AvgPool2d(
                    kernel_size=kernel_size,
                    padding=padding,
                    stride=stride,
                    ceil_mode=True
                )),
                ('rearrage', Rearrange('b c h w -> b (h w) c')),
            ]))
        elif method == 'linear':
            proj = None
        else:
            raise ValueError('Unknown method ({})'.format(method))

        return proj

    def forward_conv(self, x, h, w):
        if self.with_cls_token:
            cls_token, x = torch.split(x, [1, h*w], 1)

        x = rearrange(x, 'b (h w) c -> b c h w', h=h, w=w)

        if self.conv_proj_q is not None:
            q = self.conv_proj_q(x)
        else:
            q = rearrange(x, 'b c h w -> b (h w) c')

        if self.conv_proj_k is not None:
            k = self.conv_proj_k(x)
        else:
            k = rearrange(x, 'b c h w -> b (h w) c')

        if self.conv_proj_v is not None:
            v = self.conv_proj_v(x)
        else:
            v = rearrange(x, 'b c h w -> b (h w) c')

        if self.with_cls_token:
            q = torch.cat((cls_token, q), dim=1)
            k = torch.cat((cls_token, k), dim=1)
            v = torch.cat((cls_token, v), dim=1)

        return q, k, v

    def forward(self, x, h, w):
        if (
            self.conv_proj_q is not None
            or self.conv_proj_k is not None
            or self.conv_proj_v is not None
        ):
            q, k, v = self.forward_conv(x, h, w)

        q = rearrange(self.proj_q(q), 'b t (h d) -> b h t d', h=self.num_heads)
        k = rearrange(self.proj_k(k), 'b t (h d) -> b h t d', h=self.num_heads)
        v = rearrange(self.proj_v(v), 'b t (h d) -> b h t d', h=self.num_heads)

        attn_score = torch.einsum('bhlk,bhtk->bhlt', [q, k]) * self.scale
        attn = F.softmax(attn_score, dim=-1)
        attn = self.attn_drop(attn)

        x = torch.einsum('bhlt,bhtv->bhlv', [attn, v])
        x = rearrange(x, 'b h t d -> b t (h d)')

        x = self.proj(x)
        x = self.proj_drop(x)

        return x
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136

首先生成qkv，如果带有classtoken就将其从维度分离出去。再将x reshape为图片大小，接着进行卷积操作来生成qkv。

我们进入到_build_projection函数中：根据yaml文件，method == ‘dw_bn’，所以proj就是一个由有序字典组成的序列。字典包含卷积，bn，和将图片再转换为序列。主要看一下卷积：

    def _build_projection(self,
                          dim_in,
                          dim_out,
                          kernel_size,
                          padding,
                          stride,
                          method):
        if method == 'dw_bn':
            proj = nn.Sequential(OrderedDict([
                ('conv', nn.Conv2d(
                    dim_in,
                    dim_in,
                    kernel_size=kernel_size,
                    padding=padding,
                    stride=stride,
                    bias=False,
                    groups=dim_in
                )),
                ('bn', nn.BatchNorm2d(dim_in)),
                ('rearrage', Rearrange('b c h w -> b (h w) c')),
            ]))
        elif method == 'avg':
            proj = nn.Sequential(OrderedDict([
                ('avg', nn.AvgPool2d(
                    kernel_size=kernel_size,
                    padding=padding,
                    stride=stride,
                    ceil_mode=True
                )),
                ('rearrage', Rearrange('b c h w -> b (h w) c')),
            ]))
        elif method == 'linear':
            proj = None
        else:
            raise ValueError('Unknown method ({})'.format(method))

        return proj
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

主要看一下卷积：卷积大小为3，步长为1，padding=1，group=dim_in，这个就是逐通道卷积。

对应于原图中的：

同理生成q和v。在将刚才分离的classtoken在维度上拼接起来。return q, k, v。
接着：q, k, v经过proj，对应于：

        q = rearrange(self.proj_q(q), 'b t (h d) -> b h t d', h=self.num_heads)
        k = rearrange(self.proj_k(k), 'b t (h d) -> b h t d', h=self.num_heads)
        v = rearrange(self.proj_v(v), 'b t (h d) -> b h t d', h=self.num_heads)
1
2
3

        self.proj_q = nn.Linear(dim_in, dim_out, bias=qkv_bias)
        self.proj_k = nn.Linear(dim_in, dim_out, bias=qkv_bias)
        self.proj_v = nn.Linear(dim_in, dim_out, bias=qkv_bias)
1
2
3

注：在原文中作者使用的深度可分离卷积来代替传统的投射，而这里的线性投射相当于深度可分离卷积中的逐点卷积。
接着：q和k进行矩阵相乘再与v相乘，和普通的transformer一样，在经过一个线性层和dropout得到最终的x。

这样attention计算完毕。
与原始的x相加再进过mlp得到最终的输出。

这样block计算完毕。
在第一个stage，深度为1，所以第一个stage计算完毕。生成新的x。
这样VisionTransformer计算完毕
生成的x作为下一个stage的输出。剩下的两个stage和第一个流程一样，就不一一分析了。
参数同样可以通过 i 的索引来获得：

        for i in range(self.num_stages):
            kwargs = {
                'patch_size': spec['PATCH_SIZE'][i],
                'patch_stride': spec['PATCH_STRIDE'][i],
                'patch_padding': spec['PATCH_PADDING'][i],
                'embed_dim': spec['DIM_EMBED'][i],
                'depth': spec['DEPTH'][i],
                'num_heads': spec['NUM_HEADS'][i],
                'mlp_ratio': spec['MLP_RATIO'][i],
                'qkv_bias': spec['QKV_BIAS'][i],
                'drop_rate': spec['DROP_RATE'][i],
                'attn_drop_rate': spec['ATTN_DROP_RATE'][i],
                'drop_path_rate': spec['DROP_PATH_RATE'][i],
                'with_cls_token': spec['CLS_TOKEN'][i],
                'method': spec['QKV_PROJ_METHOD'][i],
                'kernel_size': spec['KERNEL_QKV'][i],
                'padding_q': spec['PADDING_Q'][i],
                'padding_kv': spec['PADDING_KV'][i],
                'stride_kv': spec['STRIDE_KV'][i],
                'stride_q': spec['STRIDE_Q'][i],
            }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

然后输入到VisionTransformer中：

            stage = VisionTransformer(
                in_chans=in_chans,
                init=init,
                act_layer=act_layer,
                norm_layer=norm_layer,
                ****kwargs**
            )
1
2
3
4
5
6
7

经过forward_features后，在经过head。

    def forward(self, x):
        x = self.forward_features(x)
        x = self.head(x)

        return x
1
2
3
4
5
6

self.head = nn.Linear(dim_embed, num_classes) if num_classes > 0 else nn.Identity()
        trunc_normal_(self.head.weight, std=0.02)
1
2

即输出最后的1000个类别。这样模型搭建完毕。

总结：
1：模型的创新点为重叠的卷积操作进行token编码，在代码中也就一行实现，另一个创新点就是卷积线性投射，相比于普通的线性投射多了一个逐通道卷积。
2:除此以外在模型结构上，有两个点首先是num_head为[1,3,6]，每个stage是变化的，相比于普通的VIT一般都是固定为8。第二个就是每个stage的transformer的个数[1,4,16]，而VIT或者SETR都是固定的，且不是分层的，这一点有点向卷积靠拢。
3：SegFormer也用到了重叠的卷积来进行patch merging。为了保留局部的连续性。

与本文不同的是卷积的配置。

4：卷积投射的操作和MPVIT的多尺度patch embedding很像。

MPVIT的多尺度patch embedding核心代码：

class DWConv2d_BN(nn.Module):
    """
    Depthwise Separable Conv
    """

    def __init__(
        self,
        in_ch,
        out_ch,
        kernel_size=1,
        stride=1,
        norm_layer=nn.BatchNorm2d,
        act_layer=nn.Hardswish,
        bn_weight_init=1,
        norm_cfg=dict(type="BN"),
    ):
        super().__init__()

        # dw
        self.dwconv = nn.Conv2d(
            in_ch,
            out_ch,
            kernel_size,
            stride,
            (kernel_size - 1) // 2,
            **groups=out_ch**,
            bias=False,
        )
        # pw-linear
        self.pwconv = nn.Conv2d(out_ch, out_ch, 1, 1, 0, bias=False)
        self.bn = build_norm_layer(norm_cfg, out_ch)[1]
        self.act = act_layer() if act_layer is not None else nn.Identity()

        for m in self.modules():
            if isinstance(m, nn.Conv2d):
                n = m.kernel_size[0] * m.kernel_size[1] * m.out_channels
                m.weight.data.normal_(0, math.sqrt(2.0 / n))
                if m.bias is not None:
                    m.bias.data.zero_()
            elif isinstance(m, nn.BatchNorm2d):
                m.weight.data.fill_(bn_weight_init)
                m.bias.data.zero_()

    def forward(self, x):

        x = self.**dwcon**v(x)
        x = self.**pwconv**(x)
        x = self.bn(x)
        x = self.act(x)

        return x
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

先进行逐通道卷积，再进行逐像素卷积。

---

因为我是语义分割方向，所以对于分类所用到的classtoken，classfier_head都需要删除掉，只显示最后的图片大小即可，同时为了将代码迁移到别的框架中，对他的配置文件读取全部改为直接的读取。代码如下：

from functools import partial
from itertools import repeat
# from torch._six import container_abcs

import logging
import os
from collections import OrderedDict
from torchsummary import summary
import numpy as np
import scipy
import torch
import torch.nn as nn
import torch.nn.functional as F
from einops import rearrange
from einops.layers.torch import Rearrange
from torch.nn.modules.utils import _pair
from timm.models.layers import DropPath, trunc_normal_


class LayerNorm(nn.LayerNorm):

    def forward(self, x: torch.Tensor):
        orig_type = x.dtype
        ret = super().forward(x.type(torch.float32))
        return ret.type(orig_type)


class QuickGELU(nn.Module):
    def forward(self, x: torch.Tensor):
        return x * torch.sigmoid(1.702 * x)


class Mlp(nn.Module):
    def __init__(self,
                 in_features,
                 hidden_features=None,
                 out_features=None,
                 act_layer=nn.GELU,
                 drop=0.):
        super().__init__()
        out_features = out_features or in_features
        hidden_features = hidden_features or in_features
        self.fc1 = nn.Linear(in_features, hidden_features)
        self.act = act_layer()
        self.fc2 = nn.Linear(hidden_features, out_features)
        self.drop = nn.Dropout(drop)

    def forward(self, x):
        x = self.fc1(x)
        x = self.act(x)
        x = self.drop(x)
        x = self.fc2(x)
        x = self.drop(x)
        return x


class Attention(nn.Module):
    def __init__(self,
                 dim_in,
                 dim_out,
                 num_heads,
                 qkv_bias=False,
                 attn_drop=0.,
                 proj_drop=0.,
                 method='dw_bn',
                 kernel_size=3,
                 stride_kv=1,
                 stride_q=1,
                 padding_kv=1,
                 padding_q=1,
                 with_cls_token=True,
                 **kwargs
                 ):
        super().__init__()
        self.stride_kv = stride_kv
        self.stride_q = stride_q
        self.dim = dim_out
        self.num_heads = num_heads
        # head_dim = self.qkv_dim // num_heads
        self.scale = dim_out ** -0.5
        self.with_cls_token = with_cls_token

        self.conv_proj_q = self._build_projection(
            dim_in, dim_out, kernel_size, padding_q,
            stride_q, 'linear' if method == 'avg' else method # s=1
        )
        self.conv_proj_k = self._build_projection(
            dim_in, dim_out, kernel_size, padding_kv,#s=2
            stride_kv, method
        )
        self.conv_proj_v = self._build_projection(
            dim_in, dim_out, kernel_size, padding_kv,#s=2
            stride_kv, method
        )

        self.proj_q = nn.Linear(dim_in, dim_out, bias=qkv_bias)
        self.proj_k = nn.Linear(dim_in, dim_out, bias=qkv_bias)
        self.proj_v = nn.Linear(dim_in, dim_out, bias=qkv_bias)

        self.attn_drop = nn.Dropout(attn_drop)
        self.proj = nn.Linear(dim_out, dim_out)
        self.proj_drop = nn.Dropout(proj_drop)

    def _build_projection(self,
                          dim_in,
                          dim_out,
                          kernel_size,
                          padding,
                          stride,
                          method):
        if method == 'dw_bn':
            proj = nn.Sequential(OrderedDict([
                ('conv', nn.Conv2d(
                    dim_in,
                    dim_in,
                    kernel_size=kernel_size,
                    padding=padding,
                    stride=stride,
                    bias=False,
                    groups=dim_in
                )),
                ('bn', nn.BatchNorm2d(dim_in)),
                ('rearrage', Rearrange('b c h w -> b (h w) c')),
            ]))
        elif method == 'avg':
            proj = nn.Sequential(OrderedDict([
                ('avg', nn.AvgPool2d(
                    kernel_size=kernel_size,
                    padding=padding,
                    stride=stride,
                    ceil_mode=True
                )),
                ('rearrage', Rearrange('b c h w -> b (h w) c')),
            ]))
        elif method == 'linear':
            proj = None
        else:
            raise ValueError('Unknown method ({})'.format(method))

        return proj

    def forward_conv(self, x, h, w):
        if self.with_cls_token:
            cls_token, x = torch.split(x, [1, h*w], 1)

        x = rearrange(x, 'b (h w) c -> b c h w', h=h, w=w) #(1,64,40,40)

        if self.conv_proj_q is not None:
            q = self.conv_proj_q(x)#(1,3600,64)
        else:
            q = rearrange(x, 'b c h w -> b (h w) c')

        if self.conv_proj_k is not None:
            k = self.conv_proj_k(x)#(1,900,64)
        else:
            k = rearrange(x, 'b c h w -> b (h w) c')

        if self.conv_proj_v is not None:
            v = self.conv_proj_v(x)#(1,900,64)
        else:
            v = rearrange(x, 'b c h w -> b (h w) c')

        if self.with_cls_token:
            q = torch.cat((cls_token, q), dim=1)
            k = torch.cat((cls_token, k), dim=1)
            v = torch.cat((cls_token, v), dim=1)

        return q, k, v

    def forward(self, x, h, w):
        if (
            self.conv_proj_q is not None
            or self.conv_proj_k is not None
            or self.conv_proj_v is not None
        ):
            q, k, v = self.forward_conv(x, h, w) #(1,3600,64),(1,900,64),(1,900,64)

        q = rearrange(self.proj_q(q), 'b t (h d) -> b h t d', h=self.num_heads) #(1,1,3600,64)
        k = rearrange(self.proj_k(k), 'b t (h d) -> b h t d', h=self.num_heads) #(1,1,900,64)
        v = rearrange(self.proj_v(v), 'b t (h d) -> b h t d', h=self.num_heads) #(1,1,900,64)

        attn_score = torch.einsum('bhlk,bhtk->bhlt', [q, k]) * self.scale #(1,1,3600,900)
        attn = F.softmax(attn_score, dim=-1)
        attn = self.attn_drop(attn)

        x = torch.einsum('bhlt,bhtv->bhlv', [attn, v])#(1,1,3600,64)
        x = rearrange(x, 'b h t d -> b t (h d)')#(1,3600,64)

        x = self.proj(x)
        x = self.proj_drop(x)

        return x

class Block(nn.Module):

    def __init__(self,
                 dim_in,
                 dim_out,
                 num_heads,
                 mlp_ratio=4.,
                 qkv_bias=False,
                 drop=0.,
                 attn_drop=0.,
                 drop_path=0.,
                 act_layer=nn.GELU,
                 norm_layer=nn.LayerNorm,
                 **kwargs):
        super().__init__()

        self.with_cls_token = kwargs['with_cls_token']

        self.norm1 = norm_layer(dim_in)
        self.attn = Attention(
            dim_in, dim_out, num_heads, qkv_bias, attn_drop, drop,
            **kwargs
        )

        self.drop_path = DropPath(drop_path) \
            if drop_path > 0. else nn.Identity()
        self.norm2 = norm_layer(dim_out)

        dim_mlp_hidden = int(dim_out * mlp_ratio)
        self.mlp = Mlp(
            in_features=dim_out,
            hidden_features=dim_mlp_hidden,
            act_layer=act_layer,
            drop=drop
        )

    def forward(self, x, h, w):
        res = x #(1,3600,64)

        x = self.norm1(x)
        attn = self.attn(x, h, w) #(1,3600,64)
        x = res + self.drop_path(attn) #(1,3600,64)
        x = x + self.drop_path(self.mlp(self.norm2(x)))

        return x


class ConvEmbed(nn.Module):
    """ Image to Conv Embedding

    """

    def __init__(self,
                 patch_size=7,
                 in_chans=3,
                 embed_dim=64,
                 stride=4,
                 padding=2,
                 norm_layer=None):
        super().__init__()
        patch_size = _pair(patch_size)
        self.patch_size = patch_size

        self.proj = nn.Conv2d(
            in_chans,
            embed_dim,    #3,64
            kernel_size=patch_size, #7
            stride=stride,          #4
            padding=padding         #2
        )
        self.norm = norm_layer(embed_dim) if norm_layer else None

    def forward(self, x):
        x = self.proj(x) #(1,64,60,60)

        B, C, H, W = x.shape
        x = rearrange(x, 'b c h w -> b (h w) c') #(1,64,3600)
        if self.norm:
            x = self.norm(x)
        x = rearrange(x, 'b (h w) c -> b c h w', h=H, w=W) #(1,64,60,60)

        return x


class VisionTransformer(nn.Module):
    """ Vision Transformer with support for patch or hybrid CNN input stage
    """
    def __init__(self,
                 patch_size=16,
                 patch_stride=16,
                 patch_padding=0,
                 in_chans=3,
                 embed_dim=768,
                 depth=12,
                 num_heads=12,
                 mlp_ratio=4.,
                 qkv_bias=False,
                 drop_rate=0.,
                 attn_drop_rate=0.,
                 drop_path_rate=0.,
                 act_layer=nn.GELU,
                 norm_layer=nn.LayerNorm,
                 init='trunc_norm',
                 **kwargs):
        super().__init__()
        self.num_features = self.embed_dim = embed_dim  # num_features for consistency with other models

        self.rearrage = None

        self.patch_embed = ConvEmbed(
            # img_size=img_size,
            patch_size=patch_size,
            in_chans=in_chans,
            stride=patch_stride,
            padding=patch_padding,
            embed_dim=embed_dim,
            norm_layer=norm_layer
        )

        with_cls_token = kwargs['with_cls_token']
        if with_cls_token:
            self.cls_token = nn.Parameter(
                torch.zeros(1, 1, embed_dim)
            )
        else:
            self.cls_token = None

        self.pos_drop = nn.Dropout(p=drop_rate)
        dpr = [x.item() for x in torch.linspace(0, drop_path_rate, depth)]  # stochastic depth decay rule

        blocks = []
        for j in range(depth):
            blocks.append(
                Block(
                    dim_in=embed_dim, #64
                    dim_out=embed_dim,#64
                    num_heads=num_heads,#1
                    mlp_ratio=mlp_ratio,#
                    qkv_bias=qkv_bias,
                    drop=drop_rate,
                    attn_drop=attn_drop_rate,
                    drop_path=dpr[j],
                    act_layer=act_layer,
                    norm_layer=norm_layer,
                    **kwargs
                )
            )
        self.blocks = nn.ModuleList(blocks)

    def forward(self, x):
        x = self.patch_embed(x) #(1,64,60,60)
        B, C, H, W = x.size()

        x = rearrange(x, 'b c h w -> b (h w) c') #(1,3600,64)

        cls_tokens = None
        if self.cls_token is not None:
            # stole cls_tokens impl from Phil Wang, thanks
            cls_tokens = self.cls_token.expand(B, -1, -1)
            x = torch.cat((cls_tokens, x), dim=1)

        x = self.pos_drop(x)

        for i, blk in enumerate(self.blocks):
            x = blk(x, H, W) #(1,3600,64)

        if self.cls_token is not None:
            cls_tokens, x = torch.split(x, [1, H*W], 1)
        x = rearrange(x, 'b (h w) c -> b c h w', h=H, w=W)#(1,64,60,60)

        return x, cls_tokens

class ConvolutionalVisionTransformer(nn.Module):
    def __init__(self,
                 in_chans=(512,256,128),
                 act_layer=nn.GELU,
                 norm_layer=nn.LayerNorm,
                 init='trunc_norm',
                 patch_size=(7,3,3),
                 patch_stride=(4,2,2),
                 patch_padding=(2,1,1),
                 embed_dim=(64,192,384),
                 depth=(1,4,16),
                 num_heads=(1,3,6),
                 mlp_ratio=(4,4,4),
                 qkv_bias=(True,True,True),
                 drop_rate=(0,0,0),
                 attn_drop_rate=(0,0,0,),
                 drop_path_rate=(0,0,0.1),
                 with_cls_token=(False, False, True),
                 method=('dw_bn', 'dw_bn', 'dw_bn'),
                 kernel_size=(3,3,3),
                 padding_q=(1,1,1),
                 padding_kv=(1,1,1),
                 stride_kv=(2,2,2),
                 stride_q=(1,1,1),
                 spec=None):
        super().__init__()

        self.num_stages = 3
        for i in range(self.num_stages):
            kwargs = {
                'in_chans' : in_chans[i],
                'patch_size': patch_size[i],
                'patch_stride': patch_stride[i],
                'patch_padding': patch_padding[i],
                'embed_dim': embed_dim[i],
                'depth': depth[i],
                'num_heads': num_heads[i],
                'mlp_ratio': mlp_ratio[i],
                'qkv_bias': qkv_bias[i],
                'drop_rate': drop_rate[i],
                'attn_drop_rate': attn_drop_rate[i],
                'drop_path_rate': drop_path_rate[i],
                'with_cls_token': with_cls_token[i],
                'method': method[i],
                'kernel_size': kernel_size[i],
                'padding_q': padding_q[i],
                'padding_kv': padding_kv[i],
                'stride_kv': stride_kv[i],
                'stride_q': stride_q[i],
            }

            stage = VisionTransformer(
                init=init,
                act_layer=act_layer,
                norm_layer=norm_layer,
                **kwargs
            )
            setattr(self, f'stage{i}', stage)#用于设置属性值

    def forward(self, x,i =0):
        # for i in range(self.num_stages):
        # i = [0,1,2,3]
        x_1 = getattr(self, f'stage{i}')(x) #(1,64,60,60) #getattr返回一个对象 属性对应的值

        return x_1

def main():

    # --------------------------------实例化ConvolutionalVisionTransformer-------------------------
    model = ConvolutionalVisionTransformer()  # (传入参数)

    model.eval()
    rgb_image = torch.randn(1, 512, 240, 240)
    summary(model, input_size=[(512, 240, 240)], device='cpu')
    with torch.no_grad():
        output = model(rgb_image)
    print(output.shape)


if __name__ == '__main__':
    main()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447

其中num_stage控制stage的个数，depth控制每个stage的块数。
这样我们每经过一个stage，我们就去ConvolutionalVisionTransformer对应的参数中取对应的值。这样就形成了新的kwargs，然后在输入到VisionTransformer中，就替换掉原始的默认值。
同时我们可以在forward函数中，指定i的值，这样在实例化的时候，指定i的值，ConvolutionalVisionTransformer就具有很大的灵活性。因为原文是穿行的transformer，这样也可以使用并行的transformer，且可以在任何的位置使用。
因此就可以把代码迁移到其他框架中。
