分类准确度

1、分类准确度和混淆矩阵

1.1 分类准确度存在的问题

假如有一个癌症预测系统，输入体检信息，可以判断是否有癌症，准确度为99.9%，这个系统是好还是坏？

如果癌症产生的概率本来就只有0.1%，那么即使不采用此预测系统，对于任何输入的体检信息，都预测所有人都是健康的，即可达到99.9%的准确率。如果癌症产生的概率本来就只有0.01%，预测所有人都是健康的概率可达99.99%，比预测系统的准确率还要高，这种情况下，准确率99.9%的预测系统是失败的。

由此可以得出结论：对于极度偏斜（Skewed Data）的数据，只使用分类准确度是远远不够的。

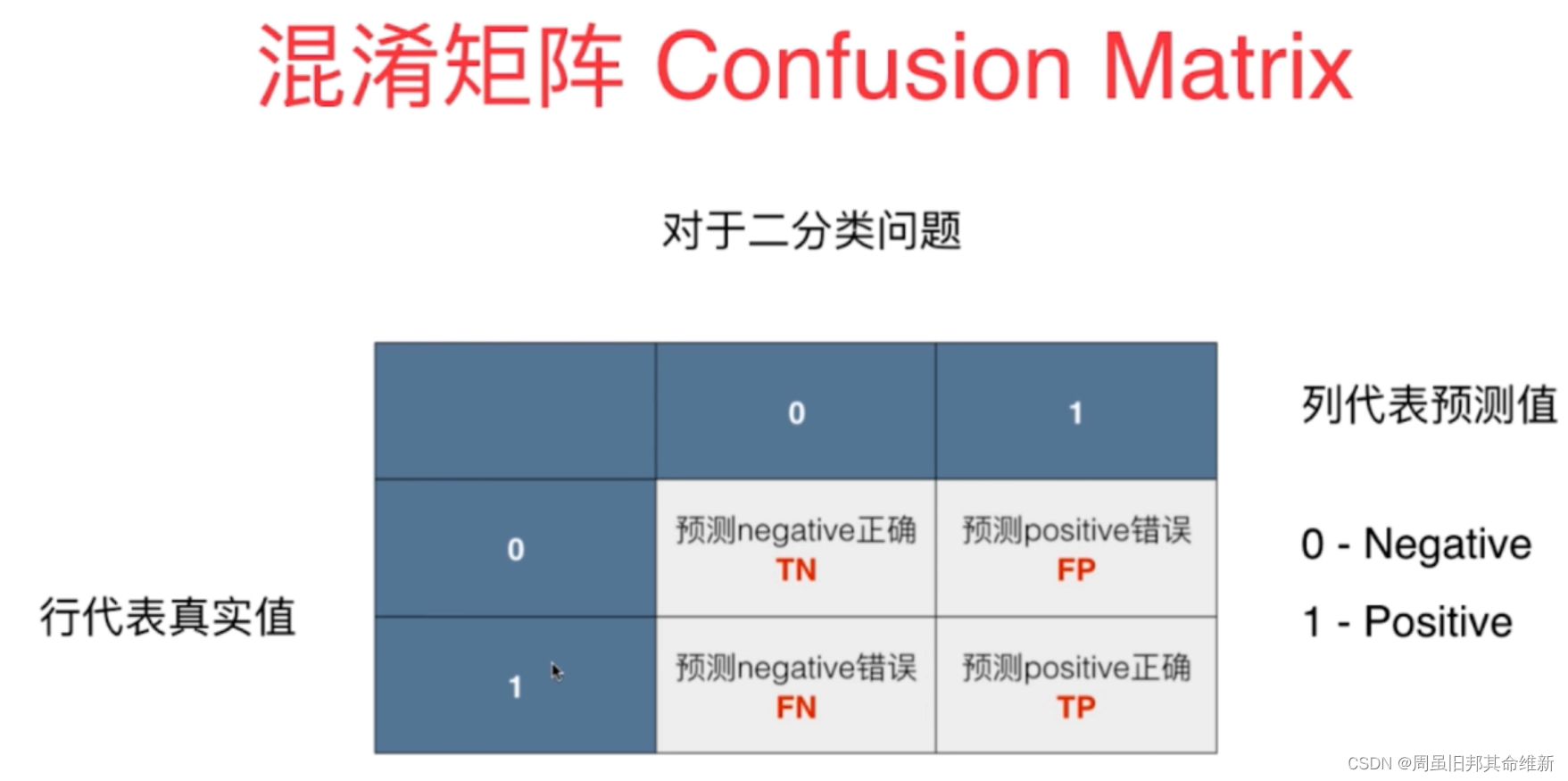

1.2 混淆矩阵

1.3 代码实现混淆矩阵

import numpy as np
from sklearn import datasets
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LogisticRegression

digits = datasets.load_digits()
X = digits.data
y = digits.target.copy()

y[digits.target == 9] = 1
y[digits.target != 9] = 0

X_train, X_test, y_train, y_test = train_test_split(X, y, random_state=666)
log_reg = LogisticRegression()
log_reg.fit(X=X_train, y=y_train)

# 模型准确度
print(log_reg.score(X_test, y_test))

y_predict = log_reg.predict(X_test)


def TN(y_true, y_predict):
    return np.sum((y_true == 0) & (y_predict == 0))


def FP(y_true, y_predict):
    return np.sum((y_true == 0) & (y_predict == 1))


def FN(y_true, y_predict):
    return np.sum((y_true == 1) & (y_predict == 0))


def TP(y_true, y_predict):
    return np.sum((y_true == 1) & (y_predict == 1))


# 混淆矩阵
def confusion_matrix(y_true, y_predict):
    return np.array([
        [TN(y_true, y_predict), FP(y_true, y_predict)],
        [FN(y_true, y_predict), TP(y_true, y_predict)]
    ])


print(confusion_matrix(y_test, y_predict))

# 精准率
def precision_score(y_true, y_predict):
    tp = TP(y_true, y_predict)
    fp = FP(y_true, y_predict)
    try:
        return tp / (tp + fp)
    except:
        return 0.0

# 召回率
def recall_score(y_true, y_predict):
    tp = TP(y_true,y_predict)
    fn = FN(y_true,y_predict)
    try:
        return tp / (tp + fn)
    except:
        return 0.0

print(precision_score(y_test, y_predict))
print(recall_score(y_test,y_predict))
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68

sklearn中的混淆矩阵：

import numpy as np
from sklearn import datasets
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LogisticRegression
from sklearn.metrics import confusion_matrix
from sklearn.metrics import precision_score
from sklearn.metrics import recall_score
from sklearn.metrics import f1_score

digits = datasets.load_digits()
X = digits.data
y = digits.target.copy()

y[digits.target == 9] = 1
y[digits.target != 9] = 0

X_train, X_test, y_train, y_test = train_test_split(X, y, random_state=666)
log_reg = LogisticRegression()
log_reg.fit(X=X_train, y=y_train)
y_predict = log_reg.predict(X_test)

print(confusion_matrix(y_test, y_predict))
print(precision_score(y_test,y_predict))
print(recall_score(y_test,y_predict))
# 调和平均值，见2.1
print(f1_score(y_test,y_predict))
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

2、精准率和召回率的平衡

2.1 调和平均值

精准率和召回率是此消彼长的，即精准率高了，召回率就下降，在一些场景下要兼顾精准率和召回率，就有 F1 score。

F1值是来综合评估精确率和召回率，当精确率和召回率都高时，F1也会高

代码实现：

import numpy as np
from sklearn import datasets
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LogisticRegression
from sklearn.metrics import confusion_matrix
from sklearn.metrics import precision_score
from sklearn.metrics import recall_score

digits = datasets.load_digits()
X = digits.data
y = digits.target.copy()

y[digits.target == 9] = 1
y[digits.target != 9] = 0

X_train, X_test, y_train, y_test = train_test_split(X, y, random_state=666)
log_reg = LogisticRegression()
log_reg.fit(X=X_train, y=y_train)

# 获得数据的预测得分值
decision_scores = log_reg.decision_function(X=X_test)
# print(decision_scores)

# 分值大于5则预测事件发生
y_predict_d = np.array(decision_scores > 5, dtype=int)
print(confusion_matrix(y_test,y_predict_d))
print(precision_score(y_test,y_predict_d))
print(recall_score(y_test,y_predict_d))

# 分值大于-5则预测事件发生
y_predict_d = np.array(decision_scores > -5, dtype=int)
print(confusion_matrix(y_test,y_predict_d))
print(precision_score(y_test,y_predict_d))
print(recall_score(y_test,y_predict_d))
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

2.2 precision_recall曲线

使用sklearn绘制精准率召回率曲线(也叫PR曲线)：

import matplotlib.pyplot as plt
from sklearn import datasets
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LogisticRegression
from sklearn.metrics import precision_recall_curve

digits = datasets.load_digits()
X = digits.data
y = digits.target.copy()

y[digits.target == 9] = 1
y[digits.target != 9] = 0

X_train, X_test, y_train, y_test = train_test_split(X, y, random_state=666)
log_reg = LogisticRegression()
log_reg.fit(X=X_train, y=y_train)

# 获得数据的预测得分值
decision_scores = log_reg.decision_function(X=X_test)
precission, recall, thresholds = precision_recall_curve(y_test, decision_scores)
plt.plot(thresholds, precission[:-1])
plt.plot(thresholds, recall[:-1])
plt.show()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

如果A模型的PR曲线整体在B模型的外面，则说明A模型优于B模型。也可以说模型的PR曲线和X、Y轴包含的面积越大，则模型越好。

2.3 ROC曲线

ROC曲线描述的是TPR 和 FPR 之间的关系。

TPR = 召回率 = TP/(TP+FN)

TPR即预测为1且预测正确，占真实值为1的百分比

FPR = FP/(TN + FP)

FPR即预测为1且预测错误，占真实值为0的百分比
1
2
3
4
5
6
7

代码实现：

import matplotlib.pyplot as plt
from sklearn import datasets
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LogisticRegression
from sklearn.metrics import roc_curve
from sklearn.metrics import roc_auc_score

digits = datasets.load_digits()
X = digits.data
y = digits.target.copy()

y[digits.target == 9] = 1
y[digits.target != 9] = 0

X_train, X_test, y_train, y_test = train_test_split(X, y, random_state=666)
log_reg = LogisticRegression()
log_reg.fit(X=X_train, y=y_train)

# 获得数据的预测得分值
decision_scores = log_reg.decision_function(X=X_test)
fpr, tpr, thresholds = roc_curve(y_test, decision_scores)
plt.plot(fpr, tpr)
plt.show()

# roc_auc_score即roc_curve的面积
print(roc_auc_score(y_test, decision_scores))
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

roc_auc_score对极度偏斜的数据不敏感，极度偏斜的数据还是需要看精准率和召回率，roc_auc_score主要用来比较模型的好坏，面积更大表明模型更好。

3、多分类问题中的混淆矩阵

import matplotlib.pyplot as plt
from sklearn import datasets
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LogisticRegression
from sklearn.metrics import precision_score
from sklearn.metrics import confusion_matrix

digits = datasets.load_digits()
X = digits.data
y = digits.target.copy()

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.8)
log_reg = LogisticRegression()
log_reg.fit(X=X_train, y=y_train)
print(log_reg.score(X_test,y_test))

y_predict = log_reg.predict(X_test)
print(precision_score(y_test,y_predict,average="micro"))

# 多分类（手写数字识别）中的混淆矩阵第i行表示真实值是数字几，第j列表示预测值是数字几
print(confusion_matrix(y_test,y_predict))
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
