HPA控制器

HPA简介

HPA（Horizontal Pod Autoscaler），Pod水平自动缩放器，可以根据Pod的负载动态调整Pod的副本数量，业务高峰期自动扩容Pod副本以满足业务请求。在业务低峰期自动缩容Pod，实现节约资源的目的。

与HPA相对的是VPA （Vertical Pod Autoscaler），Pod垂直自动缩放器，可以基于Pod的资源利用率，调整对单个Pod的最大资源限制，不能与HPA同时使用。

HPA隶属于autoscaling API群组目前主要有v1和v2两个版本：

部署metrics Server

HPA需要通过Metrics Server来获取Pod的资源利用率，所以需要先部署Metrics Server。

Metrics Server是Kubernetes 集群核心监控数据的聚合器，它负责从kubelet收集资源指标，然后对这些指标监控数据进行聚合，并通过Metrics API将它们暴露在Kubernetes apiserver中，供水平Pod Autoscaler和垂直Pod Autoscaler使用。也可以通过kubectl top node/pod查看指标数据

准备镜像

nerdctl pull bitnami/metrics-server:0.6.1
nerdctl tag bitnami/metrics-server:0.6.1 harbor-server.linux.io/kubernetes/metrics-server:0.6.1
nerdctl push harbor-server.linux.io/kubernetes/metrics-server:0.6.1

部署文件如下：

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    k8s-app: metrics-server
    rbac.authorization.k8s.io/aggregate-to-admin: "true"
    rbac.authorization.k8s.io/aggregate-to-edit: "true"
    rbac.authorization.k8s.io/aggregate-to-view: "true"
  name: system:aggregated-metrics-reader
rules:
- apiGroups:
  - metrics.k8s.io
  resources:
  - pods
  - nodes
  verbs:
  - get
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    k8s-app: metrics-server
  name: system:metrics-server
rules:
- apiGroups:
  - ""
  resources:
  - nodes/metrics
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - pods
  - nodes
  verbs:
  - get
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server-auth-reader
  namespace: kube-system
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: extension-apiserver-authentication-reader
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server:system:auth-delegator
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:auth-delegator
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    k8s-app: metrics-server
  name: system:metrics-server
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:metrics-server
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system
---
apiVersion: v1
kind: Service
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server
  namespace: kube-system
spec:
  ports:
  - name: https
    port: 443
    protocol: TCP
    targetPort: https
  selector:
    k8s-app: metrics-server
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    k8s-app: metrics-server
  name: metrics-server
  namespace: kube-system
spec:
  selector:
    matchLabels:
      k8s-app: metrics-server
  strategy:
    rollingUpdate:
      maxUnavailable: 0
  template:
    metadata:
      labels:
        k8s-app: metrics-server
    spec:
      containers:
      - args:
        - --cert-dir=/tmp
        - --secure-port=4443
        - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
        - --kubelet-use-node-status-port
        - --metric-resolution=15s
        image: harbor-server.linux.io/kubernetes/metrics-server:0.6.1
        imagePullPolicy: IfNotPresent
        livenessProbe:
          failureThreshold: 3
          httpGet:
            path: /livez
            port: https
            scheme: HTTPS
          periodSeconds: 10
        name: metrics-server
        ports:
        - containerPort: 4443
          name: https
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /readyz
            port: https
            scheme: HTTPS
          initialDelaySeconds: 20
          periodSeconds: 10
        resources:
          requests:
            cpu: 100m
            memory: 200Mi
        securityContext:
          allowPrivilegeEscalation: false
          readOnlyRootFilesystem: true
          runAsNonRoot: true
          runAsUser: 1000
        volumeMounts:
        - mountPath: /tmp
          name: tmp-dir
      nodeSelector:
        kubernetes.io/os: linux
      priorityClassName: system-cluster-critical
      serviceAccountName: metrics-server
      volumes:
      - emptyDir: {}
        name: tmp-dir
---
apiVersion: apiregistration.k8s.io/v1
kind: APIService
metadata:
  labels:
    k8s-app: metrics-server
  name: v1beta1.metrics.k8s.io
spec:
  group: metrics.k8s.io
  groupPriorityMinimum: 100
  insecureSkipTLSVerify: true
  service:
    name: metrics-server
    namespace: kube-system
  version: v1beta1
  versionPriority: 100

创建之后查看Pod状态：

验证metrics-server是否工作

可以获取node和pod的资源指标就表示metrics-server可以正常工作

HPA配置参数

HPA控制器有一些重要配置参数，用于控制Pod缩放的行为，这些参数都可以在kube-controller的启动参数中配置：

• –horizontal-pod-autoscaler-sync-period：查询Pod资源利用率的时间间隔，默认15s查询一次
• –horizontal-pod-autoscaler-downscale-stabilization：两次缩容操作之间的最小间隔周期，默认5m
• –horizontal-pod-autoscaler-cpu-initialization-period：初始化延迟时间，在此期间内Pod的CPU指标将不生效，默认5m
• –horizontal-pod-autoscaler-initial-readiness-delay：用于设置Pod初始化时间，在此期间内内的Pod被认为未就绪不会被采集数据，默认30s
• –horizontal-pod-autoscaler-tolerance：HPA控制器能容忍的数据差异（浮点数，默认0.1），即当前指标与阈值的差异要在0.1之内，比如阈值设置的是CPU利率50%，如果当前CPU利用率为80%，那么80/50=1.6>1.1，就会触发扩容；如果当前CPU利用率为40%，40/50=0.8<0.9，就会触发缩容。大于1.1扩容，小于0.9缩容

HPA示例

下面使用HAP v1版本通过CPU指标实现Pod自动扩缩容。

自动缩容示例：

先部署一个5副本的nginx deployment，再通过HPA实现缩容：

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deploy
  labels:
    app: nginx
spec:
  replicas: 3
  selector:
    matchExpressions:
    - {key: "app", operator: In, values: ["nginx"]}
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:latest
        ports:
        - name: http
          containerPort: 80
        resources:	#如果要通过hpa实现pod的自动扩缩容，在必须对Pod设置资源限制，否则pod不会被hpa统计
          requests:
            cpu: 500m
            memory: 512Mi
          limits:
            cpu: 1
            memory: 1Gi

hpa部署文件如下，在hpa中定义了Pod cpu利用率阈值为80%，最小副本数为3，最大副本数为10：

apiVersion: autoscaling/v1
kind: HorizontalPodAutoscaler
metadata:
  name: pod-autoscaler-demo
spec:
  minReplicas: 3	#最小副本数
  maxReplicas: 10	#最大副本数
  scaleTargetRef:	#hpa监控的资源对象
    apiVersion: apps/v1
    kind: Deployment
    name: nginx-deploy
  targetCPUUtilizationPercentage: 80	#cpu利用率阈值

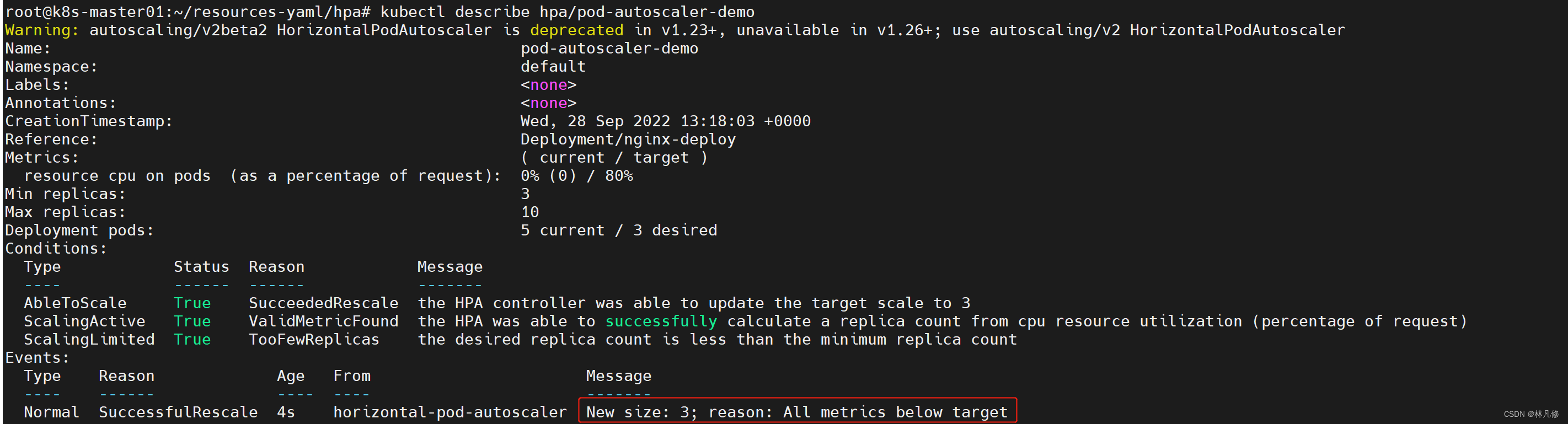

创建完成后，查看hpa资源：

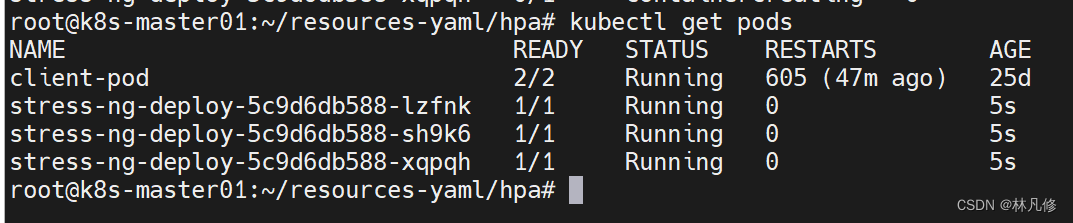

因为之前创建的nginx pod访问量较低，cpul利用率肯定不超过80%，所以等待一段时间就会触发缩容

因为在hpa中定义的最小副本数为3，所以缩容到3个Pod就不会缩容了

自动扩容示例：

使用stress-ng镜像部署3个pod来测试自动扩容，stress-ng是一个压测工具：

apiVersion: apps/v1
kind: Deployment
metadata:
  name: stress-ng-deploy
  labels:
    app: stress-ng
spec:
  replicas: 3
  selector:
    matchExpressions:
    - {key: "app", operator: In, values: ["stress-ng"]}
  template:
    metadata:
      labels:
        app: stress-ng
    spec:
      containers:
      - name: stress-ng
        image: lorel/docker-stress-ng
        args: ["--vm", "2", "--vm-bytes", "512M"]
        resources:
          requests:
            cpu: 500m
            memory: 512Mi
          limits:
            cpu: 1
            memory: 1Gi

hpa部署文件如下：

apiVersion: autoscaling/v1
kind: HorizontalPodAutoscaler
metadata:
  name: pod-autoscaler-demo1
spec:
  minReplicas: 3
  maxReplicas: 10
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: stress-ng-deploy
  targetCPUUtilizationPercentage: 80

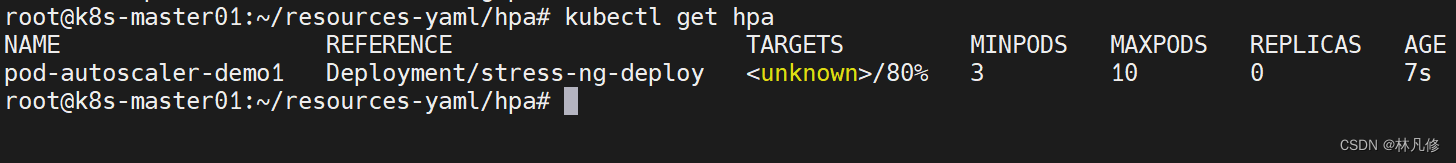

查看hpa资源：

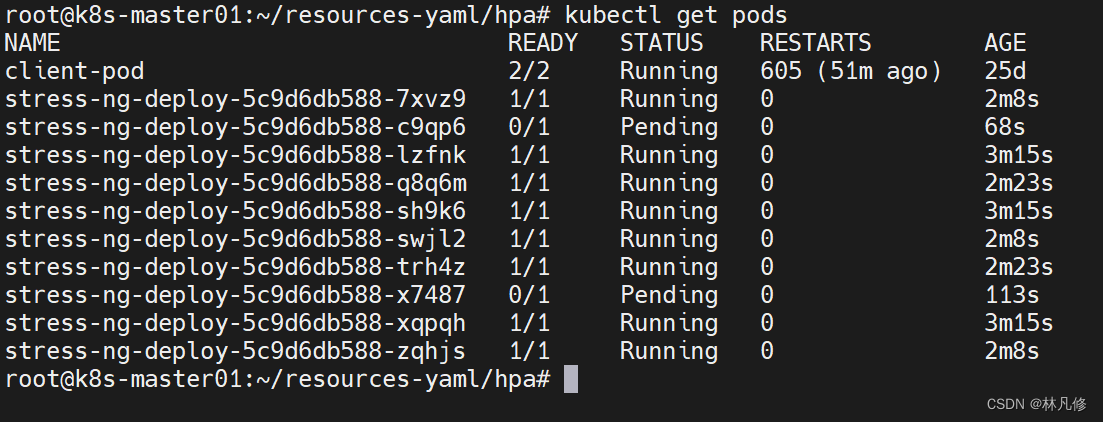

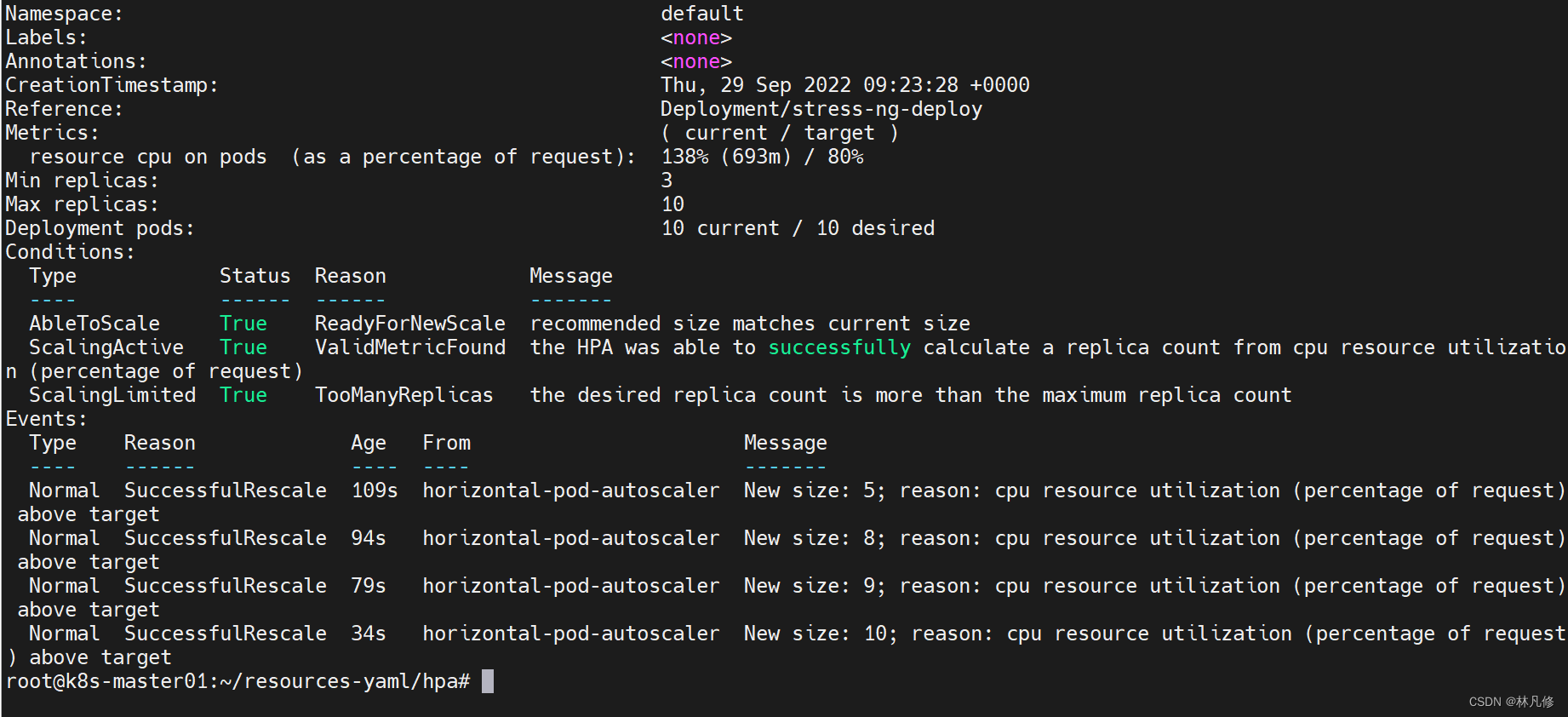

stress-ng会将Pod的cpu利用率打满，所以等待一段时间hpa就会逐步提高pod的副本数，如下图所示，但是在hpa中定义的最大副本数为10，所以最多扩容到10个Pod就不会扩容了
