ctags命令行使用笔记

所有命令行选项使用的官方手册： https://docs.ctags.io/en/latest/man/ctags.1.html#synopsis

!_TAG_FILE_FORMAT       2       /extended format; --format=1 will not append ;" to lines/
!_TAG_FILE_SORTED       1       /0=unsorted, 1=sorted, 2=foldcase/

这些称为 pseudo tags，--pseudo-tags=[+|-](|*)可以设置是否开启

有4个域，各自包含标识符的信息

1. fields，命令行 --list-fields 查看，查看对于universal ctags.exe新增的关于c++的一些属性标记信息 --list-fields=c++
2. kinds，--list-kinds
3. extras，同理
4. roles，同理查看

查看到的，比如fields域，有些enable是该功能是否使能，我们通过  --fields-c++=+{xx} 就可以来打开fields域对应的xx功能

• --list-xx：用于打印出关于xx功能的信息
•  xx=：是用于设置这个xx功能的
• --list-map-extensions=all：列出所有语言的名称对应的源文件扩展名
• 很多选项都有单字母缩写，如果混用的话，长符号需要加大括号{}

• --_xformat 自己定制xref格式，使用类似printf函数那样的占位符使用

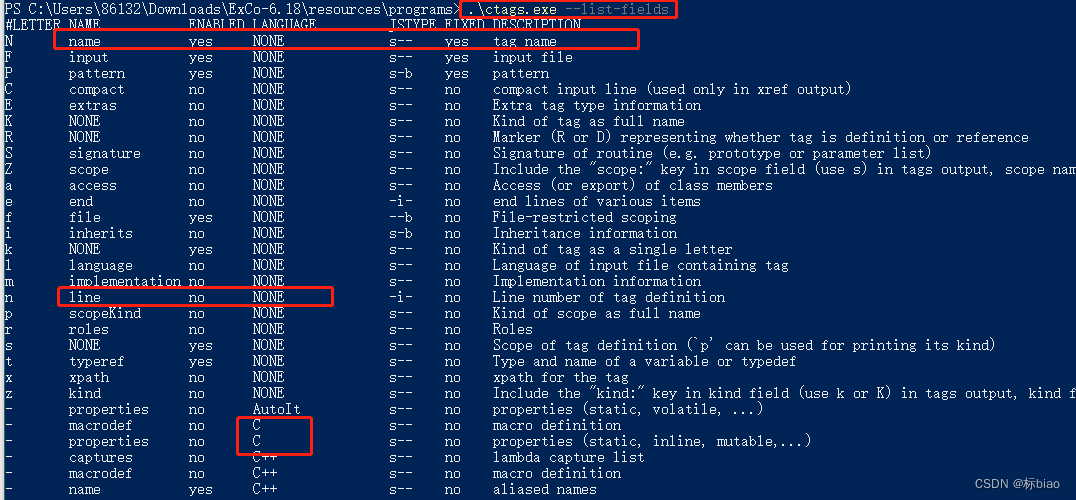

查看fields字段具有哪些信息

.\ctags.exe --list-fields
#LETTER NAME           ENABLED LANGUAGE         JSTYPE FIXED DESCRIPTION
N       name           yes     NONE             s--    yes   tag name
F       input          yes     NONE             s--    yes   input file
P       pattern        yes     NONE             s-b    yes   pattern
C       compact        no      NONE             s--    no    compact input line (used only in xref output)
E       extras         no      NONE             s--    no    Extra tag type information
K       NONE           no      NONE             s--    no    Kind of tag as full name
R       NONE           no      NONE             s--    no    Marker (R or D) representing whether tag is definition or reference
S       signature      no      NONE             s--    no    Signature of routine (e.g. prototype or parameter list)
Z       scope          no      NONE             s--    no    Include the "scope:" key in scope field (use s) in tags output, scope name in xref output
a       access         no      NONE             s--    no    Access (or export) of class members
e       end            no      NONE             -i-    no    end lines of various items
f       file           yes     NONE             --b    no    File-restricted scoping
i       inherits       no      NONE             s-b    no    Inheritance information
k       NONE           yes     NONE             s--    no    Kind of tag as a single letter
l       language       no      NONE             s--    no    Language of input file containing tag
m       implementation no      NONE             s--    no    Implementation information
n       line           no      NONE             -i-    no    Line number of tag definition
p       scopeKind      no      NONE             s--    no    Kind of scope as full name
r       roles          no      NONE             s--    no    Roles
s       NONE           yes     NONE             s--    no    Scope of tag definition (`p' can be used for printing its kind)
t       typeref        yes     NONE             s--    no    Type and name of a variable or typedef
x       xpath          no      NONE             s--    no    xpath for the tag
z       kind           no      NONE             s--    no    Include the "kind:" key in kind field (use k or K) in tags output, kind full name in xref output
-       properties     no      AutoIt           s--    no    properties (static, volatile, ...)
-       macrodef       no      C                s--    no    macro definition
-       properties     no      C                s--    no    properties (static, inline, mutable,...)
-       captures       no      C++              s--    no    lambda capture list
-       macrodef       no      C++              s--    no    macro definition
-       name           yes     C++              s--    no    aliased names
-       properties     no      C++              s--    no    properties (static, inline, mutable,...)
-       template       no      C++              s--    no    template parameters
-       macrodef       no      CPreProcessor    s--    no    macro definition
-       macrodef       no      CUDA             s--    no    macro definition
-       properties     no      CUDA             s--    no    properties (static, inline, mutable,...)
-       access         yes     Elixir           s--    no    access
-       howImported    no      Go               s--    no    how the package is imported ("inline" for `.' or "init" for `_')
-       package        yes     Go               s--    no    the real package specified by the package name
-       packageName    yes     Go               s--    no    the name for referring the package
-       implements     yes     Inko             s--    no    Trait being implemented
-       assignment     yes     LdScript         s--    no    how a value is assigned to the symbol
-       sectionMarker  no      Markdown         s--    no    character used for declaring section(#, ##, =, or -)
-       version        no      Maven2           s--    no    version of artifact
-       wrapping       yes     Moose            s--    no    how a wrapper wrapping the method (around, after, or before)
-       langid         yes     NSIS             s--    no    language identifier specified in (License)LangString commands
-       category       yes     ObjectiveC       s--    no    category attached to the class
-       protocols      yes     ObjectiveC       s--    no    protocols that the class (or category) confirms to
-       home           yes     Passwd           s--    no    home directory
-       shell          yes     Passwd           s--    no    login shell
-       decorators     no      Python           s--    no    decorators on functions and classes
-       sectionMarker  no      ReStructuredText s--    no    character used for declaring section
-       uri            yes     XML              s--    no    uri associated with name prefix

查看kinds字段具有哪些信息

.\ctags.exe --list-kinds=c
d  macro definitions
e  enumerators (values inside an enumeration)
f  function definitions
g  enumeration names
h  included header files
l  local variables [off]
m  struct, and union members
p  function prototypes [off]
s  structure names
t  typedefs
u  union names
v  variable definitions
x  external and forward variable declarations [off]
z  function parameters inside function definitions [off]
L  goto labels [off]
D  parameters inside macro definitions [off]

查看roles字段具有哪些信息

.\ctags.exe --list-roles=c
#KIND(L/N) NAME   ENABLED DESCRIPTION
d/macro    undef  on      undefined
h/header   local  on      local header
h/header   system on      system header

查看extras字段具有哪些信息

.\ctags.exe --list-extras
#LETTER NAME              ENABLED LANGUAGE FIXED DESCRIPTION
-       anonymous         yes     NONE     no    Include tags for non-named objects like lambda
F       fileScope         yes     NONE     no    Include tags of file scope
f       inputFile         no      NONE     no    Include an entry for the base file name of every input file
g       guest             no      NONE     no    Include tags generated by guest parsers
p       pseudo            yes     NONE     no    Include pseudo tags
q       qualified         no      NONE     no    Include an extra class-qualified tag entry for each tag
r       reference         no      NONE     no    Include reference tags
s       subparser         yes     NONE     no    Include tags generated by subparsers
-       funcmap           yes     QemuHX   no    Include mapping SQMP to C function name
-       whitespaceSwapped yes     Robot    no    Include tags swapping whitespace and underscore chars

例子：打印出源码工程中所有字段属性信息（json格式）

从上面的enable列可以看出，有些属性是没有开启的，这里我们用--xx=*，就是开启xx字段的所有属性了，所以这里例子，打印出ctags能记录的所有属性信息

.\ctags.exe --output-format=json --kinds-all=* --extras=* --fields=* -R
{"_type": "ptag", "name": "JSON_OUTPUT_VERSION", "path": "0.0", "pattern": "in development"}
{"_type": "ptag", "name": "TAG_FILE_SORTED", "path": "1", "pattern": "0=unsorted, 1=sorted, 2=foldcase"}
{"_type": "ptag", "name": "TAG_OUTPUT_FILESEP", "path": "backslash", "pattern": "slash or backslash"}
{"_type": "ptag", "name": "TAG_PROGRAM_AUTHOR", "path": "Universal Ctags Team", "pattern": ""}
{"_type": "ptag", "name": "TAG_PROGRAM_NAME", "path": "Universal Ctags", "pattern": "Derived from Exuberant Ctags"}
{"_type": "ptag", "name": "TAG_PROGRAM_URL", "path": "https://ctags.io/", "pattern": "official site"}
{"_type": "ptag", "name": "TAG_PROGRAM_VERSION", "path": "0.0.0", "pattern": "fefbad26"}
{"_type": "tag", "name": "TEST_H", "path": "test.h", "pattern": "/^#define TEST_H$/", "language": "C++", "line": 2, "kind": "macro", "roles": "def", "end": 2}
{"_type": "tag", "name": "a", "path": "main.c", "pattern": "/^\tint a = 1;$/", "file": true, "language": "C", "line": 9, "typeref": "typename:int", "kind": "local", "roles": "def", "scope": "main", "extras": "fileScope", "scopeKind": "function"}
{"_type": "tag", "name": "a", "path": "test.c", "pattern": "/^int fun(int a, int b)$/", "file": true, "language": "C", "line": 4, "typeref": "typename:int", "kind": "parameter", "roles": "def", "scope": "fun", "extras": "fileScope", "scopeKind": "function"}
{"_type": "tag", "name": "argc", "path": "main.c", "pattern": "/^int main(int argc, char *argv[]) {$/", "file": true, "language": "C", "line": 8, "typeref": "typename:int", "kind": "parameter", "roles": "def", "scope": "main", "extras": "fileScope", "scopeKind": "function"}
{"_type": "tag", "name": "argv", "path": "main.c", "pattern": "/^int main(int argc, char *argv[]) {$/", "file": true, "language": "C", "line": 8, "typeref": "typename:char * []", "kind": "parameter", "roles": "def", "scope": "main", "extras": "fileScope", "scopeKind": "function"}
{"_type": "tag", "name": "b", "path": "main.c", "pattern": "/^\tint b = 2;$/", "file": true, "language": "C", "line": 10, "typeref": "typename:int", "kind": "local", "roles": "def", "scope": "main", "extras": "fileScope", "scopeKind": "function"}
{"_type": "tag", "name": "b", "path": "test.c", "pattern": "/^int fun(int a, int b)$/", "file": true, "language": "C", "line": 4, "typeref": "typename:int", "kind": "parameter", "roles": "def", "scope": "fun", "extras": "fileScope", "scopeKind": "function"}
{"_type": "tag", "name": "c", "path": "main.c", "pattern": "/^int c = 3;$/", "language": "C", "line": 7, "typeref": "typename:int", "kind": "variable", "roles": "def"}
{"_type": "tag", "name": "d", "path": "main.c", "pattern": "/^\tint d = a+b+c;$/", "file": true, "language": "C", "line": 12, "typeref": "typename:int", "kind": "local", "roles": "def", "scope": "main", "extras": "fileScope", "scopeKind": "function"}
{"_type": "tag", "name": "d", "path": "test.c", "pattern": "/^\tint d = 1;$/", "file": true, "language": "C", "line": 6, "typeref": "typename:int", "kind": "local", "roles": "def", "scope": "fun", "extras": "fileScope", "scopeKind": "function"}
{"_type": "tag", "name": "fun", "path": "test.c", "pattern": "/^int fun(int a, int b)$/", "language": "C", "line": 4, "signature": "(int a,int b)", "typeref": "typename:int", "kind": "function", "roles": "def", "end": 10}
{"_type": "tag", "name": "fun", "path": "test.h", "pattern": "/^int fun(int a, int b);$/", "language": "C++", "line": 6, "signature": "(int a,int b)", "typeref": "typename:int", "kind": "prototype", "roles": "def"}
{"_type": "tag", "name": "main", "path": "main.c", "pattern": "/^int main(int argc, char *argv[]) {$/", "language": "C", "line": 8, "signature": "(int argc,char * argv[])", "typeref": "typename:int", "kind": "function", "roles": "def", "end": 18}
{"_type": "tag", "name": "main.c", "path": "main.c", "pattern": false, "language": "C", "line": 1, "kind": "file", "roles": "def", "extras": "inputFile", "end": 18}
{"_type": "tag", "name": "stdio.h", "path": "main.c", "pattern": "/^#include /", "language": "C", "line": 1, "kind": "header", "roles": "system", "extras": "reference"}
{"_type": "tag", "name": "stdlib.h", "path": "main.c", "pattern": "/^#include /", "language": "C", "line": 2, "kind": "header", "roles": "system", "extras": "reference"}
{"_type": "tag", "name": "test.c", "path": "test.c", "pattern": false, "language": "C", "line": 1, "kind": "file", "roles": "def", "extras": "inputFile", "end": 10}
{"_type": "tag", "name": "test.h", "path": "test.h", "pattern": false, "language": "C++", "line": 1, "kind": "file", "roles": "def", "extras": "inputFile", "end": 8}
{"_type": "tag", "name": "var", "path": "test.c", "pattern": "/^int var = 5;$/", "language": "C", "line": 1, "typeref": "typename:int", "kind": "variable", "roles": "def"}
{"_type": "tag", "name": "var", "path": "test.h", "pattern": "/^extern int var;$/", "language": "C++", "line": 4, "typeref": "typename:int", "kind": "externvar", "roles": "def"}

我们可以看出，ctags生成不了标识符的被引用信息，比如某个符号在哪些地方都被用到了。它只能生成某个头文件在哪个源文件哪个位置引用到了。
