2022秋季信息安全实验1

实验1.1

(1) 加密后的密文：vhfxulwb
(2) 解密函数：d(a)=(a-k+26)mod 26
(3) 编程实现：界面类似于下图中的界面，语言工具语言不限，但要说明开发运行环境，如Python3、VC6、Java SE 8等等。
开发运行环境说明：Python3

import PySimpleGUI as simpleGui
import datetime


def dealMainWindowOpenWindowEvent(window2):
    try:
        if not window2:
            window2 = make_window2()
            window2.make_modal()  # 这行代码把当前窗口设置为有模式的
    except Exception as result:
        print("函数 dealMainWindowEvent 捕捉到异常:%s" % result)
    return window2


def dealMainWindowEncryptEvent(values):
    try:
        text = values['keyMainWindowPlaintext']
        if text.strip() == "":
            simpleGui.popup_error("提示", "请先输入明文！")
        else:
            # simpleGui.popup("提示", "请自己实现加密函数！")
            s=""
            text=list(map(str,text))
            for i in range(len(text)):
                text[i]=chr((ord(text[i]) - ord('a') + int(values['keyMainWindowKey'])) % 26 + ord('a'))
                s+=text[i]
            return s

    except Exception as result:
        print("函数 dealMainWindowEvent 捕捉到异常:%s" % result)

def dealMainWindowDecryptEvent(values):
    try:
        text = values['keyMainWindowCiphertext']
        if text.strip() == "":
            simpleGui.popup_error("提示", "请先输入密文！")
        else:
            # simpleGui.popup("提示", "请自己实现加密函数！")
            s = ""
            text = list(map(str, text))
            for i in range(len(text)):
                text[i] = chr((ord(text[i]) - ord('a') -int(values['keyMainWindowKey'])+26) % 26 + ord('a'))
                s += text[i]
            return s

    except Exception as result:
        print("函数 dealMainWindowEvent 捕捉到异常:%s" % result)

def dealWindow2OkEvent(window2, values):
    newText = ""
    try:
        newText = values['keyWindow2ulText']
        window2.close()
        window2 = None
    except Exception as result:
        print("函数 dealWindow2Event 捕捉到异常:%s" % result)
    return window2, newText


def make_window2():
    try:
        # 创建 window2 布局
        window2Layout = [
            [simpleGui.Text('文本'), simpleGui.Input('新窗口默认文本 hello gui。', key='keyWindow2ulText')],
            [simpleGui.Button('确定', key='keyWindow2Ok'), simpleGui.Button('取消', key='keyWindow2Cancel')]
        ]
        window2 = simpleGui.Window("打开新窗口", window2Layout, finalize=True)
        return window2
    except Exception as result:
        print("make_window2 捕捉到异常:%s" % result)


def main():
    try:
        # 创建 mainWindow 布局
        mainWindowLayout = [
            [simpleGui.Text('明文'), simpleGui.Input(key='keyMainWindowPlaintext', size=(80, 1)), ],
            [simpleGui.Text('密钥'), simpleGui.Input(key='keyMainWindowKey', size=(80, 1)), ],
            [simpleGui.Text('密文'), simpleGui.Input(key='keyMainWindowCiphertext', size=(80, 1)), ],
            [simpleGui.Text('文本'), simpleGui.Multiline(key='keyMainWindowMulText', size=(80, 8))],
            [simpleGui.Button('加密', key='keyMainWindowEncrypt'),
             simpleGui.Button('解密', key='keyMainWindowDecrypt'),
             simpleGui.Button('打开新窗口', key='keyMainWindowOpenWindow'), ],
            [simpleGui.Button('确定', key='keyMainWindowOk'), simpleGui.Button('取消', key='keyMainWindowCancel')],
        ]

        # 创建窗口，引入布局，并进行初始化。
        mainWindow = simpleGui.Window('对称加密演示程序', layout=mainWindowLayout, finalize=True)

        # 暂时先不创建window2
        window2 = None

        # 创建一个事件循环，否则窗口运行一次就会被关闭。
        while True:
            window, event, values = simpleGui.read_all_windows()
            print(window, event, values)  # 可以打印一下着看变量的内容
            if window == mainWindow:
                if event in (simpleGui.WIN_CLOSED,  'keyMainWindowOk', 'keyMainWindowCancel'):
                    break
                elif event == 'keyMainWindowOpenWindow':
                    window2 = dealMainWindowOpenWindowEvent(window2)
                elif event == 'keyMainWindowEncrypt':
                    min=dealMainWindowEncryptEvent(values)
                    mainWindow['keyMainWindowCiphertext'].update(min)
                elif event == 'keyMainWindowDecrypt':
                     # simpleGui.popup("提示", "请自己实现解密函数！")
                     max=dealMainWindowDecryptEvent(values)
                     mainWindow['keyMainWindowMulText'].update(max)
            if window == window2:
                if event in (simpleGui.WIN_CLOSED, 'keyWindow2Cancel'):
                    window2.close()
                    window2 = None
                elif event == 'keyWindow2Ok':
                    window2, newText = dealWindow2OkEvent(window2, values)
                    text = datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S') + "\n从window2获得文本:\n" + newText
                    mainWindow['keyMainWindowMulText'].update(text)
        # 关闭窗口
        mainWindow.close()
        if window2 is not None:
            window2.close()
    except Exception as result:
        print("函数 main 捕捉到异常:%s" % result)


if __name__ == '__main__':
    main()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126

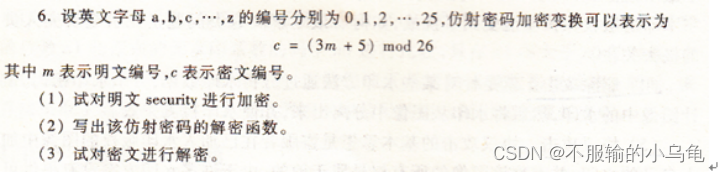

实验1.2

(1) 加密后的密文：hrlnedkz
(2) 解密函数：d=(9(m-5)) mod 26*
(3) 编程实现：界面类似于下图中的界面，语言工具语言不限，但要说明开发运行环境，如Python3、VC6、Java SE 8等等。
开发运行环境说明：Python3

import PySimpleGUI as simpleGui
import datetime


def dealMainWindowOpenWindowEvent(window2):
    try:
        if not window2:
            window2 = make_window2()
            window2.make_modal()  # 这行代码把当前窗口设置为有模式的
    except Exception as result:
        print("函数 dealMainWindowEvent 捕捉到异常:%s" % result)
    return window2


def dealMainWindowEncryptEvent(values):
    try:
        text = values['keyMainWindowPlaintext']
        if text.strip() == "":
            simpleGui.popup_error("提示", "请先输入明文！")
        else:
            # simpleGui.popup("提示", "请自己实现加密函数！")
            s=""
            text=list(map(str,text))
            for i in range(len(text)):
                text[i]=chr((3*(ord(text[i])- ord('a'))+5) % 26 + ord('a'))
                s+=text[i]
            return s

    except Exception as result:
        print("函数 dealMainWindowEvent 捕捉到异常:%s" % result)

def dealMainWindowDecryptEvent(values):
    try:
        text = values['keyMainWindowCiphertext']
        if text.strip() == "":
            simpleGui.popup_error("提示", "请先输入密文！")
        else:
            # simpleGui.popup("提示", "请自己实现解密函数！")
            s = ""
            text = list(map(str, text))
            for i in range(len(text)):
                text[i] = chr((((ord(text[i])- ord('a'))-5)*9) % 26 + ord('a'))
                s += text[i]
            return s

    except Exception as result:
        print("函数 dealMainWindowEvent 捕捉到异常:%s" % result)

def dealWindow2OkEvent(window2, values):
    newText = ""
    try:
        newText = values['keyWindow2ulText']
        window2.close()
        window2 = None
    except Exception as result:
        print("函数 dealWindow2Event 捕捉到异常:%s" % result)
    return window2, newText


def make_window2():
    try:
        # 创建 window2 布局
        window2Layout = [
            [simpleGui.Text('文本'), simpleGui.Input('新窗口默认文本 hello gui。', key='keyWindow2ulText')],
            [simpleGui.Button('确定', key='keyWindow2Ok'), simpleGui.Button('取消', key='keyWindow2Cancel')]
        ]
        window2 = simpleGui.Window("打开新窗口", window2Layout, finalize=True)
        return window2
    except Exception as result:
        print("make_window2 捕捉到异常:%s" % result)


def main():
    try:
        # 创建 mainWindow 布局
        mainWindowLayout = [
            [simpleGui.Text('明文'), simpleGui.Input(key='keyMainWindowPlaintext', size=(80, 1)), ],
            # [simpleGui.Text('密钥'), simpleGui.Input(key='keyMainWindowKey', size=(80, 1)), ],
            [simpleGui.Text('密文'), simpleGui.Input(key='keyMainWindowCiphertext', size=(80, 1)), ],
            [simpleGui.Text('文本'), simpleGui.Multiline(key='keyMainWindowMulText', size=(80, 8))],
            [simpleGui.Button('加密', key='keyMainWindowEncrypt'),
             simpleGui.Button('解密', key='keyMainWindowDecrypt'),
             simpleGui.Button('打开新窗口', key='keyMainWindowOpenWindow'), ],
            [simpleGui.Button('确定', key='keyMainWindowOk'), simpleGui.Button('取消', key='keyMainWindowCancel')],
        ]

        # 创建窗口，引入布局，并进行初始化。
        mainWindow = simpleGui.Window('对称加密演示程序', layout=mainWindowLayout, finalize=True)

        # 暂时先不创建window2
        window2 = None

        # 创建一个事件循环，否则窗口运行一次就会被关闭。
        while True:
            window, event, values = simpleGui.read_all_windows()
            print(window, event, values)  # 可以打印一下着看变量的内容
            if window == mainWindow:
                if event in (simpleGui.WIN_CLOSED,  'keyMainWindowOk', 'keyMainWindowCancel'):
                    break
                elif event == 'keyMainWindowOpenWindow':
                    window2 = dealMainWindowOpenWindowEvent(window2)
                elif event == 'keyMainWindowEncrypt':
                    min=dealMainWindowEncryptEvent(values)
                    mainWindow['keyMainWindowCiphertext'].update(min)
                elif event == 'keyMainWindowDecrypt':
                     # simpleGui.popup("提示", "请自己实现解密函数！")
                     max=dealMainWindowDecryptEvent(values)
                     mainWindow['keyMainWindowMulText'].update(max)
            if window == window2:
                if event in (simpleGui.WIN_CLOSED, 'keyWindow2Cancel'):
                    window2.close()
                    window2 = None
                elif event == 'keyWindow2Ok':
                    window2, newText = dealWindow2OkEvent(window2, values)
                    text = datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S') + "\n从window2获得文本:\n" + newText
                    mainWindow['keyMainWindowMulText'].update(text)
        # 关闭窗口
        mainWindow.close()
        if window2 is not None:
            window2.close()
    except Exception as result:
        print("函数 main 捕捉到异常:%s" % result)


if __name__ == '__main__':
    main()
