• 14_自定义ItemDecoration实现qq好友列表分组效果

    14_自定义ItemDecoration实现qq好友列表分组效果

    一.先上效果

    在这里插入图片描述

    二.RecyclerView实现简单分组

    RecyclerView比较常规的用法，显示多item布局，直接上代码:

    public class SectionListAdapter extends RecyclerView.Adapter<RecyclerView.ViewHolder> {

    private List<SectionItem> datas;
    private Context context;
    public static final int ITEM_TYPE_SECTION = 1000;
    public static final int ITEM_TYPE_NORMAL = 1001;

    public SectionListAdapter(Context context, List<SectionItem> datas) {
        this.context = context;
        this.datas = datas;
    }

    @NonNull
    @Override
    public RecyclerView.ViewHolder onCreateViewHolder(@NonNull ViewGroup parent, int viewType) {
        RecyclerView.ViewHolder holder = null;
        if (viewType == ITEM_TYPE_SECTION) {
            View itemView = LayoutInflater.from(context).inflate(R.layout.section_item, parent, false);
            holder = new SectionItemHolder(itemView);
        } else {
            View itemView = LayoutInflater.from(context).inflate(R.layout.group_item, parent, false);
            holder = new NormalItemHolder(itemView);
        }
        return holder;
    }

    @Override
    public void onBindViewHolder(@NonNull RecyclerView.ViewHolder holder, int position) {
        SectionItem sectionItem = datas.get(position);
        if(getItemViewType(position) == ITEM_TYPE_SECTION) {
            SectionItemHolder sectionItemHolder = (SectionItemHolder) holder;
            sectionItemHolder.tvSectionName.setText(sectionItem.name);
            sectionItemHolder.tvButton.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View v) {
                    Toast.makeText(context, sectionItem.name, Toast.LENGTH_SHORT).show();
                }
            });
        } else {
            NormalItemHolder normalItemHolder = (NormalItemHolder) holder;
            normalItemHolder.tvGroupName.setText(sectionItem.name);
        }
    }

    @Override
    public int getItemCount() {
        return datas != null ? datas.size():0;
    }

    @Override
    public int getItemViewType(int position) {
        if(datas != null && datas.size() > position) {
            if(datas.get(position).isSection) {
                return ITEM_TYPE_SECTION;
            }
        }
        return ITEM_TYPE_NORMAL;
    }

    protected static class SectionItemHolder extends RecyclerView.ViewHolder {

        private Button tvButton;
        private TextView tvSectionName;

        public SectionItemHolder(@NonNull View itemView) {
            super(itemView);
            tvSectionName = itemView.findViewById(R.id.tv_section_item_name);
            tvButton = itemView.findViewById(R.id.tv_button);
        }

    }

    protected static class NormalItemHolder extends RecyclerView.ViewHolder {

        TextView tvGroupName;

        public NormalItemHolder(@NonNull View itemView) {
            super(itemView);
            tvGroupName = itemView.findViewById(R.id.tv_group_item_name);
        }

    }
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    public class MainActivity extends AppCompatActivity {

    private ActivityMainBinding dataBinding;
    private List<SectionItem> datas = new ArrayList<>();
    private SectionListAdapter mAdapter;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        dataBinding =  DataBindingUtil.setContentView(this, R.layout.activity_main);
        dataBinding.groupList.setLayoutManager(new LinearLayoutManager(this));

        datas.add(new SectionItem("group1", "group1", true));
        for(int i=0; i < 10; i++) {
            datas.add(new SectionItem("item" + i, "group1", false));
        }

        datas.add(new SectionItem("group2", "group2", true));
        for(int i=0; i < 5; i++) {
            datas.add(new SectionItem("item" + i, "group2", false));
        }

        datas.add(new SectionItem("group3", "group3", true));
        for(int i=0; i < 20; i++) {
            datas.add(new SectionItem("item" + i, "group3", false));
        }

        mAdapter = new SectionListAdapter(this, datas);
        dataBinding.groupList.setAdapter(mAdapter);
    }
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31

    在这里插入图片描述

    三.自定义ItemDecoration实现吸顶

    在ItemDecoration的实现方法中，有两个方法是用于绘制的，一个是onDraw，一个是onDrawOver，onDraw方法中绘制的内容如果和RecyclerView的item有重叠，重叠区域会被item覆盖，常用于在RecyclerView的item周围绘制分割，而在onDrawOver方法中绘制的内容会覆盖在RecyclerView的item之上，因此我们需要在onDrawOver中进行绘制，才能实现吸顶。具体实现步骤如下：

    • 重写ItemDecoration的getItemOffsets方法，在getItemOffsets方法中直接调用adapter的createViewHolder创建一个新的分组的ViewHolder，后续会提供给onDrawOver进行绘制，并缓存RecyclerView中所有已经创建的分组ViewHolder
    public class SectionDecoration extends RecyclerView.ItemDecoration {

    Map<Integer, RecyclerView.ViewHolder> sections = new LinkedHashMap<>();
    private RecyclerView.ViewHolder overViewHolder = null;

    @Override
    public void getItemOffsets(@NonNull Rect outRect, @NonNull View view, @NonNull RecyclerView parent, @NonNull RecyclerView.State state) {
        super.getItemOffsets(outRect, view, parent, state);
        RecyclerView.Adapter adapter = parent.getAdapter();
        int position = parent.getChildLayoutPosition(view);
        if(adapter != null) {
            if(overViewHolder == null) {
                overViewHolder = adapter.createViewHolder(null, SectionListAdapter.ITEM_TYPE_SECTION);
            }
            if(adapter.getItemViewType(position) == SectionListAdapter.ITEM_TYPE_SECTION) {
                if(sections.get(position) == null) {
                    sections.put(position, parent.getChildViewHolder(view));
                }
            }
        }
    }

}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 在绘制吸顶之前，我们需要先找到需要吸顶的目标ViewHolder，目标ViewHolder有多大，overViewHolder就有多大，而overViewHolder的位置始终是在RecyclerView的最顶部，因此问题的关键在于怎么寻找目标ViewHolder的position，我们通过一张图来说明怎么寻找目标ViewHolder的position，找到目标ViewHolder的position之后，从缓存中取出Viewholder即为目标ViewHolder。

    在这里插入图片描述

    public class SectionDecoration extends RecyclerView.ItemDecoration {

    Map<Integer, RecyclerView.ViewHolder> sections = new LinkedHashMap<>();
    private RecyclerView.ViewHolder overViewHolder = null;

    ...

    @Override
    public void onDrawOver(@NonNull Canvas c, @NonNull RecyclerView parent, @NonNull RecyclerView.State state) {
        super.onDrawOver(c, parent, state);
        RecyclerView.Adapter adapter = parent.getAdapter();
        if(adapter != null) {
            int count = parent.getChildCount();
            int firstVisibleItemPosition = ((LinearLayoutManager) parent.getLayoutManager()).findFirstVisibleItemPosition();
            int position = firstVisibleItemPosition;
            if (position > 0) {
                for (int i = 0; i < count; i++) {
                    View child = parent.getChildAt(i);
                    position = parent.getChildLayoutPosition(child);
                    if (child.getBottom() >= (parent.getPaddingTop()) && adapter.getItemViewType(position + 1) == SectionListAdapter.ITEM_TYPE_SECTION) {
                        break;
                    }
                }
            }

            int sectionPosition = -1;
            for (int i = 0; i <= position; i++) {
                if(adapter.getItemViewType(i) == SectionListAdapter.ITEM_TYPE_SECTION) {
                    sectionPosition = i;
                }
            }

            RecyclerView.ViewHolder targetViewHolder = null;
            if(sectionPosition != -1) {
                targetViewHolder = sections.get(sectionPosition);
            }
        }
    }
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 绘制overViewHolder
    @Override
public void onDrawOver(@NonNull Canvas canvas, @NonNull RecyclerView parent, @NonNull RecyclerView.State state) {
    super.onDrawOver(canvas, parent, state);
    RecyclerView.Adapter adapter = parent.getAdapter();
    if(adapter != null) {
        int count = parent.getChildCount();
        int firstVisibleItemPosition = ((LinearLayoutManager) parent.getLayoutManager()).findFirstVisibleItemPosition();
        int position = firstVisibleItemPosition;
        if (position > 0) {
            for (int i = 0; i < count; i++) {
                View child = parent.getChildAt(i);
                position = parent.getChildLayoutPosition(child);
                if (adapter.getItemViewType(position + 1) == SectionListAdapter.ITEM_TYPE_SECTION) {
                    break;
                }
            }
        }

        int sectionPosition = -1;
        for (int i = 0; i <= position; i++) {
            if(adapter.getItemViewType(i) == SectionListAdapter.ITEM_TYPE_SECTION) {
              	sectionPosition = i;
            }
        }

        RecyclerView.ViewHolder targetViewHolder = null;
        if(sectionPosition != -1) {
          	targetViewHolder = sections.get(sectionPosition);
        }

        if(targetViewHolder != null) {
            int width = targetViewHolder.itemView.getMeasuredWidth();
            int height = targetViewHolder.itemView.getMeasuredHeight();
            overViewHolder.itemView.measure(View.MeasureSpec.makeMeasureSpec(width, View.MeasureSpec.EXACTLY), View.MeasureSpec.makeMeasureSpec(height, View.MeasureSpec.EXACTLY));

            int top = parent.getPaddingTop();
            int left = parent.getPaddingLeft();
            overViewHolder.itemView.layout(left + parent.getLeft(), top + parent.getTop(), left + parent.getLeft() + width, top + parent.getTop() + height);

            drawOverViewHolder(canvas, overViewHolder.itemView, parent, left, top);
        }
    }
}

private void drawOverViewHolder(Canvas canvas, View overSectionView, RecyclerView parent, int left, int top) {
    canvas.save();
    canvas.clipRect(left, parent.getPaddingTop(), left + overSectionView.getMeasuredWidth(), top + overSectionView.getMeasuredHeight());
    canvas.translate(left, top);
    overSectionView.draw(canvas);
    canvas.restore();
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 我们先把它添加到RecyclerView中看下效果:
    @Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    dataBinding =  DataBindingUtil.setContentView(this, R.layout.activity_main);
    dataBinding.groupList.setLayoutManager(new LinearLayoutManager(this));
    dataBinding.groupList.addItemDecoration(new SectionDecoration());

    ...
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9

    在这里插入图片描述

    可以看到吸顶的ViewHolder已经被绘制出来了，但是吸顶item的数据没有动态变化，并且下一个需要吸顶的ViewHolder滑动到当前吸顶的ViewHolder位置时，不会往上推，并且吸顶ViewHolder上的按钮是不可点击状态。

    • 动态改变吸顶ViewHolder的数据
    adapter.onBindViewHolder(overViewHolder, sectionPosition);

int width = targetViewHolder.itemView.getMeasuredWidth();
int height = targetViewHolder.itemView.getMeasuredHeight();
overViewHolder.itemView.measure(View.MeasureSpec.makeMeasureSpec(width, View.MeasureSpec.EXACTLY), View.MeasureSpec.makeMeasureSpec(height, View.MeasureSpec.EXACTLY));

    • 1
    • 2
    • 3
    • 4
    • 5

    在这里插入图片描述

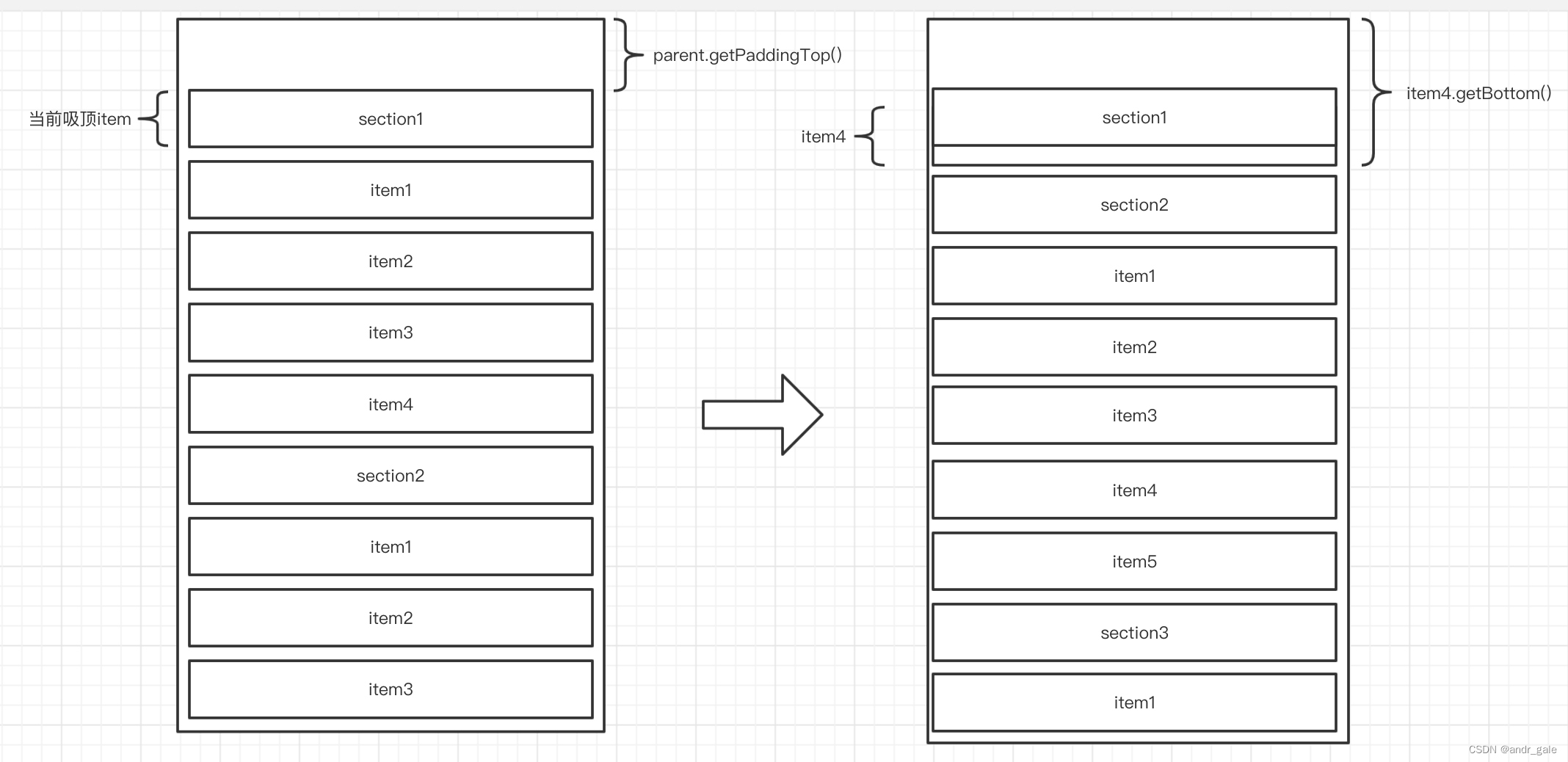

    • 什么时候触发上推

    找到下一个需要吸顶的ViewHolder的前一个ViewHolder的itemView，如果没找到，那么说明不需要上推，如果找到了：

    if(itemView.getBottom() - recyclerView.getPaddingTop() <= 当前吸顶item.getMeasuredHeight()) {

    ​ 开始上推

    }

    在这里插入图片描述

    int top = parent.getPaddingTop();
int left = parent.getPaddingLeft();

RecyclerView.ViewHolder sectionTailHolder = null;
if(position > 0) {
  	sectionTailHolder = parent.findViewHolderForLayoutPosition(position);
} else {
    if(adapter.getItemViewType(1) == SectionListAdapter.ITEM_TYPE_SECTION) {
        sectionTailHolder = parent.findViewHolderForLayoutPosition(position);
    }
}
if(sectionTailHolder != null && (sectionTailHolder.itemView.getBottom() - top) <= height) {
  	//上推
}

overViewHolder.itemView.layout(left + parent.getLeft(), top + parent.getTop(), left + parent.getLeft() + width, top + parent.getTop() + height);
drawOverViewHolder(canvas, overViewHolder.itemView, parent, left, top);

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 实现吸顶ViewHolder上推

    在这里插入图片描述

    int top = parent.getPaddingTop();
int left = parent.getPaddingLeft();

RecyclerView.ViewHolder sectionTailHolder = null;
if(position > 0) {
  	sectionTailHolder = parent.findViewHolderForLayoutPosition(position);
} else {
    if(adapter.getItemViewType(1) == SectionListAdapter.ITEM_TYPE_SECTION) {
        sectionTailHolder = parent.findViewHolderForLayoutPosition(position);
    }
}
if(sectionTailHolder != null && (sectionTailHolder.itemView.getBottom() - top) <= height) {
  	//上推
  	top = sectionTailHolder.itemView.getBottom() - overViewHolder.itemView.getMeasuredHeight();
}

overViewHolder.itemView.layout(left + parent.getLeft(), top + parent.getTop(), left + parent.getLeft() + width, top + parent.getTop() + height);
drawOverViewHolder(canvas, overViewHolder.itemView, parent, left, top);

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18

    在这里插入图片描述

    • 处理点击事件

    吸顶的itemView中的button不能点击的原因在于，吸顶的itemView只是被摆放和绘制到了屏幕上，并没有attachToWindow，而View的点击事件是从window开始分发的，所以我们可以考虑把吸顶的itemView添加到一个已经attachToWindow的ViewGroup中，我们把它添加到RecyclerView的父View中即可。

    @Override
public void getItemOffsets(@NonNull Rect outRect, @NonNull View view, @NonNull RecyclerView parent, @NonNull RecyclerView.State state) {
    super.getItemOffsets(outRect, view, parent, state);
    RecyclerView.Adapter adapter = parent.getAdapter();
    int position = parent.getChildLayoutPosition(view);
    if(adapter != null) {
        if(overViewHolder == null) {
            ViewGroup recyclerViewParent = (ViewGroup) parent.getParent();
            overViewHolder = adapter.createViewHolder(recyclerViewParent, SectionListAdapter.ITEM_TYPE_SECTION);
            overViewHolder.itemView.setClipBounds(new Rect(0, 0, 0, 0));
            recyclerViewParent.addView(overViewHolder.itemView);
        }
        if(adapter.getItemViewType(position) == SectionListAdapter.ITEM_TYPE_SECTION) {
            if(sections.get(position) == null) {
                sections.put(position, parent.getChildViewHolder(view));
            }
        }
    }
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19

    在这里插入图片描述

    四.完整代码

    public class SectionDecoration extends RecyclerView.ItemDecoration {

    Map<Integer, RecyclerView.ViewHolder> sections = new LinkedHashMap<>();
    private RecyclerView.ViewHolder overViewHolder = null;

    @Override
    public void getItemOffsets(@NonNull Rect outRect, @NonNull View view, @NonNull RecyclerView parent, @NonNull RecyclerView.State state) {
        super.getItemOffsets(outRect, view, parent, state);
        RecyclerView.Adapter adapter = parent.getAdapter();
        int position = parent.getChildLayoutPosition(view);
        if(adapter != null) {
            if(overViewHolder == null) {
                ViewGroup recyclerViewParent = (ViewGroup) parent.getParent();
                overViewHolder = adapter.createViewHolder(recyclerViewParent, SectionListAdapter.ITEM_TYPE_SECTION);
                overViewHolder.itemView.setClipBounds(new Rect(0, 0, 0, 0));
                recyclerViewParent.addView(overViewHolder.itemView);
            }
            if(adapter.getItemViewType(position) == SectionListAdapter.ITEM_TYPE_SECTION) {
                if(sections.get(position) == null) {
                    sections.put(position, parent.getChildViewHolder(view));
                }
            }
        }
    }

    @Override
    public void onDrawOver(@NonNull Canvas canvas, @NonNull RecyclerView parent, @NonNull RecyclerView.State state) {
        super.onDrawOver(canvas, parent, state);
        RecyclerView.Adapter adapter = parent.getAdapter();
        if(adapter != null) {
            int count = parent.getChildCount();
            int firstVisibleItemPosition = ((LinearLayoutManager) parent.getLayoutManager()).findFirstVisibleItemPosition();
            int position = firstVisibleItemPosition;
            if (position > 0) {
                for (int i = 0; i < count; i++) {
                    View child = parent.getChildAt(i);
                    position = parent.getChildLayoutPosition(child);
                    if (child.getBottom() >= (parent.getPaddingTop()) && adapter.getItemViewType(position + 1) == SectionListAdapter.ITEM_TYPE_SECTION) {
                        break;
                    }
                }
            }

            int sectionPosition = -1;
            for (int i = 0; i <= position; i++) {
                if(adapter.getItemViewType(i) == SectionListAdapter.ITEM_TYPE_SECTION) {
                    sectionPosition = i;
                }
            }

            RecyclerView.ViewHolder targetViewHolder = null;
            if(sectionPosition != -1) {
                targetViewHolder = sections.get(sectionPosition);
            }

            if(targetViewHolder != null) {
                adapter.onBindViewHolder(overViewHolder, sectionPosition);
                int width = targetViewHolder.itemView.getMeasuredWidth();
                int height = targetViewHolder.itemView.getMeasuredHeight();
                overViewHolder.itemView.measure(View.MeasureSpec.makeMeasureSpec(width, View.MeasureSpec.EXACTLY), View.MeasureSpec.makeMeasureSpec(height, View.MeasureSpec.EXACTLY));

                int top = parent.getPaddingTop();
                int left = parent.getPaddingLeft();

                RecyclerView.ViewHolder sectionTailHolder = null;
                if(position > 0) {
                    sectionTailHolder = parent.findViewHolderForLayoutPosition(position);
                } else {
				    if(adapter.getItemViewType(1) == SectionListAdapter.ITEM_TYPE_SECTION) {
				        sectionTailHolder = parent.findViewHolderForLayoutPosition(position);
				    }
				}
                if(sectionTailHolder != null && (sectionTailHolder.itemView.getBottom() - top) <= height) {
                    //上推
                    top = sectionTailHolder.itemView.getBottom() - overViewHolder.itemView.getMeasuredHeight();
                }

                overViewHolder.itemView.layout(left + parent.getLeft(), top + parent.getTop(), left + parent.getLeft() + width, top + parent.getTop() + height);
                drawOverViewHolder(canvas, overViewHolder.itemView, parent, left, top);
            }
        }
    }

    private void drawOverViewHolder(Canvas canvas, View overSectionView, RecyclerView parent, int left, int top) {
        canvas.save();
        canvas.clipRect(left, parent.getPaddingTop(), left + overSectionView.getMeasuredWidth(), top + overSectionView.getMeasuredHeight());
        canvas.translate(left, top);
        overSectionView.draw(canvas);
        canvas.restore();
    }
}

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37
    • 38
    • 39
    • 40
    • 41
    • 42
    • 43
    • 44
    • 45
    • 46
    • 47
    • 48
    • 49
    • 50
    • 51
    • 52
    • 53
    • 54
    • 55
    • 56
    • 57
    • 58
    • 59
    • 60
    • 61
    • 62
    • 63
    • 64
    • 65
    • 66
    • 67
    • 68
    • 69
    • 70
    • 71
    • 72
    • 73
    • 74
    • 75
    • 76
    • 77
    • 78
    • 79
    • 80
    • 81
    • 82
    • 83
    • 84
    • 85
    • 86
    • 87
    • 88
    • 89
    • 90
    • 91

    五.总结

    RecyclerView实现item吸顶的突破口在于ItemDecoration的onDrawOver方法，至于怎么去绘制吸顶item以及处理点击事件，就是仁者见仁、智者见智了。

  • 相关阅读:
    CMake error “include could not find load file: FetchContent“
    Go 语言中的异常处理简单实践 panic、recover【GO 基础】
    一文教会你如何在内网搭建一套属于自己小组的在线 API 文档？
    Kafka配置SSL信道加密
    Linux基础：文件权限详细说明(全)
    设计模式：解释器模式
    【Selenium & Other】一键杀死进程 & 进程清理大师
    【汇编】Debug的使用
    Spark开源REST服务——Apache Livy（Spark 客户端）
    【CSDN｜每日一练】小艺读书
  • 原文地址：https://blog.csdn.net/gzx110304/article/details/126306499
