【云原生】一篇打通微服务架构，nacos + gateway + Redis + MySQL + docker

一、前期准备

本项目暂定项目名GooReeyProject，SpringBoot + Vue构建，具体项目内容未定。

基本架构nacos、gateway、Linux、Redis、rabbitMQ、MySQL、docker、Vue。

1、安装MySQL5.7

2、安装nacos

我安装的是window版的nacos和MySQL，安装nacos时需要注意，要讲配置文件中的集群版改为单机版，才能启动！

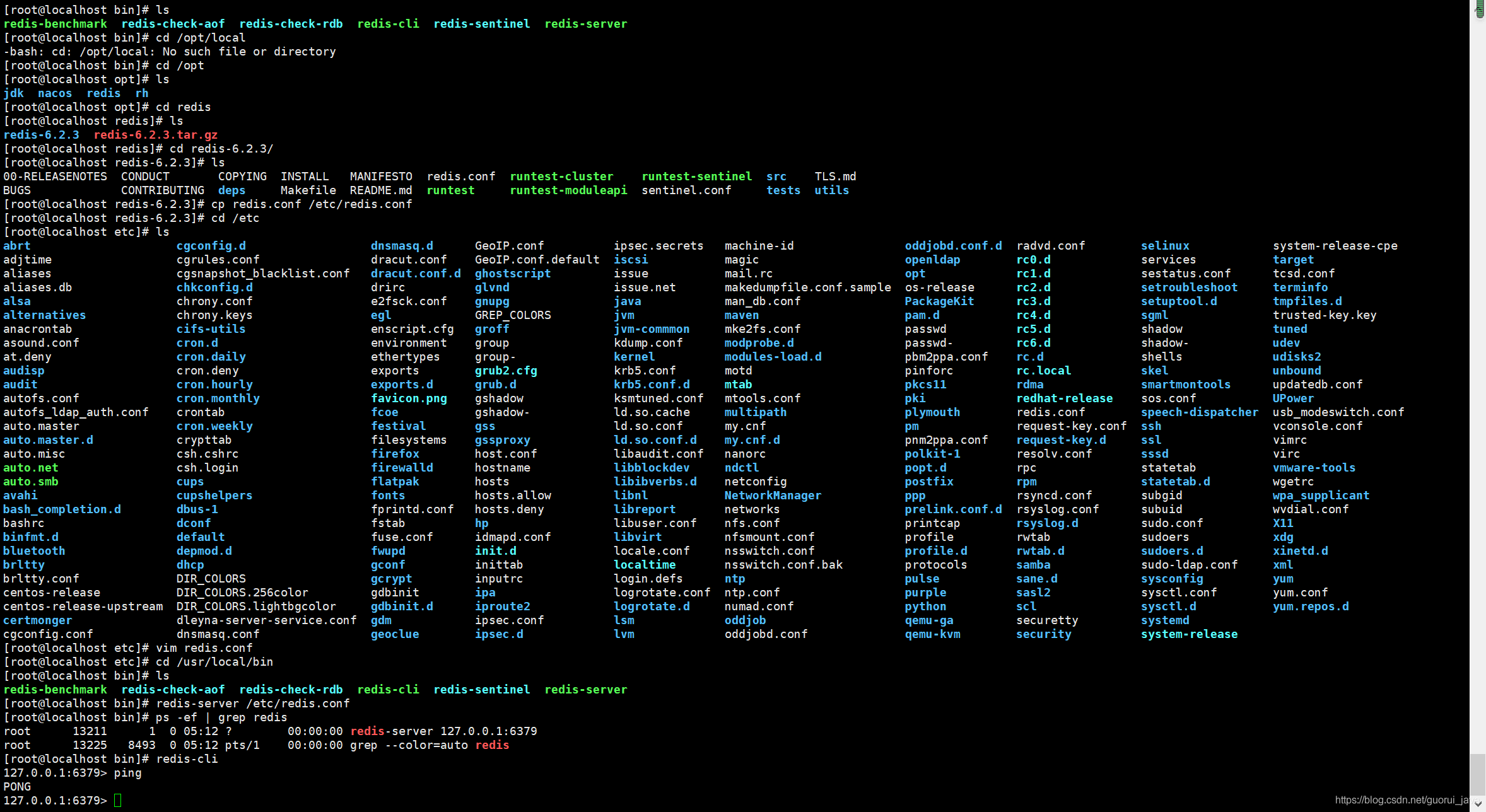

3、安装Redis

二、创建父工程

我觉得主要是pom文件


<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0modelVersion>

    <groupId>com.guorgroupId>
    <artifactId>GooReeyProjectartifactId>
    <version>1.0-SNAPSHOTversion>
    <modules>
        <module>01commonmodule>
        <module>02gatewaymodule>
    modules>

    <properties>
        <system.version>1.0.0system.version>
        <system.ip>127.0.0.1system.ip>
        <system.sport>808system.sport>
        <system.mode>httpsystem.mode>
        <java.version>1.8java.version>
        <spring-cloud.version>Greenwich.SR1spring-cloud.version>
        <skipTests>trueskipTests>
        <nacos.version>0.2.2.RELEASEnacos.version>
    properties>

    <packaging>pompackaging>
    <name>GooReeyProjectname>
    <description>This is parent projectdescription>


    <parent>
        <groupId>org.springframework.bootgroupId>
        <artifactId>spring-boot-starter-parentartifactId>
        <version>2.1.4.RELEASEversion>
    parent>

    <dependencies>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-testartifactId>
            <scope>testscope>
        dependency>

        <dependency>
            <groupId>org.projectlombokgroupId>
            <artifactId>lombokartifactId>
            <scope>providedscope>
        dependency>

        <dependency>
            <groupId>commons-langgroupId>
            <artifactId>commons-langartifactId>
            <version>2.6version>
        dependency>

        <dependency>
            <groupId>com.github.pagehelpergroupId>
            <artifactId>pagehelper-spring-boot-starterartifactId>
            <version>1.2.5version>
        dependency>
        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discoveryartifactId>
        dependency>
        <dependency>
            <groupId>com.alibabagroupId>
            <artifactId>druidartifactId>
            <version>1.1.23version>
        dependency>
        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-configartifactId>
            <version>0.2.1.RELEASEversion>
        dependency>
    dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloudgroupId>
                <artifactId>spring-cloud-dependenciesartifactId>
                <version>${spring-cloud.version}version>
                <type>pomtype>
                <scope>importscope>
            dependency>
            <dependency>
                <groupId>org.springframework.cloudgroupId>
                <artifactId>spring-cloud-alibaba-dependenciesartifactId>
                <version>${nacos.version}version>
                <type>pomtype>
                <scope>importscope>
            dependency>
        dependencies>
    dependencyManagement>

    <build>
        <resources>
            <resource>
                <directory>src/main/resourcesdirectory>
                <includes>
                    <include>**/*.*include>
                includes>
            resource>
            <resource>
                <directory>src/main/resourcesdirectory>
                <includes>
                    <include>**/*.ymlinclude>
                includes>
                <filtering>truefiltering>
            resource>
            <resource>
                <directory>src/main/javadirectory>
                <includes>
                    <include>**/*.xmlinclude>
                includes>
            resource>
        resources>
    build>
project>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119

三、创建gateway子工程

1、pom文件


<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>GooReeyProjectartifactId>
        <groupId>com.guorgroupId>
        <version>1.0-SNAPSHOTversion>
    parent>
    <modelVersion>4.0.0modelVersion>

    <artifactId>02gatewayartifactId>

    <dependencies>
        <dependency>
            <groupId>org.mybatis.spring.bootgroupId>
            <artifactId>mybatis-spring-boot-starterartifactId>
            <version>2.0.1version>
        dependency>
        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-gatewayartifactId>
        dependency>
        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-netflix-hystrixartifactId>
        dependency>
        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-configartifactId>
        dependency>
    dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>com.alibaba.cloudgroupId>
                <artifactId>spring-cloud-starter-alibaba-nacos-discoveryartifactId>
                <exclusions>
                    <exclusion>
                        <groupId>org.springframework.cloudgroupId>
                        <artifactId>spring-cloud-starter-netflix-ribbonartifactId>
                    exclusion>
                exclusions>
            dependency>
        dependencies>
    dependencyManagement>
    <build>
        <finalName>gateway-${system.version}finalName>
    build>
project>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

2、配置文件

spring:
  application:
    name: gateway
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
      config:
        server-addr: 127.0.0.1:8848
        file-extension: yml
        ext-config:
          - data-id: datasource-share-config.yml
            group: SHARE_GROUP
            refresh: true
          - data-id: log-share-config.yml
            group: SHARE_GROUP
            refresh: true
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

（1）gateway.yml

server:
  port: 8080

spring:
  application:
    name: gateway
    version: 1.0.0
  cloud:
    gateway:
      discovery:
        locator:
          enabled: true
          lowerCaseServiceId: true
          filters:
            - StripPrefix=1
      routes:
        - id: management
          uri: lb:management   # 服务端 service_id
          predicates:
            - Path=/management/**
          filters:
            - name: Hystrix
              args:
                name: fallbackcmd
                fallbackUri: forward:/defaultFallback
        - id: demo
          uri: lb://demo
          predicates:
            - Path=/demo/**

hystrix:
  command:
    default:
      execution:
        isolation:
          strategy: SEMAPHORE
          thread:
            timeoutInMilliseconds: 1500

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

（2）datasource-share-config.yml

spring:
  datasource:
    url: jdbc:mysql://localhost:3306/blue?serverTimezone=UTC
    driverClassName: com.mysql.cj.jdbc.Driver
    username: root
    password: root
mybatis:
  typeAliasesPackage: com.guor.*.bean.**
  mapperLocations: classpath*:**/com/guor/**/dao/mapping/*Mapper.xml
  configuration:
    map-underscore-to-camel-case: true
1
2
3
4
5
6
7
8
9
10
11

（3）log-share-config.yml

logging:
  path: logs
  level:
    root: info
    com.alibaba.nacos.client.naming: warn
  file:
    max-size: 20MB
    max-history: 30
  pattern:
    file: "%d{${LOG_DATEFORMAT_PATTERN:yyyy-MM-dd HH:mm:ss.SSS}} ${LOG_LEVEL_PATTERN:%5p} ${PID:- } --- [%15.15t] %-40.40logger{39} [%5.5line] : %m%n${LOG_EXCEPTION_CONVERSION_WORD:%wEx}"
    console: "%d{${LOG_DATEFORMAT_PATTERN:yyyy-MM-dd HH:mm:ss.SSS}} %clr(${LOG_LEVEL_PATTERN:%5p}) %clr(${PID:- }){magenta} --- %clr([%15.15t]){faint} %clr(%-40.40logger{39}){cyan} %clr([%5.5line]){cyan} : %m%n${LOG_EXCEPTION_CONVERSION_WORD:%wEx}"
1
2
3
4
5
6
7
8
9
10
11

3、启动类

package com.guor;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.context.config.annotation.RefreshScope;
import org.springframework.scheduling.annotation.EnableScheduling;

@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)
@EnableDiscoveryClient
@EnableScheduling
@RefreshScope
public class GatewayApplication {
    public static void main(String[] args) {
        SpringApplication.run(GatewayApplication.class, args);
        System.out.println("hello world");
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

四、创建management管理模块

1、pom文件


<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>GooReeyProjectartifactId>
        <groupId>com.guorgroupId>
        <version>1.0-SNAPSHOTversion>
    parent>
    <modelVersion>4.0.0modelVersion>

    <artifactId>03managementartifactId>

    <properties>
        <maven.compiler.source>8maven.compiler.source>
        <maven.compiler.target>8maven.compiler.target>
    properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-webartifactId>
        dependency>
        <dependency>
            <groupId>org.mybatis.spring.bootgroupId>
            <artifactId>mybatis-spring-boot-starterartifactId>
            <version>2.0.1version>
        dependency>
        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-configartifactId>
        dependency>

        <dependency>
            <groupId>mysqlgroupId>
            <artifactId>mysql-connector-javaartifactId>
        dependency>
        <dependency>
            <groupId>org.springframework.bootgroupId>
            <artifactId>spring-boot-starter-jdbcartifactId>
        dependency>
    dependencies>
    <build>
        <finalName>management-${system.version}finalName>
    build>
project>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

2、配置文件

spring:
  application:
    name: management
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
      config:
        server-addr: 127.0.0.1:8848
        file-extension: yml
        ext-config:
          - data-id: datasource-share-config.yml
            group: SHARE_GROUP
            refresh: true
          - data-id: log-share-config.yml
            group: SHARE_GROUP
            refresh: true
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

server:
  port: 8081

spring:
  application:
    name: management
    version: 1.0.0
  mvc:
   static-path-pattern: /management/**
  resources:
    static-locations:
    - file:../../web/management
    - file:../../web/common
1
2
3
4
5
6
7
8
9
10
11
12
13

3、启动类

package com.guor;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.context.config.annotation.RefreshScope;

@EnableDiscoveryClient
@SpringBootApplication(scanBasePackages = "com.guor")
@MapperScan("com.guor.management.dao")
@RefreshScope
public class ManagementApplication {

    public static void main(String[] args) {
        SpringApplication.run(ManagementApplication.class, args);
    }

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

五、整合mybatis

1、user表设计

数据库选择的是最常用的MySQL

CREATE TABLE `user` (
  `user_id` int(10) unsigned NOT NULL AUTO_INCREMENT,
  `username` varchar(100) NOT NULL,
  `password` varchar(40) NOT NULL,
  `age` int(11) DEFAULT NULL,
  `sex` int(11) DEFAULT NULL,
  `telephone` varchar(100) DEFAULT NULL,
  `address` varchar(100) DEFAULT NULL,
  `create_date` date DEFAULT NULL,
  `update_date` date DEFAULT NULL,
  `deleted` int(11) DEFAULT NULL,
  `version` int(11) DEFAULT NULL,
  PRIMARY KEY (`user_id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;
1
2
3
4
5
6
7
8
9
10
11
12
13
14

2、UserController

package com.guor.management.controller;

import com.guor.management.bean.User;
import com.guor.management.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PutMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
public class UserController {
    @Autowired
    private UserService userService;

    @GetMapping("/getUserList")
    public List<User> getUserList(){
        return userService.getUserList();
    }

    @PutMapping("/insertUser")
    public void insertUser(@RequestBody User user){
        userService.insertUser(user);
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

3、UserService

package com.guor.management.service;

import com.guor.management.bean.User;

import java.util.List;

public interface UserService {
    List<User> getUserList();
    void insertUser(User user);
}
1
2
3
4
5
6
7
8
9
10

package com.guor.management.service.impl;

import com.guor.management.bean.User;
import com.guor.management.dao.UserMapper;
import com.guor.management.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class UserServiceImpl implements UserService {
    @Autowired
    private UserMapper userMapper;

    @Override
    public List<User> getUserList() {
        return userMapper.getUserList();
    }

    @Override
    public void insertUser(User user) {
        userMapper.insertUser(user);
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

4、UserMapper

package com.guor.management.dao;

import com.guor.management.bean.User;

import java.util.List;

public interface UserMapper {
    public List<User> getUserList();

    public void insertUser(User user);
}
1
2
3
4
5
6
7
8
9
10
11


DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.guor.management.dao.UserMapper">
    <select id="getUserList" resultType="java.util.LinkedHashMap">
        select * from user;
    select>

    <insert id="insertUser" parameterType="com.guor.management.bean.User">
        INSERT INTO gooreey.`user` (username, password) VALUES (#{username}, #{password});
    insert>
mapper>
1
2
3
4
5
6
7
8
9
10
11

5、User

package com.guor.management.bean;

import com.guor.base.bean.BaseBean;
import lombok.Data;

@Data
public class User extends BaseBean {
   private Integer userId;
   private String username;
   private String password;
   private Integer age;
   private Integer sex;
   private String telephone;
   private String address;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

package com.guor.base.bean;

import lombok.Data;

import java.util.Date;

@Data
public class BaseBean {
    private Date createDate;
    private Date updateDate;
    private Integer deleted;
    private Integer version;
}
1
2
3
4
5
6
7
8
9
10
11
12
13

【云原生】一篇打通微服务架构，nacos + gateway + Redis + MySQL + docker

目录

一、前期准备

1、安装MySQL5.7

2、安装nacos

3、安装Redis

二、创建父工程

三、创建gateway子工程

1、pom文件

2、配置文件

3、启动类

四、创建management管理模块

1、pom文件

2、配置文件

3、启动类

五、整合mybatis

1、user表设计

2、UserController

3、UserService

4、UserMapper

5、User

6、postman接口测试

更多精彩内容：
