一、数据集介绍

根据YOLOV5学习笔记六所设计的轻量化小目标检测网络，本节将用tibnet制作的数据集进行训练测试，该数据集是用来检测空中无人机的，可以看到无人机十分的小。该数据集的labels文件是用labelme软件进行标注的xml形式。

<annotation>
	<folder>0829_5JPEGImagesfolder>
	<filename>0829_5092.jpgfilename>
	<path>C:\Users\lsq\Desktop\图片\0829_5JPEGImages\0829_5092.jpgpath>
	<source>
		<database>Unknowndatabase>
	source>
	<size>
		<width>960width>
		<height>540height>
		<depth>3depth>
	size>
	<segmented>0segmented>
	<object>
		<name>uavname>
		<pose>Unspecifiedpose>
		<truncated>0truncated>
		<difficult>0difficult>
		<bndbox>
			<xmin>477xmin>
			<ymin>259ymin>
			<xmax>499xmax>
			<ymax>279ymax>
		bndbox>
	object>
annotation>

二、数据集转化

2.1 xml转txt

xml文件的标注格式是一个框的四个点的x，y范围，而yolov5使用的格式是框的中心点加上宽高，所以需要进行格式的转化，将xml文件转化为txt文件，代码如下。

import xml.etree.ElementTree as ET

import pickle
import os
from os import listdir , getcwd
from os.path import join
import glob

classes = ["uav"]

def convert(size, box):

    dw = 1.0/size[0]
    dh = 1.0/size[1]
    x = (box[0]+box[1])/2.0
    y = (box[2]+box[3])/2.0
    w = box[1] - box[0]
    h = box[3] - box[2]
    x = x*dw
    w = w*dw
    y = y*dh
    h = h*dh
    return (x,y,w,h)

def convert_annotation(image_name):
    in_file = open('./Annotations/'+image_name[:-3]+'xml') #xml文件路径
    out_file = open('./labels/'+image_name[:-3]+'txt', 'w') #转换后的txt文件存放路径
    f = open('./Annotations/'+image_name[:-3]+'xml')
    xml_text = f.read()
    root = ET.fromstring(xml_text)
    f.close()
    size = root.find('size')
    w = int(size.find('width').text)
    h = int(size.find('height').text)
    for obj in root.iter('object'):
        cls = obj.find('name').text
        if cls not in classes:
            print(cls)
            continue
        cls_id = classes.index(cls)
        xmlbox = obj.find('bndbox')
        b = (float(xmlbox.find('xmin').text), float(xmlbox.find('xmax').text), float(xmlbox.find('ymin').text),
             float(xmlbox.find('ymax').text))
        bb = convert((w,h), b)
        out_file.write(str(cls_id) + " " + " ".join([str(a) for a in bb]) + '\n')

wd = getcwd()

if __name__ == '__main__':

    for image_path in glob.glob("./JPEGImages/*.jpg"): #每一张图片都对应一个xml文件这里写xml对应的图片的路径
        image_name = image_path.split('/')[-1]
        convert_annotation(image_name)

转化后的格式如下，第一个0代表类别，之后是框的中心点坐标和宽高

转化完后一定要检查一下txt中是否有值，不知道什么原因，有时会转化为空值

0 0.47890625 0.3597222222222222 0.0296875 0.05277777777777778

2.2 制作VOC数据集

 选取三分之二的数据作为train，剩下的三分之一作为val，数据集的目录如上图

三、yaml文件修改

3.1 数据集yaml

# YOLOv5 🚀 by Ultralytics, GPL-3.0 license
# PASCAL VOC dataset http://host.robots.ox.ac.uk/pascal/VOC by University of Oxford
# Example usage: python train.py --data VOC.yaml
# parent
# ├── yolov5
# └── datasets
#     └── VOC  ← downloads here


# Train/val/test sets as 1) dir: path/to/imgs, 2) file: path/to/imgs.txt, or 3) list: [path/to/imgs1, path/to/imgs2, ..]
train: /home/cxl/ros_yolov5/src/yolov5/data/VOCdevkit/images/train/
val: /home/cxl/ros_yolov5/src/yolov5/data/VOCdevkit/images/val/

# Classes
nc: 1  # number of classes
names: ['uav']  # class names

3.2 模型yaml

 主要修改类别，因为就无人机一类，所以nc改为1

# Parameters
nc: 1  # number of classes
depth_multiple: 1.0  # model depth multiple
width_multiple: 1.0  # layer channel multiple
anchors:

  - [2,2, 6,8, 10,14]  #4
  - [10,13, 16,30, 33,23]  # P3/8
  - [30,61, 62,45, 59,119]  # P4/16
  - [116,90, 156,198, 373,326]  # P5/32

四、训练评估

4.1  训练

python train.py --data data/VOC.yaml --cfg models/yolov5s-tiny.yaml --weights weights/yolov5stiny.pt --batch-size 16 --epochs 100

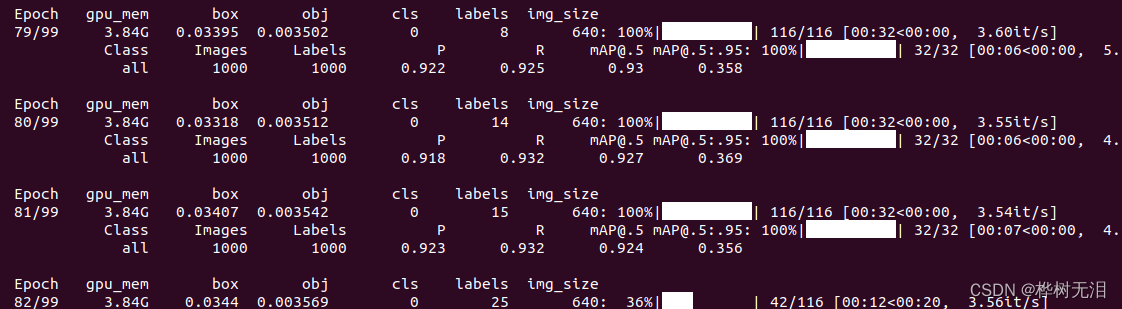

 查看训练过程

tensorboard --logdir=./runs

4.2 评估

 可以看到效果不错，map0.5达到了0.94，loss接近于0

 将训练好的权重保存为yolov5suav.pt，随后进行测试

 测试

python detect.py --source ./data/images/ --weights weights/yolov5suav.pt --conf 0.4
detect: weights=['weights/yolov5suav.pt
