macOS swift下使用贝塞尔曲线制作五子棋盘（2）

落子
- 黑白子交替
- 计算落子的point
功能
demo链接

上一篇我们实现了绘制棋盘格子以及棋子的功能，这一篇我们来实现黑白子交替落子和判断胜负。

落子

黑白子交替

//我们定义一个bool值，因为五子棋里总是黑子落地切换白子，白子落地切换黑子，所以每当执行完一次落子，就应该取反bool值
var isblackOrWhite: Bool = true
1
2

计算落子的point

//我们定义一个结构体，point代表当前子的横竖列坐标，isblackOrWhite代表当前子为黑子还是摆子
struct Piece {
    let point: NSPoint
    let isblackOrWhite: Bool
}
1
2
3
4
5

//我们在鼠标落下来捕捉当前鼠标点击区域
override func mouseDown(with event: NSEvent) {
    super.mouseDown(with: event)
    //获取鼠标在当前窗口的位置
    let mousePoint = event.locationInWindow
    print("x: \(mousePoint.x), y: \(mousePoint.y)")
    //如果鼠标超出了我们固定的棋盘大小，则丢弃此次点击时间
    if (mousePoint.x + 23) > 500 || (mousePoint.y + 23) > 500 {
        return
    }
    //判断触摸的位置在棋盘的交叉点
    var xPoint: Int
    var yPoint: Int
    //刚好获取列行点
    xPoint = Int((mousePoint.x)/30)
    yPoint = Int((mousePoint.y)/30)

    if containsDuplicate(NSPoint(x: xPoint, y: yPoint)) { return }
    //刷新棋盘，此时会出发draw方法，重绘棋盘
    needsDisplay = true
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

功能

判断当前落点是否有相同棋子，并保存

    //判断是否有相同坐标棋子并保存，相同坐标棋子则不做处理
    private func containsDuplicate(_ point: NSPoint) -> Bool {
        //判断是否有相同棋子
        for p in points {
            let x = p.point.x - point.x
            let y = p.point.y - point.y
            //判断相同点
            if abs(x * x + y * y) < 0.00001 {
                return true
            }
        }
    }
1
2
3
4
5
6
7
8
9
10
11
12

    //构建棋子结构体
    struct Piece {
        let point: NSPoint
        let isblackOrWhite: Bool
    }
    //储存棋子数组
    var points: Array<Piece> = []
    //保存棋子
    let piece = Piece.init(point: point, isblackOrWhite: isblackOrWhite)
    points.append(piece)
    return false
1
2
3
4
5
6
7
8
9
10
11

判断输赢

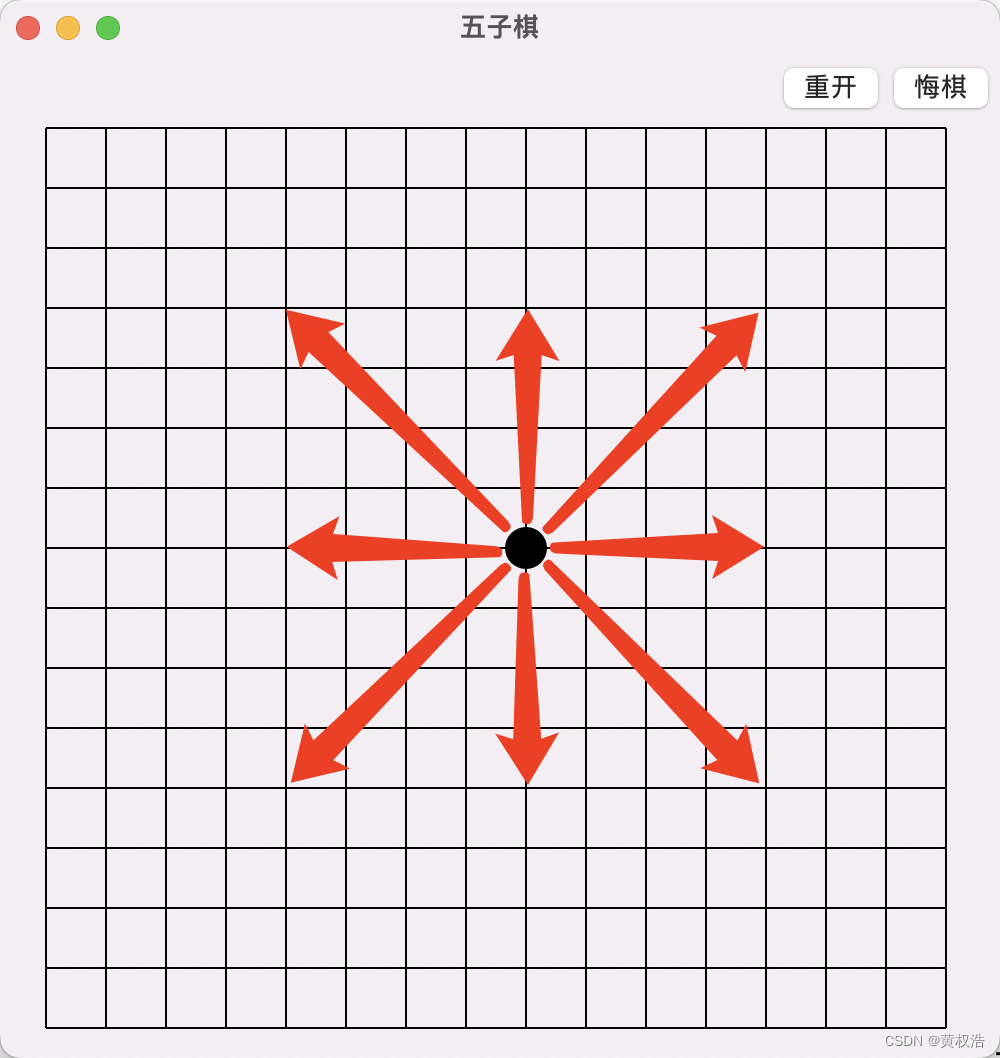

五子棋的输赢极好判断，上下左右及斜边满足五个相同类型棋子就可以获胜，如图所示：
在这里插入图片描述

分析

左右分析

右边来讲，棋子x+1，左边来讲棋子x-1。

上下分析

上边来讲，棋子y+1，下边来讲棋子y-1。

斜向分析

左上：棋子x-1,y+1
左下：棋子x-1,y-1
右上：棋子x+1,y+1
右下：棋子x+1,y-1
获得这些信息后，我们可以计算出

override func mouseDown(with event: NSEvent) {
    super.mouseDown(with: event)

    let mousePoint = event.locationInWindow
    print("x: \(mousePoint.x), y: \(mousePoint.y)")

    if (mousePoint.x + 23) > 500 || (mousePoint.y + 23) > 500 {
        return
    }

    //判断触摸的位置在棋盘的交叉点
    var xPoint: Int
    var yPoint: Int

    xPoint = Int((mousePoint.x)/30)
    yPoint = Int((mousePoint.y)/30)

    if containsDuplicate(NSPoint(x: xPoint, y: yPoint)) { return }
    needsDisplay = true
    //判断输赢
    if chess_horizontal(xPoint, yPoint, isblackOrWhite) == 5 || chess_vertical(xPoint, yPoint, isblackOrWhite) == 5 || chess_oblique(xPoint, yPoint, isblackOrWhite) == 5 {
        let alert = NSAlert()
        alert.addButton(withTitle: "确定")
        alert.informativeText = "\(isblackOrWhite ? "黑棋" : "白棋")你赢了"
        alert.messageText = ""
        alert.alertStyle = .informational
        alert.beginSheetModal(for: self.view.window!) { handler in
            if handler == NSApplication.ModalResponse.alertFirstButtonReturn { }
        }

        //置空棋盘
        isblackOrWhite = true
        points.removeAll()
        needsDisplay = true
    }
    //轮到另一位选手
    isblackOrWhite = !isblackOrWhite
}

private func containsDuplicate(_ point: NSPoint) -> Bool {
    //判断是否有相同棋子
    for p in points {
        let x = p.point.x - point.x
        let y = p.point.y - point.y
        if abs(x * x + y * y) < 0.00001 {
            return true
        }
    }
    let piece = Piece.init(point: point, isblackOrWhite: isblackOrWhite)
    points.append(piece)
    return false
}

private func chess_horizontal(_ chessX: Int ,_ chessY: Int, _ isblackOrWhite: Bool) -> Int {
    var count = 0 //定义一个棋子的判断器
    var pieces: Array<Piece> = []
    for p in points {
        if p.isblackOrWhite == isblackOrWhite && Int(p.point.y) == chessY { pieces.append(p) }
    }

    for i in 0..<5 {
        //向右判断
        for piece in pieces {
            if chessX+i == Int(piece.point.x) {
                count += 1
                if count == 5 {
                    return count
                }
            }
        }
    }

    for i in 1..<5 {
        //向左判断
        for piece in pieces {
            if chessX-i == Int(piece.point.x) {
                count += 1
                if count == 5 {
                    return count
                }
            }
        }
    }

    return 0
}

private func chess_vertical(_ chessX: Int ,_ chessY: Int, _ isblackOrWhite: Bool) -> Int {
    var count = 0 //定义一个棋子的判断器
    var pieces: Array<Piece> = []
    for p in points {
        if p.isblackOrWhite == isblackOrWhite && Int(p.point.x) == chessX { pieces.append(p) }
    }

    for i in 0..<5 {
        //向上判断
        for piece in pieces {
            if chessY+i == Int(piece.point.y) {
                count += 1
                if count == 5 {
                    return count
                }
            }
        }
    }

    for i in 1..<5 {
        //向左判断
        for piece in pieces {
            if chessY-i == Int(piece.point.y) {
                count += 1
                if count == 5 {
                    return count
                }
            }
        }
    }

    return 0
}

private func chess_oblique(_ chessX: Int ,_ chessY: Int, _ isblackOrWhite: Bool) -> Int{
    var count = 0 //定义一个棋子的判断器
    var pieces: Array<Piece> = []
    for p in points {
        if p.isblackOrWhite == isblackOrWhite { pieces.append(p) }
    }

    for i in 0..<5 {
        //右上方向判断
        for piece in pieces {
            if chessX+i == Int(piece.point.x) && chessY+i == Int(piece.point.y) {
                count += 1
                if count == 5 {
                    return count
                }
            }
        }
    }

    for i in 1..<5 {
        //右下判断
        for piece in pieces {
            if chessX+i == Int(piece.point.x) && chessY-i == Int(piece.point.y) {
                count += 1
                if count == 5 {
                    return count
                }
            }
        }
    }

    for i in 1..<5 {
        //左上判断
        for piece in pieces {
            if chessX-i == Int(piece.point.x) && chessY+i == Int(piece.point.y) {
                count += 1
                if count == 5 {
                    return count
                }
            }
        }
    }

    for i in 1..<5 {
        //左下判断
        for piece in pieces {
            if chessX-i == Int(piece.point.x) && chessY-i == Int(piece.point.y) {
                count += 1
                if count == 5 {
                    return count
                }
            }
        }
    }

    return 0
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178

//合并判断方法
//判断输赢
if chess_horizontal(xPoint, yPoint, isblackOrWhite) == 5 || chess_vertical(xPoint, yPoint, isblackOrWhite) == 5 || chess_oblique(xPoint, yPoint, isblackOrWhite) == 5 {
    let alert = NSAlert()
    alert.addButton(withTitle: "确定")
    alert.informativeText = "\(isblackOrWhite ? "黑棋" : "白棋")你赢了"
    alert.messageText = ""
    alert.alertStyle = .informational
    alert.beginSheetModal(for: self.view.window!) { handler in
        if handler == NSApplication.ModalResponse.alertFirstButtonReturn { }
    }

    //置空棋盘
    isblackOrWhite = true
    points.removeAll()
    needsDisplay = true
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

悔棋

    //撤销上一步动作
    @IBAction func undoAction(_ sender: Any) {
        if points.count != 0 {
            //如果棋子数组不为0，删除最后一个棋子并刷新棋盘
            points.removeLast()
            needsDisplay = true
            //记住撤销上一部动作后，白黑棋子必须交替。
            isblackOrWhite = !isblackOrWhite
        }else {
            let alert = NSAlert()
            alert.addButton(withTitle: "确定")
            alert.informativeText = "没有棋子，无法悔棋"
            alert.messageText = ""
            alert.alertStyle = .informational
            alert.beginSheetModal(for: self.view.window!) { handler in
                if handler == NSApplication.ModalResponse.alertFirstButtonReturn { }
            }
        }
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

重开游戏

    @IBAction func reStartAction(_ sender: Any) {
        if points.count == 0 { return }
        let alert = NSAlert()
        alert.addButton(withTitle: "确定")
        alert.addButton(withTitle: "取消")
        alert.informativeText = "重开游戏"
        alert.messageText = ""
        alert.alertStyle = .informational
        alert.beginSheetModal(for: self.view.window!) { [self] handler in
            if handler == NSApplication.ModalResponse.alertFirstButtonReturn {
                //清空所有棋子并刷新棋盘
                points.removeAll()
                isblackOrWhite = true
                needsDisplay = true
            }
        }
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

demo链接

链接: 五子棋
