• dalle:zero-shot text-to-image generation

    DALL·E—从文本到图像，超现实主义的图像生成器 - 知乎欢迎关注Smarter，构建CV世界观超现实主义强调梦幻与现实的统一才是绝对的真实，而如今OpenAI创造的DALL·E图像生成器，能够直接通过文本描述生成类似超现实主义的图像，让机器也能拥有顶级画家、设计师的创造力。…https://zhuanlan.zhihu.com/p/394467135如何评价DALL-E模型的实现？ - 知乎DALL-E的具体实现，openAI没有公布，github上发布的代码只有一个dVAE的模型，相当于只有一半。但Hugging …https://www.zhihu.com/question/447757686/answer/2326092032

    漫谈VAE和VQVAE，从连续分布到离散分布 - 知乎欢迎关注Smarter，构建CV世界观最近DALLE和VQGAN展现出了非常强大的图片生成能力，DALLE可以通过输入文字生成匪夷所思的超现实主义图片，VQGAN可以生成百万像素的高清图片，而这两个生成模型都跟VAE和VQVAE的思想…https://zhuanlan.zhihu.com/p/388299884dalle是个分阶段的算法，dalle要训练三个模型，dvae，dalle和clip，dvae中encoder用来对图像提特征，dalle是个组合了图像特征和文本特征的自回归的语言模型，这块一定要注意，看代码还以为是类似clip的代理任务，其实不是的，text和image的特征做了拼接，是按照自回归transformer的思路做的，说白了就是一个gpt，最终输入text产生了图像特征再用dvae进行decoder解码，生成了的图像再采用clip进行排序输出。这三个部分都是分别训练的。但是一般clip是不训，找个预训练的就能用，或者直接像gan一样生成一个batch的图也可以。

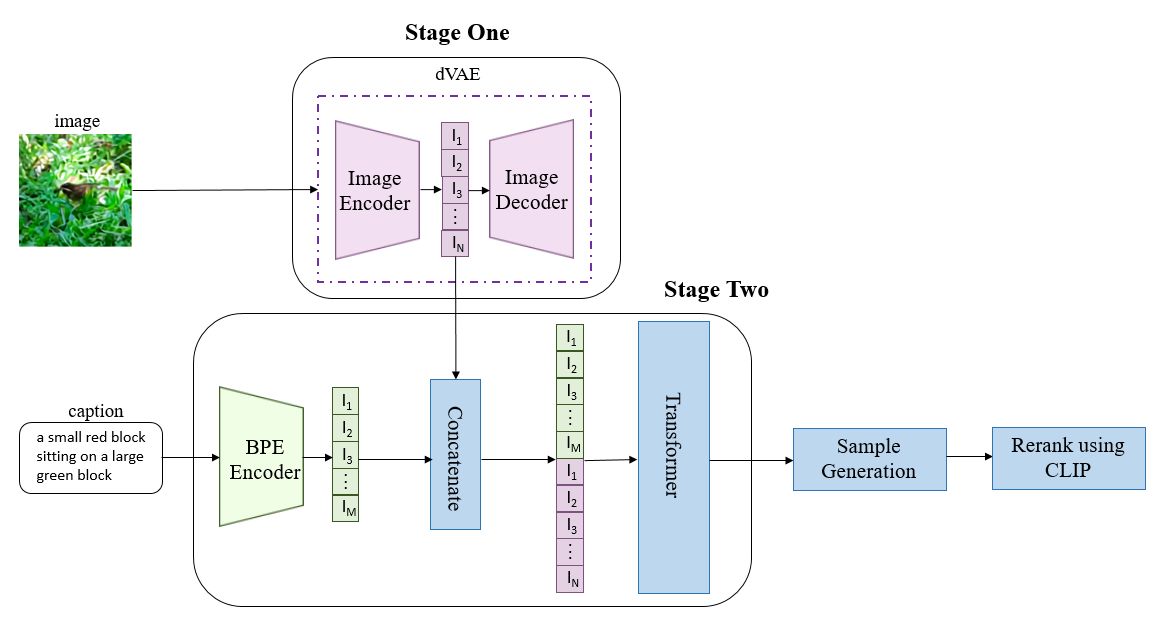

    训练阶段：
    1）Stage One先单独做dVAE的训练（得到encoder、visual codebook、decoder）；
    2）Stage Two做Transformer，text和image分别做编码，concat在一起之后做类似GPT-3的left-to-right自回归LM语言模型，这里的小细节是，输入是text在左，image在右，这样后面在推理时根据text生成image就非常自然了~

    推理阶段：
    输入分2种情况：1）只输入text；2）输入text + image
    1）只输入text时，先对text编码之后进入transformer进行自回归解码出image tokens，之后将生成的image tokens通过dVAE的codebook得到latent code，再送入dVAE的decoder做解码出图片；
    2）输入text + image，可以理解是在上面生成image tokens的时候引入一些prefix信息（看代码是默认用前面14*32个），我理解这样会更可控一些，其他都是一样的。

    最后，用CLIP对生成的图片进行排序，为什么会有多个呢？是因为在解码image tokens的时候，是根据概率分布做的采样，而不是直接argmax取greedy decode的那个，这样假设要生成n张图片，就跑n次解码（可以放在batch里面并行），而每次采样的不同，就可以生成n个不同的image token序列。

    1.Introduction

            用GAN不用VAE，可以提高图像保真度，其实在生成领域，包括超分等场景，最后使用gan去做decoder是很普遍的，就是因为gan生成的图的保真度好，但是gan也有问题，样本可能遭受严重的伪影，例如对象失真，不合逻辑的对象放置或前景和背景元素的不自然混合，之前看超分领域，cnn解码出来的图会有明显的平滑属性，没有sharp的棱角，但是gan的方法又会生成一些和原图无关的东西。

    2.method

    stage 1:训练一个dVAE将输入图的256x256压缩成32x32图片token，每个位置有8192种可能的值，也就是说dVAE的encoder输出是维度为32x32x8192的logits，然后通过logits索引codebook的特征进行组合，codebook的embedding是可学习的.

    stage 2:使用BPE encoder对文本进行编码，得到最多256个文本token，不够的pad，将256文本token和1024图像token进行concat，得到1280维度的特征，将拼接的特征输入transformer进行自回归训练。

    dVAE是VQVAE，VQVAE和VAE不同，VAE是学均值方差刻画高斯分布，通过引入后验分布，通过KL散度约束先验和后验，重参数从均值方差刻画的高斯中参数，进行decode。VQVAE通过encode学习中间编码，然后通过最近邻搜索将中间编码映射为codebook中k个向量之一，然后通过decode对latent code进行重建。最近邻搜索采用argmax来找codebook中索引位置，不可导，dalle使用Gumbel softmax trick来解决这个问题，argmax不可导，softmax近似max，而arg softmax是可导的。

     第一部分是生成模型decode的，在KL中的第一部分是encode的，第二部分是先验分布。

    2.1 stage 1：learning the visual codebook

    kl weight=6.6，K=8196

    2.2 stage 2：learning the prior

    这一部分是dalle模型，就是一个先验的学习阶段，使用一个自回归的transformer做的，在dalle2中已经变成了扩散模型，这个自回归的transformer输入是BPE encoder之后的文本和dVAE encoder之后的图像，这块整个loss设计其实和clip是一致的。

    2.3 推理

    在推理时用的是dVAE的decode部分，产生的结果再用clip选择一个最合适的进行输出。

    2.4 data collection

    120亿的参数量，3.3m对text-image对。

    3.代码

    VAE：

    1. vae = DiscreteVAE(
    2.     image_size=256,
    3.     num_layers=3,  # number of downsamples - ex. 256 / (2 ** 3) = (32 x 32 feature map)
    4.     num_tokens=8192,  # number of visual tokens. in the paper, they used 8192, but could be smaller for downsized projects
    5.     codebook_dim=512,  # codebook dimension
    6.     hidden_dim=64,  # hidden dimension
    7.     num_resnet_blocks=1,  # number of resnet blocks
    8.     temperature=0.9,  # gumbel softmax temperature, the lower this is, the harder the discretization
    9.     straight_through=False,  # straight-through for gumbel softmax. unclear if it is better one way or the other
    10. )

    img：4,3,256,256->norm->logits=encoder(img):4,8196,32,32->soft_one_hot=F.gumbel_softmax(logits):4,8196,32,32->sampled=einsum('b n h w,nd->b d h w',soft_one_hot,self.codebook_weight:8192,512):4,512,32,32->out=decoder(sampled):4,3,256,256

    1. DiscreteVAE(
    2.   (codebook): Embedding(8192, 512)
    3.   (encoder): Sequential(
    4.     (0): Sequential(
    5.       (0): Conv2d(3, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1))
    6.       (1): ReLU()
    7.     )
    8.     (1): Sequential(
    9.       (0): Conv2d(64, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1))
    10.       (1): ReLU()
    11.     )
    12.     (2): Sequential(
    13.       (0): Conv2d(64, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1))
    14.       (1): ReLU()
    15.     )
    16.     (3): ResBlock(
    17.       (net): Sequential(
    18.         (0): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    19.         (1): ReLU()
    20.         (2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    21.         (3): ReLU()
    22.         (4): Conv2d(64, 64, kernel_size=(1, 1), stride=(1, 1))
    23.       )
    24.     )
    25.     (4): Conv2d(64, 8192, kernel_size=(1, 1), stride=(1, 1))
    26.   )
    27.   (decoder): Sequential(
    28.     (0): Conv2d(512, 64, kernel_size=(1, 1), stride=(1, 1))
    29.     (1): ResBlock(
    30.       (net): Sequential(
    31.         (0): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    32.         (1): ReLU()
    33.         (2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    34.         (3): ReLU()
    35.         (4): Conv2d(64, 64, kernel_size=(1, 1), stride=(1, 1))
    36.       )
    37.     )
    38.     (2): Sequential(
    39.       (0): ConvTranspose2d(64, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1))
    40.       (1): ReLU()
    41.     )
    42.     (3): Sequential(
    43.       (0): ConvTranspose2d(64, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1))
    44.       (1): ReLU()
    45.     )
    46.     (4): Sequential(
    47.       (0): ConvTranspose2d(64, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1))
    48.       (1): ReLU()
    49.     )
    50.     (5): Conv2d(64, 3, kernel_size=(1, 1), stride=(1, 1))
    51.   )
    52. )

    dalle:

    1. dalle = DALLE(
    2.     dim=1024,
    3.     vae=vae,  # automatically infer (1) image sequence length and (2) number of image tokens
    4.     num_text_tokens=10000,  # vocab size for text
    5.     text_seq_len=256,  # text sequence length
    6.     depth=12,  # should aim to be 64
    7.     heads=16,  # attention heads
    8.     dim_head=64,  # attention head dimension
    9.     attn_dropout=0.1,  # attention dropout
    10.     ff_dropout=0.1  # feedforward dropout
    11. )

    image:4,3,256,256/text:4,256->text_range:256,text_seq_len:1280,num_image_tokens:8192,num_text_tokens:10256->text:4,256->text=F.pad:4,257->tokens=text_emb(text):4,257,1024->image=vae.get_codebook_indices(image)->logits=self(image):4,8196,32,32->codebook_indices=logits.argmax:4,1024->image_emb=image_emb(image):4,1024,1024->tokens:4,1281,1024->out=self.transformers(tokens:4,1280,1024):4,1280,1024->logits:4,1280,18448->offsetted_image:4,1028,text:4,257,labels:4,1280->logits:4,18448,1280

    1. DALLE(
    2.   (vae): DiscreteVAE(
    3.     (codebook): Embedding(8192, 1024)
    4.     (encoder): Sequential(
    5.       (0): Sequential(
    6.         (0): Conv2d(3, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1))
    7.         (1): ReLU()
    8.       )
    9.       (1): Sequential(
    10.         (0): Conv2d(64, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1))
    11.         (1): ReLU()
    12.       )
    13.       (2): Sequential(
    14.         (0): Conv2d(64, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1))
    15.         (1): ReLU()
    16.       )
    17.       (3): ResBlock(
    18.         (net): Sequential(
    19.           (0): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    20.           (1): ReLU()
    21.           (2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    22.           (3): ReLU()
    23.           (4): Conv2d(64, 64, kernel_size=(1, 1), stride=(1, 1))
    24.         )
    25.       )
    26.       (4): Conv2d(64, 8192, kernel_size=(1, 1), stride=(1, 1))
    27.     )
    28.     (decoder): Sequential(
    29.       (0): Conv2d(1024, 64, kernel_size=(1, 1), stride=(1, 1))
    30.       (1): ResBlock(
    31.         (net): Sequential(
    32.           (0): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    33.           (1): ReLU()
    34.           (2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
    35.           (3): ReLU()
    36.           (4): Conv2d(64, 64, kernel_size=(1, 1), stride=(1, 1))
    37.         )
    38.       )
    39.       (2): Sequential(
    40.         (0): ConvTranspose2d(64, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1))
    41.         (1): ReLU()
    42.       )
    43.       (3): Sequential(
    44.         (0): ConvTranspose2d(64, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1))
    45.         (1): ReLU()
    46.       )
    47.       (4): Sequential(
    48.         (0): ConvTranspose2d(64, 64, kernel_size=(4, 4), stride=(2, 2), padding=(1, 1))
    49.         (1): ReLU()
    50.       )
    51.       (5): Conv2d(64, 3, kernel_size=(1, 1), stride=(1, 1))
    52.     )
    53.   )
    54.   (transformer): Transformer(
    55.     (layers): SequentialSequence(
    56.       (layers): ModuleList(
    57.         (0): ModuleList(
    58.           (0): LayerScale(
    59.             (fn): PreNorm(
    60.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    61.               (norm_out): Identity()
    62.               (fn): CachedAs(
    63.                 (fn): PreShiftToken(
    64.                   (fn): CachedAs(
    65.                     (fn): Attention(
    66.                       (to_qkv): Linear(in_features=1024, out_features=3072, bias=False)
    67.                       (to_out): Sequential(
    68.                         (0): Linear(in_features=1024, out_features=1024, bias=True)
    69.                         (1): Dropout(p=0.1, inplace=False)
    70.                       )
    71.                     )
    72.                   )
    73.                 )
    74.               )
    75.             )
    76.           )
    77.           (1): LayerScale(
    78.             (fn): PreNorm(
    79.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    80.               (norm_out): Identity()
    81.               (fn): CachedAs(
    82.                 (fn): PreShiftToken(
    83.                   (fn): FeedForward(
    84.                     (net): Sequential(
    85.                       (0): Linear(in_features=1024, out_features=8192, bias=True)
    86.                       (1): GEGLU()
    87.                       (2): Dropout(p=0.1, inplace=False)
    88.                       (3): Linear(in_features=4096, out_features=1024, bias=True)
    89.                     )
    90.                   )
    91.                 )
    92.               )
    93.             )
    94.           )
    95.         )
    96.         (1): ModuleList(
    97.           (0): LayerScale(
    98.             (fn): PreNorm(
    99.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    100.               (norm_out): Identity()
    101.               (fn): CachedAs(
    102.                 (fn): PreShiftToken(
    103.                   (fn): CachedAs(
    104.                     (fn): Attention(
    105.                       (to_qkv): Linear(in_features=1024, out_features=3072, bias=False)
    106.                       (to_out): Sequential(
    107.                         (0): Linear(in_features=1024, out_features=1024, bias=True)
    108.                         (1): Dropout(p=0.1, inplace=False)
    109.                       )
    110.                     )
    111.                   )
    112.                 )
    113.               )
    114.             )
    115.           )
    116.           (1): LayerScale(
    117.             (fn): PreNorm(
    118.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    119.               (norm_out): Identity()
    120.               (fn): CachedAs(
    121.                 (fn): PreShiftToken(
    122.                   (fn): FeedForward(
    123.                     (net): Sequential(
    124.                       (0): Linear(in_features=1024, out_features=8192, bias=True)
    125.                       (1): GEGLU()
    126.                       (2): Dropout(p=0.1, inplace=False)
    127.                       (3): Linear(in_features=4096, out_features=1024, bias=True)
    128.                     )
    129.                   )
    130.                 )
    131.               )
    132.             )
    133.           )
    134.         )
    135.         (2): ModuleList(
    136.           (0): LayerScale(
    137.             (fn): PreNorm(
    138.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    139.               (norm_out): Identity()
    140.               (fn): CachedAs(
    141.                 (fn): PreShiftToken(
    142.                   (fn): CachedAs(
    143.                     (fn): Attention(
    144.                       (to_qkv): Linear(in_features=1024, out_features=3072, bias=False)
    145.                       (to_out): Sequential(
    146.                         (0): Linear(in_features=1024, out_features=1024, bias=True)
    147.                         (1): Dropout(p=0.1, inplace=False)
    148.                       )
    149.                     )
    150.                   )
    151.                 )
    152.               )
    153.             )
    154.           )
    155.           (1): LayerScale(
    156.             (fn): PreNorm(
    157.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    158.               (norm_out): Identity()
    159.               (fn): CachedAs(
    160.                 (fn): PreShiftToken(
    161.                   (fn): FeedForward(
    162.                     (net): Sequential(
    163.                       (0): Linear(in_features=1024, out_features=8192, bias=True)
    164.                       (1): GEGLU()
    165.                       (2): Dropout(p=0.1, inplace=False)
    166.                       (3): Linear(in_features=4096, out_features=1024, bias=True)
    167.                     )
    168.                   )
    169.                 )
    170.               )
    171.             )
    172.           )
    173.         )
    174.         (3): ModuleList(
    175.           (0): LayerScale(
    176.             (fn): PreNorm(
    177.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    178.               (norm_out): Identity()
    179.               (fn): CachedAs(
    180.                 (fn): PreShiftToken(
    181.                   (fn): CachedAs(
    182.                     (fn): Attention(
    183.                       (to_qkv): Linear(in_features=1024, out_features=3072, bias=False)
    184.                       (to_out): Sequential(
    185.                         (0): Linear(in_features=1024, out_features=1024, bias=True)
    186.                         (1): Dropout(p=0.1, inplace=False)
    187.                       )
    188.                     )
    189.                   )
    190.                 )
    191.               )
    192.             )
    193.           )
    194.           (1): LayerScale(
    195.             (fn): PreNorm(
    196.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    197.               (norm_out): Identity()
    198.               (fn): CachedAs(
    199.                 (fn): PreShiftToken(
    200.                   (fn): FeedForward(
    201.                     (net): Sequential(
    202.                       (0): Linear(in_features=1024, out_features=8192, bias=True)
    203.                       (1): GEGLU()
    204.                       (2): Dropout(p=0.1, inplace=False)
    205.                       (3): Linear(in_features=4096, out_features=1024, bias=True)
    206.                     )
    207.                   )
    208.                 )
    209.               )
    210.             )
    211.           )
    212.         )
    213.         (4): ModuleList(
    214.           (0): LayerScale(
    215.             (fn): PreNorm(
    216.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    217.               (norm_out): Identity()
    218.               (fn): CachedAs(
    219.                 (fn): PreShiftToken(
    220.                   (fn): CachedAs(
    221.                     (fn): Attention(
    222.                       (to_qkv): Linear(in_features=1024, out_features=3072, bias=False)
    223.                       (to_out): Sequential(
    224.                         (0): Linear(in_features=1024, out_features=1024, bias=True)
    225.                         (1): Dropout(p=0.1, inplace=False)
    226.                       )
    227.                     )
    228.                   )
    229.                 )
    230.               )
    231.             )
    232.           )
    233.           (1): LayerScale(
    234.             (fn): PreNorm(
    235.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    236.               (norm_out): Identity()
    237.               (fn): CachedAs(
    238.                 (fn): PreShiftToken(
    239.                   (fn): FeedForward(
    240.                     (net): Sequential(
    241.                       (0): Linear(in_features=1024, out_features=8192, bias=True)
    242.                       (1): GEGLU()
    243.                       (2): Dropout(p=0.1, inplace=False)
    244.                       (3): Linear(in_features=4096, out_features=1024, bias=True)
    245.                     )
    246.                   )
    247.                 )
    248.               )
    249.             )
    250.           )
    251.         )
    252.         (5): ModuleList(
    253.           (0): LayerScale(
    254.             (fn): PreNorm(
    255.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    256.               (norm_out): Identity()
    257.               (fn): CachedAs(
    258.                 (fn): PreShiftToken(
    259.                   (fn): CachedAs(
    260.                     (fn): Attention(
    261.                       (to_qkv): Linear(in_features=1024, out_features=3072, bias=False)
    262.                       (to_out): Sequential(
    263.                         (0): Linear(in_features=1024, out_features=1024, bias=True)
    264.                         (1): Dropout(p=0.1, inplace=False)
    265.                       )
    266.                     )
    267.                   )
    268.                 )
    269.               )
    270.             )
    271.           )
    272.           (1): LayerScale(
    273.             (fn): PreNorm(
    274.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    275.               (norm_out): Identity()
    276.               (fn): CachedAs(
    277.                 (fn): PreShiftToken(
    278.                   (fn): FeedForward(
    279.                     (net): Sequential(
    280.                       (0): Linear(in_features=1024, out_features=8192, bias=True)
    281.                       (1): GEGLU()
    282.                       (2): Dropout(p=0.1, inplace=False)
    283.                       (3): Linear(in_features=4096, out_features=1024, bias=True)
    284.                     )
    285.                   )
    286.                 )
    287.               )
    288.             )
    289.           )
    290.         )
    291.         (6): ModuleList(
    292.           (0): LayerScale(
    293.             (fn): PreNorm(
    294.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    295.               (norm_out): Identity()
    296.               (fn): CachedAs(
    297.                 (fn): PreShiftToken(
    298.                   (fn): CachedAs(
    299.                     (fn): Attention(
    300.                       (to_qkv): Linear(in_features=1024, out_features=3072, bias=False)
    301.                       (to_out): Sequential(
    302.                         (0): Linear(in_features=1024, out_features=1024, bias=True)
    303.                         (1): Dropout(p=0.1, inplace=False)
    304.                       )
    305.                     )
    306.                   )
    307.                 )
    308.               )
    309.             )
    310.           )
    311.           (1): LayerScale(
    312.             (fn): PreNorm(
    313.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    314.               (norm_out): Identity()
    315.               (fn): CachedAs(
    316.                 (fn): PreShiftToken(
    317.                   (fn): FeedForward(
    318.                     (net): Sequential(
    319.                       (0): Linear(in_features=1024, out_features=8192, bias=True)
    320.                       (1): GEGLU()
    321.                       (2): Dropout(p=0.1, inplace=False)
    322.                       (3): Linear(in_features=4096, out_features=1024, bias=True)
    323.                     )
    324.                   )
    325.                 )
    326.               )
    327.             )
    328.           )
    329.         )
    330.         (7): ModuleList(
    331.           (0): LayerScale(
    332.             (fn): PreNorm(
    333.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    334.               (norm_out): Identity()
    335.               (fn): CachedAs(
    336.                 (fn): PreShiftToken(
    337.                   (fn): CachedAs(
    338.                     (fn): Attention(
    339.                       (to_qkv): Linear(in_features=1024, out_features=3072, bias=False)
    340.                       (to_out): Sequential(
    341.                         (0): Linear(in_features=1024, out_features=1024, bias=True)
    342.                         (1): Dropout(p=0.1, inplace=False)
    343.                       )
    344.                     )
    345.                   )
    346.                 )
    347.               )
    348.             )
    349.           )
    350.           (1): LayerScale(
    351.             (fn): PreNorm(
    352.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    353.               (norm_out): Identity()
    354.               (fn): CachedAs(
    355.                 (fn): PreShiftToken(
    356.                   (fn): FeedForward(
    357.                     (net): Sequential(
    358.                       (0): Linear(in_features=1024, out_features=8192, bias=True)
    359.                       (1): GEGLU()
    360.                       (2): Dropout(p=0.1, inplace=False)
    361.                       (3): Linear(in_features=4096, out_features=1024, bias=True)
    362.                     )
    363.                   )
    364.                 )
    365.               )
    366.             )
    367.           )
    368.         )
    369.         (8): ModuleList(
    370.           (0): LayerScale(
    371.             (fn): PreNorm(
    372.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    373.               (norm_out): Identity()
    374.               (fn): CachedAs(
    375.                 (fn): PreShiftToken(
    376.                   (fn): CachedAs(
    377.                     (fn): Attention(
    378.                       (to_qkv): Linear(in_features=1024, out_features=3072, bias=False)
    379.                       (to_out): Sequential(
    380.                         (0): Linear(in_features=1024, out_features=1024, bias=True)
    381.                         (1): Dropout(p=0.1, inplace=False)
    382.                       )
    383.                     )
    384.                   )
    385.                 )
    386.               )
    387.             )
    388.           )
    389.           (1): LayerScale(
    390.             (fn): PreNorm(
    391.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    392.               (norm_out): Identity()
    393.               (fn): CachedAs(
    394.                 (fn): PreShiftToken(
    395.                   (fn): FeedForward(
    396.                     (net): Sequential(
    397.                       (0): Linear(in_features=1024, out_features=8192, bias=True)
    398.                       (1): GEGLU()
    399.                       (2): Dropout(p=0.1, inplace=False)
    400.                       (3): Linear(in_features=4096, out_features=1024, bias=True)
    401.                     )
    402.                   )
    403.                 )
    404.               )
    405.             )
    406.           )
    407.         )
    408.         (9): ModuleList(
    409.           (0): LayerScale(
    410.             (fn): PreNorm(
    411.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    412.               (norm_out): Identity()
    413.               (fn): CachedAs(
    414.                 (fn): PreShiftToken(
    415.                   (fn): CachedAs(
    416.                     (fn): Attention(
    417.                       (to_qkv): Linear(in_features=1024, out_features=3072, bias=False)
    418.                       (to_out): Sequential(
    419.                         (0): Linear(in_features=1024, out_features=1024, bias=True)
    420.                         (1): Dropout(p=0.1, inplace=False)
    421.                       )
    422.                     )
    423.                   )
    424.                 )
    425.               )
    426.             )
    427.           )
    428.           (1): LayerScale(
    429.             (fn): PreNorm(
    430.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    431.               (norm_out): Identity()
    432.               (fn): CachedAs(
    433.                 (fn): PreShiftToken(
    434.                   (fn): FeedForward(
    435.                     (net): Sequential(
    436.                       (0): Linear(in_features=1024, out_features=8192, bias=True)
    437.                       (1): GEGLU()
    438.                       (2): Dropout(p=0.1, inplace=False)
    439.                       (3): Linear(in_features=4096, out_features=1024, bias=True)
    440.                     )
    441.                   )
    442.                 )
    443.               )
    444.             )
    445.           )
    446.         )
    447.         (10): ModuleList(
    448.           (0): LayerScale(
    449.             (fn): PreNorm(
    450.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    451.               (norm_out): Identity()
    452.               (fn): CachedAs(
    453.                 (fn): PreShiftToken(
    454.                   (fn): CachedAs(
    455.                     (fn): Attention(
    456.                       (to_qkv): Linear(in_features=1024, out_features=3072, bias=False)
    457.                       (to_out): Sequential(
    458.                         (0): Linear(in_features=1024, out_features=1024, bias=True)
    459.                         (1): Dropout(p=0.1, inplace=False)
    460.                       )
    461.                     )
    462.                   )
    463.                 )
    464.               )
    465.             )
    466.           )
    467.           (1): LayerScale(
    468.             (fn): PreNorm(
    469.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    470.               (norm_out): Identity()
    471.               (fn): CachedAs(
    472.                 (fn): PreShiftToken(
    473.                   (fn): FeedForward(
    474.                     (net): Sequential(
    475.                       (0): Linear(in_features=1024, out_features=8192, bias=True)
    476.                       (1): GEGLU()
    477.                       (2): Dropout(p=0.1, inplace=False)
    478.                       (3): Linear(in_features=4096, out_features=1024, bias=True)
    479.                     )
    480.                   )
    481.                 )
    482.               )
    483.             )
    484.           )
    485.         )
    486.         (11): ModuleList(
    487.           (0): LayerScale(
    488.             (fn): PreNorm(
    489.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    490.               (norm_out): Identity()
    491.               (fn): CachedAs(
    492.                 (fn): PreShiftToken(
    493.                   (fn): CachedAs(
    494.                     (fn): Attention(
    495.                       (to_qkv): Linear(in_features=1024, out_features=3072, bias=False)
    496.                       (to_out): Sequential(
    497.                         (0): Linear(in_features=1024, out_features=1024, bias=True)
    498.                         (1): Dropout(p=0.1, inplace=False)
    499.                       )
    500.                     )
    501.                   )
    502.                 )
    503.               )
    504.             )
    505.           )
    506.           (1): LayerScale(
    507.             (fn): PreNorm(
    508.               (norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    509.               (norm_out): Identity()
    510.               (fn): CachedAs(
    511.                 (fn): PreShiftToken(
    512.                   (fn): FeedForward(
    513.                     (net): Sequential(
    514.                       (0): Linear(in_features=1024, out_features=8192, bias=True)
    515.                       (1): GEGLU()
    516.                       (2): Dropout(p=0.1, inplace=False)
    517.                       (3): Linear(in_features=4096, out_features=1024, bias=True)
    518.                     )
    519.                   )
    520.                 )
    521.               )
    522.             )
    523.           )
    524.         )
    525.       )
    526.     )
    527.   )
    528.   (to_logits): Sequential(
    529.     (0): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)
    530.     (1): Linear(in_features=1024, out_features=18448, bias=True)
    531.   )
    532.   (text_emb): Embedding(10256, 1024)
    533.   (image_emb): Embedding(8192, 1024)
    534. )

  • 相关阅读:
    【洛谷】P1082 同余方程
    [蓝桥杯 2022 省 A] 推导部分和
    【日常记录】——对BigDecimal除法运算时遇到的Bug
    Spark - 第12章 弹性分布式数据集
    uniapp踩坑之项目：uniapp数字键盘组件—APP端
    【C++提高编程】第一章 模板：函数模板|类模板|
    人工智能驱动的个性化学习：技术如何彻底改变教育
    网络摄像头（IPC）介绍：类型、供电、镜头、夜视等
    《分析模式》漫谈11-Catalog不是手册
    上手 dpdk trace 功能
  • 原文地址：https://blog.csdn.net/u012193416/article/details/126108145
