rocketmq发送消息底层分析

企业中一般都会封装rocketmq 同步 异步 单向方法，你只需要配置好nameserver地址 topic tag 消息体等，然后调用封装方法进行发送即可。

流程差不多如下

1、导入mq依赖


            org.apache.rocketmq
            rocketmq-client
            4.8.0

1
2
3
4
5

2、消息发送者步骤
创建消息生成者producer，指定组名
指定Nameserver mq地址
启动生产者
创建消息对象，指定Topic、Tag和消息体
发送消息
关闭生产者

3、消费者步骤
创建消费者Consumer，指定组名
指定Nameserver地址
订阅主题Topic和Tag
（listener监听消息，去消费先到的消息）
设置回调函数，处理消息
启动消费者

同步 异步 单向底层区别

//同步
            SendResult send = producer.send(msg);
            //异步
            producer.send(msg, new SendCallback() {
                @Override
                public void onSuccess(SendResult sendResult) {
                    System.out.println("===" + sendResult);
                }

                @Override
                public void onException(Throwable throwable) {
                    System.out.println("e:" + throwable);
                }
            });
            //单向
            producer.sendOneway(msg);
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

异步相对同步来说send方法多了些参数SendCallback sendCallback。而这个sendCallback重写的方法有成功和失败的方法。
单向相对同步来说换了一个方法sendOneway.
在跟踪源码去看到
异步

同步

具体实现方法
一下源码传参异步，单向的区别在
int timesTotal = communicationMode == CommunicationMode.SYNC ? 1 + this.defaultMQProducer.getRetryTimesWhenSendFailed() : 1;
以及switch里面
switch(communicationMode) {
case ASYNC:
return null;
case ONEWAY:
return null;
case SYNC:
if (sendResult.getSendStatus() == SendStatus.SEND_OK || !this.defaultMQProducer.isRetryAnotherBrokerWhenNotStoreOK()) {
return sendResult;
}
default:
break label122;
}

具体如下
sendDefaultImpl方法（核心：所有同步、异步、单向）

    private SendResult sendDefaultImpl(Message msg, CommunicationMode communicationMode, SendCallback sendCallback, long timeout) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
        //校验 Producer 处于运行状态
        this.makeSureStateOK();
        //校验消息格式
        Validators.checkMessage(msg, this.defaultMQProducer);
        long invokeID = this.random.nextLong();
        long beginTimestampFirst = System.currentTimeMillis();
        long beginTimestampPrev = beginTimestampFirst;
        //获取Topic路由信息
        TopicPublishInfo topicPublishInfo = this.tryToFindTopicPublishInfo(msg.getTopic());
        if (topicPublishInfo != null && topicPublishInfo.ok()) {
            boolean callTimeout = false;
            //发送的队列
            MessageQueue mq = null;
            //异常
            Exception exception = null;
            //最后一次发送结果
            SendResult sendResult = null;
            //计算调用发送消息到成功为止的最大次数：同步、单向调用一次 ；异步3次
            int timesTotal = communicationMode == CommunicationMode.SYNC ? 1 + this.defaultMQProducer.getRetryTimesWhenSendFailed() : 1;
            //第几次发送
            int times = 0;
            //存储每次发送消息现在broker
            String[] brokersSent = new String[timesTotal];

            while(true) {
                label122: {
                    String info;
                    if (times < timesTotal) {
                        info = null == mq ? null : mq.getBrokerName();
                        //选择要发送的消息队列
                        MessageQueue mqSelected = this.selectOneMessageQueue(topicPublishInfo, info);
                        if (mqSelected != null) {
                            mq = mqSelected;
                            brokersSent[times] = mqSelected.getBrokerName();

                            long endTimestamp;
                            try {
                                beginTimestampPrev = System.currentTimeMillis();
                                long costTime = beginTimestampPrev - beginTimestampFirst;
                                if (timeout >= costTime) {
                                    //Kernel内核的意思，调用发送消息核心方法
                                    sendResult = this.sendKernelImpl(msg, mq, communicationMode, sendCallback, topicPublishInfo, timeout - costTime);
                                    endTimestamp = System.currentTimeMillis();
                                    //更新Broker可用性信息，在选择发送到的消息队列时，会参考Broker发送消息的延迟。源码多次操作Broker,可见不懂Broker就无法真正理解mq源码。
                                    this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, false);
                                    switch(communicationMode) {
                                    case ASYNC:
                                        return null;
                                    case ONEWAY:
                                        return null;
                                    case SYNC:
                                        if (sendResult.getSendStatus() == SendStatus.SEND_OK || !this.defaultMQProducer.isRetryAnotherBrokerWhenNotStoreOK()) {
                                            return sendResult;
                                        }
                                    default:
                                        break label122;
                                    }
                                }

                                callTimeout = true;
                            } catch (RemotingException var26) {
                                //当抛出RemotingException时，如果进行消息发送失败重试，则可能导致消息发送重复。例如，发送消息超时(RemotingTimeoutException)，实际Broker接收到该消息并处理成功。因此，Consumer在消费时，需要保证幂等性。
                               //这也是我们在生产环境看到可能出现多次重复发送的情况。
                                //更新Broker可用信息，更新继续循环
                                endTimestamp = System.currentTimeMillis();
                                this.updateFaultItem(mqSelected.getBrokerName(), endTimestamp - beginTimestampPrev, true);
                                this.log.warn(String.format("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mqSelected), var26);
                                this.log.warn(msg.toString());
                                exception = var26;
                                break label122;
                            } catch (MQClientException var27) {
                               //更新Broker可用信息，继续循环
                                endTimestamp = System.currentTimeMillis();
                                this.updateFaultItem(mqSelected.getBrokerName(), endTimestamp - beginTimestampPrev, true);
                                this.log.warn(String.format("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mqSelected), var27);
                                this.log.warn(msg.toString());
                                exception = var27;
                                break label122;
                            } catch (MQBrokerException var28) {
                                //更新Broker可用信息，部分情况下异常返回，结束循环
                                endTimestamp = System.currentTimeMillis();
                                this.updateFaultItem(mqSelected.getBrokerName(), endTimestamp - beginTimestampPrev, true);
                                this.log.warn(String.format("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mqSelected), var28);
                                this.log.warn(msg.toString());
                                exception = var28;
                                switch(var28.getResponseCode()) {
                                case 1:
                                case 14:
                                case 16:
                                case 17:
                                case 204:
                                case 205:
                                    break label122;
                                //如果有发送结果，返回，没有，抛出异常
                                default:
                                    if (sendResult != null) {
                                        return sendResult;
                                    }

                                    throw var28;
                                }
                            } catch (InterruptedException var29) {
                                endTimestamp = System.currentTimeMillis();
                                this.updateFaultItem(mqSelected.getBrokerName(), endTimestamp - beginTimestampPrev, false);
                                this.log.warn(String.format("sendKernelImpl exception, throw exception, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mqSelected), var29);
                                this.log.warn(msg.toString());
                                this.log.warn("sendKernelImpl exception", var29);
                                this.log.warn(msg.toString());
                                throw var29;
                            }
                        }
                    }

                    if (sendResult != null) {
                        return sendResult;
                    }

                    info = String.format("Send [%d] times, still failed, cost [%d]ms, Topic: %s, BrokersSent: %s", times, System.currentTimeMillis() - beginTimestampFirst, msg.getTopic(), Arrays.toString(brokersSent));
                    info = info + FAQUrl.suggestTodo("http://rocketmq.apache.org/docs/faq/");
                    MQClientException mqClientException = new MQClientException(info, (Throwable)exception);
                    if (callTimeout) {
                        throw new RemotingTooMuchRequestException("sendDefaultImpl call timeout");
                    }

                    if (exception instanceof MQBrokerException) {
                        mqClientException.setResponseCode(((MQBrokerException)exception).getResponseCode());
                    } else if (exception instanceof RemotingConnectException) {
                        mqClientException.setResponseCode(10001);
                    } else if (exception instanceof RemotingTimeoutException) {
                        mqClientException.setResponseCode(10002);
                    } else if (exception instanceof MQClientException) {
                        mqClientException.setResponseCode(10003);
                    }

                    throw mqClientException;
                }

                ++times;
            }
        } else {
            List nsList = this.getmQClientFactory().getMQClientAPIImpl().getNameServerAddressList();
            if (null != nsList && !nsList.isEmpty()) {
                throw (new MQClientException("No route info of this topic, " + msg.getTopic() + FAQUrl.suggestTodo("http://rocketmq.apache.org/docs/faq/"), (Throwable)null)).setResponseCode(10005);
            } else {
                throw (new MQClientException("No name server address, please set it." + FAQUrl.suggestTodo("http://rocketmq.apache.org/docs/faq/"), (Throwable)null)).setResponseCode(10004);
            }
        }
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149

但是异步是在该sendDefaultImpl方法之前做一个异步处理
ExecutorService ：那么mq异步用了线程池来提高异步请求的效率！！

    @Deprecated
    public void send(final Message msg, final SendCallback sendCallback, final long timeout) throws MQClientException, RemotingException, InterruptedException {
        final long beginStartTime = System.currentTimeMillis();
        ExecutorService executor = this.getCallbackExecutor();

        try {
            executor.submit(new Runnable() {
                public void run() {
                    long costTime = System.currentTimeMillis() - beginStartTime;
                    if (timeout > costTime) {
                        try {
                            DefaultMQProducerImpl.this.sendDefaultImpl(msg, CommunicationMode.ASYNC, sendCallback, timeout - costTime);
                        } catch (Exception var4) {
                            sendCallback.onException(var4);
                        }
                    } else {
                        sendCallback.onException(new RemotingTooMuchRequestException("DEFAULT ASYNC send call timeout"));
                    }

                }
            });
        } catch (RejectedExecutionException var9) {
            throw new MQClientException("executor rejected ", var9);
        }
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

NettyRemotingClient定义了多线程

并没有发现是哪种特殊的多线程，因此是通用的多线程。就好比map和hashmap，最后用了map一样。

倒回来看，这里是多线程执行，大大提高了运行效率，并且代码严谨和规范，有判定条件，不同程度的try catch

线程池执行sendSelectImpl方法，传了msg,async异步，sendCallback（成功和失败的方法，发送消息不用等待响应，不管有没有成功或失败，生产者还会发送消息），timeout - costTime（最大等待时间默认3000-消耗时间）

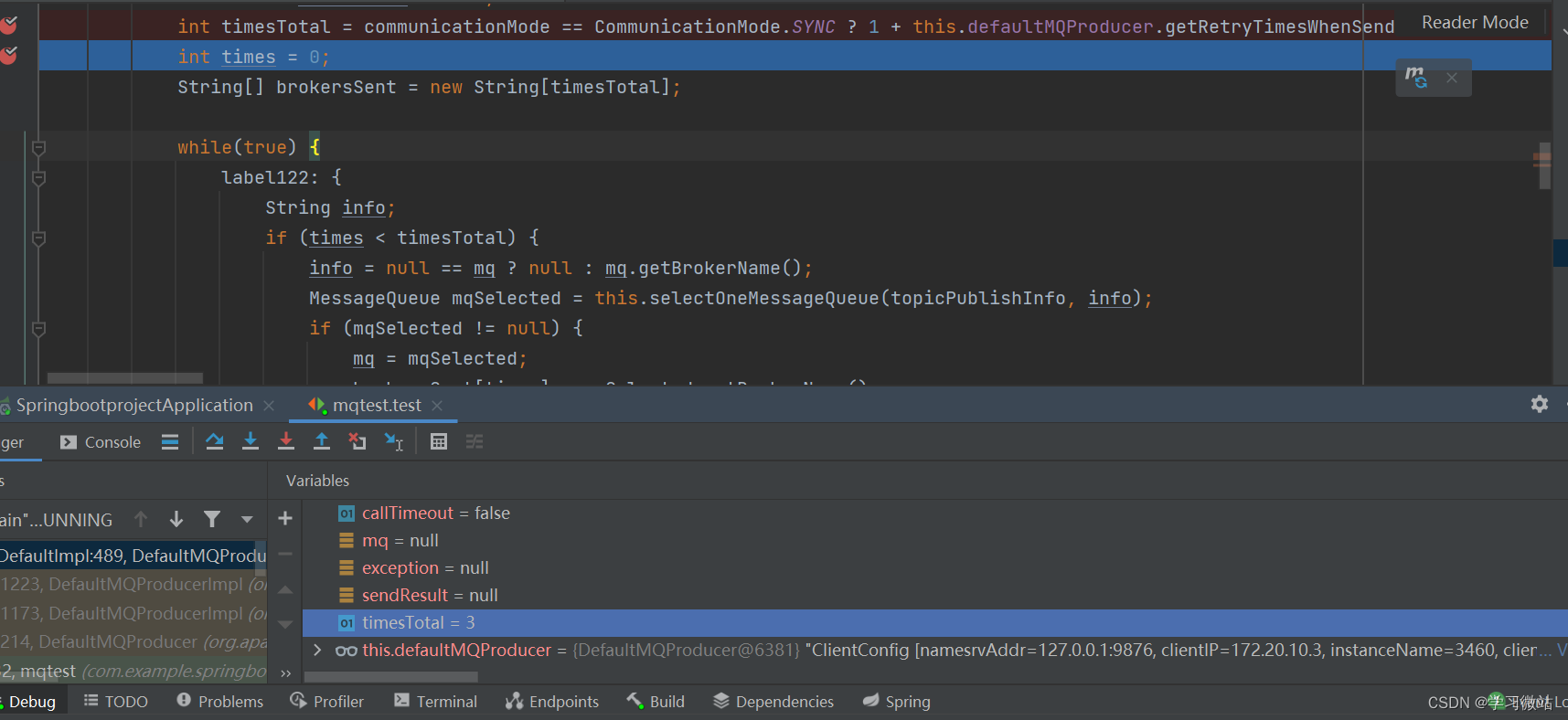

大概看一下入参的情况

这里timeTotal默认是1，异步的时候是3,影响后面循环次数。

那么for循环里面要做什么事情呢
选择消息要发送的队列，准备发送
调用核心发送消息方法
更新Broker可用性信息
上面这个类sendDefaultImpl，有详细注释。

其实还可以继续深入下去，可以模仿rocketmq，自己写一个自定义mq框架那也是很厉害了！！！
