[docker]-容器镜像管理规范
导语：记录一下相关规范。以防后续用到时找不到
容器镜像管理规范
命名规范
- 仓库类型
- snapshot ：开发版本仓库
- release ：生产正式版本仓库
- 仓库命名
- snapshot ： 业务/项目名称-snapshot demo-snapshot
- release : 业务/项目名称-release demo-release

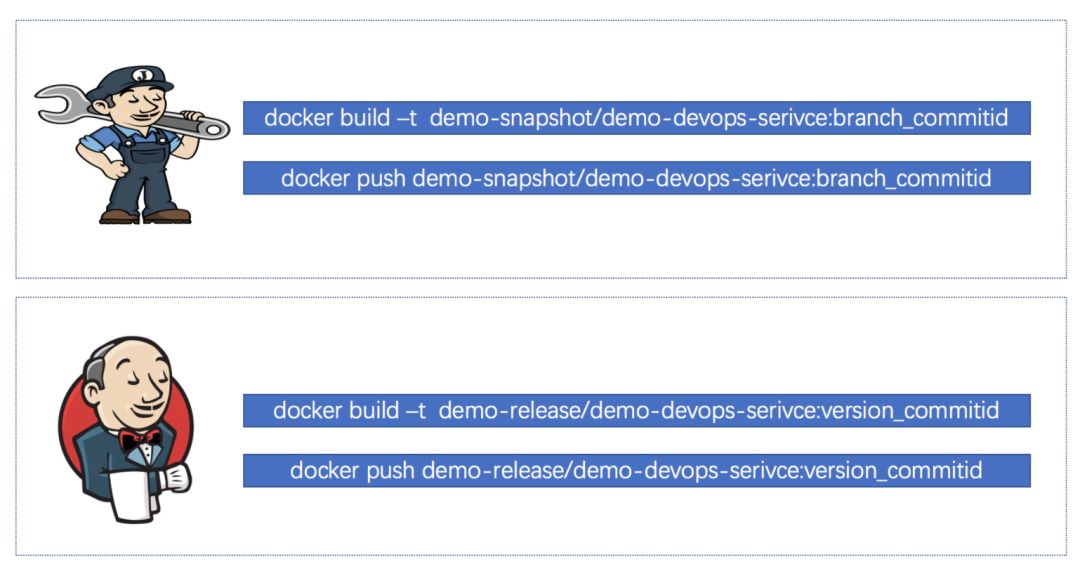

- 镜像命名
- DEV : demo-snapshot/demo-devops-service:branch_commitid
- PRD: demo-release/demo-devops-service:version_commitid
- (业务/项目名称)/应用名称/标签
- 标签命名
- 分支名_提交ID
- 版本号_提交ID
提交ID的意义： 减少重复构建。 每次发布获取当前发布分支中的最后一次提交的id进行匹配，在harbor镜像仓库中进行搜索，如果存在则跳过构建直接发布，如果不存在则进行构建步骤再发布。
镜像清理策略
随着镜像越来越多，频繁更新导致Harbor镜像仓库容量很快爆满。
- snapshot仓库：每定时清理几天前的镜像
- release仓库：版本发布完成后，清除版本其他镜像
因为版本分支进行正式环境发布的时候，可能会出现问题。进行修复后镜像仓库中会出现 1.1.1_xxxxxx1,1.1.1_xxxxxx2的镜像标签。假如1.1.1_xxxxxx2是我们正式发布的版本，则发布完成后。清理掉1.1.1_xxxxxx1。
主要通过以下2条命令获取短位的COMMITID，生成tag
GIT_COMMITID= sh( returnStdout: true, script: 'echo -n `git rev-parse --short HEAD`') Tag="${BRANCH}_${GIT_COMMITID}"- 1
- 2
jenkinsfile 如下
#!groovy pipeline { agent { label "10.10.3.245" } //定义构建参数 parameters { imageTag(name: 'DOCKER_IMAGE', description: '应用使用的基础镜像', image: 'base/lung', filter: '.*', defaultTag: 'ge930', registry: 'http://harbor.deepwise.com', credentialId: '18060a85-ebcf-4aa4-bca7-b267c07497f3', tagOrder: 'NATURAL') gitParameter name: 'BRANCH', type: 'PT_BRANCH_TAG', branchFilter: '(.*\\b)', listSize: '10', defaultValue: '20220531_sp2', description: '代码的分支', selectedValue: 'TOP', sortMode: 'DESCENDING' choice(name: 'NameSpace', choices: ['default','dev01','dev02','dev03','dev04','dev05','test01','test02','test03','test04','test05'], description: '请选择需要发布的环境----namespace') } //定义变量 environment { Unzip_Path="/data1/TestPackage/lung/cta/" //Tag = "`date '+%Y-%m-%d'-${BUILD_NUMBER}`" // 项目名称 // PROJECT = 'DxAI' // 工程名称 // APP_NAME = "dxPython" // 发布环境 // DEPLOY_ENV = "${params.发布环境}" // 仓库地址 // GIT_REPO = "${params.GIT_REPO}" // 仓库分支 // BRANCH = "${params.BRANCH}" // 备份路径 // BAK_PATH = "/mnt/backup/" // 模块路径 // APP_PATH = "/data1/docker_data/wwwroot/research" //默认邮件接收人 // DEFAULT_EMAIL = '' //负责邮件接收人 // OWNER_EMAIL = '' //PL邮件接收人 // PL_EMAIL = ' ' } //来源全局设置配置的变量 // tools { // // jdk 'java-8' // maven 'maven-3.6.0' // } options { timestamps() //保持构建的最大个数 buildDiscarder(logRotator(numToKeepStr: '10')) } //执行任务模块 stages { //拉取代码模块 stage('Checkout weight') { steps { //deleteDir() echo "---------------------------------------------------------------------------------" echo "Starting Checkout Code......" echo "---------------------------------------------------------------------------------" script { echo "starting fetchCode from http://xxx.git......" checkout([$class : 'GitSCM', branches : [[name: "${BRANCH}"]], doGenerateSubmoduleConfigurations: false, extensions: [[$class: 'CloneOption', noTags: false, reference: '', shallow: false, timeout: 60000],[$class:'CheckoutOption',timeout:60000]], userRemoteConfigs: [[credentialsId: '81f18226-d36e-4a0e-bd0e-b936843ae77b', url : "http://xxx.git",]] ]) } } } stage('Checkout lung') { steps { //mkdir lung //deleteDir() echo "---------------------------------------------------------------------------------" echo "Starting Checkout Code......" echo "---------------------------------------------------------------------------------" println env.WORKSPACE // dir("/data/jenkins/workspace/lung"){ // sh "sleep 300" // sh "echo pwd" // sh "pwd" // } script { wrap([$class: 'BuildUser']) { def deploylog="${BUILD_USER} use pipeline '${JOB_NAME}(${BUILD_NUMBER})' " println deploylog buildName "#${BUILD_NUMBER}-^${BRANCH}^-${BUILD_USER}" HTTPD_LOCATION= sh( returnStdout: true, script: 'git show -s |grep -vE "commit|Date" |grep -v "^$"') buildDescription "${HTTPD_LOCATION}" GIT_COMMITID= sh( returnStdout: true, script: 'echo -n `git rev-parse --short HEAD`') Tag="${BRANCH}_${GIT_COMMITID}" } echo "starting fetchCode from http://xxx.git......" checkout([$class : 'GitSCM', branches : [[name: "${BRANCH}"]], doGenerateSubmoduleConfigurations: false, extensions: [[$class: 'CleanBeforeCheckout', deleteUntrackedNestedRepositories: true],[$class: 'CloneOption', noTags: false, reference: '', shallow: false, timeout: 60000],[$class:'CheckoutOption',timeout:60000],[$class: 'RelativeTargetDirectory', relativeTargetDir: '/data/jenkins/workspace/lung-base']], userRemoteConfigs: [[credentialsId: '81f18226-d36e-4a0e-bd0e-b936843ae77b', url : "http://xxx.git",]] ]) } } } //打包模块 stage('Package') { steps { echo "---------------------------------------------------------------------------------" echo "Starting Gradlew package ......" echo "---------------------------------------------------------------------------------" script { sh """ echo "package" rsync -avP --exclude=.git /data/jenkins/workspace/lung-base/* /data/package/lung/ rsync -avP --exclude=.git ${WORKSPACE}/* /data/package/lung/ rsync -avP --exclude=.git /data/jenkins/workspace/aiclassifier /data/package/ """ } } } stage('build') { steps { echo "---------------------------------------------------------------------------------" echo "Starting Publish apk to Remote ......" echo "---------------------------------------------------------------------------------" script { sh """ echo Tag ${Tag} echo TestTag $TestTag cd /data/package/ echo base image name: ${DOCKER_IMAGE} echo image name: harbor.deepwise.com/dev/${JOB_NAME}:${Tag} echo FROM harbor.deepwise.com/${DOCKER_IMAGE} > Dockerfile echo COPY lung /root/lung >> Dockerfile echo COPY aiclassifier /root/aiclassifier >> Dockerfile echo harbor.deepwise.com/dev/${JOB_NAME}:${Tag} cat Dockerfile echo "docker build -t harbor.deepwise.com/dev/${JOB_NAME}:${Tag} ." docker build -t harbor.deepwise.com/dev/${JOB_NAME}:${Tag} . docker push harbor.deepwise.com/dev/${JOB_NAME}:${Tag} whoami # echo ssh root@172.16.20.88 "kubectl set image deployment/aiserver-dp aiserver=harbor.deepwise.com/dev/${JOB_NAME}:${Tag} -n ${NameSpace} " # ssh root@172.16.20.88 "kubectl set image deployment/aiserver-dp aiserver=harbor.deepwise.com/dev/${JOB_NAME}:${Tag} -n ${NameSpace} " """ } } } stage('Install') { // agent { // label "172.16.40.245" // } steps { echo "---------------------------------------------------------------------------------" echo "Starting Install Application......" echo "---------------------------------------------------------------------------------" script { sh """ echo 123 """ } } } } }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
- 88
- 89
- 90
- 91
- 92
- 93
- 94
- 95
- 96
- 97
- 98
- 99
- 100
- 101
- 102
- 103
- 104
- 105
- 106
- 107
- 108
- 109
- 110
- 111
- 112
- 113
- 114
- 115
- 116
- 117
- 118
- 119
- 120
- 121
- 122
- 123
- 124
- 125
- 126
- 127
- 128
- 129
- 130
- 131
- 132
- 133
- 134
- 135
- 136
- 137
- 138
- 139
- 140
- 141
- 142
- 143
- 144
- 145
- 146
- 147
- 148
- 149
- 150
- 151
- 152
- 153
- 154
- 155
- 156
- 157
- 158
- 159
- 160
- 161
- 162
- 163
- 164
- 165
- 166
- 167
- 168
- 169
- 170
- 171
- 172
- 173
- 174
- 175
- 176
- 177
- 178
- 179
- 180
- 181
- 182
- 183
- 184
- 185
构建容器镜像
编写Dockerfile
FROM nginx:latest COPY dist /usr/share/nginx/html- 1
- 2
- 3
复制
构建镜像
docker build -t demo-web-app:1.1.1 .- 1
复制
上传镜像
docker push demo-web-app:1.1.1- 1
复制
一个完整的Jenkinsfile
pipeline { agent {node {label "master"}} stages { stage('WebBuild') { steps { script { docker.image('node:10.19.0-alpine').inside('-u 0:0 -v /var/jenkins_home/.npm:/root/.npm') { sh """ id ls /root/.npm ls /root/ -a npm config set unsafe-perm=true npm config list npm config set cache /root/.npm #npm config set registry https://registry.npm.taobao.org npm config list ls cd demo && npm install --unsafe-perm=true && npm run build && ls -l dist/ && sleep 15 """ } } } } stage("BuildImage"){ steps { script{ sh """ #构建镜像 cd demo docker build -t demo/demo-web-app:1.1.1_xxxxxxxx1 . #docker push demo/demo-web-app:1.1.1_xxxxxxxx1 """ } } } } }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
复制
构建完成后，运行镜像进行测试
docker run -itd -p 8080:80 --name nginx-server demo/demo-web-app:1.1.1_xxxxxxxx1- 1
镜像清理策略
如果我们使用的是Harbor镜像仓库，我们可以给每个项目管理员授权定时手动清理镜像，我们也可以通过Harbor的接口进行自动化清理。在此举例通过Jenkins自动化清理。
这里列举了 获取镜像标签和根据标签删除镜像的方法。（注意这个实例仅供参考，在生产请慎用。不是说不能用，而是涉及到删除镜像，如果误删影响很大。）
#!groovy @Library('jenkinslibrary@master') _ def tools = new org.devops.tools() String registryName = "${env.registryName}" String serviceName = "${env.serviceName}" String tagName = "${env.tagName}" def harborProjects = [] currentBuild.description = "Trigger by ${serviceName} ${tagName}" pipeline { agent { node { label "build"} } stages{ stage("GetHarborTags"){ steps{ timeout(time:5, unit:"MINUTES"){ script{ tools.PrintMes("获取Harbor仓库中的项目信息","green") println(serviceName) try { response = httpRequest authentication: 'harbor-admin, url: "https://registry.demo.com/api/repositories/${registryName}/${serviceName}/tags", ignoreSslErrors: true //println(response.content) response = readJSON text: """${response.content}""" } catch(e){ response = ['name':''] println(e) println("Harbor镜像不存在此标签！") } /*println(tagName) for (tagname in response){ //println(response) harborProjects << tagname['name'] } println(harborProjects)*/ } } } } stage("DeleteHarborTags"){ steps{ timeout(time:20, unit:"MINUTES"){ script{ tools.PrintMes("总共找到 ${harborProjects.size()} 个标签","green") sumImageNum = harborProjects.size() for (tag in harborProjects){ sumImageNum -= 1 tools.PrintMes(" ${sumImageNum} Delete Tags ---> ${registryName} --> ${serviceName} --> ${tag} ","green") httpRequest httpMode: 'DELETE', authentication: 'c016027e-0573-4246-93cf-f4a55b08a86a', url: "https://registry.demo.com/api/repositories/${registryName}/${serviceName}/tags/${tag}", ignoreSslErrors: true sleep 1 } } } } } } post { always{ script{ cleanWs notFailBuild: true } } } }- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 77
- 78
- 79
- 80
- 81
- 82
- 83
- 84
- 85
- 86
- 87
参考
https://cloud.tencent.com/developer/article/1599849
https://github.com/zeyangli
