Flink SQL-连接器

Flink SQL

flink 官网
https://nightlies.apache.org/flink/flink-docsmaster/zh/docs/connectors/table/datagen/

flink sql版本的WordCount

package com.wt.flink.sql
import org.apache.flink.table.api.{EnvironmentSettings, TableEnvironment}
object Demo1WoreCount {
  def main(args: Array[String]): Unit = {
    //环境设置对象
    val settings: EnvironmentSettings = EnvironmentSettings
      .newInstance() //新实例
      .inStreamingMode() // 在流处理模式下
      //.inBatchMode()  // 在批处理迷失下
      .build()

    /**
     * flink sql 的环境
     *
     */
    val table: TableEnvironment = TableEnvironment.create(settings)

    /**
     * 1. 创建kafka source 表
     *
     */

    table.executeSql(
      """
        |CREATE TABLE words (
        |  `word` STRING
        |) WITH (
        |  'connector' = 'kafka',
        |  'topic' = 'word',
        |  'properties.bootstrap.servers' = 'master:9092,node1:9092,node2:9092',
        |  'properties.group.id' = 'asdasd',
        |  'scan.startup.mode' = 'earliest-offset',
        |  'format' = 'csv'
        |)
        |
        |""".stripMargin)

    /**
     * 创建一个print sink表
     *
     */
    table.executeSql(
      """
        |CREATE TABLE print_table (
        |word STRING,
        |c BIGINT
        |) WITH (
        | 'connector' = 'print'
        |)
        |
        |""".stripMargin)

    /**
     * 统计单词的数量
     */
    table.executeSql(
      """
        |insert into print_table
        |select word,count(1) as c
        |from words
        |group by word
        |""".stripMargin)
  }
}

查看结果：

1、连接器

1、DataGen

用于生成随机数据的工具

只能用于source表

CREATE TABLE datagen (
 id STRING,
 name STRING,
 age INT
) WITH (
 'connector' = 'datagen',
 'rows-per-second' = '5', -- 每秒生成的数据行数据
 'fields.id.length' = '5', --字段长度限制
 'fields.name.length'='3',
 'fields.age.min' ='1', -- 最小值
 'fields.age.max'='100' -- 最大值
)

-- ts AS localtimestamp, : localtimestamp获取当前时间戳，

2、Print

print用于打印连续查询的结果的表

print只能用于sink表

• 基于已有的表结构创建print表

-- LIKE： 基于已有的表创建表
CREATE TABLE print_table
WITH ('connector' = 'print')
LIKE datagen (EXCLUDING ALL)

• 打印数据

insert into print_table
|select * from datagen

• 手动设置字段

CREATE TABLE print_table (
 age INT,
 num BIGINT
)
WITH ('connector' = 'print')

• 统计年龄额人数

insert into age_num
select age ,count(1) as num
from datagen
group by age

3、BlackHole

用于flink性能测试

CREATE TABLE blackhole_table
WITH ('connector' = 'blackhole')
LIKE datagen (EXCLUDING ALL)

4、Kafka

• kafka依赖

<dependency>
  <groupId>org.apache.flinkgroupId>
  <artifactId>flink-connector-kafkaartifactId>
  <version>1.15.0version>
dependency>

• csv依赖

<dependency>
  <groupId>org.apache.flinkgroupId>
  <artifactId>flink-csvartifactId>
  <version>1.15.0version>
dependency>

• kafka source

CREATE TABLE student_kafka (
    id STRING,
    name STRING,
    age INT,
    gender STRING,
    clazz STRING
) WITH (
  'connector' = 'kafka',
  'topic' = 'student',
  'properties.bootstrap.servers' = 'master:9092,node1:9092,node2:9092',
  'properties.group.id' = 'testGroup',
  'scan.startup.mode' = 'earliest-offset',
  'format' = 'csv',
  'csv.field-delimiter'=',', -- csv格式数据的分隔符
  'csv.ignore-parse-errors'='true', -- 如果出现脏数据据,补null
  'csv.allow-comments'='true'--跳过#注释行
)

参选介绍

scan.startup.mode：
earliest-offset: 读取所有的数据
latest-offset：读取最新的数据，只能读取到任务启动之后生产的数据
group-offsets(默认值)： 基于以消费者组读取数据，如果消费者组不存在读取最新的数据
timestamp ：指定时间戳读取数据
specific-offsets：指定偏移量读取数据
format：
csv: 文本格式，指定字段时需要按照顺序映射，flink sql会自动解析

• kafka sink， 使用flink向kafka中写数据存在两种情况，
  • 将append only流写入kafka

-- 创建kafka source 表
CREATE TABLE student_kafka (
    id STRING,
    name STRING,
    age INT,
    gender STRING,
    clazz STRING
) WITH (
  'connector' = 'kafka',
  'topic' = 'student',
  'properties.bootstrap.servers' = 'master:9092,node1:9092,node2:9092',
  'properties.group.id' = 'testGroup',
  'scan.startup.mode' = 'earliest-offset',
  'format' = 'csv',
  'csv.field-delimiter'=',', -- csv格式数据的分隔符
  'csv.ignore-parse-errors'='true', -- 如果出现脏数据据,补null
  'csv.allow-comments'='true'--跳过#注释行
)
-- 创建 kafka sink表
CREATE TABLE student_kafka_sink (
    id STRING,
    name STRING,
    age INT,
    gender STRING,
    clazz STRING
) WITH (
  'connector' = 'kafka',-- 只支持追加的流
  'topic' = 'student_nan',
  'properties.bootstrap.servers' = 'master:9092,node1:9092,node2:9092',
  'format' = 'csv',
  'csv.field-delimiter'='\t' -- csv格式数据的分隔符
)

--执行sql
-- 非聚合类的连续查询返回的动态表是一个append only表，可以可以写入到kafka中
insert into student_kafka_sink
select * from
student_kafka_source
where gender ='男'

--使用控制台查看数据
 kafka-console-consumer.sh --bootstrap-server  master:9092,node2:9092,node2:9092 --from-beginning --topic student_nan

• 更新的流写入kafka

-- 创建kafka source 表
CREATE TABLE student_kafka (
    id STRING,
    name STRING,
    age INT,
    gender STRING,
    clazz STRING
) WITH (
  'connector' = 'kafka',
  'topic' = 'student',
  'properties.bootstrap.servers' = 'master:9092,node1:9092,node2:9092',
  'properties.group.id' = 'testGroup',
  'scan.startup.mode' = 'earliest-offset',
  'format' = 'csv',
  'csv.field-delimiter'=',', -- csv格式数据的分隔符
  'csv.ignore-parse-errors'='true', -- 如果出现脏数据据,补null
  'csv.allow-comments'='true'--跳过#注释行
)
-- 创建 kafka sink表
CREATE TABLE gender_num_sink (
    gender STRING,
	num BIGINT,
    PRIMARY KEY (gender) NOT ENFORCED-- 设置唯一主键
) WITH (
  'connector' = 'upsert-kafka',
  'topic' = 'gender_num',
  'properties.bootstrap.servers' = 'master:9092,node1:9092,node2:9092',
  'key.format' = 'csv',
  'value.format' = 'csv'
)
--执行sql
-- 将更新的流写入kafka
-- 已唯一的主键作为kafka中key
-- 已数据作为kafkavalue
insert into gender_num_sink
select gender,count(1) as num
from student_kafka
where gender is not null
group by gender

--使用控制台查看数据
 kafka-console-consumer.sh --bootstrap-server  master:9092,node2:9092,node2:9092 --from-beginning --topic gender_num

• 提交到集群运行需要先将kafka依赖包上传到flink lib目录下

  flink-sql-connector-kafka-1.15.0.jar


向student的topic中输入一条数据

1500101005,小核弹,21,女,文科八班
查看结果：如下

5、JDBC

• 增加依赖

<dependency>
  <groupId>org.apache.flinkgroupId>
  <artifactId>flink-connector-jdbcartifactId>
  <version>1.15.0version>
dependency>

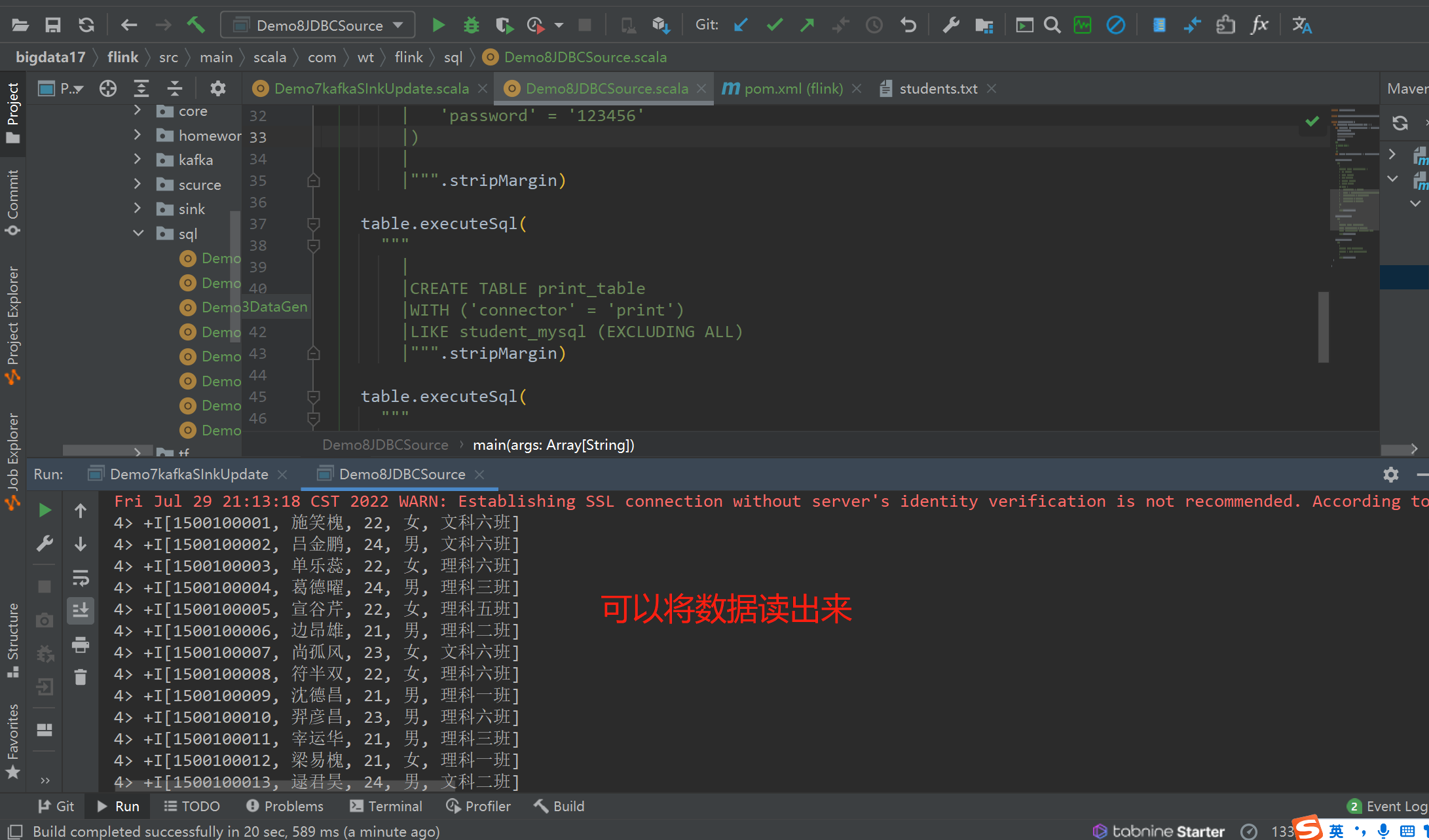

• jdbc source --- 有界流

  jdbc 字段按照名称和类型进行映射的，flink sql中表的字段和类型必须和数据库中保持一致

-- 创建jdbc source表
CREATE TABLE student_mysql (
  id BIGINT,
  name STRING,
  age BIGINT,
  gender STRING,
  clazz STRING
) WITH (
   'connector' = 'jdbc',
   'url' = 'jdbc:mysql://master:3306/bigdata',
   'table-name' = 'students',
   'username' = 'root',
   'password' = '123456'
)

-- 创建print sink 表
CREATE TABLE print_table
WITH ('connector' = 'print')
LIKE student_mysql (EXCLUDING ALL)

-- 执行sql
insert into print_table
select * from student_mysql

• jdbc sink

  实时读取kafka中学生表的胡数据，实时统计每个班级学生的人数，将统计的结果保存到mysql中

-- flink sql kafka source表  学生表
CREATE TABLE student_kafka (
    id STRING,
    name STRING,
    age INT,
    gender STRING,
    clazz STRING
) WITH (
  'connector' = 'kafka',
  'topic' = 'student',
  'properties.bootstrap.servers' = 'master:9092,node1:9092,node2:9092',
  'properties.group.id' = 'testGroup',
  'scan.startup.mode' = 'earliest-offset',
  'format' = 'csv',
  'csv.field-delimiter'=',', -- csv格式数据的分隔符
  'csv.ignore-parse-errors'='true', -- 如果出现脏数据据,补null
  'csv.allow-comments'='true'--跳过#注释行
)
-- 在mysql中创建表
CREATE TABLE `clazz_num` (
  `clazz` varchar(255) NOT NULL,
  `num` bigint(20) DEFAULT NULL,
  PRIMARY KEY (`clazz`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

-- flink sql  jdbc sink表
CREATE TABLE clazz_num_mysql (
  clazz STRING,
  num BIGINT,
  PRIMARY KEY (clazz) NOT ENFORCED -- 按照主键更新数据
) WITH (
   'connector' = 'jdbc',
   'url' = 'jdbc:mysql://master:3306/bigdata?useUnicode=true&characterEncoding=UTF-8',
   'table-name' = 'clazz_num', -- 需要手动到数据库中创建表
   'username' = 'root',
   'password' = '123456'
)

-- 以下查询返回的是一个更新流，flinksql会自动按照主键更新数据
insert into clazz_num_mysql
select clazz,count(1) as num from
student_kafka
where clazz is not null
group by clazz

-- 生产数据
kafka-console-producer.sh --broker-list master:9092,node1:9092,node2:9092 --topic student
1500100001,施笑槐,22,女,文科六班

如果不在mysql中设置主键，如下：

设置主键之后，而且我们在kafka中打入数据，在mysql中就会实时更新。做到实时统计

实时更新的结果如下：

• 将包含jdbc代码提交到集群运行

# 1、将flink-connector-jdbc-1.15.0.jar依赖上传到flink lib目录下
# 2、将mysql-connector-java-5.1.49.jar mysql 驱动上传到flink lib目录下

# 如果是使用yarn-session模式徐娅偶先重启yarn-session
# 关闭
yarm application -kill application_1658546198162_0005
# 启动
yarn-session-.sh -d

# 将代码打包上传到服务器提交任务
flink run -t yarn-session -Dyarn.application.id=application_1658546198162_0007  -c com.shujia.flink.sql.Demo9JDBCSink  flink-1.0.jar

7、FIleSystem

本地文件，hdfs 其它的文件系统

• 读取文件

  可以使用batch模式处理数据

-- 文件 source
CREATE TABLE student_file (
    id STRINg,
    name STRING,
    age INT,
    gender STRING,
    clazz STRING
)  WITH (
  'connector' = 'filesystem',           -- 必选：指定连接器类型
  'path' = 'data/students.txt',  -- 必选：指定路径
  'format' = 'csv'                     -- 必选：文件系统连接器指定 format
)
-- 读取csv格式字段需要按照顺序映射

--print sink
CREATE TABLE print_table
(
    clazz STRING,
    num BIGINT
)
WITH ('connector' = 'print')

--执行sql
insert into print_table
select clazz,count(1) as num from
student_file
group by clazz

看结果：

• 写入文件

-- 创建source 表
CREATE TABLE datagen (
    id STRING,
    name STRING,
    age INT,
    gender STRING,
    clazz STRING,
    ts AS localtimestamp
) WITH (
 'connector' = 'datagen',
 'rows-per-second' = '500', -- 每秒生成的数据行数据
 'fields.id.length' = '5', --字段长度限制
 'fields.name.length'='3',
 'fields.gender.length'='1',
 'fields.clazz.length'='5',
 'fields.age.min' ='1', -- 最小值
 'fields.age.max'='100' -- 最大值
)
-- 创建file sink表
CREATE TABLE file_sink (
    id STRING,
    name STRING,
    age INT,
    gender STRING,
    clazz STRING,
    `day` STRING,
    `hour` STRING
) PARTITIONED BY (`day`,`hour`) WITH (
  'connector'='filesystem',
  'path'='data/flink_sink',
  'format'='csv',
  'sink.rolling-policy.file-size' ='100kb'--滚动生成新的文件的大小，默认128M
)

-- 执行sql
insert into file_sink
select
id,name,age,gender,clazz,
DATE_FORMAT(ts, 'yyyy-MM-dd') as `day`,
DATE_FORMAT(ts, 'HH')  as `hour`
from
datagen

数据所在的文件如下：

打开文件，数据结果如下：
