Redis4.0源码编译和启动

环境

系统：MacBook-Pro
IDE：Clion

源码下载

本博客下载的版本是Redis 4.0
GitHub - redis/redis at 4.0

编译准备

下载完源码后，不要立即导入到IDE中，首先在下列文件夹下创建CMakeLists.txt。

redis-4.0/CMakeLists.txt

cmake_minimum_required(VERSION 3.15)
project(redis-4.0)

set(CMAKE_BUILD_TYPE "Debug")

get_filename_component(REDIS_ROOT "${CMAKE_CURRENT_SOURCE_DIR}" ABSOLUTE)

add_subdirectory(deps)
add_subdirectory(src/modules)

set(SRC_SERVER_TMP
        src/adlist.c
        src/ae.c
        src/anet.c
        src/dict.c
        src/sds.c
        src/zmalloc.c
        src/lzf_c.c
        src/lzf_d.c
        src/pqsort.c
        src/zipmap.c
        src/sha1.c
        src/ziplist.c
        src/release.c
        src/networking.c
        src/util.c
        src/object.c
        src/db.c
        src/replication.c
        src/rdb.c
        src/t_string.c
        src/t_list.c
        src/t_set.c
        src/t_zset.c
        src/evict.c
        src/defrag.c
        src/module.c
        src/quicklist.c
        src/expire.c
        src/childinfo.c
        src/redis-check-aof.c
        src/redis-check-rdb.c
        src/lazyfree.c
        src/geohash.c
        src/rax.c
        src/geohash_helper.c
        src/siphash.c
        src/geo.c
        src/t_hash.c
        src/config.c
        src/aof.c
        src/pubsub.c
        src/multi.c
        src/debug.c
        src/sort.c
        src/intset.c
        src/syncio.c
        src/cluster.c
        src/crc16.c
        src/endianconv.c
        src/slowlog.c
        src/scripting.c
        src/bio.c
        src/rio.c
        src/rand.c
        src/memtest.c
        src/crc64.c
        src/bitops.c
        src/sentinel.c
        src/notify.c
        src/setproctitle.c
        src/blocked.c
        src/hyperloglog.c
        src/latency.c
        src/sparkline.c
        )
set(SRC_SERVER src/server.c ${SRC_SERVER_TMP})

set(SRC_CLI
        src/anet.c
        src/sds.c
        src/adlist.c
        src/redis-cli.c
        src/zmalloc.c
        src/release.c
        src/anet.c
        src/ae.c
        src/crc64.c
        )
set(EXECUTABLE_OUTPUT_PATH src)

link_directories(deps/linenoise/ deps/lua/src deps/hiredis)
add_executable(redis-server ${SRC_SERVER})
target_include_directories(redis-server
        PRIVATE ${REDIS_ROOT}/deps/linenoise
        PRIVATE ${REDIS_ROOT}/deps/hiredis
        PRIVATE ${REDIS_ROOT}/deps/lua/src)
target_link_libraries(redis-server
        PRIVATE pthread
        PRIVATE m
        PRIVATE lua
        PRIVATE linenoise
        PRIVATE hiredis)

add_executable(redis-cli ${SRC_CLI})
target_include_directories(redis-cli
        PRIVATE ${REDIS_ROOT}/deps/linenoise
        PRIVATE ${REDIS_ROOT}/deps/hiredis
        PRIVATE ${REDIS_ROOT}/deps/lua/src)

target_link_libraries(redis-cli
        PRIVATE pthread
        PRIVATE m
        PRIVATE linenoise
        PRIVATE hiredis)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115

redis-4.0/src/modules/CMakeLists.txt

cmake_minimum_required(VERSION 3.9)
set(CMAKE_BUILD_TYPE "Debug")
add_library(helloworld SHARED helloworld.c)
set_target_properties(helloworld PROPERTIES PREFIX "" SUFFIX ".so")


add_library(hellotype SHARED hellotype.c)
set_target_properties(hellotype PROPERTIES PREFIX "" SUFFIX ".so")


add_library(helloblock SHARED helloblock.c)
set_target_properties(helloblock PROPERTIES PREFIX "" SUFFIX ".so")


add_library(testmodule SHARED testmodule.c)
set_target_properties(testmodule PROPERTIES PREFIX "" SUFFIX ".so")
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

redis-4.0/deps/CMakeLists.txt

add_subdirectory(linenoise)
add_subdirectory(lua)
add_subdirectory(hiredis)
1
2
3

redis-4.0/deps/hiredis/CMakeLists.txt

add_library(hiredis STATIC
        hiredis.c
        net.c
        dict.c
        net.c
        sds.c
        async.c
        read.c
        )
1
2
3
4
5
6
7
8
9

redis-4.0/deps/linenoise/CMakeLists.txt

add_library(linenoise
        linenoise.c
        )
1
2
3

redis-4.0/deps/lua/CMakeLists.txt

add_subdirectory(src)
1

make编译

在redis-4.0目录下执行make命令

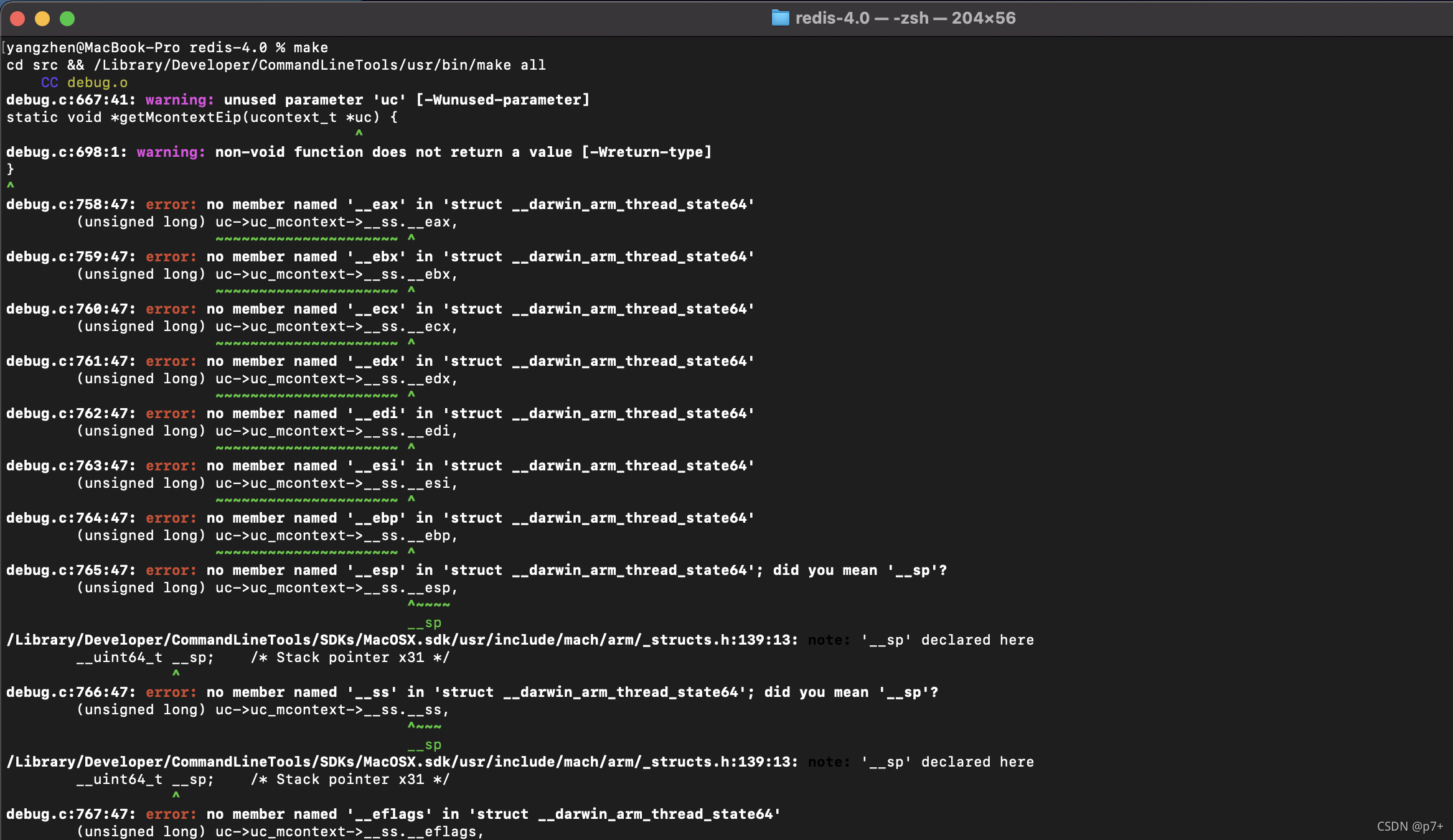

make报错，请查看“解决报错”：

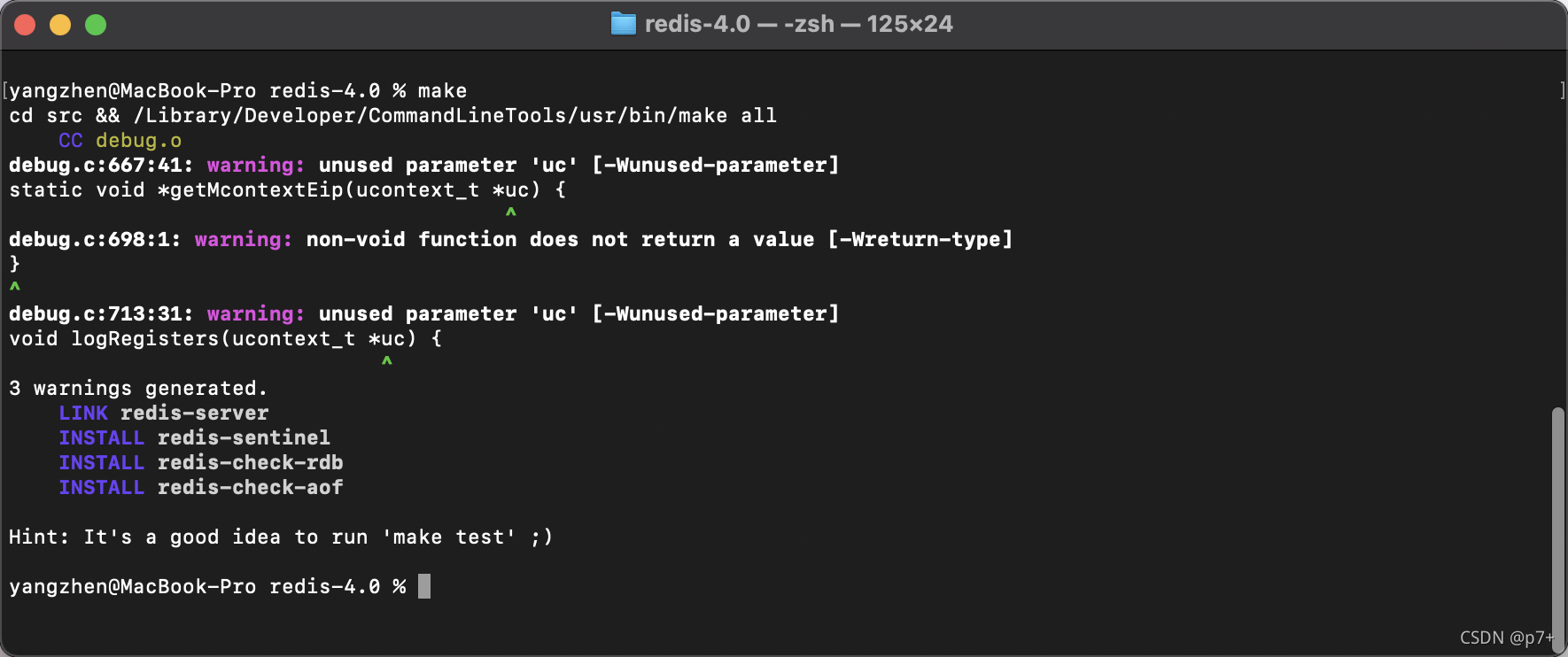

make成功：

解决报错

从报错信息中可以排查出来，是redis-4.0/src/debug.c这个文件编译不通过，打开这个文件，如下图所示，把这些代码注释掉即可。
注意：如果提前用IDE打开了项目，解决完报错redis-4.0/src/debug.c后，请删除掉redis-4.0/.idea目录，完成make编译后，再用IDE打开项目，否则IDE可能不会生成Debug的配置，详见“IDE打开项目”。

IDE打开项目

make编译后再用IDE打开项目

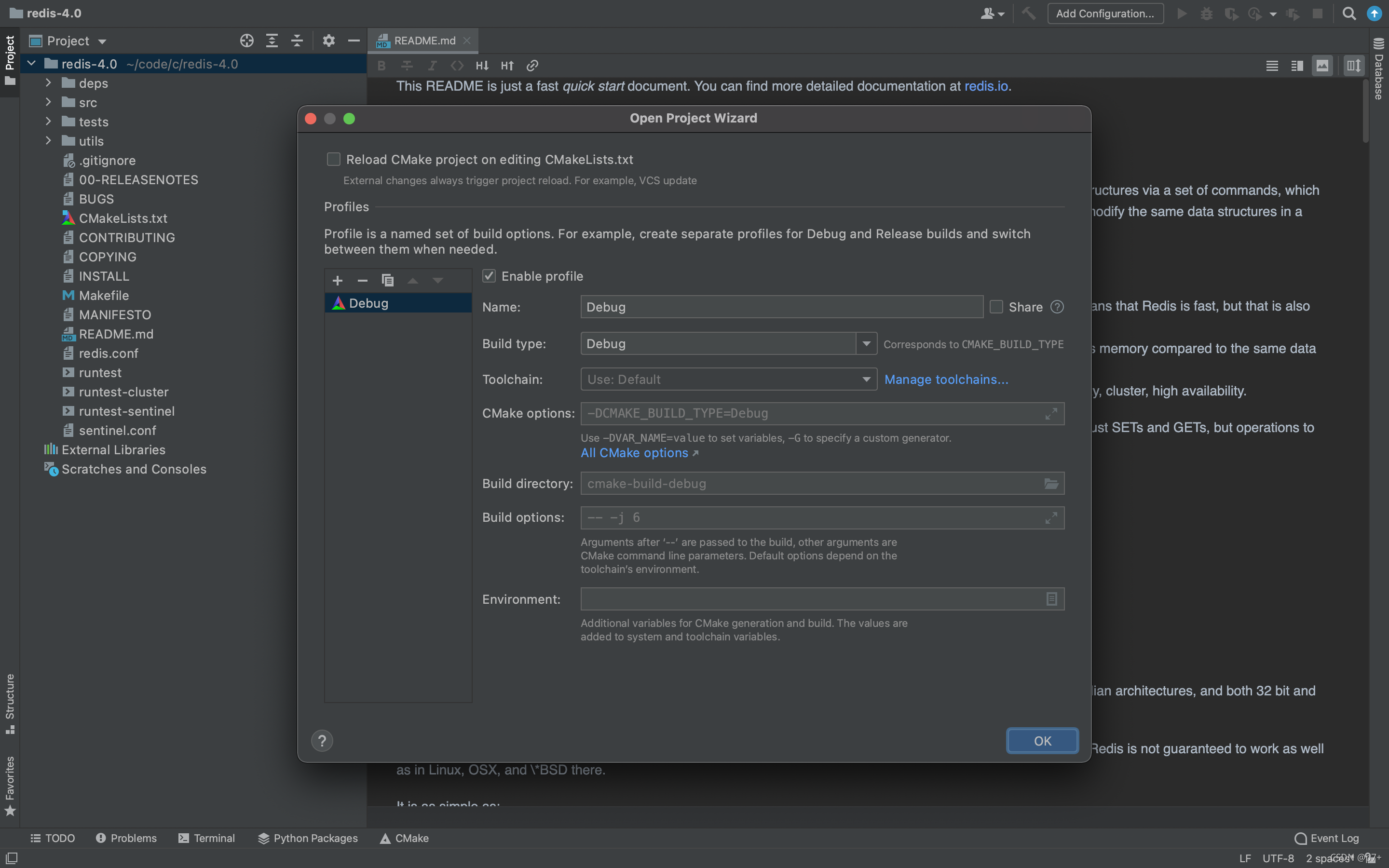

这样IDE会出现弹框，帮你生成Debug的配置，如下图，直接点击OK。

点完OK后，发现出现了cmake-build-debug文件夹，并且调试的地方有了redis-cli | Debug

启动redis-server

启动时调试：

启动后控制台：
