• stm32 st7735驱动 详解

    初始化指令

    1. void LCD_Init(void)
    2. {
    3. #if USE_SIM_SPI
    4.     LCD_SIM_SPI_GPIO_Init();
    5. #endif
    6. 	LCD_RES_0();//复位
    7. 	HAL_Delay(100);
    8. 	LCD_RES_1();
    9. 	HAL_Delay(100);
    10.
    11. 	LCD_BLK_1();//打开背光
    12.     HAL_Delay(100);
    13.
    14. 	//************* Start Initial Sequence **********//
    15. 	LCD_SPI_Send_Cmd(0x11); //Sleep out
    16. 	HAL_Delay(120);              //Delay 120ms
    17. 	//------------------------------------ST7735S 帧率设置-----------------------------------------//
    18. 	LCD_SPI_Send_Cmd(0xB1);
    19. 	LCD_SPI_Send_Data_8(0x01);
    20. 	LCD_SPI_Send_Data_8(0x2C);
    21. 	LCD_SPI_Send_Data_8(0x2D);
    22. 	LCD_SPI_Send_Cmd(0xB2);
    23. 	LCD_SPI_Send_Data_8(0x01);
    24. 	LCD_SPI_Send_Data_8(0x2C);
    25. 	LCD_SPI_Send_Data_8(0x2D);
    26. 	LCD_SPI_Send_Cmd(0xB3);
    27. 	LCD_SPI_Send_Data_8(0x01);
    28. 	LCD_SPI_Send_Data_8(0x2C);
    29. 	LCD_SPI_Send_Data_8(0x2D);
    30. 	LCD_SPI_Send_Data_8(0x01);
    31. 	LCD_SPI_Send_Data_8(0x2C);
    32. 	LCD_SPI_Send_Data_8(0x2D);
    33. 	//------------------------------------End ST7735S Frame Rate---------------------------------//
    34. 	LCD_SPI_Send_Cmd(0xB4); //Dot inversion
    35. 	LCD_SPI_Send_Data_8(0x07);
    36. 	//------------------------------------ST7735S 功率设置---------------------------------//
    37. 	LCD_SPI_Send_Cmd(0xC0);
    38. 	LCD_SPI_Send_Data_8(0xA2);
    39. 	LCD_SPI_Send_Data_8(0x02);
    40. 	LCD_SPI_Send_Data_8(0x84);
    41. 	LCD_SPI_Send_Cmd(0xC1);
    42. 	LCD_SPI_Send_Data_8(0xC5);
    43. 	LCD_SPI_Send_Cmd(0xC2);
    44. 	LCD_SPI_Send_Data_8(0x0A);
    45. 	LCD_SPI_Send_Data_8(0x00);
    46. 	LCD_SPI_Send_Cmd(0xC3);
    47. 	LCD_SPI_Send_Data_8(0x8A);
    48. 	LCD_SPI_Send_Data_8(0x2A);
    49. 	LCD_SPI_Send_Cmd(0xC4);
    50. 	LCD_SPI_Send_Data_8(0x8A);
    51. 	LCD_SPI_Send_Data_8(0xEE);
    52. 	//---------------------------------End ST7735S Power Sequence-------------------------------------//
    53. 	LCD_SPI_Send_Cmd(0xC5); //VCOM
    54. 	LCD_SPI_Send_Data_8(0x0E);
    55. 	LCD_SPI_Send_Cmd(0x36);//0x00 0x80 0x40 0xc0 0x20 0xA0 0x60 0xE0;
    56. 	LCD_SPI_Send_Data_8(0x00);
    57.
    58. 	//------------------------------------ST7735S Gamma Sequence---------------------------------//
    59.     LCD_SPI_Send_Cmd(0xE0);
    60. 	LCD_SPI_Send_Data_8(0x04);
    61. 	LCD_SPI_Send_Data_8(0x22);
    62. 	LCD_SPI_Send_Data_8(0x07);
    63. 	LCD_SPI_Send_Data_8(0x0A);
    64. 	LCD_SPI_Send_Data_8(0x2E);
    65. 	LCD_SPI_Send_Data_8(0x30);
    66. 	LCD_SPI_Send_Data_8(0x25);
    67. 	LCD_SPI_Send_Data_8(0x2A);
    68. 	LCD_SPI_Send_Data_8(0x28);
    69. 	LCD_SPI_Send_Data_8(0x26);
    70. 	LCD_SPI_Send_Data_8(0x2E);
    71. 	LCD_SPI_Send_Data_8(0x3A);
    72. 	LCD_SPI_Send_Data_8(0x00);
    73. 	LCD_SPI_Send_Data_8(0x01);
    74. 	LCD_SPI_Send_Data_8(0x03);
    75. 	LCD_SPI_Send_Data_8(0x13);
    76. 	LCD_SPI_Send_Cmd(0xE1);
    77. 	LCD_SPI_Send_Data_8(0x04);
    78. 	LCD_SPI_Send_Data_8(0x16);
    79. 	LCD_SPI_Send_Data_8(0x06);
    80. 	LCD_SPI_Send_Data_8(0x0D);
    81. 	LCD_SPI_Send_Data_8(0x2D);
    82. 	LCD_SPI_Send_Data_8(0x26);
    83. 	LCD_SPI_Send_Data_8(0x23);
    84. 	LCD_SPI_Send_Data_8(0x27);
    85. 	LCD_SPI_Send_Data_8(0x27);
    86. 	LCD_SPI_Send_Data_8(0x25);
    87. 	LCD_SPI_Send_Data_8(0x2D);
    88. 	LCD_SPI_Send_Data_8(0x3B);
    89. 	LCD_SPI_Send_Data_8(0x00);
    90. 	LCD_SPI_Send_Data_8(0x01);
    91. 	LCD_SPI_Send_Data_8(0x04);
    92. 	LCD_SPI_Send_Data_8(0x13);
    93. 	//------------------------------------End ST7735S Gamma Sequence-----------------------------//
    94. 	LCD_SPI_Send_Cmd(0x3A); //65k mode
    95. 	LCD_SPI_Send_Data_8(0x05);
    96. 	LCD_SPI_Send_Cmd(0x29); //Display on
    97. }

    上传一个稳定运行的代码

    1. /* vim: set ai et ts=4 sw=4: */
    2. #ifndef __FONTS_H__
    3. #define __FONTS_H__
    4.
    5. #include <stdint.h>
    6.
    7. typedef struct {
    8.     const uint8_t width;
    9.     uint8_t height;
    10.     const uint16_t *data;
    11. } FontDef;
    12.
    13.
    14. extern FontDef Font_7x10;
    15. extern FontDef Font_11x18;
    16. extern FontDef Font_16x26;
    17.
    18. #endif // __FONTS_H__
    1. /* vim: set ai et ts=4 sw=4: */
    2. #include "fonts.h"
    3.
    4. static const uint16_t Font7x10 [] = {
    5. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,  // sp
    6. 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x0000, 0x1000, 0x0000, 0x0000,  // !
    7. 0x2800, 0x2800, 0x2800, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,  // "
    8. 0x2400, 0x2400, 0x7C00, 0x2400, 0x4800, 0x7C00, 0x4800, 0x4800, 0x0000, 0x0000,  // #
    9. 0x3800, 0x5400, 0x5000, 0x3800, 0x1400, 0x5400, 0x5400, 0x3800, 0x1000, 0x0000,  // $
    10. 0x2000, 0x5400, 0x5800, 0x3000, 0x2800, 0x5400, 0x1400, 0x0800, 0x0000, 0x0000,  // %
    11. 0x1000, 0x2800, 0x2800, 0x1000, 0x3400, 0x4800, 0x4800, 0x3400, 0x0000, 0x0000,  // &
    12. 0x1000, 0x1000, 0x1000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,  // '
    13. 0x0800, 0x1000, 0x2000, 0x2000, 0x2000, 0x2000, 0x2000, 0x2000, 0x1000, 0x0800,  // (
    14. 0x2000, 0x1000, 0x0800, 0x0800, 0x0800, 0x0800, 0x0800, 0x0800, 0x1000, 0x2000,  // )
    15. 0x1000, 0x3800, 0x1000, 0x2800, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,  // *
    16. 0x0000, 0x0000, 0x1000, 0x1000, 0x7C00, 0x1000, 0x1000, 0x0000, 0x0000, 0x0000,  // +
    17. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x1000, 0x1000, 0x1000,  // ,
    18. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x3800, 0x0000, 0x0000, 0x0000, 0x0000,  // -
    19. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x1000, 0x0000, 0x0000,  // .
    20. 0x0800, 0x0800, 0x1000, 0x1000, 0x1000, 0x1000, 0x2000, 0x2000, 0x0000, 0x0000,  // /
    21. 0x3800, 0x4400, 0x4400, 0x5400, 0x4400, 0x4400, 0x4400, 0x3800, 0x0000, 0x0000,  // 0
    22. 0x1000, 0x3000, 0x5000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x0000, 0x0000,  // 1
    23. 0x3800, 0x4400, 0x4400, 0x0400, 0x0800, 0x1000, 0x2000, 0x7C00, 0x0000, 0x0000,  // 2
    24. 0x3800, 0x4400, 0x0400, 0x1800, 0x0400, 0x0400, 0x4400, 0x3800, 0x0000, 0x0000,  // 3
    25. 0x0800, 0x1800, 0x2800, 0x2800, 0x4800, 0x7C00, 0x0800, 0x0800, 0x0000, 0x0000,  // 4
    26. 0x7C00, 0x4000, 0x4000, 0x7800, 0x0400, 0x0400, 0x4400, 0x3800, 0x0000, 0x0000,  // 5
    27. 0x3800, 0x4400, 0x4000, 0x7800, 0x4400, 0x4400, 0x4400, 0x3800, 0x0000, 0x0000,  // 6
    28. 0x7C00, 0x0400, 0x0800, 0x1000, 0x1000, 0x2000, 0x2000, 0x2000, 0x0000, 0x0000,  // 7
    29. 0x3800, 0x4400, 0x4400, 0x3800, 0x4400, 0x4400, 0x4400, 0x3800, 0x0000, 0x0000,  // 8
    30. 0x3800, 0x4400, 0x4400, 0x4400, 0x3C00, 0x0400, 0x4400, 0x3800, 0x0000, 0x0000,  // 9
    31. 0x0000, 0x0000, 0x1000, 0x0000, 0x0000, 0x0000, 0x0000, 0x1000, 0x0000, 0x0000,  // :
    32. 0x0000, 0x0000, 0x0000, 0x1000, 0x0000, 0x0000, 0x0000, 0x1000, 0x1000, 0x1000,  // ;
    33. 0x0000, 0x0000, 0x0C00, 0x3000, 0x4000, 0x3000, 0x0C00, 0x0000, 0x0000, 0x0000,  // <
    34. 0x0000, 0x0000, 0x0000, 0x7C00, 0x0000, 0x7C00, 0x0000, 0x0000, 0x0000, 0x0000,  // =
    35. 0x0000, 0x0000, 0x6000, 0x1800, 0x0400, 0x1800, 0x6000, 0x0000, 0x0000, 0x0000,  // >
    36. 0x3800, 0x4400, 0x0400, 0x0800, 0x1000, 0x1000, 0x0000, 0x1000, 0x0000, 0x0000,  // ?
    37. 0x3800, 0x4400, 0x4C00, 0x5400, 0x5C00, 0x4000, 0x4000, 0x3800, 0x0000, 0x0000,  // @
    38. 0x1000, 0x2800, 0x2800, 0x2800, 0x2800, 0x7C00, 0x4400, 0x4400, 0x0000, 0x0000,  // A
    39. 0x7800, 0x4400, 0x4400, 0x7800, 0x4400, 0x4400, 0x4400, 0x7800, 0x0000, 0x0000,  // B
    40. 0x3800, 0x4400, 0x4000, 0x4000, 0x4000, 0x4000, 0x4400, 0x3800, 0x0000, 0x0000,  // C
    41. 0x7000, 0x4800, 0x4400, 0x4400, 0x4400, 0x4400, 0x4800, 0x7000, 0x0000, 0x0000,  // D
    42. 0x7C00, 0x4000, 0x4000, 0x7C00, 0x4000, 0x4000, 0x4000, 0x7C00, 0x0000, 0x0000,  // E
    43. 0x7C00, 0x4000, 0x4000, 0x7800, 0x4000, 0x4000, 0x4000, 0x4000, 0x0000, 0x0000,  // F
    44. 0x3800, 0x4400, 0x4000, 0x4000, 0x5C00, 0x4400, 0x4400, 0x3800, 0x0000, 0x0000,  // G
    45. 0x4400, 0x4400, 0x4400, 0x7C00, 0x4400, 0x4400, 0x4400, 0x4400, 0x0000, 0x0000,  // H
    46. 0x3800, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x3800, 0x0000, 0x0000,  // I
    47. 0x0400, 0x0400, 0x0400, 0x0400, 0x0400, 0x0400, 0x4400, 0x3800, 0x0000, 0x0000,  // J
    48. 0x4400, 0x4800, 0x5000, 0x6000, 0x5000, 0x4800, 0x4800, 0x4400, 0x0000, 0x0000,  // K
    49. 0x4000, 0x4000, 0x4000, 0x4000, 0x4000, 0x4000, 0x4000, 0x7C00, 0x0000, 0x0000,  // L
    50. 0x4400, 0x6C00, 0x6C00, 0x5400, 0x4400, 0x4400, 0x4400, 0x4400, 0x0000, 0x0000,  // M
    51. 0x4400, 0x6400, 0x6400, 0x5400, 0x5400, 0x4C00, 0x4C00, 0x4400, 0x0000, 0x0000,  // N
    52. 0x3800, 0x4400, 0x4400, 0x4400, 0x4400, 0x4400, 0x4400, 0x3800, 0x0000, 0x0000,  // O
    53. 0x7800, 0x4400, 0x4400, 0x4400, 0x7800, 0x4000, 0x4000, 0x4000, 0x0000, 0x0000,  // P
    54. 0x3800, 0x4400, 0x4400, 0x4400, 0x4400, 0x4400, 0x5400, 0x3800, 0x0400, 0x0000,  // Q
    55. 0x7800, 0x4400, 0x4400, 0x4400, 0x7800, 0x4800, 0x4800, 0x4400, 0x0000, 0x0000,  // R
    56. 0x3800, 0x4400, 0x4000, 0x3000, 0x0800, 0x0400, 0x4400, 0x3800, 0x0000, 0x0000,  // S
    57. 0x7C00, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x0000, 0x0000,  // T
    58. 0x4400, 0x4400, 0x4400, 0x4400, 0x4400, 0x4400, 0x4400, 0x3800, 0x0000, 0x0000,  // U
    59. 0x4400, 0x4400, 0x4400, 0x2800, 0x2800, 0x2800, 0x1000, 0x1000, 0x0000, 0x0000,  // V
    60. 0x4400, 0x4400, 0x5400, 0x5400, 0x5400, 0x6C00, 0x2800, 0x2800, 0x0000, 0x0000,  // W
    61. 0x4400, 0x2800, 0x2800, 0x1000, 0x1000, 0x2800, 0x2800, 0x4400, 0x0000, 0x0000,  // X
    62. 0x4400, 0x4400, 0x2800, 0x2800, 0x1000, 0x1000, 0x1000, 0x1000, 0x0000, 0x0000,  // Y
    63. 0x7C00, 0x0400, 0x0800, 0x1000, 0x1000, 0x2000, 0x4000, 0x7C00, 0x0000, 0x0000,  // Z
    64. 0x1800, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1800,  // [
    65. 0x2000, 0x2000, 0x1000, 0x1000, 0x1000, 0x1000, 0x0800, 0x0800, 0x0000, 0x0000,  /* \ */
    66. 0x3000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x3000,  // ]
    67. 0x1000, 0x2800, 0x2800, 0x4400, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,  // ^
    68. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0xFE00,  // _
    69. 0x2000, 0x1000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,  // `
    70. 0x0000, 0x0000, 0x3800, 0x4400, 0x3C00, 0x4400, 0x4C00, 0x3400, 0x0000, 0x0000,  // a
    71. 0x4000, 0x4000, 0x5800, 0x6400, 0x4400, 0x4400, 0x6400, 0x5800, 0x0000, 0x0000,  // b
    72. 0x0000, 0x0000, 0x3800, 0x4400, 0x4000, 0x4000, 0x4400, 0x3800, 0x0000, 0x0000,  // c
    73. 0x0400, 0x0400, 0x3400, 0x4C00, 0x4400, 0x4400, 0x4C00, 0x3400, 0x0000, 0x0000,  // d
    74. 0x0000, 0x0000, 0x3800, 0x4400, 0x7C00, 0x4000, 0x4400, 0x3800, 0x0000, 0x0000,  // e
    75. 0x0C00, 0x1000, 0x7C00, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x0000, 0x0000,  // f
    76. 0x0000, 0x0000, 0x3400, 0x4C00, 0x4400, 0x4400, 0x4C00, 0x3400, 0x0400, 0x7800,  // g
    77. 0x4000, 0x4000, 0x5800, 0x6400, 0x4400, 0x4400, 0x4400, 0x4400, 0x0000, 0x0000,  // h
    78. 0x1000, 0x0000, 0x7000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x0000, 0x0000,  // i
    79. 0x1000, 0x0000, 0x7000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0xE000,  // j
    80. 0x4000, 0x4000, 0x4800, 0x5000, 0x6000, 0x5000, 0x4800, 0x4400, 0x0000, 0x0000,  // k
    81. 0x7000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x0000, 0x0000,  // l
    82. 0x0000, 0x0000, 0x7800, 0x5400, 0x5400, 0x5400, 0x5400, 0x5400, 0x0000, 0x0000,  // m
    83. 0x0000, 0x0000, 0x5800, 0x6400, 0x4400, 0x4400, 0x4400, 0x4400, 0x0000, 0x0000,  // n
    84. 0x0000, 0x0000, 0x3800, 0x4400, 0x4400, 0x4400, 0x4400, 0x3800, 0x0000, 0x0000,  // o
    85. 0x0000, 0x0000, 0x5800, 0x6400, 0x4400, 0x4400, 0x6400, 0x5800, 0x4000, 0x4000,  // p
    86. 0x0000, 0x0000, 0x3400, 0x4C00, 0x4400, 0x4400, 0x4C00, 0x3400, 0x0400, 0x0400,  // q
    87. 0x0000, 0x0000, 0x5800, 0x6400, 0x4000, 0x4000, 0x4000, 0x4000, 0x0000, 0x0000,  // r
    88. 0x0000, 0x0000, 0x3800, 0x4400, 0x3000, 0x0800, 0x4400, 0x3800, 0x0000, 0x0000,  // s
    89. 0x2000, 0x2000, 0x7800, 0x2000, 0x2000, 0x2000, 0x2000, 0x1800, 0x0000, 0x0000,  // t
    90. 0x0000, 0x0000, 0x4400, 0x4400, 0x4400, 0x4400, 0x4C00, 0x3400, 0x0000, 0x0000,  // u
    91. 0x0000, 0x0000, 0x4400, 0x4400, 0x2800, 0x2800, 0x2800, 0x1000, 0x0000, 0x0000,  // v
    92. 0x0000, 0x0000, 0x5400, 0x5400, 0x5400, 0x6C00, 0x2800, 0x2800, 0x0000, 0x0000,  // w
    93. 0x0000, 0x0000, 0x4400, 0x2800, 0x1000, 0x1000, 0x2800, 0x4400, 0x0000, 0x0000,  // x
    94. 0x0000, 0x0000, 0x4400, 0x4400, 0x2800, 0x2800, 0x1000, 0x1000, 0x1000, 0x6000,  // y
    95. 0x0000, 0x0000, 0x7C00, 0x0800, 0x1000, 0x2000, 0x4000, 0x7C00, 0x0000, 0x0000,  // z
    96. 0x1800, 0x1000, 0x1000, 0x1000, 0x2000, 0x2000, 0x1000, 0x1000, 0x1000, 0x1800,  // {
    97. 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000,  // |
    98. 0x3000, 0x1000, 0x1000, 0x1000, 0x0800, 0x0800, 0x1000, 0x1000, 0x1000, 0x3000,  // }
    99. 0x0000, 0x0000, 0x0000, 0x7400, 0x4C00, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,  // ~
    100. };
    102. static const uint16_t Font11x18 [] = {
    103. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,   // sp
    104. 0x0000, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0000, 0x0C00, 0x0C00, 0x0000, 0x0000, 0x0000,   // !
    105. 0x0000, 0x1B00, 0x1B00, 0x1B00, 0x1B00, 0x1B00, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,   // "
    106. 0x0000, 0x1980, 0x1980, 0x1980, 0x1980, 0x7FC0, 0x7FC0, 0x1980, 0x3300, 0x7FC0, 0x7FC0, 0x3300, 0x3300, 0x3300, 0x3300, 0x0000, 0x0000, 0x0000,   // #
    107. 0x0000, 0x1E00, 0x3F00, 0x7580, 0x6580, 0x7400, 0x3C00, 0x1E00, 0x0700, 0x0580, 0x6580, 0x6580, 0x7580, 0x3F00, 0x1E00, 0x0400, 0x0400, 0x0000,   // $
    108. 0x0000, 0x7000, 0xD800, 0xD840, 0xD8C0, 0xD980, 0x7300, 0x0600, 0x0C00, 0x1B80, 0x36C0, 0x66C0, 0x46C0, 0x06C0, 0x0380, 0x0000, 0x0000, 0x0000,   // %
    109. 0x0000, 0x1E00, 0x3F00, 0x3300, 0x3300, 0x3300, 0x1E00, 0x0C00, 0x3CC0, 0x66C0, 0x6380, 0x6180, 0x6380, 0x3EC0, 0x1C80, 0x0000, 0x0000, 0x0000,   // &
    110. 0x0000, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,   // '
    111. 0x0080, 0x0100, 0x0300, 0x0600, 0x0600, 0x0400, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0400, 0x0600, 0x0600, 0x0300, 0x0100, 0x0080,   // (
    112. 0x2000, 0x1000, 0x1800, 0x0C00, 0x0C00, 0x0400, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0400, 0x0C00, 0x0C00, 0x1800, 0x1000, 0x2000,   // )
    113. 0x0000, 0x0C00, 0x2D00, 0x3F00, 0x1E00, 0x3300, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,   // *
    114. 0x0000, 0x0000, 0x0000, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0xFFC0, 0xFFC0, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,   // +
    115. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0C00, 0x0C00, 0x0400, 0x0400, 0x0800,   // ,
    116. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x1E00, 0x1E00, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,   // -
    117. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0C00, 0x0C00, 0x0000, 0x0000, 0x0000,   // .
    118. 0x0000, 0x0300, 0x0300, 0x0300, 0x0600, 0x0600, 0x0600, 0x0600, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x1800, 0x1800, 0x1800, 0x0000, 0x0000, 0x0000,   // /
    119. 0x0000, 0x1E00, 0x3F00, 0x3300, 0x6180, 0x6180, 0x6180, 0x6D80, 0x6D80, 0x6180, 0x6180, 0x6180, 0x3300, 0x3F00, 0x1E00, 0x0000, 0x0000, 0x0000,   // 0
    120. 0x0000, 0x0600, 0x0E00, 0x1E00, 0x3600, 0x2600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0000, 0x0000, 0x0000,   // 1
    121. 0x0000, 0x1E00, 0x3F00, 0x7380, 0x6180, 0x6180, 0x0180, 0x0300, 0x0600, 0x0C00, 0x1800, 0x3000, 0x6000, 0x7F80, 0x7F80, 0x0000, 0x0000, 0x0000,   // 2
    122. 0x0000, 0x1C00, 0x3E00, 0x6300, 0x6300, 0x0300, 0x0E00, 0x0E00, 0x0300, 0x0180, 0x0180, 0x6180, 0x7380, 0x3F00, 0x1E00, 0x0000, 0x0000, 0x0000,   // 3
    123. 0x0000, 0x0600, 0x0E00, 0x0E00, 0x1E00, 0x1E00, 0x1600, 0x3600, 0x3600, 0x6600, 0x7F80, 0x7F80, 0x0600, 0x0600, 0x0600, 0x0000, 0x0000, 0x0000,   // 4
    124. 0x0000, 0x7F00, 0x7F00, 0x6000, 0x6000, 0x6000, 0x6E00, 0x7F00, 0x6380, 0x0180, 0x0180, 0x6180, 0x7380, 0x3F00, 0x1E00, 0x0000, 0x0000, 0x0000,   // 5
    125. 0x0000, 0x1E00, 0x3F00, 0x3380, 0x6180, 0x6000, 0x6E00, 0x7F00, 0x7380, 0x6180, 0x6180, 0x6180, 0x3380, 0x3F00, 0x1E00, 0x0000, 0x0000, 0x0000,   // 6
    126. 0x0000, 0x7F80, 0x7F80, 0x0180, 0x0300, 0x0300, 0x0600, 0x0600, 0x0C00, 0x0C00, 0x0C00, 0x0800, 0x1800, 0x1800, 0x1800, 0x0000, 0x0000, 0x0000,   // 7
    127. 0x0000, 0x1E00, 0x3F00, 0x6380, 0x6180, 0x6180, 0x2100, 0x1E00, 0x3F00, 0x6180, 0x6180, 0x6180, 0x6180, 0x3F00, 0x1E00, 0x0000, 0x0000, 0x0000,   // 8
    128. 0x0000, 0x1E00, 0x3F00, 0x7300, 0x6180, 0x6180, 0x6180, 0x7380, 0x3F80, 0x1D80, 0x0180, 0x6180, 0x7300, 0x3F00, 0x1E00, 0x0000, 0x0000, 0x0000,   // 9
    129. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0C00, 0x0C00, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0C00, 0x0C00, 0x0000, 0x0000, 0x0000,   // :
    130. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0C00, 0x0C00, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0C00, 0x0C00, 0x0400, 0x0400, 0x0800,   // ;
    131. 0x0000, 0x0000, 0x0000, 0x0000, 0x0080, 0x0380, 0x0E00, 0x3800, 0x6000, 0x3800, 0x0E00, 0x0380, 0x0080, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,   // <
    132. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x7F80, 0x7F80, 0x0000, 0x0000, 0x7F80, 0x7F80, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,   // =
    133. 0x0000, 0x0000, 0x0000, 0x0000, 0x4000, 0x7000, 0x1C00, 0x0700, 0x0180, 0x0700, 0x1C00, 0x7000, 0x4000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,   // >
    134. 0x0000, 0x1F00, 0x3F80, 0x71C0, 0x60C0, 0x00C0, 0x01C0, 0x0380, 0x0700, 0x0E00, 0x0C00, 0x0C00, 0x0000, 0x0C00, 0x0C00, 0x0000, 0x0000, 0x0000,   // ?
    135. 0x0000, 0x1E00, 0x3F00, 0x3180, 0x7180, 0x6380, 0x6F80, 0x6D80, 0x6D80, 0x6F80, 0x6780, 0x6000, 0x3200, 0x3E00, 0x1C00, 0x0000, 0x0000, 0x0000,   // @
    136. 0x0000, 0x0E00, 0x0E00, 0x1B00, 0x1B00, 0x1B00, 0x1B00, 0x3180, 0x3180, 0x3F80, 0x3F80, 0x3180, 0x60C0, 0x60C0, 0x60C0, 0x0000, 0x0000, 0x0000,   // A
    137. 0x0000, 0x7C00, 0x7E00, 0x6300, 0x6300, 0x6300, 0x6300, 0x7E00, 0x7E00, 0x6300, 0x6180, 0x6180, 0x6380, 0x7F00, 0x7E00, 0x0000, 0x0000, 0x0000,   // B
    138. 0x0000, 0x1E00, 0x3F00, 0x3180, 0x6180, 0x6000, 0x6000, 0x6000, 0x6000, 0x6000, 0x6000, 0x6180, 0x3180, 0x3F00, 0x1E00, 0x0000, 0x0000, 0x0000,   // C
    139. 0x0000, 0x7C00, 0x7F00, 0x6300, 0x6380, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6300, 0x6300, 0x7E00, 0x7C00, 0x0000, 0x0000, 0x0000,   // D
    140. 0x0000, 0x7F80, 0x7F80, 0x6000, 0x6000, 0x6000, 0x6000, 0x7F00, 0x7F00, 0x6000, 0x6000, 0x6000, 0x6000, 0x7F80, 0x7F80, 0x0000, 0x0000, 0x0000,   // E
    141. 0x0000, 0x7F80, 0x7F80, 0x6000, 0x6000, 0x6000, 0x6000, 0x7F00, 0x7F00, 0x6000, 0x6000, 0x6000, 0x6000, 0x6000, 0x6000, 0x0000, 0x0000, 0x0000,   // F
    142. 0x0000, 0x1E00, 0x3F00, 0x3180, 0x6180, 0x6000, 0x6000, 0x6000, 0x6380, 0x6380, 0x6180, 0x6180, 0x3180, 0x3F80, 0x1E00, 0x0000, 0x0000, 0x0000,   // G
    143. 0x0000, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x7F80, 0x7F80, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x0000, 0x0000, 0x0000,   // H
    144. 0x0000, 0x3F00, 0x3F00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x3F00, 0x3F00, 0x0000, 0x0000, 0x0000,   // I
    145. 0x0000, 0x0180, 0x0180, 0x0180, 0x0180, 0x0180, 0x0180, 0x0180, 0x0180, 0x0180, 0x6180, 0x6180, 0x7380, 0x3F00, 0x1E00, 0x0000, 0x0000, 0x0000,   // J
    146. 0x0000, 0x60C0, 0x6180, 0x6300, 0x6600, 0x6600, 0x6C00, 0x7800, 0x7C00, 0x6600, 0x6600, 0x6300, 0x6180, 0x6180, 0x60C0, 0x0000, 0x0000, 0x0000,   // K
    147. 0x0000, 0x6000, 0x6000, 0x6000, 0x6000, 0x6000, 0x6000, 0x6000, 0x6000, 0x6000, 0x6000, 0x6000, 0x6000, 0x7F80, 0x7F80, 0x0000, 0x0000, 0x0000,   // L
    148. 0x0000, 0x71C0, 0x71C0, 0x7BC0, 0x7AC0, 0x6AC0, 0x6AC0, 0x6EC0, 0x64C0, 0x60C0, 0x60C0, 0x60C0, 0x60C0, 0x60C0, 0x60C0, 0x0000, 0x0000, 0x0000,   // M
    149. 0x0000, 0x7180, 0x7180, 0x7980, 0x7980, 0x7980, 0x6D80, 0x6D80, 0x6D80, 0x6580, 0x6780, 0x6780, 0x6780, 0x6380, 0x6380, 0x0000, 0x0000, 0x0000,   // N
    150. 0x0000, 0x1E00, 0x3F00, 0x3300, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x3300, 0x3F00, 0x1E00, 0x0000, 0x0000, 0x0000,   // O
    151. 0x0000, 0x7E00, 0x7F00, 0x6380, 0x6180, 0x6180, 0x6180, 0x6380, 0x7F00, 0x7E00, 0x6000, 0x6000, 0x6000, 0x6000, 0x6000, 0x0000, 0x0000, 0x0000,   // P
    152. 0x0000, 0x1E00, 0x3F00, 0x3300, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6580, 0x6780, 0x3300, 0x3F80, 0x1E40, 0x0000, 0x0000, 0x0000,   // Q
    153. 0x0000, 0x7E00, 0x7F00, 0x6380, 0x6180, 0x6180, 0x6380, 0x7F00, 0x7E00, 0x6600, 0x6300, 0x6300, 0x6180, 0x6180, 0x60C0, 0x0000, 0x0000, 0x0000,   // R
    154. 0x0000, 0x0E00, 0x1F00, 0x3180, 0x3180, 0x3000, 0x3800, 0x1E00, 0x0700, 0x0380, 0x6180, 0x6180, 0x3180, 0x3F00, 0x1E00, 0x0000, 0x0000, 0x0000,   // S
    155. 0x0000, 0xFFC0, 0xFFC0, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0000, 0x0000, 0x0000,   // T
    156. 0x0000, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x7380, 0x3F00, 0x1E00, 0x0000, 0x0000, 0x0000,   // U
    157. 0x0000, 0x60C0, 0x60C0, 0x60C0, 0x3180, 0x3180, 0x3180, 0x1B00, 0x1B00, 0x1B00, 0x1B00, 0x0E00, 0x0E00, 0x0E00, 0x0400, 0x0000, 0x0000, 0x0000,   // V
    158. 0x0000, 0xC0C0, 0xC0C0, 0xC0C0, 0xC0C0, 0xC0C0, 0xCCC0, 0x4C80, 0x4C80, 0x5E80, 0x5280, 0x5280, 0x7380, 0x6180, 0x6180, 0x0000, 0x0000, 0x0000,   // W
    159. 0x0000, 0xC0C0, 0x6080, 0x6180, 0x3300, 0x3B00, 0x1E00, 0x0C00, 0x0C00, 0x1E00, 0x1F00, 0x3B00, 0x7180, 0x6180, 0xC0C0, 0x0000, 0x0000, 0x0000,   // X
    160. 0x0000, 0xC0C0, 0x6180, 0x6180, 0x3300, 0x3300, 0x1E00, 0x1E00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0000, 0x0000, 0x0000,   // Y
    161. 0x0000, 0x3F80, 0x3F80, 0x0180, 0x0300, 0x0300, 0x0600, 0x0C00, 0x0C00, 0x1800, 0x1800, 0x3000, 0x6000, 0x7F80, 0x7F80, 0x0000, 0x0000, 0x0000,   // Z
    162. 0x0F00, 0x0F00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0F00, 0x0F00,   // [
    163. 0x0000, 0x1800, 0x1800, 0x1800, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0600, 0x0600, 0x0600, 0x0600, 0x0300, 0x0300, 0x0300, 0x0000, 0x0000, 0x0000,   /* \ */
    164. 0x1E00, 0x1E00, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x1E00, 0x1E00,   // ]
    165. 0x0000, 0x0C00, 0x0C00, 0x1E00, 0x1200, 0x3300, 0x3300, 0x6180, 0x6180, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,   // ^
    166. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0xFFE0, 0x0000,   // _
    167. 0x0000, 0x3800, 0x1800, 0x0C00, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,   // `
    168. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x1F00, 0x3F80, 0x6180, 0x0180, 0x1F80, 0x3F80, 0x6180, 0x6380, 0x7F80, 0x38C0, 0x0000, 0x0000, 0x0000,   // a
    169. 0x0000, 0x6000, 0x6000, 0x6000, 0x6000, 0x6E00, 0x7F00, 0x7380, 0x6180, 0x6180, 0x6180, 0x6180, 0x7380, 0x7F00, 0x6E00, 0x0000, 0x0000, 0x0000,   // b
    170. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x1E00, 0x3F00, 0x7380, 0x6180, 0x6000, 0x6000, 0x6180, 0x7380, 0x3F00, 0x1E00, 0x0000, 0x0000, 0x0000,   // c
    171. 0x0000, 0x0180, 0x0180, 0x0180, 0x0180, 0x1D80, 0x3F80, 0x7380, 0x6180, 0x6180, 0x6180, 0x6180, 0x7380, 0x3F80, 0x1D80, 0x0000, 0x0000, 0x0000,   // d
    172. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x1E00, 0x3F00, 0x7300, 0x6180, 0x7F80, 0x7F80, 0x6000, 0x7180, 0x3F00, 0x1E00, 0x0000, 0x0000, 0x0000,   // e
    173. 0x0000, 0x07C0, 0x0FC0, 0x0C00, 0x0C00, 0x7F80, 0x7F80, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0000, 0x0000, 0x0000,   // f
    174. 0x0000, 0x0000, 0x0000, 0x0000, 0x1D80, 0x3F80, 0x7380, 0x6180, 0x6180, 0x6180, 0x6180, 0x7380, 0x3F80, 0x1D80, 0x0180, 0x6380, 0x7F00, 0x3E00,   // g
    175. 0x0000, 0x6000, 0x6000, 0x6000, 0x6000, 0x6F00, 0x7F80, 0x7180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x0000, 0x0000, 0x0000,   // h
    176. 0x0000, 0x0600, 0x0600, 0x0000, 0x0000, 0x3E00, 0x3E00, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0000, 0x0000, 0x0000,   // i
    177. 0x0600, 0x0600, 0x0000, 0x0000, 0x3E00, 0x3E00, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x4600, 0x7E00, 0x3C00,   // j
    178. 0x0000, 0x6000, 0x6000, 0x6000, 0x6000, 0x6180, 0x6300, 0x6600, 0x6C00, 0x7C00, 0x7600, 0x6300, 0x6300, 0x6180, 0x60C0, 0x0000, 0x0000, 0x0000,   // k
    179. 0x0000, 0x3E00, 0x3E00, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0000, 0x0000, 0x0000,   // l
    180. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0xDD80, 0xFFC0, 0xCEC0, 0xCCC0, 0xCCC0, 0xCCC0, 0xCCC0, 0xCCC0, 0xCCC0, 0xCCC0, 0x0000, 0x0000, 0x0000,   // m
    181. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x6F00, 0x7F80, 0x7180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x0000, 0x0000, 0x0000,   // n
    182. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x1E00, 0x3F00, 0x7380, 0x6180, 0x6180, 0x6180, 0x6180, 0x7380, 0x3F00, 0x1E00, 0x0000, 0x0000, 0x0000,   // o
    183. 0x0000, 0x0000, 0x0000, 0x0000, 0x6E00, 0x7F00, 0x7380, 0x6180, 0x6180, 0x6180, 0x6180, 0x7380, 0x7F00, 0x6E00, 0x6000, 0x6000, 0x6000, 0x6000,   // p
    184. 0x0000, 0x0000, 0x0000, 0x0000, 0x1D80, 0x3F80, 0x7380, 0x6180, 0x6180, 0x6180, 0x6180, 0x7380, 0x3F80, 0x1D80, 0x0180, 0x0180, 0x0180, 0x0180,   // q
    185. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x6700, 0x3F80, 0x3900, 0x3000, 0x3000, 0x3000, 0x3000, 0x3000, 0x3000, 0x3000, 0x0000, 0x0000, 0x0000,   // r
    186. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x1E00, 0x3F80, 0x6180, 0x6000, 0x7F00, 0x3F80, 0x0180, 0x6180, 0x7F00, 0x1E00, 0x0000, 0x0000, 0x0000,   // s
    187. 0x0000, 0x0000, 0x0800, 0x1800, 0x1800, 0x7F00, 0x7F00, 0x1800, 0x1800, 0x1800, 0x1800, 0x1800, 0x1800, 0x1F80, 0x0F80, 0x0000, 0x0000, 0x0000,   // t
    188. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6180, 0x6380, 0x7F80, 0x3D80, 0x0000, 0x0000, 0x0000,   // u
    189. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x60C0, 0x3180, 0x3180, 0x3180, 0x1B00, 0x1B00, 0x1B00, 0x0E00, 0x0E00, 0x0600, 0x0000, 0x0000, 0x0000,   // v
    190. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0xDD80, 0xDD80, 0xDD80, 0x5500, 0x5500, 0x5500, 0x7700, 0x7700, 0x2200, 0x2200, 0x0000, 0x0000, 0x0000,   // w
    191. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x6180, 0x3300, 0x3300, 0x1E00, 0x0C00, 0x0C00, 0x1E00, 0x3300, 0x3300, 0x6180, 0x0000, 0x0000, 0x0000,   // x
    192. 0x0000, 0x0000, 0x0000, 0x0000, 0x6180, 0x6180, 0x3180, 0x3300, 0x3300, 0x1B00, 0x1B00, 0x1B00, 0x0E00, 0x0E00, 0x0E00, 0x1C00, 0x7C00, 0x7000,   // y
    193. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x7FC0, 0x7FC0, 0x0180, 0x0300, 0x0600, 0x0C00, 0x1800, 0x3000, 0x7FC0, 0x7FC0, 0x0000, 0x0000, 0x0000,   // z
    194. 0x0380, 0x0780, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0E00, 0x1C00, 0x1C00, 0x0E00, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0780, 0x0380,   // {
    195. 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600, 0x0600,   // |
    196. 0x3800, 0x3C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0E00, 0x0700, 0x0700, 0x0E00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x0C00, 0x3C00, 0x3800,   // }
    197. 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x3880, 0x7F80, 0x4700, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,   // ~
    198. };
    200. static const uint16_t Font16x26 [] = {
    201. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [ ]
    202. 0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03C0,0x03C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x0000,0x0000,0x0000,0x03E0,0x03E0,0x03E0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [!]
    203. 0x1E3C,0x1E3C,0x1E3C,0x1E3C,0x1E3C,0x1E3C,0x1E3C,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = ["]
    204. 0x01CE,0x03CE,0x03DE,0x039E,0x039C,0x079C,0x3FFF,0x7FFF,0x0738,0x0F38,0x0F78,0x0F78,0x0E78,0xFFFF,0xFFFF,0x1EF0,0x1CF0,0x1CE0,0x3CE0,0x3DE0,0x39E0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [#]
    205. 0x03FC,0x0FFE,0x1FEE,0x1EE0,0x1EE0,0x1EE0,0x1EE0,0x1FE0,0x0FE0,0x07E0,0x03F0,0x01FC,0x01FE,0x01FE,0x01FE,0x01FE,0x01FE,0x01FE,0x3DFE,0x3FFC,0x0FF0,0x01E0,0x01E0,0x0000,0x0000,0x0000, // Ascii = [$]
    206. 0x3E03,0xF707,0xE78F,0xE78E,0xE39E,0xE3BC,0xE7B8,0xE7F8,0xF7F0,0x3FE0,0x01C0,0x03FF,0x07FF,0x07F3,0x0FF3,0x1EF3,0x3CF3,0x38F3,0x78F3,0xF07F,0xE03F,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [%]
    207. 0x07E0,0x0FF8,0x0F78,0x1F78,0x1F78,0x1F78,0x0F78,0x0FF0,0x0FE0,0x1F80,0x7FC3,0xFBC3,0xF3E7,0xF1F7,0xF0F7,0xF0FF,0xF07F,0xF83E,0x7C7F,0x3FFF,0x1FEF,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [&]
    208. 0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03C0,0x01C0,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [']
    209. 0x003F,0x007C,0x01F0,0x01E0,0x03C0,0x07C0,0x0780,0x0780,0x0F80,0x0F00,0x0F00,0x0F00,0x0F00,0x0F00,0x0F00,0x0F80,0x0780,0x0780,0x07C0,0x03C0,0x01E0,0x01F0,0x007C,0x003F,0x000F,0x0000, // Ascii = [(]
    210. 0x7E00,0x1F00,0x07C0,0x03C0,0x01E0,0x01F0,0x00F0,0x00F0,0x00F8,0x0078,0x0078,0x0078,0x0078,0x0078,0x0078,0x00F8,0x00F0,0x00F0,0x01F0,0x01E0,0x03C0,0x07C0,0x1F00,0x7E00,0x7800,0x0000, // Ascii = [)]
    211. 0x03E0,0x03C0,0x01C0,0x39CE,0x3FFF,0x3F7F,0x0320,0x0370,0x07F8,0x0F78,0x1F3C,0x0638,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [*]
    212. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0xFFFF,0xFFFF,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [+]
    213. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x03E0,0x03E0,0x03E0,0x03E0,0x01E0,0x01E0,0x01E0,0x01C0,0x0380, // Ascii = [,]
    214. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x3FFE,0x3FFE,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [-]
    215. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x03E0,0x03E0,0x03E0,0x03E0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [.]
    216. 0x000F,0x000F,0x001E,0x001E,0x003C,0x003C,0x0078,0x0078,0x00F0,0x00F0,0x01E0,0x01E0,0x03C0,0x03C0,0x0780,0x0780,0x0F00,0x0F00,0x1E00,0x1E00,0x3C00,0x3C00,0x7800,0x7800,0xF000,0x0000, // Ascii = [/]
    217. 0x07F0,0x0FF8,0x1F7C,0x3E3E,0x3C1E,0x7C1F,0x7C1F,0x780F,0x780F,0x780F,0x780F,0x780F,0x780F,0x780F,0x7C1F,0x7C1F,0x3C1E,0x3E3E,0x1F7C,0x0FF8,0x07F0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [0]
    218. 0x00F0,0x07F0,0x3FF0,0x3FF0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x3FFF,0x3FFF,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [1]
    219. 0x0FE0,0x3FF8,0x3C7C,0x003C,0x003E,0x003E,0x003E,0x003C,0x003C,0x007C,0x00F8,0x01F0,0x03E0,0x07C0,0x0780,0x0F00,0x1E00,0x3E00,0x3C00,0x3FFE,0x3FFE,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [2]
    220. 0x0FF0,0x1FF8,0x1C7C,0x003E,0x003E,0x003E,0x003C,0x003C,0x00F8,0x0FF0,0x0FF8,0x007C,0x003E,0x001E,0x001E,0x001E,0x001E,0x003E,0x1C7C,0x1FF8,0x1FE0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [3]
    221. 0x0078,0x00F8,0x00F8,0x01F8,0x03F8,0x07F8,0x07F8,0x0F78,0x1E78,0x1E78,0x3C78,0x7878,0x7878,0xFFFF,0xFFFF,0x0078,0x0078,0x0078,0x0078,0x0078,0x0078,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [4]
    222. 0x1FFC,0x1FFC,0x1FFC,0x1E00,0x1E00,0x1E00,0x1E00,0x1E00,0x1FE0,0x1FF8,0x00FC,0x007C,0x003E,0x003E,0x001E,0x003E,0x003E,0x003C,0x1C7C,0x1FF8,0x1FE0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [5]
    223. 0x01FC,0x07FE,0x0F8E,0x1F00,0x1E00,0x3E00,0x3C00,0x3C00,0x3DF8,0x3FFC,0x7F3E,0x7E1F,0x3C0F,0x3C0F,0x3C0F,0x3C0F,0x3E0F,0x1E1F,0x1F3E,0x0FFC,0x03F0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [6]
    224. 0x3FFF,0x3FFF,0x3FFF,0x000F,0x001E,0x001E,0x003C,0x0038,0x0078,0x00F0,0x00F0,0x01E0,0x01E0,0x03C0,0x03C0,0x0780,0x0F80,0x0F80,0x0F00,0x1F00,0x1F00,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [7]
    225. 0x07F8,0x0FFC,0x1F3E,0x1E1E,0x3E1E,0x3E1E,0x1E1E,0x1F3C,0x0FF8,0x07F0,0x0FF8,0x1EFC,0x3E3E,0x3C1F,0x7C1F,0x7C0F,0x7C0F,0x3C1F,0x3F3E,0x1FFC,0x07F0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [8]
    226. 0x07F0,0x0FF8,0x1E7C,0x3C3E,0x3C1E,0x7C1F,0x7C1F,0x7C1F,0x7C1F,0x3C1F,0x3E3F,0x1FFF,0x07EF,0x001F,0x001E,0x001E,0x003E,0x003C,0x38F8,0x3FF0,0x1FE0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [9]
    227. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x03E0,0x03E0,0x03E0,0x03E0,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x03E0,0x03E0,0x03E0,0x03E0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [:]
    228. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x03E0,0x03E0,0x03E0,0x03E0,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x03E0,0x03E0,0x03E0,0x03E0,0x01E0,0x01E0,0x01E0,0x03C0,0x0380, // Ascii = [;]
    229. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0003,0x000F,0x003F,0x00FC,0x03F0,0x0FC0,0x3F00,0xFE00,0x3F00,0x0FC0,0x03F0,0x00FC,0x003F,0x000F,0x0003,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [<]
    230. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0xFFFF,0xFFFF,0x0000,0x0000,0x0000,0xFFFF,0xFFFF,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [=]
    231. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0xE000,0xF800,0x7E00,0x1F80,0x07E0,0x01F8,0x007E,0x001F,0x007E,0x01F8,0x07E0,0x1F80,0x7E00,0xF800,0xE000,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [>]
    232. 0x1FF0,0x3FFC,0x383E,0x381F,0x381F,0x001E,0x001E,0x003C,0x0078,0x00F0,0x01E0,0x03C0,0x03C0,0x07C0,0x07C0,0x0000,0x0000,0x0000,0x07C0,0x07C0,0x07C0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [?]
    233. 0x03F8,0x0FFE,0x1F1E,0x3E0F,0x3C7F,0x78FF,0x79EF,0x73C7,0xF3C7,0xF38F,0xF38F,0xF38F,0xF39F,0xF39F,0x73FF,0x7BFF,0x79F7,0x3C00,0x1F1C,0x0FFC,0x03F8,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [@]
    234. 0x0000,0x0000,0x0000,0x03E0,0x03E0,0x07F0,0x07F0,0x07F0,0x0F78,0x0F78,0x0E7C,0x1E3C,0x1E3C,0x3C3E,0x3FFE,0x3FFF,0x781F,0x780F,0xF00F,0xF007,0xF007,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [A]
    235. 0x0000,0x0000,0x0000,0x3FF8,0x3FFC,0x3C3E,0x3C1E,0x3C1E,0x3C1E,0x3C3E,0x3C7C,0x3FF0,0x3FF8,0x3C7E,0x3C1F,0x3C1F,0x3C0F,0x3C0F,0x3C1F,0x3FFE,0x3FF8,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [B]
    236. 0x0000,0x0000,0x0000,0x01FF,0x07FF,0x1F87,0x3E00,0x3C00,0x7C00,0x7800,0x7800,0x7800,0x7800,0x7800,0x7C00,0x7C00,0x3E00,0x3F00,0x1F83,0x07FF,0x01FF,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [C]
    237. 0x0000,0x0000,0x0000,0x7FF0,0x7FFC,0x787E,0x781F,0x781F,0x780F,0x780F,0x780F,0x780F,0x780F,0x780F,0x780F,0x780F,0x781F,0x781E,0x787E,0x7FF8,0x7FE0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [D]
    238. 0x0000,0x0000,0x0000,0x3FFF,0x3FFF,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3FFE,0x3FFE,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3FFF,0x3FFF,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [E]
    239. 0x0000,0x0000,0x0000,0x1FFF,0x1FFF,0x1E00,0x1E00,0x1E00,0x1E00,0x1E00,0x1E00,0x1FFF,0x1FFF,0x1E00,0x1E00,0x1E00,0x1E00,0x1E00,0x1E00,0x1E00,0x1E00,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [F]
    240. 0x0000,0x0000,0x0000,0x03FE,0x0FFF,0x1F87,0x3E00,0x7C00,0x7C00,0x7800,0xF800,0xF800,0xF87F,0xF87F,0x780F,0x7C0F,0x7C0F,0x3E0F,0x1F8F,0x0FFF,0x03FE,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [G]
    241. 0x0000,0x0000,0x0000,0x7C1F,0x7C1F,0x7C1F,0x7C1F,0x7C1F,0x7C1F,0x7C1F,0x7C1F,0x7FFF,0x7FFF,0x7C1F,0x7C1F,0x7C1F,0x7C1F,0x7C1F,0x7C1F,0x7C1F,0x7C1F,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [H]
    242. 0x0000,0x0000,0x0000,0x3FFF,0x3FFF,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x3FFF,0x3FFF,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [I]
    243. 0x0000,0x0000,0x0000,0x1FFC,0x1FFC,0x007C,0x007C,0x007C,0x007C,0x007C,0x007C,0x007C,0x007C,0x007C,0x007C,0x007C,0x0078,0x0078,0x38F8,0x3FF0,0x3FC0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [J]
    244. 0x0000,0x0000,0x0000,0x3C1F,0x3C1E,0x3C3C,0x3C78,0x3CF0,0x3DE0,0x3FE0,0x3FC0,0x3F80,0x3FC0,0x3FE0,0x3DF0,0x3CF0,0x3C78,0x3C7C,0x3C3E,0x3C1F,0x3C0F,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [K]
    245. 0x0000,0x0000,0x0000,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3FFF,0x3FFF,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [L]
    246. 0x0000,0x0000,0x0000,0xF81F,0xFC1F,0xFC1F,0xFE3F,0xFE3F,0xFE3F,0xFF7F,0xFF77,0xFF77,0xF7F7,0xF7E7,0xF3E7,0xF3E7,0xF3C7,0xF007,0xF007,0xF007,0xF007,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [M]
    247. 0x0000,0x0000,0x0000,0x7C0F,0x7C0F,0x7E0F,0x7F0F,0x7F0F,0x7F8F,0x7F8F,0x7FCF,0x7BEF,0x79EF,0x79FF,0x78FF,0x78FF,0x787F,0x783F,0x783F,0x781F,0x781F,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [N]
    248. 0x0000,0x0000,0x0000,0x07F0,0x1FFC,0x3E3E,0x7C1F,0x780F,0x780F,0xF80F,0xF80F,0xF80F,0xF80F,0xF80F,0xF80F,0x780F,0x780F,0x7C1F,0x3E3E,0x1FFC,0x07F0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [O]
    249. 0x0000,0x0000,0x0000,0x3FFC,0x3FFF,0x3E1F,0x3E0F,0x3E0F,0x3E0F,0x3E0F,0x3E1F,0x3E3F,0x3FFC,0x3FF0,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x3E00,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [P]
    250. 0x0000,0x0000,0x0000,0x07F0,0x1FFC,0x3E3E,0x7C1F,0x780F,0x780F,0xF80F,0xF80F,0xF80F,0xF80F,0xF80F,0xF80F,0x780F,0x780F,0x7C1F,0x3E3E,0x1FFC,0x07F8,0x007C,0x003F,0x000F,0x0003,0x0000, // Ascii = [Q]
    251. 0x0000,0x0000,0x0000,0x3FF0,0x3FFC,0x3C7E,0x3C3E,0x3C1E,0x3C1E,0x3C3E,0x3C3C,0x3CFC,0x3FF0,0x3FE0,0x3DF0,0x3CF8,0x3C7C,0x3C3E,0x3C1E,0x3C1F,0x3C0F,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [R]
    252. 0x0000,0x0000,0x0000,0x07FC,0x1FFE,0x3E0E,0x3C00,0x3C00,0x3C00,0x3E00,0x1FC0,0x0FF8,0x03FE,0x007F,0x001F,0x000F,0x000F,0x201F,0x3C3E,0x3FFC,0x1FF0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [S]
    253. 0x0000,0x0000,0x0000,0xFFFF,0xFFFF,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [T]
    254. 0x0000,0x0000,0x0000,0x7C0F,0x7C0F,0x7C0F,0x7C0F,0x7C0F,0x7C0F,0x7C0F,0x7C0F,0x7C0F,0x7C0F,0x7C0F,0x7C0F,0x7C0F,0x3C1E,0x3C1E,0x3E3E,0x1FFC,0x07F0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [U]
    255. 0x0000,0x0000,0x0000,0xF007,0xF007,0xF807,0x780F,0x7C0F,0x3C1E,0x3C1E,0x3E1E,0x1E3C,0x1F3C,0x1F78,0x0F78,0x0FF8,0x07F0,0x07F0,0x07F0,0x03E0,0x03E0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [V]
    256. 0x0000,0x0000,0x0000,0xE003,0xF003,0xF003,0xF007,0xF3E7,0xF3E7,0xF3E7,0x73E7,0x7BF7,0x7FF7,0x7FFF,0x7F7F,0x7F7F,0x7F7E,0x3F7E,0x3E3E,0x3E3E,0x3E3E,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [W]
    257. 0x0000,0x0000,0x0000,0xF807,0x7C0F,0x3E1E,0x3E3E,0x1F3C,0x0FF8,0x07F0,0x07E0,0x03E0,0x03E0,0x07F0,0x0FF8,0x0F7C,0x1E7C,0x3C3E,0x781F,0x780F,0xF00F,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [X]
    258. 0x0000,0x0000,0x0000,0xF807,0x7807,0x7C0F,0x3C1E,0x3E1E,0x1F3C,0x0F78,0x0FF8,0x07F0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x03E0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [Y]
    259. 0x0000,0x0000,0x0000,0x7FFF,0x7FFF,0x000F,0x001F,0x003E,0x007C,0x00F8,0x00F0,0x01E0,0x03E0,0x07C0,0x0F80,0x0F00,0x1E00,0x3E00,0x7C00,0x7FFF,0x7FFF,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [Z]
    260. 0x07FF,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x07FF,0x07FF,0x0000, // Ascii = [[]
    261. 0x7800,0x7800,0x3C00,0x3C00,0x1E00,0x1E00,0x0F00,0x0F00,0x0780,0x0780,0x03C0,0x03C0,0x01E0,0x01E0,0x00F0,0x00F0,0x0078,0x0078,0x003C,0x003C,0x001E,0x001E,0x000F,0x000F,0x0007,0x0000, // Ascii = [\]
    262. 0x7FF0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x00F0,0x7FF0,0x7FF0,0x0000, // Ascii = []]
    263. 0x00C0,0x01C0,0x01C0,0x03E0,0x03E0,0x07F0,0x07F0,0x0778,0x0F78,0x0F38,0x1E3C,0x1E3C,0x3C1E,0x3C1E,0x380F,0x780F,0x7807,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [^]
    264. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0xFFFF,0xFFFF,0x0000,0x0000,0x0000, // Ascii = [_]
    265. 0x00F0,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [`]
    266. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0FF8,0x3FFC,0x3C7C,0x003E,0x003E,0x003E,0x07FE,0x1FFE,0x3E3E,0x7C3E,0x783E,0x7C3E,0x7C7E,0x3FFF,0x1FCF,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [a]
    267. 0x3C00,0x3C00,0x3C00,0x3C00,0x3C00,0x3C00,0x3DF8,0x3FFE,0x3F3E,0x3E1F,0x3C0F,0x3C0F,0x3C0F,0x3C0F,0x3C0F,0x3C0F,0x3C1F,0x3C1E,0x3F3E,0x3FFC,0x3BF0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [b]
    268. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x03FE,0x0FFF,0x1F87,0x3E00,0x3E00,0x3C00,0x7C00,0x7C00,0x7C00,0x3C00,0x3E00,0x3E00,0x1F87,0x0FFF,0x03FE,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [c]
    269. 0x001F,0x001F,0x001F,0x001F,0x001F,0x001F,0x07FF,0x1FFF,0x3E3F,0x3C1F,0x7C1F,0x7C1F,0x7C1F,0x781F,0x781F,0x7C1F,0x7C1F,0x3C3F,0x3E7F,0x1FFF,0x0FDF,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [d]
    270. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x03F8,0x0FFC,0x1F3E,0x3E1E,0x3C1F,0x7C1F,0x7FFF,0x7FFF,0x7C00,0x7C00,0x3C00,0x3E00,0x1F07,0x0FFF,0x03FE,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [e]
    271. 0x01FF,0x03E1,0x03C0,0x07C0,0x07C0,0x07C0,0x7FFF,0x7FFF,0x07C0,0x07C0,0x07C0,0x07C0,0x07C0,0x07C0,0x07C0,0x07C0,0x07C0,0x07C0,0x07C0,0x07C0,0x07C0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [f]
    272. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x07EF,0x1FFF,0x3E7F,0x3C1F,0x7C1F,0x7C1F,0x781F,0x781F,0x781F,0x7C1F,0x7C1F,0x3C3F,0x3E7F,0x1FFF,0x0FDF,0x001E,0x001E,0x001E,0x387C,0x3FF8, // Ascii = [g]
    273. 0x3C00,0x3C00,0x3C00,0x3C00,0x3C00,0x3C00,0x3DFC,0x3FFE,0x3F9E,0x3F1F,0x3E1F,0x3C1F,0x3C1F,0x3C1F,0x3C1F,0x3C1F,0x3C1F,0x3C1F,0x3C1F,0x3C1F,0x3C1F,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [h]
    274. 0x01F0,0x01F0,0x0000,0x0000,0x0000,0x0000,0x7FE0,0x7FE0,0x01E0,0x01E0,0x01E0,0x01E0,0x01E0,0x01E0,0x01E0,0x01E0,0x01E0,0x01E0,0x01E0,0x01E0,0x01E0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [i]
    275. 0x00F8,0x00F8,0x0000,0x0000,0x0000,0x0000,0x3FF8,0x3FF8,0x00F8,0x00F8,0x00F8,0x00F8,0x00F8,0x00F8,0x00F8,0x00F8,0x00F8,0x00F8,0x00F8,0x00F8,0x00F8,0x00F8,0x00F8,0x00F0,0x71F0,0x7FE0, // Ascii = [j]
    276. 0x3C00,0x3C00,0x3C00,0x3C00,0x3C00,0x3C00,0x3C1F,0x3C3E,0x3C7C,0x3CF8,0x3DF0,0x3DE0,0x3FC0,0x3FC0,0x3FE0,0x3DF0,0x3CF8,0x3C7C,0x3C3E,0x3C1F,0x3C1F,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [k]
    277. 0x7FF0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x01F0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [l]
    278. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0xF79E,0xFFFF,0xFFFF,0xFFFF,0xFBE7,0xF9E7,0xF1C7,0xF1C7,0xF1C7,0xF1C7,0xF1C7,0xF1C7,0xF1C7,0xF1C7,0xF1C7,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [m]
    279. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x3DFC,0x3FFE,0x3F9E,0x3F1F,0x3E1F,0x3C1F,0x3C1F,0x3C1F,0x3C1F,0x3C1F,0x3C1F,0x3C1F,0x3C1F,0x3C1F,0x3C1F,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [n]
    280. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x07F0,0x1FFC,0x3E3E,0x3C1F,0x7C1F,0x780F,0x780F,0x780F,0x780F,0x780F,0x7C1F,0x3C1F,0x3E3E,0x1FFC,0x07F0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [o]
    281. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x3DF8,0x3FFE,0x3F3E,0x3E1F,0x3C0F,0x3C0F,0x3C0F,0x3C0F,0x3C0F,0x3C0F,0x3C1F,0x3E1E,0x3F3E,0x3FFC,0x3FF8,0x3C00,0x3C00,0x3C00,0x3C00,0x3C00, // Ascii = [p]
    282. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x07EE,0x1FFE,0x3E7E,0x3C1E,0x7C1E,0x781E,0x781E,0x781E,0x781E,0x781E,0x7C1E,0x7C3E,0x3E7E,0x1FFE,0x0FDE,0x001E,0x001E,0x001E,0x001E,0x001E, // Ascii = [q]
    283. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x1F7F,0x1FFF,0x1FE7,0x1FC7,0x1F87,0x1F00,0x1F00,0x1F00,0x1F00,0x1F00,0x1F00,0x1F00,0x1F00,0x1F00,0x1F00,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [r]
    284. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x07FC,0x1FFE,0x1E0E,0x3E00,0x3E00,0x3F00,0x1FE0,0x07FC,0x00FE,0x003E,0x001E,0x001E,0x3C3E,0x3FFC,0x1FF0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [s]
    285. 0x0000,0x0000,0x0000,0x0780,0x0780,0x0780,0x7FFF,0x7FFF,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x0780,0x07C0,0x03FF,0x01FF,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [t]
    286. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x3C1E,0x3C1E,0x3C1E,0x3C1E,0x3C1E,0x3C1E,0x3C1E,0x3C1E,0x3C1E,0x3C1E,0x3C3E,0x3C7E,0x3EFE,0x1FFE,0x0FDE,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [u]
    287. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0xF007,0x780F,0x780F,0x3C1E,0x3C1E,0x3E1E,0x1E3C,0x1E3C,0x0F78,0x0F78,0x0FF0,0x07F0,0x07F0,0x03E0,0x03E0,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [v]
    288. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0xF003,0xF1E3,0xF3E3,0xF3E7,0xF3F7,0xF3F7,0x7FF7,0x7F77,0x7F7F,0x7F7F,0x7F7F,0x3E3E,0x3E3E,0x3E3E,0x3E3E,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [w]
    289. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x7C0F,0x3E1E,0x3E3C,0x1F3C,0x0FF8,0x07F0,0x07F0,0x03E0,0x07F0,0x07F8,0x0FF8,0x1E7C,0x3E3E,0x3C1F,0x781F,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [x]
    290. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0xF807,0x780F,0x7C0F,0x3C1E,0x3C1E,0x1E3C,0x1E3C,0x1F3C,0x0F78,0x0FF8,0x07F0,0x07F0,0x03E0,0x03E0,0x03C0,0x03C0,0x03C0,0x0780,0x0F80,0x7F00, // Ascii = [y]
    291. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x3FFF,0x3FFF,0x001F,0x003E,0x007C,0x00F8,0x01F0,0x03E0,0x07C0,0x0F80,0x1F00,0x1E00,0x3C00,0x7FFF,0x7FFF,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [z]
    292. 0x01FE,0x03E0,0x03C0,0x03C0,0x03C0,0x03C0,0x01E0,0x01E0,0x01E0,0x01C0,0x03C0,0x3F80,0x3F80,0x03C0,0x01C0,0x01E0,0x01E0,0x01E0,0x03C0,0x03C0,0x03C0,0x03C0,0x03E0,0x01FE,0x007E,0x0000, // Ascii = [{]
    293. 0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x01C0,0x0000, // Ascii = [|]
    294. 0x3FC0,0x03E0,0x01E0,0x01E0,0x01E0,0x01E0,0x01C0,0x03C0,0x03C0,0x01C0,0x01E0,0x00FE,0x00FE,0x01E0,0x01C0,0x03C0,0x03C0,0x01C0,0x01E0,0x01E0,0x01E0,0x01E0,0x03E0,0x3FC0,0x3F00,0x0000, // Ascii = [}]
    295. 0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x3F07,0x7FC7,0x73E7,0xF1FF,0xF07E,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000,0x0000, // Ascii = [~]
    296. };
    297.
    298.
    299. FontDef Font_7x10 = {7,10,Font7x10};
    300. FontDef Font_11x18 = {11,18,Font11x18};
    301. FontDef Font_16x26 = {16,26,Font16x26};
    1. /* vim: set ai et ts=4 sw=4: */
    2. #ifndef __ST7735_H__
    3. #define __ST7735_H__
    4.
    5. #include "fonts.h"
    6. #include <stdbool.h>
    7.
    8. #define ST7735_MADCTL_MY  0x80
    9. #define ST7735_MADCTL_MX  0x40
    10. #define ST7735_MADCTL_MV  0x20
    11. #define ST7735_MADCTL_ML  0x10
    12. #define ST7735_MADCTL_RGB 0x00
    13. #define ST7735_MADCTL_BGR 0x08
    14. #define ST7735_MADCTL_MH  0x04
    15.
    16. /*** Redefine if necessary ***/
    17. #define ST7735_SPI_PORT hspi1
    18. extern SPI_HandleTypeDef ST7735_SPI_PORT;
    19.
    20.
    21. //#define LCD_RST_Pin GPIO_PIN_3
    22. //#define LCD_RST_GPIO_Port GPIOB
    23. //#define LCD_DC_Pin GPIO_PIN_4
    24. //#define LCD_DC_GPIO_Port GPIOB
    25. //#define LCD_CS_Pin GPIO_PIN_5
    26. //#define LCD_CS_GPIO_Port GPIOB
    27.
    28. #define ST7735_RES_Pin       GPIO_PIN_3
    29. #define ST7735_RES_GPIO_Port GPIOB
    30. #define ST7735_CS_Pin        GPIO_PIN_5
    31. #define ST7735_CS_GPIO_Port  GPIOB
    32. #define ST7735_DC_Pin        GPIO_PIN_4
    33. #define ST7735_DC_GPIO_Port  GPIOB
    34.
    35. // AliExpress/eBay 1.8" display, default orientation
    37. #define ST7735_IS_160X128 1
    38. #define ST7735_WIDTH  128
    39. #define ST7735_HEIGHT 160
    40. #define ST7735_XSTART 0
    41. #define ST7735_YSTART 0
    42. #define ST7735_ROTATION (ST7735_MADCTL_MX | ST7735_MADCTL_MY)
    45. // AliExpress/eBay 1.8" display, rotate right
    46. /*
    47. #define ST7735_IS_160X128 1
    48. #define ST7735_WIDTH  160
    49. #define ST7735_HEIGHT 128
    50. #define ST7735_XSTART 0
    51. #define ST7735_YSTART 0
    52. #define ST7735_ROTATION (ST7735_MADCTL_MY | ST7735_MADCTL_MV)
    53. */
    54.
    55. // AliExpress/eBay 1.8" display, rotate left
    56. /*
    57. #define ST7735_IS_160X128 1
    58. #define ST7735_WIDTH  160
    59. #define ST7735_HEIGHT 128
    60. #define ST7735_XSTART 0
    61. #define ST7735_YSTART 0
    62. #define ST7735_ROTATION (ST7735_MADCTL_MX | ST7735_MADCTL_MV)
    63. */
    65. // AliExpress/eBay 1.8" display, upside down
    66. /*
    67. #define ST7735_IS_160X128 1
    68. #define ST7735_WIDTH  128
    69. #define ST7735_HEIGHT 160
    70. #define ST7735_XSTART 0
    71. #define ST7735_YSTART 0
    72. #define ST7735_ROTATION (0)
    73. */
    74.
    75. // WaveShare ST7735S-based 1.8" display, default orientation
    76. /*
    77. #define ST7735_IS_160X128 1
    78. #define ST7735_WIDTH  128
    79. #define ST7735_HEIGHT 160
    80. #define ST7735_XSTART 2
    81. #define ST7735_YSTART 1
    82. #define ST7735_ROTATION (ST7735_MADCTL_MX | ST7735_MADCTL_MY | ST7735_MADCTL_RGB)
    83. */
    85. // WaveShare ST7735S-based 1.8" display, rotate right
    86. /*
    87. #define ST7735_IS_160X128 1
    88. #define ST7735_WIDTH  160
    89. #define ST7735_HEIGHT 128
    90. #define ST7735_XSTART 1
    91. #define ST7735_YSTART 2
    92. #define ST7735_ROTATION (ST7735_MADCTL_MY | ST7735_MADCTL_MV | ST7735_MADCTL_RGB)
    93. */
    94.
    95. // WaveShare ST7735S-based 1.8" display, rotate left
    96. /*
    97. #define ST7735_IS_160X128 1
    98. #define ST7735_WIDTH  160
    99. #define ST7735_HEIGHT 128
    100. #define ST7735_XSTART 1
    101. #define ST7735_YSTART 2
    102. #define ST7735_ROTATION (ST7735_MADCTL_MX | ST7735_MADCTL_MV | ST7735_MADCTL_RGB)
    103. */
    105. // WaveShare ST7735S-based 1.8" display, upside down
    106. /*
    107. #define ST7735_IS_160X128 1
    108. #define ST7735_WIDTH  128
    109. #define ST7735_HEIGHT 160
    110. #define ST7735_XSTART 2
    111. #define ST7735_YSTART 1
    112. #define ST7735_ROTATION (ST7735_MADCTL_RGB)
    113. */
    114.
    115. // 1.44" display, default orientation
    116. //#define ST7735_IS_128X128 1
    117. //#define ST7735_WIDTH  128
    118. //#define ST7735_HEIGHT 128
    119. //#define ST7735_XSTART 2
    120. //#define ST7735_YSTART 3
    121. //#define ST7735_ROTATION (ST7735_MADCTL_MX | ST7735_MADCTL_MY | ST7735_MADCTL_BGR)
    123. // 1.44" display, rotate right
    124. /*
    125. #define ST7735_IS_128X128 1
    126. #define ST7735_WIDTH  128
    127. #define ST7735_HEIGHT 128
    128. #define ST7735_XSTART 3
    129. #define ST7735_YSTART 2
    130. #define ST7735_ROTATION (ST7735_MADCTL_MY | ST7735_MADCTL_MV | ST7735_MADCTL_BGR)
    131. */
    132.
    133. // 1.44" display, rotate left
    134. /*
    135. #define ST7735_IS_128X128 1
    136. #define ST7735_WIDTH  128
    137. #define ST7735_HEIGHT 128
    138. #define ST7735_XSTART 1
    139. #define ST7735_YSTART 2
    140. #define ST7735_ROTATION (ST7735_MADCTL_MX | ST7735_MADCTL_MV | ST7735_MADCTL_BGR)
    141. */
    143. // 1.44" display, upside down
    144. /*
    145. #define ST7735_IS_128X128 1
    146. #define ST7735_WIDTH  128
    147. #define ST7735_HEIGHT 128
    148. #define ST7735_XSTART 2
    149. #define ST7735_YSTART 1
    150. #define ST7735_ROTATION (ST7735_MADCTL_BGR)
    151. */
    152.
    153. // mini 160x80 display (it's unlikely you want the default orientation)
    154. /*
    155. #define ST7735_IS_160X80 1
    156. #define ST7735_XSTART 26
    157. #define ST7735_YSTART 1
    158. #define ST7735_WIDTH  80
    159. #define ST7735_HEIGHT 160
    160. #define ST7735_ROTATION (ST7735_MADCTL_MX | ST7735_MADCTL_MY | ST7735_MADCTL_BGR)
    161. */
    163. // mini 160x80, rotate left
    164. /*
    165. #define ST7735_IS_160X80 1
    166. #define ST7735_XSTART 1
    167. #define ST7735_YSTART 26
    168. #define ST7735_WIDTH  160
    169. #define ST7735_HEIGHT 80
    170. #define ST7735_ROTATION (ST7735_MADCTL_MX | ST7735_MADCTL_MV | ST7735_MADCTL_BGR)
    171. */
    173. // mini 160x80, rotate right
    174. /*
    175. #define ST7735_IS_160X80 1
    176. #define ST7735_XSTART 1
    177. #define ST7735_YSTART 26
    178. #define ST7735_WIDTH  160
    179. #define ST7735_HEIGHT 80
    180. #define ST7735_ROTATION (ST7735_MADCTL_MY | ST7735_MADCTL_MV | ST7735_MADCTL_BGR)
    181. */
    183. /****************************/

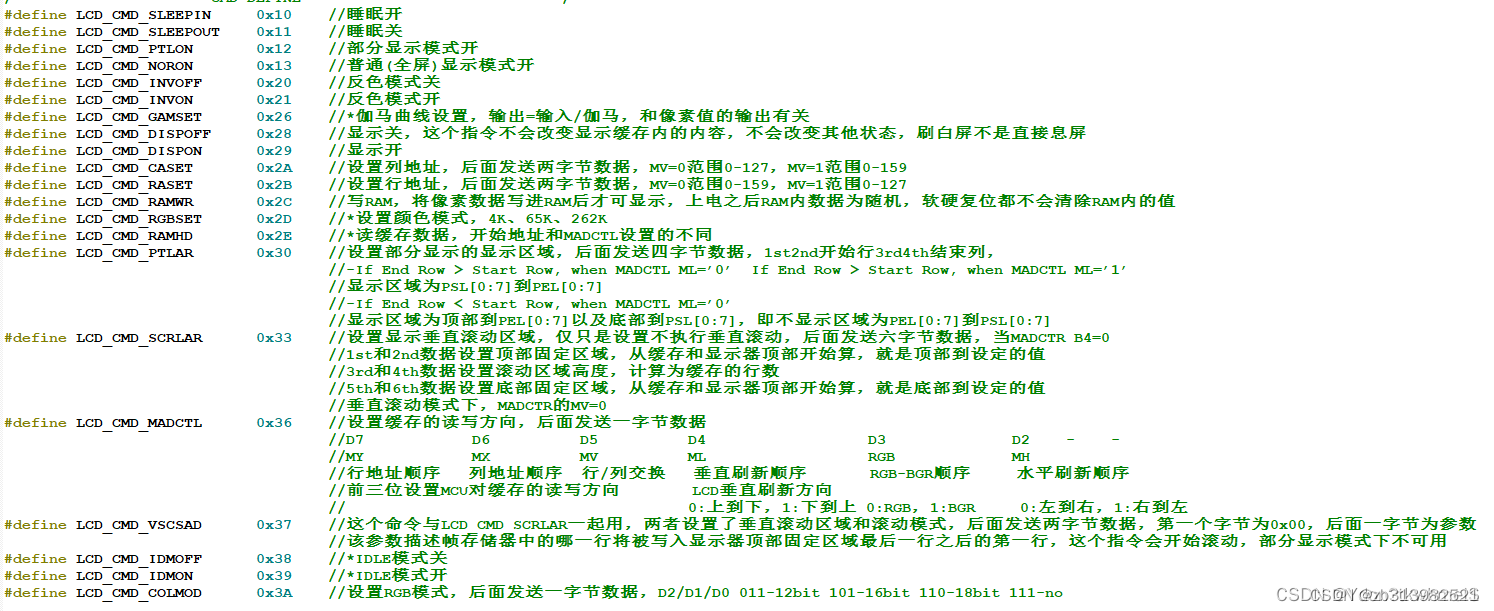

    185. #define ST7735_NOP     0x00
    186. #define ST7735_SWRESET 0x01
    187. #define ST7735_RDDID   0x04
    188. #define ST7735_RDDST   0x09
    190. #define ST7735_SLPIN   0x10
    191. #define ST7735_SLPOUT  0x11
    192. #define ST7735_PTLON   0x12
    193. #define ST7735_NORON   0x13
    195. #define ST7735_INVOFF  0x20
    196. #define ST7735_INVON   0x21
    197. #define ST7735_GAMSET  0x26
    198. #define ST7735_DISPOFF 0x28
    199. #define ST7735_DISPON  0x29
    200. #define ST7735_CASET   0x2A
    201. #define ST7735_RASET   0x2B
    202. #define ST7735_RAMWR   0x2C
    203. #define ST7735_RAMRD   0x2E
    205. #define ST7735_PTLAR   0x30
    206. #define ST7735_COLMOD  0x3A
    207. #define ST7735_MADCTL  0x36
    209. #define ST7735_FRMCTR1 0xB1
    210. #define ST7735_FRMCTR2 0xB2
    211. #define ST7735_FRMCTR3 0xB3
    212. #define ST7735_INVCTR  0xB4
    213. #define ST7735_DISSET5 0xB6
    215. #define ST7735_PWCTR1  0xC0
    216. #define ST7735_PWCTR2  0xC1
    217. #define ST7735_PWCTR3  0xC2
    218. #define ST7735_PWCTR4  0xC3
    219. #define ST7735_PWCTR5  0xC4
    220. #define ST7735_VMCTR1  0xC5
    222. #define ST7735_RDID1   0xDA
    223. #define ST7735_RDID2   0xDB
    224. #define ST7735_RDID3   0xDC
    225. #define ST7735_RDID4   0xDD
    227. #define ST7735_PWCTR6  0xFC
    229. #define ST7735_GMCTRP1 0xE0
    230. #define ST7735_GMCTRN1 0xE1
    232. // Color definitions
    233. #define	ST7735_BLACK   0x0000
    234. #define	ST7735_BLUE    0x001F
    235. #define	ST7735_RED     0xF800
    236. #define	ST7735_GREEN   0x07E0
    237. #define ST7735_CYAN    0x07FF
    238. #define ST7735_MAGENTA 0xF81F
    239. #define ST7735_YELLOW  0xFFE0
    240. #define ST7735_WHITE   0xFFFF
    241. #define ST7735_COLOR565(r, g, b) (((r & 0xF8) << 8) | ((g & 0xFC) << 3) | ((b & 0xF8) >> 3))
    243. typedef enum {
    244. 	GAMMA_10 = 0x01,
    245. 	GAMMA_25 = 0x02,
    246. 	GAMMA_22 = 0x04,
    247. 	GAMMA_18 = 0x08
    248. } GammaDef;
    250. #ifdef __cplusplus
    251. extern "C" {
    252. #endif
    254. // call before initializing any SPI devices
    255. void ST7735_Unselect();
    257. void ST7735_Init(void);
    258. void ST7735_DrawPixel(uint16_t x, uint16_t y, uint16_t color);
    259. void ST7735_WriteString(uint16_t x, uint16_t y, const char* str, FontDef font, uint16_t color, uint16_t bgcolor);
    260. void ST7735_FillRectangle(uint16_t x, uint16_t y, uint16_t w, uint16_t h, uint16_t color);
    261. void ST7735_FillRectangleFast(uint16_t x, uint16_t y, uint16_t w, uint16_t h, uint16_t color);
    262. void ST7735_FillScreen(uint16_t color);
    263. void ST7735_FillScreenFast(uint16_t color);
    264. void ST7735_DrawImage(uint16_t x, uint16_t y, uint16_t w, uint16_t h, const uint16_t* data);
    265. void ST7735_InvertColors(bool invert);
    266. void ST7735_SetGamma(GammaDef gamma);
    268. #ifdef __cplusplus
    269. }
    270. #endif
    272. #endif // __ST7735_H__
    1. /* vim: set ai et ts=4 sw=4: */
    2. #include "stm32f4xx_hal.h"
    3. #include "st7735.h"
    4. #include "malloc.h"
    5. #include "string.h"
    6.
    7. #define DELAY 0x80
    8.
    9. // based on Adafruit ST7735 library for Arduino
    10. static const uint8_t
    11.   init_cmds1[] = {            // Init for 7735R, part 1 (red or green tab)
    12.     15,                       // 15 commands in list:
    13.     ST7735_SWRESET,   DELAY,  //  1: Software reset, 0 args, w/delay
    14.       150,                    //     150 ms delay
    15.     ST7735_SLPOUT ,   DELAY,  //  2: Out of sleep mode, 0 args, w/delay
    16.       255,                    //     500 ms delay
    17.     ST7735_FRMCTR1, 3      ,  //  3: Frame rate ctrl - normal mode, 3 args:
    18.       0x01, 0x2C, 0x2D,       //     Rate = fosc/(1x2+40) * (LINE+2C+2D)
    19.     ST7735_FRMCTR2, 3      ,  //  4: Frame rate control - idle mode, 3 args:
    20.       0x01, 0x2C, 0x2D,       //     Rate = fosc/(1x2+40) * (LINE+2C+2D)
    21.     ST7735_FRMCTR3, 6      ,  //  5: Frame rate ctrl - partial mode, 6 args:
    22.       0x01, 0x2C, 0x2D,       //     Dot inversion mode
    23.       0x01, 0x2C, 0x2D,       //     Line inversion mode
    24.     ST7735_INVCTR , 1      ,  //  6: Display inversion ctrl, 1 arg, no delay:
    25.       0x07,                   //     No inversion
    26.     ST7735_PWCTR1 , 3      ,  //  7: Power control, 3 args, no delay:
    27.       0xA2,
    28.       0x02,                   //     -4.6V
    29.       0x84,                   //     AUTO mode
    30.     ST7735_PWCTR2 , 1      ,  //  8: Power control, 1 arg, no delay:
    31.       0xC5,                   //     VGH25 = 2.4C VGSEL = -10 VGH = 3 * AVDD
    32.     ST7735_PWCTR3 , 2      ,  //  9: Power control, 2 args, no delay:
    33.       0x0A,                   //     Opamp current small
    34.       0x00,                   //     Boost frequency
    35.     ST7735_PWCTR4 , 2      ,  // 10: Power control, 2 args, no delay:
    36.       0x8A,                   //     BCLK/2, Opamp current small & Medium low
    37.       0x2A,
    38.     ST7735_PWCTR5 , 2      ,  // 11: Power control, 2 args, no delay:
    39.       0x8A, 0xEE,
    40.     ST7735_VMCTR1 , 1      ,  // 12: Power control, 1 arg, no delay:
    41.       0x0E,
    42.     ST7735_INVOFF , 0      ,  // 13: Don't invert display, no args, no delay
    43.     ST7735_MADCTL , 1      ,  // 14: Memory access control (directions), 1 arg:
    44.       ST7735_ROTATION,        //     row addr/col addr, bottom to top refresh
    45.     ST7735_COLMOD , 1      ,  // 15: set color mode, 1 arg, no delay:
    46.       0x05 },                 //     16-bit color
    48. #if (defined(ST7735_IS_128X128) || defined(ST7735_IS_160X128))
    49.   init_cmds2[] = {            // Init for 7735R, part 2 (1.44" display)
    50.     2,                        //  2 commands in list:
    51.     ST7735_CASET  , 4      ,  //  1: Column addr set, 4 args, no delay:
    52.       0x00, 0x00,             //     XSTART = 0
    53.       0x00, 0x7F,             //     XEND = 127
    54.     ST7735_RASET  , 4      ,  //  2: Row addr set, 4 args, no delay:
    55.       0x00, 0x00,             //     XSTART = 0
    56.       0x00, 0x7F },           //     XEND = 127
    57. #endif // ST7735_IS_128X128
    59. #ifdef ST7735_IS_160X80
    60.   init_cmds2[] = {            // Init for 7735S, part 2 (160x80 display)
    61.     3,                        //  3 commands in list:
    62.     ST7735_CASET  , 4      ,  //  1: Column addr set, 4 args, no delay:
    63.       0x00, 0x00,             //     XSTART = 0
    64.       0x00, 0x4F,             //     XEND = 79
    65.     ST7735_RASET  , 4      ,  //  2: Row addr set, 4 args, no delay:
    66.       0x00, 0x00,             //     XSTART = 0
    67.       0x00, 0x9F ,            //     XEND = 159
    68.     ST7735_INVON, 0 },        //  3: Invert colors
    69. #endif
    71.   init_cmds3[] = {            // Init for 7735R, part 3 (red or green tab)
    72.     4,                        //  4 commands in list:
    73.     ST7735_GMCTRP1, 16      , //  1: Gamma Adjustments (pos. polarity), 16 args, no delay:
    74.       0x02, 0x1c, 0x07, 0x12,
    75.       0x37, 0x32, 0x29, 0x2d,
    76.       0x29, 0x25, 0x2B, 0x39,
    77.       0x00, 0x01, 0x03, 0x10,
    78.     ST7735_GMCTRN1, 16      , //  2: Gamma Adjustments (neg. polarity), 16 args, no delay:
    79.       0x03, 0x1d, 0x07, 0x06,
    80.       0x2E, 0x2C, 0x29, 0x2D,
    81.       0x2E, 0x2E, 0x37, 0x3F,
    82.       0x00, 0x00, 0x02, 0x10,
    83.     ST7735_NORON  ,    DELAY, //  3: Normal display on, no args, w/delay
    84.       10,                     //     10 ms delay
    85.     ST7735_DISPON ,    DELAY, //  4: Main screen turn on, no args w/delay
    86.       100 };                  //     100 ms delay
    88. static void ST7735_Select() {
    89.     HAL_GPIO_WritePin(ST7735_CS_GPIO_Port, ST7735_CS_Pin, GPIO_PIN_RESET);
    90. }
    92. void ST7735_Unselect() {
    93.     HAL_GPIO_WritePin(ST7735_CS_GPIO_Port, ST7735_CS_Pin, GPIO_PIN_SET);
    94. }
    96. static void ST7735_Reset() {
    97.     HAL_GPIO_WritePin(ST7735_RES_GPIO_Port, ST7735_RES_Pin, GPIO_PIN_RESET);
    98.     HAL_Delay(5);
    99.     HAL_GPIO_WritePin(ST7735_RES_GPIO_Port, ST7735_RES_Pin, GPIO_PIN_SET);
    100. }
    102. static void ST7735_WriteCommand(uint8_t cmd) {
    103.     HAL_GPIO_WritePin(ST7735_DC_GPIO_Port, ST7735_DC_Pin, GPIO_PIN_RESET);
    104.     HAL_SPI_Transmit(&ST7735_SPI_PORT, &cmd, sizeof(cmd), HAL_MAX_DELAY);
    105. }
    107. static void ST7735_WriteData(uint8_t* buff, size_t buff_size) {
    108.     HAL_GPIO_WritePin(ST7735_DC_GPIO_Port, ST7735_DC_Pin, GPIO_PIN_SET);
    109.     HAL_SPI_Transmit(&ST7735_SPI_PORT, buff, buff_size, HAL_MAX_DELAY);
    110. }
    112. static void ST7735_ExecuteCommandList(const uint8_t *addr) {
    113.     uint8_t numCommands, numArgs;
    114.     uint16_t ms;
    116.     numCommands = *addr++;
    117.     while(numCommands--) {
    118.         uint8_t cmd = *addr++;
    119.         ST7735_WriteCommand(cmd);
    121.         numArgs = *addr++;
    122.         // If high bit set, delay follows args
    123.         ms = numArgs & DELAY;
    124.         numArgs &= ~DELAY;
    125.         if(numArgs) {
    126.             ST7735_WriteData((uint8_t*)addr, numArgs);
    127.             addr += numArgs;
    128.         }
    130.         if(ms) {
    131.             ms = *addr++;
    132.             if(ms == 255) ms = 500;
    133.             HAL_Delay(ms);
    134.         }
    135.     }
    136. }
    138. static void ST7735_SetAddressWindow(uint8_t x0, uint8_t y0, uint8_t x1, uint8_t y1) {
    139.     // column address set
    140.     ST7735_WriteCommand(ST7735_CASET);
    141.     uint8_t data[] = { 0x00, x0 + ST7735_XSTART, 0x00, x1 + ST7735_XSTART };
    142.     ST7735_WriteData(data, sizeof(data));
    144.     // row address set
    145.     ST7735_WriteCommand(ST7735_RASET);
    146.     data[1] = y0 + ST7735_YSTART;
    147.     data[3] = y1 + ST7735_YSTART;
    148.     ST7735_WriteData(data, sizeof(data));
    150.     // write to RAM
    151.     ST7735_WriteCommand(ST7735_RAMWR);
    152. }
    154. void ST7735_Init() {
    155.     ST7735_Select();
    156.     ST7735_Reset();
    157.     ST7735_ExecuteCommandList(init_cmds1);
    158.      ST7735_ExecuteCommandList(init_cmds2);
    159.     ST7735_ExecuteCommandList(init_cmds3);
    160.     ST7735_Unselect();
    161. }
    163. void ST7735_DrawPixel(uint16_t x, uint16_t y, uint16_t color) {
    164.     if((x >= ST7735_WIDTH) || (y >= ST7735_HEIGHT))
    165.         return;
    167.     ST7735_Select();
    169.     ST7735_SetAddressWindow(x, y, x+1, y+1);
    170.     uint8_t data[] = { color >> 8, color & 0xFF };
    171.     ST7735_WriteData(data, sizeof(data));
    173.     ST7735_Unselect();
    174. }
    176. static void ST7735_WriteChar(uint16_t x, uint16_t y, char ch, FontDef font, uint16_t color, uint16_t bgcolor) {
    177.     uint32_t i, b, j;
    179.     ST7735_SetAddressWindow(x, y, x+font.width-1, y+font.height-1);
    181.     for(i = 0; i < font.height; i++) {
    182.         b = font.data[(ch - 32) * font.height + i];
    183.         for(j = 0; j < font.width; j++) {
    184.             if((b << j) & 0x8000)  {
    185.                 uint8_t data[] = { color >> 8, color & 0xFF };
    186.                 ST7735_WriteData(data, sizeof(data));
    187.             } else {
    188.                 uint8_t data[] = { bgcolor >> 8, bgcolor & 0xFF };
    189.                 ST7735_WriteData(data, sizeof(data));
    190.             }
    191.         }
    192.     }
    193. }
    195. /*
    196. Simpler (and probably slower) implementation:
    198. static void ST7735_WriteChar(uint16_t x, uint16_t y, char ch, FontDef font, uint16_t color) {
    199.     uint32_t i, b, j;
    201.     for(i = 0; i < font.height; i++) {
    202.         b = font.data[(ch - 32) * font.height + i];
    203.         for(j = 0; j < font.width; j++) {
    204.             if((b << j) & 0x8000)  {
    205.                 ST7735_DrawPixel(x + j, y + i, color);
    206.             }
    207.         }
    208.     }
    209. }
    210. */
    212. void ST7735_WriteString(uint16_t x, uint16_t y, const char* str, FontDef font, uint16_t color, uint16_t bgcolor) {
    213.     ST7735_Select();
    215.     while(*str) {
    216.         if(x + font.width >= ST7735_WIDTH) {
    217.             x = 0;
    218.             y += font.height;
    219.             if(y + font.height >= ST7735_HEIGHT) {
    220.                 break;
    221.             }
    223.             if(*str == ' ') {
    224.                 // skip spaces in the beginning of the new line
    225.                 str++;
    226.                 continue;
    227.             }
    228.         }
    230.         ST7735_WriteChar(x, y, *str, font, color, bgcolor);
    231.         x += font.width;
    232.         str++;
    233.     }
    235.     ST7735_Unselect();
    236. }
    238. void ST7735_FillRectangle(uint16_t x, uint16_t y, uint16_t w, uint16_t h, uint16_t color) {
    239.     // clipping
    240.     if((x >= ST7735_WIDTH) || (y >= ST7735_HEIGHT)) return;
    241.     if((x + w - 1) >= ST7735_WIDTH) w = ST7735_WIDTH - x;
    242.     if((y + h - 1) >= ST7735_HEIGHT) h = ST7735_HEIGHT - y;
    244.     ST7735_Select();
    245.     ST7735_SetAddressWindow(x, y, x+w-1, y+h-1);
    247.     uint8_t data[] = { color >> 8, color & 0xFF };
    248.     HAL_GPIO_WritePin(ST7735_DC_GPIO_Port, ST7735_DC_Pin, GPIO_PIN_SET);
    249.     for(y = h; y > 0; y--) {
    250.         for(x = w; x > 0; x--) {
    251.             HAL_SPI_Transmit(&ST7735_SPI_PORT, data, sizeof(data), HAL_MAX_DELAY);
    252.         }
    253.     }
    255.     ST7735_Unselect();
    256. }
    258. void ST7735_FillRectangleFast(uint16_t x, uint16_t y, uint16_t w, uint16_t h, uint16_t color) {
    259.     // clipping
    260.     if((x >= ST7735_WIDTH) || (y >= ST7735_HEIGHT)) return;
    261.     if((x + w - 1) >= ST7735_WIDTH) w = ST7735_WIDTH - x;
    262.     if((y + h - 1) >= ST7735_HEIGHT) h = ST7735_HEIGHT - y;
    264.     ST7735_Select();
    265.     ST7735_SetAddressWindow(x, y, x+w-1, y+h-1);
    267.     // Prepare whole line in a single buffer
    268.     uint8_t pixel[] = { color >> 8, color & 0xFF };
    269.     uint8_t *line = malloc(w * sizeof(pixel));
    270.     for(x = 0; x < w; ++x)
    271.     	memcpy(line + x * sizeof(pixel), pixel, sizeof(pixel));
    273.     HAL_GPIO_WritePin(ST7735_DC_GPIO_Port, ST7735_DC_Pin, GPIO_PIN_SET);
    274.     for(y = h; y > 0; y--)
    275.         HAL_SPI_Transmit(&ST7735_SPI_PORT, line, w * sizeof(pixel), HAL_MAX_DELAY);
    277.     free(line);
    278.     ST7735_Unselect();
    279. }
    281. void ST7735_FillScreen(uint16_t color) {
    282.     ST7735_FillRectangle(0, 0, ST7735_WIDTH, ST7735_HEIGHT, color);
    283. }
    285. void ST7735_FillScreenFast(uint16_t color) {
    286.     ST7735_FillRectangleFast(0, 0, ST7735_WIDTH, ST7735_HEIGHT, color);
    287. }
    289. void ST7735_DrawImage(uint16_t x, uint16_t y, uint16_t w, uint16_t h, const uint16_t* data) {
    290.     if((x >= ST7735_WIDTH) || (y >= ST7735_HEIGHT)) return;
    291.     if((x + w - 1) >= ST7735_WIDTH) return;
    292.     if((y + h - 1) >= ST7735_HEIGHT) return;
    294.     ST7735_Select();
    295.     ST7735_SetAddressWindow(x, y, x+w-1, y+h-1);
    296.     ST7735_WriteData((uint8_t*)data, sizeof(uint16_t)*w*h);
    297.     ST7735_Unselect();
    298. }
    300. void ST7735_InvertColors(bool invert) {
    301.     ST7735_Select();
    302.     ST7735_WriteCommand(invert ? ST7735_INVON : ST7735_INVOFF);
    303.     ST7735_Unselect();
    304. }
    306. void ST7735_SetGamma(GammaDef gamma)
    307. {
    308. 	ST7735_Select();
    309. 	ST7735_WriteCommand(ST7735_GAMSET);
    310. 	ST7735_WriteData((uint8_t *) &gamma, sizeof(gamma));
    311. 	ST7735_Unselect();
    312. }
    1. /* USER CODE BEGIN Header */
    2. /**
    3.   ******************************************************************************
    4.   * @file           : main.c
    5.   * @brief          : Main program body
    6.   ******************************************************************************
    7.   * @attention
    8.   *
    9.   * Copyright (c) 2024 STMicroelectronics.
    10.   * All rights reserved.
    11.   *
    12.   * This software is licensed under terms that can be found in the LICENSE file
    13.   * in the root directory of this software component.
    14.   * If no LICENSE file comes with this software, it is provided AS-IS.
    15.   *
    16.   ******************************************************************************
    17.   */
    18. /* USER CODE END Header */
    19. /* Includes ------------------------------------------------------------------*/
    20. #include "main.h"
    21. #include "spi.h"
    22. #include "usart.h"
    23. #include "gpio.h"
    24. #include "st7735.h"
    25. #include "testimg.h"
    26. /* Private includes ----------------------------------------------------------*/
    27. /* USER CODE BEGIN Includes */
    28.
    29. /* USER CODE END Includes */
    30.
    31. /* Private typedef -----------------------------------------------------------*/
    32. /* USER CODE BEGIN PTD */
    33.
    34. /* USER CODE END PTD */
    35.
    36. /* Private define ------------------------------------------------------------*/
    37. /* USER CODE BEGIN PD */
    38. /* USER CODE END PD */
    39.
    40. /* Private macro -------------------------------------------------------------*/
    41. /* USER CODE BEGIN PM */
    42.
    43. /* USER CODE END PM */
    44.
    45. /* Private variables ---------------------------------------------------------*/
    46.
    47. /* USER CODE BEGIN PV */
    48.
    49. /* USER CODE END PV */
    50.
    51. /* Private function prototypes -----------------------------------------------*/
    52. void SystemClock_Config(void);
    53. /* USER CODE BEGIN PFP */
    54.
    55. /* USER CODE END PFP */
    56.
    57. /* Private user code ---------------------------------------------------------*/
    58. /* USER CODE BEGIN 0 */
    59.
    60. /* USER CODE END 0 */
    61.
    62. /**
    63.   * @brief  The application entry point.
    64.   * @retval int
    65.   */
    66. int main(void)
    67. {
    68.   /* USER CODE BEGIN 1 */
    69.
    70.   /* USER CODE END 1 */
    71.
    72.   /* MCU Configuration--------------------------------------------------------*/
    73.
    74.   /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
    75.   HAL_Init();
    76.
    77.   /* USER CODE BEGIN Init */
    78.
    79.   /* USER CODE END Init */
    80.
    81.   /* Configure the system clock */
    82.   SystemClock_Config();
    83.
    84.   /* USER CODE BEGIN SysInit */
    85.
    86.   /* USER CODE END SysInit */
    87.
    88.   /* Initialize all configured peripherals */
    89.   MX_GPIO_Init();
    90.   MX_SPI1_Init();
    91.   MX_USART2_UART_Init();
    92.   /* USER CODE BEGIN 2 */
    93.   ST7735_Init();
    94. //  ST7735_FillScreen(ST7735_RED);
    95. //  HAL_Delay(500);
    96. //  ST7735_FillScreen(ST7735_GREEN);
    97. //  HAL_Delay(500);
    98. //  ST7735_FillScreen(ST7735_BLUE);
    99. //  HAL_Delay(500);
    100.
    101.   /* USER CODE END 2 */
    102.
    103.   /* Infinite loop */
    104.   /* USER CODE BEGIN WHILE */
    105.   while (1)
    106.   {
    107. 	  ST7735_FillScreen(ST7735_BLACK);
    108.
    109. 	    for(int x = 0; x < ST7735_WIDTH; x++) {
    110. 	        ST7735_DrawPixel(x, 0, ST7735_RED);
    111. 	        ST7735_DrawPixel(x, ST7735_HEIGHT-1, ST7735_RED);
    112. 	    }
    113.
    114. 	    for(int y = 0; y < ST7735_HEIGHT; y++) {
    115. 	        ST7735_DrawPixel(0, y, ST7735_RED);
    116. 	        ST7735_DrawPixel(ST7735_WIDTH-1, y, ST7735_RED);
    117. 	    }
    118.
    119. 	    HAL_Delay(300);
    120.
    121. 	    // Check fonts
    122. 	    ST7735_FillScreen(ST7735_BLACK);
    123. 	    ST7735_WriteString(0, 0, "Font_7x10, red on black, lorem ipsum dolor sit amet", Font_7x10, ST7735_RED, ST7735_BLACK);
    124. 	    ST7735_WriteString(0, 3*10, "Font_11x18, green, lorem ipsum", Font_11x18, ST7735_GREEN, ST7735_BLACK);
    125. 	    ST7735_WriteString(0, 3*10+3*18, "Font_16x26", Font_16x26, ST7735_BLUE, ST7735_BLACK);
    126. 	    HAL_Delay(200);
    127.
    128. 	    // Check colors
    129. 	    ST7735_FillScreen(ST7735_BLACK);
    130. 	    ST7735_WriteString(0, 0, "BLACK", Font_11x18, ST7735_WHITE, ST7735_BLACK);
    131. 	    HAL_Delay(50);
    132.
    133. 	    ST7735_FillScreen(ST7735_BLUE);
    134. 	    ST7735_WriteString(0, 0, "BLUE", Font_11x18, ST7735_BLACK, ST7735_BLUE);
    135. 	    HAL_Delay(50);
    136.
    137. 	    ST7735_FillScreen(ST7735_RED);
    138. 	    ST7735_WriteString(0, 0, "RED", Font_11x18, ST7735_BLACK, ST7735_RED);
    139. 	    HAL_Delay(50);
    140.
    141. 	    ST7735_FillScreen(ST7735_GREEN);
    142. 	    ST7735_WriteString(0, 0, "GREEN", Font_11x18, ST7735_BLACK, ST7735_GREEN);
    143. 	    HAL_Delay(50);
    144.
    145. 	    ST7735_FillScreen(ST7735_CYAN);
    146. 	    ST7735_WriteString(0, 0, "CYAN", Font_11x18, ST7735_BLACK, ST7735_CYAN);
    147. 	    HAL_Delay(50);
    148.
    149. 	    ST7735_FillScreen(ST7735_MAGENTA);
    150. 	    ST7735_WriteString(0, 0, "MAGENTA", Font_11x18, ST7735_BLACK, ST7735_MAGENTA);
    151. 	    HAL_Delay(50);
    152.
    153. 	    ST7735_FillScreen(ST7735_YELLOW);
    154. 	    ST7735_WriteString(0, 0, "YELLOW", Font_11x18, ST7735_BLACK, ST7735_YELLOW);
    155. 	    HAL_Delay(200);
    156.
    157. //	    ST7735_DrawImage(0, 0, ST7735_WIDTH, ST7735_HEIGHT, (uint16_t*)test_img_128x128);
    158. 	    HAL_Delay(2000);
    159. 	    /* USER CODE END WHILE */
    160.
    161.     /* USER CODE BEGIN 3 */
    162.   }
    163.   /* USER CODE END 3 */
    164. }
    165.
    166. /**
    167.   * @brief System Clock Configuration
    168.   * @retval None
    169.   */
    170. void SystemClock_Config(void)
    171. {
    172.   RCC_OscInitTypeDef RCC_OscInitStruct = {0};
    173.   RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};
    174.
    175.   /** Configure the main internal regulator output voltage
    176.   */
    177.   __HAL_RCC_PWR_CLK_ENABLE();
    178.   __HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE1);
    179.
    180.   /** Initializes the RCC Oscillators according to the specified parameters
    181.   * in the RCC_OscInitTypeDef structure.
    182.   */
    183.   RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI;
    184.   RCC_OscInitStruct.HSIState = RCC_HSI_ON;
    185.   RCC_OscInitStruct.HSICalibrationValue = RCC_HSICALIBRATION_DEFAULT;
    186.   RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
    187.   RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSI;
    188.   RCC_OscInitStruct.PLL.PLLM = 8;
    189.   RCC_OscInitStruct.PLL.PLLN = 100;
    190.   RCC_OscInitStruct.PLL.PLLP = RCC_PLLP_DIV2;
    191.   RCC_OscInitStruct.PLL.PLLQ = 4;
    192.   if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
    193.   {
    194.     Error_Handler();
    195.   }
    196.
    197.   /** Initializes the CPU, AHB and APB buses clocks
    198.   */
    199.   RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
    200.                               |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
    201.   RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
    202.   RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
    203.   RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
    204.   RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;
    205.
    206.   if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_3) != HAL_OK)
    207.   {
    208.     Error_Handler();
    209.   }
    210. }
    211.
    212. /* USER CODE BEGIN 4 */
    213.
    214. /* USER CODE END 4 */
    215.
    216. /**
    217.   * @brief  This function is executed in case of error occurrence.
    218.   * @retval None
    219.   */
    220. void Error_Handler(void)
    221. {
    222.   /* USER CODE BEGIN Error_Handler_Debug */
    223.   /* User can add his own implementation to report the HAL error return state */
    224.   __disable_irq();
    225.   while (1)
    226.   {
    227.   }
    228.   /* USER CODE END Error_Handler_Debug */
    229. }
    230.
    231. #ifdef  USE_FULL_ASSERT
    232. /**
    233.   * @brief  Reports the name of the source file and the source line number
    234.   *         where the assert_param error has occurred.
    235.   * @param  file: pointer to the source file name
    236.   * @param  line: assert_param error line source number
    237.   * @retval None
    238.   */
    239. void assert_failed(uint8_t *file, uint32_t line)
    240. {
    241.   /* USER CODE BEGIN 6 */
    242.   /* User can add his own implementation to report the file name and line number,
    243.      ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
    244.   /* USER CODE END 6 */
    245. }
    246. #endif /* USE_FULL_ASSERT */

  • 相关阅读:
    python--手机步数----微信运动--支付宝运动等步数刷新
    cuda和cudnn和tensorrt的理解
    QCN6274 vs QCA9880: Comparison of SOC and wireless communication chips
    HTML/CSS 基础 2
    语文课内外杂志语文课内外杂志社语文课内外杂志社2022年第14期目录
    Redis的安装教程（Windows+Linux）【超详细】
    9月15日作业
    go-zero微服务实战系列（四、CRUD热热身）
    DevOps 环境预测测试中的机器学习
    基于sass模式Java语言+MySQL + MyCat开发的his系统源码 HIS系统住院业务流程 HIS系统住院流程化管理
  • 原文地址：https://blog.csdn.net/zb313982521/article/details/138574642
