音频混音算法的实现

最近项目有用到混音算法，这里用比较常见的一种，就是简单的加和之后做一下归一化。

是参考这个博主实现的：
音频混音的算法实现

下面直接贴代码：

#include
#include
#include

#define IN_FILE1 "mic.wav"
#define IN_FILE2 "spk.wav"
#define OUT_FILE "remix.pcm"

#define SIZE_AUDIO_FRAME (2)

void Mix(char sourseFile[10][SIZE_AUDIO_FRAME],int number,char *objectFile)
{
    //归一化混音
    int const MAX=32767;
    int const MIN=-32768;

    double f=1;
    int output;
    int i = 0,j = 0;
    for (i=0;i<SIZE_AUDIO_FRAME/2;i++)
    {
        int temp=0;
        for (j=0;j<number;j++)
        {
            temp+=*(short*)(sourseFile[j]+i*2);
        }
        output=(int)(temp*f);
        if (output>MAX)
        {
            f=(double)MAX/(double)(output);
            output=MAX;
        }
        if (output<MIN)
        {
            f=(double)MIN/(double)(output);
            output=MIN;
        }
        if (f<1)
        {
            f+=((double)1-f)/(double)32;
        }
        *(short*)(objectFile+i*2)=(short)output;
    }
}

int main()
{
    FILE * fp1,*fp2,*fpm;
    fp1 = fopen(IN_FILE1,"rb");
    fp2 = fopen(IN_FILE2,"rb");
    fpm = fopen(OUT_FILE,"wb");

    short data1,data2,date_mix;
    int ret1,ret2;
    char sourseFile[10][2];

    while(1)
    {
        ret1 = fread(&data1,2,1,fp1);
        ret2 = fread(&data2,2,1,fp2);
        *(short*) sourseFile[0] = data1;
        *(short*) sourseFile[1] = data2;

        if(ret1>0 && ret2>0)
        {
            Mix(sourseFile,2,(char *)&date_mix);
            if(date_mix > pow(2,16-1) || date_mix < -pow(2,16-1))
                printf("mix error\n");
        }
        else if( (ret1 > 0) && (ret2==0))
        {
            date_mix = data1;
        }
        else if( (ret2 > 0) && (ret1==0))
        {
            date_mix = data2;
        }
        else if( (ret1 == 0) && (ret2 == 0))
        {
            break;
        }
        fwrite(&date_mix,2,1,fpm);
    }
    fclose(fp1);
    fclose(fp2);
    fclose(fpm);
    printf("Done!\n");
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88

关键函数在Mix函数里面实现，实现上来看就是加在一起，然后做一个归一化处理，就是为了防止达到上限设置了一下归一化。

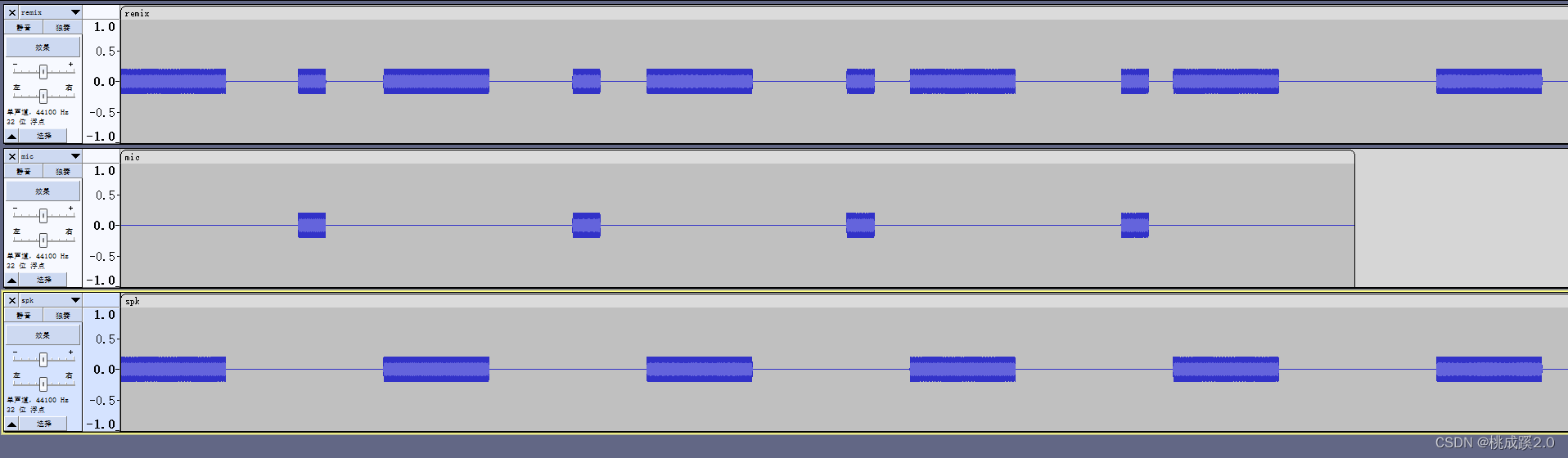

测试上可以用两个dtmf的声音来测试，结果如下
