五、WebGPU Vertex Buffers 顶点缓冲区

在上一篇文章中，我们将顶点数据放入存储缓冲区中，并使用内置的vertex_index对其进行索引。虽然这种技术越来越受欢迎，但向顶点着色器提供顶点数据的传统方式是通过顶点缓冲和属性。

顶点缓冲区就像任何其他WebGPU缓冲区一样。它们保存着数据。不同之处在于我们不直接从顶点着色器访问它们。相反，我们告诉WebGPU缓冲区中有什么类型的数据，以及它在哪里以及它是如何组织的。然后它将数据从缓冲区中取出并提供给我们。

让我们以上一篇文章中的最后一个示例为例，将其从使用存储缓冲区更改为使用顶点缓冲区。

首先要做的是改变着色器，从顶点缓冲区中获取顶点数据。

struct OurStruct {
  color: vec4f,
  offset: vec2f,
};

struct OtherStruct {
  scale: vec2f,
};

struct Vertex {
  @location(0) position: vec2f,
};

struct VSOutput {
  @builtin(position) position: vec4f,
  @location(0) color: vec4f,
};

@group(0) @binding(0) var ourStructs: array;
@group(0) @binding(1) var otherStructs: array;

@vertex fn vs(
  vert: Vertex,
  @builtin(instance_index) instanceIndex: u32
) -> VSOutput {
  let otherStruct = otherStructs[instanceIndex];
  let ourStruct = ourStructs[instanceIndex];

  var vsOut: VSOutput;
  vsOut.position = vec4f(
      vert.position * otherStruct.scale + ourStruct.offset, 0.0, 1.0);
  vsOut.color = ourStruct.color;
  return vsOut;
}

...
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

正如你所看到的，这是一个很小的变化。我们声明了一个结构体Vertex来定义顶点的数据。重要的部分是用@location(0)声明位置字段，然后，当我们创建渲染管道时，我们必须告诉WebGPU如何获取@location(0)的数据。

然后，当我们创建渲染管道时，我们必须告诉WebGPU如何获取@location(0)的数据。

  const pipeline = device.createRenderPipeline({
    label: 'vertex buffer pipeline',
    layout: 'auto',
    vertex: {
      module,
      entryPoint: 'vs',
      buffers: [
        {
          arrayStride: 2 * 4, // 2 floats, 4 bytes each
          attributes: [
            {shaderLocation: 0, offset: 0, format: 'float32x2'},  // position
          ],
        },
      ],
    },
    fragment: {
      module,
      entryPoint: 'fs',
      targets: [{ format: presentationFormat }],
    },
  });
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

对于pipeline descriptor 的 vertex entry，我们添加了一个缓冲区数组，用于描述如何从一个或多个顶点缓冲区中提取数据。对于第一个也是唯一一个缓冲区，我们以字节数为单位设置arrayStride。在这种情况下，步长是指从缓冲区中一个顶点的数据到缓冲区中的下一个顶点的字节数。

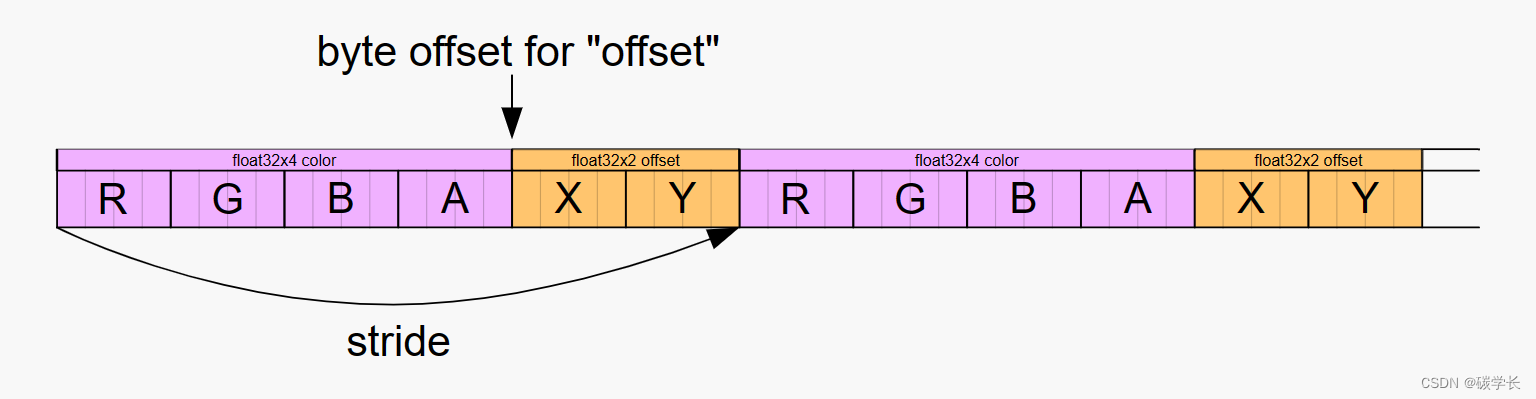

在这里插入图片描述

因为我们的数据是vec2f，这是两个float32数字，所以我们将arrayStride设置为8。

接下来我们定义一个属性数组。我们只有一个。shaderLocation: 0对应于我们顶点结构中的location(0)。offset: 0表示此属性的数据从顶点缓冲区中的第0字节开始。最后format:'float32x2’表示我们希望WebGPU将数据从缓冲区中取出为两个32位浮点数。

我们需要将保存顶点数据的缓冲区的用法从STORAGE更改为vertex，并将其从绑定组中删除。

  const vertexBuffer = device.createBuffer({
    label: 'vertex buffer vertices',
    size: vertexData.byteLength,
    usage: GPUBufferUsage.VERTEX | GPUBufferUsage.COPY_DST,
  });
  device.queue.writeBuffer(vertexBuffer, 0, vertexData);

  const bindGroup = device.createBindGroup({
    label: 'bind group for objects',
    layout: pipeline.getBindGroupLayout(0),
    entries: [
      { binding: 0, resource: { buffer: staticStorageBuffer }},
      { binding: 1, resource: { buffer: changingStorageBuffer }},
    ],
  });
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

然后在绘制时，我们需要告诉webgpu使用哪个顶点缓冲区。

 pass.setPipeline(pipeline);
    pass.setVertexBuffer(0, vertexBuffer);
1
2

这里的0对应于我们上面指定的渲染管道缓冲区数组的第一个元素。

这样我们就从顶点存储缓冲区切换到了顶点缓冲区。

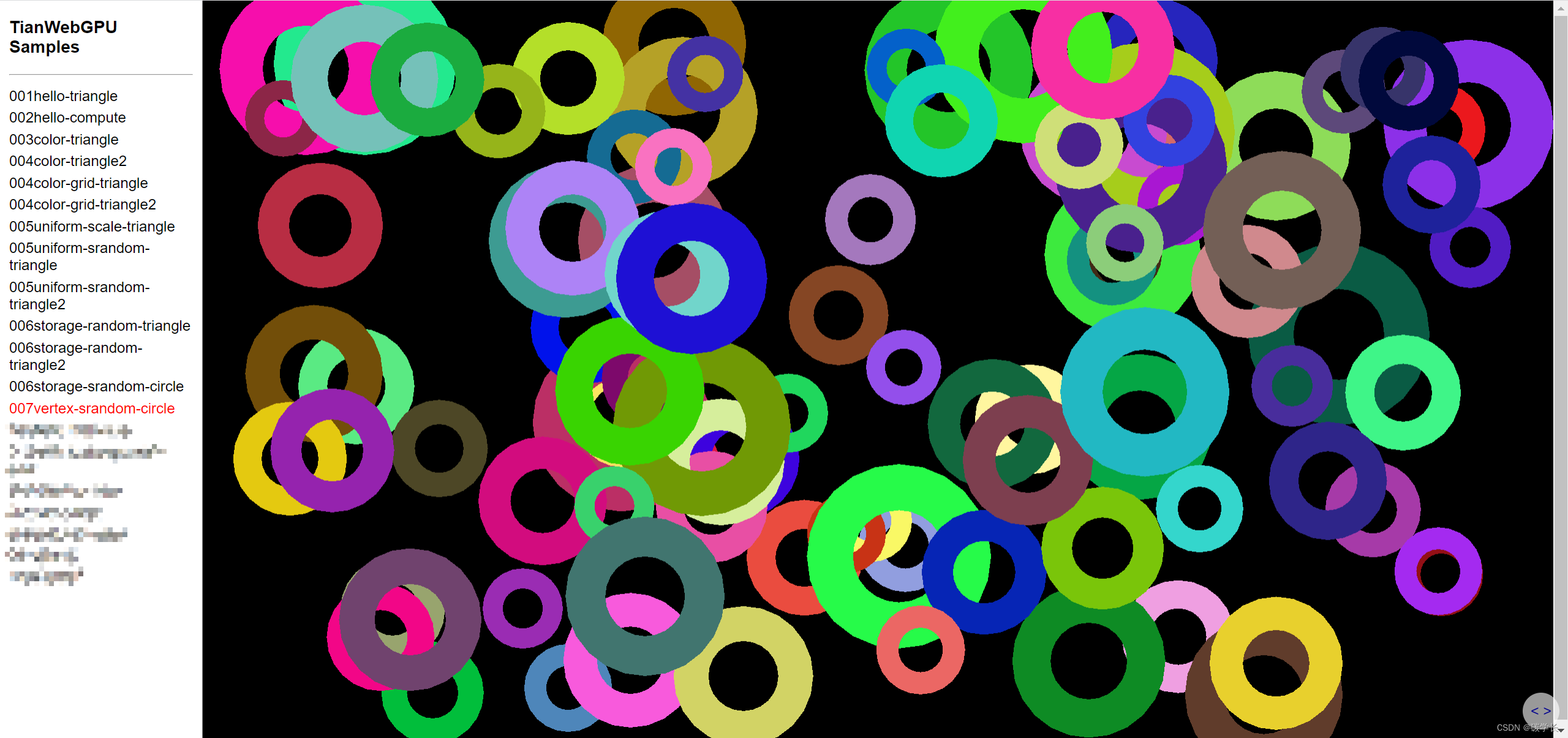

以下为完整代码及运行结果：

HTML：


DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>001hello-triangletitle>
    <style>
        html,
        body {
            margin: 0;
            width: 100%;
            height: 100%;
            background: #000;
            color: #fff;
            display: flex;
            text-align: center;
            flex-direction: column;
            justify-content: center;
        }

        div,
        canvas {
            height: 100%;
            width: 100%;
        }
    style>
head>

<body>
    <div id="007vertex-srandom-circle">
        <canvas id="gpucanvas">canvas>
    div>
    <script type="module" src="./007vertex-srandom-circle.ts">script>

body>

html>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

TS:

/*
 * @Description:
 * @Author: tianyw
 * @Date: 2023-04-08 20:03:35
 * @LastEditTime: 2023-09-19 22:12:42
 * @LastEditors: tianyw
 */
export type SampleInit = (params: {
  canvas: HTMLCanvasElement;
}) => void | Promise<void>;

import shaderWGSL from "./shaders/shader.wgsl?raw";

const rand = (
  min: undefined | number = undefined,
  max: undefined | number = undefined
) => {
  if (min === undefined) {
    min = 0;
    max = 1;
  } else if (max === undefined) {
    max = min;
    min = 0;
  }
  return min + Math.random() * (max - min);
};

function createCircleVertices({
  radius = 1,
  numSubdivisions = 24,
  innerRadius = 0,
  startAngle = 0,
  endAngle = Math.PI * 2
} = {}) {
  // 2 triangles per subdivision, 3 verts per tri, 2 values(xy) each
  const numVertices = numSubdivisions * 3 * 2;
  const vertexData = new Float32Array(numSubdivisions * 2 * 3 * 2);

  let offset = 0;
  const addVertex = (x: number, y: number) => {
    vertexData[offset++] = x;
    vertexData[offset++] = y;
  };

  // 2 vertices per subdivision
  for (let i = 0; i < numSubdivisions; ++i) {
    const angle1 =
      startAngle + ((i + 0) * (endAngle - startAngle)) / numSubdivisions;
    const angle2 =
      startAngle + ((i + 1) * (endAngle - startAngle)) / numSubdivisions;

    const c1 = Math.cos(angle1);
    const s1 = Math.sin(angle1);
    const c2 = Math.cos(angle2);
    const s2 = Math.sin(angle2);

    // first angle
    addVertex(c1 * radius, s1 * radius);
    addVertex(c2 * radius, s2 * radius);
    addVertex(c1 * innerRadius, s1 * innerRadius);

    // second triangle
    addVertex(c1 * innerRadius, s1 * innerRadius);
    addVertex(c2 * radius, s2 * radius);
    addVertex(c2 * innerRadius, s2 * innerRadius);
  }

  return {
    vertexData,
    numVertices
  };
}

const init: SampleInit = async ({ canvas }) => {
  const adapter = await navigator.gpu?.requestAdapter();
  if (!adapter) return;
  const device = await adapter?.requestDevice();
  if (!device) {
    console.error("need a browser that supports WebGPU");
    return;
  }
  const context = canvas.getContext("webgpu");
  if (!context) return;
  const devicePixelRatio = window.devicePixelRatio || 1;
  canvas.width = canvas.clientWidth * devicePixelRatio;
  canvas.height = canvas.clientHeight * devicePixelRatio;
  const presentationFormat = navigator.gpu.getPreferredCanvasFormat();

  context.configure({
    device,
    format: presentationFormat,
    alphaMode: "premultiplied"
  });

  const shaderModule = device.createShaderModule({
    label: "our hardcoded rgb triangle shaders",
    code: shaderWGSL
  });
  const renderPipeline = device.createRenderPipeline({
    label: "hardcoded rgb triangle pipeline",
    layout: "auto",
    vertex: {
      module: shaderModule,
      entryPoint: "vs",
      buffers: [
        {
          arrayStride: 2 * 4, // 2 floats, 4 bytes each
          attributes: [
            {
              shaderLocation: 0, offset: 0,format: "float32x2"
            } // position
          ]
        }
      ]
    },
    fragment: {
      module: shaderModule,
      entryPoint: "fs",
      targets: [
        {
          format: presentationFormat
        }
      ]
    },

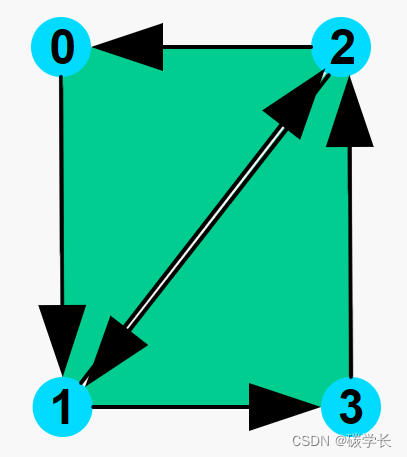

    primitive: {
      // topology: "line-list"
      // topology: "line-strip"
      //  topology: "point-list"
      topology: "triangle-list"
      // topology: "triangle-strip"
    }
  });

  const kNumObjects = 100;

  const staticStorageUnitSize =
    4 * 4 + // color is 4 32bit floats (4bytes each)
    2 * 4 + // scale is 2 32bit floats (4bytes each)
    2 * 4; // padding
  const storageUnitSzie = 2 * 4; // scale is 2 32 bit floats

  const staticStorageBufferSize = staticStorageUnitSize * kNumObjects;
  const storageBufferSize = storageUnitSzie * kNumObjects;

  const staticStorageBuffer = device.createBuffer({
    label: "static storage for objects",
    size: staticStorageBufferSize,
    usage: GPUBufferUsage.STORAGE | GPUBufferUsage.COPY_DST
  });

  const storageBuffer = device.createBuffer({
    label: "changing storage for objects",
    size: storageBufferSize,
    usage: GPUBufferUsage.STORAGE | GPUBufferUsage.COPY_DST
  });

  const staticStorageValues = new Float32Array(staticStorageBufferSize / 4);
  const storageValues = new Float32Array(storageBufferSize / 4);

  const kColorOffset = 0;
  const kOffsetOffset = 4;

  const kScaleOffset = 0;

  const objectInfos: {
    scale: number;
  }[] = [];
  for (let i = 0; i < kNumObjects; ++i) {
    const staticOffset = i * (staticStorageUnitSize / 4);

    staticStorageValues.set(
      [rand(), rand(), rand(), 1],
      staticOffset + kColorOffset
    );
    staticStorageValues.set(
      [rand(-0.9, 0.9), rand(-0.9, 0.9)],
      staticOffset + kOffsetOffset
    );

    objectInfos.push({
      scale: rand(0.2, 0.5)
    });
  }
  device.queue.writeBuffer(staticStorageBuffer, 0, staticStorageValues);

  const { vertexData, numVertices } = createCircleVertices({
    radius: 0.5,
    innerRadius: 0.25
  });
  const vertexBuffer = device.createBuffer({
    label: "vertex buffer vertices",
    size: vertexData.byteLength,
    usage: GPUBufferUsage.VERTEX | GPUBufferUsage.COPY_DST
  });
  device.queue.writeBuffer(vertexBuffer, 0, vertexData);

  const bindGroup = device.createBindGroup({
    label: "bind group for objects",
    layout: renderPipeline.getBindGroupLayout(0),
    entries: [
      { binding: 0, resource: { buffer: staticStorageBuffer } },
      { binding: 1, resource: { buffer: storageBuffer } }
    ]
  });

  function frame() {
    const aspect = canvas.width / canvas.height;

    const renderCommandEncoder = device.createCommandEncoder({
      label: "render vert frag"
    });
    if (!context) return;

    const textureView = context.getCurrentTexture().createView();
    const renderPassDescriptor: GPURenderPassDescriptor = {
      label: "our basic canvas renderPass",
      colorAttachments: [
        {
          view: textureView,
          clearValue: { r: 0.0, g: 0.0, b: 0.0, a: 1.0 },
          loadOp: "clear",
          storeOp: "store"
        }
      ]
    };
    const renderPass =
      renderCommandEncoder.beginRenderPass(renderPassDescriptor);
    renderPass.setPipeline(renderPipeline);
    renderPass.setVertexBuffer(0,vertexBuffer);
    objectInfos.forEach(({ scale }, ndx) => {
      const offset = ndx * (storageUnitSzie / 4);
      storageValues.set([scale / aspect, scale], offset + kScaleOffset); // set the scale
    });
    device.queue.writeBuffer(storageBuffer, 0, storageValues);
    renderPass.setBindGroup(0, bindGroup);
    renderPass.draw(numVertices, kNumObjects);
    renderPass.end();
    const renderBuffer = renderCommandEncoder.finish();
    device.queue.submit([renderBuffer]);

    requestAnimationFrame(frame);
  }

  requestAnimationFrame(frame);
};

const canvas = document.getElementById("gpucanvas") as HTMLCanvasElement;
init({ canvas: canvas });
