全志R128驱动OLED屏幕步骤教程

驱动 OLED 屏

本文案例代码	下载地址
OLED驱动案例代码	https://www.aw-ol.com/downloads?cat=24

OLED，即有机发光二极管（ Organic Light Emitting Diode）。 OLED 由于同时具备自发光，不需背光源、对比度高、厚度薄、视角广、反应速度快、可用于挠曲性面板、使用温度范围广、构造及制程较简单等优异之特性，被认为是下一代的平面显示器新兴应用技术。

LCD 都需要背光，而 OLED 不需要，因为它是自发光的。这样同样的显示 OLED 效果要来得好一些。以目前的技术，OLED 的尺寸还难以大型化，但是分辨率确可以做到很高。

在此我们使用的是0.96寸OLED显示屏，该屏有以下特点：

0.96 寸 OLED 有黄蓝，白，蓝三种颜色可选；其中黄蓝是屏上 1/4 部分为黄光，下 3/4 为蓝；而且是固定区域显示固定颜色，颜色和显示区域均不能修改；白光则为纯白，也就是黑底白字；蓝色则为纯蓝，也就是黑底蓝字。
分辨率为 128*64
多种接口方式；OLED 裸屏总共种接口包括：6800、8080 两种并行接口方式、3 线或 4 线的串行 SPI 接口方式、 IIC 接口方式（只需要 2 根线就可以控制 OLED 了！），这五种接口是通过屏上的 BS0~BS2 来配置的。

本次使用的是四针的IIC 模块，如下图：

在这里插入图片描述

引脚配置如下

R128 Devkit	OLED
PA23	SCL
PA24	SDA
GND	GND
3V3	VCC

载入方案

我们使用的开发板是 R128-Devkit，需要开发 C906 核心的应用程序，所以载入方案选择 r128s2_module_c906

$ source envsetup.sh
$ lunch_rtos 1
1
2

在这里插入图片描述

设置 TWI 驱动

运行 mrtos_menuconfig 进入配置页面。前往下列地址找到 TWI Devices

Drivers Options  --->
    soc related device drivers  --->
        	TWI Devices --->
        	-*- enable twi driver
1
2
3
4

在这里插入图片描述

配置 TWI 引脚

打开你喜欢的编辑器，修改文件：board/r128s2/module/configs/sys_config.fex

增加 TWI0 的配置，参考手册可知 PA23，PA24 的 TWI0 复用为 6

[twi0]
twi0_sck        = port:PA23<6><1>
twi0_sda        = port:PA24<6><1>
1
2
3

在这里插入图片描述

编写程序

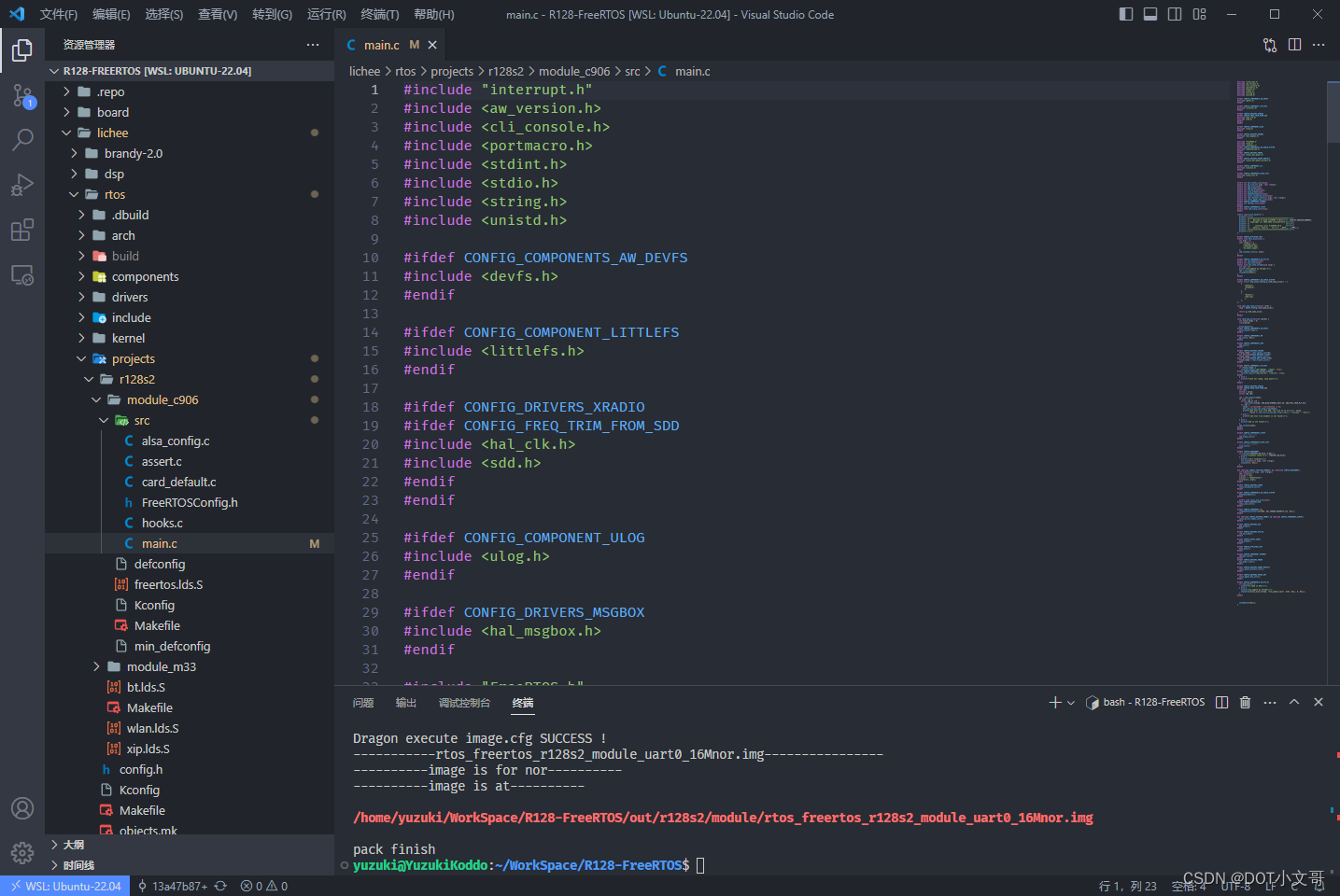

打开你喜欢的编辑器，新增文件：lichee/rtos/projects/r128s2/module_c906/src/oled.c 用于编写 OLED 的驱动。

在这里插入图片描述

编写 OLED 驱动

使用一个宏储存 TWI 的地址和使用的 TWI 端口，并定义显存。

#define OLED_IIC_ADDR 0x3c
#define OLED_IIC_PORT 0

uint8_t OLED_GRAM[144][8]; /* 显存 */
1
2
3
4

编写 OLED 的基础操作驱动 TWI 通讯函数。

#define OLED_CMD 0 /*写命令 */
#define OLED_DATA 1 /* 写数据 */

void OLED_WR_Byte(uint8_t dat, uint8_t mode)
{
    twi_msg_t msg;
    twi_port_t port = OLED_IIC_PORT;

    uint8_t buf[2];

    if (mode)
        buf[0] = 0x40;
    else
        buf[0] = 0x00;
    buf[1] = dat;

    msg.flags = 0;
    msg.addr = OLED_IIC_ADDR;
    msg.len = 2;
    msg.buf = buf;
    hal_twi_control(port, I2C_RDWR, &msg);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

编写 OLED 的驱动函数：显示开关

void OLED_ColorTurn(uint8_t i)
{
    if (i == 0) {
        OLED_WR_Byte(0xA6, OLED_CMD); /* 正常显示 */
    }
    if (i == 1) {
        OLED_WR_Byte(0xA7, OLED_CMD); /* 反色显示 */
    }
}

1
2
3
4
5
6
7
8
9
10

编写 OLED 的驱动函数：反显设置


void OLED_DisplayTurn(uint8_t i)
{
    if (i == 0) {
        OLED_WR_Byte(0xC8, OLED_CMD); /* 正常显示 */
        OLED_WR_Byte(0xA1, OLED_CMD);
    }
    if (i == 1) {
        OLED_WR_Byte(0xC0, OLED_CMD); /* 反转显示 */
        OLED_WR_Byte(0xA0, OLED_CMD);
    }
}
1
2
3
4
5
6
7
8
9
10
11
12

编写 OLED 的驱动函数：刷新屏幕

void OLED_Refresh(void)
{
    for (int i = 0; i < 8; i++) {
        OLED_WR_Byte(0xb0 + i, OLED_CMD); //设置行起始地址
        OLED_WR_Byte(0x00, OLED_CMD); //设置低列起始地址
        OLED_WR_Byte(0x10, OLED_CMD); //设置高列起始地址
        OLED_WR_Byte(0x78, OLED_DATA);
        OLED_WR_Byte(0x40, OLED_DATA);
        for (int n = 0; n < 128; n++) {
            OLED_WR_Byte(OLED_GRAM[n][i], OLED_DATA);
        }
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13

编写 OLED 的驱动函数：清屏

void OLED_Clear(void)
{
    for (int i = 0; i < 8; i++) {
        OLED_WR_Byte(0xb0 + i, OLED_CMD); //设置页地址（0~7）
        OLED_WR_Byte(0x00, OLED_CMD); //设置显示位置—列低地址
        OLED_WR_Byte(0x10, OLED_CMD); //设置显示位置—列高地址
        for (int n = 0; n < 128; n++)
            OLED_GRAM[n][i] = 0;
        OLED_Refresh(); //刷新GRAM内容
    }
}

1
2
3
4
5
6
7
8
9
10
11
12

编写 OLED 的驱动函数：画点

void OLED_DrawPoint(uint8_t x, uint8_t y, uint8_t t)
{
    uint8_t i, m, n;
    i = y / 8;
    m = y % 8;
    n = 1 << m;
    if (t) {
        OLED_GRAM[x][i] |= n;
    }
    else {
        OLED_GRAM[x][i] = ~OLED_GRAM[x][i];
        OLED_GRAM[x][i] |= n;
        OLED_GRAM[x][i] = ~OLED_GRAM[x][i];
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

编写 OLED 的驱动函数：画线

void OLED_DrawLine(uint8_t x1, uint8_t y1, uint8_t x2, uint8_t y2, uint8_t mode)
{
    int xerr = 0, yerr = 0, delta_x, delta_y, distance;
    int incx, incy, uRow, uCol;
    delta_x = x2 - x1; //计算坐标增量
    delta_y = y2 - y1;
    uRow = x1; //画线起点坐标
    uCol = y1;
    if (delta_x > 0)
        incx = 1; //设置单步方向
    else if (delta_x == 0)
        incx = 0; //垂直线
    else {
        incx = -1;
        delta_x = -delta_x;
    }
    if (delta_y > 0)
        incy = 1;
    else if (delta_y == 0)
        incy = 0; //水平线
    else {
        incy = -1;
        delta_y = -delta_x;
    }
    if (delta_x > delta_y)
        distance = delta_x; //选取基本增量坐标轴
    else
        distance = delta_y;
    for (uint16_t t = 0; t < distance + 1; t++) {
        OLED_DrawPoint(uRow, uCol, mode); //画点
        xerr += delta_x;
        yerr += delta_y;
        if (xerr > distance) {
            xerr -= distance;
            uRow += incx;
        }
        if (yerr > distance) {
            yerr -= distance;
            uCol += incy;
        }
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

编写 OLED 的驱动函数：画园

void OLED_DrawCircle(uint8_t x, uint8_t y, uint8_t r)
{
    int a, b, num;
    a = 0;
    b = r;
    while (2 * b * b >= r * r) {
        OLED_DrawPoint(x + a, y - b, 1);
        OLED_DrawPoint(x - a, y - b, 1);
        OLED_DrawPoint(x - a, y + b, 1);
        OLED_DrawPoint(x + a, y + b, 1);

        OLED_DrawPoint(x + b, y + a, 1);
        OLED_DrawPoint(x + b, y - a, 1);
        OLED_DrawPoint(x - b, y - a, 1);
        OLED_DrawPoint(x - b, y + a, 1);

        a++;
        num = (a * a + b * b) - r * r; //计算画的点离圆心的距离
        if (num > 0) {
            b--;
            a--;
        }
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

编写 OLED 的驱动函数：显示字符

void OLED_ShowChar(uint8_t x, uint8_t y, uint8_t chr, uint8_t size1, uint8_t mode)
{
    uint8_t temp, size2, chr1;
    uint8_t x0 = x, y0 = y;
    if (size1 == 8)
        size2 = 6;
    else
        size2 = (size1 / 8 + ((size1 % 8) ? 1 : 0)) * (size1 / 2); //得到字体一个字符对应点阵集所占的字节数
    chr1 = chr - ' '; //计算偏移后的值
    for (uint8_t i = 0; i < size2; i++) {
        if (size1 == 8) {
            temp = asc2_0806[chr1][i];
        } //调用0806字体
        else if (size1 == 12) {
            temp = asc2_1206[chr1][i];
        } //调用1206字体
        else if (size1 == 16) {
            temp = asc2_1608[chr1][i];
        } //调用1608字体
        else if (size1 == 24) {
            temp = asc2_2412[chr1][i];
        } //调用2412字体
        else
            return;
        for (uint8_t m = 0; m < 8; m++) {
            if (temp & 0x01)
                OLED_DrawPoint(x, y, mode);
            else
                OLED_DrawPoint(x, y, !mode);
            temp >>= 1;
            y++;
        }
        x++;
        if ((size1 != 8) && ((x - x0) == size1 / 2)) {
            x = x0;
            y0 = y0 + 8;
        }
        y = y0;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

编写 OLED 的驱动函数：显示字符串

void OLED_ShowString(uint8_t x, uint8_t y, uint8_t* chr, uint8_t size1, uint8_t mode)
{
    while ((*chr >= ' ') && (*chr <= '~')) //判断是不是非法字符!
    {
        OLED_ShowChar(x, y, *chr, size1, mode);
        if (size1 == 8)
            x += 6;
        else
            x += size1 / 2;
        chr++;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12

编写 OLED 的驱动函数：显示数字

void OLED_ShowNum(uint8_t x, uint8_t y, uint32_t num, uint8_t len, uint8_t size1, uint8_t mode)
{
    uint8_t temp, m = 0;
    if (size1 == 8)
        m = 2;
    for (uint8_t t = 0; t < len; t++) {
        temp = (num / OLED_Pow(10, len - t - 1)) % 10;
        if (temp == 0) {
            OLED_ShowChar(x + (size1 / 2 + m) * t, y, '0', size1, mode);
        }
        else {
            OLED_ShowChar(x + (size1 / 2 + m) * t, y, temp + '0', size1, mode);
        }
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

编写 OLED 的驱动函数：配置位置

void OLED_Set_Pos(uint8_t x, uint8_t y)
{
    OLED_WR_Byte(0xb0 + y, OLED_CMD);
    OLED_WR_Byte(((x & 0xf0) >> 4) | 0x10, OLED_CMD);
    OLED_WR_Byte((x & 0x0f), OLED_CMD);
}
1
2
3
4
5
6

编写 OLED 的驱动函数：初始化屏幕


void OLED_Init(void)
{
    hal_twi_init(OLED_IIC_PORT); //-- init TWI

    OLED_WR_Byte(0xAE, OLED_CMD);//--turn off oled panel
    OLED_WR_Byte(0x00, OLED_CMD);//---set low column address
    OLED_WR_Byte(0x10, OLED_CMD);//---set high column address
    OLED_WR_Byte(0x40, OLED_CMD);//--set start line address  Set Mapping RAM Display Start Line (0x00~0x3F)
    OLED_WR_Byte(0x81, OLED_CMD);//--set contrast control register
    OLED_WR_Byte(0xCF, OLED_CMD); // Set SEG Output Current Brightness
    OLED_WR_Byte(0xA1, OLED_CMD);//--Set SEG/Column Mapping     0xa0左右反置 0xa1正常
    OLED_WR_Byte(0xC8, OLED_CMD);//Set COM/Row Scan Direction   0xc0上下反置 0xc8正常
    OLED_WR_Byte(0xA6, OLED_CMD);//--set normal display
    OLED_WR_Byte(0xA8, OLED_CMD);//--set multiplex ratio(1 to 64)
    OLED_WR_Byte(0x3f, OLED_CMD);//--1/64 duty
    OLED_WR_Byte(0xD3, OLED_CMD);//-set display offset Shift Mapping RAM Counter (0x00~0x3F)
    OLED_WR_Byte(0x00, OLED_CMD);//-not offset
    OLED_WR_Byte(0xd5, OLED_CMD);//--set display clock divide ratio/oscillator frequency
    OLED_WR_Byte(0x80, OLED_CMD);//--set divide ratio, Set Clock as 100 Frames/Sec
    OLED_WR_Byte(0xD9, OLED_CMD);//--set pre-charge period
    OLED_WR_Byte(0xF1, OLED_CMD);//Set Pre-Charge as 15 Clocks & Discharge as 1 Clock
    OLED_WR_Byte(0xDA, OLED_CMD);//--set com pins hardware configuration
    OLED_WR_Byte(0x12, OLED_CMD);
    OLED_WR_Byte(0xDB, OLED_CMD);//--set vcomh
    OLED_WR_Byte(0x40, OLED_CMD);//Set VCOM Deselect Level
    OLED_WR_Byte(0x20, OLED_CMD);//-Set Page Addressing Mode (0x00/0x01/0x02)
    OLED_WR_Byte(0x02, OLED_CMD);//
    OLED_WR_Byte(0x8D, OLED_CMD);//--set Charge Pump enable/disable
    OLED_WR_Byte(0x14, OLED_CMD);//--set(0x10) disable
    OLED_WR_Byte(0xA4, OLED_CMD);// Disable Entire Display On (0xa4/0xa5)
    OLED_WR_Byte(0xA6, OLED_CMD);// Disable Inverse Display On (0xa6/a7)
    OLED_Clear();
    OLED_WR_Byte(0xAF, OLED_CMD); /*display ON*/
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

我们把这些驱动放到一个单独的文件里，命名为 oled.c，完整内容如下：

#include

#include "oledfont.h"

#define OLED_IIC_ADDR 0x3c
#define OLED_IIC_PORT 0

#define OLED_CMD 0 /*写命令 */
#define OLED_DATA 1 /* 写数据 */

uint8_t OLED_GRAM[144][8]; /* 显存 */

void OLED_WR_Byte(uint8_t dat, uint8_t mode)
{
    twi_msg_t msg;
    twi_port_t port = OLED_IIC_PORT;

    uint8_t buf[2];

    if (mode)
        buf[0] = 0x40;
    else
        buf[0] = 0x00;
    buf[1] = dat;

    msg.flags = 0;
    msg.addr = OLED_IIC_ADDR;
    msg.len = 2;
    msg.buf = buf;
    hal_twi_control(port, I2C_RDWR, &msg);
}

uint32_t OLED_Pow(uint8_t m, uint8_t n)
{
    uint32_t result = 1;
    while (n--)
        result *= m;
    return result;
}

void OLED_ColorTurn(uint8_t i)
{
    if (i == 0) {
        OLED_WR_Byte(0xA6, OLED_CMD); /* 正常显示 */
    }
    if (i == 1) {
        OLED_WR_Byte(0xA7, OLED_CMD); /* 反色显示 */
    }
}

void OLED_DisplayTurn(uint8_t i)
{
    if (i == 0) {
        OLED_WR_Byte(0xC8, OLED_CMD); /* 正常显示 */
        OLED_WR_Byte(0xA1, OLED_CMD);
    }
    if (i == 1) {
        OLED_WR_Byte(0xC0, OLED_CMD); /* 反转显示 */
        OLED_WR_Byte(0xA0, OLED_CMD);
    }
}

void OLED_Refresh(void)
{
    for (int i = 0; i < 8; i++) {
        OLED_WR_Byte(0xb0 + i, OLED_CMD); //设置行起始地址
        OLED_WR_Byte(0x00, OLED_CMD); //设置低列起始地址
        OLED_WR_Byte(0x10, OLED_CMD); //设置高列起始地址
        OLED_WR_Byte(0x78, OLED_DATA);
        OLED_WR_Byte(0x40, OLED_DATA);
        for (int n = 0; n < 128; n++) {
            OLED_WR_Byte(OLED_GRAM[n][i], OLED_DATA);
        }
    }
}

void OLED_Clear(void)
{
    for (int i = 0; i < 8; i++) {
        OLED_WR_Byte(0xb0 + i, OLED_CMD); //设置页地址（0~7）
        OLED_WR_Byte(0x00, OLED_CMD); //设置显示位置—列低地址
        OLED_WR_Byte(0x10, OLED_CMD); //设置显示位置—列高地址
        for (int n = 0; n < 128; n++)
            OLED_GRAM[n][i] = 0;
        OLED_Refresh(); //刷新GRAM内容
    }
}

void OLED_DrawPoint(uint8_t x, uint8_t y, uint8_t t)
{
    uint8_t i, m, n;
    i = y / 8;
    m = y % 8;
    n = 1 << m;
    if (t) {
        OLED_GRAM[x][i] |= n;
    }
    else {
        OLED_GRAM[x][i] = ~OLED_GRAM[x][i];
        OLED_GRAM[x][i] |= n;
        OLED_GRAM[x][i] = ~OLED_GRAM[x][i];
    }
}

void OLED_DrawLine(uint8_t x1, uint8_t y1, uint8_t x2, uint8_t y2, uint8_t mode)
{
    int xerr = 0, yerr = 0, delta_x, delta_y, distance;
    int incx, incy, uRow, uCol;
    delta_x = x2 - x1; //计算坐标增量
    delta_y = y2 - y1;
    uRow = x1; //画线起点坐标
    uCol = y1;
    if (delta_x > 0)
        incx = 1; //设置单步方向
    else if (delta_x == 0)
        incx = 0; //垂直线
    else {
        incx = -1;
        delta_x = -delta_x;
    }
    if (delta_y > 0)
        incy = 1;
    else if (delta_y == 0)
        incy = 0; //水平线
    else {
        incy = -1;
        delta_y = -delta_x;
    }
    if (delta_x > delta_y)
        distance = delta_x; //选取基本增量坐标轴
    else
        distance = delta_y;
    for (uint16_t t = 0; t < distance + 1; t++) {
        OLED_DrawPoint(uRow, uCol, mode); //画点
        xerr += delta_x;
        yerr += delta_y;
        if (xerr > distance) {
            xerr -= distance;
            uRow += incx;
        }
        if (yerr > distance) {
            yerr -= distance;
            uCol += incy;
        }
    }
}

void OLED_DrawCircle(uint8_t x, uint8_t y, uint8_t r)
{
    int a, b, num;
    a = 0;
    b = r;
    while (2 * b * b >= r * r) {
        OLED_DrawPoint(x + a, y - b, 1);
        OLED_DrawPoint(x - a, y - b, 1);
        OLED_DrawPoint(x - a, y + b, 1);
        OLED_DrawPoint(x + a, y + b, 1);

        OLED_DrawPoint(x + b, y + a, 1);
        OLED_DrawPoint(x + b, y - a, 1);
        OLED_DrawPoint(x - b, y - a, 1);
        OLED_DrawPoint(x - b, y + a, 1);

        a++;
        num = (a * a + b * b) - r * r; //计算画的点离圆心的距离
        if (num > 0) {
            b--;
            a--;
        }
    }
}

void OLED_ShowChar(uint8_t x, uint8_t y, uint8_t chr, uint8_t size1, uint8_t mode)
{
    uint8_t temp, size2, chr1;
    uint8_t x0 = x, y0 = y;
    if (size1 == 8)
        size2 = 6;
    else
        size2 = (size1 / 8 + ((size1 % 8) ? 1 : 0)) * (size1 / 2); //得到字体一个字符对应点阵集所占的字节数
    chr1 = chr - ' '; //计算偏移后的值
    for (uint8_t i = 0; i < size2; i++) {
        if (size1 == 8) {
            temp = asc2_0806[chr1][i];
        } //调用0806字体
        else if (size1 == 12) {
            temp = asc2_1206[chr1][i];
        } //调用1206字体
        else if (size1 == 16) {
            temp = asc2_1608[chr1][i];
        } //调用1608字体
        else if (size1 == 24) {
            temp = asc2_2412[chr1][i];
        } //调用2412字体
        else
            return;
        for (uint8_t m = 0; m < 8; m++) {
            if (temp & 0x01)
                OLED_DrawPoint(x, y, mode);
            else
                OLED_DrawPoint(x, y, !mode);
            temp >>= 1;
            y++;
        }
        x++;
        if ((size1 != 8) && ((x - x0) == size1 / 2)) {
            x = x0;
            y0 = y0 + 8;
        }
        y = y0;
    }
}

void OLED_ShowString(uint8_t x, uint8_t y, uint8_t* chr, uint8_t size1, uint8_t mode)
{
    while ((*chr >= ' ') && (*chr <= '~')) //判断是不是非法字符!
    {
        OLED_ShowChar(x, y, *chr, size1, mode);
        if (size1 == 8)
            x += 6;
        else
            x += size1 / 2;
        chr++;
    }
}

void OLED_ShowNum(uint8_t x, uint8_t y, uint32_t num, uint8_t len, uint8_t size1, uint8_t mode)
{
    uint8_t temp, m = 0;
    if (size1 == 8)
        m = 2;
    for (uint8_t t = 0; t < len; t++) {
        temp = (num / OLED_Pow(10, len - t - 1)) % 10;
        if (temp == 0) {
            OLED_ShowChar(x + (size1 / 2 + m) * t, y, '0', size1, mode);
        }
        else {
            OLED_ShowChar(x + (size1 / 2 + m) * t, y, temp + '0', size1, mode);
        }
    }
}

void OLED_Set_Pos(uint8_t x, uint8_t y)
{
    OLED_WR_Byte(0xb0 + y, OLED_CMD);
    OLED_WR_Byte(((x & 0xf0) >> 4) | 0x10, OLED_CMD);
    OLED_WR_Byte((x & 0x0f), OLED_CMD);
}

void OLED_Init(void)
{
    hal_twi_init(OLED_IIC_PORT); //-- init TWI

    OLED_WR_Byte(0xAE, OLED_CMD);//--turn off oled panel
    OLED_WR_Byte(0x00, OLED_CMD);//---set low column address
    OLED_WR_Byte(0x10, OLED_CMD);//---set high column address
    OLED_WR_Byte(0x40, OLED_CMD);//--set start line address  Set Mapping RAM Display Start Line (0x00~0x3F)
    OLED_WR_Byte(0x81, OLED_CMD);//--set contrast control register
    OLED_WR_Byte(0xCF, OLED_CMD); // Set SEG Output Current Brightness
    OLED_WR_Byte(0xA1, OLED_CMD);//--Set SEG/Column Mapping     0xa0左右反置 0xa1正常
    OLED_WR_Byte(0xC8, OLED_CMD);//Set COM/Row Scan Direction   0xc0上下反置 0xc8正常
    OLED_WR_Byte(0xA6, OLED_CMD);//--set normal display
    OLED_WR_Byte(0xA8, OLED_CMD);//--set multiplex ratio(1 to 64)
    OLED_WR_Byte(0x3f, OLED_CMD);//--1/64 duty
    OLED_WR_Byte(0xD3, OLED_CMD);//-set display offset Shift Mapping RAM Counter (0x00~0x3F)
    OLED_WR_Byte(0x00, OLED_CMD);//-not offset
    OLED_WR_Byte(0xd5, OLED_CMD);//--set display clock divide ratio/oscillator frequency
    OLED_WR_Byte(0x80, OLED_CMD);//--set divide ratio, Set Clock as 100 Frames/Sec
    OLED_WR_Byte(0xD9, OLED_CMD);//--set pre-charge period
    OLED_WR_Byte(0xF1, OLED_CMD);//Set Pre-Charge as 15 Clocks & Discharge as 1 Clock
    OLED_WR_Byte(0xDA, OLED_CMD);//--set com pins hardware configuration
    OLED_WR_Byte(0x12, OLED_CMD);
    OLED_WR_Byte(0xDB, OLED_CMD);//--set vcomh
    OLED_WR_Byte(0x40, OLED_CMD);//Set VCOM Deselect Level
    OLED_WR_Byte(0x20, OLED_CMD);//-Set Page Addressing Mode (0x00/0x01/0x02)
    OLED_WR_Byte(0x02, OLED_CMD);//
    OLED_WR_Byte(0x8D, OLED_CMD);//--set Charge Pump enable/disable
    OLED_WR_Byte(0x14, OLED_CMD);//--set(0x10) disable
    OLED_WR_Byte(0xA4, OLED_CMD);// Disable Entire Display On (0xa4/0xa5)
    OLED_WR_Byte(0xA6, OLED_CMD);// Disable Inverse Display On (0xa6/a7)
    OLED_Clear();
    OLED_WR_Byte(0xAF, OLED_CMD); /*display ON*/
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283

同时提供对应的头文件 oled.h，oledfont.h 由于较大，见文章末尾。

#ifndef __OLED_H
#define __OLED_H

/* 发送一个字节
 * mode:数据/命令标志 0,表示命令;1,表示数据;
 */
void OLED_WR_Byte(uint8_t dat, uint8_t mode);

/* Pow 函数 */
uint32_t OLED_Pow(uint8_t m, uint8_t n);

/* 反显函数 */
void OLED_ColorTurn(uint8_t i);

/* 屏幕旋转180度 */
void OLED_DisplayTurn(uint8_t i);

/* 更新显存到OLED */
void OLED_Refresh(void);

/* OLED 清屏 */
void OLED_Clear(void);

/* 画点
 * x: 0~127
 * y: 0~63
 * t: 1 填充 0,清空
 */
void OLED_DrawPoint(uint8_t x, uint8_t y, uint8_t t);

/* 画线
 * x1, y1: 起点坐标
 * x2, y2: 结束坐标
 */
void OLED_DrawLine(uint8_t x1, uint8_t y1, uint8_t x2, uint8_t y2, uint8_t mode);

/* 画圆
 * x, y: 圆心坐标
 * r: 圆的半径
 */

void OLED_DrawCircle(uint8_t x, uint8_t y, uint8_t r);

/* 在指定位置显示一个字符,包括部分字符
 * x: 0 ~ 127
 * y: 0 ~ 63
 * size1: 选择字体 6x8/6x12/8x16/12x24
 * mode: 0,反色显示; 1,正常显示
 */
void OLED_ShowChar(uint8_t x, uint8_t y, uint8_t chr, uint8_t size1, uint8_t mode);

/* 显示字符串
 * x: 0 ~ 127
 * y: 0 ~ 63
 * *chr: 字符串起始地址
 * size1: 选择字体 6x8/6x12/8x16/12x24
 * mode: 0,反色显示; 1,正常显示
 */
void OLED_ShowString(uint8_t x, uint8_t y, uint8_t* chr, uint8_t size1, uint8_t mode);

/* 显示数字
 * x: 0 ~ 127
 * y: 0 ~ 63
 * num: 要显示的数字
 * len: 数字的位数
 * size1: 选择字体 6x8/6x12/8x16/12x24
 * mode: 0,反色显示; 1,正常显示
 */
void OLED_ShowNum(uint8_t x, uint8_t y, uint32_t num, uint8_t len, uint8_t size1, uint8_t mode);

/* 初始化 OLED */
void OLED_Init(void);

#endif
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74

然后把 oled.c 加入编译，修改 lichee/rtos/projects/r128s2/module_c906/Makefile加入

obj-y += src/oled.o
1

在这里插入图片描述

编写主程序

打开你喜欢的编辑器，修改文件：lichee/rtos/projects/r128s2/module_c906/src/main.c

在这里插入图片描述

OLED_Init();

OLED_ShowString(12, 16, "====AWOL====", 16, 1);
OLED_ShowString(20, 32, "2023/08/24", 16, 1);

OLED_Refresh();
1
2
3
4
5
6

初始化 OLED，然后显示字符串。

在这里插入图片描述

结果

驱动了 OLED 屏

在这里插入图片描述

附录

oledfont.h：

#ifndef __OLEDFONT_H
#define __OLEDFONT_H
const unsigned char asc2_0806[][6] = {
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, // sp
    { 0x00, 0x00, 0x00, 0x2f, 0x00, 0x00 }, // !
    { 0x00, 0x00, 0x07, 0x00, 0x07, 0x00 }, // "
    { 0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14 }, // #
    { 0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12 }, // $
    { 0x00, 0x62, 0x64, 0x08, 0x13, 0x23 }, // %
    { 0x00, 0x36, 0x49, 0x55, 0x22, 0x50 }, // &
    { 0x00, 0x00, 0x05, 0x03, 0x00, 0x00 }, // '
    { 0x00, 0x00, 0x1c, 0x22, 0x41, 0x00 }, // (
    { 0x00, 0x00, 0x41, 0x22, 0x1c, 0x00 }, // )
    { 0x00, 0x14, 0x08, 0x3E, 0x08, 0x14 }, // *
    { 0x00, 0x08, 0x08, 0x3E, 0x08, 0x08 }, // +
    { 0x00, 0x00, 0x00, 0xA0, 0x60, 0x00 }, // ,
    { 0x00, 0x08, 0x08, 0x08, 0x08, 0x08 }, // -
    { 0x00, 0x00, 0x60, 0x60, 0x00, 0x00 }, // .
    { 0x00, 0x20, 0x10, 0x08, 0x04, 0x02 }, // /
    { 0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E }, // 0
    { 0x00, 0x00, 0x42, 0x7F, 0x40, 0x00 }, // 1
    { 0x00, 0x42, 0x61, 0x51, 0x49, 0x46 }, // 2
    { 0x00, 0x21, 0x41, 0x45, 0x4B, 0x31 }, // 3
    { 0x00, 0x18, 0x14, 0x12, 0x7F, 0x10 }, // 4
    { 0x00, 0x27, 0x45, 0x45, 0x45, 0x39 }, // 5
    { 0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30 }, // 6
    { 0x00, 0x01, 0x71, 0x09, 0x05, 0x03 }, // 7
    { 0x00, 0x36, 0x49, 0x49, 0x49, 0x36 }, // 8
    { 0x00, 0x06, 0x49, 0x49, 0x29, 0x1E }, // 9
    { 0x00, 0x00, 0x36, 0x36, 0x00, 0x00 }, // :
    { 0x00, 0x00, 0x56, 0x36, 0x00, 0x00 }, // ;
    { 0x00, 0x08, 0x14, 0x22, 0x41, 0x00 }, // <
    { 0x00, 0x14, 0x14, 0x14, 0x14, 0x14 }, // =
    { 0x00, 0x00, 0x41, 0x22, 0x14, 0x08 }, // >
    { 0x00, 0x02, 0x01, 0x51, 0x09, 0x06 }, // ?
    { 0x00, 0x32, 0x49, 0x59, 0x51, 0x3E }, // @
    { 0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C }, // A
    { 0x00, 0x7F, 0x49, 0x49, 0x49, 0x36 }, // B
    { 0x00, 0x3E, 0x41, 0x41, 0x41, 0x22 }, // C
    { 0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C }, // D
    { 0x00, 0x7F, 0x49, 0x49, 0x49, 0x41 }, // E
    { 0x00, 0x7F, 0x09, 0x09, 0x09, 0x01 }, // F
    { 0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A }, // G
    { 0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F }, // H
    { 0x00, 0x00, 0x41, 0x7F, 0x41, 0x00 }, // I
    { 0x00, 0x20, 0x40, 0x41, 0x3F, 0x01 }, // J
    { 0x00, 0x7F, 0x08, 0x14, 0x22, 0x41 }, // K
    { 0x00, 0x7F, 0x40, 0x40, 0x40, 0x40 }, // L
    { 0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F }, // M
    { 0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F }, // N
    { 0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E }, // O
    { 0x00, 0x7F, 0x09, 0x09, 0x09, 0x06 }, // P
    { 0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E }, // Q
    { 0x00, 0x7F, 0x09, 0x19, 0x29, 0x46 }, // R
    { 0x00, 0x46, 0x49, 0x49, 0x49, 0x31 }, // S
    { 0x00, 0x01, 0x01, 0x7F, 0x01, 0x01 }, // T
    { 0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F }, // U
    { 0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F }, // V
    { 0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F }, // W
    { 0x00, 0x63, 0x14, 0x08, 0x14, 0x63 }, // X
    { 0x00, 0x07, 0x08, 0x70, 0x08, 0x07 }, // Y
    { 0x00, 0x61, 0x51, 0x49, 0x45, 0x43 }, // Z
    { 0x00, 0x00, 0x7F, 0x41, 0x41, 0x00 }, // [
    { 0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55 }, // 55
    { 0x00, 0x00, 0x41, 0x41, 0x7F, 0x00 }, // ]
    { 0x00, 0x04, 0x02, 0x01, 0x02, 0x04 }, // ^
    { 0x00, 0x40, 0x40, 0x40, 0x40, 0x40 }, // _
    { 0x00, 0x00, 0x01, 0x02, 0x04, 0x00 }, // '
    { 0x00, 0x20, 0x54, 0x54, 0x54, 0x78 }, // a
    { 0x00, 0x7F, 0x48, 0x44, 0x44, 0x38 }, // b
    { 0x00, 0x38, 0x44, 0x44, 0x44, 0x20 }, // c
    { 0x00, 0x38, 0x44, 0x44, 0x48, 0x7F }, // d
    { 0x00, 0x38, 0x54, 0x54, 0x54, 0x18 }, // e
    { 0x00, 0x08, 0x7E, 0x09, 0x01, 0x02 }, // f
    { 0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C }, // g
    { 0x00, 0x7F, 0x08, 0x04, 0x04, 0x78 }, // h
    { 0x00, 0x00, 0x44, 0x7D, 0x40, 0x00 }, // i
    { 0x00, 0x40, 0x80, 0x84, 0x7D, 0x00 }, // j
    { 0x00, 0x7F, 0x10, 0x28, 0x44, 0x00 }, // k
    { 0x00, 0x00, 0x41, 0x7F, 0x40, 0x00 }, // l
    { 0x00, 0x7C, 0x04, 0x18, 0x04, 0x78 }, // m
    { 0x00, 0x7C, 0x08, 0x04, 0x04, 0x78 }, // n
    { 0x00, 0x38, 0x44, 0x44, 0x44, 0x38 }, // o
    { 0x00, 0xFC, 0x24, 0x24, 0x24, 0x18 }, // p
    { 0x00, 0x18, 0x24, 0x24, 0x18, 0xFC }, // q
    { 0x00, 0x7C, 0x08, 0x04, 0x04, 0x08 }, // r
    { 0x00, 0x48, 0x54, 0x54, 0x54, 0x20 }, // s
    { 0x00, 0x04, 0x3F, 0x44, 0x40, 0x20 }, // t
    { 0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C }, // u
    { 0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C }, // v
    { 0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C }, // w
    { 0x00, 0x44, 0x28, 0x10, 0x28, 0x44 }, // x
    { 0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C }, // y
    { 0x00, 0x44, 0x64, 0x54, 0x4C, 0x44 }, // z
    { 0x14, 0x14, 0x14, 0x14, 0x14, 0x14 }, // horiz lines
};
//12*12 ASCII字符集点阵
const unsigned char asc2_1206[95][12] = {
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*" ",0*/
    { 0x00, 0x00, 0xFC, 0x00, 0x00, 0x00, 0x00, 0x00, 0x02, 0x00, 0x00, 0x00 }, /*"!",1*/
    { 0x00, 0x0C, 0x02, 0x0C, 0x02, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*""",2*/
    { 0x90, 0xD0, 0xBC, 0xD0, 0xBC, 0x90, 0x00, 0x03, 0x00, 0x03, 0x00, 0x00 }, /*"#",3*/
    { 0x18, 0x24, 0xFE, 0x44, 0x8C, 0x00, 0x03, 0x02, 0x07, 0x02, 0x01, 0x00 }, /*"$",4*/
    { 0x18, 0x24, 0xD8, 0xB0, 0x4C, 0x80, 0x00, 0x03, 0x00, 0x01, 0x02, 0x01 }, /*"%",5*/
    { 0xC0, 0x38, 0xE4, 0x38, 0xE0, 0x00, 0x01, 0x02, 0x02, 0x01, 0x02, 0x02 }, /*"&",6*/
    { 0x08, 0x06, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"'",7*/
    { 0x00, 0x00, 0x00, 0xF8, 0x04, 0x02, 0x00, 0x00, 0x00, 0x01, 0x02, 0x04 }, /*"(",8*/
    { 0x00, 0x02, 0x04, 0xF8, 0x00, 0x00, 0x00, 0x04, 0x02, 0x01, 0x00, 0x00 }, /*")",9*/
    { 0x90, 0x60, 0xF8, 0x60, 0x90, 0x00, 0x00, 0x00, 0x01, 0x00, 0x00, 0x00 }, /*"*",10*/
    { 0x20, 0x20, 0xFC, 0x20, 0x20, 0x00, 0x00, 0x00, 0x01, 0x00, 0x00, 0x00 }, /*"+",11*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x08, 0x06, 0x00, 0x00, 0x00, 0x00 }, /*",",12*/
    { 0x20, 0x20, 0x20, 0x20, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"-",13*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x02, 0x00, 0x00, 0x00, 0x00 }, /*".",14*/
    { 0x00, 0x80, 0x60, 0x1C, 0x02, 0x00, 0x04, 0x03, 0x00, 0x00, 0x00, 0x00 }, /*"/",15*/
    { 0xF8, 0x04, 0x04, 0x04, 0xF8, 0x00, 0x01, 0x02, 0x02, 0x02, 0x01, 0x00 }, /*"0",16*/
    { 0x00, 0x08, 0xFC, 0x00, 0x00, 0x00, 0x00, 0x02, 0x03, 0x02, 0x00, 0x00 }, /*"1",17*/
    { 0x18, 0x84, 0x44, 0x24, 0x18, 0x00, 0x03, 0x02, 0x02, 0x02, 0x02, 0x00 }, /*"2",18*/
    { 0x08, 0x04, 0x24, 0x24, 0xD8, 0x00, 0x01, 0x02, 0x02, 0x02, 0x01, 0x00 }, /*"3",19*/
    { 0x40, 0xB0, 0x88, 0xFC, 0x80, 0x00, 0x00, 0x00, 0x00, 0x03, 0x02, 0x00 }, /*"4",20*/
    { 0x3C, 0x24, 0x24, 0x24, 0xC4, 0x00, 0x01, 0x02, 0x02, 0x02, 0x01, 0x00 }, /*"5",21*/
    { 0xF8, 0x24, 0x24, 0x2C, 0xC0, 0x00, 0x01, 0x02, 0x02, 0x02, 0x01, 0x00 }, /*"6",22*/
    { 0x0C, 0x04, 0xE4, 0x1C, 0x04, 0x00, 0x00, 0x00, 0x03, 0x00, 0x00, 0x00 }, /*"7",23*/
    { 0xD8, 0x24, 0x24, 0x24, 0xD8, 0x00, 0x01, 0x02, 0x02, 0x02, 0x01, 0x00 }, /*"8",24*/
    { 0x38, 0x44, 0x44, 0x44, 0xF8, 0x00, 0x00, 0x03, 0x02, 0x02, 0x01, 0x00 }, /*"9",25*/
    { 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x02, 0x00, 0x00, 0x00 }, /*":",26*/
    { 0x00, 0x00, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x06, 0x00, 0x00, 0x00 }, /*";",27*/
    { 0x00, 0x20, 0x50, 0x88, 0x04, 0x02, 0x00, 0x00, 0x00, 0x00, 0x01, 0x02 }, /*"<",28*/
    { 0x90, 0x90, 0x90, 0x90, 0x90, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"=",29*/
    { 0x00, 0x02, 0x04, 0x88, 0x50, 0x20, 0x00, 0x02, 0x01, 0x00, 0x00, 0x00 }, /*">",30*/
    { 0x18, 0x04, 0xC4, 0x24, 0x18, 0x00, 0x00, 0x00, 0x02, 0x00, 0x00, 0x00 }, /*"?",31*/
    { 0xF8, 0x04, 0xE4, 0x94, 0xF8, 0x00, 0x01, 0x02, 0x02, 0x02, 0x02, 0x00 }, /*"@",32*/
    { 0x00, 0xE0, 0x9C, 0xF0, 0x80, 0x00, 0x02, 0x03, 0x00, 0x00, 0x03, 0x02 }, /*"A",33*/
    { 0x04, 0xFC, 0x24, 0x24, 0xD8, 0x00, 0x02, 0x03, 0x02, 0x02, 0x01, 0x00 }, /*"B",34*/
    { 0xF8, 0x04, 0x04, 0x04, 0x0C, 0x00, 0x01, 0x02, 0x02, 0x02, 0x01, 0x00 }, /*"C",35*/
    { 0x04, 0xFC, 0x04, 0x04, 0xF8, 0x00, 0x02, 0x03, 0x02, 0x02, 0x01, 0x00 }, /*"D",36*/
    { 0x04, 0xFC, 0x24, 0x74, 0x0C, 0x00, 0x02, 0x03, 0x02, 0x02, 0x03, 0x00 }, /*"E",37*/
    { 0x04, 0xFC, 0x24, 0x74, 0x0C, 0x00, 0x02, 0x03, 0x02, 0x00, 0x00, 0x00 }, /*"F",38*/
    { 0xF0, 0x08, 0x04, 0x44, 0xCC, 0x40, 0x00, 0x01, 0x02, 0x02, 0x01, 0x00 }, /*"G",39*/
    { 0x04, 0xFC, 0x20, 0x20, 0xFC, 0x04, 0x02, 0x03, 0x00, 0x00, 0x03, 0x02 }, /*"H",40*/
    { 0x04, 0x04, 0xFC, 0x04, 0x04, 0x00, 0x02, 0x02, 0x03, 0x02, 0x02, 0x00 }, /*"I",41*/
    { 0x00, 0x04, 0x04, 0xFC, 0x04, 0x04, 0x06, 0x04, 0x04, 0x03, 0x00, 0x00 }, /*"J",42*/
    { 0x04, 0xFC, 0x24, 0xD0, 0x0C, 0x04, 0x02, 0x03, 0x02, 0x00, 0x03, 0x02 }, /*"K",43*/
    { 0x04, 0xFC, 0x04, 0x00, 0x00, 0x00, 0x02, 0x03, 0x02, 0x02, 0x02, 0x03 }, /*"L",44*/
    { 0xFC, 0x3C, 0xC0, 0x3C, 0xFC, 0x00, 0x03, 0x00, 0x03, 0x00, 0x03, 0x00 }, /*"M",45*/
    { 0x04, 0xFC, 0x30, 0xC4, 0xFC, 0x04, 0x02, 0x03, 0x02, 0x00, 0x03, 0x00 }, /*"N",46*/
    { 0xF8, 0x04, 0x04, 0x04, 0xF8, 0x00, 0x01, 0x02, 0x02, 0x02, 0x01, 0x00 }, /*"O",47*/
    { 0x04, 0xFC, 0x24, 0x24, 0x18, 0x00, 0x02, 0x03, 0x02, 0x00, 0x00, 0x00 }, /*"P",48*/
    { 0xF8, 0x84, 0x84, 0x04, 0xF8, 0x00, 0x01, 0x02, 0x02, 0x07, 0x05, 0x00 }, /*"Q",49*/
    { 0x04, 0xFC, 0x24, 0x64, 0x98, 0x00, 0x02, 0x03, 0x02, 0x00, 0x03, 0x02 }, /*"R",50*/
    { 0x18, 0x24, 0x24, 0x44, 0x8C, 0x00, 0x03, 0x02, 0x02, 0x02, 0x01, 0x00 }, /*"S",51*/
    { 0x0C, 0x04, 0xFC, 0x04, 0x0C, 0x00, 0x00, 0x02, 0x03, 0x02, 0x00, 0x00 }, /*"T",52*/
    { 0x04, 0xFC, 0x00, 0x00, 0xFC, 0x04, 0x00, 0x01, 0x02, 0x02, 0x01, 0x00 }, /*"U",53*/
    { 0x04, 0x7C, 0x80, 0xE0, 0x1C, 0x04, 0x00, 0x00, 0x03, 0x00, 0x00, 0x00 }, /*"V",54*/
    { 0x1C, 0xE0, 0x3C, 0xE0, 0x1C, 0x00, 0x00, 0x03, 0x00, 0x03, 0x00, 0x00 }, /*"W",55*/
    { 0x04, 0x9C, 0x60, 0x9C, 0x04, 0x00, 0x02, 0x03, 0x00, 0x03, 0x02, 0x00 }, /*"X",56*/
    { 0x04, 0x1C, 0xE0, 0x1C, 0x04, 0x00, 0x00, 0x02, 0x03, 0x02, 0x00, 0x00 }, /*"Y",57*/
    { 0x0C, 0x84, 0x64, 0x1C, 0x04, 0x00, 0x02, 0x03, 0x02, 0x02, 0x03, 0x00 }, /*"Z",58*/
    { 0x00, 0x00, 0xFE, 0x02, 0x02, 0x00, 0x00, 0x00, 0x07, 0x04, 0x04, 0x00 }, /*"[",59*/
    { 0x00, 0x0E, 0x30, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x02, 0x00 }, /*"\",60*/
    { 0x00, 0x02, 0x02, 0xFE, 0x00, 0x00, 0x00, 0x04, 0x04, 0x07, 0x00, 0x00 }, /*"]",61*/
    { 0x00, 0x04, 0x02, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"^",62*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x08, 0x08, 0x08, 0x08, 0x08, 0x08 }, /*"_",63*/
    { 0x00, 0x00, 0x02, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"`",64*/
    { 0x00, 0x40, 0xA0, 0xA0, 0xC0, 0x00, 0x00, 0x01, 0x02, 0x02, 0x03, 0x02 }, /*"a",65*/
    { 0x04, 0xFC, 0x20, 0x20, 0xC0, 0x00, 0x00, 0x03, 0x02, 0x02, 0x01, 0x00 }, /*"b",66*/
    { 0x00, 0xC0, 0x20, 0x20, 0x60, 0x00, 0x00, 0x01, 0x02, 0x02, 0x02, 0x00 }, /*"c",67*/
    { 0x00, 0xC0, 0x20, 0x24, 0xFC, 0x00, 0x00, 0x01, 0x02, 0x02, 0x03, 0x02 }, /*"d",68*/
    { 0x00, 0xC0, 0xA0, 0xA0, 0xC0, 0x00, 0x00, 0x01, 0x02, 0x02, 0x02, 0x00 }, /*"e",69*/
    { 0x00, 0x20, 0xF8, 0x24, 0x24, 0x04, 0x00, 0x02, 0x03, 0x02, 0x02, 0x00 }, /*"f",70*/
    { 0x00, 0x40, 0xA0, 0xA0, 0x60, 0x20, 0x00, 0x07, 0x0A, 0x0A, 0x0A, 0x04 }, /*"g",71*/
    { 0x04, 0xFC, 0x20, 0x20, 0xC0, 0x00, 0x02, 0x03, 0x02, 0x00, 0x03, 0x02 }, /*"h",72*/
    { 0x00, 0x20, 0xE4, 0x00, 0x00, 0x00, 0x00, 0x02, 0x03, 0x02, 0x00, 0x00 }, /*"i",73*/
    { 0x00, 0x00, 0x20, 0xE4, 0x00, 0x00, 0x08, 0x08, 0x08, 0x07, 0x00, 0x00 }, /*"j",74*/
    { 0x04, 0xFC, 0x80, 0xE0, 0x20, 0x20, 0x02, 0x03, 0x02, 0x00, 0x03, 0x02 }, /*"k",75*/
    { 0x04, 0x04, 0xFC, 0x00, 0x00, 0x00, 0x02, 0x02, 0x03, 0x02, 0x02, 0x00 }, /*"l",76*/
    { 0xE0, 0x20, 0xE0, 0x20, 0xC0, 0x00, 0x03, 0x00, 0x03, 0x00, 0x03, 0x00 }, /*"m",77*/
    { 0x20, 0xE0, 0x20, 0x20, 0xC0, 0x00, 0x02, 0x03, 0x02, 0x00, 0x03, 0x02 }, /*"n",78*/
    { 0x00, 0xC0, 0x20, 0x20, 0xC0, 0x00, 0x00, 0x01, 0x02, 0x02, 0x01, 0x00 }, /*"o",79*/
    { 0x20, 0xE0, 0x20, 0x20, 0xC0, 0x00, 0x08, 0x0F, 0x0A, 0x02, 0x01, 0x00 }, /*"p",80*/
    { 0x00, 0xC0, 0x20, 0x20, 0xE0, 0x00, 0x00, 0x01, 0x02, 0x0A, 0x0F, 0x08 }, /*"q",81*/
    { 0x20, 0xE0, 0x40, 0x20, 0x20, 0x00, 0x02, 0x03, 0x02, 0x00, 0x00, 0x00 }, /*"r",82*/
    { 0x00, 0x60, 0xA0, 0xA0, 0x20, 0x00, 0x00, 0x02, 0x02, 0x02, 0x03, 0x00 }, /*"s",83*/
    { 0x00, 0x20, 0xF8, 0x20, 0x00, 0x00, 0x00, 0x00, 0x01, 0x02, 0x02, 0x00 }, /*"t",84*/
    { 0x20, 0xE0, 0x00, 0x20, 0xE0, 0x00, 0x00, 0x01, 0x02, 0x02, 0x03, 0x02 }, /*"u",85*/
    { 0x20, 0xE0, 0x20, 0x80, 0x60, 0x20, 0x00, 0x00, 0x03, 0x01, 0x00, 0x00 }, /*"v",86*/
    { 0x60, 0x80, 0xE0, 0x80, 0x60, 0x00, 0x00, 0x03, 0x00, 0x03, 0x00, 0x00 }, /*"w",87*/
    { 0x20, 0x60, 0x80, 0x60, 0x20, 0x00, 0x02, 0x03, 0x00, 0x03, 0x02, 0x00 }, /*"x",88*/
    { 0x20, 0xE0, 0x20, 0x80, 0x60, 0x20, 0x08, 0x08, 0x07, 0x01, 0x00, 0x00 }, /*"y",89*/
    { 0x00, 0x20, 0xA0, 0x60, 0x20, 0x00, 0x00, 0x02, 0x03, 0x02, 0x02, 0x00 }, /*"z",90*/
    { 0x00, 0x00, 0x20, 0xDE, 0x02, 0x00, 0x00, 0x00, 0x00, 0x07, 0x04, 0x00 }, /*"{",91*/
    { 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0F, 0x00, 0x00 }, /*"|",92*/
    { 0x00, 0x02, 0xDE, 0x20, 0x00, 0x00, 0x00, 0x04, 0x07, 0x00, 0x00, 0x00 }, /*"}",93*/
    { 0x02, 0x01, 0x02, 0x04, 0x04, 0x02, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"~",94*/
};
//16*16 ASCII字符集点阵
const unsigned char asc2_1608[][16] = {
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*" ",0*/
    { 0x00, 0x00, 0x00, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x33, 0x30, 0x00, 0x00, 0x00 }, /*"!",1*/
    { 0x00, 0x10, 0x0C, 0x06, 0x10, 0x0C, 0x06, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*""",2*/
    { 0x40, 0xC0, 0x78, 0x40, 0xC0, 0x78, 0x40, 0x00, 0x04, 0x3F, 0x04, 0x04, 0x3F, 0x04, 0x04, 0x00 }, /*"#",3*/
    { 0x00, 0x70, 0x88, 0xFC, 0x08, 0x30, 0x00, 0x00, 0x00, 0x18, 0x20, 0xFF, 0x21, 0x1E, 0x00, 0x00 }, /*"$",4*/
    { 0xF0, 0x08, 0xF0, 0x00, 0xE0, 0x18, 0x00, 0x00, 0x00, 0x21, 0x1C, 0x03, 0x1E, 0x21, 0x1E, 0x00 }, /*"%",5*/
    { 0x00, 0xF0, 0x08, 0x88, 0x70, 0x00, 0x00, 0x00, 0x1E, 0x21, 0x23, 0x24, 0x19, 0x27, 0x21, 0x10 }, /*"&",6*/
    { 0x10, 0x16, 0x0E, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"'",7*/
    { 0x00, 0x00, 0x00, 0xE0, 0x18, 0x04, 0x02, 0x00, 0x00, 0x00, 0x00, 0x07, 0x18, 0x20, 0x40, 0x00 }, /*"(",8*/
    { 0x00, 0x02, 0x04, 0x18, 0xE0, 0x00, 0x00, 0x00, 0x00, 0x40, 0x20, 0x18, 0x07, 0x00, 0x00, 0x00 }, /*")",9*/
    { 0x40, 0x40, 0x80, 0xF0, 0x80, 0x40, 0x40, 0x00, 0x02, 0x02, 0x01, 0x0F, 0x01, 0x02, 0x02, 0x00 }, /*"*",10*/
    { 0x00, 0x00, 0x00, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x01, 0x01, 0x01, 0x1F, 0x01, 0x01, 0x01, 0x00 }, /*"+",11*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0xB0, 0x70, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*",",12*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01 }, /*"-",13*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x30, 0x30, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*".",14*/
    { 0x00, 0x00, 0x00, 0x00, 0x80, 0x60, 0x18, 0x04, 0x00, 0x60, 0x18, 0x06, 0x01, 0x00, 0x00, 0x00 }, /*"/",15*/
    { 0x00, 0xE0, 0x10, 0x08, 0x08, 0x10, 0xE0, 0x00, 0x00, 0x0F, 0x10, 0x20, 0x20, 0x10, 0x0F, 0x00 }, /*"0",16*/
    { 0x00, 0x10, 0x10, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x20, 0x20, 0x3F, 0x20, 0x20, 0x00, 0x00 }, /*"1",17*/
    { 0x00, 0x70, 0x08, 0x08, 0x08, 0x88, 0x70, 0x00, 0x00, 0x30, 0x28, 0x24, 0x22, 0x21, 0x30, 0x00 }, /*"2",18*/
    { 0x00, 0x30, 0x08, 0x88, 0x88, 0x48, 0x30, 0x00, 0x00, 0x18, 0x20, 0x20, 0x20, 0x11, 0x0E, 0x00 }, /*"3",19*/
    { 0x00, 0x00, 0xC0, 0x20, 0x10, 0xF8, 0x00, 0x00, 0x00, 0x07, 0x04, 0x24, 0x24, 0x3F, 0x24, 0x00 }, /*"4",20*/
    { 0x00, 0xF8, 0x08, 0x88, 0x88, 0x08, 0x08, 0x00, 0x00, 0x19, 0x21, 0x20, 0x20, 0x11, 0x0E, 0x00 }, /*"5",21*/
    { 0x00, 0xE0, 0x10, 0x88, 0x88, 0x18, 0x00, 0x00, 0x00, 0x0F, 0x11, 0x20, 0x20, 0x11, 0x0E, 0x00 }, /*"6",22*/
    { 0x00, 0x38, 0x08, 0x08, 0xC8, 0x38, 0x08, 0x00, 0x00, 0x00, 0x00, 0x3F, 0x00, 0x00, 0x00, 0x00 }, /*"7",23*/
    { 0x00, 0x70, 0x88, 0x08, 0x08, 0x88, 0x70, 0x00, 0x00, 0x1C, 0x22, 0x21, 0x21, 0x22, 0x1C, 0x00 }, /*"8",24*/
    { 0x00, 0xE0, 0x10, 0x08, 0x08, 0x10, 0xE0, 0x00, 0x00, 0x00, 0x31, 0x22, 0x22, 0x11, 0x0F, 0x00 }, /*"9",25*/
    { 0x00, 0x00, 0x00, 0xC0, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x30, 0x30, 0x00, 0x00, 0x00 }, /*":",26*/
    { 0x00, 0x00, 0x00, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x60, 0x00, 0x00, 0x00, 0x00 }, /*";",27*/
    { 0x00, 0x00, 0x80, 0x40, 0x20, 0x10, 0x08, 0x00, 0x00, 0x01, 0x02, 0x04, 0x08, 0x10, 0x20, 0x00 }, /*"<",28*/
    { 0x40, 0x40, 0x40, 0x40, 0x40, 0x40, 0x40, 0x00, 0x04, 0x04, 0x04, 0x04, 0x04, 0x04, 0x04, 0x00 }, /*"=",29*/
    { 0x00, 0x08, 0x10, 0x20, 0x40, 0x80, 0x00, 0x00, 0x00, 0x20, 0x10, 0x08, 0x04, 0x02, 0x01, 0x00 }, /*">",30*/
    { 0x00, 0x70, 0x48, 0x08, 0x08, 0x08, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x30, 0x36, 0x01, 0x00, 0x00 }, /*"?",31*/
    { 0xC0, 0x30, 0xC8, 0x28, 0xE8, 0x10, 0xE0, 0x00, 0x07, 0x18, 0x27, 0x24, 0x23, 0x14, 0x0B, 0x00 }, /*"@",32*/
    { 0x00, 0x00, 0xC0, 0x38, 0xE0, 0x00, 0x00, 0x00, 0x20, 0x3C, 0x23, 0x02, 0x02, 0x27, 0x38, 0x20 }, /*"A",33*/
    { 0x08, 0xF8, 0x88, 0x88, 0x88, 0x70, 0x00, 0x00, 0x20, 0x3F, 0x20, 0x20, 0x20, 0x11, 0x0E, 0x00 }, /*"B",34*/
    { 0xC0, 0x30, 0x08, 0x08, 0x08, 0x08, 0x38, 0x00, 0x07, 0x18, 0x20, 0x20, 0x20, 0x10, 0x08, 0x00 }, /*"C",35*/
    { 0x08, 0xF8, 0x08, 0x08, 0x08, 0x10, 0xE0, 0x00, 0x20, 0x3F, 0x20, 0x20, 0x20, 0x10, 0x0F, 0x00 }, /*"D",36*/
    { 0x08, 0xF8, 0x88, 0x88, 0xE8, 0x08, 0x10, 0x00, 0x20, 0x3F, 0x20, 0x20, 0x23, 0x20, 0x18, 0x00 }, /*"E",37*/
    { 0x08, 0xF8, 0x88, 0x88, 0xE8, 0x08, 0x10, 0x00, 0x20, 0x3F, 0x20, 0x00, 0x03, 0x00, 0x00, 0x00 }, /*"F",38*/
    { 0xC0, 0x30, 0x08, 0x08, 0x08, 0x38, 0x00, 0x00, 0x07, 0x18, 0x20, 0x20, 0x22, 0x1E, 0x02, 0x00 }, /*"G",39*/
    { 0x08, 0xF8, 0x08, 0x00, 0x00, 0x08, 0xF8, 0x08, 0x20, 0x3F, 0x21, 0x01, 0x01, 0x21, 0x3F, 0x20 }, /*"H",40*/
    { 0x00, 0x08, 0x08, 0xF8, 0x08, 0x08, 0x00, 0x00, 0x00, 0x20, 0x20, 0x3F, 0x20, 0x20, 0x00, 0x00 }, /*"I",41*/
    { 0x00, 0x00, 0x08, 0x08, 0xF8, 0x08, 0x08, 0x00, 0xC0, 0x80, 0x80, 0x80, 0x7F, 0x00, 0x00, 0x00 }, /*"J",42*/
    { 0x08, 0xF8, 0x88, 0xC0, 0x28, 0x18, 0x08, 0x00, 0x20, 0x3F, 0x20, 0x01, 0x26, 0x38, 0x20, 0x00 }, /*"K",43*/
    { 0x08, 0xF8, 0x08, 0x00, 0x00, 0x00, 0x00, 0x00, 0x20, 0x3F, 0x20, 0x20, 0x20, 0x20, 0x30, 0x00 }, /*"L",44*/
    { 0x08, 0xF8, 0xF8, 0x00, 0xF8, 0xF8, 0x08, 0x00, 0x20, 0x3F, 0x00, 0x3F, 0x00, 0x3F, 0x20, 0x00 }, /*"M",45*/
    { 0x08, 0xF8, 0x30, 0xC0, 0x00, 0x08, 0xF8, 0x08, 0x20, 0x3F, 0x20, 0x00, 0x07, 0x18, 0x3F, 0x00 }, /*"N",46*/
    { 0xE0, 0x10, 0x08, 0x08, 0x08, 0x10, 0xE0, 0x00, 0x0F, 0x10, 0x20, 0x20, 0x20, 0x10, 0x0F, 0x00 }, /*"O",47*/
    { 0x08, 0xF8, 0x08, 0x08, 0x08, 0x08, 0xF0, 0x00, 0x20, 0x3F, 0x21, 0x01, 0x01, 0x01, 0x00, 0x00 }, /*"P",48*/
    { 0xE0, 0x10, 0x08, 0x08, 0x08, 0x10, 0xE0, 0x00, 0x0F, 0x18, 0x24, 0x24, 0x38, 0x50, 0x4F, 0x00 }, /*"Q",49*/
    { 0x08, 0xF8, 0x88, 0x88, 0x88, 0x88, 0x70, 0x00, 0x20, 0x3F, 0x20, 0x00, 0x03, 0x0C, 0x30, 0x20 }, /*"R",50*/
    { 0x00, 0x70, 0x88, 0x08, 0x08, 0x08, 0x38, 0x00, 0x00, 0x38, 0x20, 0x21, 0x21, 0x22, 0x1C, 0x00 }, /*"S",51*/
    { 0x18, 0x08, 0x08, 0xF8, 0x08, 0x08, 0x18, 0x00, 0x00, 0x00, 0x20, 0x3F, 0x20, 0x00, 0x00, 0x00 }, /*"T",52*/
    { 0x08, 0xF8, 0x08, 0x00, 0x00, 0x08, 0xF8, 0x08, 0x00, 0x1F, 0x20, 0x20, 0x20, 0x20, 0x1F, 0x00 }, /*"U",53*/
    { 0x08, 0x78, 0x88, 0x00, 0x00, 0xC8, 0x38, 0x08, 0x00, 0x00, 0x07, 0x38, 0x0E, 0x01, 0x00, 0x00 }, /*"V",54*/
    { 0xF8, 0x08, 0x00, 0xF8, 0x00, 0x08, 0xF8, 0x00, 0x03, 0x3C, 0x07, 0x00, 0x07, 0x3C, 0x03, 0x00 }, /*"W",55*/
    { 0x08, 0x18, 0x68, 0x80, 0x80, 0x68, 0x18, 0x08, 0x20, 0x30, 0x2C, 0x03, 0x03, 0x2C, 0x30, 0x20 }, /*"X",56*/
    { 0x08, 0x38, 0xC8, 0x00, 0xC8, 0x38, 0x08, 0x00, 0x00, 0x00, 0x20, 0x3F, 0x20, 0x00, 0x00, 0x00 }, /*"Y",57*/
    { 0x10, 0x08, 0x08, 0x08, 0xC8, 0x38, 0x08, 0x00, 0x20, 0x38, 0x26, 0x21, 0x20, 0x20, 0x18, 0x00 }, /*"Z",58*/
    { 0x00, 0x00, 0x00, 0xFE, 0x02, 0x02, 0x02, 0x00, 0x00, 0x00, 0x00, 0x7F, 0x40, 0x40, 0x40, 0x00 }, /*"[",59*/
    { 0x00, 0x0C, 0x30, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x06, 0x38, 0xC0, 0x00 }, /*"\",60*/
    { 0x00, 0x02, 0x02, 0x02, 0xFE, 0x00, 0x00, 0x00, 0x00, 0x40, 0x40, 0x40, 0x7F, 0x00, 0x00, 0x00 }, /*"]",61*/
    { 0x00, 0x00, 0x04, 0x02, 0x02, 0x02, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"^",62*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80 }, /*"_",63*/
    { 0x00, 0x02, 0x02, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"`",64*/
    { 0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00, 0x00, 0x19, 0x24, 0x22, 0x22, 0x22, 0x3F, 0x20 }, /*"a",65*/
    { 0x08, 0xF8, 0x00, 0x80, 0x80, 0x00, 0x00, 0x00, 0x00, 0x3F, 0x11, 0x20, 0x20, 0x11, 0x0E, 0x00 }, /*"b",66*/
    { 0x00, 0x00, 0x00, 0x80, 0x80, 0x80, 0x00, 0x00, 0x00, 0x0E, 0x11, 0x20, 0x20, 0x20, 0x11, 0x00 }, /*"c",67*/
    { 0x00, 0x00, 0x00, 0x80, 0x80, 0x88, 0xF8, 0x00, 0x00, 0x0E, 0x11, 0x20, 0x20, 0x10, 0x3F, 0x20 }, /*"d",68*/
    { 0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00, 0x00, 0x1F, 0x22, 0x22, 0x22, 0x22, 0x13, 0x00 }, /*"e",69*/
    { 0x00, 0x80, 0x80, 0xF0, 0x88, 0x88, 0x88, 0x18, 0x00, 0x20, 0x20, 0x3F, 0x20, 0x20, 0x00, 0x00 }, /*"f",70*/
    { 0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00, 0x6B, 0x94, 0x94, 0x94, 0x93, 0x60, 0x00 }, /*"g",71*/
    { 0x08, 0xF8, 0x00, 0x80, 0x80, 0x80, 0x00, 0x00, 0x20, 0x3F, 0x21, 0x00, 0x00, 0x20, 0x3F, 0x20 }, /*"h",72*/
    { 0x00, 0x80, 0x98, 0x98, 0x00, 0x00, 0x00, 0x00, 0x00, 0x20, 0x20, 0x3F, 0x20, 0x20, 0x00, 0x00 }, /*"i",73*/
    { 0x00, 0x00, 0x00, 0x80, 0x98, 0x98, 0x00, 0x00, 0x00, 0xC0, 0x80, 0x80, 0x80, 0x7F, 0x00, 0x00 }, /*"j",74*/
    { 0x08, 0xF8, 0x00, 0x00, 0x80, 0x80, 0x80, 0x00, 0x20, 0x3F, 0x24, 0x02, 0x2D, 0x30, 0x20, 0x00 }, /*"k",75*/
    { 0x00, 0x08, 0x08, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x20, 0x20, 0x3F, 0x20, 0x20, 0x00, 0x00 }, /*"l",76*/
    { 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x00, 0x20, 0x3F, 0x20, 0x00, 0x3F, 0x20, 0x00, 0x3F }, /*"m",77*/
    { 0x80, 0x80, 0x00, 0x80, 0x80, 0x80, 0x00, 0x00, 0x20, 0x3F, 0x21, 0x00, 0x00, 0x20, 0x3F, 0x20 }, /*"n",78*/
    { 0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00, 0x00, 0x1F, 0x20, 0x20, 0x20, 0x20, 0x1F, 0x00 }, /*"o",79*/
    { 0x80, 0x80, 0x00, 0x80, 0x80, 0x00, 0x00, 0x00, 0x80, 0xFF, 0xA1, 0x20, 0x20, 0x11, 0x0E, 0x00 }, /*"p",80*/
    { 0x00, 0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00, 0x0E, 0x11, 0x20, 0x20, 0xA0, 0xFF, 0x80 }, /*"q",81*/
    { 0x80, 0x80, 0x80, 0x00, 0x80, 0x80, 0x80, 0x00, 0x20, 0x20, 0x3F, 0x21, 0x20, 0x00, 0x01, 0x00 }, /*"r",82*/
    { 0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00, 0x33, 0x24, 0x24, 0x24, 0x24, 0x19, 0x00 }, /*"s",83*/
    { 0x00, 0x80, 0x80, 0xE0, 0x80, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1F, 0x20, 0x20, 0x00, 0x00 }, /*"t",84*/
    { 0x80, 0x80, 0x00, 0x00, 0x00, 0x80, 0x80, 0x00, 0x00, 0x1F, 0x20, 0x20, 0x20, 0x10, 0x3F, 0x20 }, /*"u",85*/
    { 0x80, 0x80, 0x80, 0x00, 0x00, 0x80, 0x80, 0x80, 0x00, 0x01, 0x0E, 0x30, 0x08, 0x06, 0x01, 0x00 }, /*"v",86*/
    { 0x80, 0x80, 0x00, 0x80, 0x00, 0x80, 0x80, 0x80, 0x0F, 0x30, 0x0C, 0x03, 0x0C, 0x30, 0x0F, 0x00 }, /*"w",87*/
    { 0x00, 0x80, 0x80, 0x00, 0x80, 0x80, 0x80, 0x00, 0x00, 0x20, 0x31, 0x2E, 0x0E, 0x31, 0x20, 0x00 }, /*"x",88*/
    { 0x80, 0x80, 0x80, 0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x81, 0x8E, 0x70, 0x18, 0x06, 0x01, 0x00 }, /*"y",89*/
    { 0x00, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00, 0x21, 0x30, 0x2C, 0x22, 0x21, 0x30, 0x00 }, /*"z",90*/
    { 0x00, 0x00, 0x00, 0x00, 0x80, 0x7C, 0x02, 0x02, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3F, 0x40, 0x40 }, /*"{",91*/
    { 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00 }, /*"|",92*/
    { 0x00, 0x02, 0x02, 0x7C, 0x80, 0x00, 0x00, 0x00, 0x00, 0x40, 0x40, 0x3F, 0x00, 0x00, 0x00, 0x00 }, /*"}",93*/
    { 0x00, 0x06, 0x01, 0x01, 0x02, 0x02, 0x04, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"~",94*/
};
//24*24 ASICII字符集点阵
const unsigned char asc2_2412[][36] = {
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*" ",0*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0xF0, 0xF0, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x7F, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1C, 0x1C, 0x1C, 0x00, 0x00, 0x00, 0x00 }, /*"!",1*/
    { 0x00, 0x00, 0x80, 0x60, 0x30, 0x1C, 0x8C, 0x60, 0x30, 0x1C, 0x0C, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*""",2*/
    { 0x00, 0x00, 0x00, 0xE0, 0x00, 0x00, 0x00, 0x00, 0x00, 0xE0, 0x00, 0x00, 0x00, 0x86, 0xE6, 0x9F, 0x86, 0x86, 0x86, 0x86, 0xE6, 0x9F, 0x86, 0x00, 0x00, 0x01, 0x1F, 0x01, 0x01, 0x01, 0x01, 0x01, 0x1F, 0x01, 0x01, 0x00 }, /*"#",3*/
    { 0x00, 0x00, 0x80, 0xC0, 0x60, 0x20, 0xF8, 0x20, 0xE0, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x03, 0x07, 0x0C, 0x18, 0xFF, 0x70, 0xE1, 0x81, 0x00, 0x00, 0x00, 0x00, 0x07, 0x0F, 0x10, 0x10, 0x7F, 0x10, 0x0F, 0x07, 0x00, 0x00 }, /*"$",4*/
    { 0x80, 0x60, 0x20, 0x60, 0x80, 0x00, 0x00, 0x00, 0xE0, 0x20, 0x00, 0x00, 0x0F, 0x30, 0x20, 0x30, 0x9F, 0x70, 0xDC, 0x37, 0x10, 0x30, 0xC0, 0x00, 0x00, 0x00, 0x10, 0x0E, 0x03, 0x00, 0x07, 0x18, 0x10, 0x18, 0x07, 0x00 }, /*"%",5*/
    { 0x00, 0x00, 0xC0, 0x20, 0x20, 0xE0, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0xE0, 0x1F, 0x38, 0xE8, 0x87, 0x03, 0xC4, 0x3C, 0x04, 0x00, 0x00, 0x07, 0x0F, 0x18, 0x10, 0x10, 0x0B, 0x07, 0x0D, 0x10, 0x10, 0x08, 0x00 }, /*"&",6*/
    { 0x00, 0x80, 0x8C, 0x4C, 0x38, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"'",7*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0xE0, 0x30, 0x08, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFE, 0xFF, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x0F, 0x18, 0x20, 0x40, 0x00 }, /*"(",8*/
    { 0x00, 0x04, 0x08, 0x30, 0xE0, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xFF, 0xFE, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x40, 0x20, 0x18, 0x0F, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*")",9*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x42, 0x66, 0x66, 0x3C, 0x18, 0xFF, 0x18, 0x3C, 0x66, 0x66, 0x42, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"*",10*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x10, 0x10, 0x10, 0xFF, 0x10, 0x10, 0x10, 0x10, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"+",11*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x8C, 0x4C, 0x38, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*",",12*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"-",13*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1C, 0x1C, 0x1C, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*".",14*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xE0, 0x38, 0x0C, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x70, 0x1C, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00, 0x60, 0x38, 0x0E, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"/",15*/
    { 0x00, 0x00, 0x80, 0xC0, 0x60, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0x00, 0xFE, 0xFF, 0x01, 0x00, 0x00, 0x00, 0x00, 0x01, 0xFF, 0xFE, 0x00, 0x00, 0x01, 0x07, 0x0E, 0x18, 0x10, 0x10, 0x18, 0x0E, 0x07, 0x01, 0x00 }, /*"0",16*/
    { 0x00, 0x00, 0x80, 0x80, 0x80, 0xC0, 0xE0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x00, 0x00 }, /*"1",17*/
    { 0x00, 0x80, 0x40, 0x20, 0x20, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0x00, 0x03, 0x03, 0x00, 0x80, 0x40, 0x20, 0x38, 0x1F, 0x07, 0x00, 0x00, 0x00, 0x1C, 0x1A, 0x19, 0x18, 0x18, 0x18, 0x18, 0x18, 0x1F, 0x00, 0x00 }, /*"2",18*/
    { 0x00, 0x80, 0xC0, 0x20, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0x00, 0x00, 0x03, 0x03, 0x00, 0x10, 0x10, 0x18, 0x2F, 0xE7, 0x80, 0x00, 0x00, 0x00, 0x07, 0x0F, 0x10, 0x10, 0x10, 0x10, 0x18, 0x0F, 0x07, 0x00, 0x00 }, /*"3",19*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xC0, 0xE0, 0xF0, 0x00, 0x00, 0x00, 0x00, 0xC0, 0xB0, 0x88, 0x86, 0x81, 0x80, 0xFF, 0xFF, 0x80, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x00 }, /*"4",20*/
    { 0x00, 0x00, 0xE0, 0x60, 0x60, 0x60, 0x60, 0x60, 0x60, 0x60, 0x00, 0x00, 0x00, 0x00, 0x3F, 0x10, 0x08, 0x08, 0x08, 0x18, 0xF0, 0xE0, 0x00, 0x00, 0x00, 0x07, 0x0B, 0x10, 0x10, 0x10, 0x10, 0x1C, 0x0F, 0x03, 0x00, 0x00 }, /*"5",21*/
    { 0x00, 0x00, 0x80, 0xC0, 0x40, 0x20, 0x20, 0x20, 0xE0, 0xC0, 0x00, 0x00, 0x00, 0xFC, 0xFF, 0x21, 0x10, 0x08, 0x08, 0x08, 0x18, 0xF0, 0xE0, 0x00, 0x00, 0x01, 0x07, 0x0C, 0x18, 0x10, 0x10, 0x10, 0x08, 0x0F, 0x03, 0x00 }, /*"6",22*/
    { 0x00, 0x00, 0xC0, 0xE0, 0x60, 0x60, 0x60, 0x60, 0x60, 0xE0, 0x60, 0x00, 0x00, 0x00, 0x03, 0x00, 0x00, 0x00, 0xE0, 0x18, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1F, 0x1F, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"7",23*/
    { 0x00, 0x80, 0xC0, 0x60, 0x20, 0x20, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0x87, 0xEF, 0x2C, 0x18, 0x18, 0x30, 0x30, 0x68, 0xCF, 0x83, 0x00, 0x00, 0x07, 0x0F, 0x08, 0x10, 0x10, 0x10, 0x10, 0x18, 0x0F, 0x07, 0x00 }, /*"8",24*/
    { 0x00, 0x00, 0xC0, 0xC0, 0x20, 0x20, 0x20, 0x20, 0xC0, 0x80, 0x00, 0x00, 0x00, 0x1F, 0x3F, 0x60, 0x40, 0x40, 0x40, 0x20, 0x10, 0xFF, 0xFE, 0x00, 0x00, 0x00, 0x0C, 0x1C, 0x10, 0x10, 0x10, 0x08, 0x0F, 0x03, 0x00, 0x00 }, /*"9",25*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0E, 0x0E, 0x0E, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1C, 0x1C, 0x1C, 0x00, 0x00, 0x00, 0x00 }, /*":",26*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0C, 0x0C, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x58, 0x38, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*";",27*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x40, 0x20, 0x10, 0x00, 0x00, 0x00, 0x10, 0x28, 0x44, 0x82, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x02, 0x04, 0x08, 0x10, 0x00 }, /*"<",28*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x84, 0x84, 0x84, 0x84, 0x84, 0x84, 0x84, 0x84, 0x84, 0x84, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"=",29*/
    { 0x00, 0x00, 0x10, 0x20, 0x40, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x82, 0x44, 0x28, 0x10, 0x00, 0x00, 0x00, 0x10, 0x08, 0x04, 0x02, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*">",30*/
    { 0x00, 0xC0, 0x20, 0x20, 0x10, 0x10, 0x10, 0x10, 0x30, 0xE0, 0xC0, 0x00, 0x00, 0x03, 0x03, 0x00, 0x00, 0xF0, 0x10, 0x08, 0x0C, 0x07, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1C, 0x1C, 0x1C, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"?",31*/
    { 0x00, 0x00, 0x00, 0xC0, 0x40, 0x60, 0x20, 0x20, 0x20, 0x40, 0xC0, 0x00, 0x00, 0xFC, 0xFF, 0x01, 0xF0, 0x0E, 0x03, 0xC1, 0xFE, 0x03, 0x80, 0x7F, 0x00, 0x01, 0x07, 0x0E, 0x08, 0x11, 0x11, 0x10, 0x11, 0x09, 0x04, 0x02 }, /*"@",32*/
    { 0x00, 0x00, 0x00, 0x00, 0x80, 0xE0, 0xE0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x7C, 0x43, 0x40, 0x47, 0x7F, 0xF8, 0x80, 0x00, 0x00, 0x10, 0x18, 0x1F, 0x10, 0x00, 0x00, 0x00, 0x00, 0x13, 0x1F, 0x1C, 0x10 }, /*"A",33*/
    { 0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x10, 0x10, 0x10, 0x10, 0x18, 0x2F, 0xE7, 0x80, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x10, 0x10, 0x18, 0x0F, 0x07, 0x00 }, /*"B",34*/
    { 0x00, 0x00, 0x80, 0xC0, 0x40, 0x20, 0x20, 0x20, 0x20, 0x60, 0xE0, 0x00, 0x00, 0xFC, 0xFF, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x00, 0x00, 0x01, 0x07, 0x0E, 0x18, 0x10, 0x10, 0x10, 0x08, 0x04, 0x03, 0x00 }, /*"C",35*/
    { 0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x20, 0x40, 0xC0, 0x80, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xFF, 0xFE, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x18, 0x08, 0x0E, 0x07, 0x01, 0x00 }, /*"D",36*/
    { 0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x60, 0x80, 0x00, 0x00, 0xFF, 0xFF, 0x10, 0x10, 0x10, 0x10, 0x7C, 0x00, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x18, 0x06, 0x00 }, /*"E",37*/
    { 0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x20, 0x20, 0x60, 0x60, 0x80, 0x00, 0x00, 0xFF, 0xFF, 0x10, 0x10, 0x10, 0x10, 0x7C, 0x00, 0x00, 0x01, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"F",38*/
    { 0x00, 0x00, 0x80, 0xC0, 0x60, 0x20, 0x20, 0x20, 0x40, 0xE0, 0x00, 0x00, 0x00, 0xFC, 0xFF, 0x01, 0x00, 0x00, 0x40, 0x40, 0xC0, 0xC1, 0x40, 0x40, 0x00, 0x01, 0x07, 0x0E, 0x18, 0x10, 0x10, 0x10, 0x0F, 0x0F, 0x00, 0x00 }, /*"G",39*/
    { 0x20, 0xE0, 0xE0, 0x20, 0x00, 0x00, 0x00, 0x00, 0x20, 0xE0, 0xE0, 0x20, 0x00, 0xFF, 0xFF, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0xFF, 0xFF, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10 }, /*"H",40*/
    { 0x00, 0x00, 0x20, 0x20, 0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x00, 0x00 }, /*"I",41*/
    { 0x00, 0x00, 0x00, 0x00, 0x20, 0x20, 0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x60, 0xE0, 0x80, 0x80, 0x80, 0xC0, 0x7F, 0x3F, 0x00, 0x00, 0x00 }, /*"J",42*/
    { 0x20, 0xE0, 0xE0, 0x20, 0x00, 0x00, 0x20, 0xA0, 0x60, 0x20, 0x20, 0x00, 0x00, 0xFF, 0xFF, 0x30, 0x18, 0x7C, 0xE3, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x01, 0x13, 0x1F, 0x1C, 0x18, 0x10 }, /*"K",43*/
    { 0x20, 0xE0, 0xE0, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x18, 0x06, 0x00 }, /*"L",44*/
    { 0x20, 0xE0, 0xE0, 0xE0, 0x00, 0x00, 0x00, 0x00, 0xE0, 0xE0, 0xE0, 0x20, 0x00, 0xFF, 0x01, 0x3F, 0xFE, 0xC0, 0xE0, 0x1E, 0x01, 0xFF, 0xFF, 0x00, 0x10, 0x1F, 0x10, 0x00, 0x03, 0x1F, 0x03, 0x00, 0x10, 0x1F, 0x1F, 0x10 }, /*"M",45*/
    { 0x20, 0xE0, 0xE0, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x20, 0xE0, 0x20, 0x00, 0xFF, 0x00, 0x03, 0x07, 0x1C, 0x78, 0xE0, 0x80, 0x00, 0xFF, 0x00, 0x10, 0x1F, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x0F, 0x1F, 0x00 }, /*"N",46*/
    { 0x00, 0x00, 0x80, 0xC0, 0x60, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0x00, 0xFE, 0xFF, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFE, 0x00, 0x00, 0x01, 0x07, 0x0E, 0x18, 0x10, 0x10, 0x18, 0x0C, 0x07, 0x01, 0x00 }, /*"O",47*/
    { 0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0xFF, 0xFF, 0x20, 0x20, 0x20, 0x20, 0x20, 0x30, 0x1F, 0x0F, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"P",48*/
    { 0x00, 0x00, 0x80, 0xC0, 0x60, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0x00, 0xFE, 0xFF, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFE, 0x00, 0x00, 0x01, 0x07, 0x0E, 0x11, 0x11, 0x13, 0x3C, 0x7C, 0x67, 0x21, 0x00 }, /*"Q",49*/
    { 0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0xFF, 0xFF, 0x10, 0x10, 0x30, 0xF0, 0xD0, 0x08, 0x0F, 0x07, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x00, 0x03, 0x0F, 0x1C, 0x10, 0x10 }, /*"R",50*/
    { 0x00, 0x80, 0xC0, 0x60, 0x20, 0x20, 0x20, 0x20, 0x40, 0x40, 0xE0, 0x00, 0x00, 0x07, 0x0F, 0x0C, 0x18, 0x18, 0x30, 0x30, 0x60, 0xE0, 0x81, 0x00, 0x00, 0x1F, 0x0C, 0x08, 0x10, 0x10, 0x10, 0x10, 0x18, 0x0F, 0x07, 0x00 }, /*"S",51*/
    { 0x80, 0x60, 0x20, 0x20, 0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x60, 0x80, 0x01, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x01, 0x00, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x00, 0x00 }, /*"T",52*/
    { 0x20, 0xE0, 0xE0, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x20, 0xE0, 0x20, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x07, 0x0F, 0x18, 0x10, 0x10, 0x10, 0x10, 0x10, 0x08, 0x07, 0x00 }, /*"U",53*/
    { 0x20, 0x60, 0xE0, 0xE0, 0x20, 0x00, 0x00, 0x00, 0x20, 0xE0, 0x60, 0x20, 0x00, 0x00, 0x07, 0x7F, 0xF8, 0x80, 0x00, 0x80, 0x7C, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x1F, 0x1C, 0x07, 0x00, 0x00, 0x00, 0x00 }, /*"V",54*/
    { 0x20, 0xE0, 0xE0, 0x20, 0x00, 0xE0, 0xE0, 0x20, 0x00, 0x20, 0xE0, 0x20, 0x00, 0x07, 0xFF, 0xF8, 0xE0, 0x1F, 0xFF, 0xFC, 0xE0, 0x1F, 0x00, 0x00, 0x00, 0x00, 0x03, 0x1F, 0x03, 0x00, 0x01, 0x1F, 0x03, 0x00, 0x00, 0x00 }, /*"W",55*/
    { 0x00, 0x20, 0x60, 0xE0, 0xA0, 0x00, 0x00, 0x20, 0xE0, 0x60, 0x20, 0x00, 0x00, 0x00, 0x00, 0x03, 0x8F, 0x7C, 0xF8, 0xC6, 0x01, 0x00, 0x00, 0x00, 0x00, 0x10, 0x18, 0x1E, 0x13, 0x00, 0x01, 0x17, 0x1F, 0x18, 0x10, 0x00 }, /*"X",56*/
    { 0x20, 0x60, 0xE0, 0xE0, 0x20, 0x00, 0x00, 0x00, 0x20, 0xE0, 0x60, 0x20, 0x00, 0x00, 0x01, 0x07, 0x3E, 0xF8, 0xE0, 0x18, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x00, 0x00, 0x00 }, /*"Y",57*/
    { 0x00, 0x80, 0x60, 0x20, 0x20, 0x20, 0x20, 0xA0, 0xE0, 0xE0, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0xC0, 0xF0, 0x3E, 0x0F, 0x03, 0x00, 0x00, 0x00, 0x00, 0x10, 0x1C, 0x1F, 0x17, 0x10, 0x10, 0x10, 0x10, 0x18, 0x06, 0x00 }, /*"Z",58*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0xFC, 0x04, 0x04, 0x04, 0x04, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x7F, 0x40, 0x40, 0x40, 0x40, 0x40, 0x00 }, /*"[",59*/
    { 0x00, 0x00, 0x10, 0xE0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x1C, 0x60, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x0C, 0x70, 0x80, 0x00 }, /*"\",60*/
    { 0x00, 0x00, 0x04, 0x04, 0x04, 0x04, 0x04, 0xFC, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x40, 0x40, 0x40, 0x40, 0x40, 0x7F, 0x00, 0x00, 0x00, 0x00 }, /*"]",61*/
    { 0x00, 0x00, 0x00, 0x10, 0x08, 0x0C, 0x04, 0x0C, 0x08, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"^",62*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80 }, /*"_",63*/
    { 0x00, 0x00, 0x00, 0x04, 0x04, 0x08, 0x08, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"`",64*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x98, 0xD8, 0x44, 0x64, 0x24, 0x24, 0xFC, 0xF8, 0x00, 0x00, 0x00, 0x0F, 0x1F, 0x18, 0x10, 0x10, 0x10, 0x08, 0x1F, 0x1F, 0x10, 0x18 }, /*"a",65*/
    { 0x00, 0x20, 0xE0, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x18, 0x08, 0x04, 0x04, 0x0C, 0xF8, 0xF0, 0x00, 0x00, 0x00, 0x1F, 0x0F, 0x18, 0x10, 0x10, 0x10, 0x18, 0x0F, 0x03, 0x00 }, /*"b",66*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xE0, 0xF8, 0x18, 0x04, 0x04, 0x04, 0x3C, 0x38, 0x00, 0x00, 0x00, 0x00, 0x03, 0x0F, 0x0C, 0x10, 0x10, 0x10, 0x10, 0x08, 0x06, 0x00, 0x00 }, /*"c",67*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x20, 0xE0, 0xF0, 0x00, 0x00, 0x00, 0xE0, 0xF8, 0x1C, 0x04, 0x04, 0x04, 0x08, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x03, 0x0F, 0x18, 0x10, 0x10, 0x10, 0x08, 0x1F, 0x0F, 0x08, 0x00 }, /*"d",68*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xE0, 0xF8, 0x48, 0x44, 0x44, 0x44, 0x4C, 0x78, 0x70, 0x00, 0x00, 0x00, 0x03, 0x0F, 0x0C, 0x18, 0x10, 0x10, 0x10, 0x08, 0x04, 0x00 }, /*"e",69*/
    { 0x00, 0x00, 0x00, 0x00, 0x80, 0xC0, 0x60, 0x20, 0x20, 0xE0, 0xC0, 0x00, 0x00, 0x04, 0x04, 0x04, 0xFF, 0xFF, 0x04, 0x04, 0x04, 0x04, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x00, 0x00, 0x00 }, /*"f",70*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x70, 0xF8, 0x8C, 0x04, 0x04, 0x8C, 0xF8, 0x74, 0x04, 0x0C, 0x00, 0x70, 0x76, 0xCF, 0x8D, 0x8D, 0x8D, 0x89, 0xC8, 0x78, 0x70, 0x00 }, /*"g",71*/
    { 0x00, 0x20, 0xE0, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x08, 0x04, 0x04, 0x04, 0xFC, 0xF8, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00 }, /*"h",72*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x60, 0x60, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x04, 0x04, 0xFC, 0xFC, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x00, 0x00 }, /*"i",73*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x60, 0x60, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x04, 0x04, 0xFC, 0xFC, 0x00, 0x00, 0x00, 0x00, 0x00, 0xC0, 0xC0, 0x80, 0x80, 0xC0, 0x7F, 0x3F, 0x00, 0x00, 0x00 }, /*"j",74*/
    { 0x00, 0x20, 0xE0, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x80, 0xC0, 0xF4, 0x1C, 0x04, 0x04, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x11, 0x00, 0x03, 0x1F, 0x1C, 0x10, 0x10, 0x00 }, /*"k",75*/
    { 0x00, 0x00, 0x20, 0x20, 0x20, 0xE0, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x00, 0x00 }, /*"l",76*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0xFC, 0xFC, 0x08, 0x04, 0xFC, 0xFC, 0x08, 0x04, 0xFC, 0xFC, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x1F, 0x1F, 0x10, 0x00, 0x1F, 0x1F, 0x10 }, /*"m",77*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0xFC, 0xFC, 0x08, 0x08, 0x04, 0x04, 0xFC, 0xF8, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00 }, /*"n",78*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xE0, 0xF0, 0x18, 0x0C, 0x04, 0x04, 0x0C, 0x18, 0xF0, 0xE0, 0x00, 0x00, 0x03, 0x0F, 0x0C, 0x10, 0x10, 0x10, 0x10, 0x0C, 0x0F, 0x03, 0x00 }, /*"o",79*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0xFC, 0xFC, 0x08, 0x04, 0x04, 0x04, 0x0C, 0xF8, 0xF0, 0x00, 0x00, 0x80, 0xFF, 0xFF, 0x88, 0x90, 0x10, 0x10, 0x1C, 0x0F, 0x03, 0x00 }, /*"p",80*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xE0, 0xF8, 0x1C, 0x04, 0x04, 0x04, 0x08, 0xF8, 0xFC, 0x00, 0x00, 0x00, 0x03, 0x0F, 0x18, 0x10, 0x10, 0x90, 0x88, 0xFF, 0xFF, 0x80, 0x00 }, /*"q",81*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x04, 0x04, 0xFC, 0xFC, 0x10, 0x08, 0x04, 0x04, 0x0C, 0x0C, 0x00, 0x10, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x00, 0x00, 0x00, 0x00 }, /*"r",82*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x30, 0x78, 0xCC, 0xC4, 0x84, 0x84, 0x84, 0x0C, 0x1C, 0x00, 0x00, 0x00, 0x1E, 0x18, 0x10, 0x10, 0x10, 0x11, 0x19, 0x0F, 0x06, 0x00 }, /*"s",83*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x04, 0x04, 0xFF, 0xFF, 0x04, 0x04, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0F, 0x1F, 0x10, 0x10, 0x10, 0x0C, 0x00, 0x00 }, /*"t",84*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0xFC, 0xFE, 0x00, 0x00, 0x00, 0x04, 0xFC, 0xFE, 0x00, 0x00, 0x00, 0x00, 0x0F, 0x1F, 0x18, 0x10, 0x10, 0x08, 0x1F, 0x0F, 0x08, 0x00 }, /*"u",85*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x0C, 0x3C, 0xFC, 0xC4, 0x00, 0x00, 0xC4, 0x3C, 0x0C, 0x04, 0x00, 0x00, 0x00, 0x00, 0x01, 0x0F, 0x1E, 0x0E, 0x01, 0x00, 0x00, 0x00 }, /*"v",86*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x3C, 0xFC, 0xC4, 0x00, 0xE4, 0x7C, 0xFC, 0x84, 0x80, 0x7C, 0x04, 0x00, 0x00, 0x07, 0x1F, 0x07, 0x00, 0x00, 0x07, 0x1F, 0x07, 0x00, 0x00 }, /*"w",87*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x04, 0x1C, 0x7C, 0xE4, 0xC0, 0x34, 0x1C, 0x04, 0x04, 0x00, 0x00, 0x10, 0x10, 0x1C, 0x16, 0x01, 0x13, 0x1F, 0x1C, 0x18, 0x10, 0x00 }, /*"x",88*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x0C, 0x3C, 0xFC, 0xC4, 0x00, 0xC4, 0x3C, 0x04, 0x04, 0x00, 0x00, 0x00, 0xC0, 0x80, 0xC1, 0x37, 0x0E, 0x01, 0x00, 0x00, 0x00, 0x00 }, /*"y",89*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1C, 0x04, 0x04, 0xC4, 0xF4, 0x7C, 0x1C, 0x04, 0x00, 0x00, 0x00, 0x00, 0x10, 0x1C, 0x1F, 0x17, 0x11, 0x10, 0x10, 0x18, 0x0E, 0x00 }, /*"z",90*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xF8, 0x0C, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x28, 0xEF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3F, 0x60, 0x40, 0x00, 0x00 }, /*"{",91*/
    { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"|",92*/
    { 0x00, 0x00, 0x04, 0x0C, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xEF, 0x28, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x40, 0x60, 0x3F, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, /*"}",93*/
    { 0x00, 0x18, 0x06, 0x02, 0x02, 0x04, 0x08, 0x10, 0x20, 0x20, 0x30, 0x08, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
#endif
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390

原贴链接：https://bbs.aw-ol.com/topic/4431/
资源获取、问题讨论可以到全志在线开发者社区进行：https://www.aw-ol.com
全志及开发者最新动态可以关注全志在线微信公众号

相关阅读:
未来的产品经理，需要什么样的原型设计工具？
Retrofit中解决网络请求中post请求中只传递一个String字符串而非Map＜String,String＞形式的办法
 震惊！CSS 也能实现碰撞检测？
基于Conda的PyTorch Geometric报“段错误 (核心已转储)”的解决方法
 Spring Boot 项目使用Spring Security防护CSRF攻击实战
 《Spring 5.x源码解析之Spring AOP 注解驱动使用及其实现原理》
使用 Next.js 搭建 Monorepo 组件库文档
 visummirrors seurattoscanpy dietseurat
#新学期，新FLAG#：这些年，一直在路上
 Mybatis-plus学习笔记
原文地址：https://blog.csdn.net/weixin_43094346/article/details/133882954
