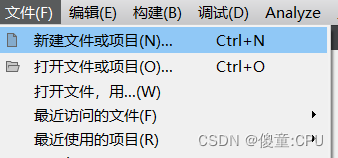

创建QDialog工程

创建QDialog工程

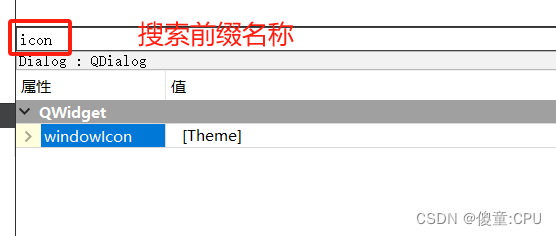

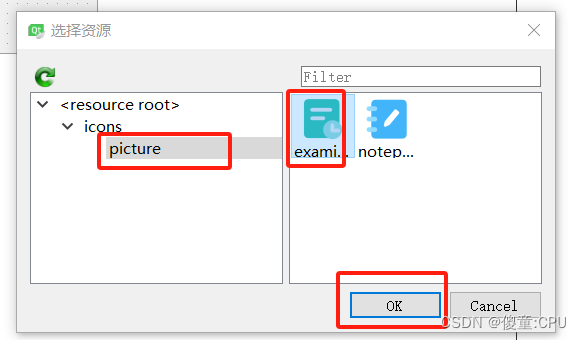

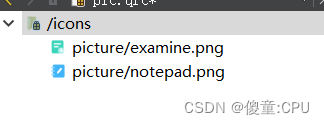

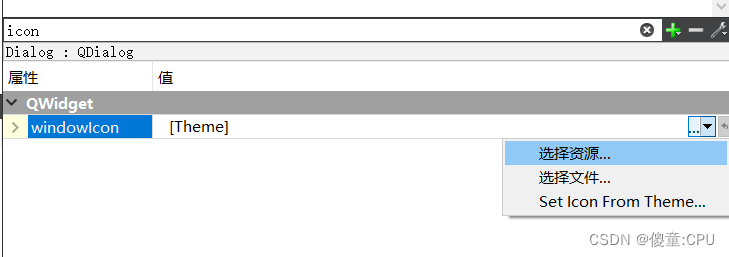

换掉图标

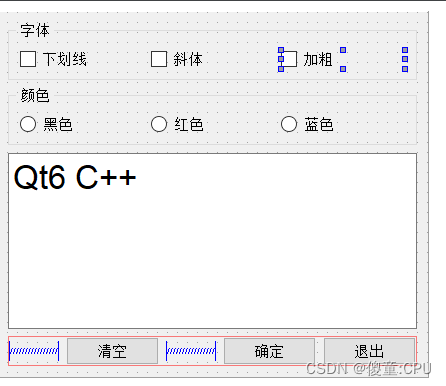

添加一个组件

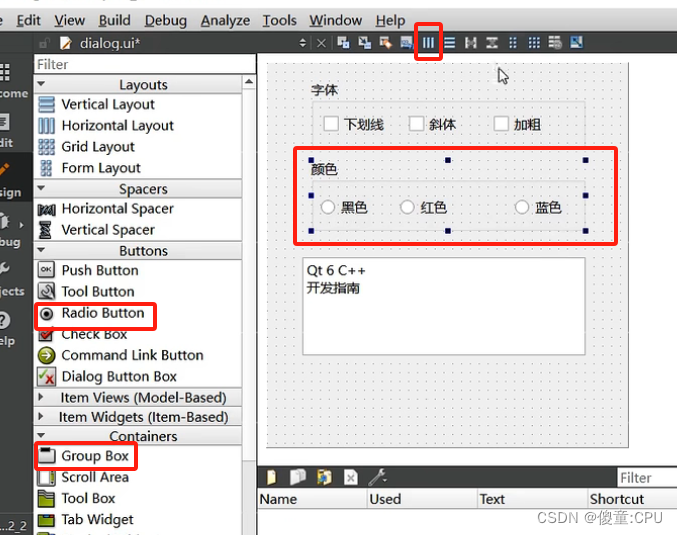

水平布局

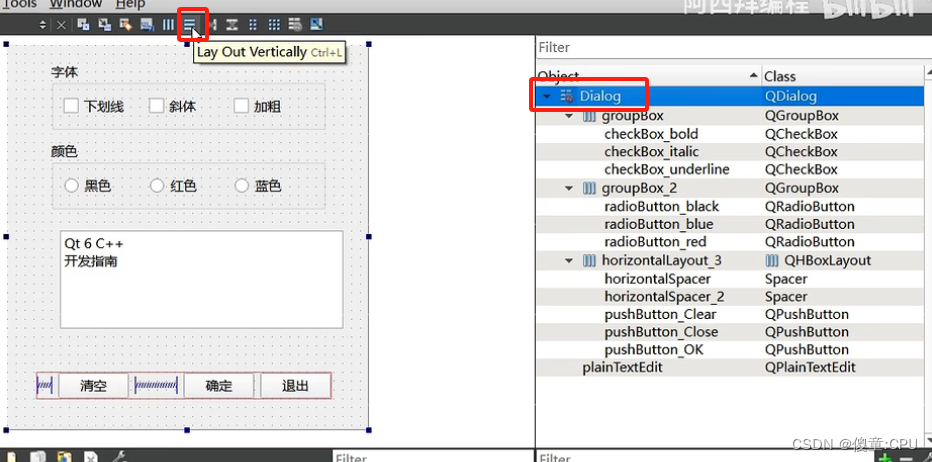

所有原件横向布局完成后，选中外框，点击Dialog,进行纵向布局

调整文本字体的大小

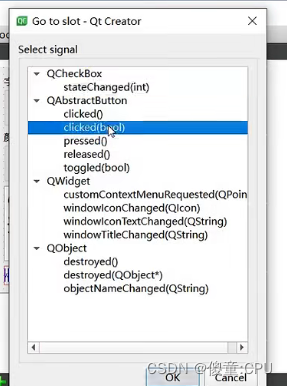

清空按钮的槽函数

下划线的槽函数

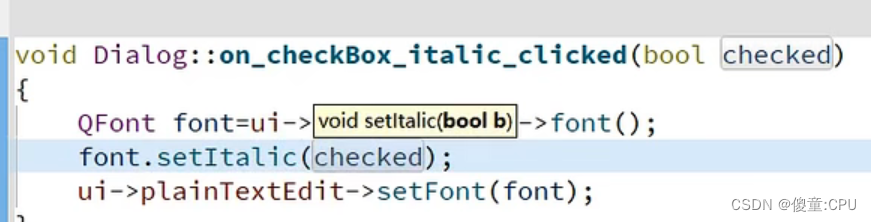

斜体的槽函数

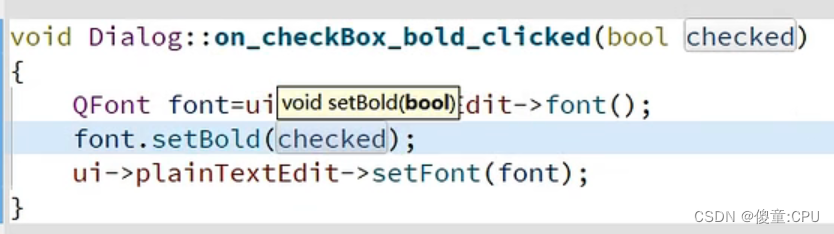

加粗的槽函数

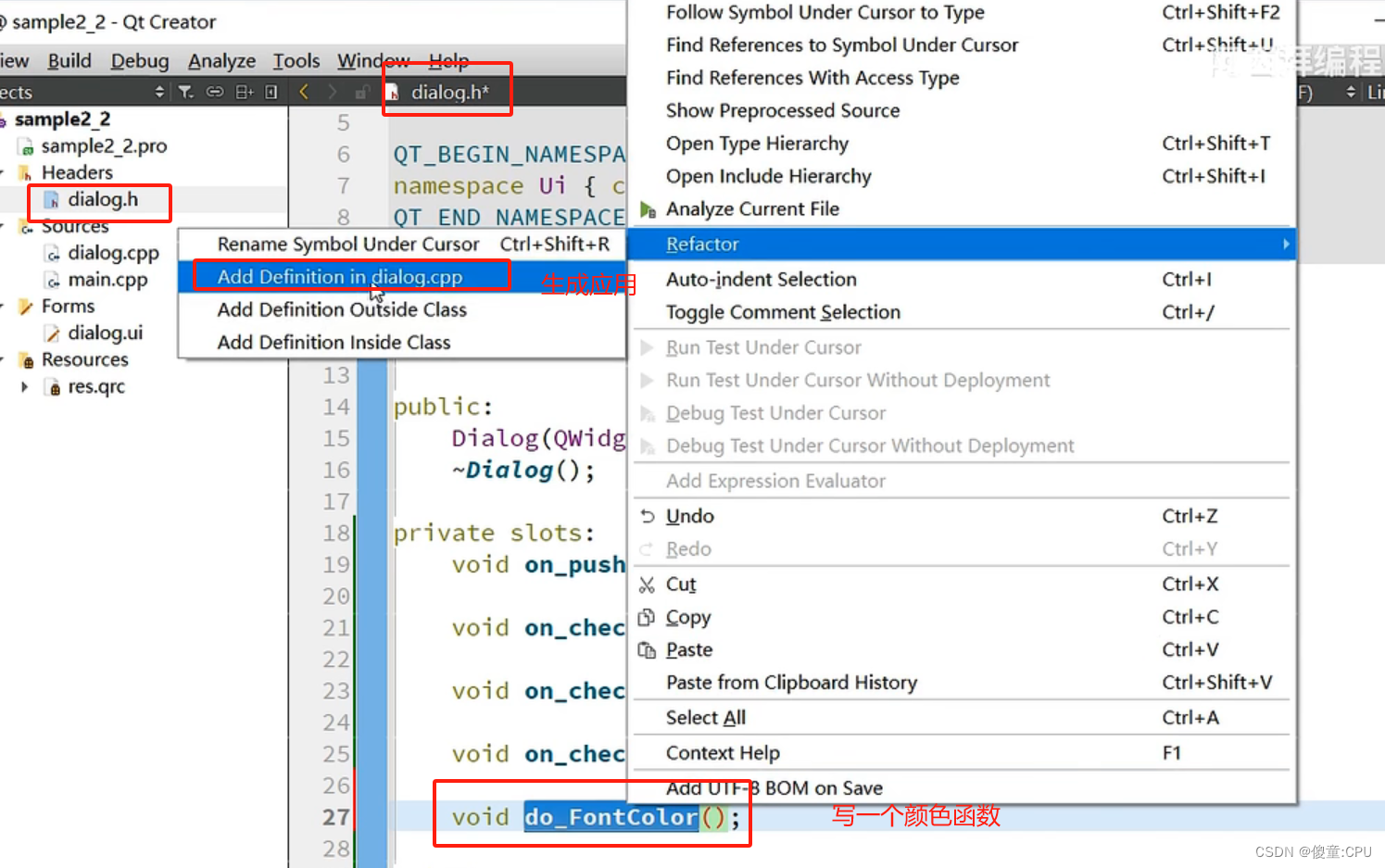

或者使用快剪辑：Alt+Enter。然后点击,“添加定义”

#-------------------------------------------------
#
# Project created by QtCreator 2023-10-15T21:31:19
#
#-------------------------------------------------

QT       += core gui

greaterThan(QT_MAJOR_VERSION, 4): QT += widgets

TARGET = Demo1
TEMPLATE = app

# The following define makes your compiler emit warnings if you use
# any feature of Qt which as been marked as deprecated (the exact warnings
# depend on your compiler). Please consult the documentation of the
# deprecated API in order to know how to port your code away from it.
DEFINES += QT_DEPRECATED_WARNINGS

# You can also make your code fail to compile if you use deprecated APIs.
# In order to do so, uncomment the following line.
# You can also select to disable deprecated APIs only up to a certain version of Qt.
#DEFINES += QT_DISABLE_DEPRECATED_BEFORE=0x060000    # disables all the APIs deprecated before Qt 6.0.0


SOURCES += \
        main.cpp \
        dialog.cpp

HEADERS += \
        dialog.h

FORMS += \
        dialog.ui

RESOURCES += \
    pic.qrc

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

#ifndef DIALOG_H
#define DIALOG_H

#include

namespace Ui {
class Dialog;
}

class Dialog : public QDialog
{
    Q_OBJECT

public:
    explicit Dialog(QWidget *parent = 0);
    ~Dialog();

private slots:
    void on_pushButton_Clear_clicked();

    void on_checkBox_unline_clicked(bool checked);

    void on_checkBox_italic_clicked(bool checked);

    void on_checkBox_bold_clicked(bool checked);

    void do_FontColor();

private:
    Ui::Dialog *ui;
};

#endif // DIALOG_H

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

#include "dialog.h"
#include "ui_dialog.h"

Dialog::Dialog(QWidget *parent) :
    QDialog(parent),
    ui(new Ui::Dialog)
{
    ui->setupUi(this);

    connect(ui->radioButton_black, SIGNAL(clicked()), this, SLOT(do_FontColor()));
    connect(ui->radioButton_blue, SIGNAL(clicked()), this, SLOT(do_FontColor()));
    connect(ui->radioButton_red, SIGNAL(clicked()), this, SLOT(do_FontColor()));
}

Dialog::~Dialog()
{
    delete ui;
}

void Dialog::on_pushButton_Clear_clicked()
{
    ui->plainTextEdit->clear();//清空文本框
}

void Dialog::on_checkBox_unline_clicked(bool checked)
{
    QFont font = ui->plainTextEdit->font();//创建对象，并初始化为文本框字体型号
    font.setUnderline(checked);//如果下划线被选中
    ui->plainTextEdit->setFont(font);//则设置下划线
}

void Dialog::on_checkBox_italic_clicked(bool checked)
{
    QFont font = ui->plainTextEdit->font();//创建对象，并初始化为文本框字体型号
    font.setItalic(checked);//如果斜体被选中
    ui->plainTextEdit->setFont(font);//则设置斜体
}

void Dialog::on_checkBox_bold_clicked(bool checked)
{
    QFont font = ui->plainTextEdit->font();//创建对象，并初始化为文本框字体型号
    font.setBold(checked);//如果加粗被选中
    ui->plainTextEdit->setFont(font);//则设置加粗
}

void Dialog::do_FontColor()
{
    QPalette plet = ui->plainTextEdit->palette();//创建对象，并初始化为文本框字体颜色（获取颜色）

    if(ui->radioButton_black->isChecked())  //判断黑色按钮是否被选中
        plet.setColor(QPalette::Text,Qt::black);//如果选中了，设置为黑色
    if(ui->radioButton_blue->isChecked())  //判断蓝色按钮是否被选中
        plet.setColor(QPalette::Text,Qt::blue);//如果选中了，设置为蓝色
    if(ui->radioButton_red->isChecked())  //判断红色按钮是否被选中
        plet.setColor(QPalette::Text,Qt::red);//如果选中了，设置为红色

    ui->plainTextEdit->setPalette(plet);//设置文本框的颜色
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

#include "dialog.h"
#include

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);
    Dialog w;
    w.show();

    return a.exec();
}
