• 解决linux5.15编译时不生成boot.img 的问题

    平台：rk3399   （与平台关系不大）

    内核 ：linux5.15

    下一个linux5.15的内核，编译的时候

    make ARCH=arm64 CROSS_COMPILE=aarch64-linux-gnu- -j6 rk3399-rock960.img

    目标rk3399-rock960.img 需要在arch/arm64/boot/dts/rockchip/ 目录下存在rk3399-rock960.dts文件 ，如果不存在，可以使用其他的dts文件作为目标。

    错误提示1：（没法编译img这个目标）

    make: *** No rule to make target 'rk3399-rock960.img'.  Stop.

    解决1：

    修改arch/arm64/Makefile，在文件末尾增加一段（其他的内容不变）

    MAKE_MODULES ?= y

    %.img:
    ifeq ("$(CONFIG_MODULES)$(MAKE_MODULES)$(srctree)","yy$(objtree)")
        $(Q)$(MAKE) rockchip/$*.dtb Image.lz4 modules
    else
        $(Q)$(MAKE) rockchip/$*.dtb Image.lz4
    endif
        $(Q)$(srctree)/scripts/mkimg --dtb $*.dtb

    CLEAN_DIRS += out
    CLEAN_FILES += boot.img kernel.img resource.img zboot.img

    再执行上面的make命令，该错误就没有了。

    错误提示2：没有mkimg命令

    解决：

    从原（rk3399）sdk的内核中拷贝过来，这是个脚本文件。

    cp ../kernel/scripts/mkimg scripts/

    shell脚本内容如下：

    1. #!/bin/bash
    2. # SPDX-License-Identifier: GPL-2.0
    3. # Copyright (c) 2019 Fuzhou Rockchip Electronics Co., Ltd.
    4.
    5. set -e
    6.
    7. usage() {
    8. 	cat >&2 << USAGE
    9. usage: $0 [-h] --dtb DTB
    11. optional arguments:
    12.   -h, --help            show this help message and exit
    13.   --dtb DTB             the dtb file name
    14. USAGE
    15. }
    16.
    17. # Parse command-line arguments
    18. while [ $# -gt 0 ]; do
    19. 	case $1 in
    20. 		--dtb)
    21. 			DTB=$2
    22. 			shift 2
    23. 			;;
    24. 		-h)
    25. 			usage
    26. 			exit 0
    27. 			;;
    28. 		--help)
    29. 			usage
    30. 			exit 0
    31. 			;;
    32. 		*)
    33. 			shift
    34. 			;;
    35.         esac
    36. done
    37.
    38. srctree=${srctree-"."}
    39. objtree=${objtree-"."}
    40. if [ "${ARCH}" == "" ]; then
    41. 	if [ "$($srctree/scripts/config --state CONFIG_ARM)" == "y" ]; then
    42. 		ARCH=arm
    43. 	else
    44. 		ARCH=arm64
    45. 	fi
    46. fi
    47.
    48. LOGO_PATH=${srctree}/logo.bmp
    49. [ -f ${LOGO_PATH} ] && LOGO=logo.bmp
    50.
    51. LOGO_KERNEL_PATH=${srctree}/logo_kernel.bmp
    52. [ -f ${LOGO_KERNEL_PATH} ] && LOGO_KERNEL=logo_kernel.bmp
    53.
    54. KERNEL_IMAGE_PATH=${objtree}/arch/${ARCH}/boot/Image
    55. KERNEL_IMAGE_ARG="--kernel ${KERNEL_IMAGE_PATH}"
    56. if [ "${ARCH}" == "arm" ]; then
    57. 	DTB_PATH=${objtree}/arch/arm/boot/dts/${DTB}
    58. 	ZIMAGE=zImage
    59. else
    60. 	DTB_PATH=${objtree}/arch/arm64/boot/dts/rockchip/${DTB}
    61. 	ZIMAGE=Image.lz4
    62. fi
    63. KERNEL_ZIMAGE_PATH=${objtree}/arch/${ARCH}/boot/${ZIMAGE}
    64. KERNEL_ZIMAGE_ARG="--kernel ${KERNEL_ZIMAGE_PATH}"
    65. if [ ! -f ${DTB_PATH} ]; then
    66. 	echo "No dtb" >&2
    67. 	usage
    68. 	exit 1
    69. fi
    70.
    71. OUT=out
    72. ITB=${BOOT_IMG}
    73. ITS=${OUT}/boot.its
    74. MKIMAGE=${MKIMAGE-"mkimage"}
    75. MKIMAGE_ARG="-E -p 0x800"
    76.
    77. make_boot_img()
    78. {
    79. 	RAMDISK_IMG_PATH=${objtree}/ramdisk.img
    80. 	[ -f ${RAMDISK_IMG_PATH} ] && RAMDISK_IMG=ramdisk.img && RAMDISK_ARG="--ramdisk ${RAMDISK_IMG_PATH}"
    81.
    82. 	${srctree}/scripts/mkbootimg \
    83. 		${KERNEL_IMAGE_ARG} \
    84. 		${RAMDISK_ARG} \
    85. 		--second resource.img \
    86. 		-o boot.img && \
    87. 	echo "  Image:  boot.img (with Image ${RAMDISK_IMG} resource.img) is ready";

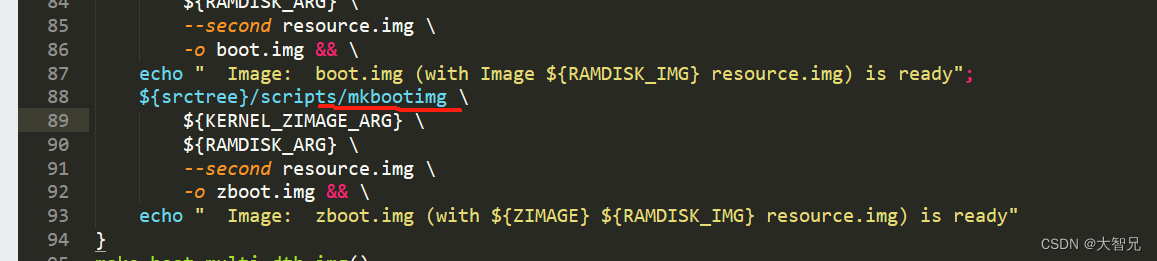

    88. 	${srctree}/scripts/mkbootimg \
    89. 		${KERNEL_ZIMAGE_ARG} \
    90. 		${RAMDISK_ARG} \
    91. 		--second resource.img \
    92. 		-o zboot.img && \
    93. 	echo "  Image:  zboot.img (with ${ZIMAGE} ${RAMDISK_IMG} resource.img) is ready"
    94. }
    95. make_boot_multi_dtb_img()
    96. {
    97. 	RAMDISK_IMG_PATH=${objtree}/ramdisk.img
    98. 	[ -f ${RAMDISK_IMG_PATH} ] && RAMDISK_IMG=ramdisk.img && RAMDISK_ARG="--ramdisk ${RAMDISK_IMG_PATH}"
    99.
    100. 	${srctree}/scripts/mkbootimg \
    101. 		${KERNEL_IMAGE_ARG} \
    102. 		${RAMDISK_ARG} \
    103. 		--second resource_multi_dtb.img \
    104. 		-o boot.img && \
    105. 	echo "  Image:  boot.img (with Image ${RAMDISK_IMG} resource_multi_dtb.img) is ready";
    106. 	${srctree}/scripts/mkbootimg \
    107. 		${KERNEL_ZIMAGE_ARG} \
    108. 		${RAMDISK_ARG} \
    109. 		--second resource_multi_dtb.img \
    110. 		-o zboot.img && \
    111. 	echo "  Image:  zboot.img (with ${ZIMAGE} ${RAMDISK_IMG} resource_multi_dtb.img) is ready"
    112. }
    113.
    114. repack_boot_img()
    115. {
    116. 	${srctree}/scripts/repack-bootimg \
    117. 		--boot_img ${BOOT_IMG} --out ${OUT} \
    118. 		${KERNEL_IMAGE_ARG} \
    119. 		--second resource.img \
    120. 		--dtb ${DTB_PATH} \
    121. 		-o boot.img &&
    122. 	echo "  Image:  boot.img (${BOOT_IMG} + Image) is ready";
    123. 	${srctree}/scripts/repack-bootimg \
    124. 		--boot_img ${BOOT_IMG} --out ${OUT} \
    125. 		${KERNEL_ZIMAGE_ARG} \
    126. 		--second resource.img \
    127. 		--dtb ${DTB_PATH} \
    128. 		-o zboot.img && \
    129. 	echo "  Image:  zboot.img (${BOOT_IMG} + ${ZIMAGE}) is ready"
    130. }
    131.
    132. repack_multi_dtb_boot_img()
    133. {
    134. 	${srctree}/scripts/repack-bootimg \
    135. 		--boot_img ${BOOT_IMG} --out ${OUT} \
    136. 		${KERNEL_IMAGE_ARG} \
    137. 		--second resource_multi_dtb.img \
    138. 		--dtb ${DTB_PATH} \
    139. 		-o boot.img &&
    140. 	echo "  Image:  boot.img (${BOOT_IMG} + Image + resource_multi_dtb) is ready";
    141. 	${srctree}/scripts/repack-bootimg \
    142. 		--boot_img ${BOOT_IMG} --out ${OUT} \
    143. 		${KERNEL_ZIMAGE_ARG} \
    144. 		--second resource_multi_dtb.img \
    145. 		--dtb ${DTB_PATH} \
    146. 		-o zboot.img && \
    147. 	echo "  Image:  zboot.img (${BOOT_IMG} + ${ZIMAGE}) is ready"
    148. }
    149.
    150.
    151. check_mkimage()
    152. {
    153. 	MKIMAGE=$(type -p ${MKIMAGE} || true)
    154. 	if [ -z "${MKIMAGE}" ]; then
    155. 		# Doesn't exist
    156. 		echo '"mkimage" command not found - U-Boot images will not be built' >&2
    157. 		exit 1;
    158. 	fi
    159. }
    160.
    161. unpack_itb()
    162. {
    163. 	rm -rf ${OUT}
    164. 	mkdir -p ${OUT}
    165.
    166. 	for NAME in $(fdtget -l ${ITB} /images)
    167. 	do
    168. 		# generate image
    169. 		NODE="/images/${NAME}"
    170. 		OFFS=$(fdtget -ti ${ITB} ${NODE} data-position)
    171. 		SIZE=$(fdtget -ti ${ITB} ${NODE} data-size)
    172. 		if [ -z ${OFFS} ]; then
    173. 			continue;
    174. 		fi
    175.
    176. 		if [ ${SIZE} -ne 0 ]; then
    177. 			dd if=${ITB} of=${OUT}/${NAME} bs=${SIZE} count=1 skip=${OFFS} iflag=skip_bytes >/dev/null 2>&1
    178. 		else
    179. 			touch ${OUT}/${NAME}
    180. 		fi
    181. 	done
    182.
    183. 	[ ! -f ${OUT}/kernel ] && echo "FIT ${ITB} no kernel" >&2 && exit 1 || true
    184. }
    185.
    186. gen_its()
    187. {
    188. 	TMP_ITB=${OUT}/boot.tmp
    189.
    190. 	# add placeholder
    191. 	cp ${ITB} ${TMP_ITB}
    192. 	for NAME in $(fdtget -l ${ITB} /images); do
    193. 		fdtput -t s ${TMP_ITB} /images/${NAME} data "/INCBIN/(${NAME})"
    194. 	done
    195. 	dtc -I dtb -O dts ${TMP_ITB} -o ${ITS} >/dev/null 2>&1
    196. 	rm -f ${TMP_ITB}
    197.
    198. 	# fixup placeholder: data = "/INCBIN/(...)"; -> data = /incbin/("...");
    199. 	sed -i "s/\"\/INCBIN\/(\(.*\))\"/\/incbin\/(\"\1\")/" ${ITS}
    200.
    201. 	# remove
    202. 	sed -i "/memreserve/d"		${ITS}
    203. 	sed -i "/timestamp/d"		${ITS}
    204. 	sed -i "/data-size/d"		${ITS}
    205. 	sed -i "/data-position/d"	${ITS}
    206. 	sed -i "/value/d"		${ITS}
    207. 	sed -i "/hashed-strings/d"	${ITS}
    208. 	sed -i "/hashed-nodes/d"	${ITS}
    209. 	sed -i "/signer-version/d"	${ITS}
    210. 	sed -i "/signer-name/d"		${ITS}
    211. }
    212.
    213. gen_itb()
    214. {
    215. 	[ -f ${OUT}/fdt ] && cp -a ${DTB_PATH} ${OUT}/fdt && FDT=" + ${DTB}"
    216. 	[ -f ${OUT}/resource ] && cp -a resource.img ${OUT}/resource && RESOURCE=" + resource.img"
    217. 	COMP=$(fdtget ${ITB} /images/kernel compression)
    218. 	case "${COMP}" in
    219. 		gzip)	EXT=".gz";;
    220. 		lz4)	EXT=".lz4";;
    221. 		bzip2)	EXT=".bz2";;
    222. 		lzma)	EXT=".lzma";;
    223. 		lzo)	EXT=".lzo";;
    224. 	esac
    225. 	cp -a ${KERNEL_IMAGE_PATH}${EXT} ${OUT}/kernel && \
    226. 	${MKIMAGE} ${MKIMAGE_ARG} -f ${ITS} boot.img >/dev/null && \
    227. 	echo "  Image:  boot.img (FIT ${BOOT_IMG} + Image${EXT}${FDT}${RESOURCE}) is ready";
    228. 	if [ "${EXT}" == "" ] && [ -f ${KERNEL_ZIMAGE_PATH} ]; then
    229. 		cp -a ${KERNEL_ZIMAGE_PATH} ${OUT}/kernel && \
    230. 		${MKIMAGE} ${MKIMAGE_ARG} -f ${ITS} zboot.img >/dev/null && \
    231. 		echo "  Image:  zboot.img (FIT ${BOOT_IMG} + zImage${FDT}${RESOURCE}) is ready";
    232. 	fi
    233. }
    234.
    235. repack_itb()
    236. {
    237. 	check_mkimage
    238. 	unpack_itb
    239. 	gen_its
    240. 	gen_itb
    241. }
    242.
    243. # Create U-Boot FIT Image use ${BOOT_ITS}
    244. make_fit_boot_img()
    245. {
    246. 	ITS=${OUT}/boot.its
    247.
    248. 	check_mkimage
    249. 	mkdir -p ${OUT}
    250. 	rm -f ${OUT}/fdt ${OUT}/kernel ${OUT}/resource ${ITS}
    251.
    252. 	cp -a ${BOOT_ITS} ${ITS}
    253. 	cp -a ${DTB_PATH} ${OUT}/fdt
    254. 	cp -a ${KERNEL_ZIMAGE_PATH} ${OUT}/kernel
    255. 	cp -a resource.img ${OUT}/resource
    256.
    257. 	if [ "${ARCH}" == "arm64" ]; then
    258. 		sed -i -e 's/arch = ""/arch = "arm64"/g' -e 's/compression = ""/compression = "lz4"/' ${ITS}
    259. 	else
    260. 		sed -i -e 's/arch = ""/arch = "arm"/g' -e 's/compression = ""/compression = "none"/' ${ITS}
    261. 	fi
    262. 	FIT_DESC=$(${MKIMAGE} ${MKIMAGE_ARG} -f ${ITS} boot.img | grep "FIT description" | sed 's/FIT description: //')
    263. 	echo "  Image:  boot.img (${FIT_DESC}) is ready";
    264. }
    265.
    266. if [ -x ${srctree}/scripts/bmpconvert ]; then
    267. 	if [ -f ${LOGO_PATH} ]; then
    268. 		${srctree}/scripts/bmpconvert ${LOGO_PATH};
    269. 	fi
    270. 	if [ -f ${LOGO_KERNEL_PATH} ]; then
    271. 		${srctree}/scripts/bmpconvert ${LOGO_KERNEL_PATH};
    272. 	fi
    273. fi
    274.
    275. if [ "${srctree}" != "${objtree}" ]; then
    276. 	if [ -f ${LOGO_PATH} ]; then
    277. 		cp -a ${LOGO_PATH} ${objtree}/;
    278. 	fi
    279. 	if [ -f ${LOGO_KERNEL_PATH} ]; then
    280. 		cp -a ${LOGO_KERNEL_PATH} ${objtree}/;
    281. 	fi
    282. fi
    283. scripts/resource_tool ${DTB_PATH} ${LOGO} ${LOGO_KERNEL} >/dev/null
    284. echo "  Image:  resource.img (with ${DTB} ${LOGO} ${LOGO_KERNEL}) is ready"
    285.
    286. if [ -f "${BOOT_IMG}" ]; then
    287. 	if file -L -p -b ${BOOT_IMG} | grep -q 'Device Tree Blob' ; then
    288. 		repack_itb;
    289. 	elif [ -x ${srctree}/scripts/repack-bootimg ]; then
    290. 		if [[ $MULTI_DTB = "true" ]] ; then
    291. 			echo "  ready to build multi dtb boot.img";
    292. 			repack_multi_dtb_boot_img;
    293. 		else
    294. 			repack_boot_img;
    295. 		fi
    296. 	fi
    297. elif [ -f "${BOOT_ITS}" ]; then
    298. 	make_fit_boot_img;
    299. elif [ -x ${srctree}/scripts/mkbootimg ]; then
    300. 		if [[ $MULTI_DTB = "true" ]] ; then
    301. 			echo "  ready to build multi dtb boot.img";
    302. 			make_boot_multi_dtb_img;
    303. 		else
    304. 			make_boot_img;
    305. 		fi
    306. fi

    错误提示3：没有resource_tool命令

    解决：

    1. 从原sdk中拷贝c文件（当然可以直接拷贝二进程执行文件，拷贝二进制就不用修改makefile了）

    cp ../kernel/scripts/resource_tool.c scripts/

    resource_tool.c原文如下：

    1. // SPDX-License-Identifier: GPL-2.0+
    2. /*
    3.  * (C) Copyright 2008-2015 Fuzhou Rockchip Electronics Co., Ltd
    4.  */
    5.
    6. #include
    7. #include
    8. #include
    9. #include
    10. #include
    11. #include
    12. #include
    13. #include
    14.
    15. /**
    16.  * \brief	   SHA-1 context structure
    17.  */
    18. typedef struct
    19. {
    20.     unsigned long total[2];	/*!< number of bytes processed	*/
    21.     unsigned long state[5];	/*!< intermediate digest state	*/
    22.     unsigned char buffer[64];	/*!< data block being processed */
    23. }
    24. sha1_context;
    25.
    26. /*
    27.  * 32-bit integer manipulation macros (big endian)
    28.  */
    29. #ifndef GET_UINT32_BE
    30. #define GET_UINT32_BE(n,b,i) {				\
    31. 	(n) = ( (unsigned long) (b)[(i)    ] << 24 )	\
    32. 	    | ( (unsigned long) (b)[(i) + 1] << 16 )	\
    33. 	    | ( (unsigned long) (b)[(i) + 2] <<  8 )	\
    34. 	    | ( (unsigned long) (b)[(i) + 3]       );	\
    35. }
    36. #endif
    37. #ifndef PUT_UINT32_BE
    38. #define PUT_UINT32_BE(n,b,i) {				\
    39. 	(b)[(i)    ] = (unsigned char) ( (n) >> 24 );	\
    40. 	(b)[(i) + 1] = (unsigned char) ( (n) >> 16 );	\
    41. 	(b)[(i) + 2] = (unsigned char) ( (n) >>  8 );	\
    42. 	(b)[(i) + 3] = (unsigned char) ( (n)       );	\
    43. }
    44. #endif
    45.
    46. /*
    47.  * SHA-1 context setup
    48.  */
    49. static
    50. void sha1_starts (sha1_context * ctx)
    51. {
    52. 	ctx->total[0] = 0;
    53. 	ctx->total[1] = 0;
    54.
    55. 	ctx->state[0] = 0x67452301;
    56. 	ctx->state[1] = 0xEFCDAB89;
    57. 	ctx->state[2] = 0x98BADCFE;
    58. 	ctx->state[3] = 0x10325476;
    59. 	ctx->state[4] = 0xC3D2E1F0;
    60. }
    61.
    62. static void sha1_process(sha1_context *ctx, const unsigned char data[64])
    63. {
    64. 	unsigned long temp, W[16], A, B, C, D, E;
    65.
    66. 	GET_UINT32_BE (W[0], data, 0);
    67. 	GET_UINT32_BE (W[1], data, 4);
    68. 	GET_UINT32_BE (W[2], data, 8);
    69. 	GET_UINT32_BE (W[3], data, 12);
    70. 	GET_UINT32_BE (W[4], data, 16);
    71. 	GET_UINT32_BE (W[5], data, 20);
    72. 	GET_UINT32_BE (W[6], data, 24);
    73. 	GET_UINT32_BE (W[7], data, 28);
    74. 	GET_UINT32_BE (W[8], data, 32);
    75. 	GET_UINT32_BE (W[9], data, 36);
    76. 	GET_UINT32_BE (W[10], data, 40);
    77. 	GET_UINT32_BE (W[11], data, 44);
    78. 	GET_UINT32_BE (W[12], data, 48);
    79. 	GET_UINT32_BE (W[13], data, 52);
    80. 	GET_UINT32_BE (W[14], data, 56);
    81. 	GET_UINT32_BE (W[15], data, 60);
    82.
    83. #define S(x,n)	((x << n) | ((x & 0xFFFFFFFF) >> (32 - n)))
    84.
    85. #define R(t) (						\
    86. 	temp = W[(t -  3) & 0x0F] ^ W[(t - 8) & 0x0F] ^	\
    87. 	       W[(t - 14) & 0x0F] ^ W[ t      & 0x0F],	\
    88. 	( W[t & 0x0F] = S(temp,1) )			\
    89. )
    90.
    91. #define P(a,b,c,d,e,x)	{				\
    92. 	e += S(a,5) + F(b,c,d) + K + x; b = S(b,30);	\
    93. }
    94.
    95. 	A = ctx->state[0];
    96. 	B = ctx->state[1];
    97. 	C = ctx->state[2];
    98. 	D = ctx->state[3];
    99. 	E = ctx->state[4];
    100.
    101. #define F(x,y,z) (z ^ (x & (y ^ z)))
    102. #define K 0x5A827999
    103.
    104. 	P (A, B, C, D, E, W[0]);
    105. 	P (E, A, B, C, D, W[1]);
    106. 	P (D, E, A, B, C, W[2]);
    107. 	P (C, D, E, A, B, W[3]);
    108. 	P (B, C, D, E, A, W[4]);
    109. 	P (A, B, C, D, E, W[5]);
    110. 	P (E, A, B, C, D, W[6]);
    111. 	P (D, E, A, B, C, W[7]);
    112. 	P (C, D, E, A, B, W[8]);
    113. 	P (B, C, D, E, A, W[9]);
    114. 	P (A, B, C, D, E, W[10]);
    115. 	P (E, A, B, C, D, W[11]);
    116. 	P (D, E, A, B, C, W[12]);
    117. 	P (C, D, E, A, B, W[13]);
    118. 	P (B, C, D, E, A, W[14]);
    119. 	P (A, B, C, D, E, W[15]);
    120. 	P (E, A, B, C, D, R (16));
    121. 	P (D, E, A, B, C, R (17));
    122. 	P (C, D, E, A, B, R (18));
    123. 	P (B, C, D, E, A, R (19));
    124.
    125. #undef K
    126. #undef F
    127.
    128. #define F(x,y,z) (x ^ y ^ z)
    129. #define K 0x6ED9EBA1
    130.
    131. 	P (A, B, C, D, E, R (20));
    132. 	P (E, A, B, C, D, R (21));
    133. 	P (D, E, A, B, C, R (22));
    134. 	P (C, D, E, A, B, R (23));
    135. 	P (B, C, D, E, A, R (24));
    136. 	P (A, B, C, D, E, R (25));
    137. 	P (E, A, B, C, D, R (26));
    138. 	P (D, E, A, B, C, R (27));
    139. 	P (C, D, E, A, B, R (28));
    140. 	P (B, C, D, E, A, R (29));
    141. 	P (A, B, C, D, E, R (30));
    142. 	P (E, A, B, C, D, R (31));
    143. 	P (D, E, A, B, C, R (32));
    144. 	P (C, D, E, A, B, R (33));
    145. 	P (B, C, D, E, A, R (34));
    146. 	P (A, B, C, D, E, R (35));
    147. 	P (E, A, B, C, D, R (36));
    148. 	P (D, E, A, B, C, R (37));
    149. 	P (C, D, E, A, B, R (38));
    150. 	P (B, C, D, E, A, R (39));
    151.
    152. #undef K
    153. #undef F
    154.
    155. #define F(x,y,z) ((x & y) | (z & (x | y)))
    156. #define K 0x8F1BBCDC
    157.
    158. 	P (A, B, C, D, E, R (40));
    159. 	P (E, A, B, C, D, R (41));
    160. 	P (D, E, A, B, C, R (42));
    161. 	P (C, D, E, A, B, R (43));
    162. 	P (B, C, D, E, A, R (44));
    163. 	P (A, B, C, D, E, R (45));
    164. 	P (E, A, B, C, D, R (46));
    165. 	P (D, E, A, B, C, R (47));
    166. 	P (C, D, E, A, B, R (48));
    167. 	P (B, C, D, E, A, R (49));
    168. 	P (A, B, C, D, E, R (50));
    169. 	P (E, A, B, C, D, R (51));
    170. 	P (D, E, A, B, C, R (52));
    171. 	P (C, D, E, A, B, R (53));
    172. 	P (B, C, D, E, A, R (54));
    173. 	P (A, B, C, D, E, R (55));
    174. 	P (E, A, B, C, D, R (56));
    175. 	P (D, E, A, B, C, R (57));
    176. 	P (C, D, E, A, B, R (58));
    177. 	P (B, C, D, E, A, R (59));
    178.
    179. #undef K
    180. #undef F
    181.
    182. #define F(x,y,z) (x ^ y ^ z)
    183. #define K 0xCA62C1D6
    184.
    185. 	P (A, B, C, D, E, R (60));
    186. 	P (E, A, B, C, D, R (61));
    187. 	P (D, E, A, B, C, R (62));
    188. 	P (C, D, E, A, B, R (63));
    189. 	P (B, C, D, E, A, R (64));
    190. 	P (A, B, C, D, E, R (65));
    191. 	P (E, A, B, C, D, R (66));
    192. 	P (D, E, A, B, C, R (67));
    193. 	P (C, D, E, A, B, R (68));
    194. 	P (B, C, D, E, A, R (69));
    195. 	P (A, B, C, D, E, R (70));
    196. 	P (E, A, B, C, D, R (71));
    197. 	P (D, E, A, B, C, R (72));
    198. 	P (C, D, E, A, B, R (73));
    199. 	P (B, C, D, E, A, R (74));
    200. 	P (A, B, C, D, E, R (75));
    201. 	P (E, A, B, C, D, R (76));
    202. 	P (D, E, A, B, C, R (77));
    203. 	P (C, D, E, A, B, R (78));
    204. 	P (B, C, D, E, A, R (79));
    205.
    206. #undef K
    207. #undef F
    208.
    209. 	ctx->state[0] += A;
    210. 	ctx->state[1] += B;
    211. 	ctx->state[2] += C;
    212. 	ctx->state[3] += D;
    213. 	ctx->state[4] += E;
    214. }
    215.
    216. #undef P
    217. #undef R
    218. #undef S
    219.
    220. /*
    221.  * SHA-1 process buffer
    222.  */
    223. static
    224. void sha1_update(sha1_context *ctx, const unsigned char *input,
    225. 		 unsigned int ilen)
    226. {
    227. 	int fill;
    228. 	unsigned long left;
    229.
    230. 	if (ilen <= 0)
    231. 		return;
    232.
    233. 	left = ctx->total[0] & 0x3F;
    234. 	fill = 64 - left;
    235.
    236. 	ctx->total[0] += ilen;
    237. 	ctx->total[0] &= 0xFFFFFFFF;
    238.
    239. 	if (ctx->total[0] < (unsigned long) ilen)
    240. 		ctx->total[1]++;
    241.
    242. 	if (left && ilen >= fill) {
    243. 		memcpy ((void *) (ctx->buffer + left), (void *) input, fill);
    244. 		sha1_process (ctx, ctx->buffer);
    245. 		input += fill;
    246. 		ilen -= fill;
    247. 		left = 0;
    248. 	}
    249.
    250. 	while (ilen >= 64) {
    251. 		sha1_process (ctx, input);
    252. 		input += 64;
    253. 		ilen -= 64;
    254. 	}
    255.
    256. 	if (ilen > 0) {
    257. 		memcpy ((void *) (ctx->buffer + left), (void *) input, ilen);
    258. 	}
    259. }
    260.
    261. static const unsigned char sha1_padding[64] = {
    262. 	0x80, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
    263. 	   0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
    264. 	   0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
    265. 	   0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0
    266. };
    267.
    268. /*
    269.  * SHA-1 final digest
    270.  */
    271. static
    272. void sha1_finish (sha1_context * ctx, unsigned char output[20])
    273. {
    274. 	unsigned long last, padn;
    275. 	unsigned long high, low;
    276. 	unsigned char msglen[8];
    277.
    278. 	high = (ctx->total[0] >> 29)
    279. 		| (ctx->total[1] << 3);
    280. 	low = (ctx->total[0] << 3);
    281.
    282. 	PUT_UINT32_BE (high, msglen, 0);
    283. 	PUT_UINT32_BE (low, msglen, 4);
    284.
    285. 	last = ctx->total[0] & 0x3F;
    286. 	padn = (last < 56) ? (56 - last) : (120 - last);
    287.
    288. 	sha1_update (ctx, (unsigned char *) sha1_padding, padn);
    289. 	sha1_update (ctx, msglen, 8);
    290.
    291. 	PUT_UINT32_BE (ctx->state[0], output, 0);
    292. 	PUT_UINT32_BE (ctx->state[1], output, 4);
    293. 	PUT_UINT32_BE (ctx->state[2], output, 8);
    294. 	PUT_UINT32_BE (ctx->state[3], output, 12);
    295. 	PUT_UINT32_BE (ctx->state[4], output, 16);
    296. }
    297.
    298. /*
    299.  * Output = SHA-1( input buffer )
    300.  */
    301. static
    302. void sha1_csum(const unsigned char *input, unsigned int ilen,
    303. 	       unsigned char *output)
    304. {
    305. 	sha1_context ctx;
    306.
    307. 	sha1_starts (&ctx);
    308. 	sha1_update (&ctx, input, ilen);
    309. 	sha1_finish (&ctx, output);
    310. }
    311.
    312. typedef struct {
    313. 	uint32_t total[2];
    314. 	uint32_t state[8];
    315. 	uint8_t buffer[64];
    316. } sha256_context;
    317.
    318. static
    319. void sha256_starts(sha256_context * ctx)
    320. {
    321. 	ctx->total[0] = 0;
    322. 	ctx->total[1] = 0;
    323.
    324. 	ctx->state[0] = 0x6A09E667;
    325. 	ctx->state[1] = 0xBB67AE85;
    326. 	ctx->state[2] = 0x3C6EF372;
    327. 	ctx->state[3] = 0xA54FF53A;
    328. 	ctx->state[4] = 0x510E527F;
    329. 	ctx->state[5] = 0x9B05688C;
    330. 	ctx->state[6] = 0x1F83D9AB;
    331. 	ctx->state[7] = 0x5BE0CD19;
    332. }
    333.
    334. static void sha256_process(sha256_context *ctx, const uint8_t data[64])
    335. {
    336. 	uint32_t temp1, temp2;
    337. 	uint32_t W[64];
    338. 	uint32_t A, B, C, D, E, F, G, H;
    339.
    340. 	GET_UINT32_BE(W[0], data, 0);
    341. 	GET_UINT32_BE(W[1], data, 4);
    342. 	GET_UINT32_BE(W[2], data, 8);
    343. 	GET_UINT32_BE(W[3], data, 12);
    344. 	GET_UINT32_BE(W[4], data, 16);
    345. 	GET_UINT32_BE(W[5], data, 20);
    346. 	GET_UINT32_BE(W[6], data, 24);
    347. 	GET_UINT32_BE(W[7], data, 28);
    348. 	GET_UINT32_BE(W[8], data, 32);
    349. 	GET_UINT32_BE(W[9], data, 36);
    350. 	GET_UINT32_BE(W[10], data, 40);
    351. 	GET_UINT32_BE(W[11], data, 44);
    352. 	GET_UINT32_BE(W[12], data, 48);
    353. 	GET_UINT32_BE(W[13], data, 52);
    354. 	GET_UINT32_BE(W[14], data, 56);
    355. 	GET_UINT32_BE(W[15], data, 60);
    356.
    357. #define SHR(x,n) ((x & 0xFFFFFFFF) >> n)
    358. #define ROTR(x,n) (SHR(x,n) | (x << (32 - n)))
    359.
    360. #define S0(x) (ROTR(x, 7) ^ ROTR(x,18) ^ SHR(x, 3))
    361. #define S1(x) (ROTR(x,17) ^ ROTR(x,19) ^ SHR(x,10))
    362.
    363. #define S2(x) (ROTR(x, 2) ^ ROTR(x,13) ^ ROTR(x,22))
    364. #define S3(x) (ROTR(x, 6) ^ ROTR(x,11) ^ ROTR(x,25))
    365.
    366. #define F0(x,y,z) ((x & y) | (z & (x | y)))
    367. #define F1(x,y,z) (z ^ (x & (y ^ z)))
    368.
    369. #define R(t)					\
    370. (						\
    371. 	W[t] = S1(W[t - 2]) + W[t - 7] +	\
    372. 		S0(W[t - 15]) + W[t - 16]	\
    373. )
    374.
    375. #define P(a,b,c,d,e,f,g,h,x,K) {		\
    376. 	temp1 = h + S3(e) + F1(e,f,g) + K + x;	\
    377. 	temp2 = S2(a) + F0(a,b,c);		\
    378. 	d += temp1; h = temp1 + temp2;		\
    379. }
    380.
    381. 	A = ctx->state[0];
    382. 	B = ctx->state[1];
    383. 	C = ctx->state[2];
    384. 	D = ctx->state[3];
    385. 	E = ctx->state[4];
    386. 	F = ctx->state[5];
    387. 	G = ctx->state[6];
    388. 	H = ctx->state[7];
    389.
    390. 	P(A, B, C, D, E, F, G, H, W[0], 0x428A2F98);
    391. 	P(H, A, B, C, D, E, F, G, W[1], 0x71374491);
    392. 	P(G, H, A, B, C, D, E, F, W[2], 0xB5C0FBCF);
    393. 	P(F, G, H, A, B, C, D, E, W[3], 0xE9B5DBA5);
    394. 	P(E, F, G, H, A, B, C, D, W[4], 0x3956C25B);
    395. 	P(D, E, F, G, H, A, B, C, W[5], 0x59F111F1);
    396. 	P(C, D, E, F, G, H, A, B, W[6], 0x923F82A4);
    397. 	P(B, C, D, E, F, G, H, A, W[7], 0xAB1C5ED5);
    398. 	P(A, B, C, D, E, F, G, H, W[8], 0xD807AA98);
    399. 	P(H, A, B, C, D, E, F, G, W[9], 0x12835B01);
    400. 	P(G, H, A, B, C, D, E, F, W[10], 0x243185BE);
    401. 	P(F, G, H, A, B, C, D, E, W[11], 0x550C7DC3);
    402. 	P(E, F, G, H, A, B, C, D, W[12], 0x72BE5D74);
    403. 	P(D, E, F, G, H, A, B, C, W[13], 0x80DEB1FE);
    404. 	P(C, D, E, F, G, H, A, B, W[14], 0x9BDC06A7);
    405. 	P(B, C, D, E, F, G, H, A, W[15], 0xC19BF174);
    406. 	P(A, B, C, D, E, F, G, H, R(16), 0xE49B69C1);
    407. 	P(H, A, B, C, D, E, F, G, R(17), 0xEFBE4786);
    408. 	P(G, H, A, B, C, D, E, F, R(18), 0x0FC19DC6);
    409. 	P(F, G, H, A, B, C, D, E, R(19), 0x240CA1CC);
    410. 	P(E, F, G, H, A, B, C, D, R(20), 0x2DE92C6F);
    411. 	P(D, E, F, G, H, A, B, C, R(21), 0x4A7484AA);
    412. 	P(C, D, E, F, G, H, A, B, R(22), 0x5CB0A9DC);
    413. 	P(B, C, D, E, F, G, H, A, R(23), 0x76F988DA);
    414. 	P(A, B, C, D, E, F, G, H, R(24), 0x983E5152);
    415. 	P(H, A, B, C, D, E, F, G, R(25), 0xA831C66D);
    416. 	P(G, H, A, B, C, D, E, F, R(26), 0xB00327C8);
    417. 	P(F, G, H, A, B, C, D, E, R(27), 0xBF597FC7);
    418. 	P(E, F, G, H, A, B, C, D, R(28), 0xC6E00BF3);
    419. 	P(D, E, F, G, H, A, B, C, R(29), 0xD5A79147);
    420. 	P(C, D, E, F, G, H, A, B, R(30), 0x06CA6351);
    421. 	P(B, C, D, E, F, G, H, A, R(31), 0x14292967);
    422. 	P(A, B, C, D, E, F, G, H, R(32), 0x27B70A85);
    423. 	P(H, A, B, C, D, E, F, G, R(33), 0x2E1B2138);
    424. 	P(G, H, A, B, C, D, E, F, R(34), 0x4D2C6DFC);
    425. 	P(F, G, H, A, B, C, D, E, R(35), 0x53380D13);
    426. 	P(E, F, G, H, A, B, C, D, R(36), 0x650A7354);
    427. 	P(D, E, F, G, H, A, B, C, R(37), 0x766A0ABB);
    428. 	P(C, D, E, F, G, H, A, B, R(38), 0x81C2C92E);
    429. 	P(B, C, D, E, F, G, H, A, R(39), 0x92722C85);
    430. 	P(A, B, C, D, E, F, G, H, R(40), 0xA2BFE8A1);
    431. 	P(H, A, B, C, D, E, F, G, R(41), 0xA81A664B);
    432. 	P(G, H, A, B, C, D, E, F, R(42), 0xC24B8B70);
    433. 	P(F, G, H, A, B, C, D, E, R(43), 0xC76C51A3);
    434. 	P(E, F, G, H, A, B, C, D, R(44), 0xD192E819);
    435. 	P(D, E, F, G, H, A, B, C, R(45), 0xD6990624);
    436. 	P(C, D, E, F, G, H, A, B, R(46), 0xF40E3585);
    437. 	P(B, C, D, E, F, G, H, A, R(47), 0x106AA070);
    438. 	P(A, B, C, D, E, F, G, H, R(48), 0x19A4C116);
    439. 	P(H, A, B, C, D, E, F, G, R(49), 0x1E376C08);
    440. 	P(G, H, A, B, C, D, E, F, R(50), 0x2748774C);
    441. 	P(F, G, H, A, B, C, D, E, R(51), 0x34B0BCB5);
    442. 	P(E, F, G, H, A, B, C, D, R(52), 0x391C0CB3);
    443. 	P(D, E, F, G, H, A, B, C, R(53), 0x4ED8AA4A);
    444. 	P(C, D, E, F, G, H, A, B, R(54), 0x5B9CCA4F);
    445. 	P(B, C, D, E, F, G, H, A, R(55), 0x682E6FF3);
    446. 	P(A, B, C, D, E, F, G, H, R(56), 0x748F82EE);
    447. 	P(H, A, B, C, D, E, F, G, R(57), 0x78A5636F);
    448. 	P(G, H, A, B, C, D, E, F, R(58), 0x84C87814);
    449. 	P(F, G, H, A, B, C, D, E, R(59), 0x8CC70208);
    450. 	P(E, F, G, H, A, B, C, D, R(60), 0x90BEFFFA);
    451. 	P(D, E, F, G, H, A, B, C, R(61), 0xA4506CEB);
    452. 	P(C, D, E, F, G, H, A, B, R(62), 0xBEF9A3F7);
    453. 	P(B, C, D, E, F, G, H, A, R(63), 0xC67178F2);
    454.
    455. 	ctx->state[0] += A;
    456. 	ctx->state[1] += B;
    457. 	ctx->state[2] += C;
    458. 	ctx->state[3] += D;
    459. 	ctx->state[4] += E;
    460. 	ctx->state[5] += F;
    461. 	ctx->state[6] += G;
    462. 	ctx->state[7] += H;
    463. }
    464.
    465. #undef P
    466. #undef R
    467. #undef F1
    468. #undef F0
    469. #undef S3
    470. #undef S2
    471. #undef S1
    472. #undef S0
    473. #undef ROTR
    474. #undef SHR
    475.
    476. static
    477. void sha256_update(sha256_context *ctx, const uint8_t *input, uint32_t length)
    478. {
    479. 	uint32_t left, fill;
    480.
    481. 	if (!length)
    482. 		return;
    483.
    484. 	left = ctx->total[0] & 0x3F;
    485. 	fill = 64 - left;
    486.
    487. 	ctx->total[0] += length;
    488. 	ctx->total[0] &= 0xFFFFFFFF;
    489.
    490. 	if (ctx->total[0] < length)
    491. 		ctx->total[1]++;
    492.
    493. 	if (left && length >= fill) {
    494. 		memcpy((void *) (ctx->buffer + left), (void *) input, fill);
    495. 		sha256_process(ctx, ctx->buffer);
    496. 		length -= fill;
    497. 		input += fill;
    498. 		left = 0;
    499. 	}
    500.
    501. 	while (length >= 64) {
    502. 		sha256_process(ctx, input);
    503. 		length -= 64;
    504. 		input += 64;
    505. 	}
    506.
    507. 	if (length)
    508. 		memcpy((void *) (ctx->buffer + left), (void *) input, length);
    509. }
    510.
    511. static uint8_t sha256_padding[64] = {
    512. 	0x80, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
    513. 	   0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
    514. 	   0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
    515. 	   0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0
    516. };
    517.
    518. static
    519. void sha256_finish(sha256_context * ctx, uint8_t digest[32])
    520. {
    521. 	uint32_t last, padn;
    522. 	uint32_t high, low;
    523. 	uint8_t msglen[8];
    524.
    525. 	high = ((ctx->total[0] >> 29)
    526. 		| (ctx->total[1] << 3));
    527. 	low = (ctx->total[0] << 3);
    528.
    529. 	PUT_UINT32_BE(high, msglen, 0);
    530. 	PUT_UINT32_BE(low, msglen, 4);
    531.
    532. 	last = ctx->total[0] & 0x3F;
    533. 	padn = (last < 56) ? (56 - last) : (120 - last);
    534.
    535. 	sha256_update(ctx, sha256_padding, padn);
    536. 	sha256_update(ctx, msglen, 8);
    537.
    538. 	PUT_UINT32_BE(ctx->state[0], digest, 0);
    539. 	PUT_UINT32_BE(ctx->state[1], digest, 4);
    540. 	PUT_UINT32_BE(ctx->state[2], digest, 8);
    541. 	PUT_UINT32_BE(ctx->state[3], digest, 12);
    542. 	PUT_UINT32_BE(ctx->state[4], digest, 16);
    543. 	PUT_UINT32_BE(ctx->state[5], digest, 20);
    544. 	PUT_UINT32_BE(ctx->state[6], digest, 24);
    545. 	PUT_UINT32_BE(ctx->state[7], digest, 28);
    546. }
    547.
    548. /*
    549.  * Output = SHA-256( input buffer ).
    550.  */
    551. static
    552. void sha256_csum(const unsigned char *input, unsigned int ilen,
    553. 		 unsigned char *output)
    554. {
    555. 	sha256_context ctx;
    556.
    557. 	sha256_starts(&ctx);
    558. 	sha256_update(&ctx, input, ilen);
    559. 	sha256_finish(&ctx, output);
    560. }
    561.
    562. /* #define DEBUG */
    563.
    564. static bool g_debug =
    565. #ifdef DEBUG
    566.         true;
    567. #else
    568.         false;
    569. #endif /* DEBUG */
    570.
    571. #define LOGE(fmt, args...)                                                     \
    572.   fprintf(stderr, "E/%s(%d): " fmt "\n", __func__, __LINE__, ##args)
    573. #define LOGD(fmt, args...)                                                     \
    574.   do {                                                                         \
    575.     if (g_debug)                                                               \
    576.       fprintf(stderr, "D/%s(%d): " fmt "\n", __func__, __LINE__, ##args);      \
    577.   } while (0)
    578.
    579. /* sync with ./board/rockchip/rk30xx/rkloader.c #define FDT_PATH */
    580. #define FDT_PATH "rk-kernel.dtb"
    581. #define DTD_SUBFIX ".dtb"
    582.
    583. #define DEFAULT_IMAGE_PATH "resource.img"
    584. #define DEFAULT_UNPACK_DIR "out"
    585. #define BLOCK_SIZE 512
    586.
    587. #define RESOURCE_PTN_HDR_SIZE 1
    588. #define INDEX_TBL_ENTR_SIZE 1
    589.
    590. #define RESOURCE_PTN_VERSION 0
    591. #define INDEX_TBL_VERSION 0
    592.
    593. #define RESOURCE_PTN_HDR_MAGIC "RSCE"
    594. typedef struct {
    595. 	char magic[4]; /* tag, "RSCE" */
    596. 	uint16_t resource_ptn_version;
    597. 	uint16_t index_tbl_version;
    598. 	uint8_t header_size;    /* blocks, size of ptn header. */
    599. 	uint8_t tbl_offset;     /* blocks, offset of index table. */
    600. 	uint8_t tbl_entry_size; /* blocks, size of index table's entry. */
    601. 	uint32_t tbl_entry_num; /* numbers of index table's entry. */
    602. } resource_ptn_header;
    603.
    604. #define INDEX_TBL_ENTR_TAG "ENTR"
    605. #define MAX_INDEX_ENTRY_PATH_LEN	220
    606. #define MAX_HASH_LEN			32
    607.
    608. typedef struct {
    609. 	char tag[4]; /* tag, "ENTR" */
    610. 	char path[MAX_INDEX_ENTRY_PATH_LEN];
    611. 	char hash[MAX_HASH_LEN]; /* hash data */
    612. 	uint32_t hash_size;	 /* 20 or 32 */
    613. 	uint32_t content_offset; /* blocks, offset of resource content. */
    614. 	uint32_t content_size;   /* bytes, size of resource content. */
    615. } index_tbl_entry;
    616.
    617. #define OPT_VERBOSE "--verbose"
    618. #define OPT_HELP "--help"
    619. #define OPT_VERSION "--version"
    620. #define OPT_PRINT "--print"
    621. #define OPT_PACK "--pack"
    622. #define OPT_UNPACK "--unpack"
    623. #define OPT_TEST_LOAD "--test_load"
    624. #define OPT_TEST_CHARGE "--test_charge"
    625. #define OPT_IMAGE "--image="
    626. #define OPT_ROOT "--root="
    627.
    628. #define VERSION "2014-5-31 14:43:42"
    629.
    630. typedef struct {
    631. 	char path[MAX_INDEX_ENTRY_PATH_LEN];
    632. 	uint32_t content_offset; /* blocks, offset of resource content. */
    633. 	uint32_t content_size;   /* bytes, size of resource content. */
    634. 	void *load_addr;
    635. } resource_content;
    636.
    637. typedef struct {
    638. 	int max_level;
    639. 	int num;
    640. 	int delay;
    641. 	char prefix[MAX_INDEX_ENTRY_PATH_LEN];
    642. } anim_level_conf;
    643.
    644. #define DEF_CHARGE_DESC_PATH "charge_anim_desc.txt"
    645.
    646. #define OPT_CHARGE_ANIM_DELAY "delay="
    647. #define OPT_CHARGE_ANIM_LOOP_CUR "only_current_level="
    648. #define OPT_CHARGE_ANIM_LEVELS "levels="
    649. #define OPT_CHARGE_ANIM_LEVEL_CONF "max_level="
    650. #define OPT_CHARGE_ANIM_LEVEL_NUM "num="
    651. #define OPT_CHARGE_ANIM_LEVEL_PFX "prefix="
    652.
    653. static char image_path[MAX_INDEX_ENTRY_PATH_LEN] = "\0";
    654.
    655. static int fix_blocks(size_t size)
    656. {
    657. 	return (size + BLOCK_SIZE - 1) / BLOCK_SIZE;
    658. }
    659.
    660. static const char *fix_path(const char *path)
    661. {
    662. 	if (!memcmp(path, "./", 2)) {
    663. 		return path + 2;
    664. 	}
    665. 	return path;
    666. }
    667.
    668. static uint16_t switch_short(uint16_t x)
    669. {
    670. 	uint16_t val;
    671. 	uint8_t *p = (uint8_t *)(&x);
    672.
    673. 	val = (*p++ & 0xff) << 0;
    674. 	val |= (*p & 0xff) << 8;
    675.
    676. 	return val;
    677. }
    678.
    679. static uint32_t switch_int(uint32_t x)
    680. {
    681. 	uint32_t val;
    682. 	uint8_t *p = (uint8_t *)(&x);
    683.
    684. 	val = (*p++ & 0xff) << 0;
    685. 	val |= (*p++ & 0xff) << 8;
    686. 	val |= (*p++ & 0xff) << 16;
    687. 	val |= (*p & 0xff) << 24;
    688.
    689. 	return val;
    690. }
    691.
    692. static void fix_header(resource_ptn_header *header)
    693. {
    694. 	/* switch for be. */
    695. 	header->resource_ptn_version = switch_short(header->resource_ptn_version);
    696. 	header->index_tbl_version = switch_short(header->index_tbl_version);
    697. 	header->tbl_entry_num = switch_int(header->tbl_entry_num);
    698. }
    699.
    700. static void fix_entry(index_tbl_entry *entry)
    701. {
    702. 	/* switch for be. */
    703. 	entry->content_offset = switch_int(entry->content_offset);
    704. 	entry->content_size = switch_int(entry->content_size);
    705. }
    706.
    707. static int inline get_ptn_offset(void)
    708. {
    709. 	return 0;
    710. }
    711.
    712. static bool StorageWriteLba(int offset_block, void *data, int blocks)
    713. {
    714. 	bool ret = false;
    715. 	FILE *file = fopen(image_path, "rb+");
    716. 	if (!file)
    717. 		goto end;
    718. 	int offset = offset_block * BLOCK_SIZE;
    719. 	fseek(file, offset, SEEK_SET);
    720. 	if (offset != ftell(file)) {
    721. 		LOGE("Failed to seek %s to %d!", image_path, offset);
    722. 		goto end;
    723. 	}
    724. 	if (!fwrite(data, blocks * BLOCK_SIZE, 1, file)) {
    725. 		LOGE("Failed to write %s!", image_path);
    726. 		goto end;
    727. 	}
    728. 	ret = true;
    729. end:
    730. 	if (file)
    731. 		fclose(file);
    732. 	return ret;
    733. }
    734.
    735. static bool StorageReadLba(int offset_block, void *data, int blocks)
    736. {
    737. 	bool ret = false;
    738. 	FILE *file = fopen(image_path, "rb");
    739. 	if (!file)
    740. 		goto end;
    741. 	int offset = offset_block * BLOCK_SIZE;
    742. 	fseek(file, offset, SEEK_SET);
    743. 	if (offset != ftell(file)) {
    744. 		goto end;
    745. 	}
    746. 	if (!fread(data, blocks * BLOCK_SIZE, 1, file)) {
    747. 		goto end;
    748. 	}
    749. 	ret = true;
    750. end:
    751. 	if (file)
    752. 		fclose(file);
    753. 	return ret;
    754. }
    755.
    756. static bool write_data(int offset_block, void *data, size_t len)
    757. {
    758. 	bool ret = false;
    759. 	if (!data)
    760. 		goto end;
    761. 	int blocks = len / BLOCK_SIZE;
    762. 	if (blocks && !StorageWriteLba(offset_block, data, blocks)) {
    763. 		goto end;
    764. 	}
    765. 	int left = len % BLOCK_SIZE;
    766. 	if (left) {
    767. 		char buf[BLOCK_SIZE] = "\0";
    768. 		memcpy(buf, data + blocks * BLOCK_SIZE, left);
    769. 		if (!StorageWriteLba(offset_block + blocks, buf, 1))
    770. 			goto end;
    771. 	}
    772. 	ret = true;
    773. end:
    774. 	return ret;
    775. }
    776.
    777. /**********************load test************************/
    778. static int load_file(const char *file_path, int offset_block, int blocks);
    779.
    780. static int test_load(int argc, char **argv)
    781. {
    782. 	if (argc < 1) {
    783. 		LOGE("Nothing to load!");
    784. 		return -1;
    785. 	}
    786. 	const char *file_path;
    787. 	int offset_block = 0;
    788. 	int blocks = 0;
    789. 	if (argc > 0) {
    790. 		file_path = (const char *)fix_path(argv[0]);
    791. 		argc--, argv++;
    792. 	}
    793. 	if (argc > 0) {
    794. 		offset_block = atoi(argv[0]);
    795. 		argc--, argv++;
    796. 	}
    797. 	if (argc > 0) {
    798. 		blocks = atoi(argv[0]);
    799. 	}
    800. 	return load_file(file_path, offset_block, blocks);
    801. }
    802.
    803. static void free_content(resource_content *content)
    804. {
    805. 	if (content->load_addr) {
    806. 		free(content->load_addr);
    807. 		content->load_addr = 0;
    808. 	}
    809. }
    810.
    811. static void tests_dump_file(const char *path, void *data, int len)
    812. {
    813. 	FILE *file = fopen(path, "wb");
    814. 	if (!file)
    815. 		return;
    816. 	fwrite(data, len, 1, file);
    817. 	fclose(file);
    818. }
    819.
    820. static bool load_content(resource_content *content)
    821. {
    822. 	if (content->load_addr)
    823. 		return true;
    824. 	int blocks = fix_blocks(content->content_size);
    825. 	content->load_addr = malloc(blocks * BLOCK_SIZE);
    826. 	if (!content->load_addr)
    827. 		return false;
    828. 	if (!StorageReadLba(get_ptn_offset() + content->content_offset,
    829. 	                    content->load_addr, blocks)) {
    830. 		free_content(content);
    831. 		return false;
    832. 	}
    833.
    834. 	tests_dump_file(content->path, content->load_addr, content->content_size);
    835. 	return true;
    836. }
    837.
    838. static bool load_content_data(resource_content *content, int offset_block,
    839.                               void *data, int blocks)
    840. {
    841. 	if (!StorageReadLba(get_ptn_offset() + content->content_offset + offset_block,
    842. 	                    data, blocks)) {
    843. 		return false;
    844. 	}
    845. 	tests_dump_file(content->path, data, blocks * BLOCK_SIZE);
    846. 	return true;
    847. }
    848.
    849. static bool get_entry(const char *file_path, index_tbl_entry *entry)
    850. {
    851. 	bool ret = false;
    852. 	char buf[BLOCK_SIZE];
    853. 	resource_ptn_header header;
    854. 	if (!StorageReadLba(get_ptn_offset(), buf, 1)) {
    855. 		LOGE("Failed to read header!");
    856. 		goto end;
    857. 	}
    858. 	memcpy(&header, buf, sizeof(header));
    859.
    860. 	if (memcmp(header.magic, RESOURCE_PTN_HDR_MAGIC, sizeof(header.magic))) {
    861. 		LOGE("Not a resource image(%s)!", image_path);
    862. 		goto end;
    863. 	}
    864. 	/* test on pc, switch for be. */
    865. 	fix_header(&header);
    866.
    867. 	/* TODO: support header_size & tbl_entry_size */
    868. 	if (header.resource_ptn_version != RESOURCE_PTN_VERSION ||
    869. 	    header.header_size != RESOURCE_PTN_HDR_SIZE ||
    870. 	    header.index_tbl_version != INDEX_TBL_VERSION ||
    871. 	    header.tbl_entry_size != INDEX_TBL_ENTR_SIZE) {
    872. 		LOGE("Not supported in this version!");
    873. 		goto end;
    874. 	}
    875.
    876. 	int i;
    877. 	for (i = 0; i < header.tbl_entry_num; i++) {
    878. 		/* TODO: support tbl_entry_size */
    879. 		if (!StorageReadLba(
    880. 		            get_ptn_offset() + header.header_size + i * header.tbl_entry_size,
    881. 		            buf, 1)) {
    882. 			LOGE("Failed to read index entry:%d!", i);
    883. 			goto end;
    884. 		}
    885. 		memcpy(entry, buf, sizeof(*entry));
    886.
    887. 		if (memcmp(entry->tag, INDEX_TBL_ENTR_TAG, sizeof(entry->tag))) {
    888. 			LOGE("Something wrong with index entry:%d!", i);
    889. 			goto end;
    890. 		}
    891.
    892. 		if (!strncmp(entry->path, file_path, sizeof(entry->path)))
    893. 			break;
    894. 	}
    895. 	if (i == header.tbl_entry_num) {
    896. 		LOGE("Cannot find %s!", file_path);
    897. 		goto end;
    898. 	}
    899. 	/* test on pc, switch for be. */
    900. 	fix_entry(entry);
    901.
    902. 	printf("Found entry:\n\tpath:%s\n\toffset:%d\tsize:%d\n", entry->path,
    903. 	       entry->content_offset, entry->content_size);
    904.
    905. 	ret = true;
    906. end:
    907. 	return ret;
    908. }
    909.
    910. static bool get_content(resource_content *content)
    911. {
    912. 	bool ret = false;
    913. 	index_tbl_entry entry;
    914. 	if (!get_entry(content->path, &entry))
    915. 		goto end;
    916. 	content->content_offset = entry.content_offset;
    917. 	content->content_size = entry.content_size;
    918. 	ret = true;
    919. end:
    920. 	return ret;
    921. }
    922.
    923. static int load_file(const char *file_path, int offset_block, int blocks)
    924. {
    925. 	printf("Try to load:%s", file_path);
    926. 	if (blocks) {
    927. 		printf(", offset block:%d, blocks:%d\n", offset_block, blocks);
    928. 	} else {
    929. 		printf("\n");
    930. 	}
    931. 	bool ret = false;
    932. 	resource_content content;
    933. 	snprintf(content.path, sizeof(content.path), "%s", file_path);
    934. 	content.load_addr = 0;
    935. 	if (!get_content(&content)) {
    936. 		goto end;
    937. 	}
    938. 	if (!blocks) {
    939. 		if (!load_content(&content)) {
    940. 			goto end;
    941. 		}
    942. 	} else {
    943. 		void *data = malloc(blocks * BLOCK_SIZE);
    944. 		if (!data)
    945. 			goto end;
    946. 		if (!load_content_data(&content, offset_block, data, blocks)) {
    947. 			goto end;
    948. 		}
    949. 	}
    950. 	ret = true;
    951. end:
    952. 	free_content(&content);
    953. 	return ret;
    954. }
    955.
    956. /**********************load test end************************/
    957. /**********************anim test************************/
    958.
    959. static bool parse_level_conf(const char *arg, anim_level_conf *level_conf)
    960. {
    961. 	memset(level_conf, 0, sizeof(anim_level_conf));
    962. 	char *buf = NULL;
    963. 	buf = strstr(arg, OPT_CHARGE_ANIM_LEVEL_CONF);
    964. 	if (buf) {
    965. 		level_conf->max_level = atoi(buf + strlen(OPT_CHARGE_ANIM_LEVEL_CONF));
    966. 	} else {
    967. 		LOGE("Not found:%s", OPT_CHARGE_ANIM_LEVEL_CONF);
    968. 		return false;
    969. 	}
    970. 	buf = strstr(arg, OPT_CHARGE_ANIM_LEVEL_NUM);
    971. 	if (buf) {
    972. 		level_conf->num = atoi(buf + strlen(OPT_CHARGE_ANIM_LEVEL_NUM));
    973. 		if (level_conf->num <= 0) {
    974. 			return false;
    975. 		}
    976. 	} else {
    977. 		LOGE("Not found:%s", OPT_CHARGE_ANIM_LEVEL_NUM);
    978. 		return false;
    979. 	}
    980. 	buf = strstr(arg, OPT_CHARGE_ANIM_DELAY);
    981. 	if (buf) {
    982. 		level_conf->delay = atoi(buf + strlen(OPT_CHARGE_ANIM_DELAY));
    983. 	}
    984. 	buf = strstr(arg, OPT_CHARGE_ANIM_LEVEL_PFX);
    985. 	if (buf) {
    986. 		snprintf(level_conf->prefix, sizeof(level_conf->prefix), "%s",
    987. 		         buf + strlen(OPT_CHARGE_ANIM_LEVEL_PFX));
    988. 	} else {
    989. 		LOGE("Not found:%s", OPT_CHARGE_ANIM_LEVEL_PFX);
    990. 		return false;
    991. 	}
    992.
    993. 	LOGD("Found conf:\nmax_level:%d, num:%d, delay:%d, prefix:%s",
    994. 	     level_conf->max_level, level_conf->num, level_conf->delay,
    995. 	     level_conf->prefix);
    996. 	return true;
    997. }
    998.
    999. static int test_charge(int argc, char **argv)
    1000. {
    1001. 	const char *desc;
    1002. 	if (argc > 0) {
    1003. 		desc = argv[0];
    1004. 	} else {
    1005. 		desc = DEF_CHARGE_DESC_PATH;
    1006. 	}
    1007.
    1008. 	resource_content content;
    1009. 	snprintf(content.path, sizeof(content.path), "%s", desc);
    1010. 	content.load_addr = 0;
    1011. 	if (!get_content(&content)) {
    1012. 		goto end;
    1013. 	}
    1014. 	if (!load_content(&content)) {
    1015. 		goto end;
    1016. 	}
    1017.
    1018. 	char *buf = (char *)content.load_addr;
    1019. 	char *end = buf + content.content_size - 1;
    1020. 	*end = '\0';
    1021. 	LOGD("desc:\n%s", buf);
    1022.
    1023. 	int pos = 0;
    1024. 	while (1) {
    1025. 		char *line = (char *)memchr(buf + pos, '\n', strlen(buf + pos));
    1026. 		if (!line)
    1027. 			break;
    1028. 		*line = '\0';
    1029. 		LOGD("splite:%s", buf + pos);
    1030. 		pos += (strlen(buf + pos) + 1);
    1031. 	}
    1032.
    1033. 	int delay = 900;
    1034. 	int only_current_level = false;
    1035. 	anim_level_conf *level_confs = NULL;
    1036. 	int level_conf_pos = 0;
    1037. 	int level_conf_num = 0;
    1038.
    1039. 	while (true) {
    1040. 		if (buf >= end)
    1041. 			break;
    1042. 		const char *arg = buf;
    1043. 		buf += (strlen(buf) + 1);
    1044.
    1045. 		LOGD("parse arg:%s", arg);
    1046. 		if (!memcmp(arg, OPT_CHARGE_ANIM_LEVEL_CONF,
    1047. 		            strlen(OPT_CHARGE_ANIM_LEVEL_CONF))) {
    1048. 			if (!level_confs) {
    1049. 				LOGE("Found level conf before levels!");
    1050. 				goto end;
    1051. 			}
    1052. 			if (level_conf_pos >= level_conf_num) {
    1053. 				LOGE("Too many level confs!(%d >= %d)", level_conf_pos, level_conf_num);
    1054. 				goto end;
    1055. 			}
    1056. 			if (!parse_level_conf(arg, level_confs + level_conf_pos)) {
    1057. 				LOGE("Failed to parse level conf:%s", arg);
    1058. 				goto end;
    1059. 			}
    1060. 			level_conf_pos++;
    1061. 		} else if (!memcmp(arg, OPT_CHARGE_ANIM_DELAY,
    1062. 		                   strlen(OPT_CHARGE_ANIM_DELAY))) {
    1063. 			delay = atoi(arg + strlen(OPT_CHARGE_ANIM_DELAY));
    1064. 			LOGD("Found delay:%d", delay);
    1065. 		} else if (!memcmp(arg, OPT_CHARGE_ANIM_LOOP_CUR,
    1066. 		                   strlen(OPT_CHARGE_ANIM_LOOP_CUR))) {
    1067. 			only_current_level =
    1068. 			        !memcmp(arg + strlen(OPT_CHARGE_ANIM_LOOP_CUR), "true", 4);
    1069. 			LOGD("Found only_current_level:%d", only_current_level);
    1070. 		} else if (!memcmp(arg, OPT_CHARGE_ANIM_LEVELS,
    1071. 		                   strlen(OPT_CHARGE_ANIM_LEVELS))) {
    1072. 			if (level_conf_num) {
    1073. 				goto end;
    1074. 			}
    1075. 			level_conf_num = atoi(arg + strlen(OPT_CHARGE_ANIM_LEVELS));
    1076. 			if (!level_conf_num) {
    1077. 				goto end;
    1078. 			}
    1079. 			level_confs =
    1080. 			        (anim_level_conf *)malloc(level_conf_num * sizeof(anim_level_conf));
    1081. 			LOGD("Found levels:%d", level_conf_num);
    1082. 		} else {
    1083. 			LOGE("Unknown arg:%s", arg);
    1084. 			goto end;
    1085. 		}
    1086. 	}
    1087.
    1088. 	if (level_conf_pos != level_conf_num || !level_conf_num) {
    1089. 		LOGE("Something wrong with level confs!");
    1090. 		goto end;
    1091. 	}
    1092.
    1093. 	int i = 0, j = 0;
    1094. 	for (i = 0; i < level_conf_num; i++) {
    1095. 		if (!level_confs[i].delay) {
    1096. 			level_confs[i].delay = delay;
    1097. 		}
    1098. 		if (!level_confs[i].delay) {
    1099. 			LOGE("Missing delay in level conf:%d", i);
    1100. 			goto end;
    1101. 		}
    1102. 		for (j = 0; j < i; j++) {
    1103. 			if (level_confs[j].max_level == level_confs[i].max_level) {
    1104. 				LOGE("Dup level conf:%d", i);
    1105. 				goto end;
    1106. 			}
    1107. 			if (level_confs[j].max_level > level_confs[i].max_level) {
    1108. 				anim_level_conf conf = level_confs[i];
    1109. 				memmove(level_confs + j + 1, level_confs + j,
    1110. 				        (i - j) * sizeof(anim_level_conf));
    1111. 				level_confs[j] = conf;
    1112. 			}
    1113. 		}
    1114. 	}
    1115.
    1116. 	printf("Parse anim desc(%s):\n", desc);
    1117. 	printf("only_current_level=%d\n", only_current_level);
    1118. 	printf("level conf:\n");
    1119. 	for (i = 0; i < level_conf_num; i++) {
    1120. 		printf("\tmax=%d, delay=%d, num=%d, prefix=%s\n", level_confs[i].max_level,
    1121. 		       level_confs[i].delay, level_confs[i].num, level_confs[i].prefix);
    1122. 	}
    1123.
    1124. end:
    1125. 	free_content(&content);
    1126. 	return 0;
    1127. }
    1128.
    1129. /**********************anim test end************************/
    1130. /**********************append file************************/
    1131.
    1132. static const char *PROG = NULL;
    1133. static resource_ptn_header header;
    1134. static bool just_print = false;
    1135. static char root_path[MAX_INDEX_ENTRY_PATH_LEN] = "\0";
    1136.
    1137. static void version(void)
    1138. {
    1139. 	printf("%s (cjf@rock-chips.com)\t" VERSION "\n", PROG);
    1140. }
    1141.
    1142. static void usage(void)
    1143. {
    1144. 	printf("Usage: %s [options] [FILES]\n", PROG);
    1145. 	printf("Tools for Rockchip's resource image.\n");
    1146. 	version();
    1147. 	printf("Options:\n");
    1148. 	printf("\t" OPT_PACK "\t\t\tPack image from given files.\n");
    1149. 	printf("\t" OPT_UNPACK "\t\tUnpack given image to current dir.\n");
    1150. 	printf("\t" OPT_IMAGE "path"
    1151. 	       "\t\tSpecify input/output image path.\n");
    1152. 	printf("\t" OPT_PRINT "\t\t\tJust print informations.\n");
    1153. 	printf("\t" OPT_VERBOSE "\t\tDisplay more runtime informations.\n");
    1154. 	printf("\t" OPT_HELP "\t\t\tDisplay this information.\n");
    1155. 	printf("\t" OPT_VERSION "\t\tDisplay version information.\n");
    1156. 	printf("\t" OPT_ROOT "path"
    1157. 	       "\t\tSpecify resources' root dir.\n");
    1158. }
    1159.
    1160. static int pack_image(int file_num, const char **files);
    1161. static int unpack_image(const char *unpack_dir);
    1162.
    1163. enum ACTION {
    1164. 	ACTION_PACK,
    1165. 	ACTION_UNPACK,
    1166. 	ACTION_TEST_LOAD,
    1167. 	ACTION_TEST_CHARGE,
    1168. };
    1169.
    1170. int main(int argc, char **argv)
    1171. {
    1172. 	PROG = fix_path(argv[0]);
    1173.
    1174. 	enum ACTION action = ACTION_PACK;
    1175.
    1176. 	argc--, argv++;
    1177. 	while (argc > 0 && argv[0][0] == '-') {
    1178. 		/* it's a opt arg. */
    1179. 		const char *arg = argv[0];
    1180. 		argc--, argv++;
    1181. 		if (!strcmp(OPT_VERBOSE, arg)) {
    1182. 			g_debug = true;
    1183. 		} else if (!strcmp(OPT_HELP, arg)) {
    1184. 			usage();
    1185. 			return 0;
    1186. 		} else if (!strcmp(OPT_VERSION, arg)) {
    1187. 			version();
    1188. 			return 0;
    1189. 		} else if (!strcmp(OPT_PRINT, arg)) {
    1190. 			just_print = true;
    1191. 		} else if (!strcmp(OPT_PACK, arg)) {
    1192. 			action = ACTION_PACK;
    1193. 		} else if (!strcmp(OPT_UNPACK, arg)) {
    1194. 			action = ACTION_UNPACK;
    1195. 		} else if (!strcmp(OPT_TEST_LOAD, arg)) {
    1196. 			action = ACTION_TEST_LOAD;
    1197. 		} else if (!strcmp(OPT_TEST_CHARGE, arg)) {
    1198. 			action = ACTION_TEST_CHARGE;
    1199. 		} else if (!memcmp(OPT_IMAGE, arg, strlen(OPT_IMAGE))) {
    1200. 			snprintf(image_path, sizeof(image_path), "%s", arg + strlen(OPT_IMAGE));
    1201. 		} else if (!memcmp(OPT_ROOT, arg, strlen(OPT_ROOT))) {
    1202. 			snprintf(root_path, sizeof(root_path), "%s", arg + strlen(OPT_ROOT));
    1203. 		} else {
    1204. 			LOGE("Unknown opt:%s", arg);
    1205. 			usage();
    1206. 			return -1;
    1207. 		}
    1208. 	}
    1209.
    1210. 	if (!image_path[0]) {
    1211. 		snprintf(image_path, sizeof(image_path), "%s", DEFAULT_IMAGE_PATH);
    1212. 	}
    1213.
    1214. 	switch (action) {
    1215. 	case ACTION_PACK: {
    1216. 		int file_num = argc;
    1217. 		const char **files = (const char **)argv;
    1218. 		if (!file_num) {
    1219. 			LOGE("No file to pack!");
    1220. 			return 0;
    1221. 		}
    1222. 		LOGD("try to pack %d files.", file_num);
    1223. 		return pack_image(file_num, files);
    1224. 	}
    1225. 	case ACTION_UNPACK: {
    1226. 		return unpack_image(argc > 0 ? argv[0] : DEFAULT_UNPACK_DIR);
    1227. 	}
    1228. 	case ACTION_TEST_LOAD: {
    1229. 		return test_load(argc, argv);
    1230. 	}
    1231. 	case ACTION_TEST_CHARGE: {
    1232. 		return test_charge(argc, argv);
    1233. 	}
    1234. 	}
    1235. 	/* not reach here. */
    1236. 	return -1;
    1237. }
    1238.
    1239. /************unpack code****************/
    1240. static bool mkdirs(char *path)
    1241. {
    1242. 	char *tmp = path;
    1243. 	char *pos = NULL;
    1244. 	char buf[MAX_INDEX_ENTRY_PATH_LEN];
    1245. 	bool ret = true;
    1246. 	while ((pos = memchr(tmp, '/', strlen(tmp)))) {
    1247. 		strcpy(buf, path);
    1248. 		buf[pos - path] = '\0';
    1249. 		tmp = pos + 1;
    1250. 		LOGD("mkdir:%s", buf);
    1251. 		if (!mkdir(buf, 0755)) {
    1252. 			ret = false;
    1253. 		}
    1254. 	}
    1255. 	if (!ret)
    1256. 		LOGD("Failed to mkdir(%s)!", path);
    1257. 	return ret;
    1258. }
    1259.
    1260. static bool dump_file(FILE *file, const char *unpack_dir,
    1261.                       index_tbl_entry entry)
    1262. {
    1263. 	LOGD("try to dump entry:%s", entry.path);
    1264. 	bool ret = false;
    1265. 	FILE *out_file = NULL;
    1266. 	long int pos = 0;
    1267. 	char path[MAX_INDEX_ENTRY_PATH_LEN * 2 + 1];
    1268. 	if (just_print) {
    1269. 		ret = true;
    1270. 		goto done;
    1271. 	}
    1272.
    1273. 	pos = ftell(file);
    1274. 	snprintf(path, sizeof(path), "%s/%s", unpack_dir, entry.path);
    1275. 	mkdirs(path);
    1276. 	out_file = fopen(path, "wb");
    1277. 	if (!out_file) {
    1278. 		LOGE("Failed to create:%s", path);
    1279. 		goto end;
    1280. 	}
    1281. 	long int offset = entry.content_offset * BLOCK_SIZE;
    1282. 	fseek(file, offset, SEEK_SET);
    1283. 	if (offset != ftell(file)) {
    1284. 		LOGE("Failed to read content:%s", entry.path);
    1285. 		goto end;
    1286. 	}
    1287. 	char buf[BLOCK_SIZE];
    1288. 	int n;
    1289. 	int len = entry.content_size;
    1290. 	while (len > 0) {
    1291. 		n = len > BLOCK_SIZE ? BLOCK_SIZE : len;
    1292. 		if (!fread(buf, n, 1, file)) {
    1293. 			LOGE("Failed to read content:%s", entry.path);
    1294. 			goto end;
    1295. 		}
    1296. 		if (!fwrite(buf, n, 1, out_file)) {
    1297. 			LOGE("Failed to write:%s", entry.path);
    1298. 			goto end;
    1299. 		}
    1300. 		len -= n;
    1301. 	}
    1302. done:
    1303. 	ret = true;
    1304. end:
    1305. 	if (out_file)
    1306. 		fclose(out_file);
    1307. 	if (pos)
    1308. 		fseek(file, pos, SEEK_SET);
    1309. 	return ret;
    1310. }
    1311.
    1312. static int unpack_image(const char *dir)
    1313. {
    1314. 	FILE *image_file = NULL;
    1315. 	bool ret = false;
    1316. 	char unpack_dir[MAX_INDEX_ENTRY_PATH_LEN];
    1317. 	if (just_print)
    1318. 		dir = ".";
    1319. 	snprintf(unpack_dir, sizeof(unpack_dir), "%s", dir);
    1320. 	if (!strlen(unpack_dir)) {
    1321. 		goto end;
    1322. 	} else if (unpack_dir[strlen(unpack_dir) - 1] == '/') {
    1323. 		unpack_dir[strlen(unpack_dir) - 1] = '\0';
    1324. 	}
    1325.
    1326. 	mkdir(unpack_dir, 0755);
    1327. 	image_file = fopen(image_path, "rb");
    1328. 	char buf[BLOCK_SIZE];
    1329. 	if (!image_file) {
    1330. 		LOGE("Failed to open:%s", image_path);
    1331. 		goto end;
    1332. 	}
    1333. 	if (!fread(buf, BLOCK_SIZE, 1, image_file)) {
    1334. 		LOGE("Failed to read header!");
    1335. 		goto end;
    1336. 	}
    1337. 	memcpy(&header, buf, sizeof(header));
    1338.
    1339. 	if (memcmp(header.magic, RESOURCE_PTN_HDR_MAGIC, sizeof(header.magic))) {
    1340. 		LOGE("Not a resource image(%s)!", image_path);
    1341. 		goto end;
    1342. 	}
    1343. 	/* switch for be. */
    1344. 	fix_header(&header);
    1345.
    1346. 	printf("Dump header:\n");
    1347. 	printf("partition version:%d.%d\n", header.resource_ptn_version,
    1348. 	       header.index_tbl_version);
    1349. 	printf("header size:%d\n", header.header_size);
    1350. 	printf("index tbl:\n\toffset:%d\tentry size:%d\tentry num:%d\n",
    1351. 	       header.tbl_offset, header.tbl_entry_size, header.tbl_entry_num);
    1352.
    1353. 	/* TODO: support header_size & tbl_entry_size */
    1354. 	if (header.resource_ptn_version != RESOURCE_PTN_VERSION ||
    1355. 	    header.header_size != RESOURCE_PTN_HDR_SIZE ||
    1356. 	    header.index_tbl_version != INDEX_TBL_VERSION ||
    1357. 	    header.tbl_entry_size != INDEX_TBL_ENTR_SIZE) {
    1358. 		LOGE("Not supported in this version!");
    1359. 		goto end;
    1360. 	}
    1361.
    1362. 	printf("Dump Index table:\n");
    1363. 	index_tbl_entry entry;
    1364. 	int i;
    1365. 	for (i = 0; i < header.tbl_entry_num; i++) {
    1366. 		/* TODO: support tbl_entry_size */
    1367. 		if (!fread(buf, BLOCK_SIZE, 1, image_file)) {
    1368. 			LOGE("Failed to read index entry:%d!", i);
    1369. 			goto end;
    1370. 		}
    1371. 		memcpy(&entry, buf, sizeof(entry));
    1372.
    1373. 		if (memcmp(entry.tag, INDEX_TBL_ENTR_TAG, sizeof(entry.tag))) {
    1374. 			LOGE("Something wrong with index entry:%d!", i);
    1375. 			goto end;
    1376. 		}
    1377. 		/* switch for be. */
    1378. 		fix_entry(&entry);
    1379.
    1380. 		printf("entry(%d):\n\tpath:%s\n\toffset:%d\tsize:%d\n", i, entry.path,
    1381. 		       entry.content_offset, entry.content_size);
    1382. 		if (!dump_file(image_file, unpack_dir, entry)) {
    1383. 			goto end;
    1384. 		}
    1385. 	}
    1386. 	printf("Unack %s to %s successed!\n", image_path, unpack_dir);
    1387. 	ret = true;
    1388. end:
    1389. 	if (image_file)
    1390. 		fclose(image_file);
    1391. 	return ret ? 0 : -1;
    1392. }
    1393.
    1394. /************unpack code end****************/
    1395. /************pack code****************/
    1396.
    1397. static inline size_t get_file_size(const char *path)
    1398. {
    1399. 	LOGD("try to get size(%s)...", path);
    1400. 	struct stat st;
    1401. 	if (stat(path, &st) < 0) {
    1402. 		LOGE("Failed to get size:%s", path);
    1403. 		return -1;
    1404. 	}
    1405. 	LOGD("path:%s, size:%ld", path, st.st_size);
    1406. 	return st.st_size;
    1407. }
    1408.
    1409. static int write_file(int offset_block, const char *src_path,
    1410. 		      char hash[], int hash_size)
    1411. {
    1412. 	LOGD("try to write file(%s) to offset:%d...", src_path, offset_block);
    1413. 	char *buf = NULL;
    1414. 	int ret = -1;
    1415. 	size_t file_size;
    1416. 	FILE *src_file = fopen(src_path, "rb");
    1417. 	if (!src_file) {
    1418. 		LOGE("Failed to open:%s", src_path);
    1419. 		goto end;
    1420. 	}
    1421.
    1422. 	file_size = get_file_size(src_path);
    1423. 	if (file_size < 0) {
    1424. 		goto end;
    1425. 	}
    1426.
    1427. 	buf = calloc(file_size, 1);
    1428. 	if (!buf)
    1429. 		goto end;
    1430.
    1431. 	if (!fread(buf, file_size, 1, src_file))
    1432. 		goto end;
    1433.
    1434. 	if (!write_data(offset_block, buf, file_size))
    1435. 		goto end;
    1436.
    1437. 	if (hash_size == 20)
    1438. 		sha1_csum((const unsigned char *)buf, file_size,
    1439. 			  (unsigned char *)hash);
    1440. 	else if (hash_size == 32)
    1441. 		sha256_csum((const unsigned char *)buf, file_size,
    1442. 			    (unsigned char *)hash);
    1443. 	else
    1444. 		goto end;
    1445.
    1446. 	ret = file_size;
    1447. end:
    1448. 	if (src_file)
    1449. 		fclose(src_file);
    1450. 	if (buf)
    1451. 		free(buf);
    1452.
    1453. 	return ret;
    1454. }
    1455.
    1456. static bool write_header(const int file_num)
    1457. {
    1458. 	LOGD("try to write header...");
    1459. 	memcpy(header.magic, RESOURCE_PTN_HDR_MAGIC, sizeof(header.magic));
    1460. 	header.resource_ptn_version = RESOURCE_PTN_VERSION;
    1461. 	header.index_tbl_version = INDEX_TBL_VERSION;
    1462. 	header.header_size = RESOURCE_PTN_HDR_SIZE;
    1463. 	header.tbl_offset = header.header_size;
    1464. 	header.tbl_entry_size = INDEX_TBL_ENTR_SIZE;
    1465. 	header.tbl_entry_num = file_num;
    1466.
    1467. 	/* switch for le. */
    1468. 	resource_ptn_header hdr = header;
    1469. 	fix_header(&hdr);
    1470. 	return write_data(0, &hdr, sizeof(hdr));
    1471. }
    1472.
    1473. static bool write_index_tbl(const int file_num, const char **files)
    1474. {
    1475. 	LOGD("try to write index table...");
    1476. 	bool ret = false;
    1477. 	bool foundFdt = false;
    1478. 	int offset =
    1479. 	        header.header_size + header.tbl_entry_size * header.tbl_entry_num;
    1480. 	index_tbl_entry entry;
    1481. 	char hash[20];	/* sha1 */
    1482. 	int i;
    1483.
    1484. 	memcpy(entry.tag, INDEX_TBL_ENTR_TAG, sizeof(entry.tag));
    1485. 	for (i = 0; i < file_num; i++) {
    1486. 		size_t file_size = get_file_size(files[i]);
    1487. 		if (file_size < 0)
    1488. 			goto end;
    1489. 		entry.content_size = file_size;
    1490. 		entry.content_offset = offset;
    1491.
    1492. 		if (write_file(offset, files[i], hash, sizeof(hash)) < 0)
    1493. 			goto end;
    1494.
    1495. 		memcpy(entry.hash, hash, sizeof(hash));
    1496. 		entry.hash_size = sizeof(hash);
    1497.
    1498. 		LOGD("try to write index entry(%s)...", files[i]);
    1499.
    1500. 		/* switch for le. */
    1501. 		fix_entry(&entry);
    1502. 		memset(entry.path, 0, sizeof(entry.path));
    1503. 		const char *path = files[i];
    1504. 		if (root_path[0]) {
    1505. 			if (!strncmp(path, root_path, strlen(root_path))) {
    1506. 				path += strlen(root_path);
    1507. 				if (path[0] == '/')
    1508. 					path++;
    1509. 			}
    1510. 		}
    1511. 		path = fix_path(path);
    1512. 		if (!strcmp(files[i] + strlen(files[i]) - strlen(DTD_SUBFIX), DTD_SUBFIX)) {
    1513. 			if (!foundFdt) {
    1514. 				/* use default path. */
    1515. 				LOGD("mod fdt path:%s -> %s...", files[i], FDT_PATH);
    1516. 				path = FDT_PATH;
    1517. 				foundFdt = true;
    1518. 			}
    1519. 		}
    1520. 		snprintf(entry.path, sizeof(entry.path), "%s", path);
    1521. 		offset += fix_blocks(file_size);
    1522. 		if (!write_data(header.header_size + i * header.tbl_entry_size, &entry,
    1523. 		                sizeof(entry)))
    1524. 			goto end;
    1525. 	}
    1526. 	ret = true;
    1527. end:
    1528. 	return ret;
    1529. }
    1530.
    1531. static int pack_image(int file_num, const char **files)
    1532. {
    1533. 	bool ret = false;
    1534. 	FILE *image_file = fopen(image_path, "wb");
    1535. 	if (!image_file) {
    1536. 		LOGE("Failed to create:%s", image_path);
    1537. 		goto end;
    1538. 	}
    1539. 	fclose(image_file);
    1540.
    1541. 	/* prepare files */
    1542. 	int i = 0;
    1543. 	int pos = 0;
    1544. 	const char *tmp;
    1545. 	for (i = 0; i < file_num; i++) {
    1546. 		if (!strcmp(files[i] + strlen(files[i]) - strlen(DTD_SUBFIX), DTD_SUBFIX)) {
    1547. 			/* dtb files for kernel. */
    1548. 			tmp = files[pos];
    1549. 			files[pos] = files[i];
    1550. 			files[i] = tmp;
    1551. 			pos++;
    1552. 		} else if (!strcmp(fix_path(image_path), fix_path(files[i]))) {
    1553. 			/* not to pack image itself! */
    1554. 			tmp = files[file_num - 1];
    1555. 			files[file_num - 1] = files[i];
    1556. 			files[i] = tmp;
    1557. 			file_num--;
    1558. 		}
    1559. 	}
    1560.
    1561. 	if (!write_header(file_num)) {
    1562. 		LOGE("Failed to write header!");
    1563. 		goto end;
    1564. 	}
    1565. 	if (!write_index_tbl(file_num, files)) {
    1566. 		LOGE("Failed to write index table!");
    1567. 		goto end;
    1568. 	}
    1569. 	printf("Pack to %s successed!\n", image_path);
    1570. 	ret = true;
    1571. end:
    1572. 	return ret ? 0 : -1;
    1573. }
    1574.
    1575. /************pack code end****************/

    2.修改 scripts/Makefile ，让他能够编译改c文件

    hostprogs-always-$(CONFIG_ARCH_ROCKCHIP)        += resource_tool

    再次make，就没有错误了。

    但是问题是，仍然没有生成boot.img

    通过查看mkimg文件的流程，发现还缺少一个命令

    解决：

    从原来的sdk拷贝一个过来，再次make，就成功生成了boot.img。

    mkbootimg是一个python脚本，内容如下：

    1. #!/usr/bin/env python
    2. # Copyright 2015, The Android Open Source Project
    3. #
    4. # Licensed under the Apache License, Version 2.0 (the "License");
    5. # you may not use this file except in compliance with the License.
    6. # You may obtain a copy of the License at
    7. #
    8. #     http://www.apache.org/licenses/LICENSE-2.0
    9. #
    10. # Unless required by applicable law or agreed to in writing, software
    11. # distributed under the License is distributed on an "AS IS" BASIS,
    12. # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    13. # See the License for the specific language governing permissions and
    14. # limitations under the License.
    15.
    16. from __future__ import print_function
    17.
    18. from argparse import ArgumentParser, FileType, Action
    19. from hashlib import sha1
    20. from os import fstat
    21. import re
    22. from struct import pack
    23.
    24.
    25. BOOT_IMAGE_HEADER_V3_PAGESIZE = 4096
    26.
    27. def filesize(f):
    28.     if f is None:
    29.         return 0
    30.     try:
    31.         return fstat(f.fileno()).st_size
    32.     except OSError:
    33.         return 0
    34.
    35.
    36. def update_sha(sha, f):
    37.     if f:
    38.         sha.update(f.read())
    39.         f.seek(0)
    40.         sha.update(pack('I', filesize(f)))
    41.     else:
    42.         sha.update(pack('I', 0))
    43.
    44.
    45. def pad_file(f, padding):
    46.     pad = (padding - (f.tell() & (padding - 1))) & (padding - 1)
    47.     f.write(pack(str(pad) + 'x'))
    48.
    49.
    50. def get_number_of_pages(image_size, page_size):
    51.     """calculates the number of pages required for the image"""
    52.     return (image_size + page_size - 1) / page_size
    53.
    54.
    55. def get_recovery_dtbo_offset(args):
    56.     """calculates the offset of recovery_dtbo image in the boot image"""
    57.     num_header_pages = 1 # header occupies a page
    58.     num_kernel_pages = get_number_of_pages(filesize(args.kernel), args.pagesize)
    59.     num_ramdisk_pages = get_number_of_pages(filesize(args.ramdisk), args.pagesize)
    60.     num_second_pages = get_number_of_pages(filesize(args.second), args.pagesize)
    61.     dtbo_offset = args.pagesize * (num_header_pages + num_kernel_pages +
    62.                                    num_ramdisk_pages + num_second_pages)
    63.     return dtbo_offset
    64.
    65.
    66. def write_header_v3(args):
    67.     BOOT_IMAGE_HEADER_V3_SIZE = 1580
    68.     BOOT_MAGIC = 'ANDROID!'.encode()
    69.
    70.     args.output.write(pack('8s', BOOT_MAGIC))
    71.     args.output.write(pack(
    72.         '4I',
    73.         filesize(args.kernel),                          # kernel size in bytes
    74.         filesize(args.ramdisk),                         # ramdisk size in bytes
    75.         (args.os_version << 11) | args.os_patch_level,  # os version and patch level
    76.         BOOT_IMAGE_HEADER_V3_SIZE))
    77.
    78.     args.output.write(pack('4I', 0, 0, 0, 0))           # reserved
    79.
    80.     args.output.write(pack('I', args.header_version))   # version of bootimage header
    81.     args.output.write(pack('1536s', args.cmdline.encode()))
    82.     pad_file(args.output, BOOT_IMAGE_HEADER_V3_PAGESIZE)
    83.
    84. def write_vendor_boot_header(args):
    85.     VENDOR_BOOT_IMAGE_HEADER_V3_SIZE = 2112
    86.     BOOT_MAGIC = 'VNDRBOOT'.encode()
    87.
    88.     args.vendor_boot.write(pack('8s', BOOT_MAGIC))
    89.     args.vendor_boot.write(pack(
    90.         '5I',
    91.         args.header_version,                            # version of header
    92.         args.pagesize,                                  # flash page size we assume
    93.         args.base + args.kernel_offset,                 # kernel physical load addr
    94.         args.base + args.ramdisk_offset,                # ramdisk physical load addr
    95.         filesize(args.vendor_ramdisk)))                 # vendor ramdisk size in bytes
    96.     args.vendor_boot.write(pack('2048s', args.vendor_cmdline.encode()))
    97.     args.vendor_boot.write(pack('I', args.base + args.tags_offset)) # physical addr for kernel tags
    98.     args.vendor_boot.write(pack('16s', args.board.encode())) # asciiz product name
    99.     args.vendor_boot.write(pack('I', VENDOR_BOOT_IMAGE_HEADER_V3_SIZE)) # header size in bytes
    100.     if filesize(args.dtb) == 0:
    101.         raise ValueError("DTB image must not be empty.")
    102.     args.vendor_boot.write(pack('I', filesize(args.dtb)))   # size in bytes
    103.     args.vendor_boot.write(pack('Q', args.base + args.dtb_offset)) # dtb physical load address
    104.     pad_file(args.vendor_boot, args.pagesize)
    105.
    106. def write_header(args):
    107.     BOOT_IMAGE_HEADER_V1_SIZE = 1648
    108.     BOOT_IMAGE_HEADER_V2_SIZE = 1660
    109.     BOOT_MAGIC = 'ANDROID!'.encode()
    110.
    111.     if args.header_version > 3:
    112.         raise ValueError('Boot header version %d not supported' % args.header_version)
    113.     elif args.header_version == 3:
    114.         return write_header_v3(args)
    115.
    116.     args.output.write(pack('8s', BOOT_MAGIC))
    117.     final_ramdisk_offset = (args.base + args.ramdisk_offset) if filesize(args.ramdisk) > 0 else 0
    118.     final_second_offset = (args.base + args.second_offset) if filesize(args.second) > 0 else 0
    119.     args.output.write(pack(
    120.         '10I',
    121.         filesize(args.kernel),                          # size in bytes
    122.         args.base + args.kernel_offset,                 # physical load addr
    123.         filesize(args.ramdisk),                         # size in bytes
    124.         final_ramdisk_offset,                           # physical load addr
    125.         filesize(args.second),                          # size in bytes
    126.         final_second_offset,                            # physical load addr
    127.         args.base + args.tags_offset,                   # physical addr for kernel tags
    128.         args.pagesize,                                  # flash page size we assume
    129.         args.header_version,                            # version of bootimage header
    130.         (args.os_version << 11) | args.os_patch_level)) # os version and patch level
    131.     args.output.write(pack('16s', args.board.encode())) # asciiz product name
    132.     args.output.write(pack('512s', args.cmdline[:512].encode()))
    133.
    134.     sha = sha1()
    135.     update_sha(sha, args.kernel)
    136.     update_sha(sha, args.ramdisk)
    137.     update_sha(sha, args.second)
    138.
    139.     if args.header_version > 0:
    140.         update_sha(sha, args.recovery_dtbo)
    141.     if args.header_version > 1:
    142.         update_sha(sha, args.dtb)
    143.
    144.     img_id = pack('32s', sha.digest())
    145.
    146.     args.output.write(img_id)
    147.     args.output.write(pack('1024s', args.cmdline[512:].encode()))
    148.
    149.     if args.header_version > 0:
    150.         args.output.write(pack('I', filesize(args.recovery_dtbo)))   # size in bytes
    151.         if args.recovery_dtbo:
    152.             args.output.write(pack('Q', get_recovery_dtbo_offset(args))) # recovery dtbo offset
    153.         else:
    154.             args.output.write(pack('Q', 0)) # Will be set to 0 for devices without a recovery dtbo
    155.
    156.     # Populate boot image header size for header versions 1 and 2.
    157.     if args.header_version == 1:
    158.         args.output.write(pack('I', BOOT_IMAGE_HEADER_V1_SIZE))
    159.     elif args.header_version == 2:
    160.         args.output.write(pack('I', BOOT_IMAGE_HEADER_V2_SIZE))
    161.
    162.     if args.header_version > 1:
    163.
    164.         # if filesize(args.dtb) == 0:
    165.         #     raise ValueError("DTB image must not be empty.")
    166.
    167.         args.output.write(pack('I', filesize(args.dtb)))   # size in bytes
    168.         args.output.write(pack('Q', args.base + args.dtb_offset)) # dtb physical load address
    169.     pad_file(args.output, args.pagesize)
    170.     return img_id
    171.
    172.
    173. class ValidateStrLenAction(Action):
    174.     def __init__(self, option_strings, dest, nargs=None, **kwargs):
    175.         if 'maxlen' not in kwargs:
    176.             raise ValueError('maxlen must be set')
    177.         self.maxlen = int(kwargs['maxlen'])
    178.         del kwargs['maxlen']
    179.         super(ValidateStrLenAction, self).__init__(option_strings, dest, **kwargs)
    180.
    181.     def __call__(self, parser, namespace, values, option_string=None):
    182.         if len(values) > self.maxlen:
    183.             raise ValueError(
    184.                 'String argument too long: max {0:d}, got {1:d}'.format(self.maxlen, len(values)))
    185.         setattr(namespace, self.dest, values)
    186.
    187.
    188. def write_padded_file(f_out, f_in, padding):
    189.     if f_in is None:
    190.         return
    191.     f_out.write(f_in.read())
    192.     pad_file(f_out, padding)
    193.
    194.
    195. def parse_int(x):
    196.     return int(x, 0)
    197.
    198.
    199. def parse_os_version(x):
    200.     match = re.search(r'^(\d{1,3})(?:\.(\d{1,3})(?:\.(\d{1,3}))?)?', x)
    201.     if match:
    202.         a = int(match.group(1))
    203.         b = c = 0
    204.         if match.lastindex >= 2:
    205.             b = int(match.group(2))
    206.         if match.lastindex == 3:
    207.             c = int(match.group(3))
    208.         # 7 bits allocated for each field
    209.         assert a < 128
    210.         assert b < 128
    211.         assert c < 128
    212.         return (a << 14) | (b << 7) | c
    213.     return 0
    214.
    215.
    216. def parse_os_patch_level(x):
    217.     match = re.search(r'^(\d{4})-(\d{2})(?:-(\d{2}))?', x)
    218.     if match:
    219.         y = int(match.group(1)) - 2000
    220.         m = int(match.group(2))
    221.         # 7 bits allocated for the year, 4 bits for the month
    222.         assert 0 <= y < 128
    223.         assert 0 < m <= 12
    224.         return (y << 4) | m
    225.     return 0
    226.
    227.
    228. def parse_cmdline():
    229.     parser = ArgumentParser()
    230.     parser.add_argument('--kernel', help='path to the kernel', type=FileType('rb'))
    231.     parser.add_argument('--ramdisk', help='path to the ramdisk', type=FileType('rb'))
    232.     parser.add_argument('--second', help='path to the 2nd bootloader', type=FileType('rb'))
    233.     parser.add_argument('--dtb', help='path to dtb', type=FileType('rb'))
    234.     recovery_dtbo_group = parser.add_mutually_exclusive_group()
    235.     recovery_dtbo_group.add_argument('--recovery_dtbo', help='path to the recovery DTBO',
    236.                                      type=FileType('rb'))
    237.     recovery_dtbo_group.add_argument('--recovery_acpio', help='path to the recovery ACPIO',
    238.                                      type=FileType('rb'), metavar='RECOVERY_ACPIO',
    239.                                      dest='recovery_dtbo')
    240.     parser.add_argument('--cmdline', help='extra arguments to be passed on the '
    241.                         'kernel command line', default='', action=ValidateStrLenAction, maxlen=1536)
    242.     parser.add_argument('--vendor_cmdline',
    243.                         help='kernel command line arguments contained in vendor boot',
    244.                         default='', action=ValidateStrLenAction, maxlen=2048)
    245.     parser.add_argument('--base', help='base address', type=parse_int, default=0x10000000)
    246.     parser.add_argument('--kernel_offset', help='kernel offset', type=parse_int, default=0x00008000)
    247.     parser.add_argument('--ramdisk_offset', help='ramdisk offset', type=parse_int,
    248.                         default=0x01000000)
    249.     parser.add_argument('--second_offset', help='2nd bootloader offset', type=parse_int,
    250.                         default=0x00f00000)
    251.     parser.add_argument('--dtb_offset', help='dtb offset', type=parse_int, default=0x01f00000)
    252.
    253.     parser.add_argument('--os_version', help='operating system version', type=parse_os_version,
    254.                         default=0)
    255.     parser.add_argument('--os_patch_level', help='operating system patch level',
    256.                         type=parse_os_patch_level, default=0)
    257.     parser.add_argument('--tags_offset', help='tags offset', type=parse_int, default=0x00000100)
    258.     parser.add_argument('--board', help='board name', default='', action=ValidateStrLenAction,
    259.                         maxlen=16)
    260.     parser.add_argument('--pagesize', help='page size', type=parse_int,
    261.                         choices=[2**i for i in range(11, 15)], default=2048)
    262.     parser.add_argument('--id', help='print the image ID on standard output',
    263.                         action='store_true')
    264.     parser.add_argument('--header_version', help='boot image header version', type=parse_int,
    265.                         default=0)
    266.     parser.add_argument('-o', '--output', help='output file name', type=FileType('wb'))
    267.     parser.add_argument('--vendor_boot', help='vendor boot output file name', type=FileType('wb'))
    268.     parser.add_argument('--vendor_ramdisk', help='path to the vendor ramdisk', type=FileType('rb'))
    269.
    270.     return parser.parse_args()
    271.
    272.
    273. def write_data(args, pagesize):
    274.     write_padded_file(args.output, args.kernel, pagesize)
    275.     write_padded_file(args.output, args.ramdisk, pagesize)
    276.     write_padded_file(args.output, args.second, pagesize)
    277.
    278.     if args.header_version > 0 and args.header_version < 3:
    279.         write_padded_file(args.output, args.recovery_dtbo, pagesize)
    280.     if args.header_version == 2:
    281.         write_padded_file(args.output, args.dtb, pagesize)
    282.
    283.
    284. def write_vendor_boot_data(args):
    285.     write_padded_file(args.vendor_boot, args.vendor_ramdisk, args.pagesize)
    286.     write_padded_file(args.vendor_boot, args.dtb, args.pagesize)
    287.
    288.
    289. def main():
    290.     args = parse_cmdline()
    291.     if args.vendor_boot is not None:
    292.         if args.header_version < 3:
    293.             raise ValueError('--vendor_boot not compatible with given header version')
    294.         if args.vendor_ramdisk is None:
    295.             raise ValueError('--vendor_ramdisk missing or invalid')
    296.         write_vendor_boot_header(args)
    297.         write_vendor_boot_data(args)
    298.     if args.output is not None:
    299.         if args.kernel is None:
    300.             raise ValueError('kernel must be supplied when creating a boot image')
    301.         if args.second is not None and args.header_version > 2:
    302.             raise ValueError('--second not compatible with given header version')
    303.         img_id = write_header(args)
    304.         if args.header_version > 2:
    305.             write_data(args, BOOT_IMAGE_HEADER_V3_PAGESIZE)
    306.         else:
    307.             write_data(args, args.pagesize)
    308.         if args.id and img_id is not None:
    309.             # Python 2's struct.pack returns a string, but py3 returns bytes.
    310.             if isinstance(img_id, str):
    311.                 img_id = [ord(x) for x in img_id]
    312.             print('0x' + ''.join('{:02x}'.format(c) for c in img_id))
    313.
    314.
    315. if __name__ == '__main__':
    316.     main()

    最后还有一个说明一下：

    logo.bmp和logo_kernel.bmp 我也是拷贝了一份的。

  • 相关阅读:
    树状数组。 数组修改某个元素的数值/求出前n个元素的和，需要在一百毫秒处理上百万个数字
    Ant Design Vue Pro去掉权限，直接进入系统
    java auth 随笔 0-shiro
    一个优质软件测试工程师简历，疯狂面试5家公司......
    【JAVA UI】HarmonyOS 定位的功能基本实现
    “蘑菇书“配套在线课程上线
    netty系列之:kequeue传输协议详解
    本地库覆盖glibc的API
    VMware找不到父磁盘 父虚拟磁盘在子虚拟磁盘创建之后被修改过。父虚拟磁盘的内容 ID 与子虚拟磁盘中对应的父内容 ID 不匹配
    CF696B Puzzles 题解
  • 原文地址：https://blog.csdn.net/zhaozhi0810/article/details/133761180
