麦田物语学习

设置预设

将对一个物体的操作保存下来，直接用于其他的物体，比较省力

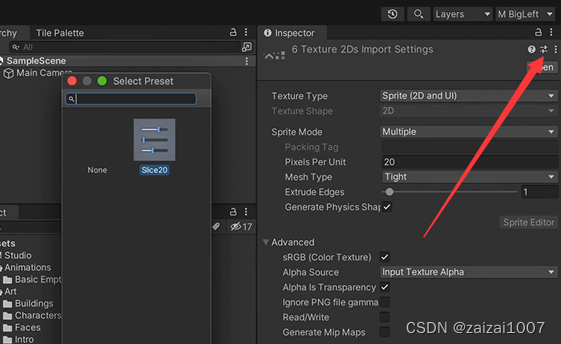

当设置好一个物体后点击箭头所指的地方，保存预设，在其他物体的面板里点击预设使用

sprite renderer 图片渲染顺序参考点

sorting group

因为人物的sprite为了实现遮挡有不同的的orderlayer，但是这样的话可能因为图片太多顺序混乱然后导致身体分家，所以添加一个组件让身体合并为同一块

修改游戏的渲染方式

因为做的是俯视角的游戏，所以修改为按照 y 轴渲染

这样可以实现y轴俯视角的游戏，实现自然的遮挡效果

实现地图

使用Tilemap，设置不同的Sorting Layer实现遮挡关系

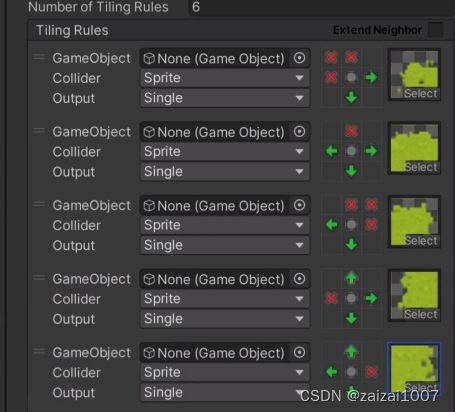

规则瓦片 RuleTile

使用方法：

瓦片地图的缝隙

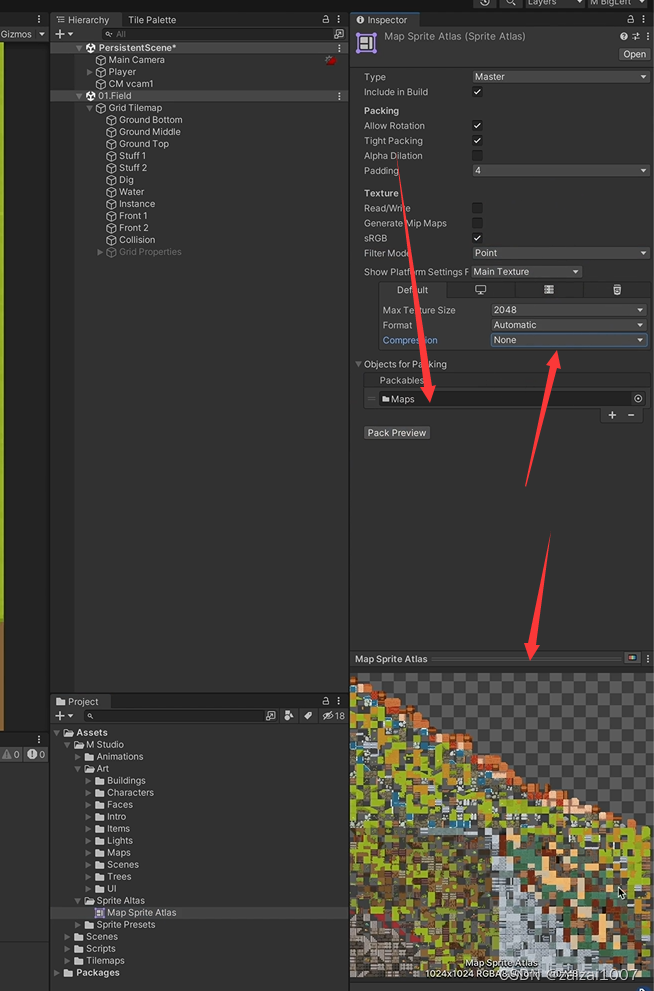

使用Map Sprite Atlas 将图片素材打包成一张图片，使用的时候就会忽略素材之间的缝隙紧密贴合在一起

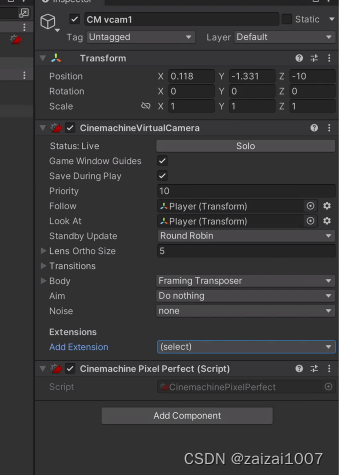

Camera 设置

修改图片素材的碰撞关系

实现摄像机边界功能

using System.Collections;
using System.Collections.Generic;
using Cinemachine;
using UnityEngine;

public class SwitchBounds : MonoBehaviour
{

    private void Start()
    {
        SwitchConfinerShape();
    }

    //让CinemaChine 在切换场景后刚好能找到新场景的polygon collider 然后获取
    private void SwitchConfinerShape()
    {
        PolygonCollider2D confinerShape = GameObject.
            FindGameObjectWithTag("BoundsConfiner").GetComponent();
        CinemachineConfiner confiner = GetComponent();

        confiner.m_BoundingShape2D = confinerShape;

        //Call this if the bounding shape's points change at runtime
        //清理缓存，不清理的话可能切换场景的时候并没有实际更改边界
        confiner.InvalidatePathCache();
    }
}

背包

ItemDetails

[System.Serializable]
public class ItemDetails
{
    public int itemID;
    public string name;
    public ItemType itemType;
    public Sprite itemIcon;
    public Sprite itemOnWorldSprite;
    public string itemDescription;
    public int itemUseRadius;
    public bool canPickedup;
    public bool canDropped;
    public bool canCarried;
    public int itemPrice;
    [Range(0, 1)]
    public float sellPercentage;
}

SO文件

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

[CreateAssetMenu(fileName = "ItemDataList_SO",menuName = "Inventory/ItemDataList")]
public class ItemDataList_SO : ScriptableObject
{
    public List itemDetailsList;
}

UI ToolKit 与 UI Builder

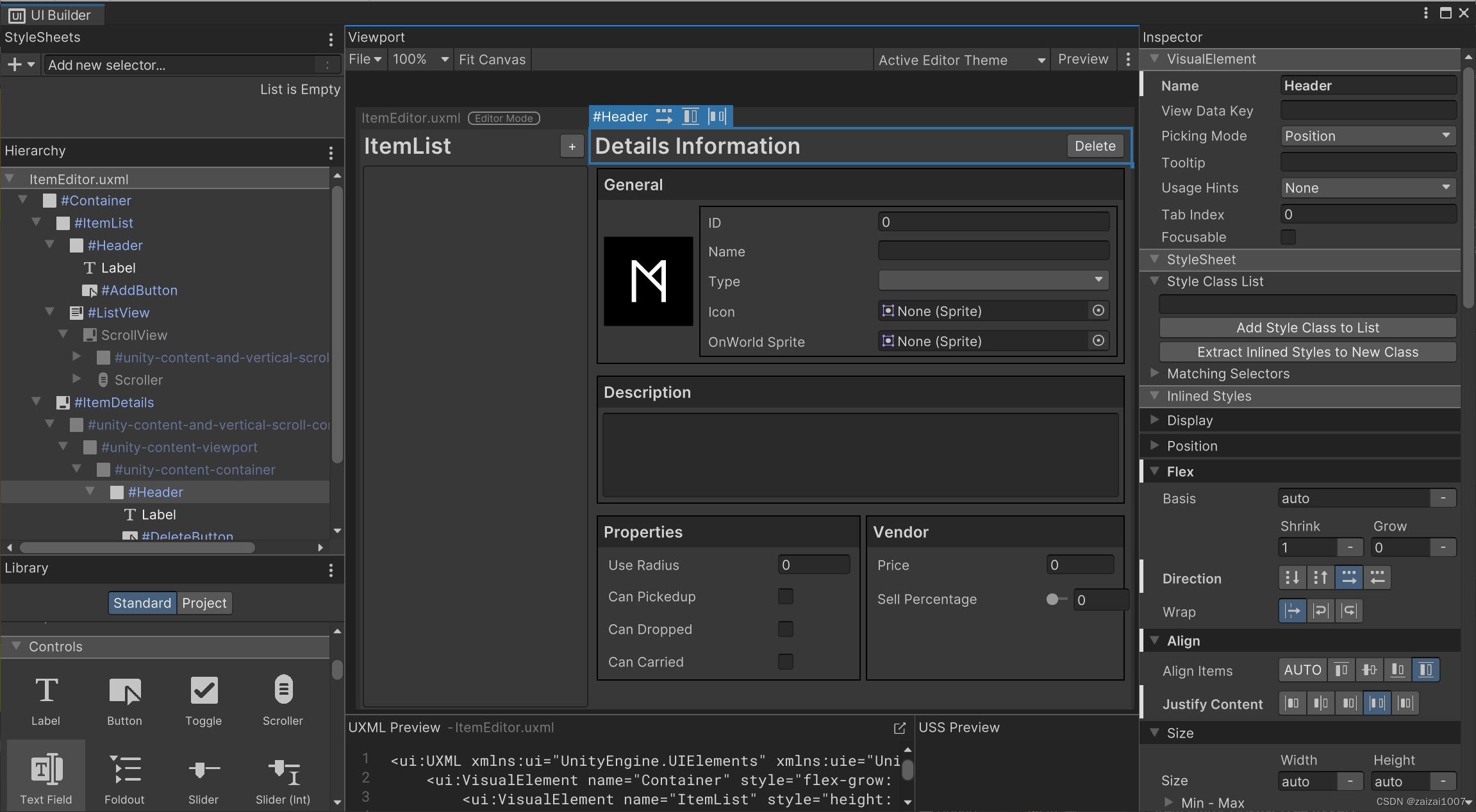

UI Builder

using System;
using System.Collections.Generic;
using System.Linq;
using UnityEditor;
using UnityEditor.UIElements;
using UnityEngine;
using UnityEngine.UIElements;

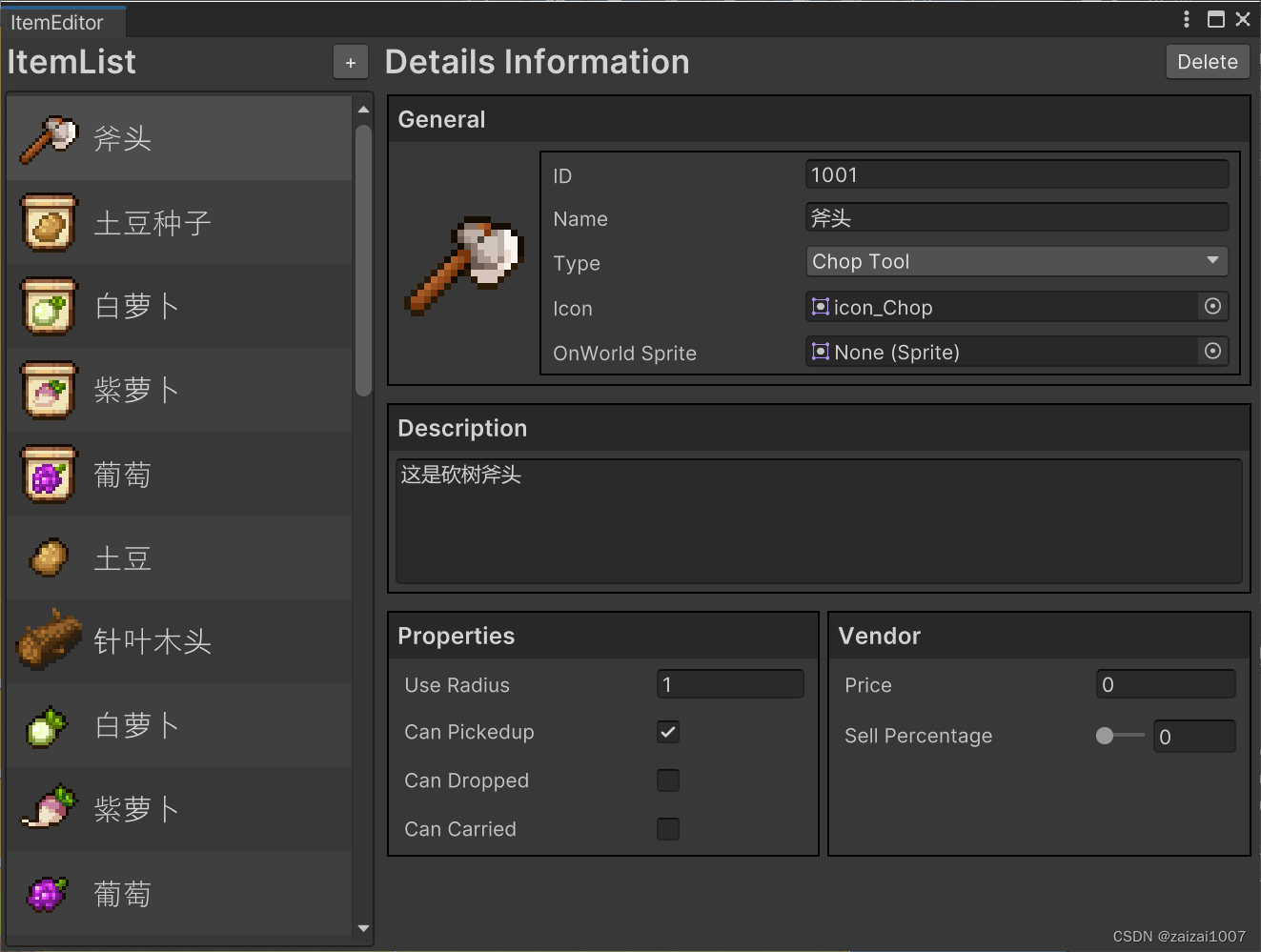

public class ItemEditor : EditorWindow
{
    private ItemDataList_SO dataBase;
    private List itemList = new List();
    private VisualTreeAsset itemRowTemplate;
    private ScrollView itemDetailsSection;
    private ItemDetails activeItem;

    //默认预览图片
    private Sprite defaultIcon;

    private VisualElement iconPreview;
    //获得VisualElement
    private ListView itemListView;

    [MenuItem("M STUDIO/ItemEditor")]
    public static void ShowExample()
    {
        ItemEditor wnd = GetWindow();
        wnd.titleContent = new GUIContent("ItemEditor");
    }

    public void CreateGUI()
    {
        // Each editor window contains a root VisualElement object
        VisualElement root = rootVisualElement;

        // VisualElements objects can contain other VisualElement following a tree hierarchy.
        // VisualElement label = new Label("Hello World! From C#");
        // root.Add(label);

        // Import UXML
        var visualTree = AssetDatabase.LoadAssetAtPath("Assets/Editor/UI Builder/ItemEditor.uxml");
        VisualElement labelFromUXML = visualTree.Instantiate();
        root.Add(labelFromUXML);

        //拿到模版数据
        itemRowTemplate = AssetDatabase.LoadAssetAtPath("Assets/Editor/UI Builder/ItemRowTemplate.uxml");

        //拿默认Icon图片
        defaultIcon = AssetDatabase.LoadAssetAtPath("Assets/M Studio/Art/Items/Icons/icon_M.png");

        //变量赋值
        itemListView = root.Q("ItemList").Q("ListView");
        itemDetailsSection = root.Q("ItemDetails");
        iconPreview = itemDetailsSection.Q("Icon");


        //获得按键
        root.Q("AddButton").clicked += OnAddItemClicked;
        root.Q("DeleteButton").clicked += OnDeleteClicked;
        //加载数据
        LoadDataBase();

        //生成ListView
        GenerateListView();
    }

    #region 按键事件
    private void OnDeleteClicked()
    {
        itemList.Remove(activeItem);
        itemListView.Rebuild();
        itemDetailsSection.visible = false;
    }

    private void OnAddItemClicked()
    {
        ItemDetails newItem = new ItemDetails();
        newItem.itemName = "NEW ITEM";
        newItem.itemID = 1001 + itemList.Count;
        itemList.Add(newItem);
        itemListView.Rebuild();
    }
    #endregion

    private void LoadDataBase()
    {
        //返回寻找的文件的GUID，返回的是一个string[]
        var dataArray = AssetDatabase.FindAssets("ItemDataList_SO");

        if (dataArray.Length > 1)
        {
            //将GUID转换为path，根据path寻找文件，因为只有一个文件，所以直接访问索引0就可以
            var path = AssetDatabase.GUIDToAssetPath(dataArray[0]);
            //返回的是 object 类型，所以需要转换一下
            dataBase = AssetDatabase.LoadAssetAtPath(path, typeof(ItemDataList_SO)) as ItemDataList_SO;
        }

        itemList = dataBase.itemDetailsList;
        //如果不标记则无法保存数据
        EditorUtility.SetDirty(dataBase);
        // Debug.Log(itemList[0].itemID);
    }

    private void GenerateListView()
    {
        Func makeItem = () => itemRowTemplate.CloneTree();

        Actionint> bindItem = (e, i) =>
        {
            if (i < itemList.Count)
            {
                if (itemList[i].itemIcon != null)
                    e.Q("Icon").style.backgroundImage = itemList[i].itemIcon.texture;
                e.Q("Name").text = itemList[i] == null ? "NO ITEM" : itemList[i].itemName;
            }
        };

        itemListView.fixedItemHeight = 50;  //根据需要高度调整数值
        itemListView.itemsSource = itemList;
        itemListView.makeItem = makeItem;
        itemListView.bindItem = bindItem;

        itemListView.onSelectionChange += OnListSelectionChange;

        //右侧信息面板不可见
        itemDetailsSection.visible = false;
    }

    private void OnListSelectionChange(IEnumerable<object> selectedItem)
    {
        activeItem = (ItemDetails)selectedItem.First();
        GetItemDetails();
        itemDetailsSection.visible = true;
    }

    private void GetItemDetails()
    {
        itemDetailsSection.MarkDirtyRepaint();

        itemDetailsSection.Q("ItemID").value = activeItem.itemID;
        itemDetailsSection.Q("ItemID").RegisterValueChangedCallback(evt =>
        {
            //当面板中的数据一更新就会调用回调函数将新数值写到文件中
            activeItem.itemID = evt.newValue;
        });

        itemDetailsSection.Q("ItemName").value = activeItem.itemName;
        itemDetailsSection.Q("ItemName").RegisterValueChangedCallback(evt =>
        {
            activeItem.itemName = evt.newValue;
            itemListView.Rebuild();
        });

        iconPreview.style.backgroundImage = activeItem.itemIcon == null ? defaultIcon.texture : activeItem.itemIcon.texture;
        itemDetailsSection.Q("ItemIcon").value = activeItem.itemIcon;
        itemDetailsSection.Q("ItemIcon").RegisterValueChangedCallback(evt =>
        {
            Sprite newIcon = evt.newValue as Sprite;
            activeItem.itemIcon = newIcon;

            iconPreview.style.backgroundImage = newIcon == null ? defaultIcon.texture : newIcon.texture;
            itemListView.Rebuild();
        });

        //其他所有变量的绑定
        itemDetailsSection.Q("ItemSprite").value = activeItem.itemOnWorldSprite;
        itemDetailsSection.Q("ItemSprite").RegisterValueChangedCallback(evt =>
        {
            activeItem.itemOnWorldSprite = (Sprite)evt.newValue;
        });

        itemDetailsSection.Q("ItemType").Init(activeItem.itemType);
        itemDetailsSection.Q("ItemType").value = activeItem.itemType;
        itemDetailsSection.Q("ItemType").RegisterValueChangedCallback(evt =>
        {
            activeItem.itemType = (ItemType)evt.newValue;
        });

        itemDetailsSection.Q("Description").value = activeItem.itemDescription;
        itemDetailsSection.Q("Description").RegisterValueChangedCallback(evt =>
        {
            activeItem.itemDescription = evt.newValue;
        });

        itemDetailsSection.Q("ItemUseRadius").value = activeItem.itemUseRadius;
        itemDetailsSection.Q("ItemUseRadius").RegisterValueChangedCallback(evt =>
        {
            activeItem.itemUseRadius = evt.newValue;
        });

        itemDetailsSection.Q("CanPickedup").value = activeItem.canPickedup;
        itemDetailsSection.Q("CanPickedup").RegisterValueChangedCallback(evt =>
        {
            activeItem.canPickedup = evt.newValue;
        });

        itemDetailsSection.Q("CanDropped").value = activeItem.canDropped;
        itemDetailsSection.Q("CanDropped").RegisterValueChangedCallback(evt =>
        {
            activeItem.canDropped = evt.newValue;
        });

        itemDetailsSection.Q("CanCarried").value = activeItem.canCarried;
        itemDetailsSection.Q("CanCarried").RegisterValueChangedCallback(evt =>
        {
            activeItem.canCarried = evt.newValue;
        });

        itemDetailsSection.Q("Price").value = activeItem.itemPrice;
        itemDetailsSection.Q("Price").RegisterValueChangedCallback(evt =>
        {
            activeItem.itemPrice = evt.newValue;
        });

        itemDetailsSection.Q("SellPercentage").value = activeItem.sellPercentage;
        itemDetailsSection.Q("SellPercentage").RegisterValueChangedCallback(evt =>
        {
            activeItem.sellPercentage = evt.newValue;
        });
    }
}

UI版面大小根据内容量自动改变大小
